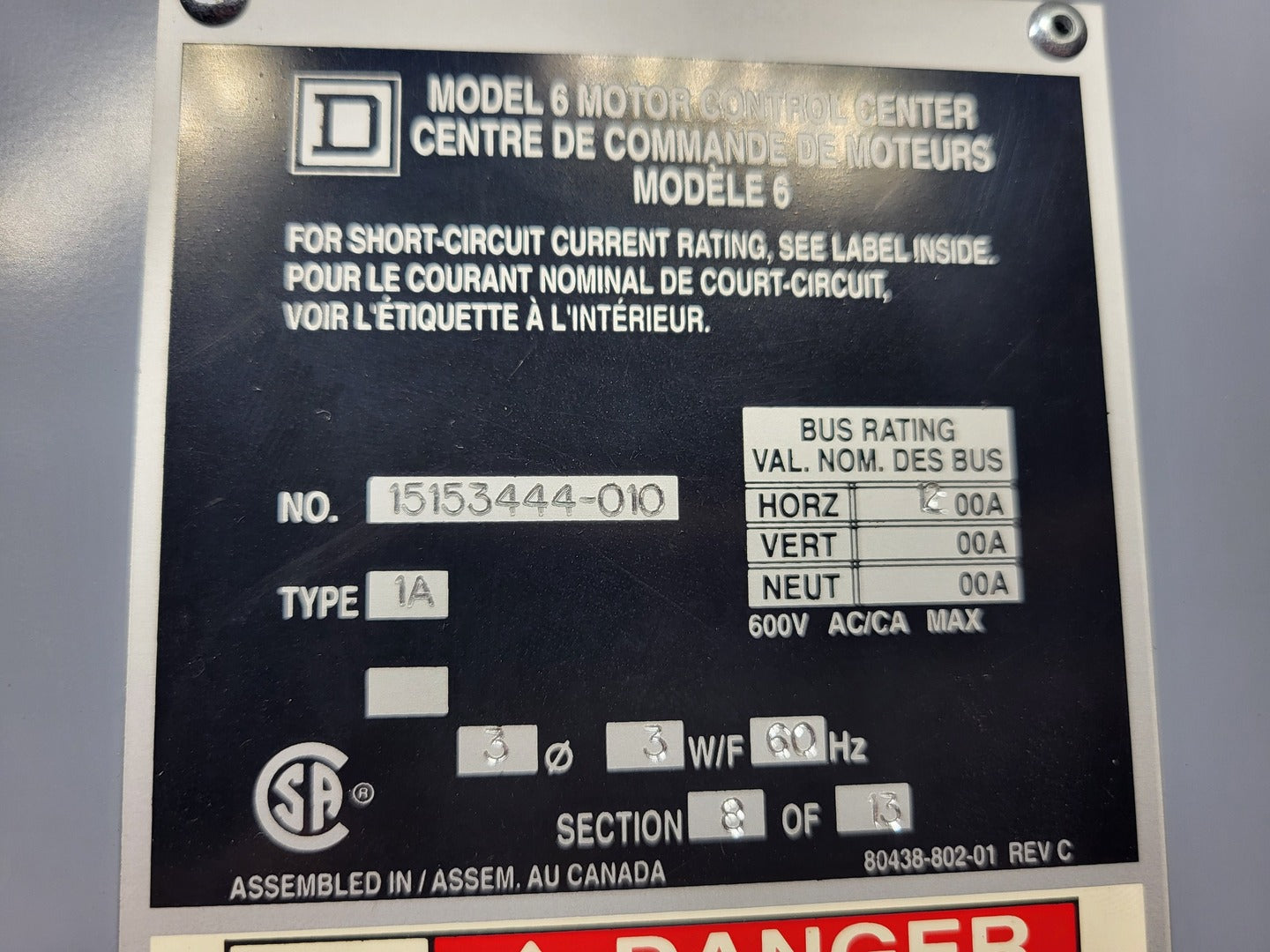

SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151207
Precio:
$13,800 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

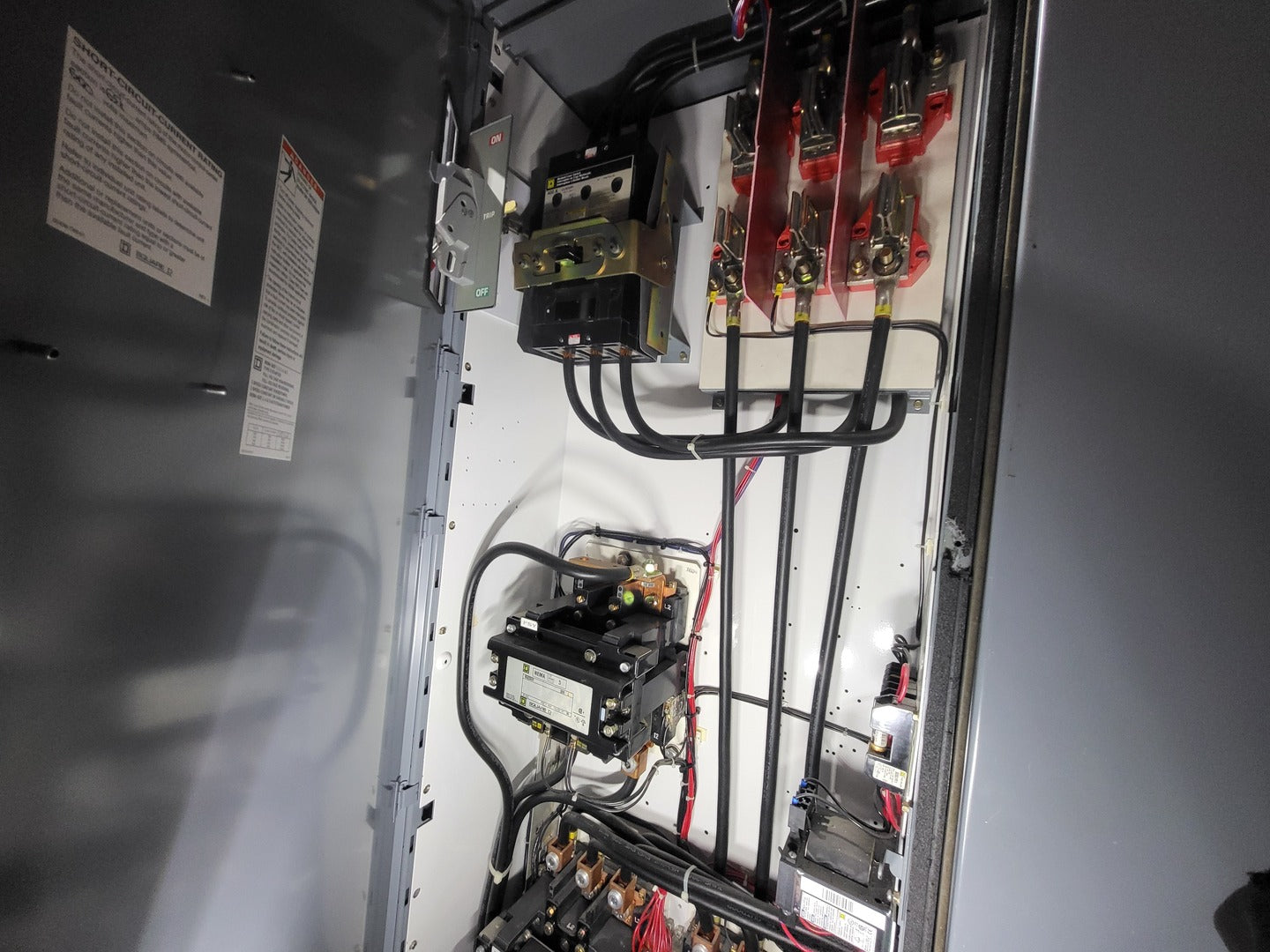

Square D Model 6 motor control center section rated for 600V, 3-phase power distribution. This MCC column includes multiple motor starter buckets with Motor Logic Plus protection modules, fused disconnects, control transformer, and Schneider Electric communication components. Ideal for industrial motor control systems, pump stations, processing plants, and heavy industrial electrical distribution.
Specifications
Model Model 6
Condition Used
Other Specifications

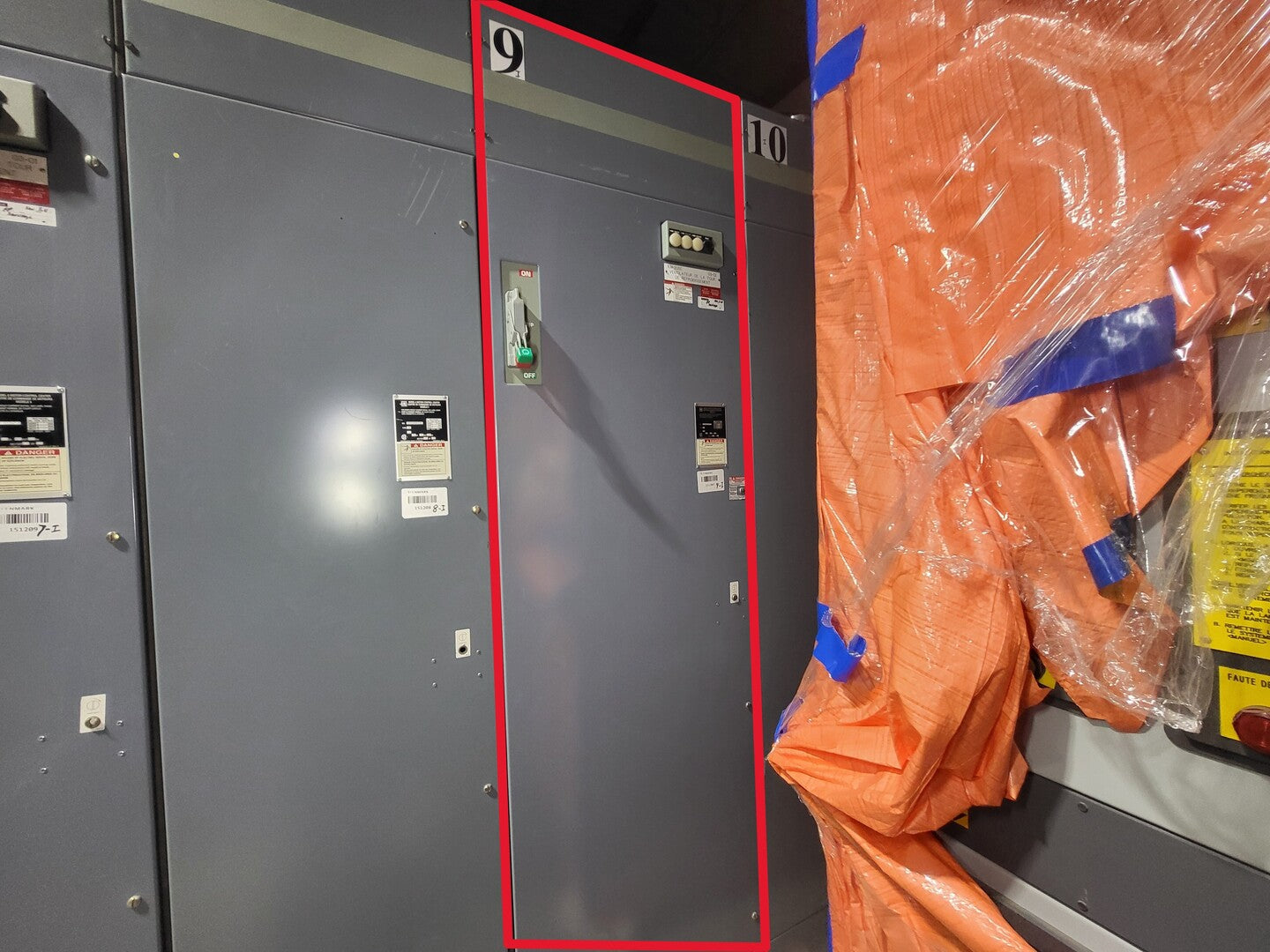

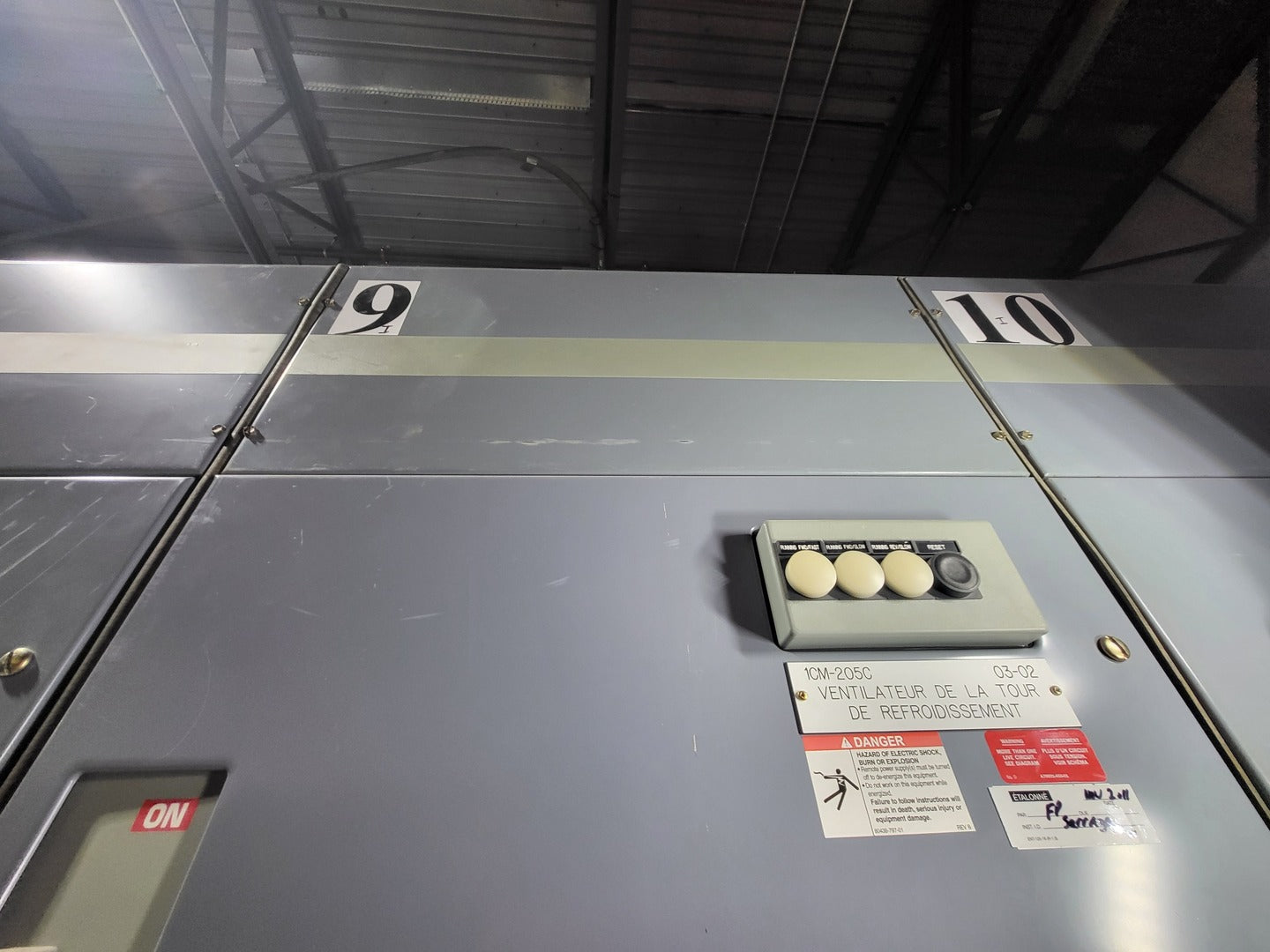

Note: Section 9 only

Bucket #1

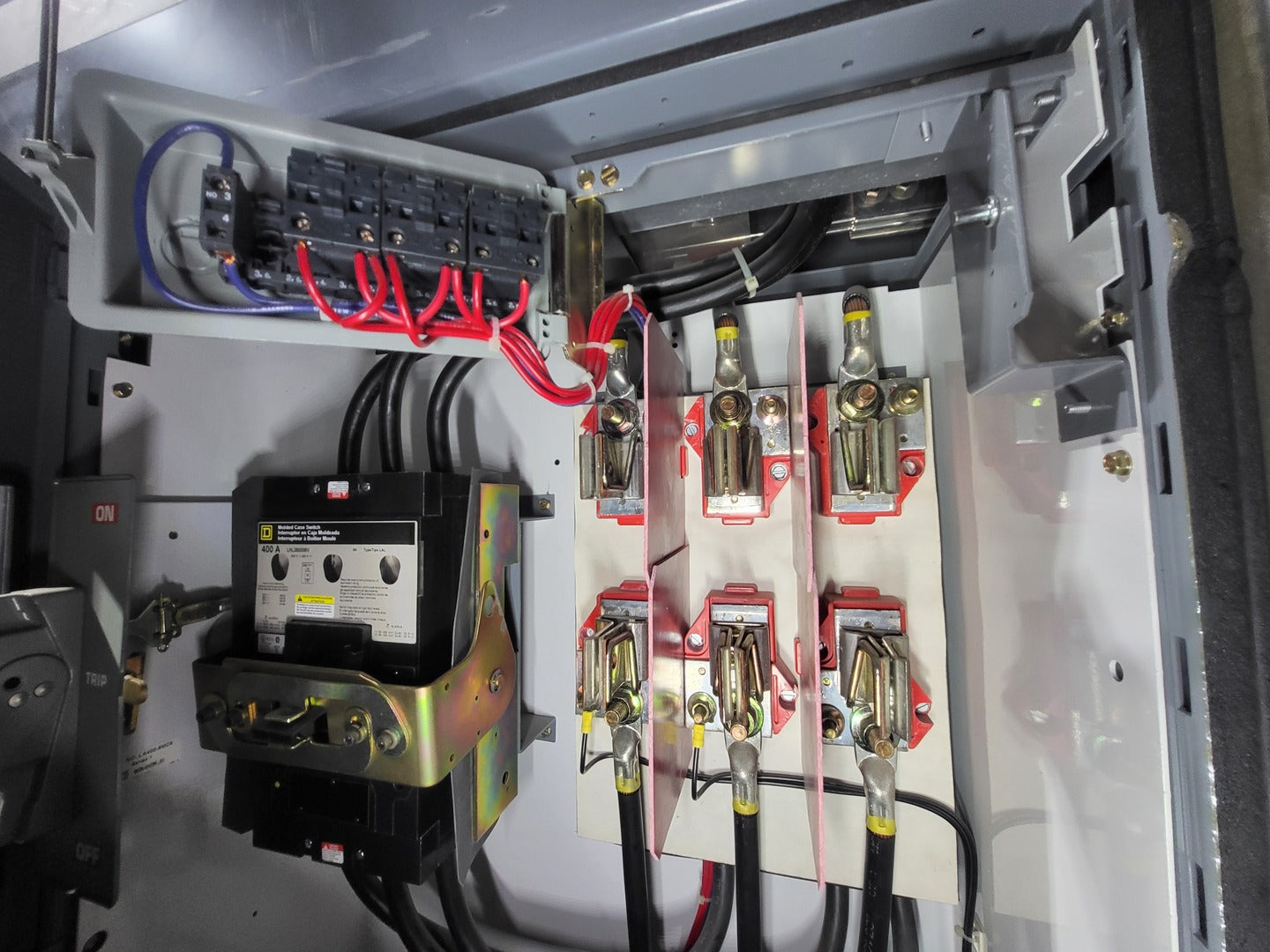

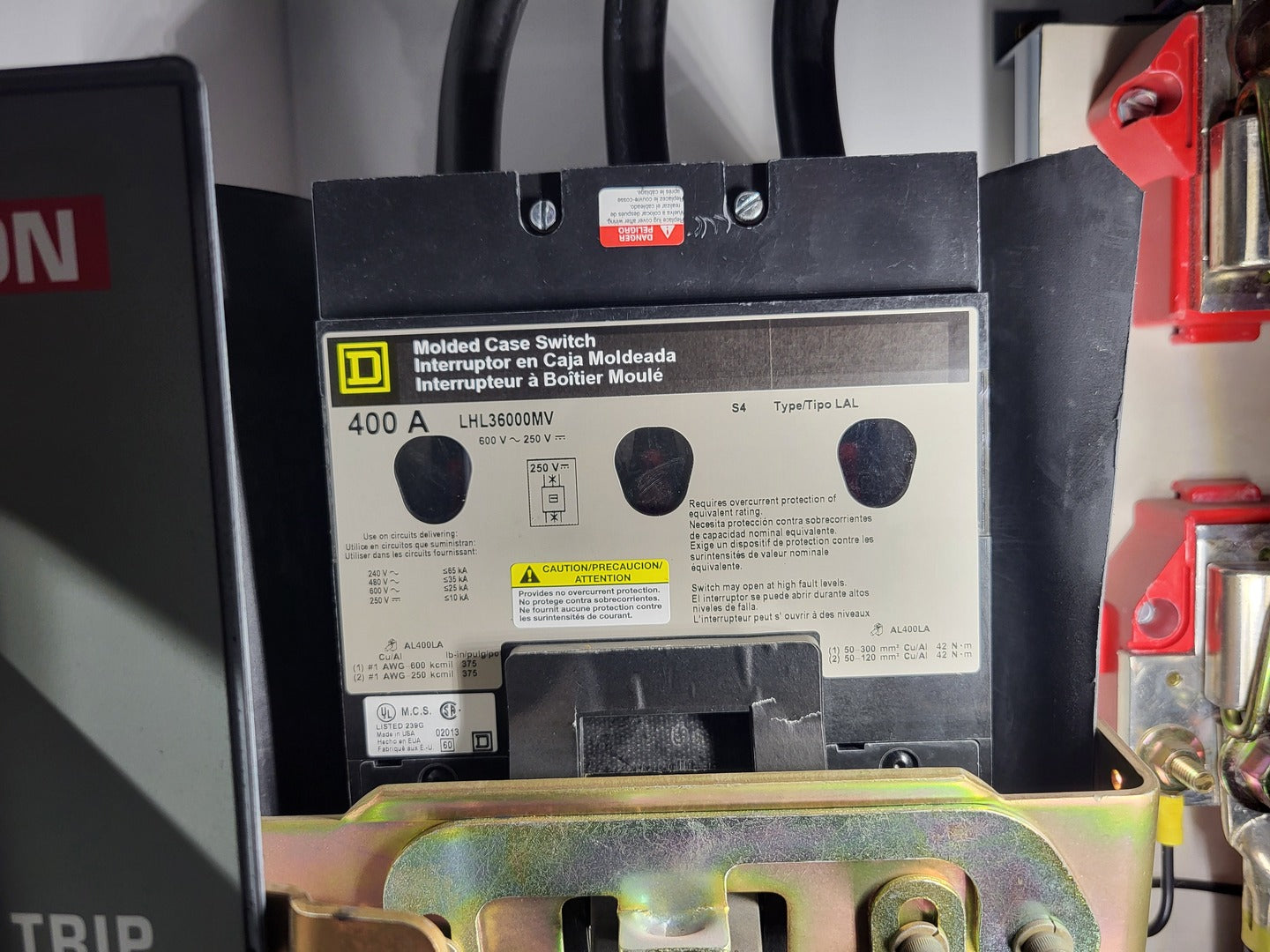

  1. Square D LHL36000MV, 400A molded case switch, Type LAL, 600VAC / 250VDC, no overcurrent protection

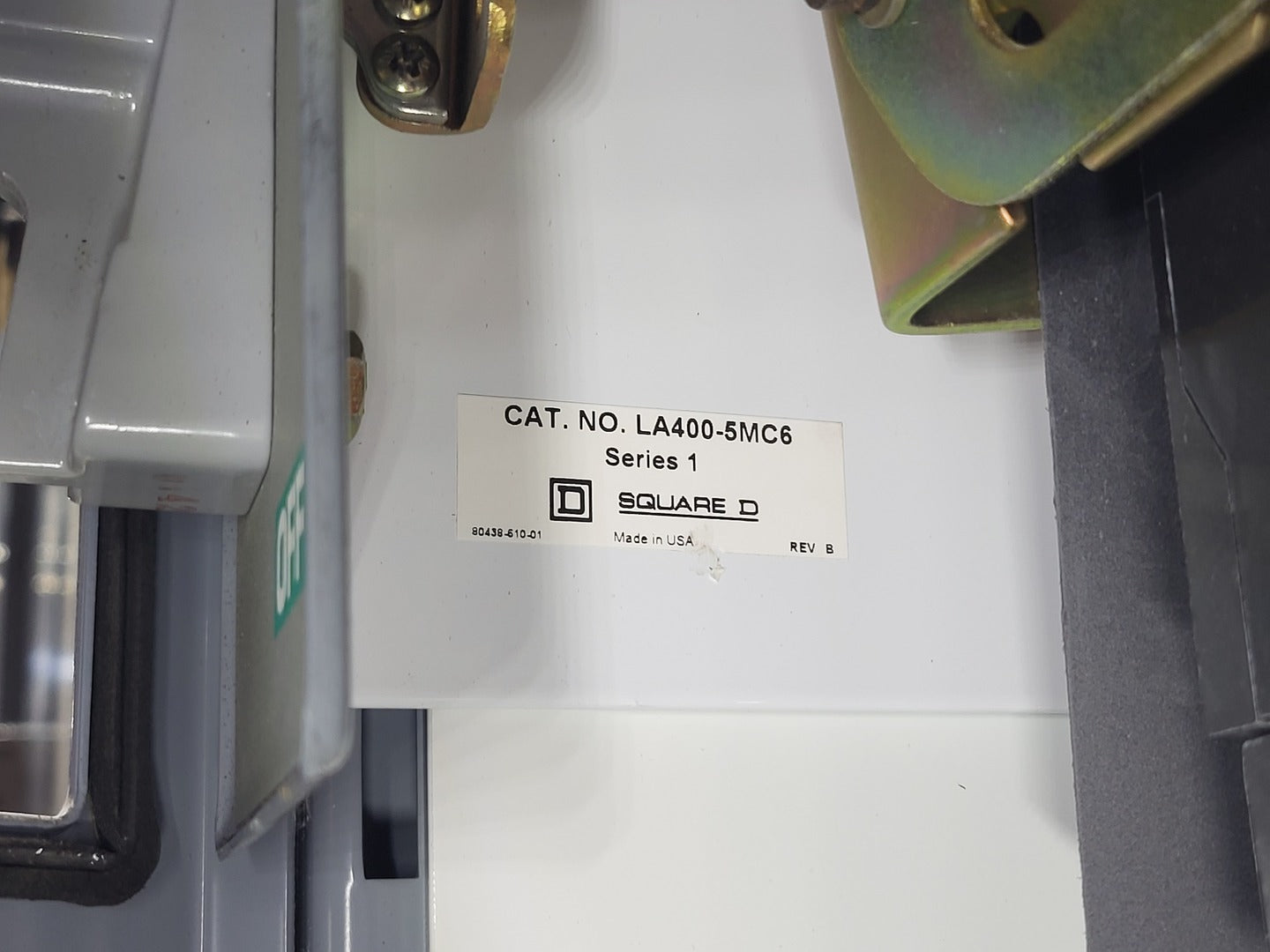

  2. Square D LA400-5MC6, Series 1, 400A MCC bucket disconnect unit

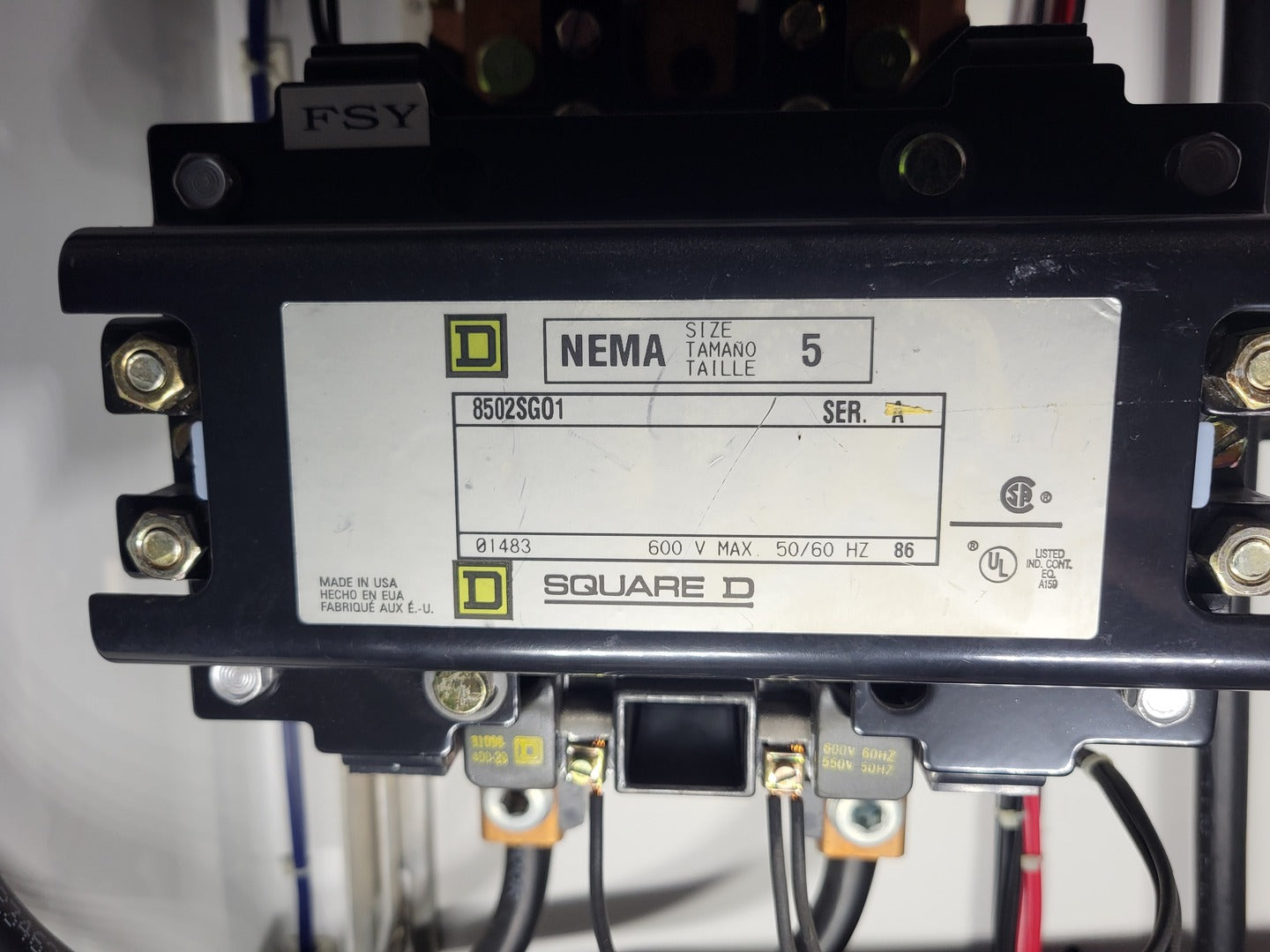

  3. Square D 8502SGO1, NEMA Size 5 contactor, 600V max

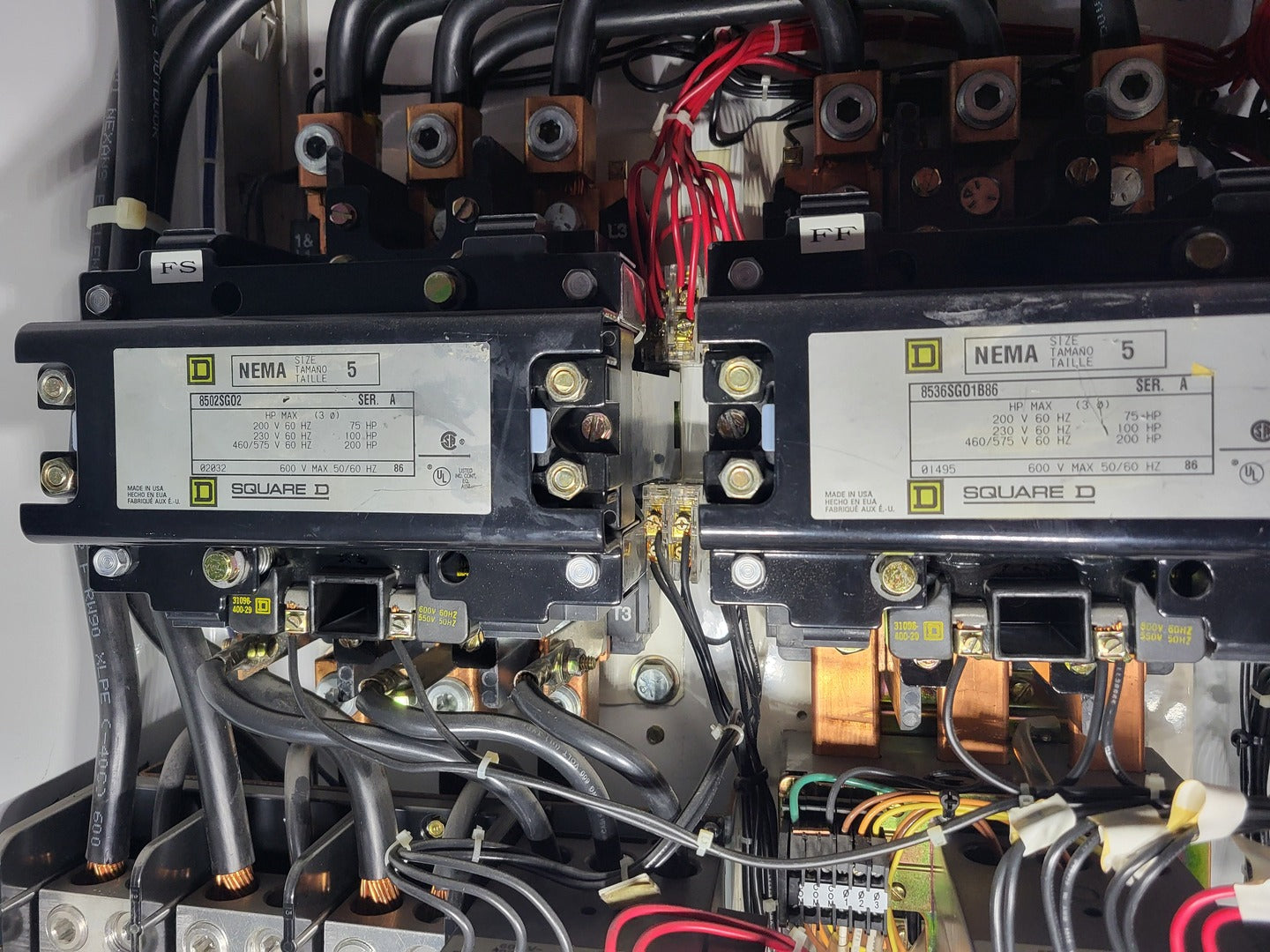

  4. Square D 8502SGO2, NEMA Size 5 contactor, 75 HP @ 200V, 100 HP @ 230V, 200 HP @ 460/575V
  5. Square D 8536SGO1B86, NEMA Size 5 starter/contactor, 75 HP @ 200V, 100 HP @ 230V, 200 HP @ 460/575V

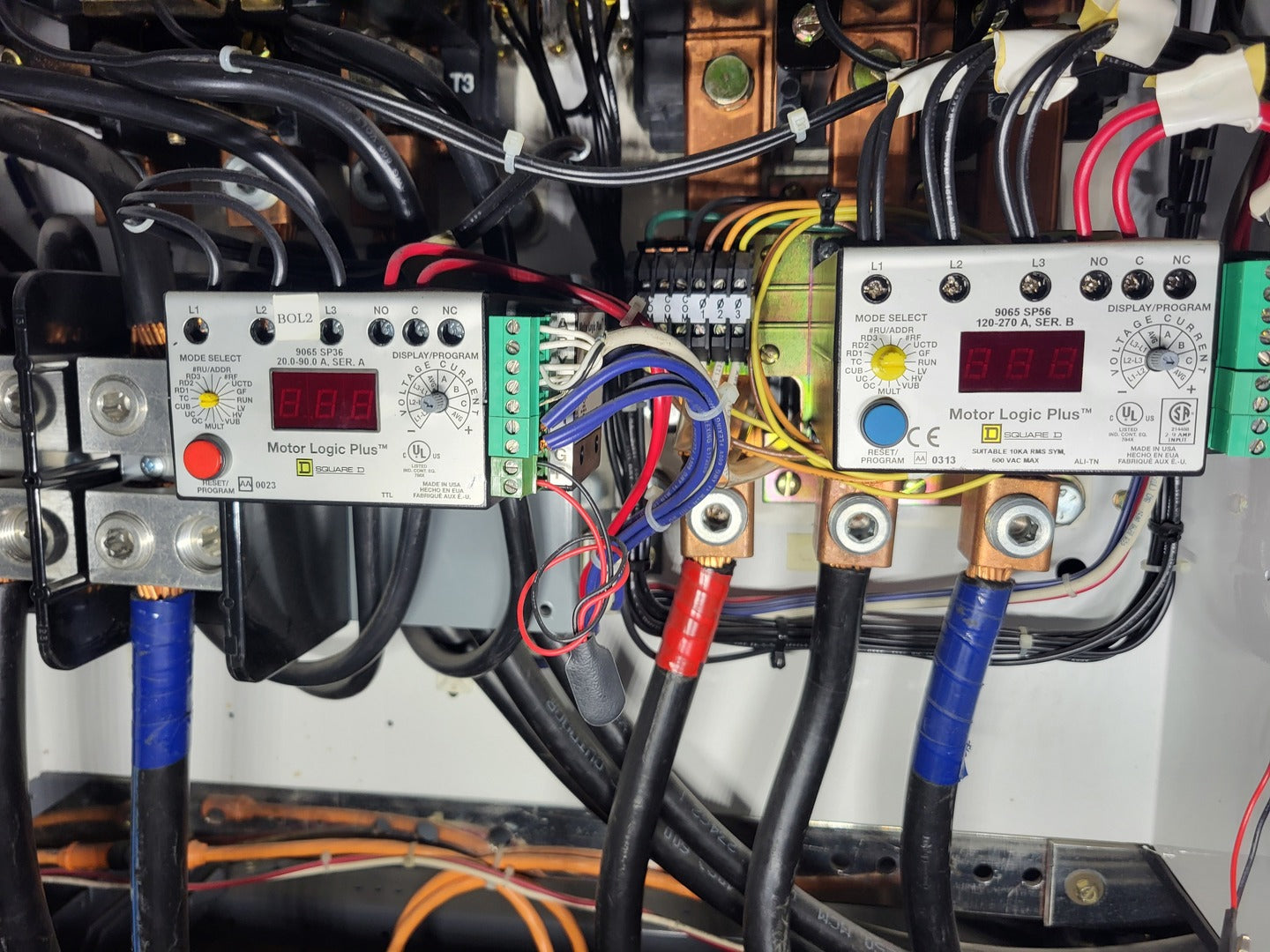

  6. 2 x Square D Motor Logic Plus overload relays: 9065 SP36, 20.0-90.0A range, 600VAC max; 9065 SP56, 120-270A range, 600VAC max

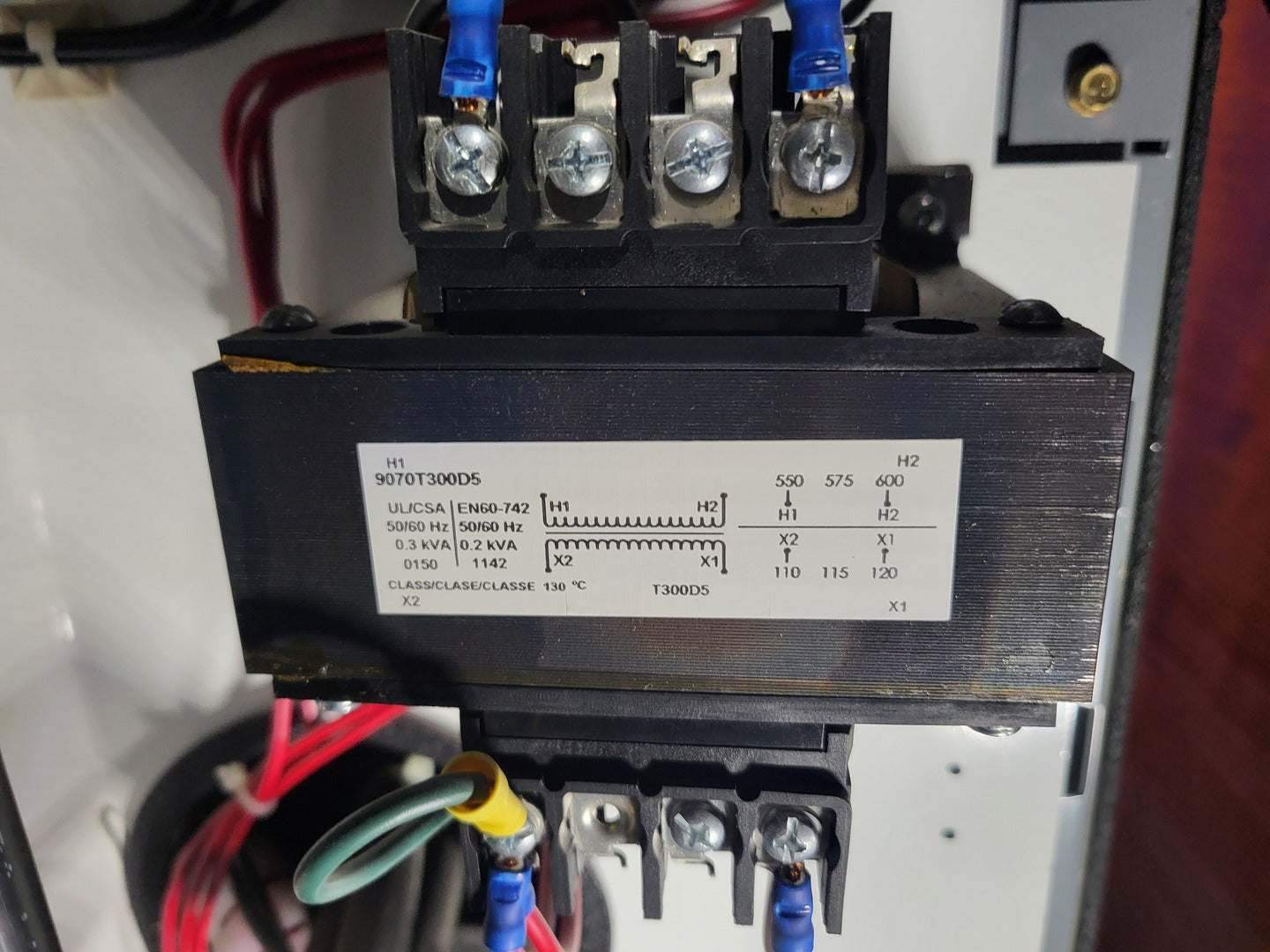

  7. Square D 9070T300D5, control transformer, 0.3 kVA @ 50/60Hz UL/CSA / 0.2 kVA EN60-742, primary 550/575/600V, secondary 110/115/120V
