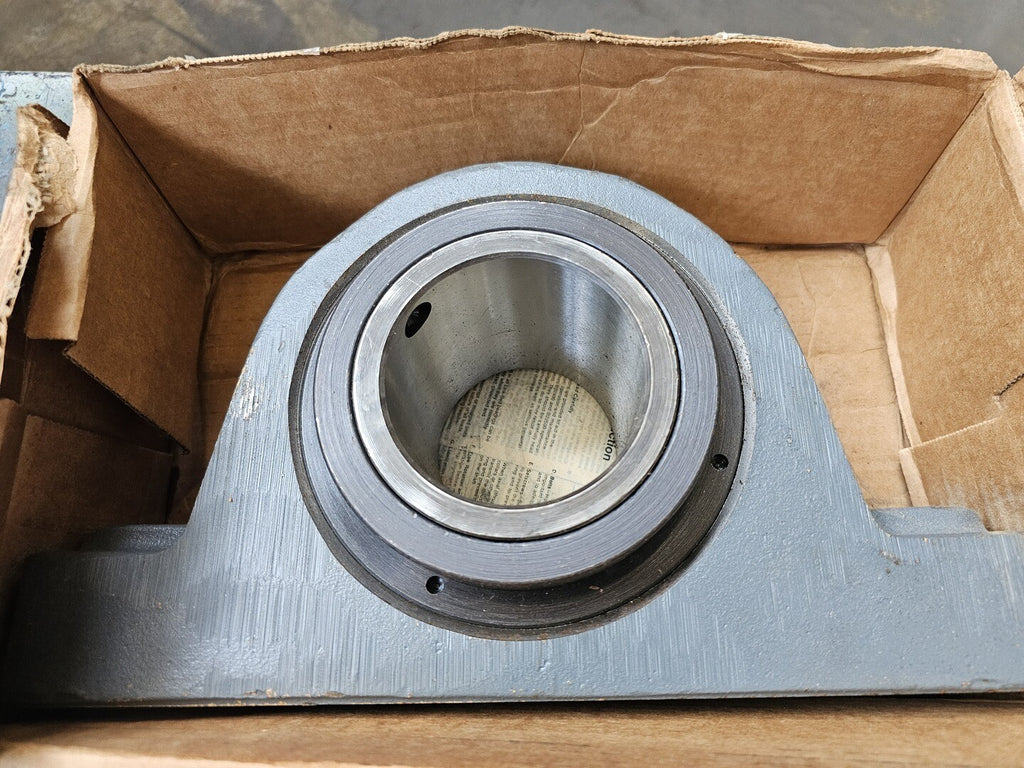

Pillow Block Bearing Link-Belt, 3-3/16" Bore, PB22451H

SKU: 146163
Precio:
$2,774.58 CAD

Gastos de envío calculados en la caja

Stock:
Agotado
Make an Offer

¿Necesita una respuesta ahora?

Descripción

Pillow Block Roller Bearing - 3-3/16 in Bore Dia., Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)
Specifications
Model PB22451H
Made In UNITED STATES
Condition Surplus New
General
Type Pillow Block
Height 7.50"
Outside Length 13.00 in
Base to Bore Centerline 3.75"
Distance Between Bolts 10.00"
Other Specifications

Overview:

  • Bore Diameter: 3-3/16 in
  • Bolt Center To Center Length: 10.0000 in
  • Bore Type: Round
  • Base To Bore Centerline: 3.7500 in
  • Overall Length: 13.0000 in
  • Locking Device: Concentric Collar
  • Housing Material: Cast Iron
  • Housing Construction: Solid
  • Type Of Bearing: Spherical Roller
  • Overall Height: 7.5000 in
  • Duty Type: Standard Duty
  • Base Width: 3-7/16 in
  • Expansion Type: Non-Expansion Bearing (Fixed)
  • Finish Coating: Powder Coated
  • Overall Width: 4.3750 in
  • Seal Type: Labyrinth
  • Radial Dynamic Load Capacity: 51000 lbf
  • Radial Static Load Capacity: 90700 lbf
  • Lubrication Type: Lubrication Fitting
  • Series: 400
  • Standards Met: ANSI/ABMA STD 11-1990
  • Max Rpm: 1650 rpm
  • UPC_NO: 662327110376
  • Locking Type: Concentric Collar
  • Number Of Mounting Holes: 2
  • Mounting Type: 2-Bolt Base
