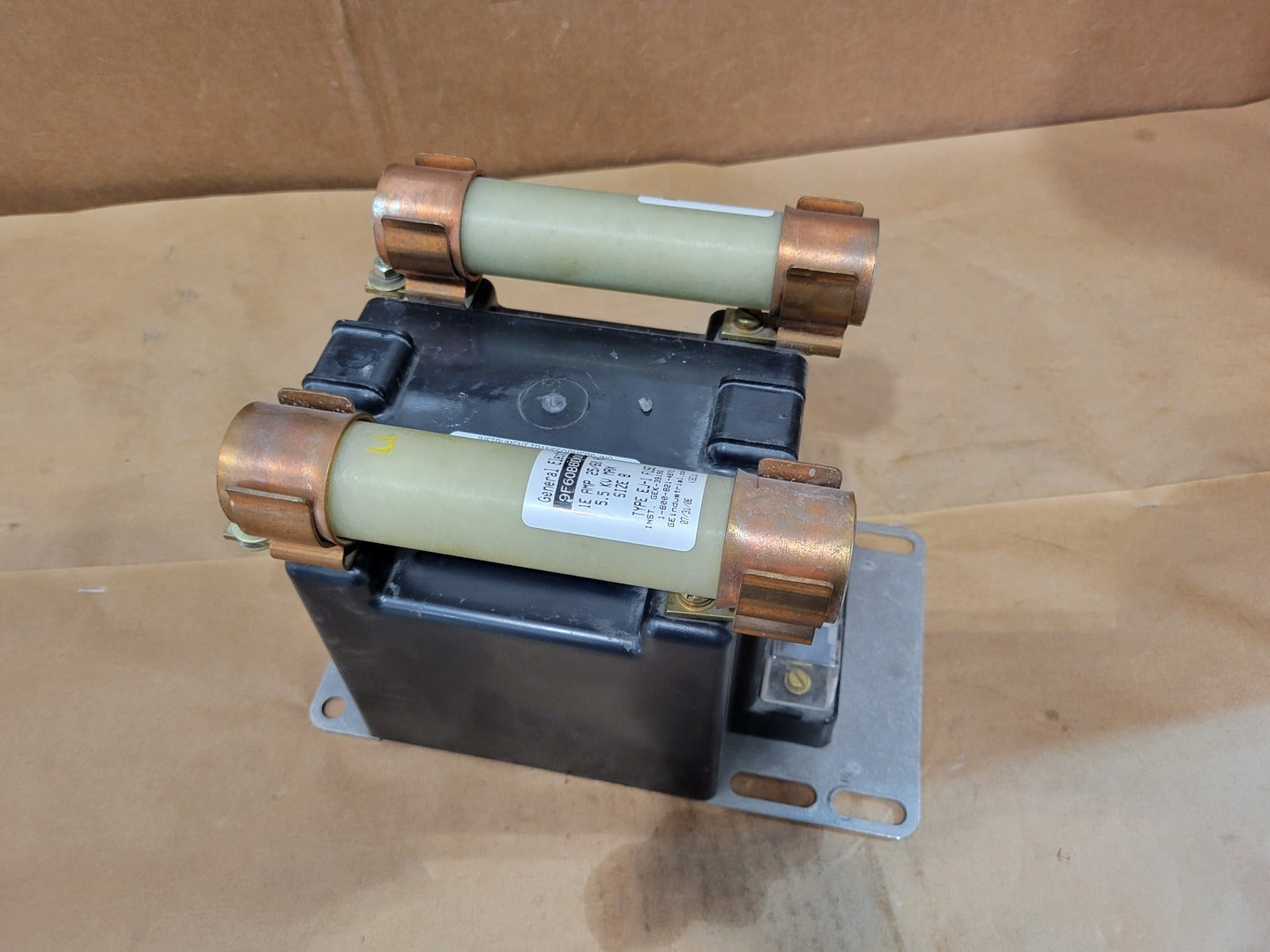

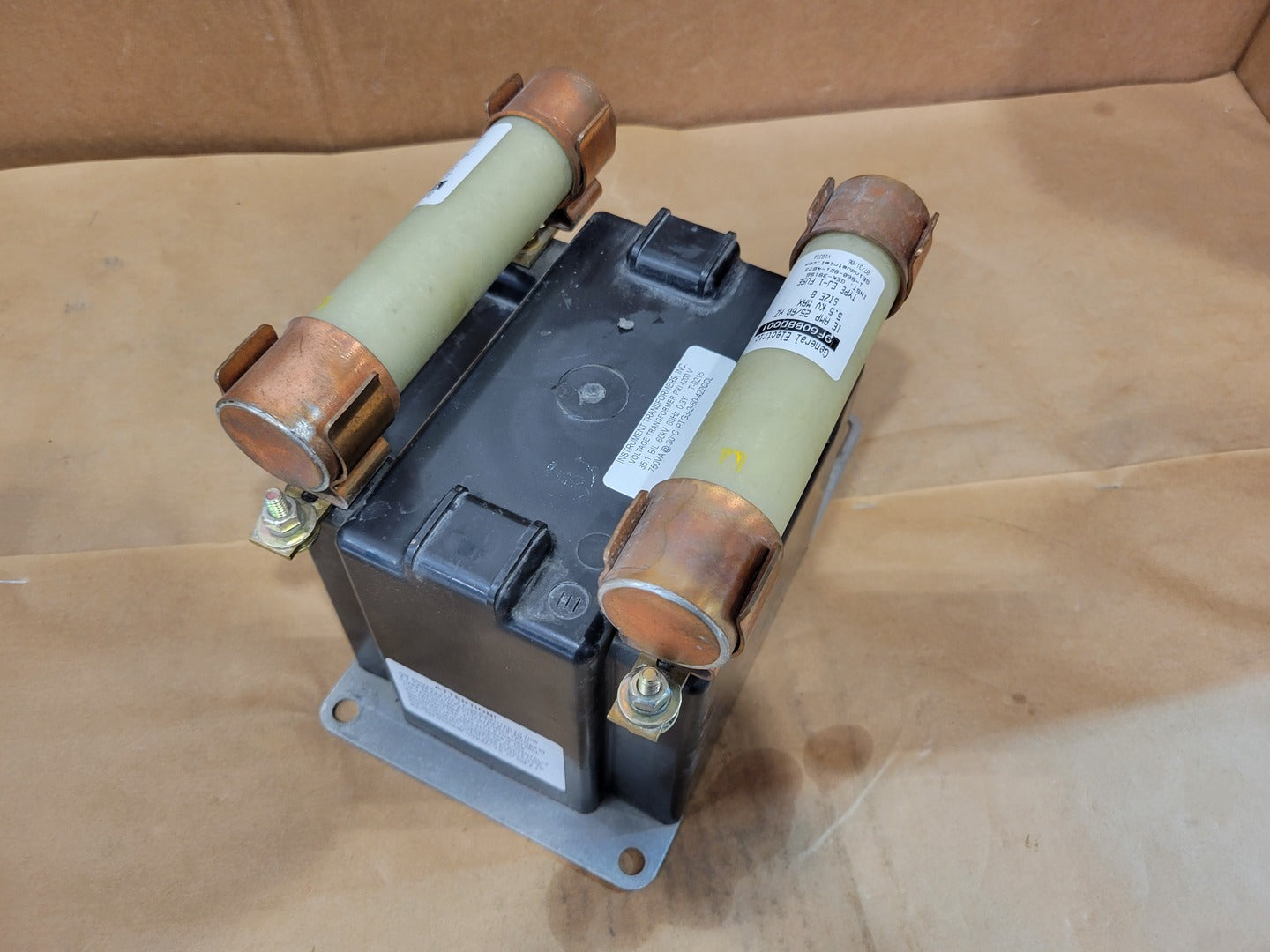

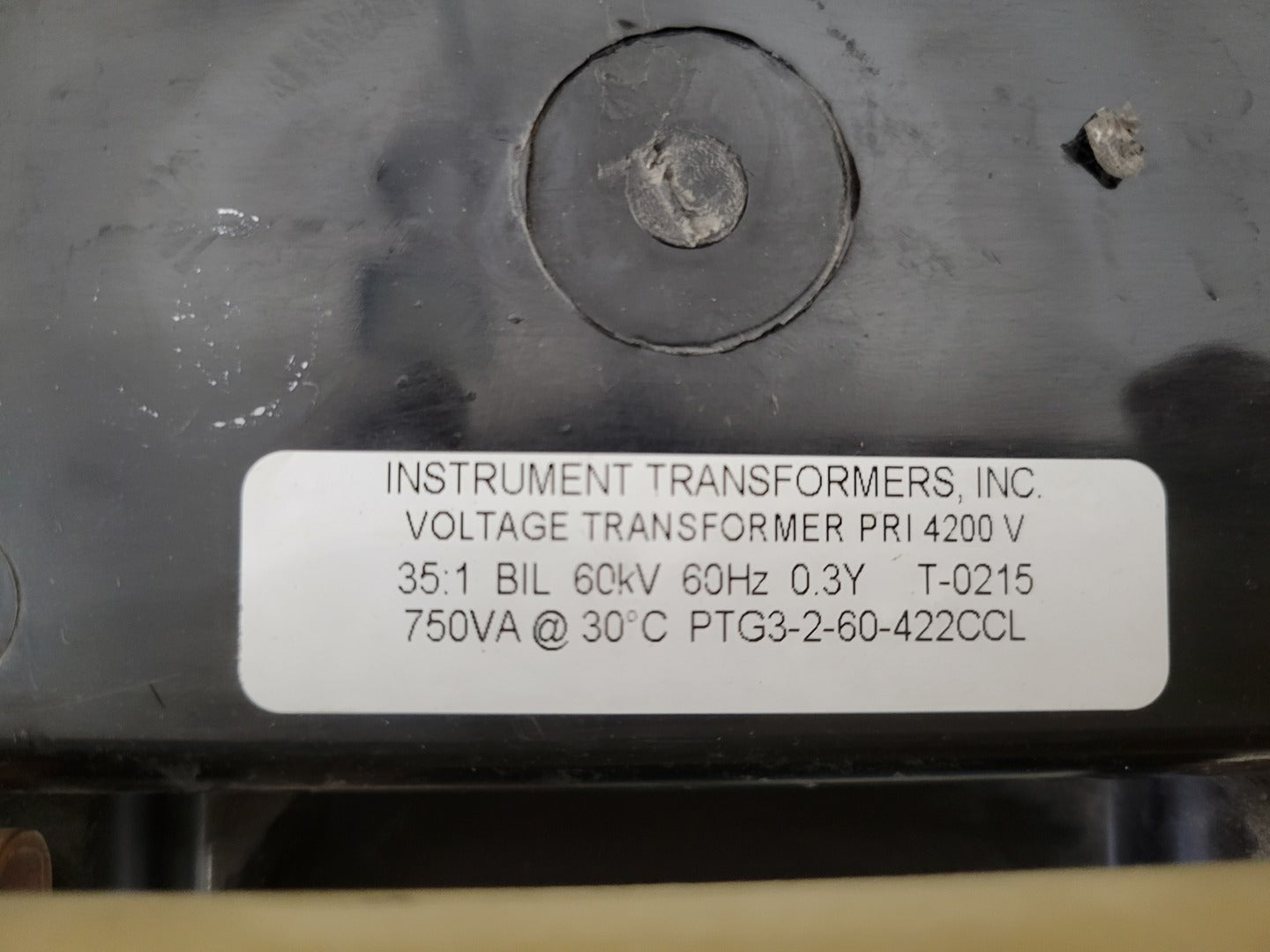

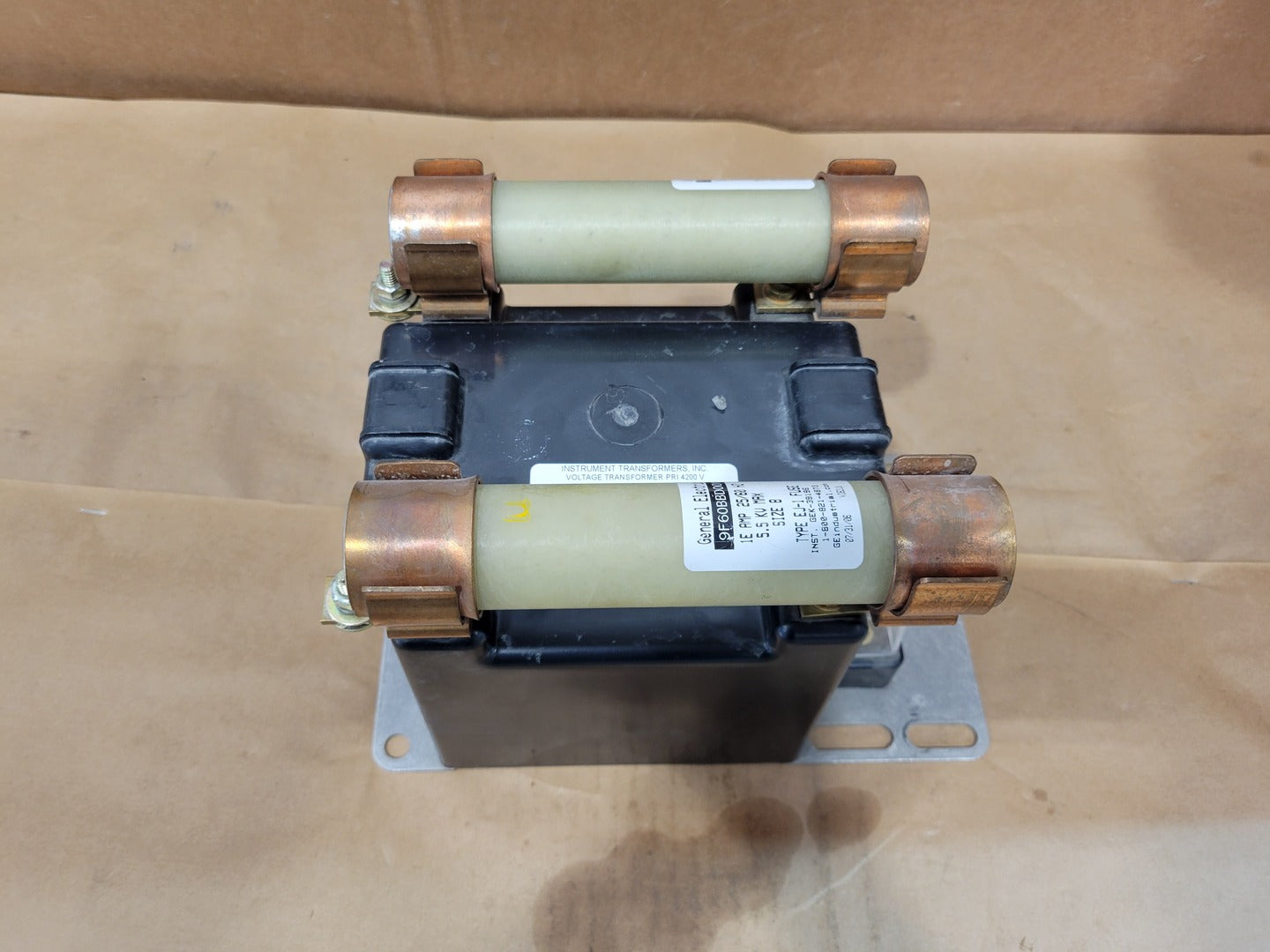

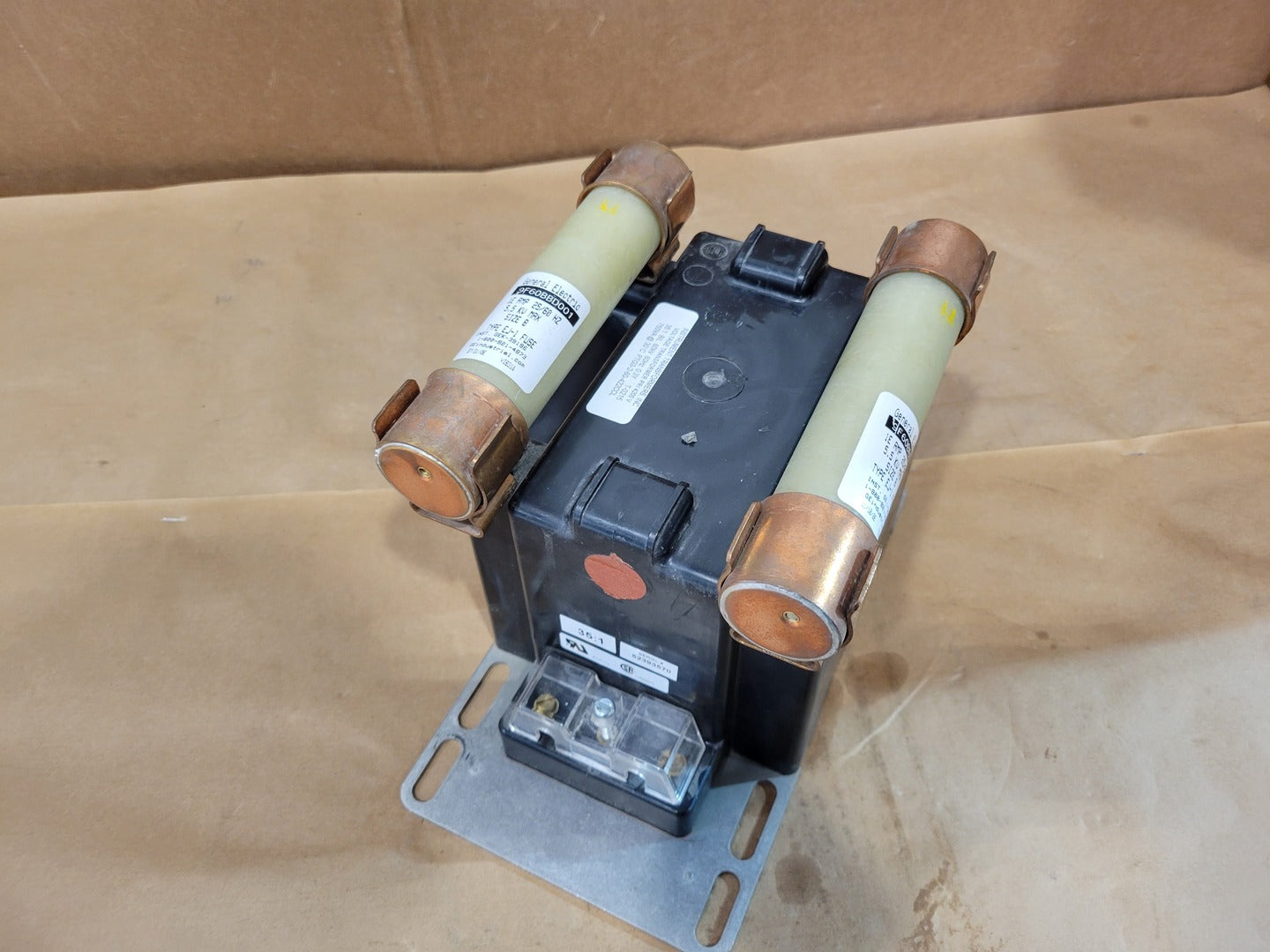

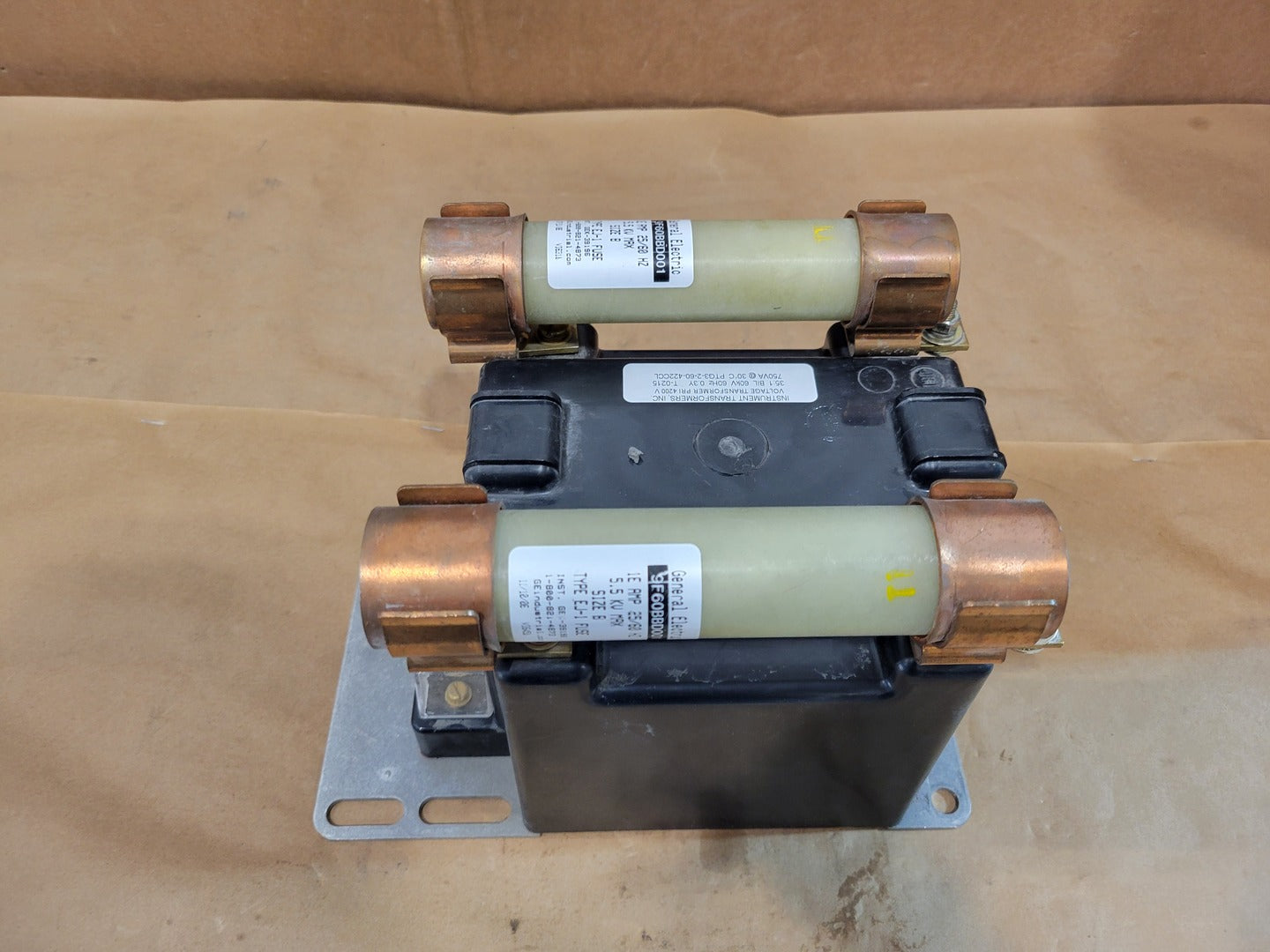

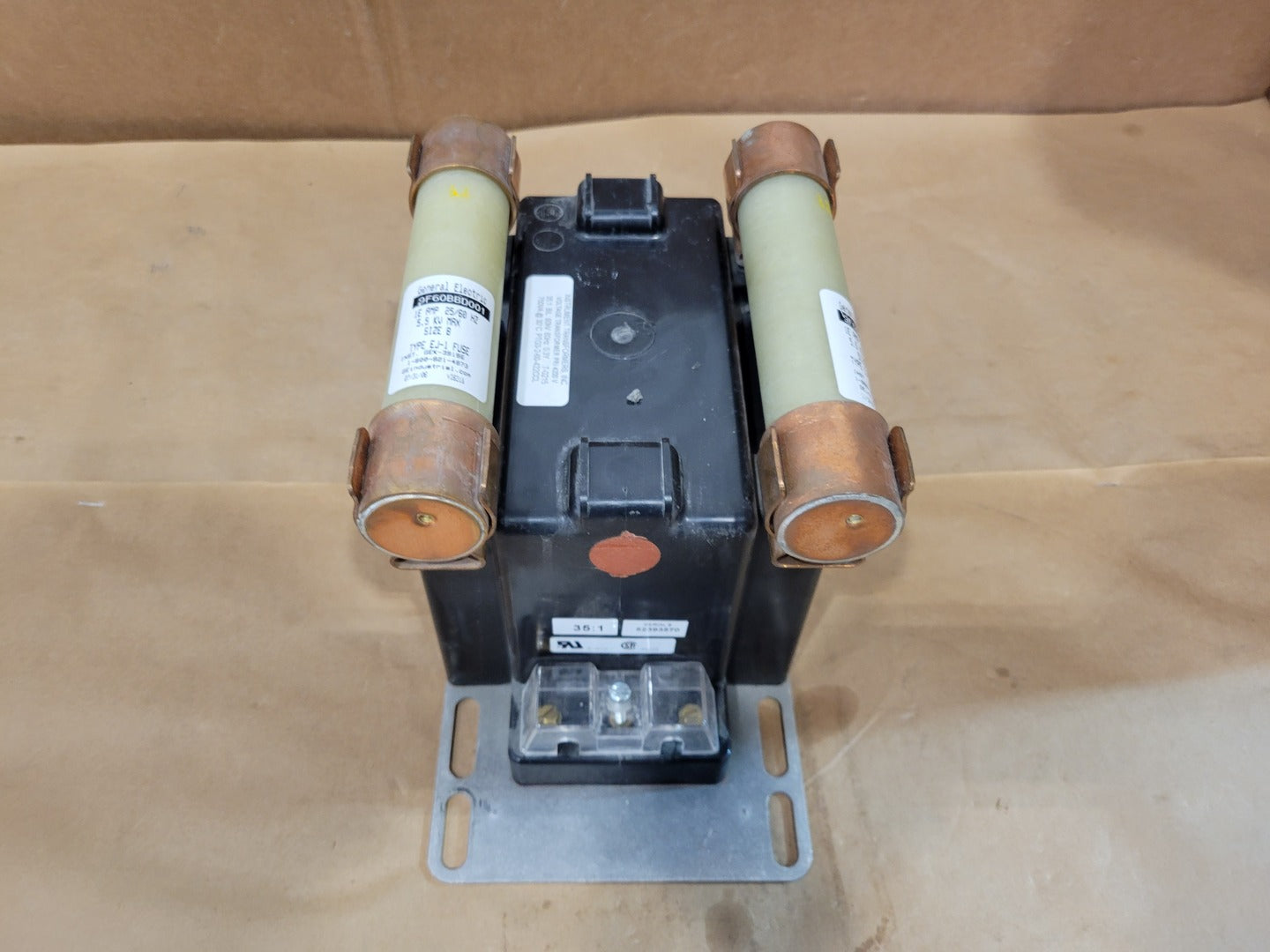

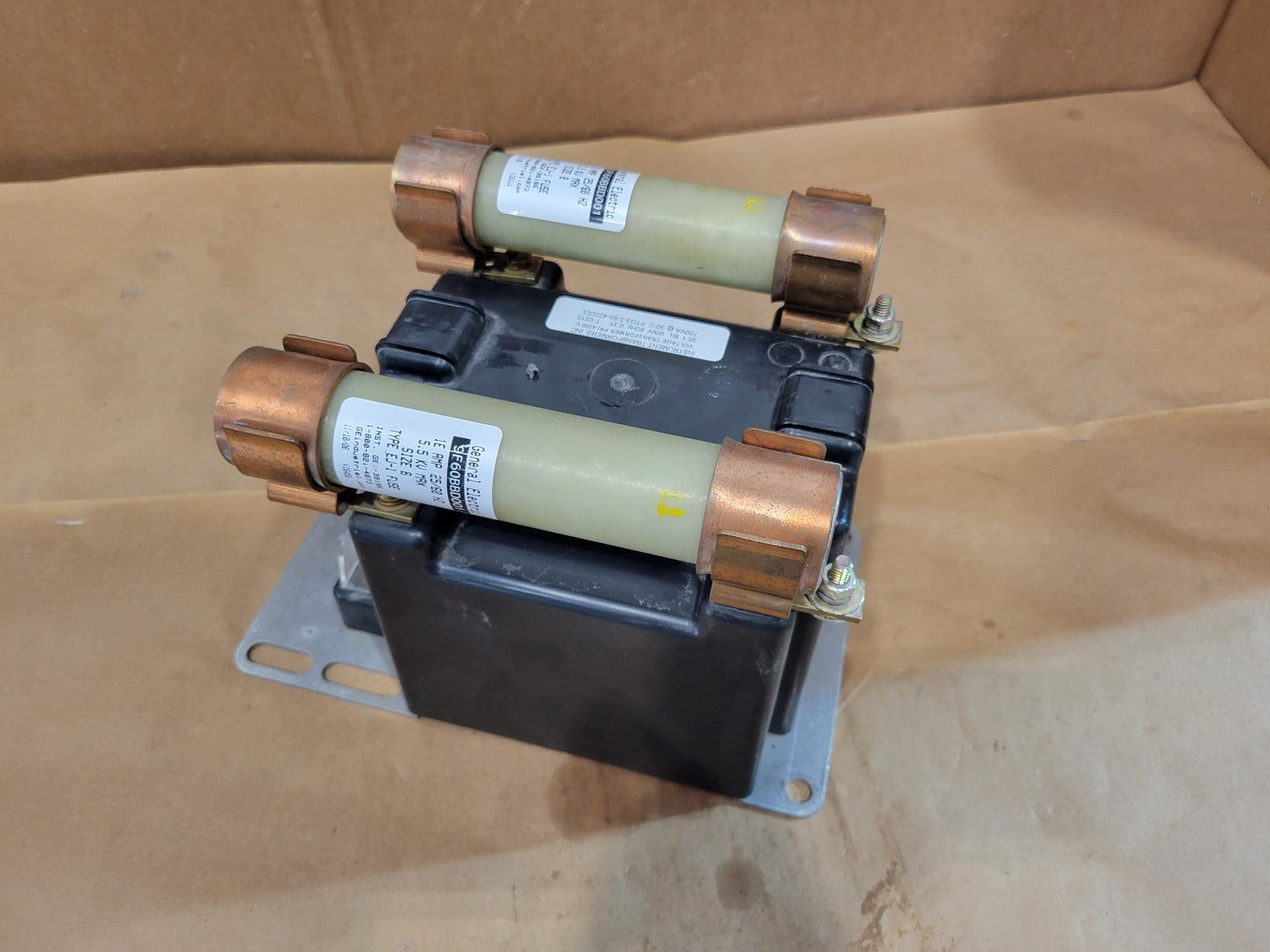

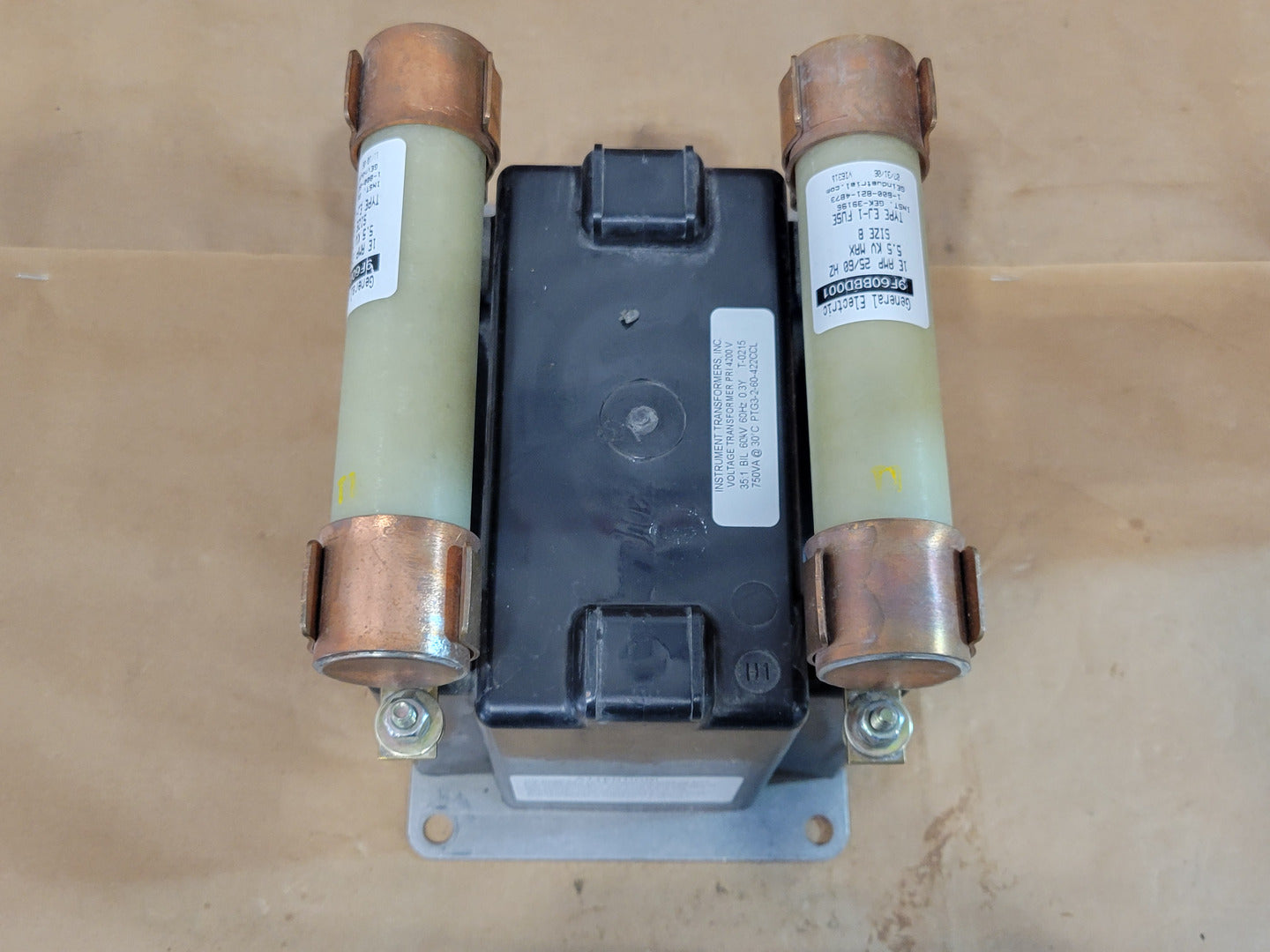

Instrument Transformers Inc. medium-voltage fused voltage transformer assembly designed for utility and industrial metering or protection applications. The assembly includes dual General Electric Type EJ-1 current-limiting primary fuses and is rated for a 4200 V primary with a 35:1 ratio (approximately 120 V secondary), 750 VA thermal rating, and 60 kV BIL.
| Specifications | |
|---|---|
| Model | PTG3-2-60-422CCL |
| Condition | Surplus New | Electrical |
| kVA | .75 kVA |
| Primary Voltage | 4200 volts |
| Secondary Voltage | 120 volts | General |
| Transformer Type | Potential Transformer |
| Oil vs Dry | 147 |
| Other Specifications |
|---|
|

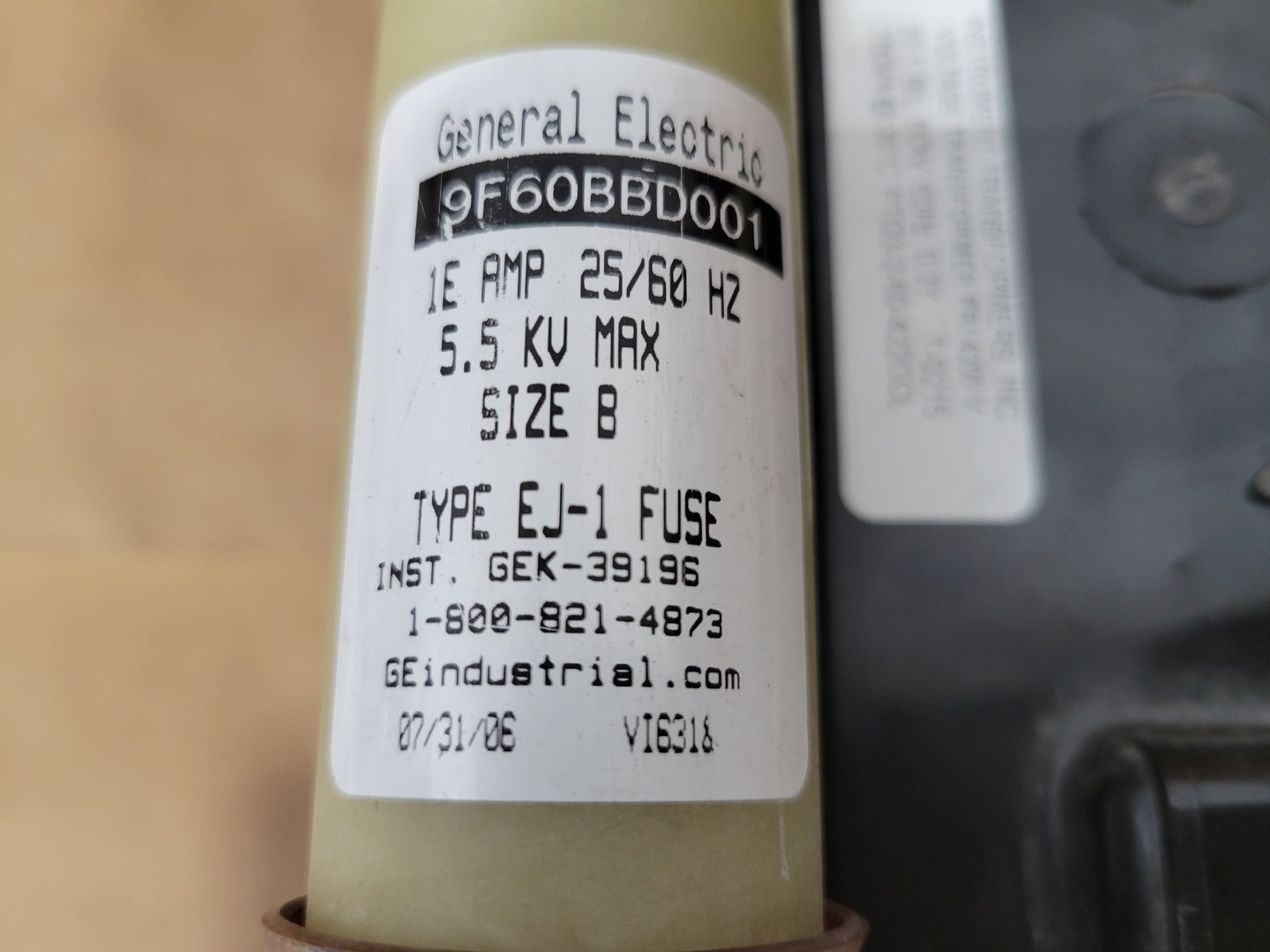

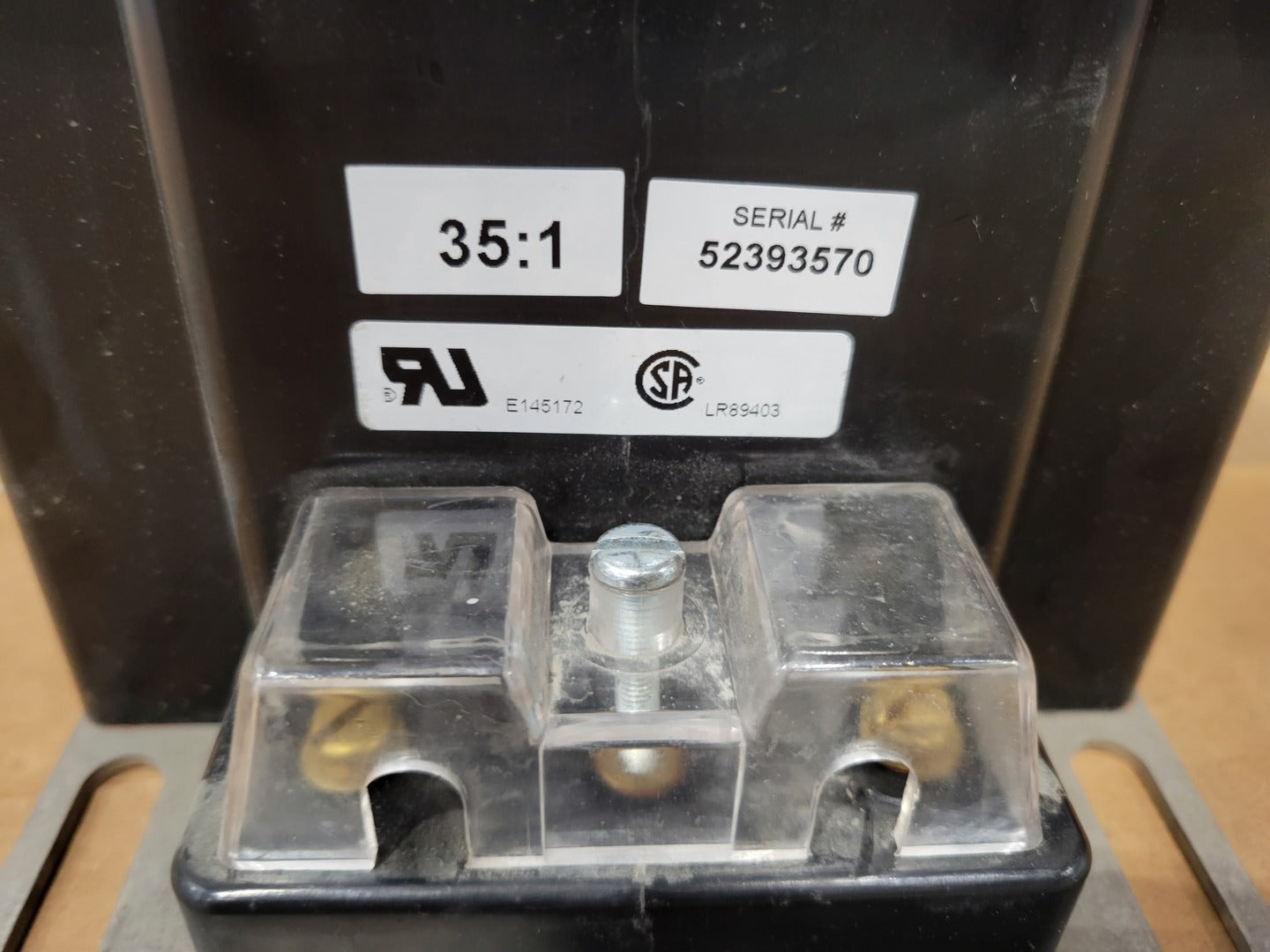

Ratio: 35:1 Frequency: 60 Hz Accuracy Class: 0.3Y Basic Insulation Level (BIL): 60 kV Transformer Configuration: Two-bushing fused voltage transformer Fuse Manufacturer: General Electric Fuse Model: 9F60BBD001 Fuse Type: EJ-1 Current-Limiting Potential Transformer Fuse Fuse Rating: 1 A Maximum Voltage: 5.5 kV Fuse Frequency: 25/60 Hz Fuse Size: Size B Mounting: Steel base with slotted mounting holes Certifications: UL and CSA markings visible |
