Descripción

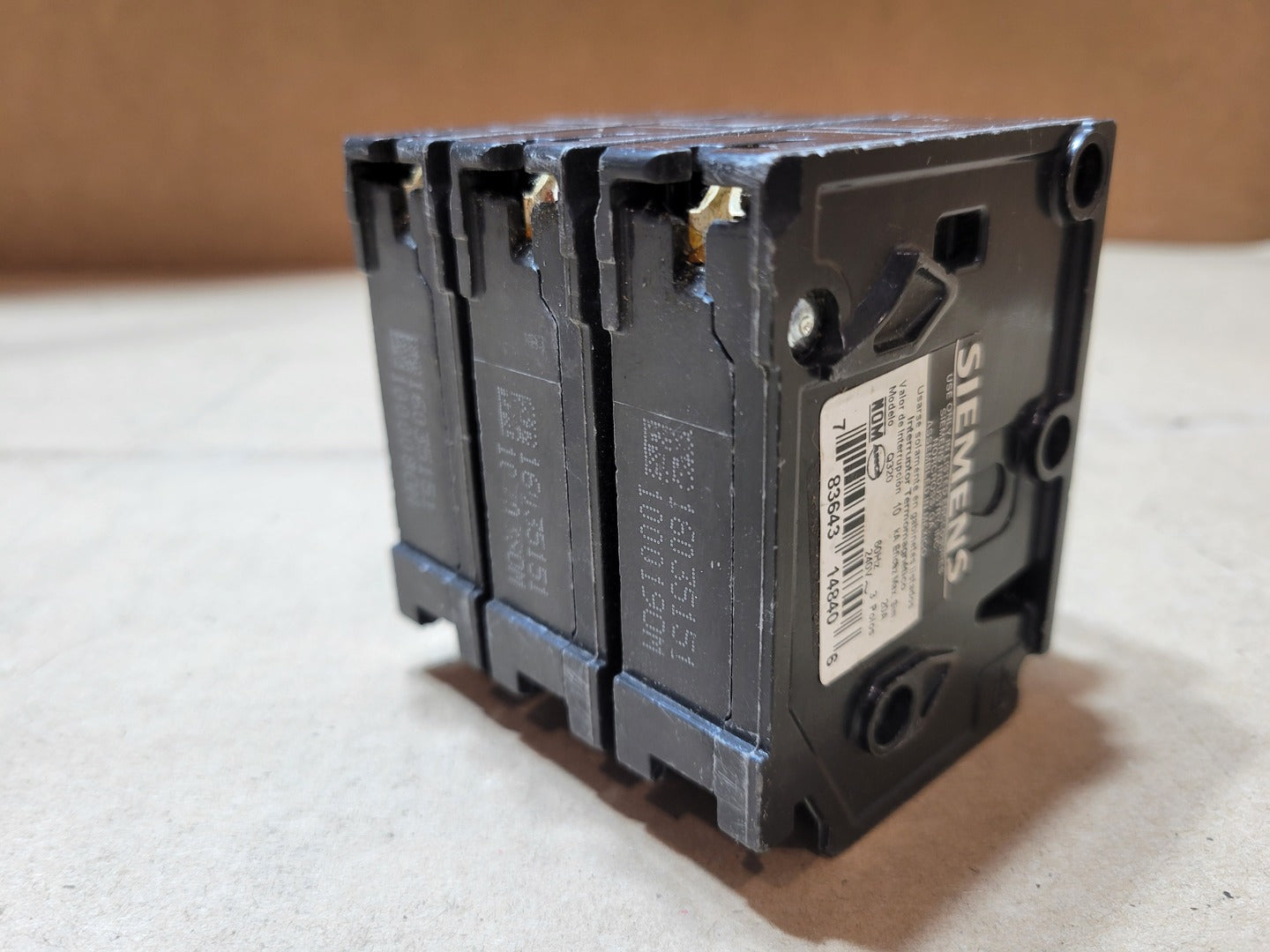

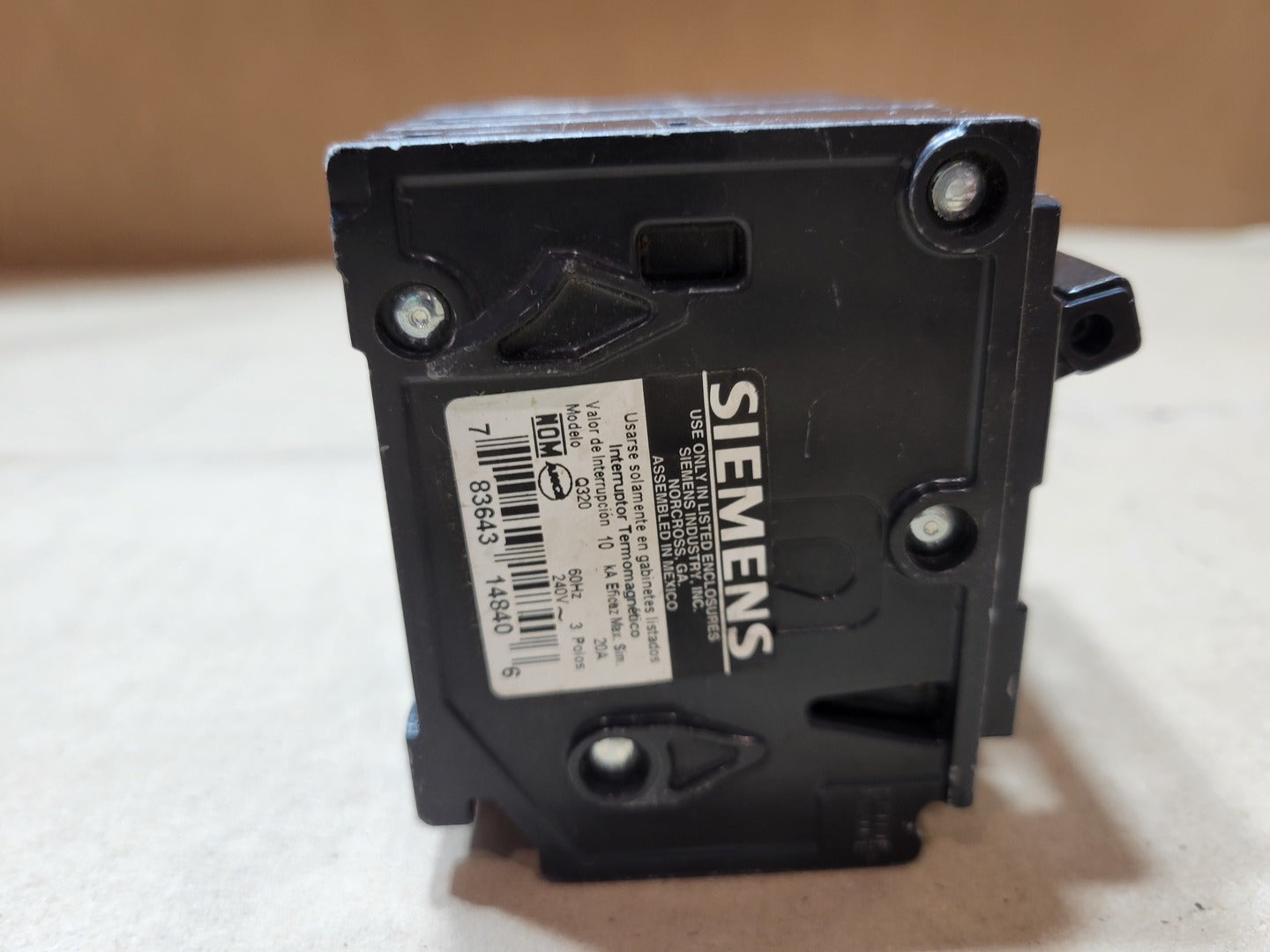

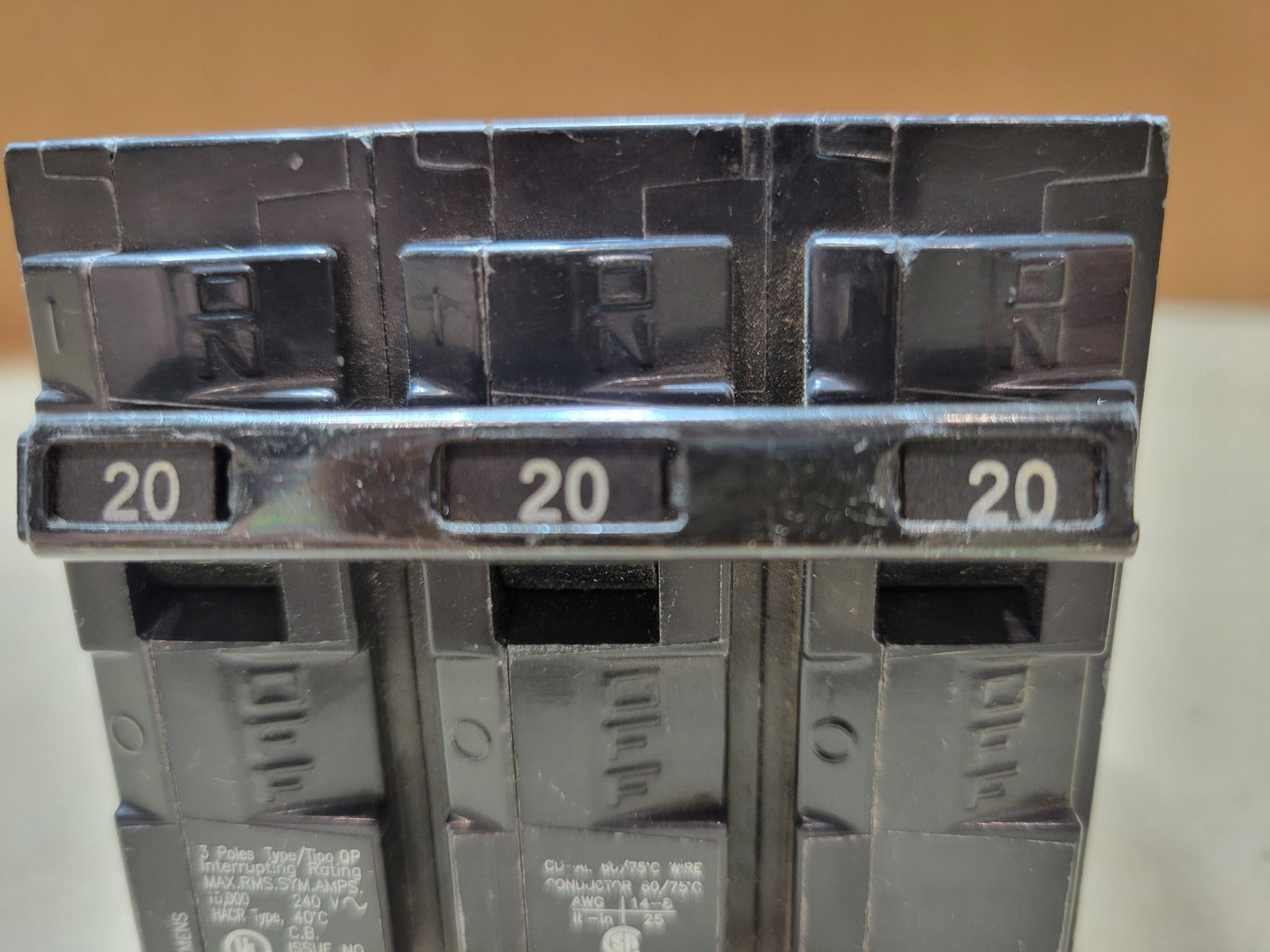

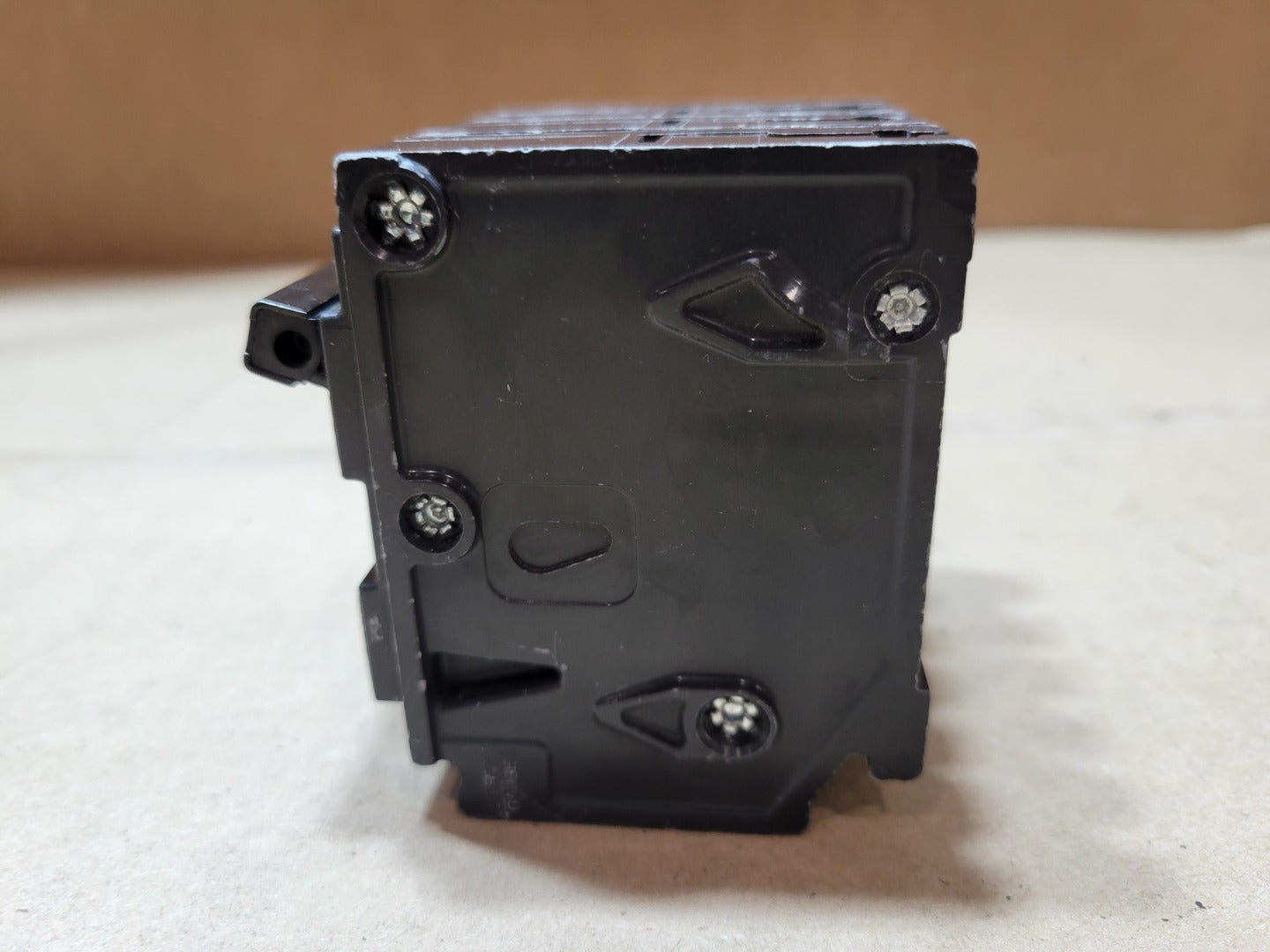

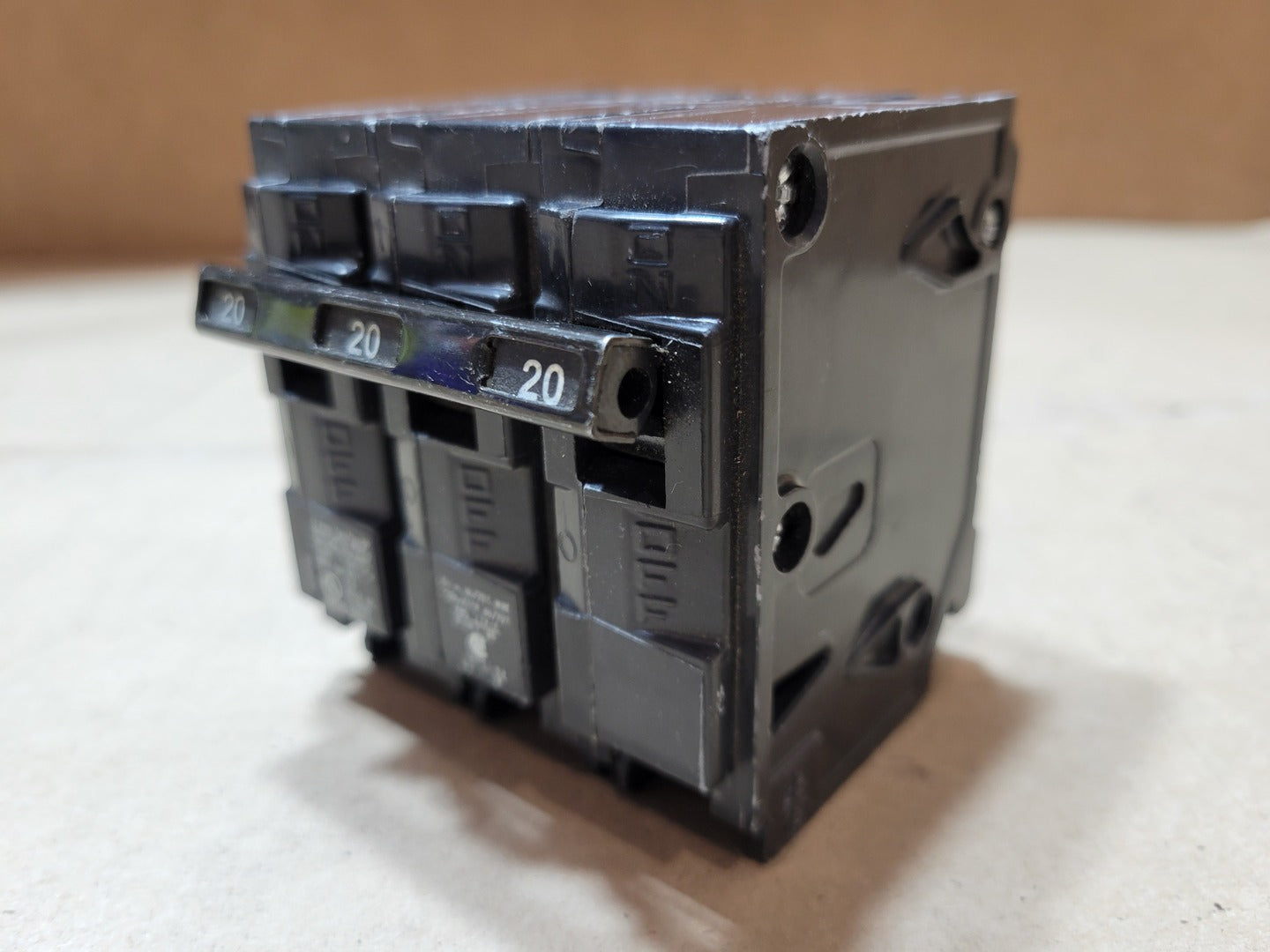

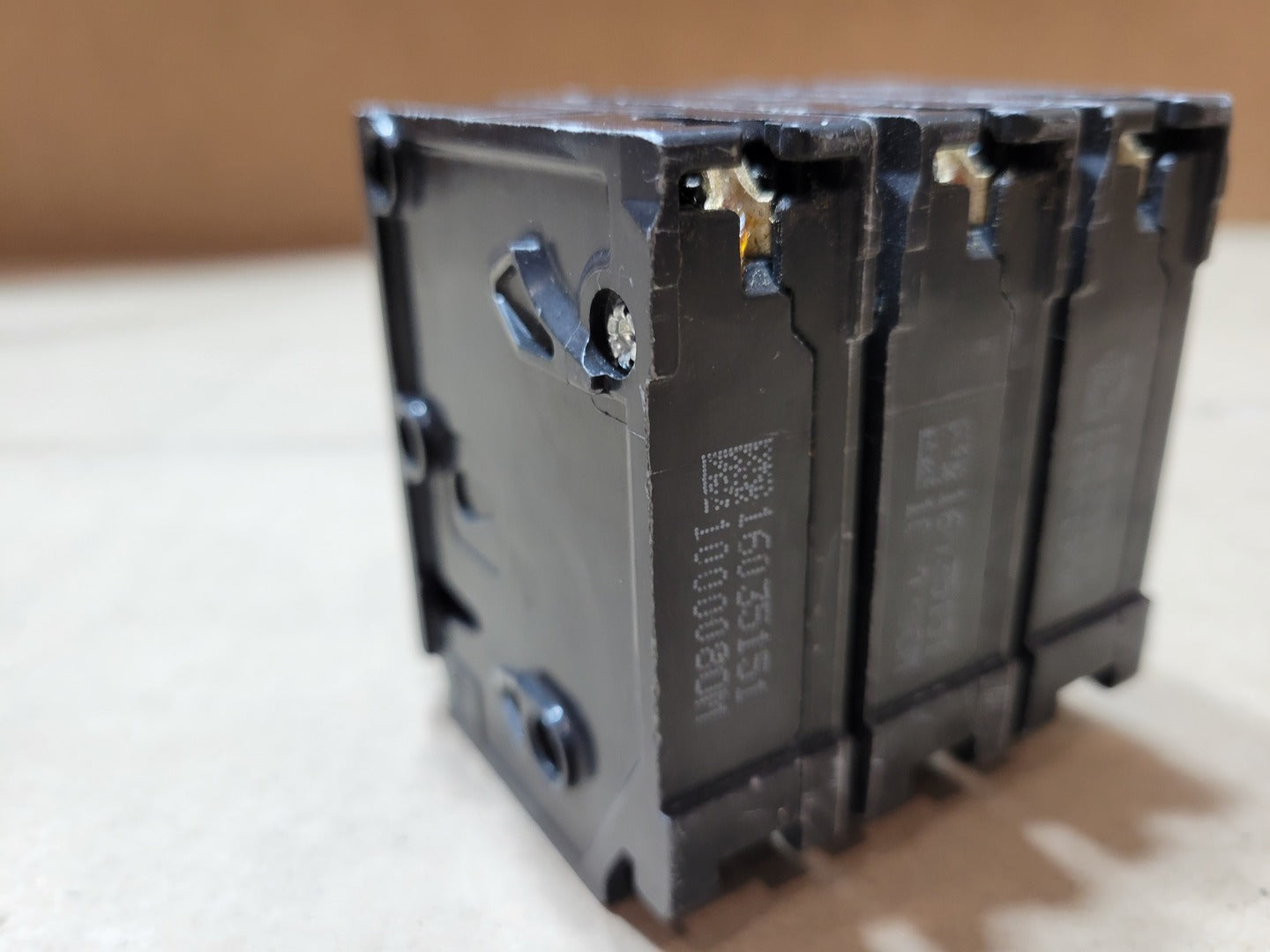

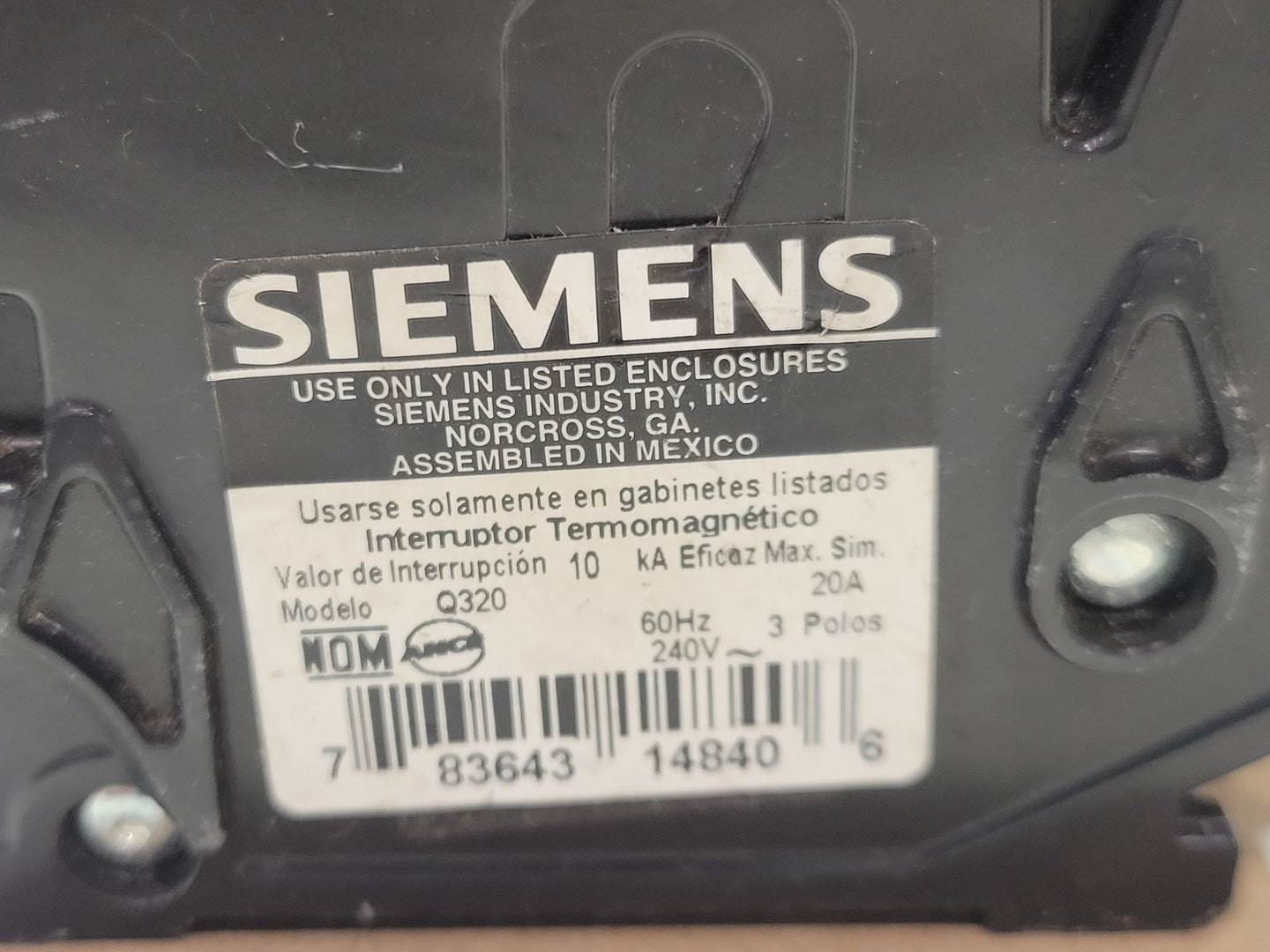

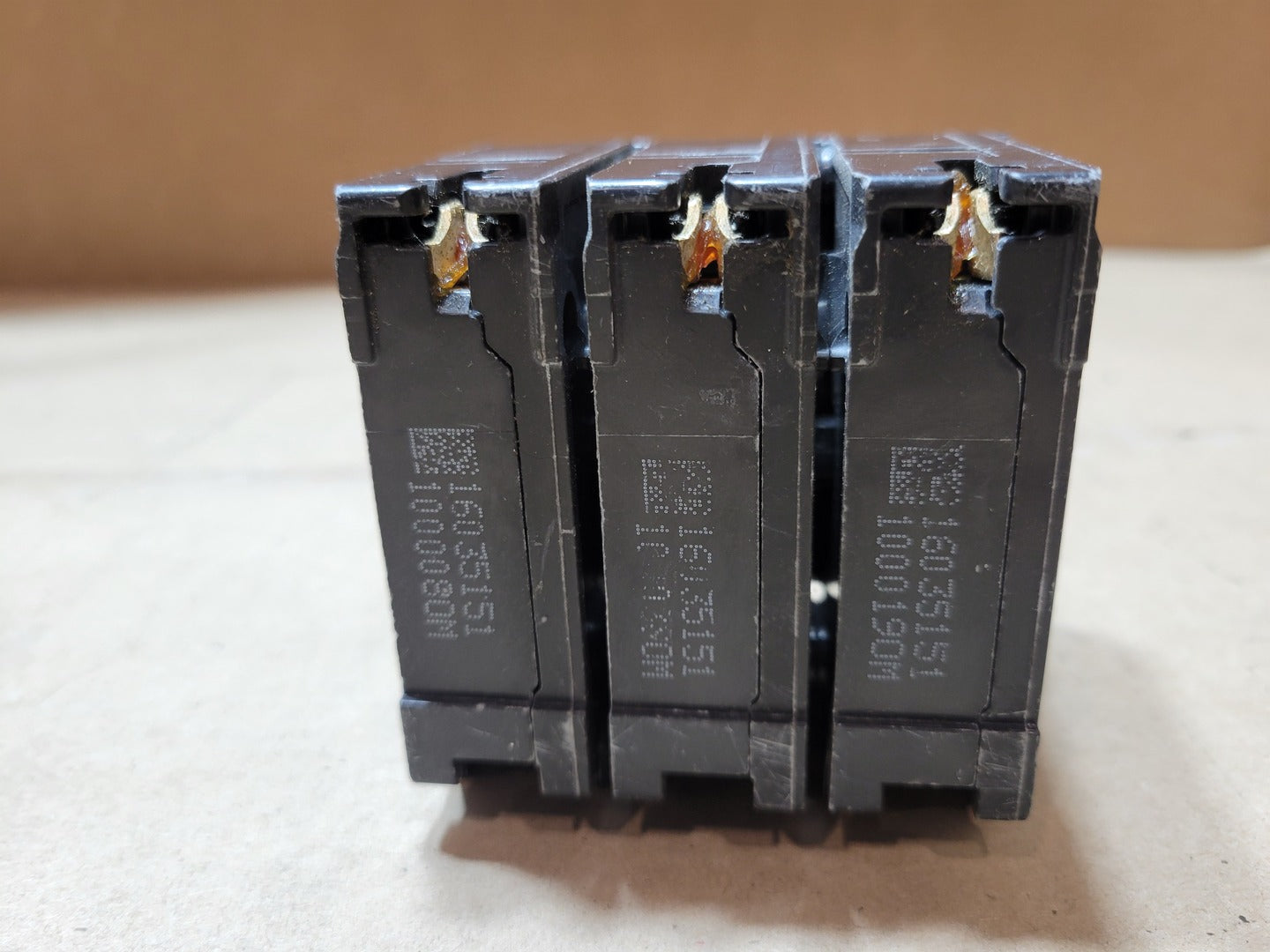

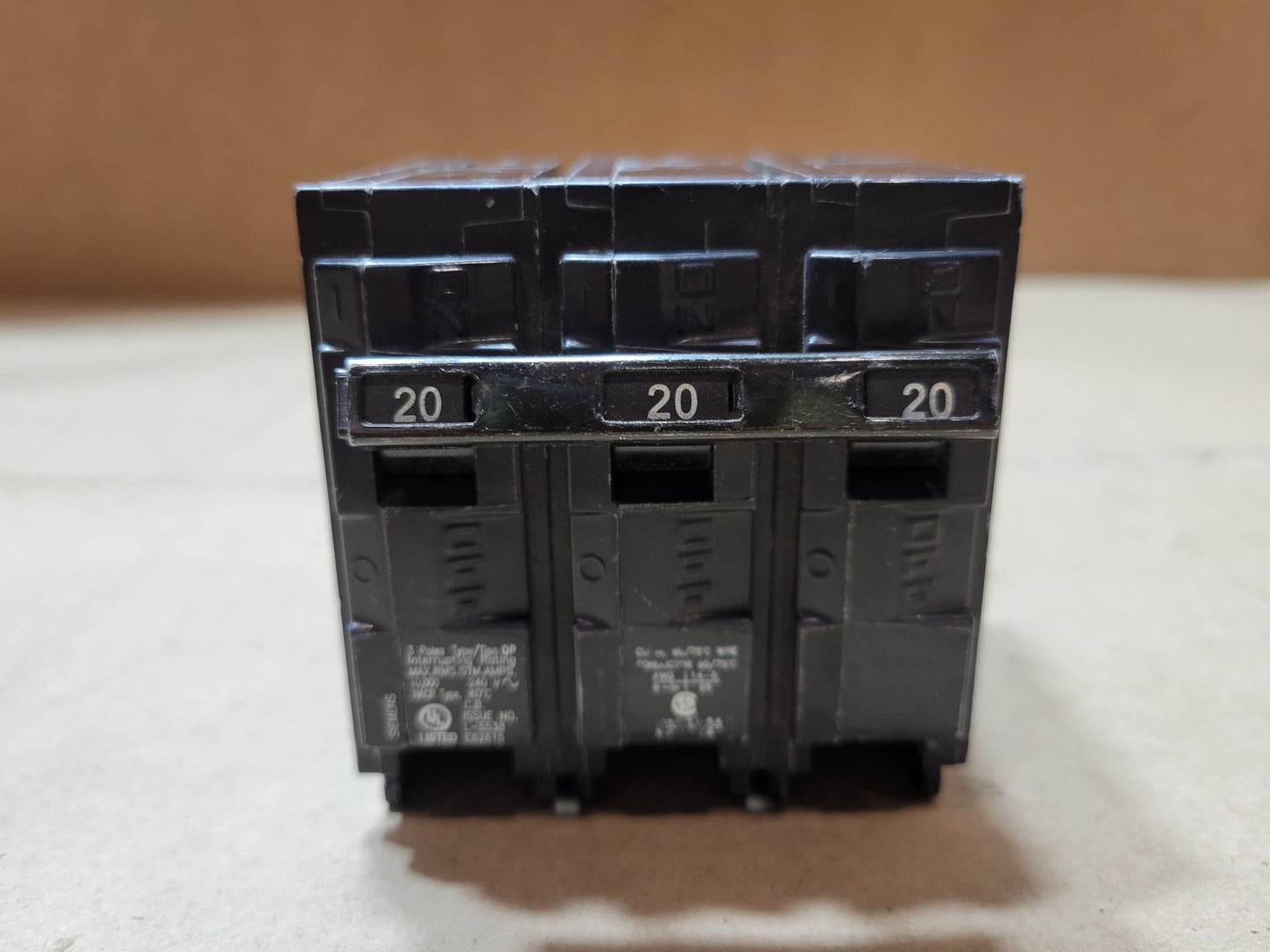

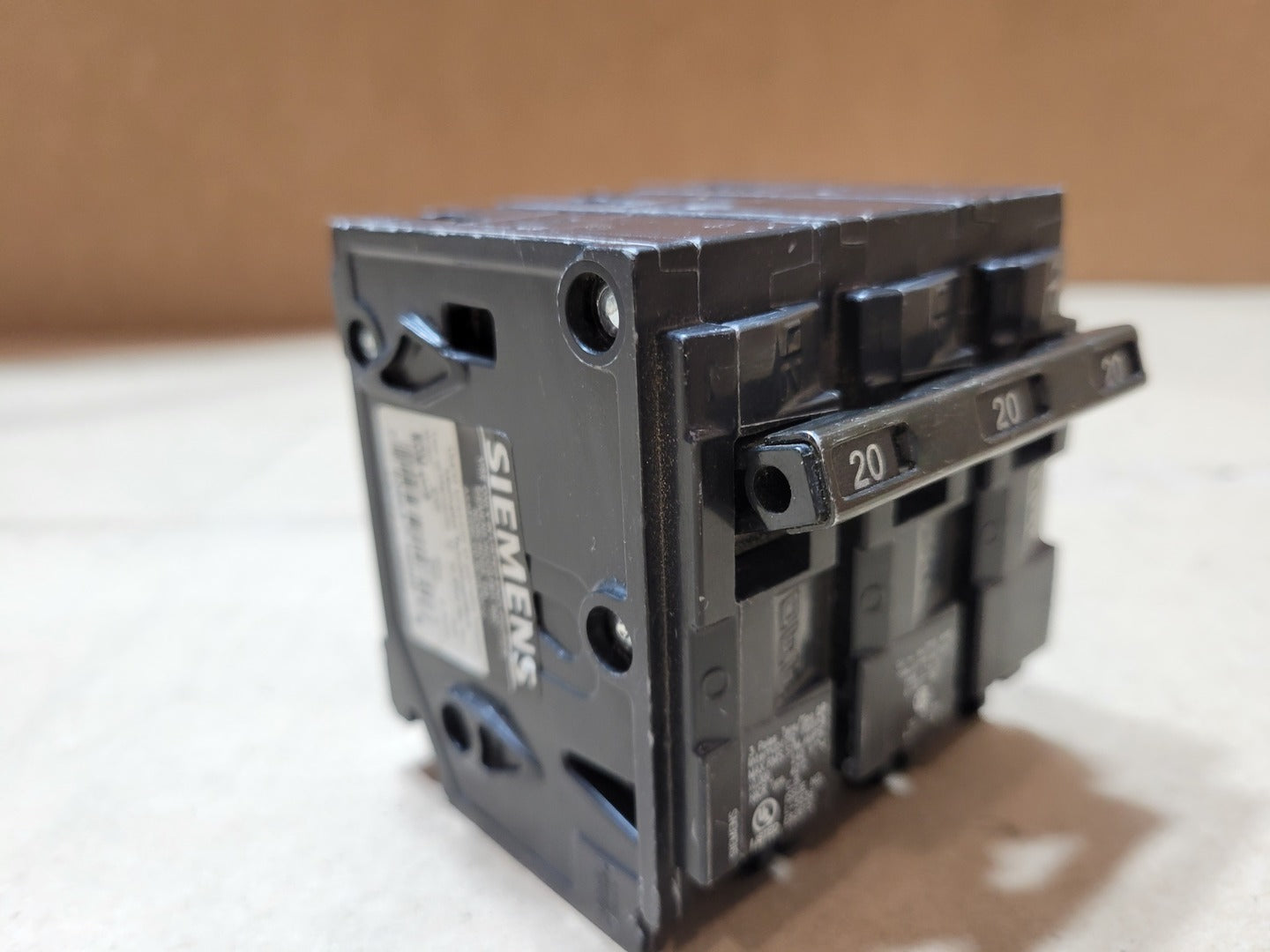

Siemens Q320 Type QP 3-pole thermal-magnetic circuit breaker rated 20 A, 240 V AC and 10 kA interrupting capacity. Features a common handle tie for simultaneous three-pole operation and plug-on mounting for compatible Siemens listed enclosures.
| Specifications | |
|---|---|
| Model | Q320 |
| Condition | Used | General |
| Amps | 20 amps |
| Series | QP |
| # of Poles | 3 |
| Mounting Style | Plug-In |
| Voltage | 240 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|

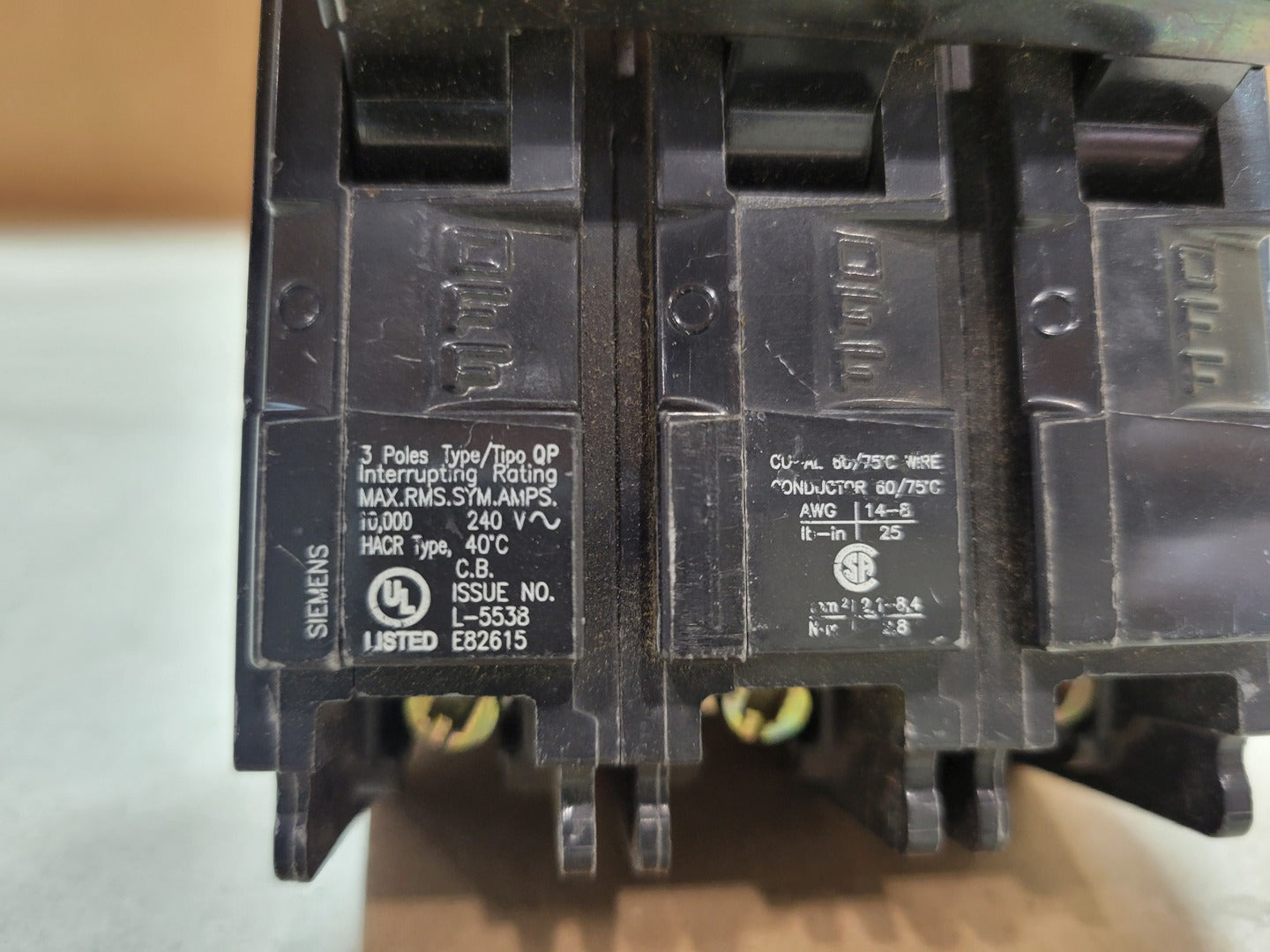

Component Type: Thermal-magnetic circuit breaker Frequency: 60 Hz Interrupting Rating: 10,000 A RMS symmetrical at 240 V Trip Configuration: Common trip / mechanically tied 3-pole HACR Type: Yes, marked HACR Type Operating Temperature Marking: 40°C Conductor Material: Copper or aluminum Conductor Temperature Rating: 60/75°C Wire Range: 14-8 AWG Terminal Torque: 25 in-lb |
