Descripción

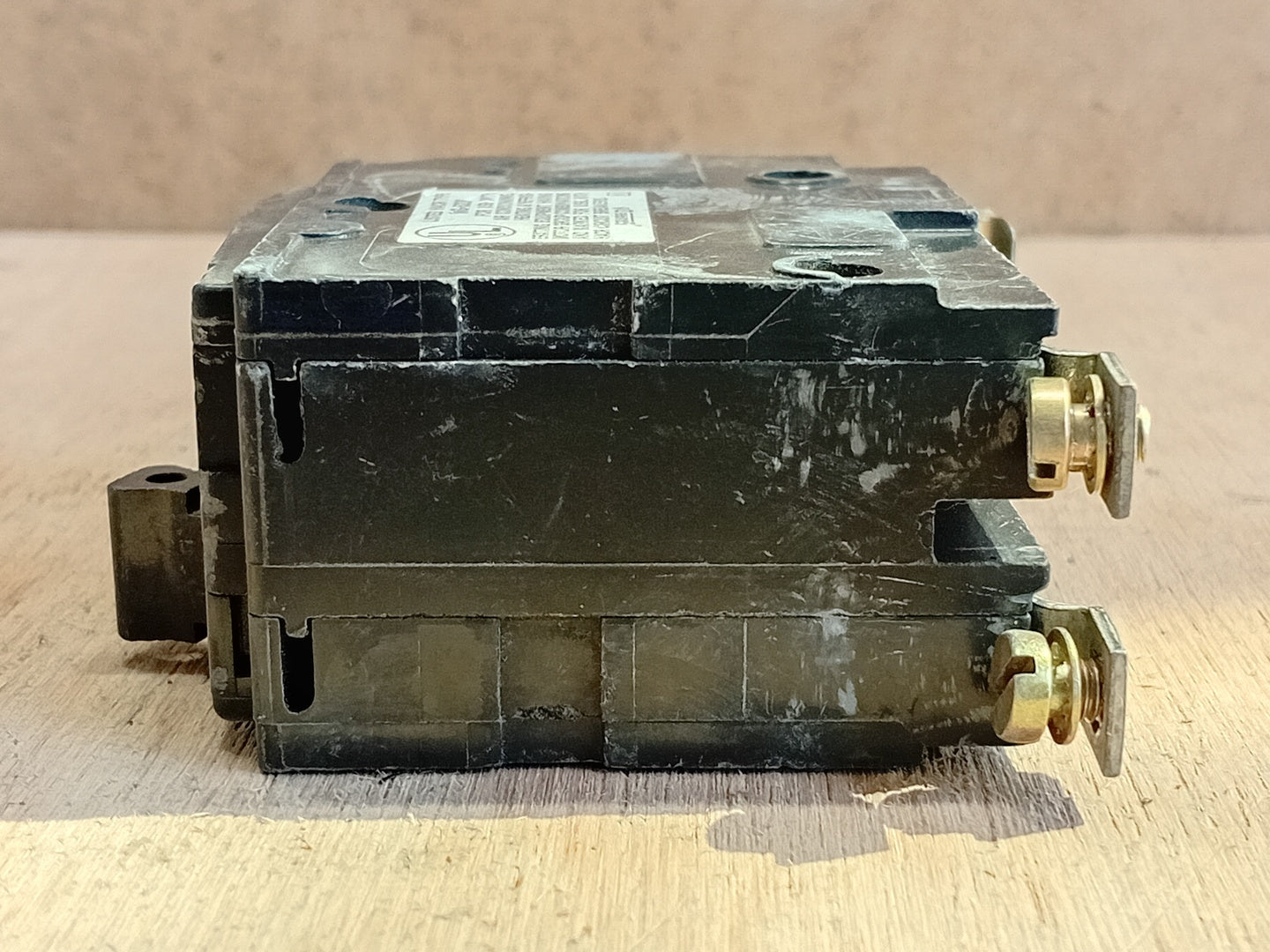

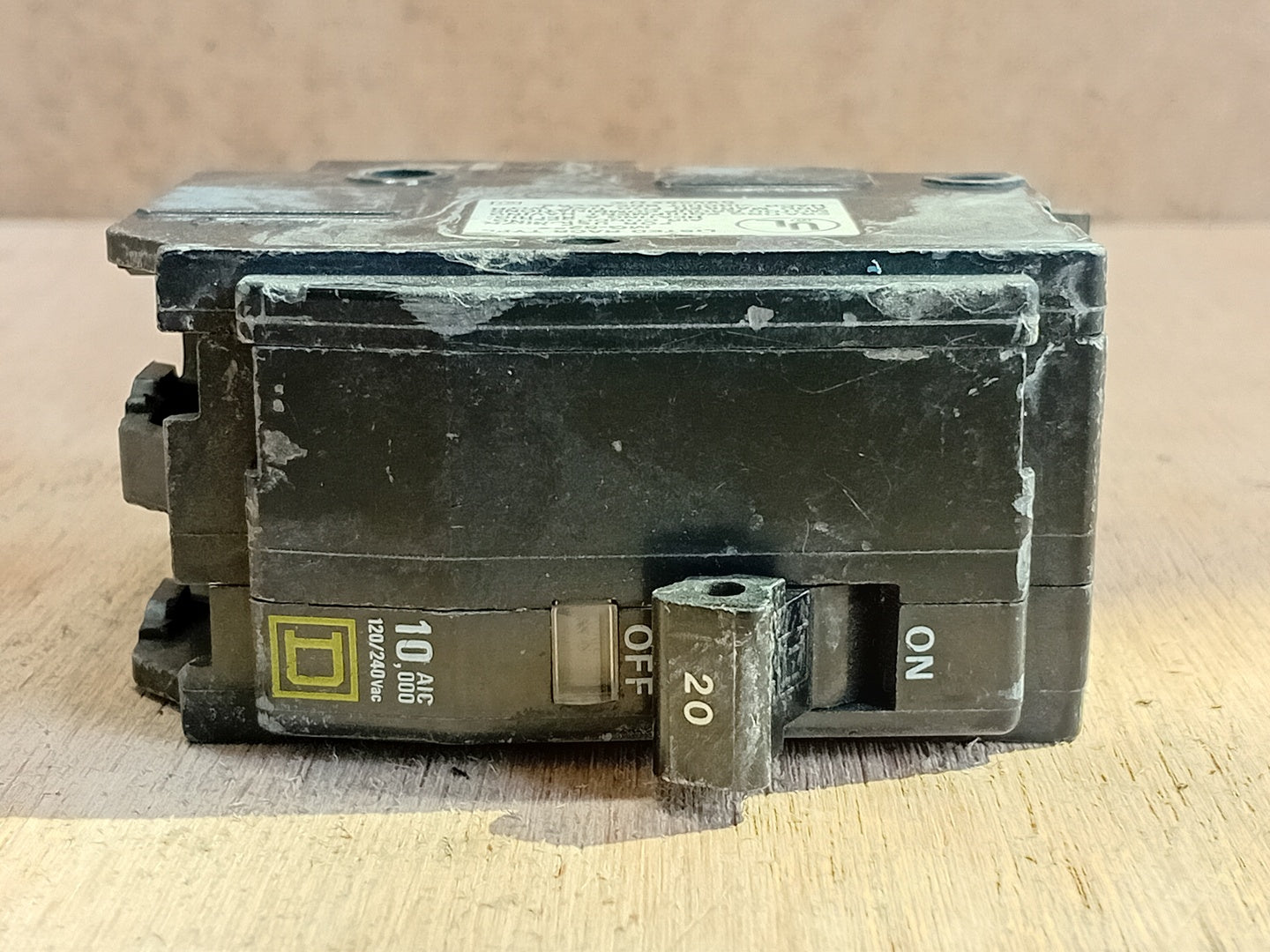

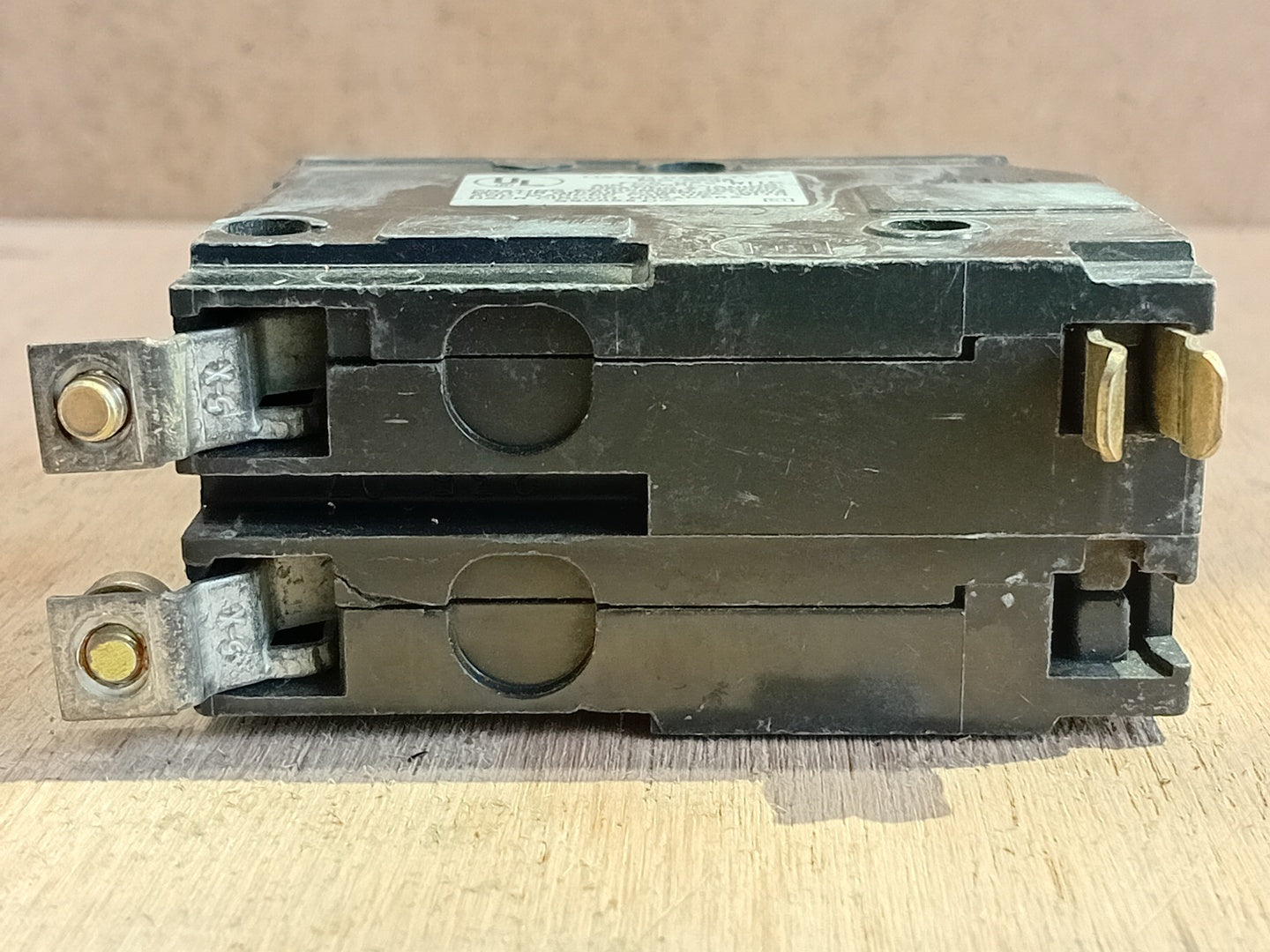

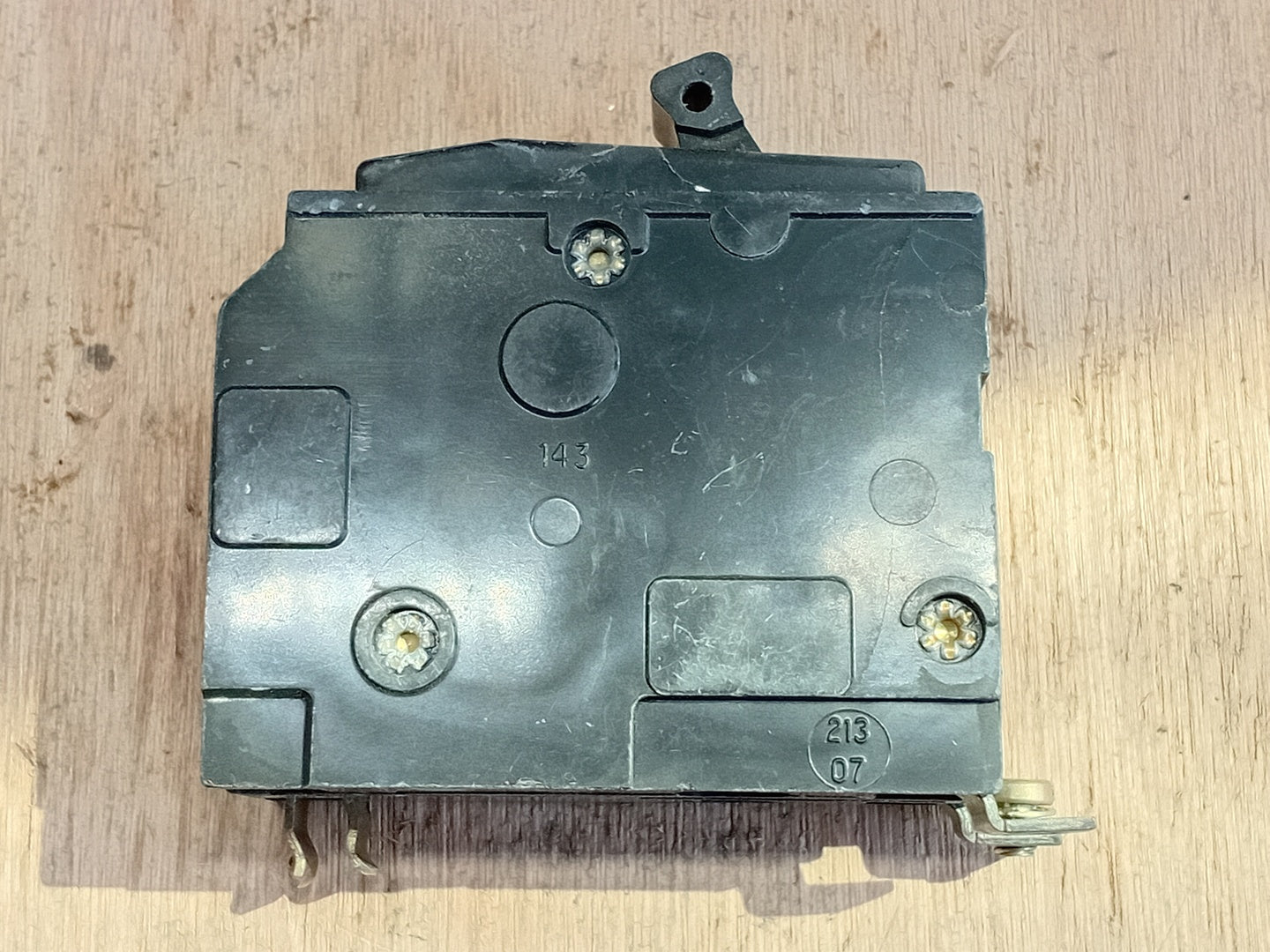

Square D QOB220 2-pole bolt-on circuit breaker rated 20 A at 120/240 VAC with a 10 kA interrupting rating. This breaker is HACR rated and designed for compatible Square D panelboard applications.
| Specifications | |
|---|---|
| Model | QOB220 |
| Made In | UNITED STATES |
| Condition | Used | General |
| Amps | 20 amps |
| Series | QOB |
| # of Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | Single-phase |
| Other Specifications |
|---|
|

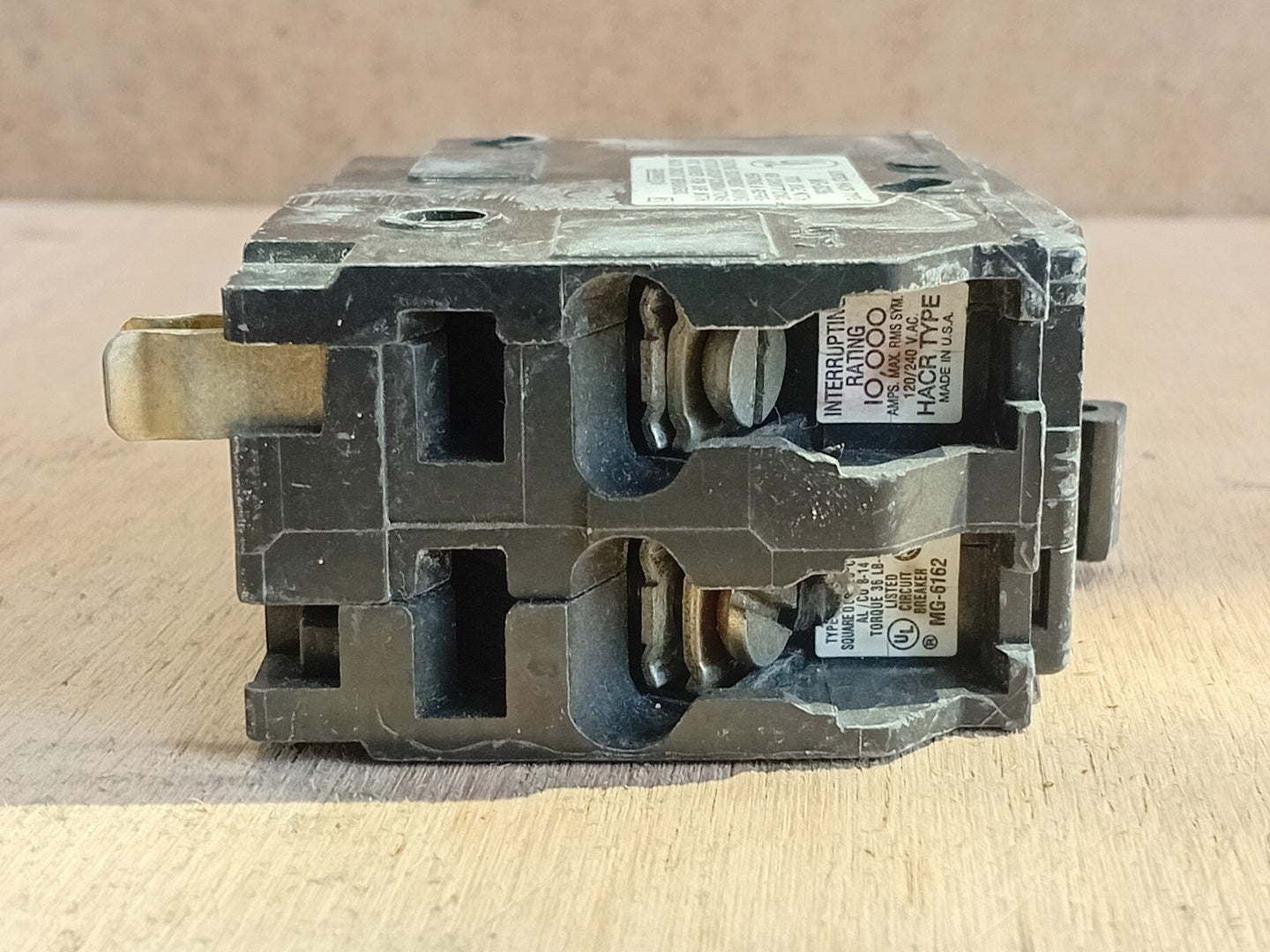

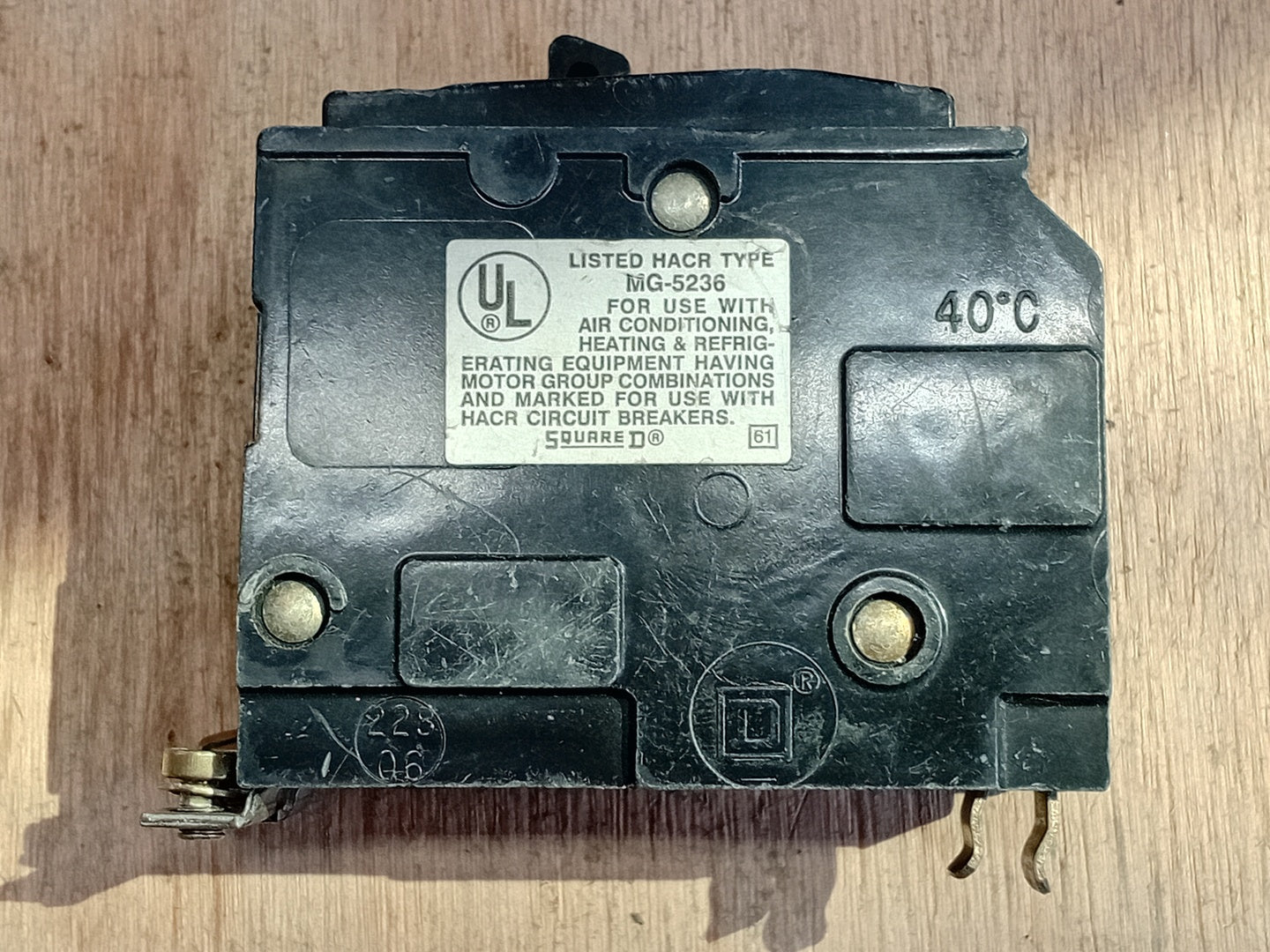

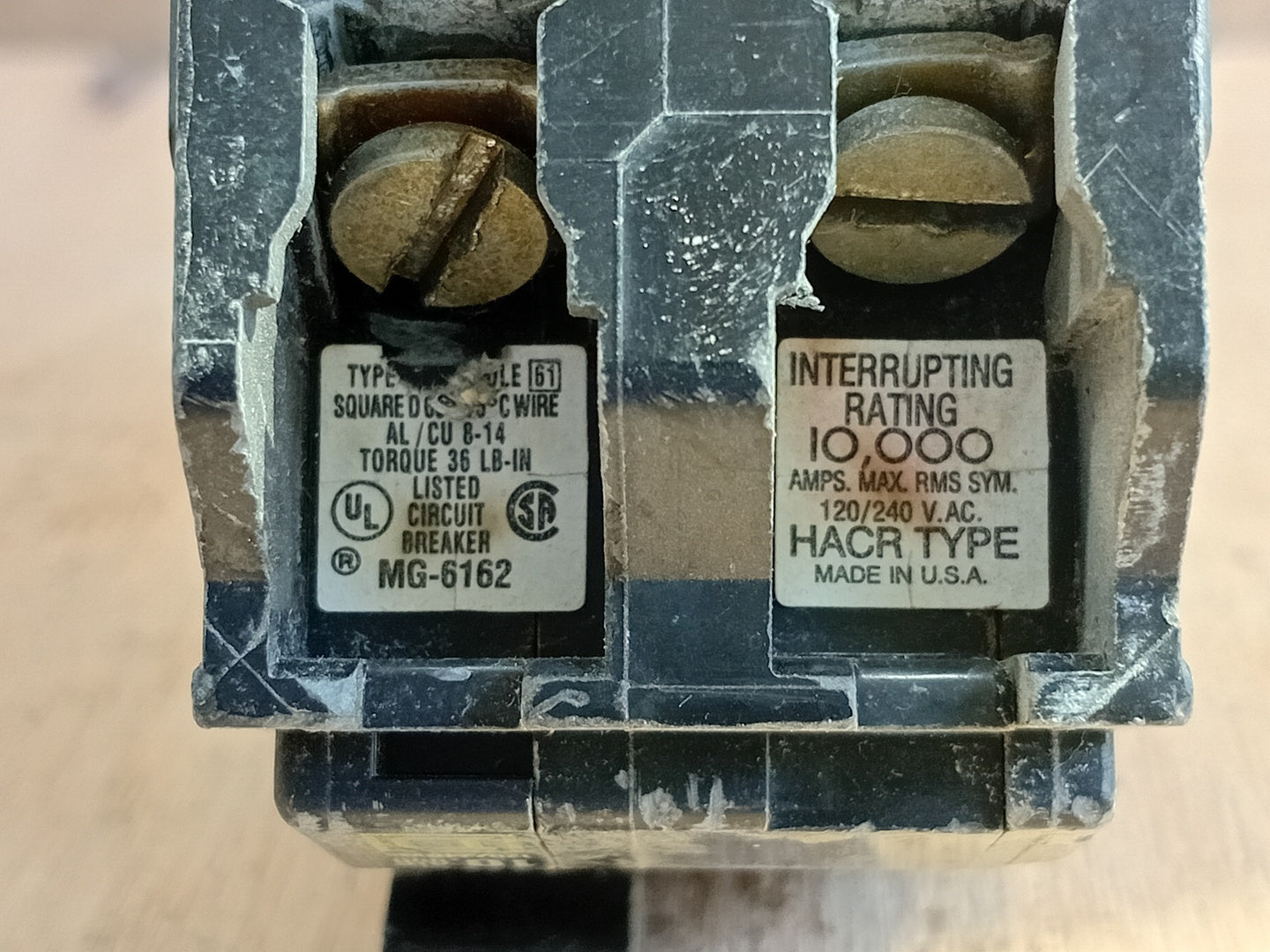

Interrupting Rating: 10,000 A RMS Symmetrical HACR Rated: Yes Temperature Marking: 40°C Conductor Material: Aluminum / Copper (Al/Cu) Wire Range: 8-14 AWG, as marked on this breaker Terminal Torque: 36 lb-in, as marked UL Listed: Yes CSA Marked: Yes UL Circuit Breaker Reference: MG-6162 HACR Reference: MG-5236 |
