Descripción

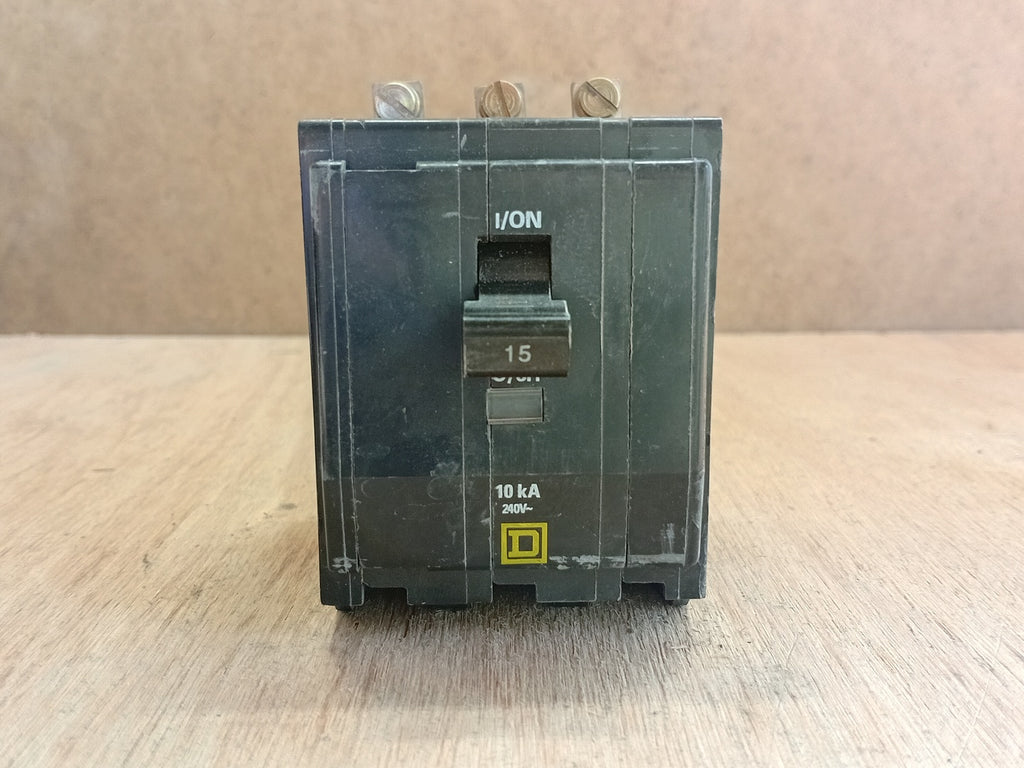

Square D QOB315 thermal magnetic bolt-on circuit breaker rated at 15 Amps with three poles for use in compatible Square D QOB/NQ panelboards. The breaker features a 10 kA interrupting rating at 120/240 VAC and Visi-Trip indication.
| Specifications | |
|---|---|
| Model | QOB315 |
| Made In | IRELAND |
| Condition | Used | General |
| Amps | 15 amps |
| Series | QOB |
| # of Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120/240 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Breaker Type: Thermal Magnetic Circuit Breaker Interrupt Rating: 10 kA RMS Symmetrical @ 120/240 VAC Trip Indicator: Visi-Trip Terminal Connection: Pressure Plate Compatible Wire Size: AWG 14-8 Copper or Aluminum Terminal Torque: 35-44 lb-in (varies by documentation revision) Ratings: HACR Rated Certifications: UL Listed, CSA, NOM-117 |
