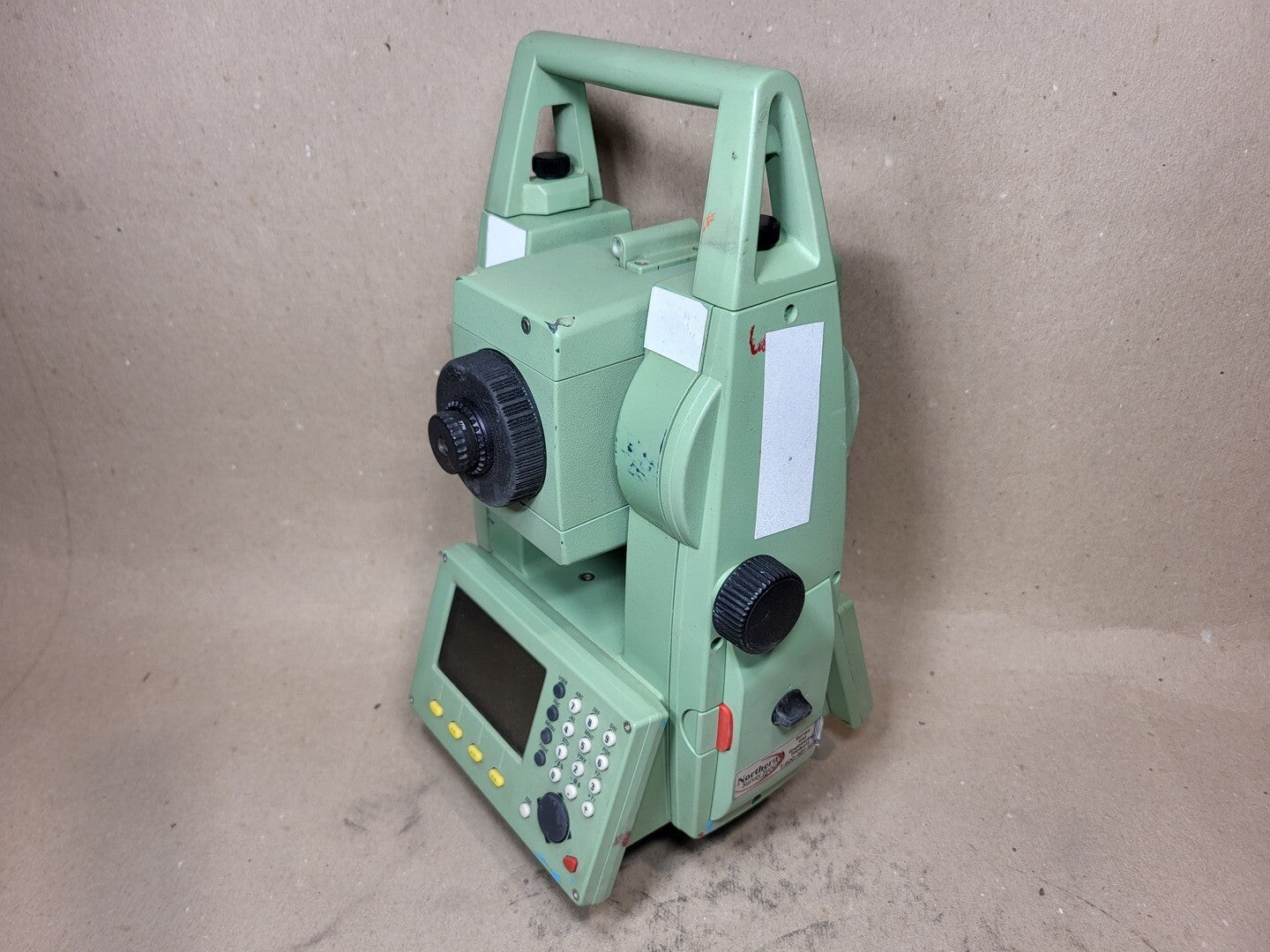

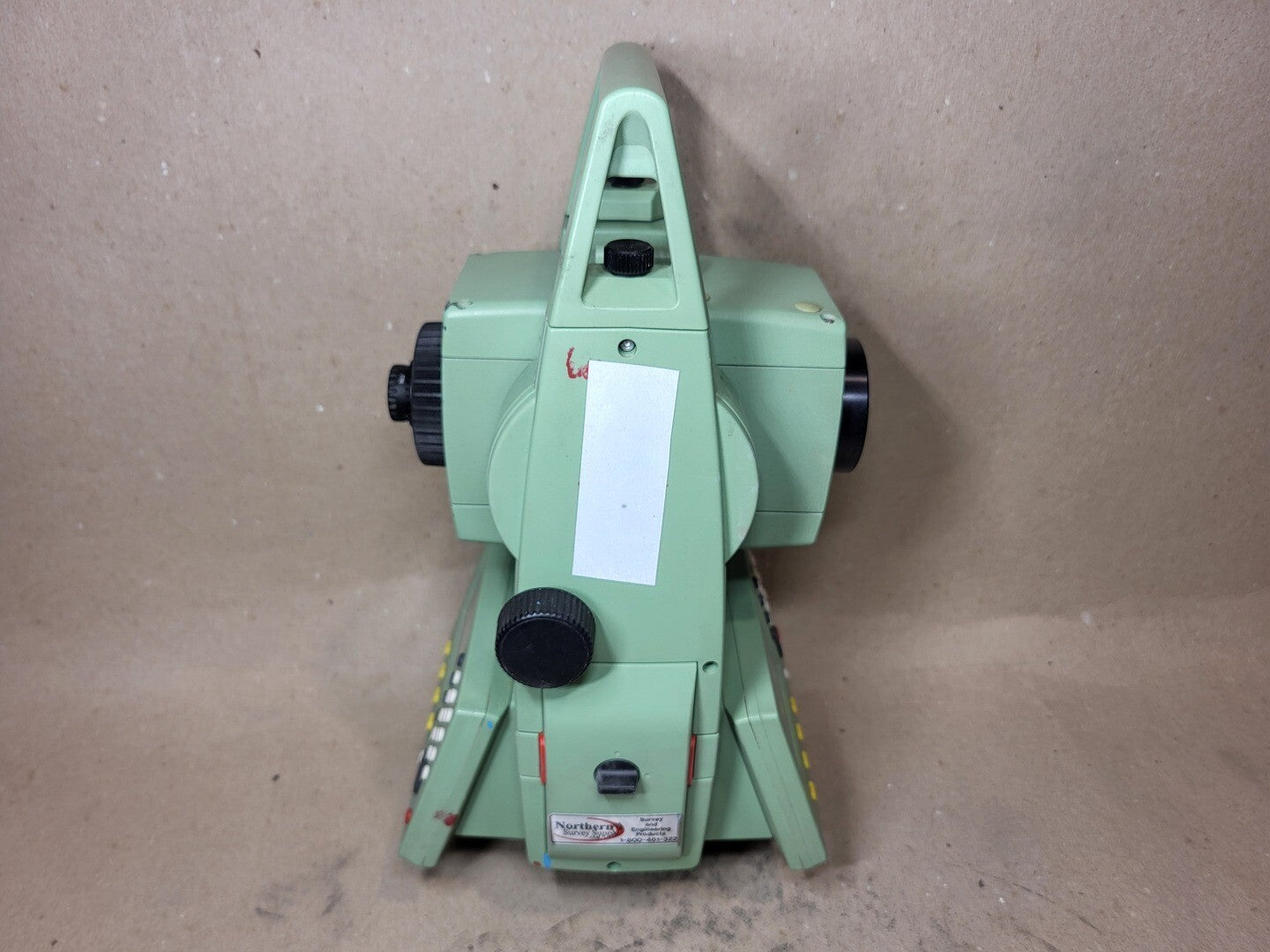

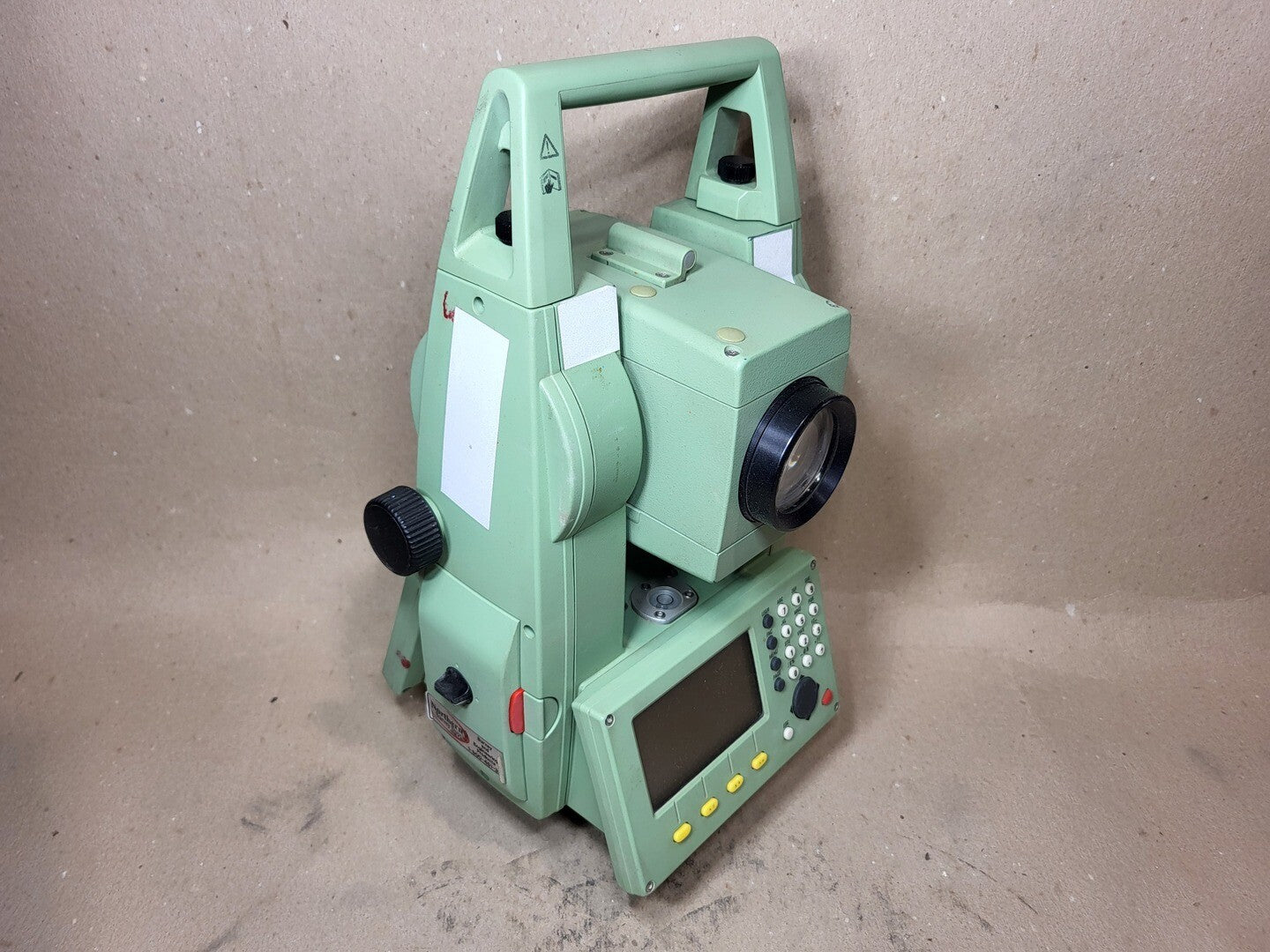

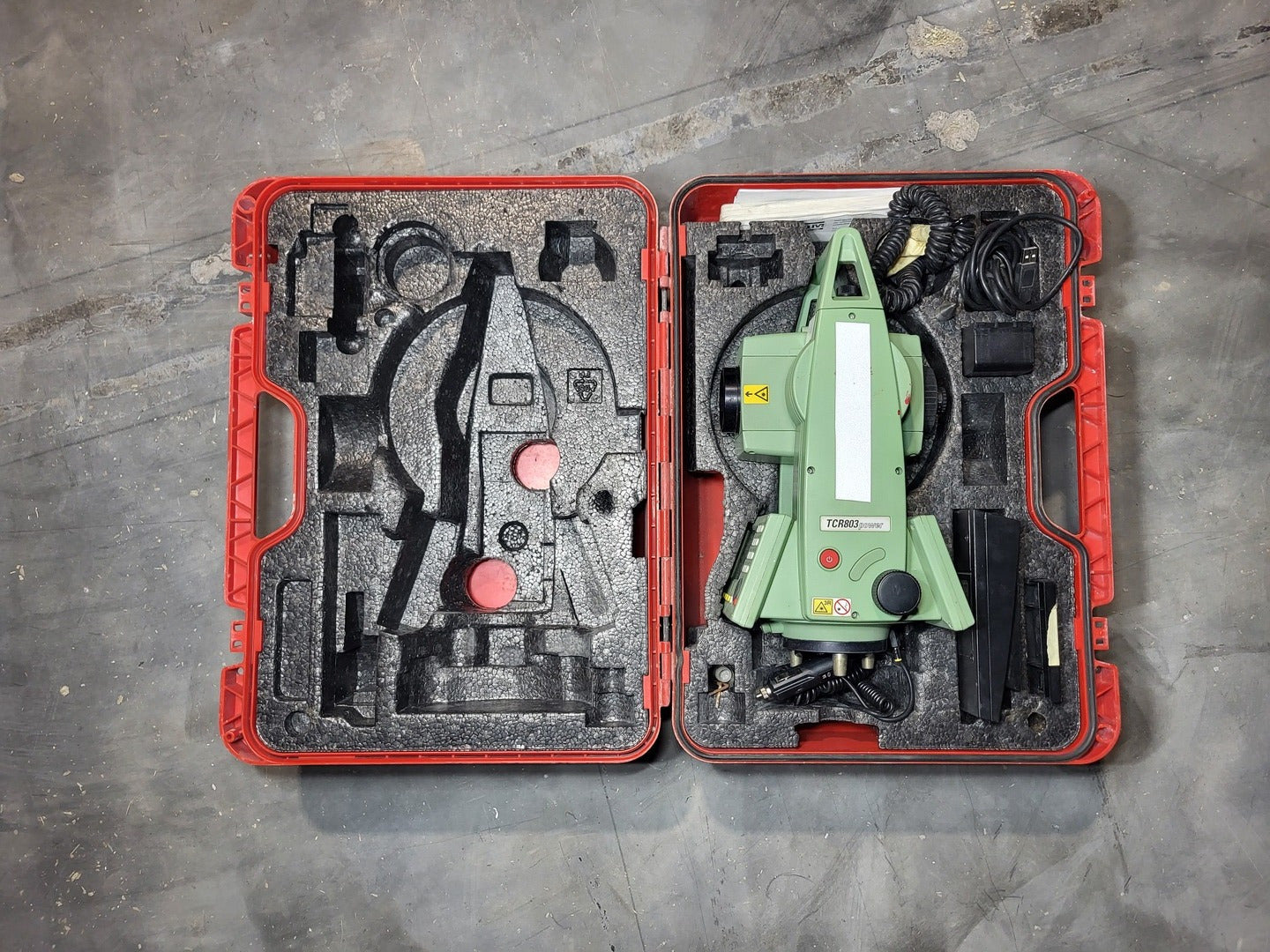

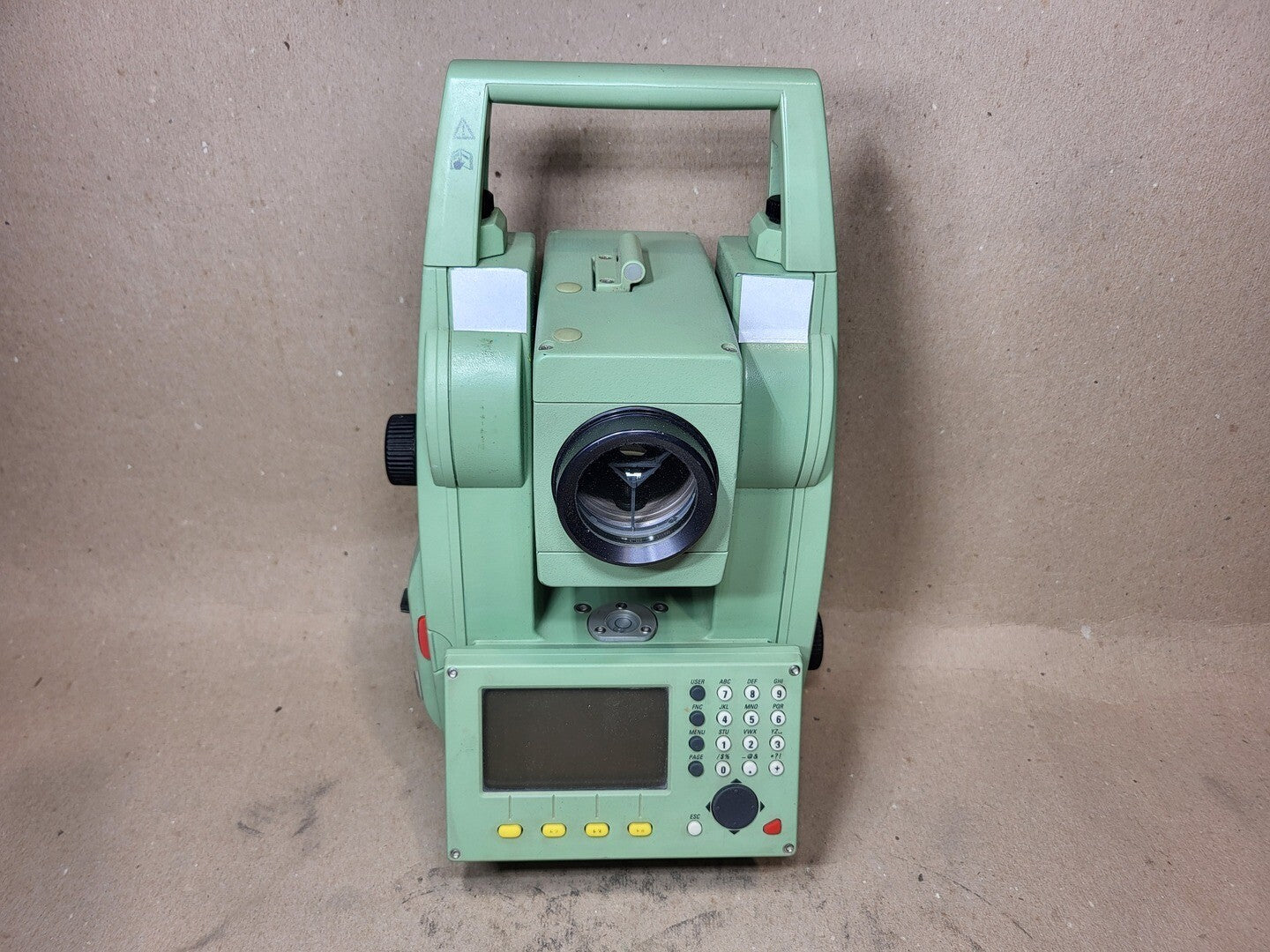

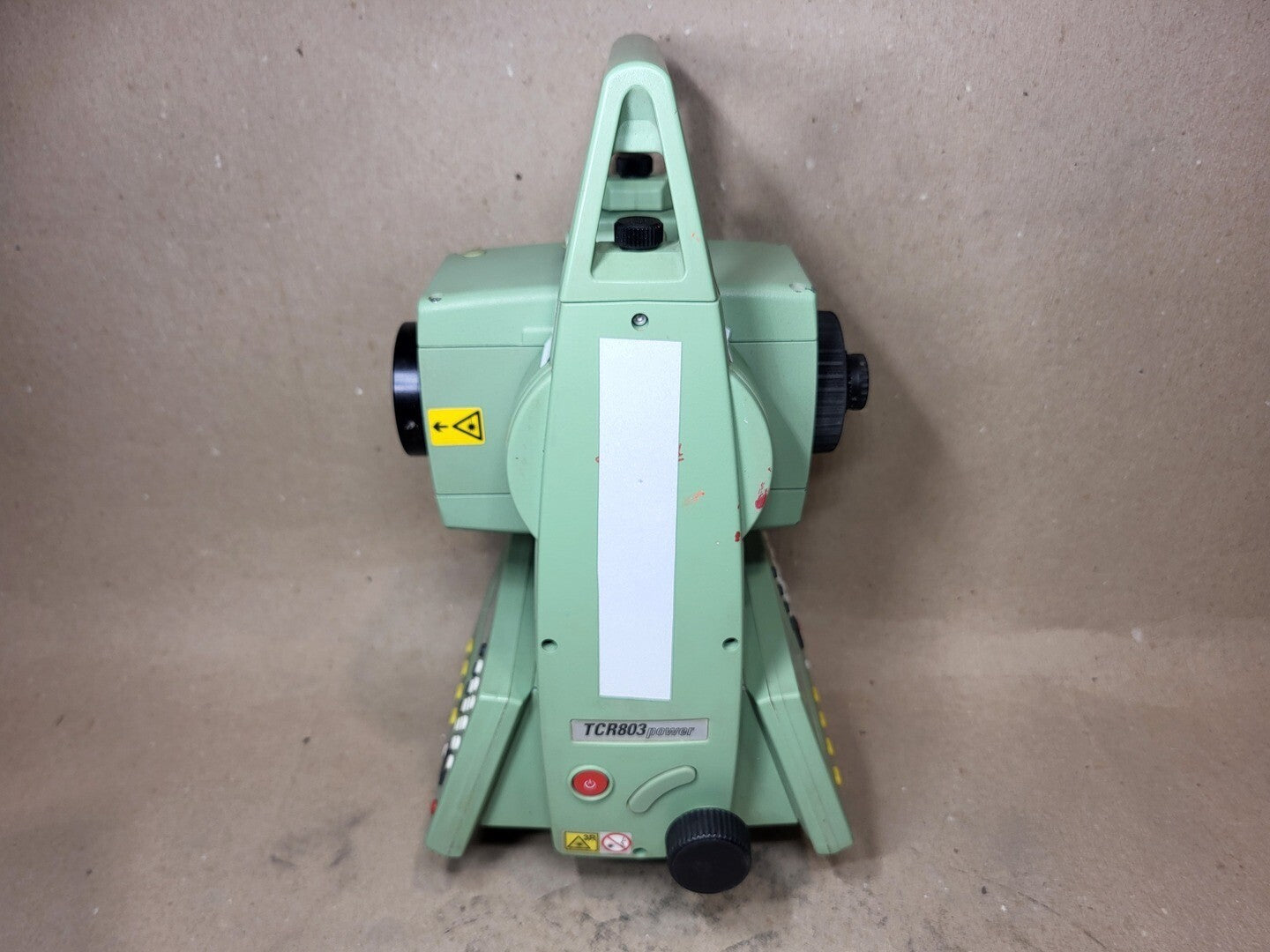

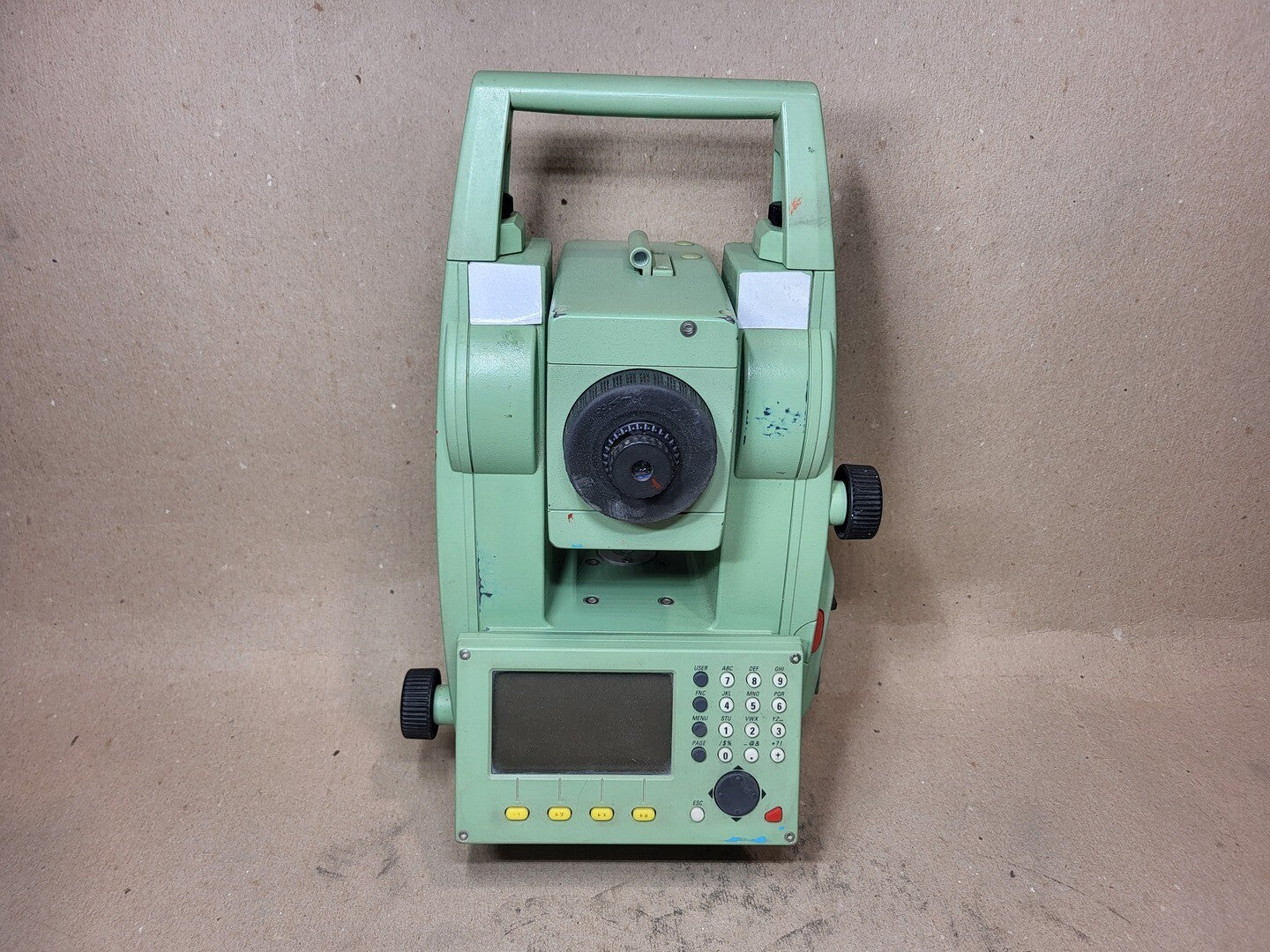

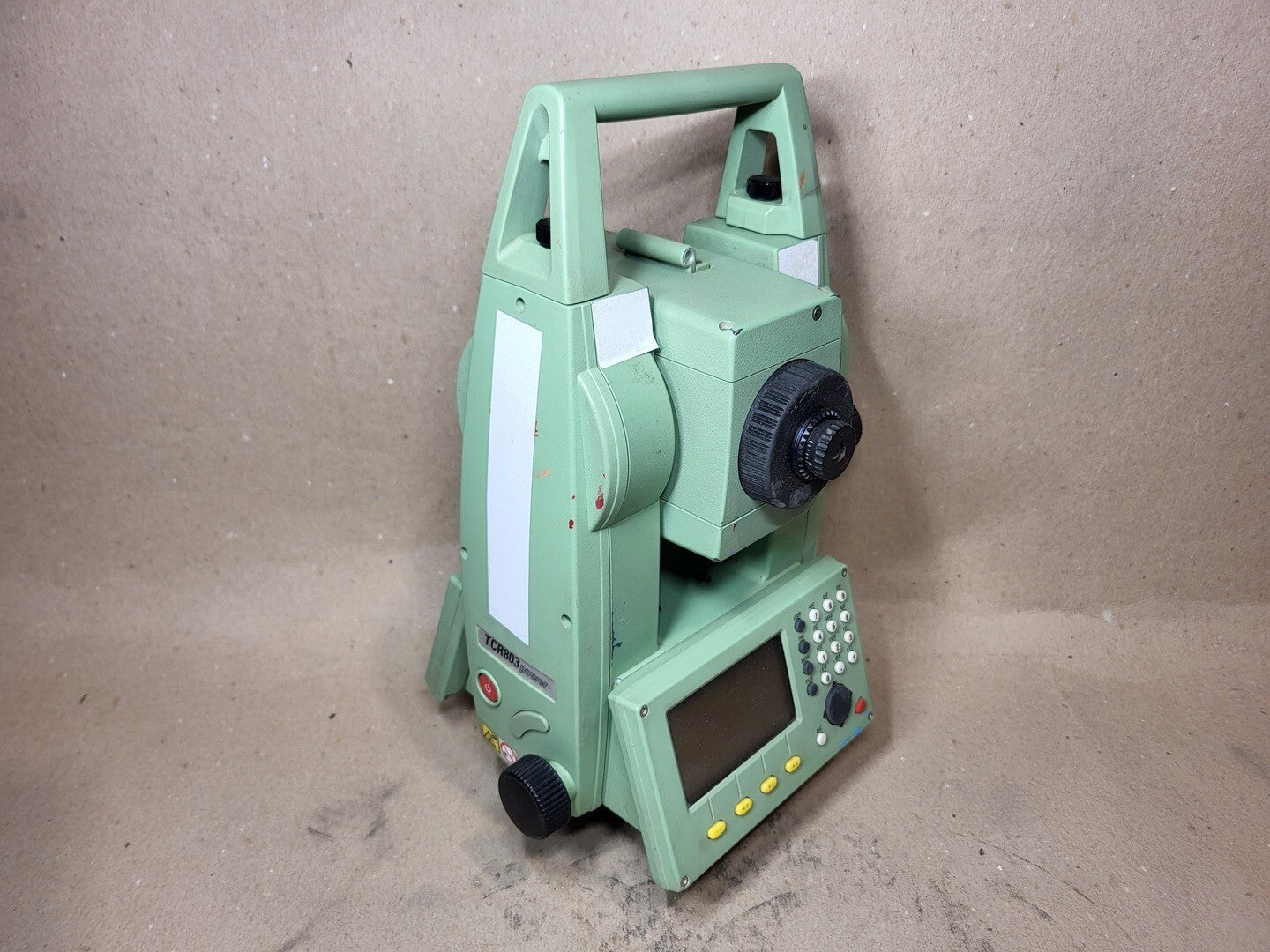

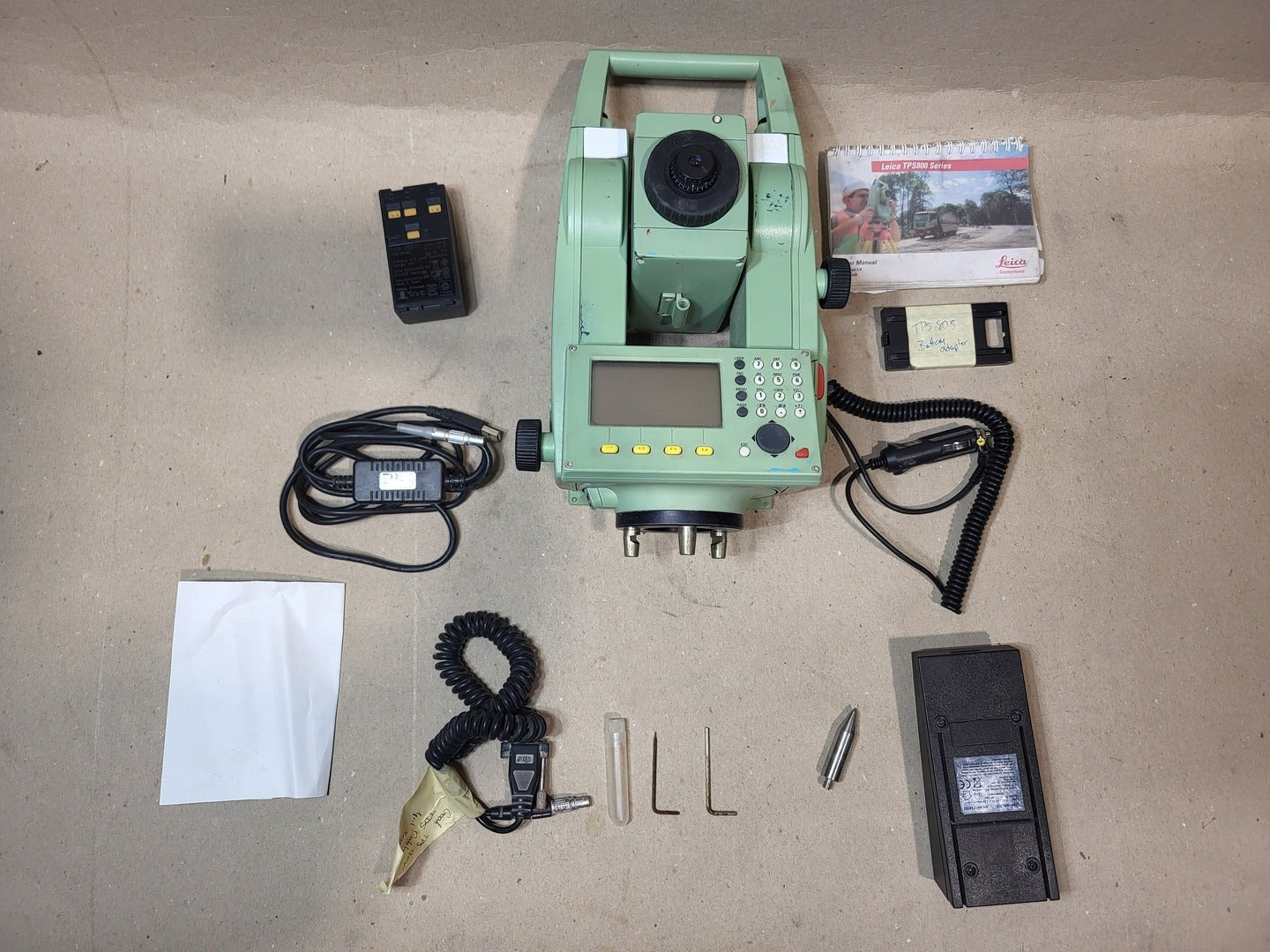

LEICA Robotic Total Station TCR803
LEICA

Robotic Total Station TCR803

SKU: 139183
Condition: Used - Like New
Ahorrar $510 CAD
Precio:
$4,490 CAD $5,000 CAD

Gastos de envío calculados en la caja

Stock:
Solo queda 1 unidad
Make an Offer

¿Necesita una respuesta ahora?

604-449-1880

Descripción

Leica TCR803 Robotic Total Station is a precision reflectorless surveying instrument offering approximately 3 arc-second angular accuracy, a dual-axis compensator, long-range distance measurement, and reliable performance in demanding field conditions. It features RS-232 connectivity for data transfer and is well suited for topographic surveys, construction staking, and engineering applications.
Specifications
Model TCR803
Made In SWITZERLAND
Condition Used - Like New
Other Specifications

Overview:

  • Angular Measurement
  • Angular Accuracy: 3 arc-seconds
  • Angle Reading Resolution: 1" / 5" / 10" (configuration dependent)
  • Distance Measurement (EDM)
  • With Prism: Up to approx. 5,000 m (depending on prism and conditions)
  • Reflector less Mode: Up to approx. 800 -1,000 m (surface and conditions dependent)
  • Distance Accuracy: (2 mm + 2 ppm) typical
  • Compensation
  • Compensator Type: Dual-axis compensator
  • Function: Automatic correction of horizontal and vertical axis misalignment
  • Robotic Functionality
  • Robotic Operation: Motorized target tracking
  • Remote Control Capability: Yes (with compatible Leica controller)
  • Software Compatibility: Leica survey software platforms (model and version dependent)
  • Data & Connectivity
  • Communication Interface: RS-232
  • Internal Memory: Integrated data storage for field measurements
  • Data Export Formats: TXT, CSV, DXF (software dependent)
  • Environmental Specifications
  • Operating Temperature: -20°C to +50°C
  • Ingress Protection: Approx. IP55 (dust and splash resistant)
  • Field Use: Designed for harsh outdoor and construction environments
  • Power Supply
  • Power Source: Rechargeable Leica battery (GEB series)
  • Battery Voltage: Approx. 7.2 - 7.4 V DC
  • Typical Operating Time: 8 - 10 hours (usage dependent)
