Descripción
| Specifications | |
|---|---|

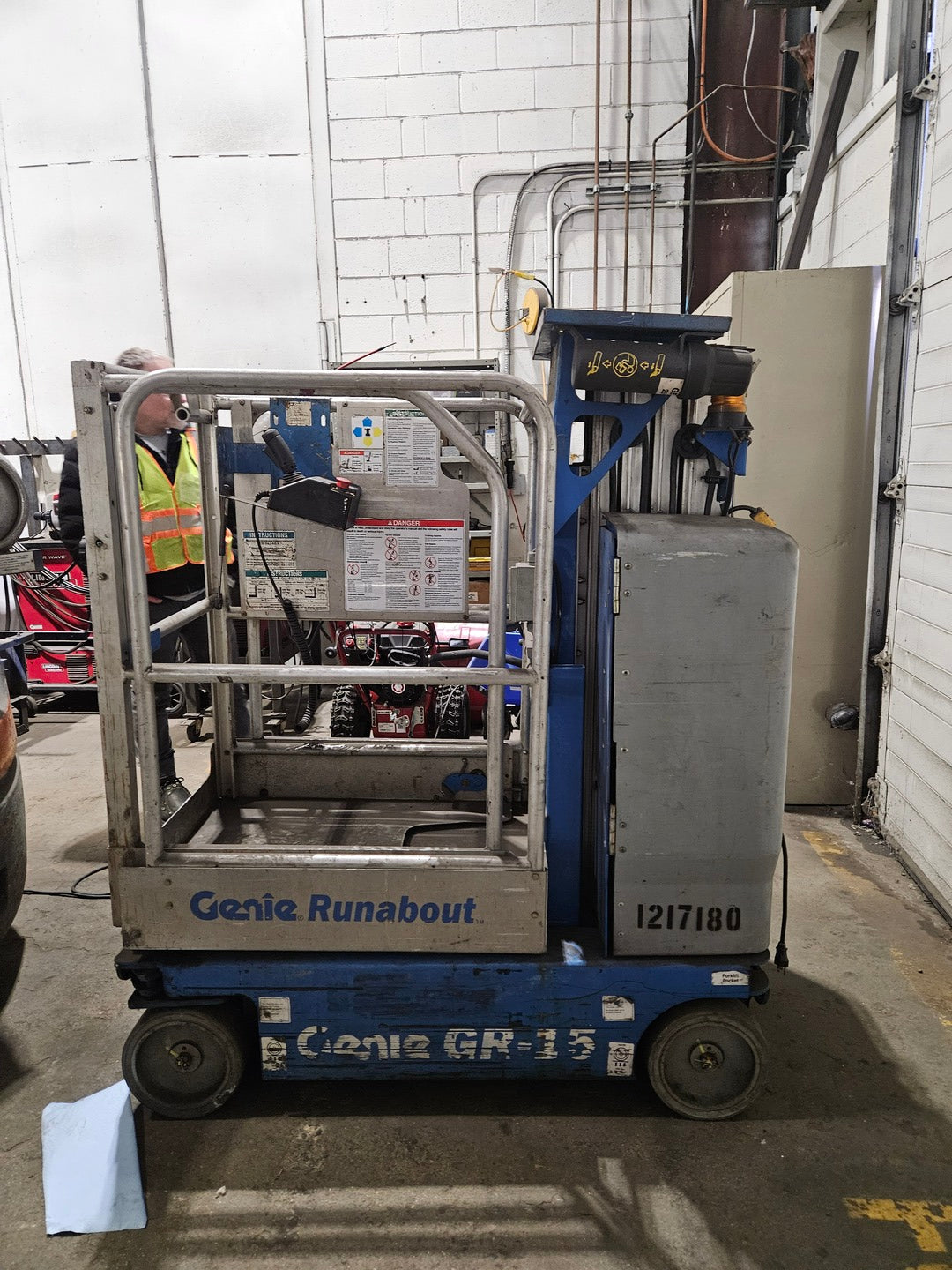

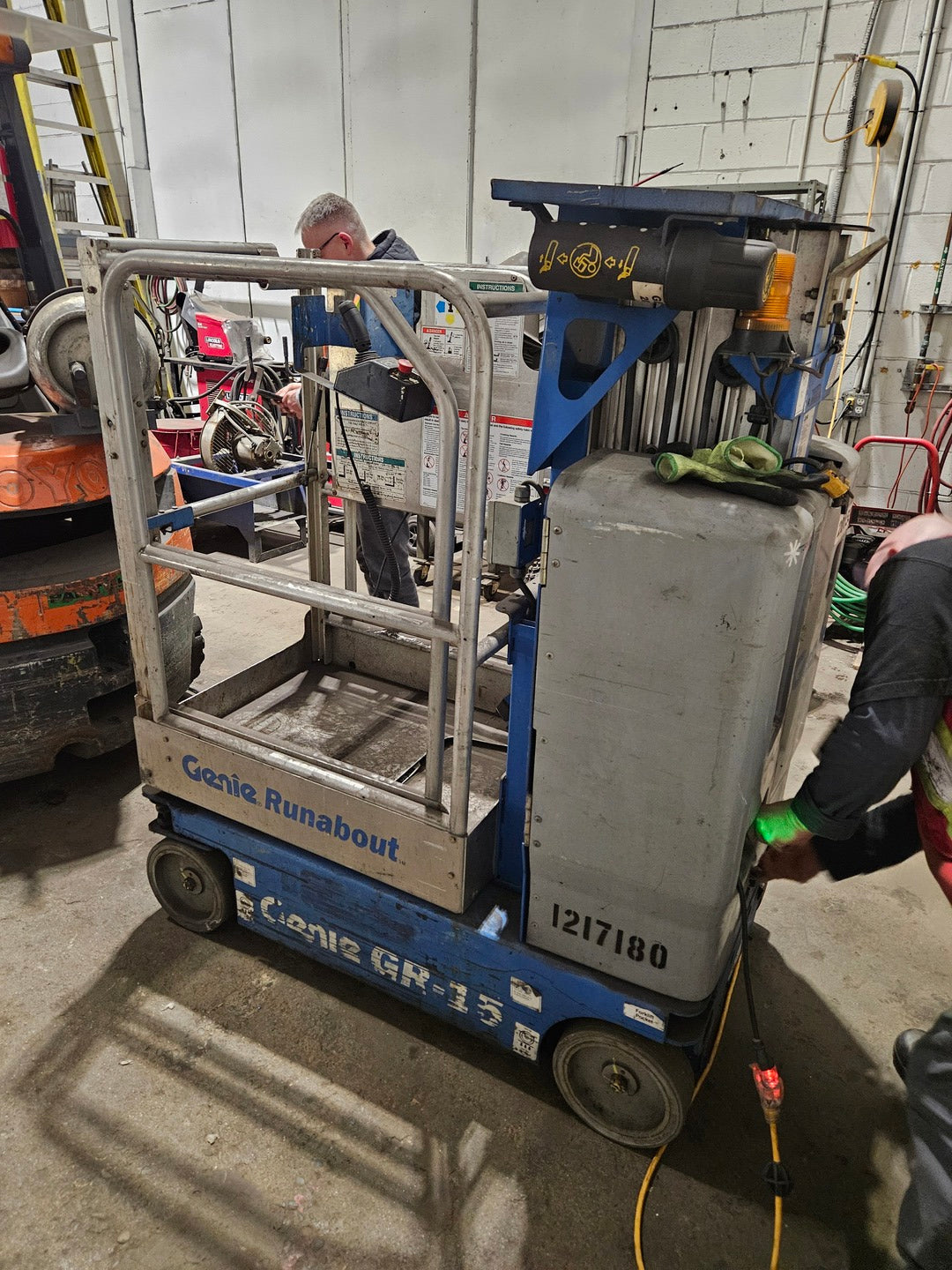

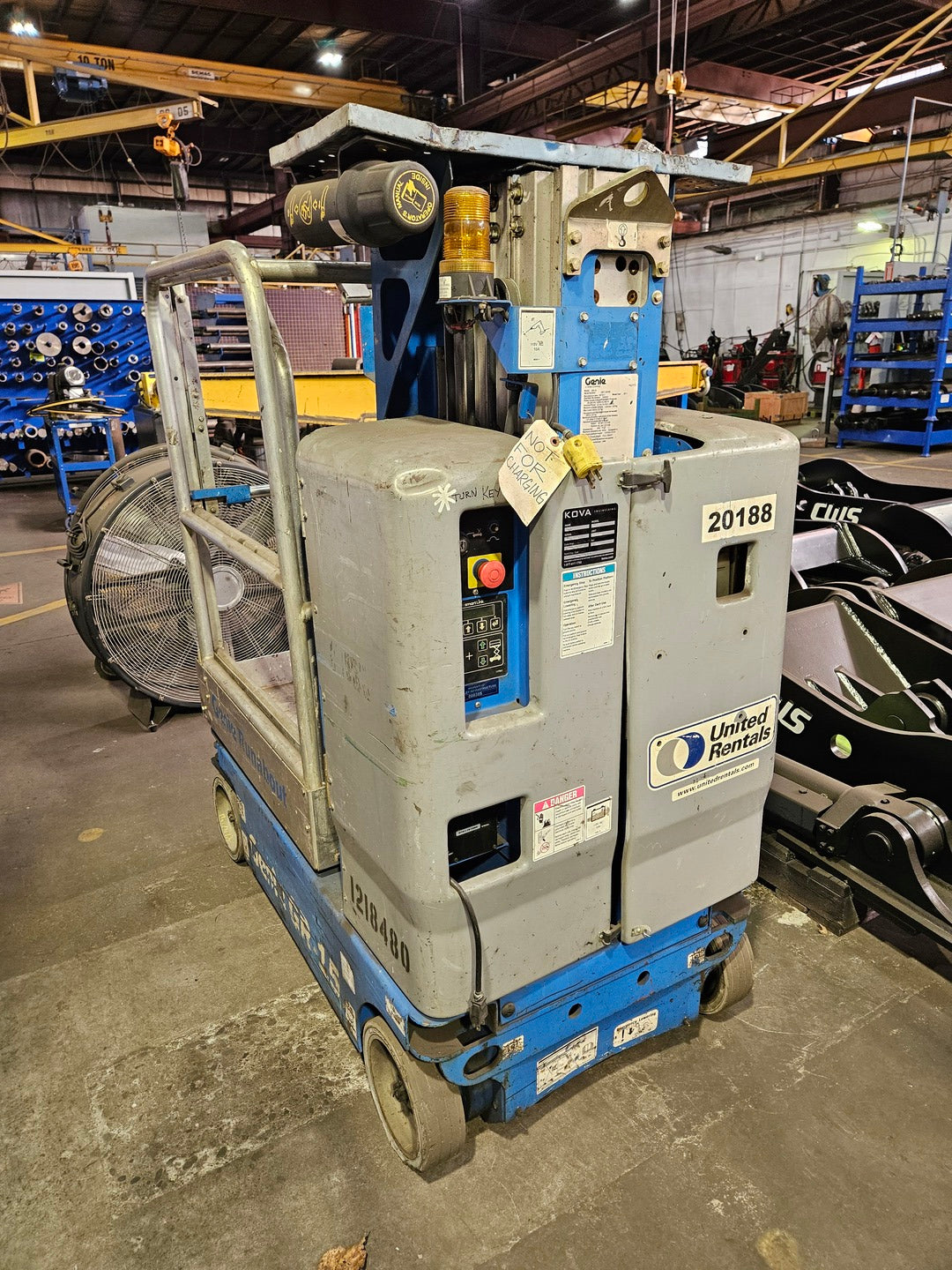

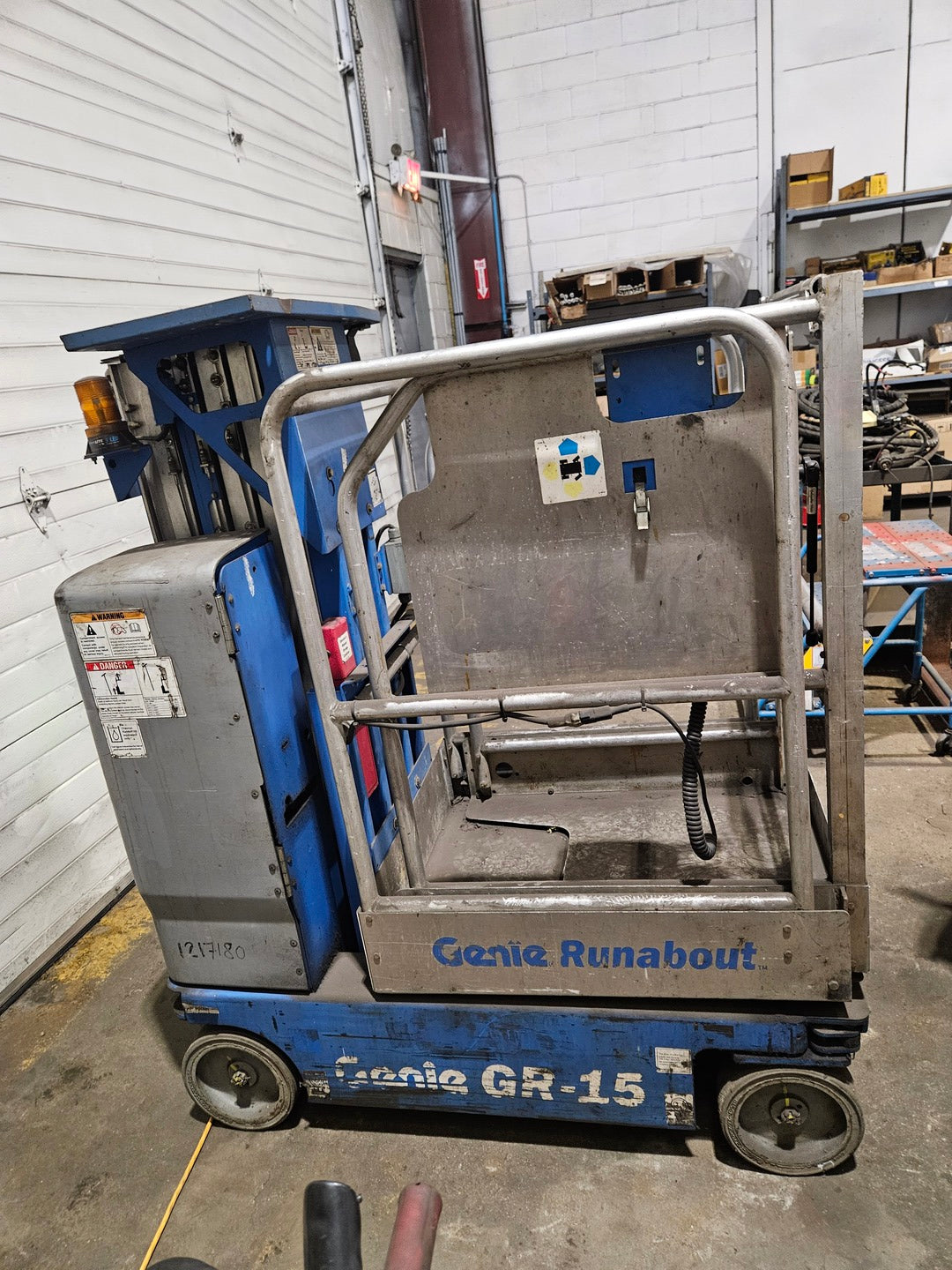

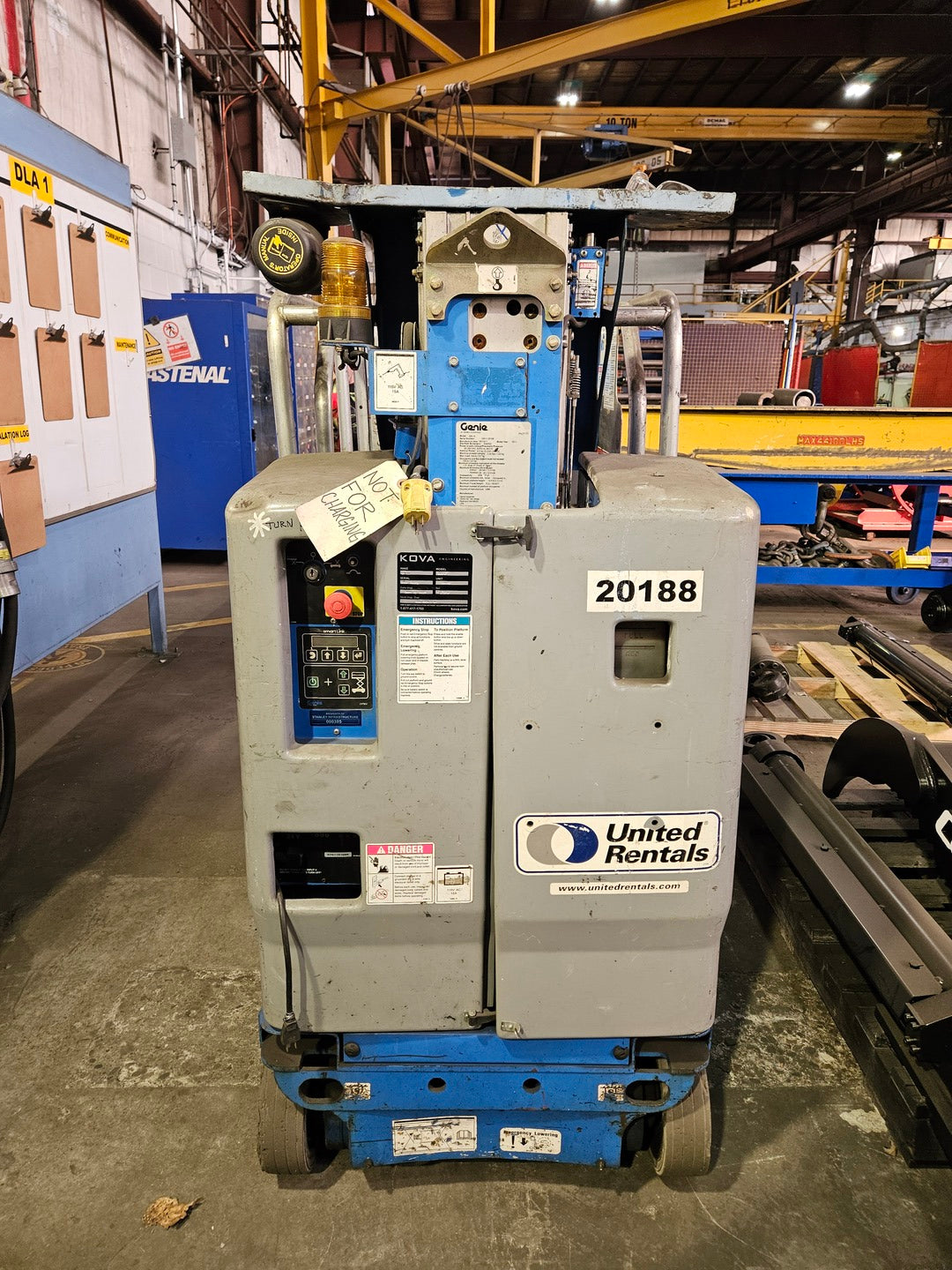

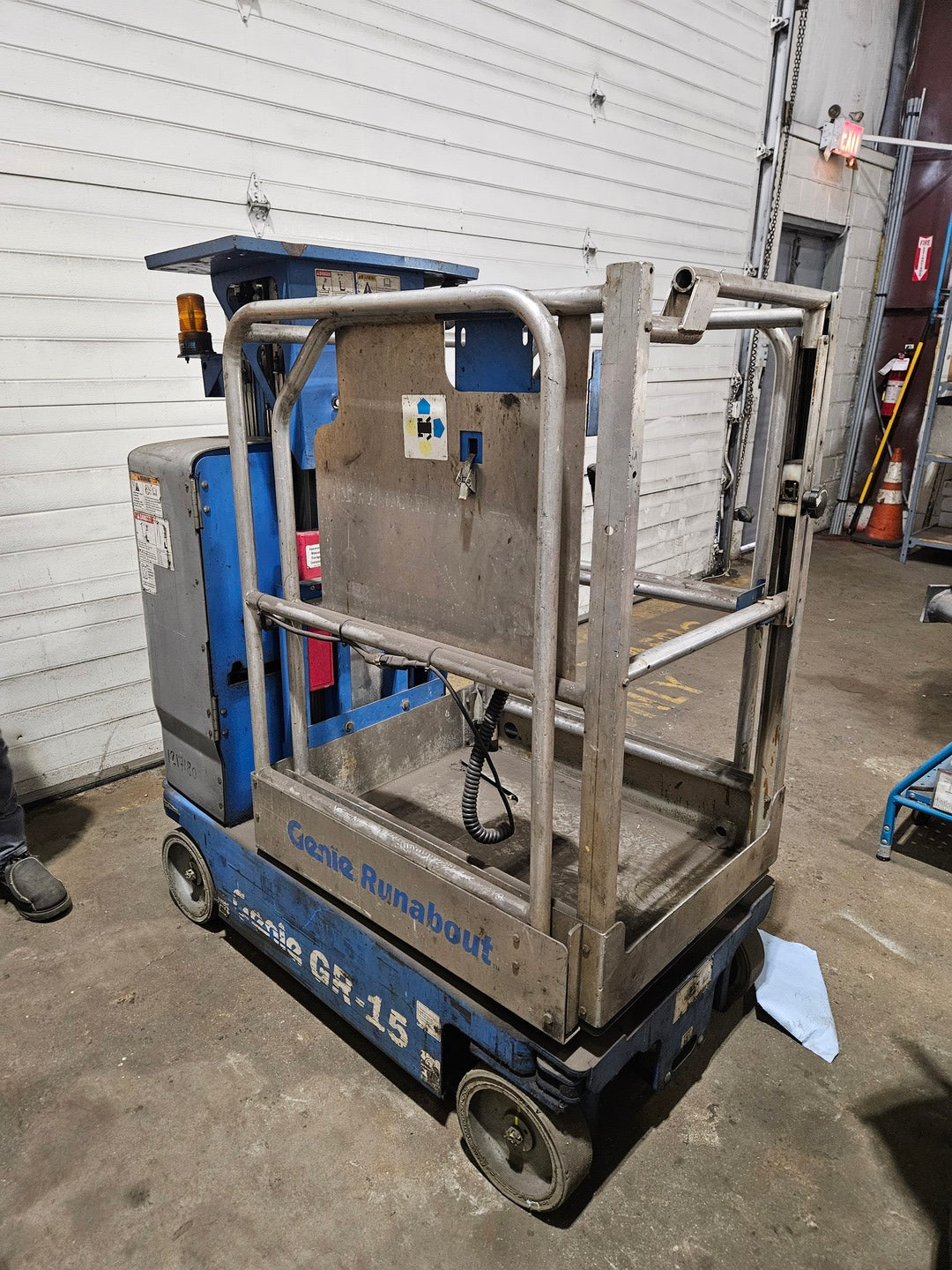

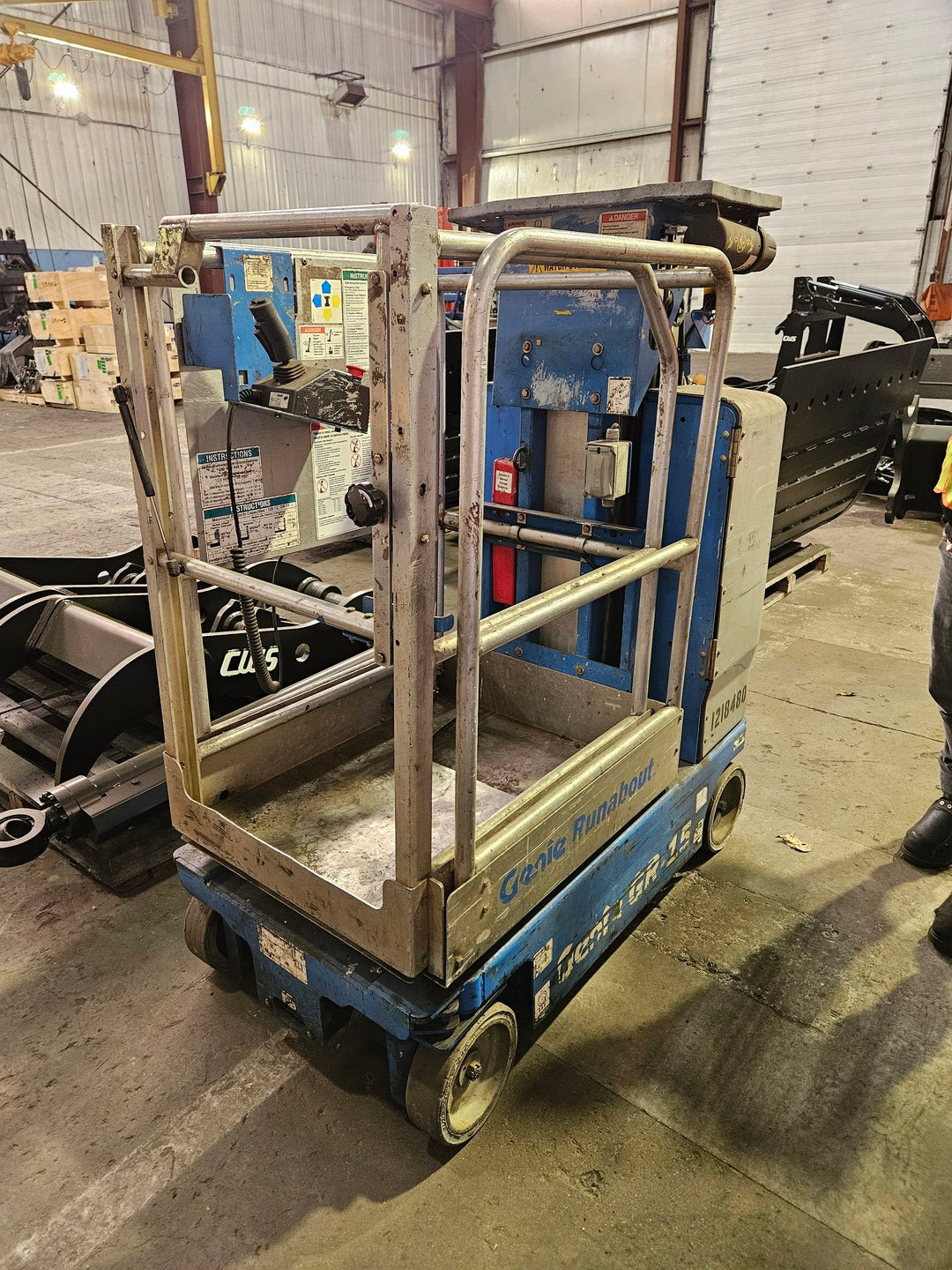

| Model | GR-15 |

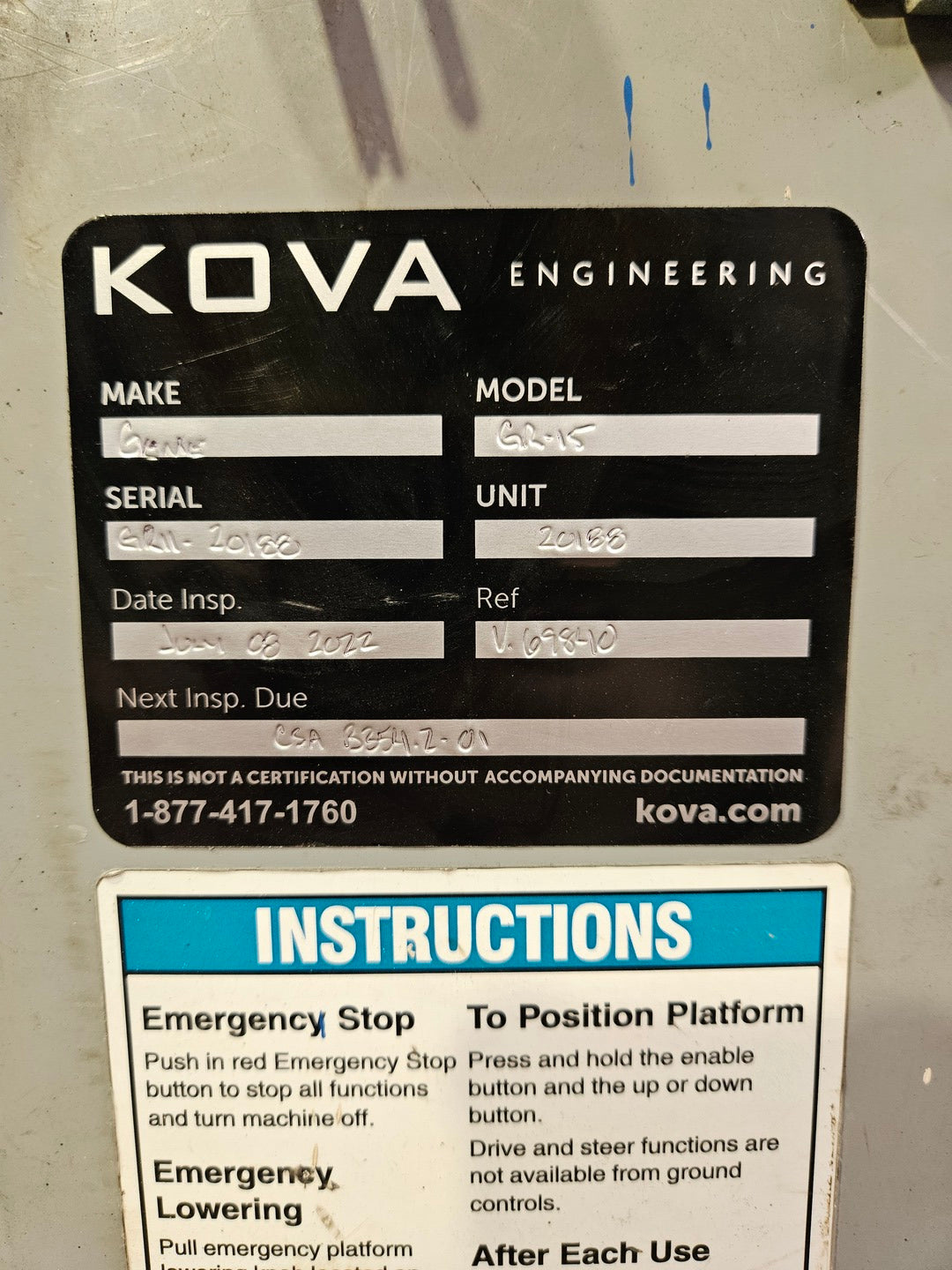

| S/N: | GR11-20188 |
| Condition | Used | General |
| Max. Lift Height | 20' 8" |
| Max. Lift Capacity | 500 lb |
| Tires | Cushion |
| Fuel Type | Electric |
| Other Specifications |
|---|
|
Working height max. - indoor: 20 ft 8 in // 6.47m Working height max. - outdoor: 17 ft 1 in // 5.40m Platform height max.- indoor: 14 ft 8 in // 4.47m Platform height max. - outdoor: 11 ft 1 in // 3.40m Platform dimensions (length x width) - Standard retracted: 35 x 29.5 in // 0.89 x 0.75m Platform dimensions (length x width) - Standard extended: 55 x 29.5 in // 1.4 x 0.75m Height - stowed: 5 ft 10 in // 1.78m Length- stowed: 4 ft 5 in // 1.35m Width: 2 ft 5.5 in // 0.75m Ground clearance (center): 2.5 in 6 cm Power supply voltage / Pneumatic pressure: 85-264 VAC, 60/50 Hz, 900W Nominal power: 8.3 hp // 6.2 kW, 24V DC Machine unladen weight: 2275 lbs // 1032 kg Maximum load: 500 lb // 227 kg Maximum allowable inclination of the chassis: 1.5° (Side), 3° (Front), 3° (Rear) Maximum wind speed (Indoor): 28 mph // 12.5 m/s Maximum wind speed (Outdoor): 28 mph // 12.5 m/s Gradeability: 30% Maximum allowable side force: 100 lbs // 445 N Maximum number of platform occupants: 1 |
