| Condition | Used |
| Other Specifications |
|---|

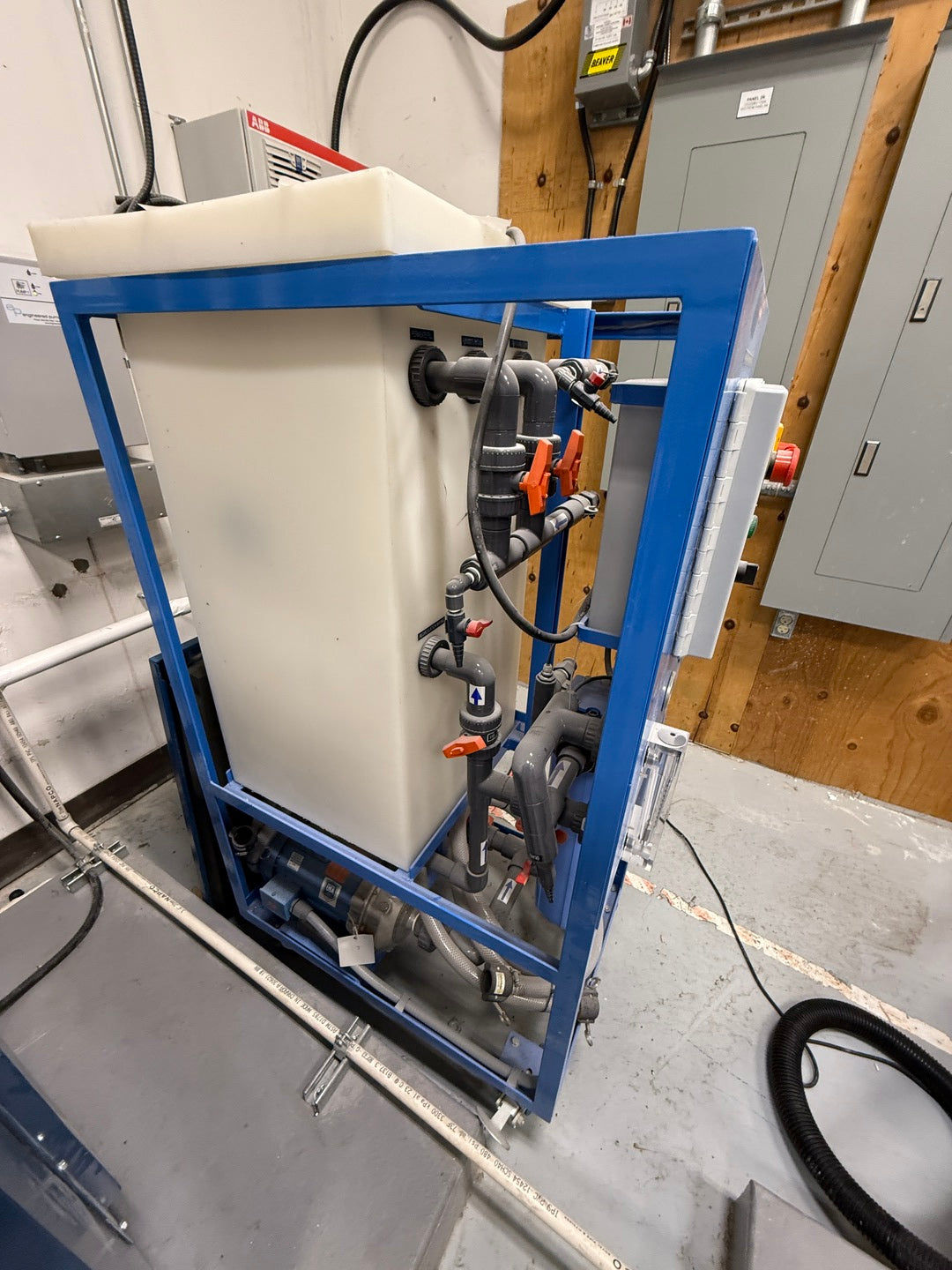

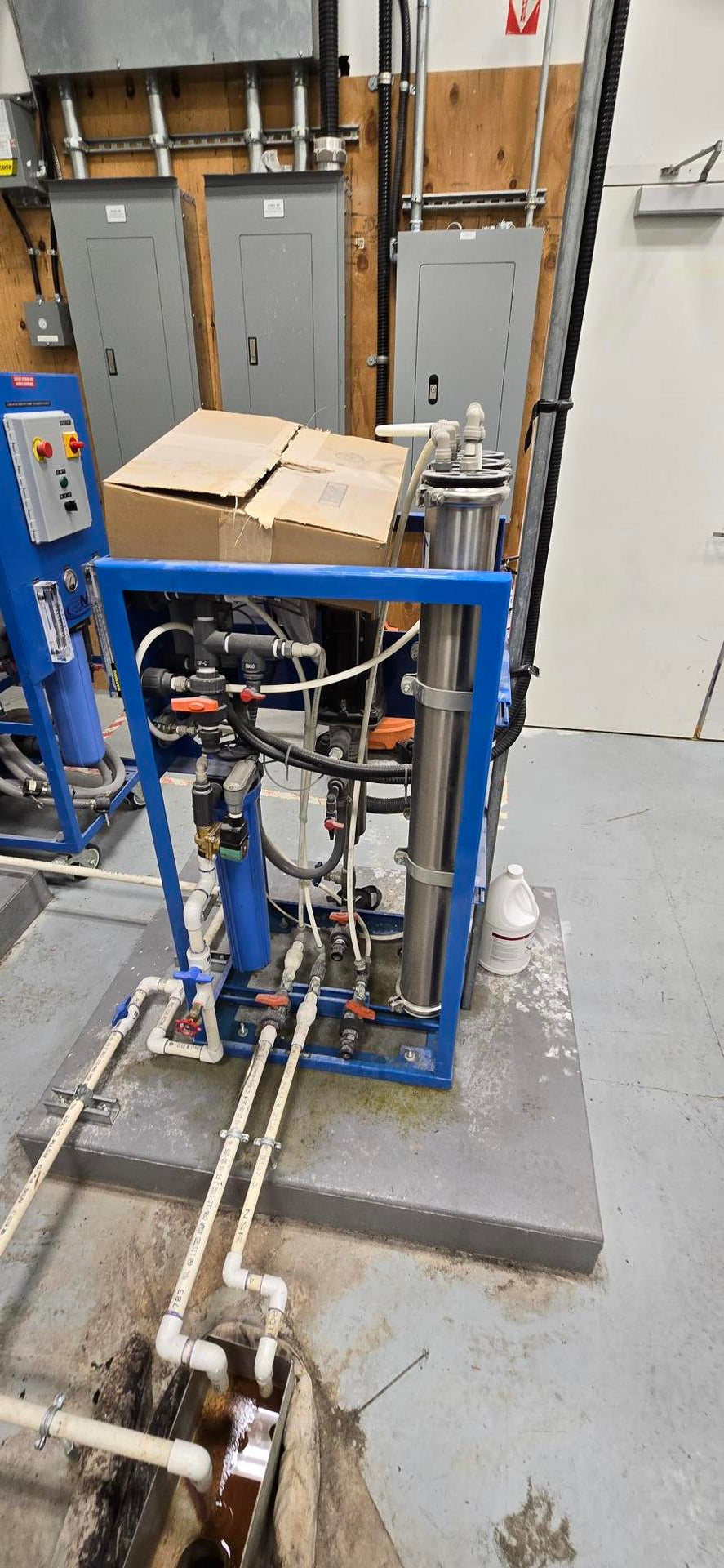

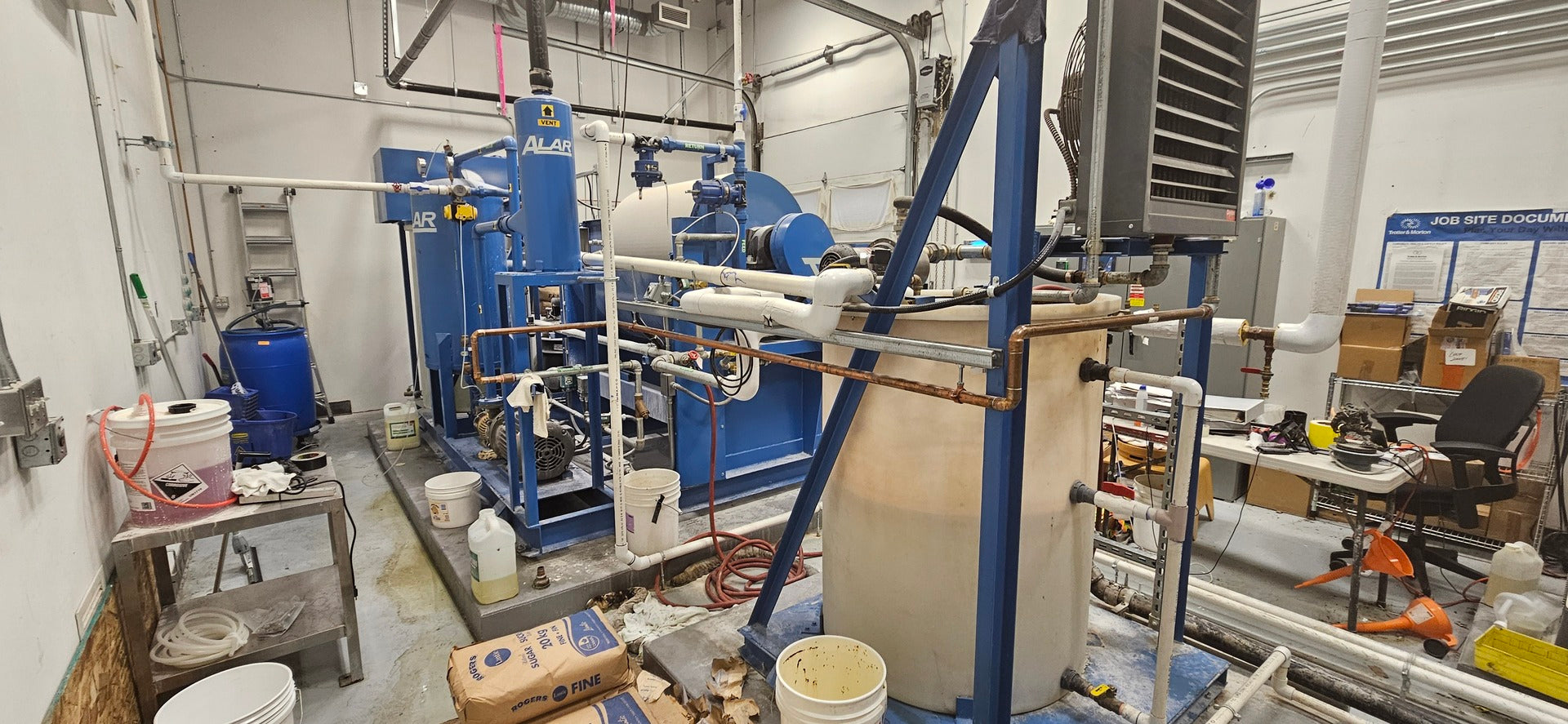

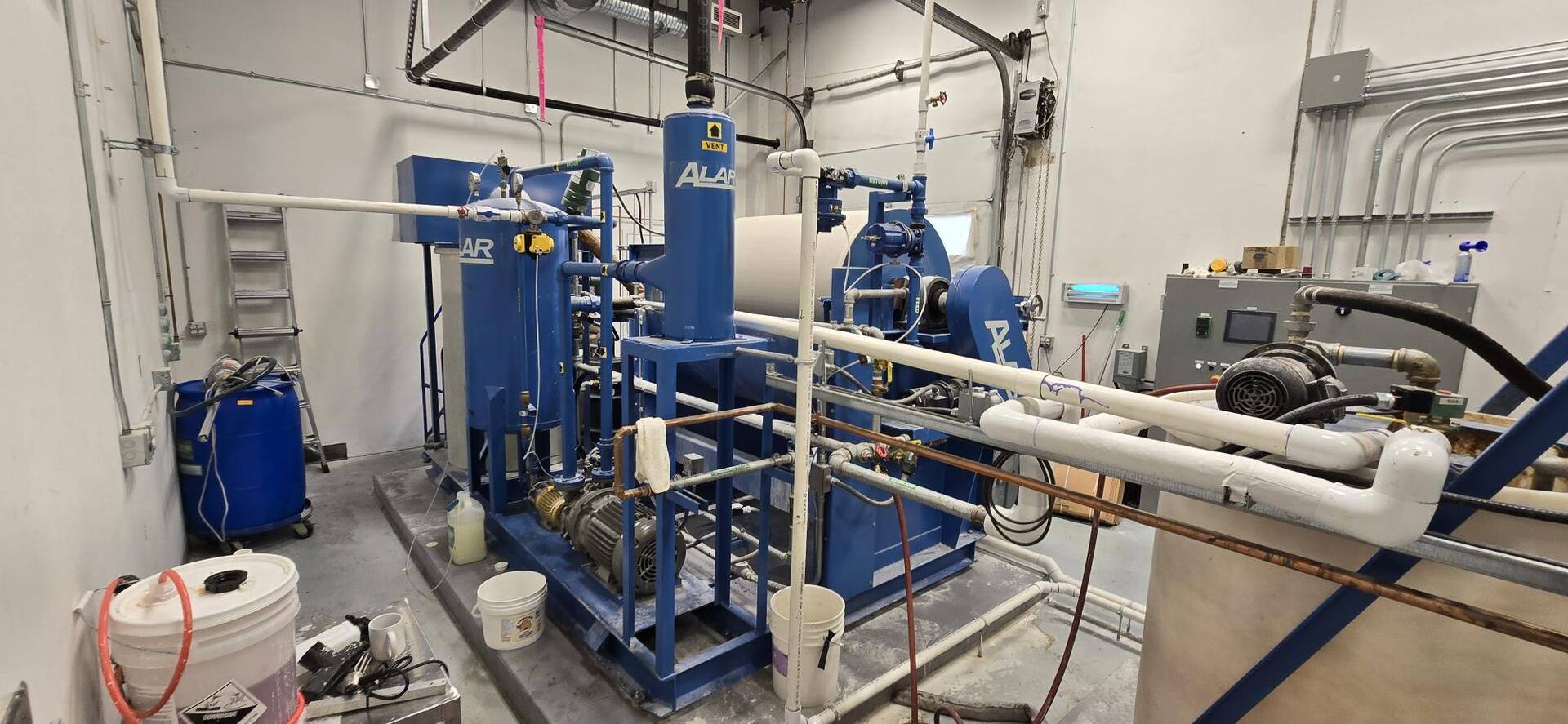

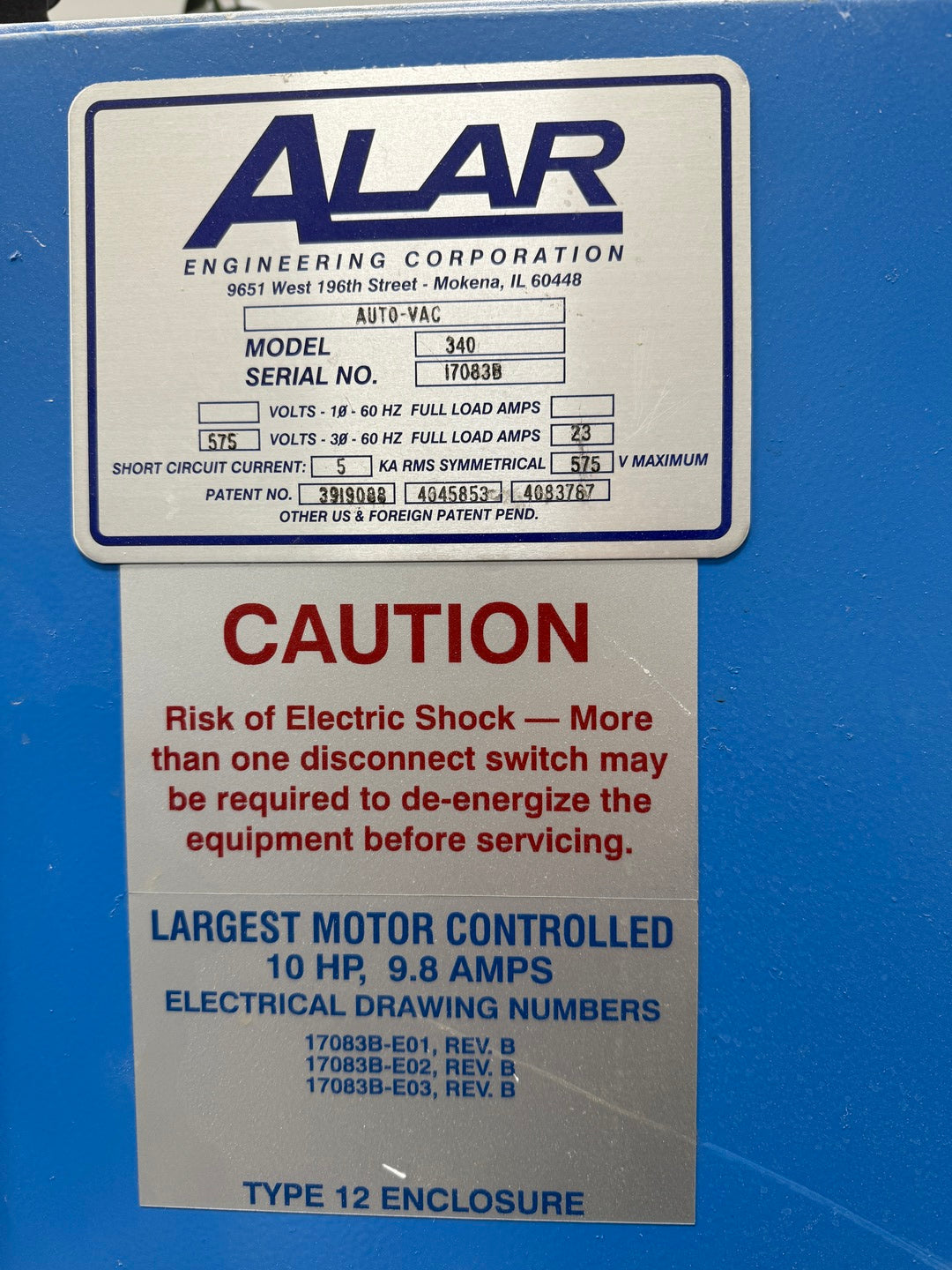

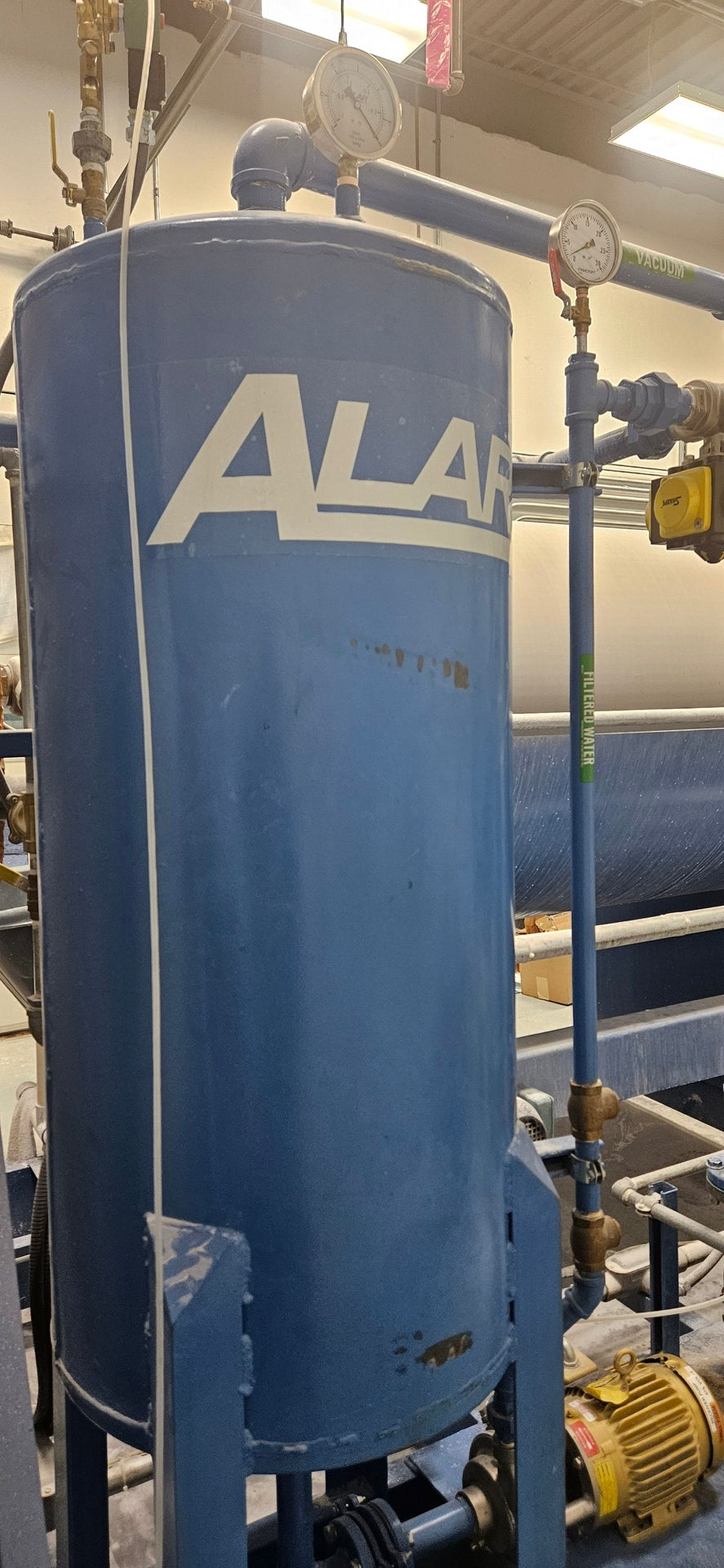

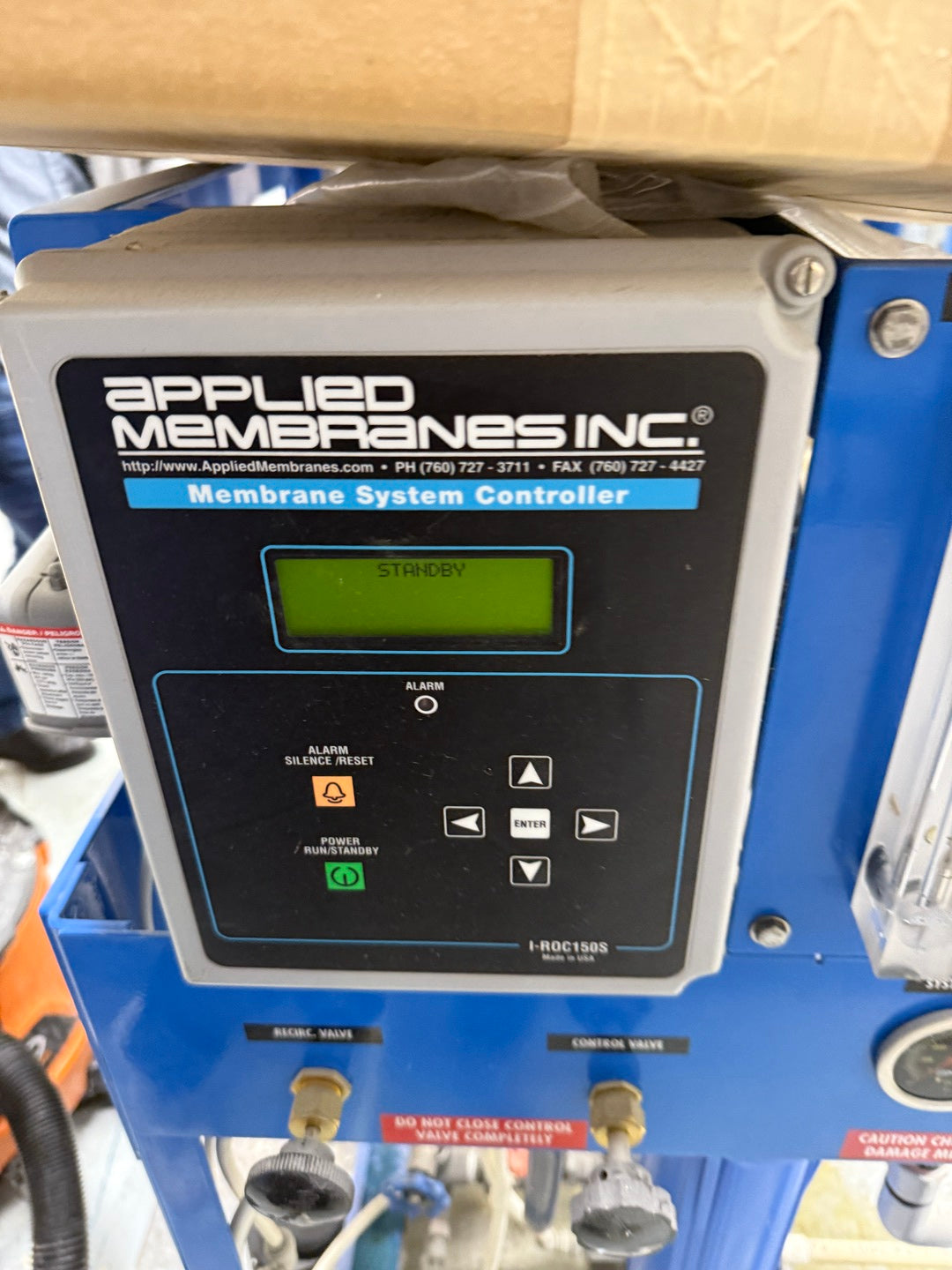

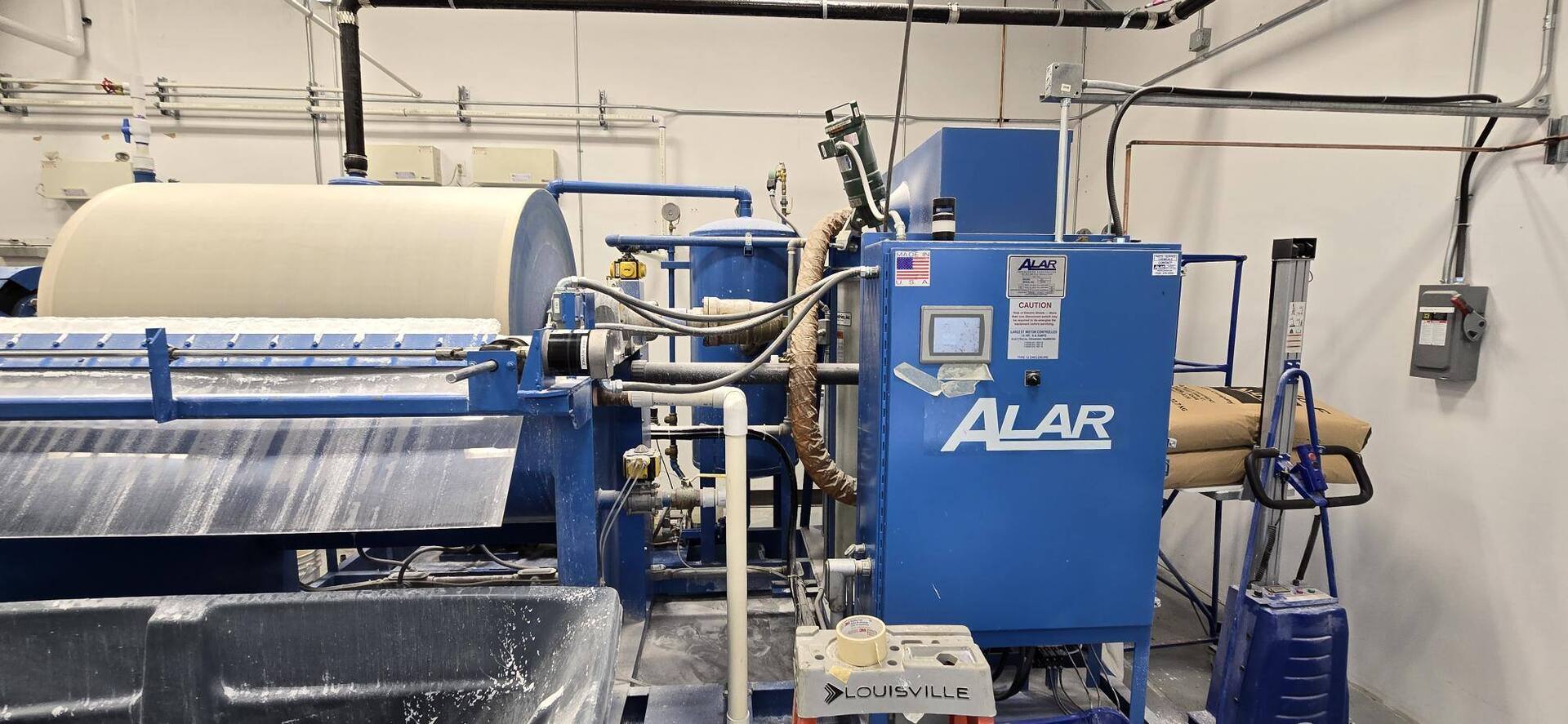

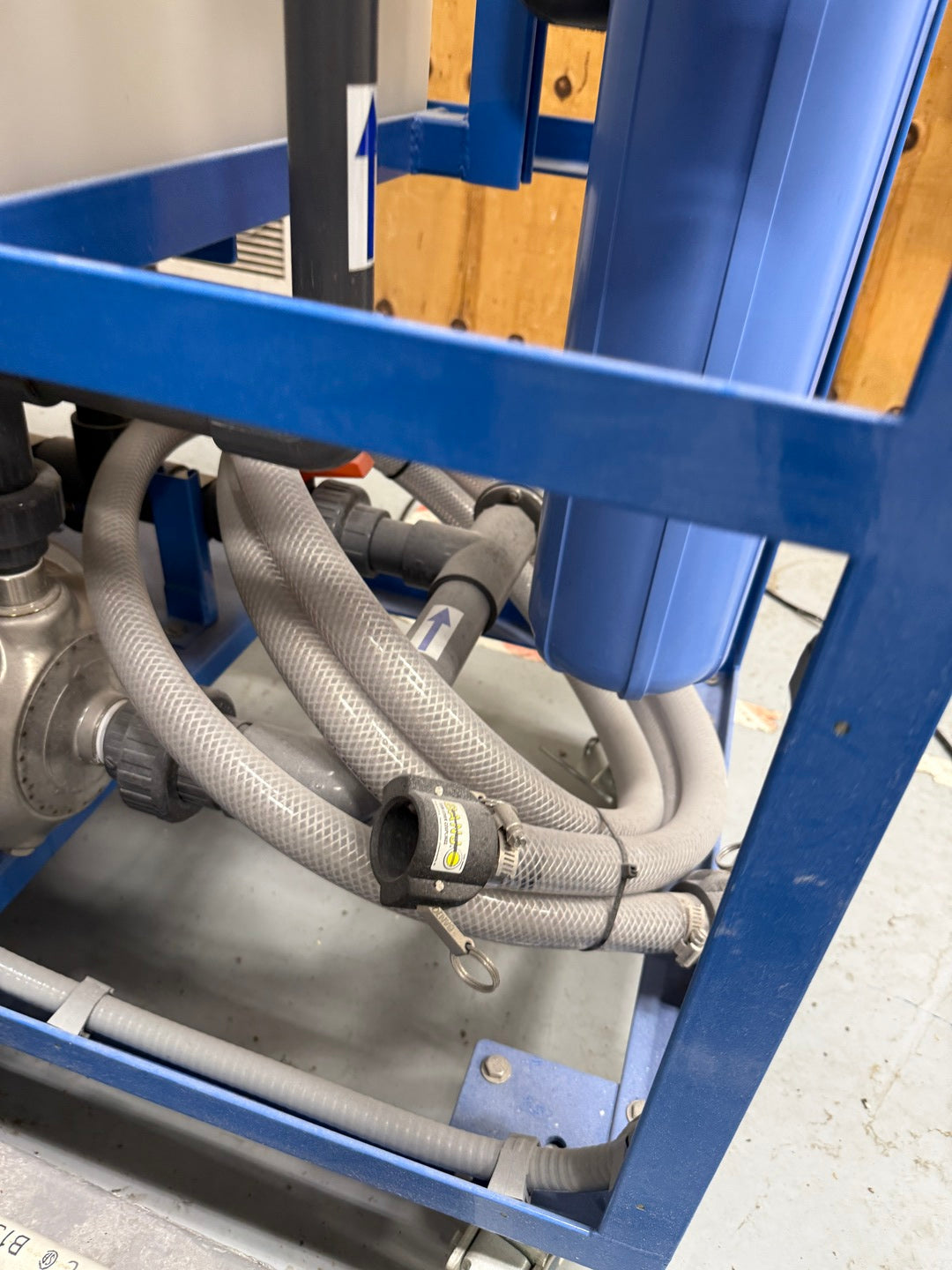

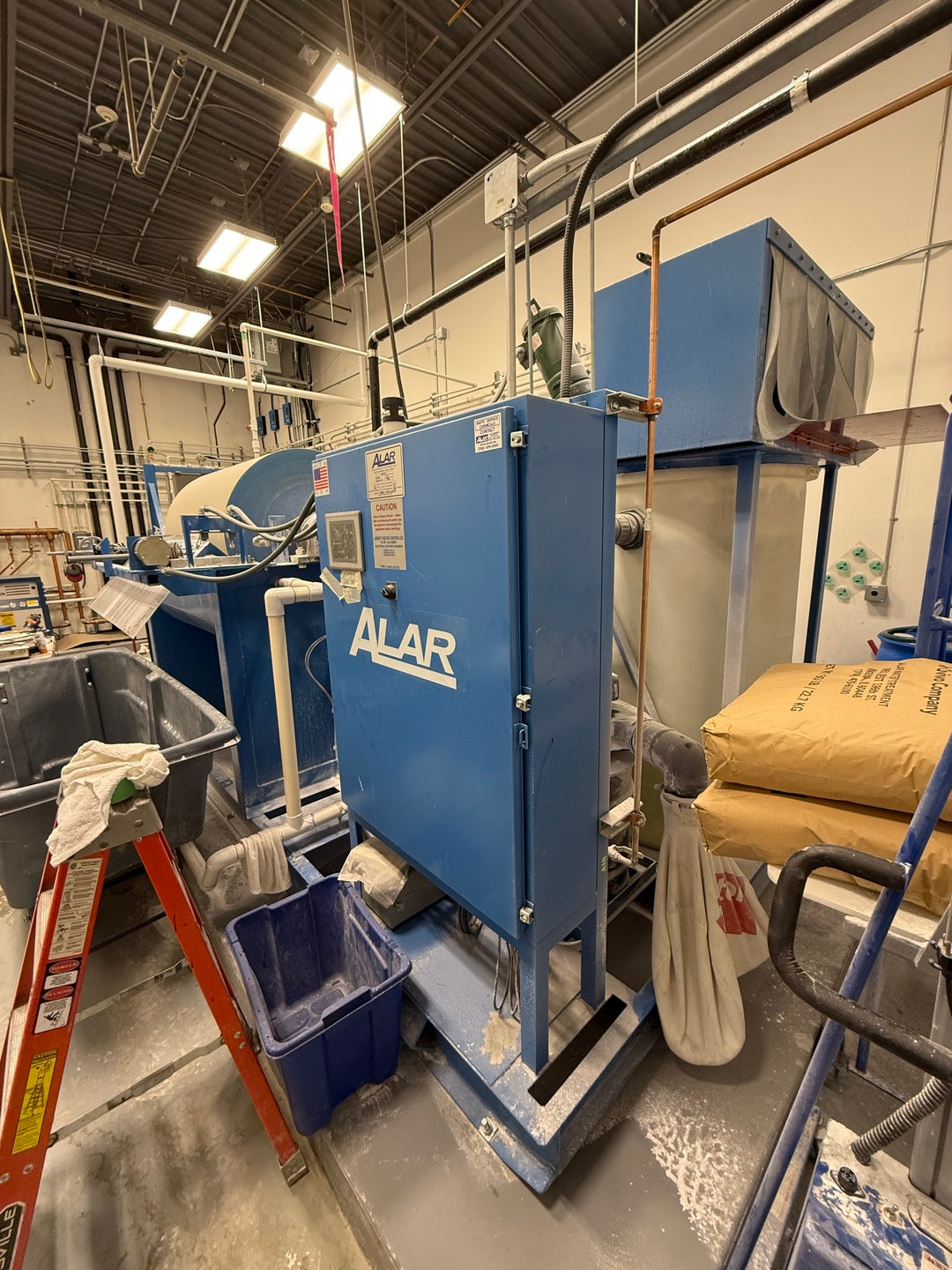

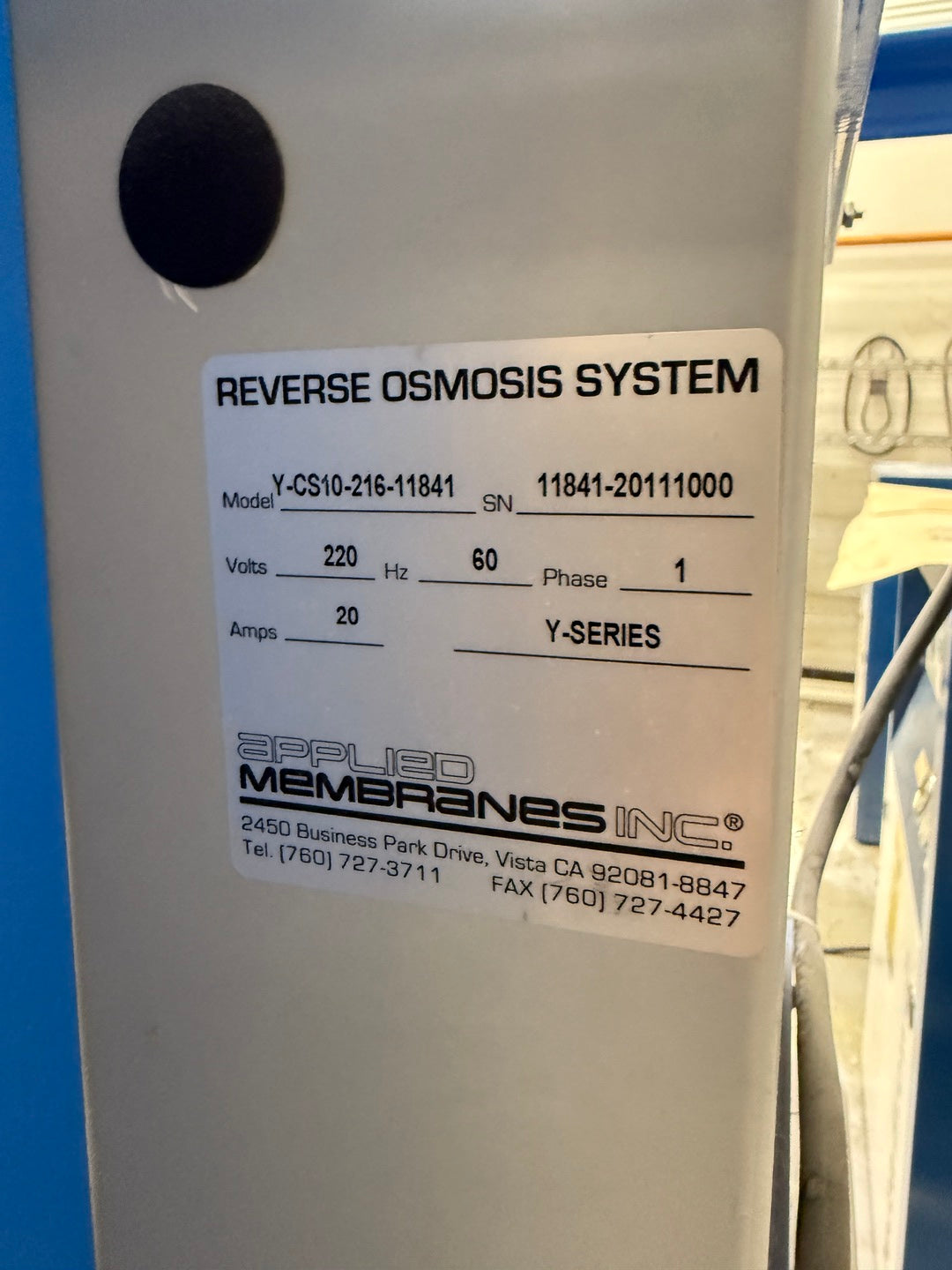

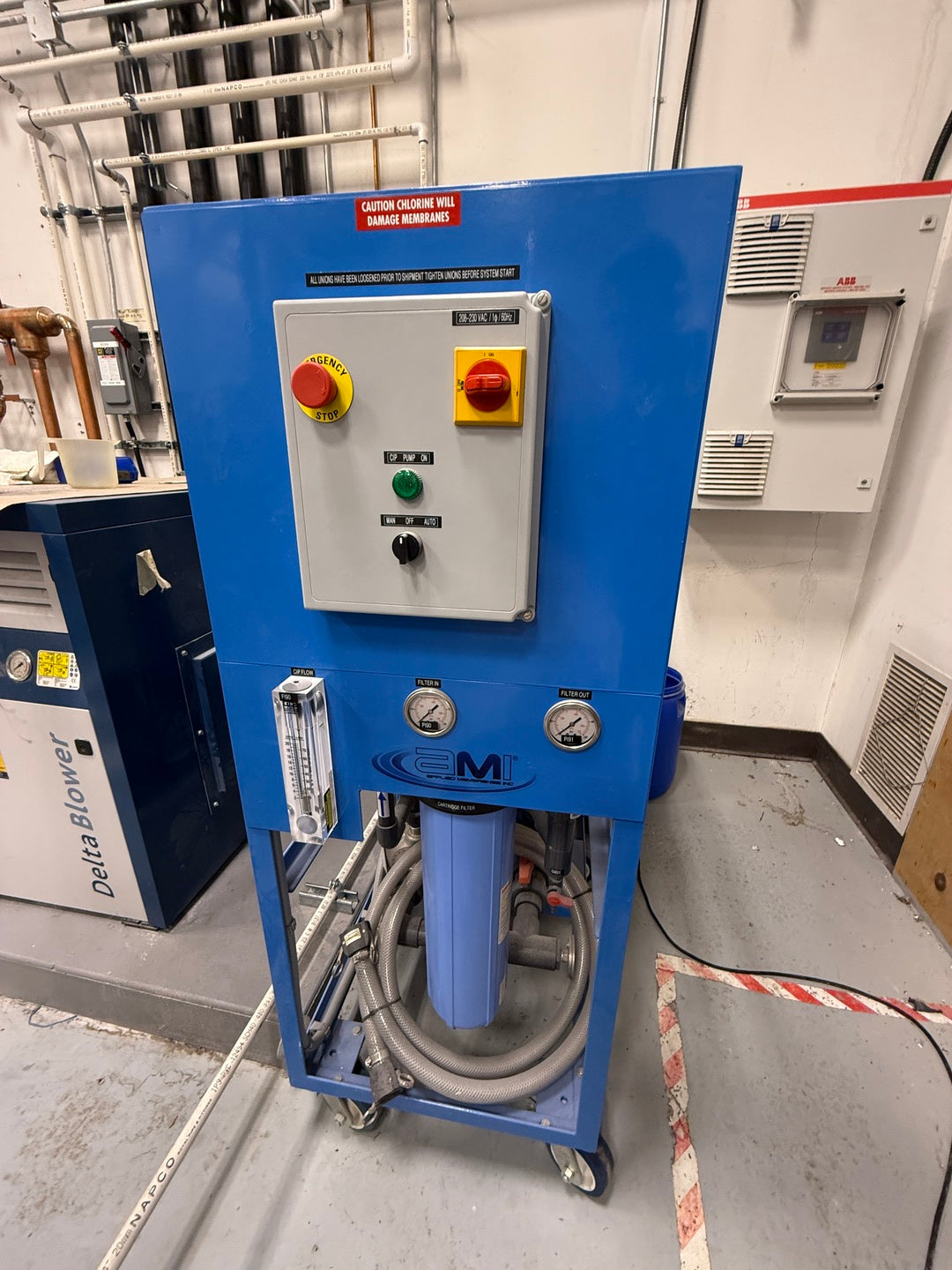

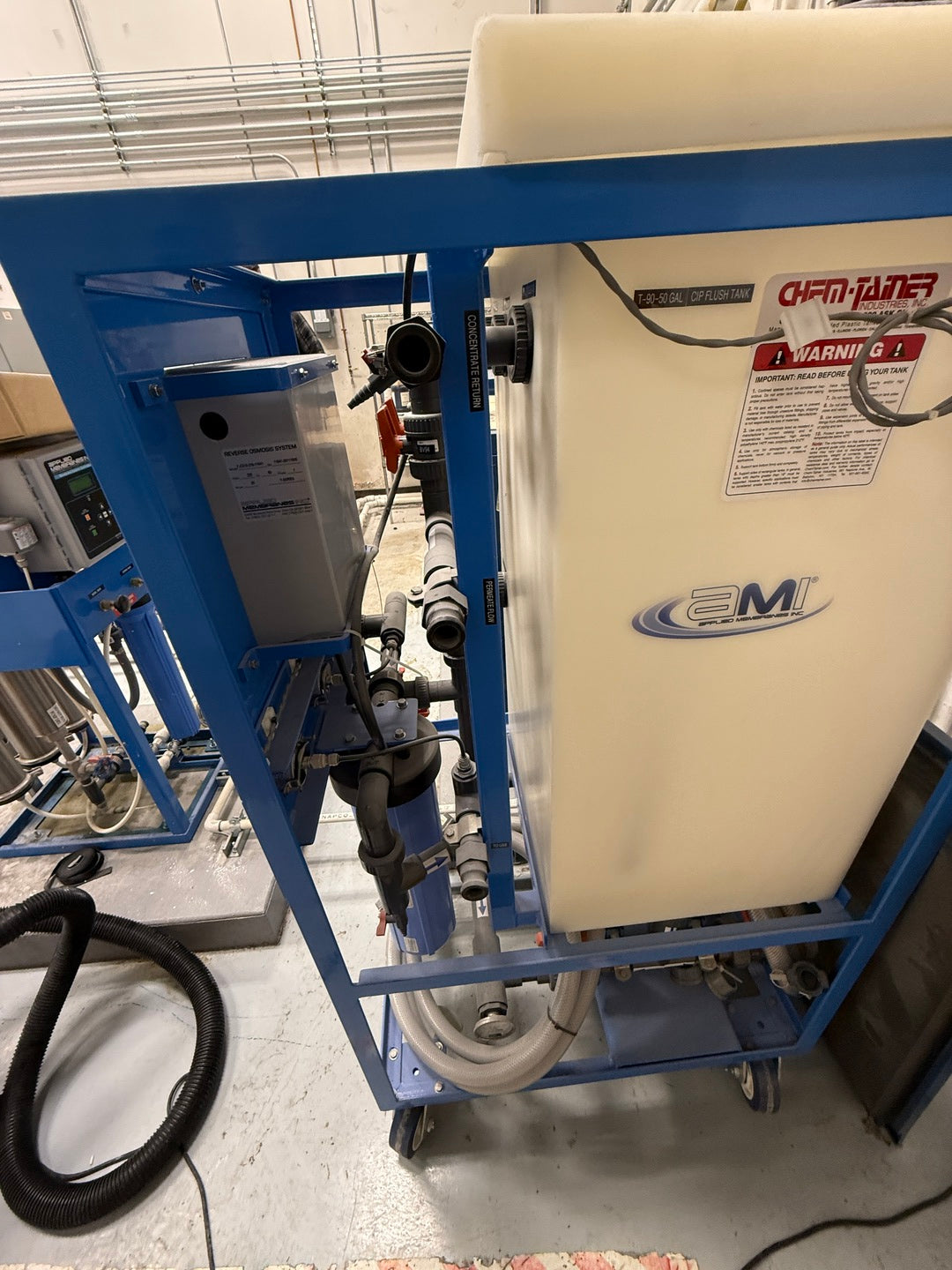

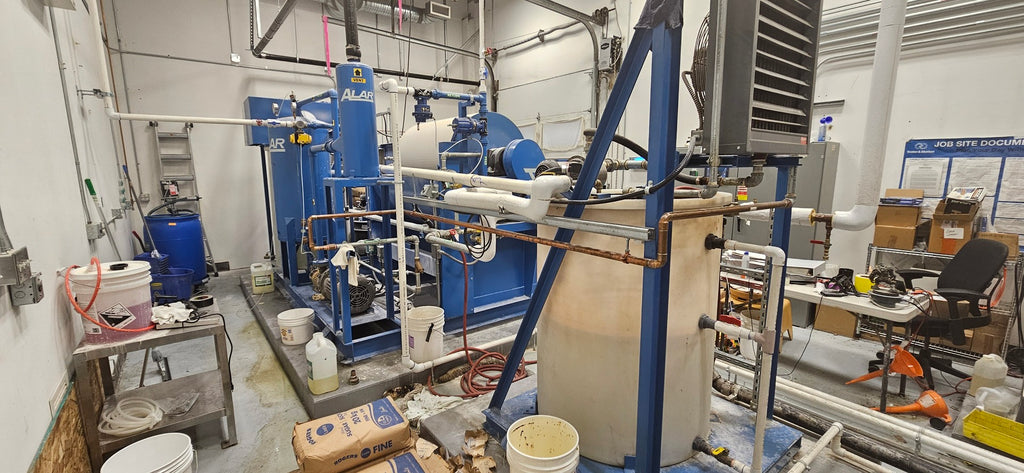

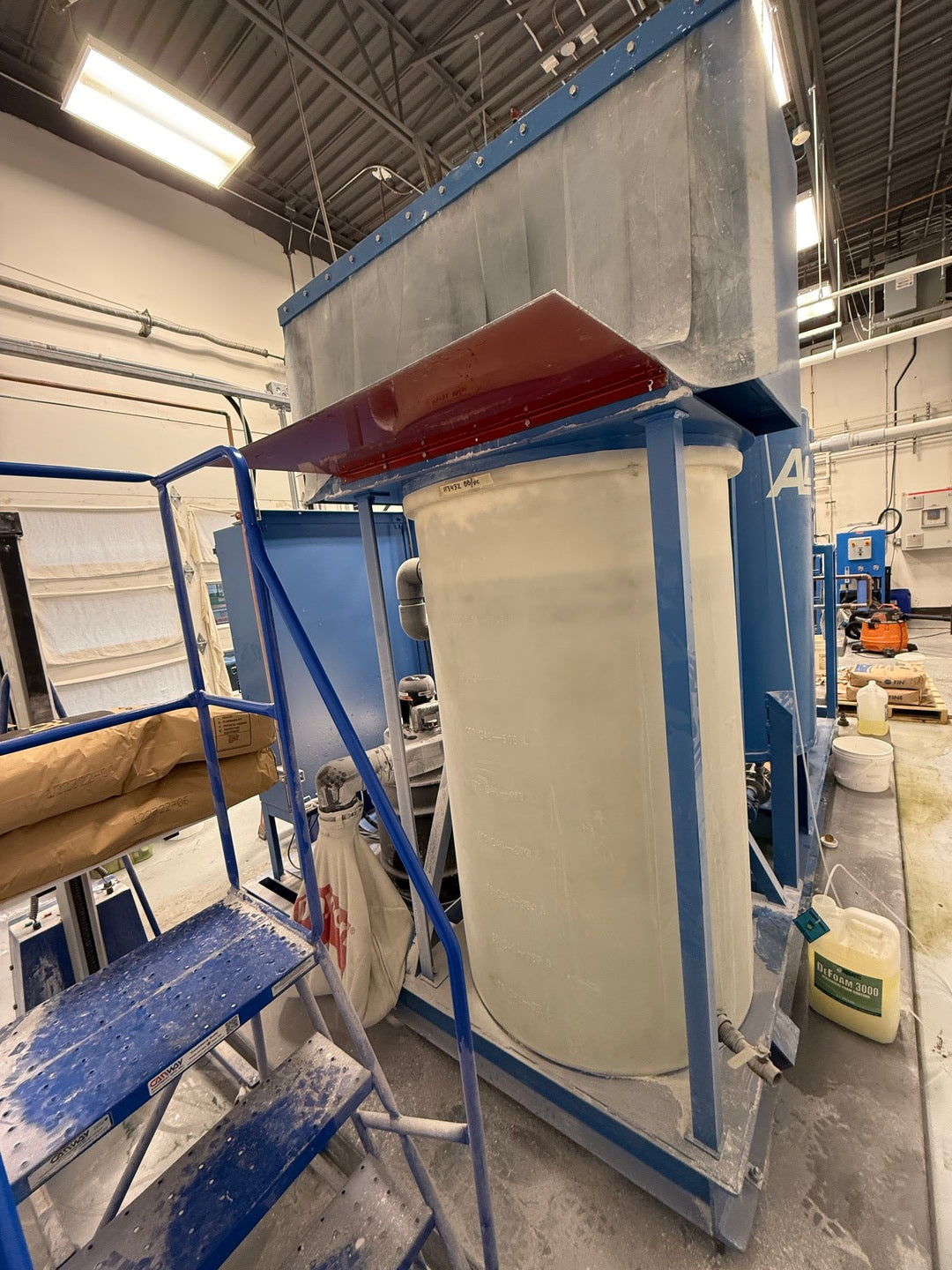

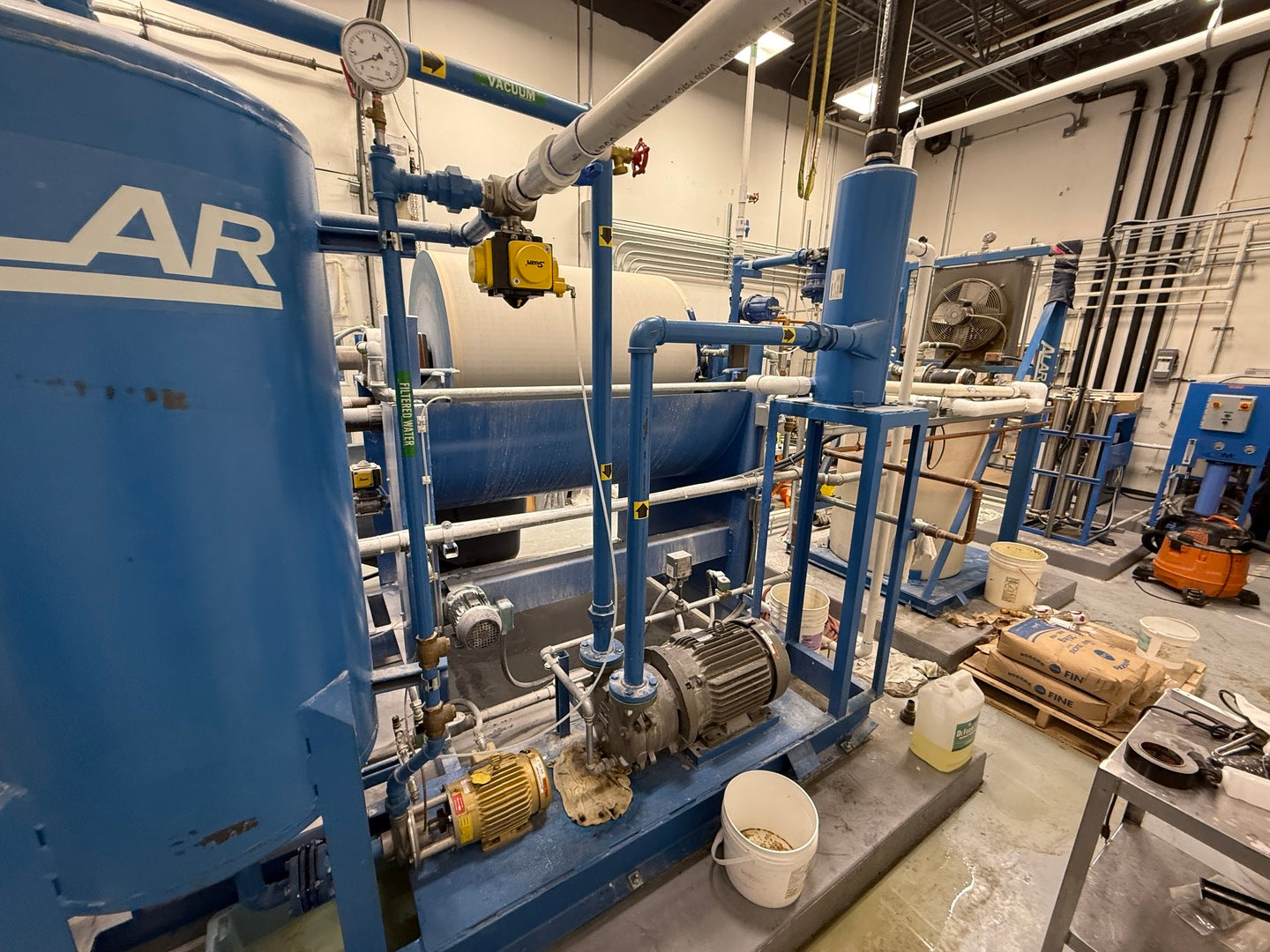

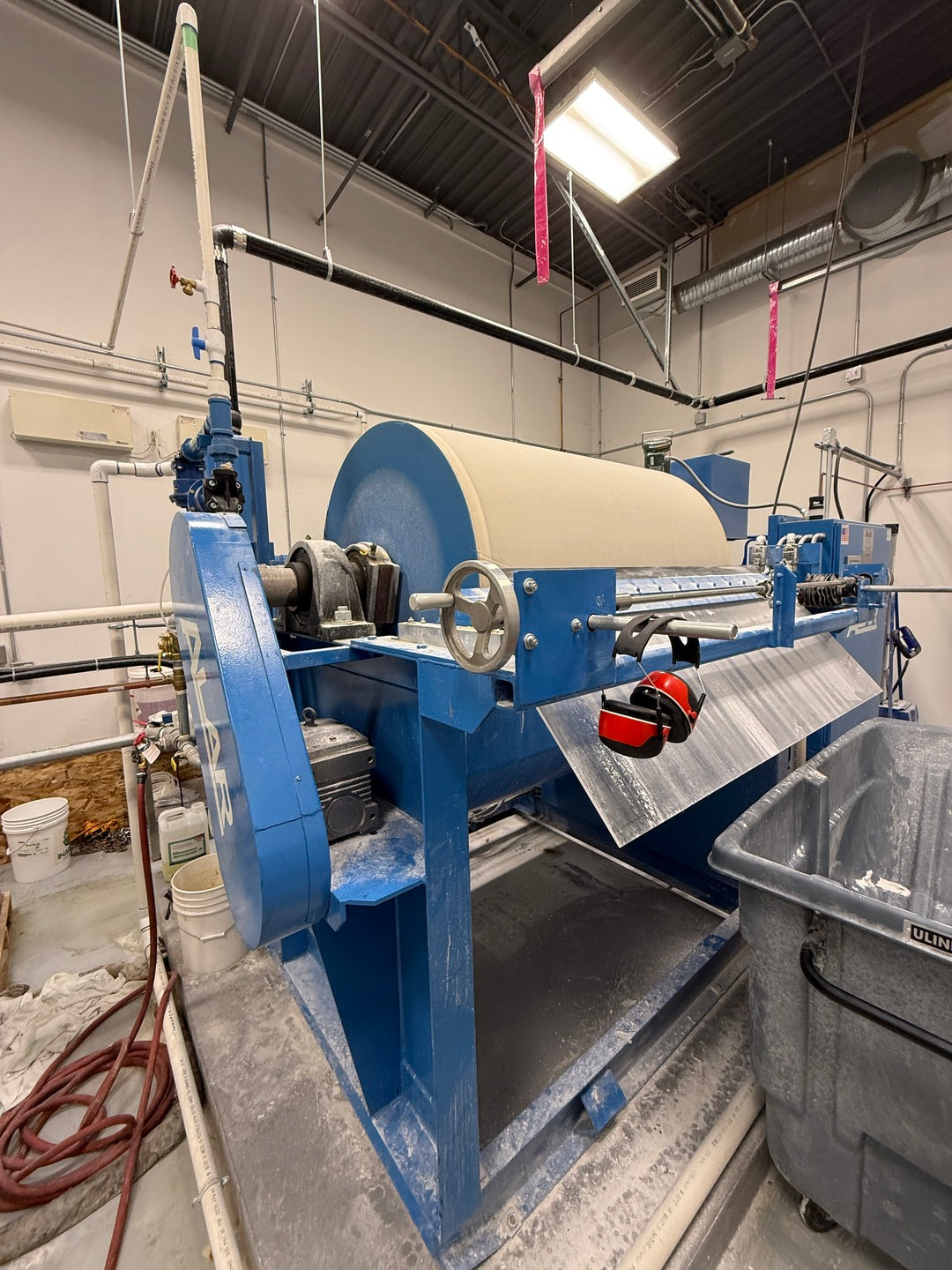

Overall Design ParametersInfluent Flow: 25 cu. m/day Startup: 12.5 cu. m/day Nominal MBR Permeate out: 4.6 GPM Component SummaryAlar Auto-Vac Rotary Vacuum Drum Filter (RVDF) Model: AV340 Serial: 17083B Electrical: 575 V, 3-ph, 23 FLA, 5kA Short Circuit Current Drum Diameter x Drum Length: 3 ft. x 4 ft. Nominal Filtering Area: 37.7 sq. ft. Overall Filter Skid Size (W x L): 8'-7" x 12'-7" Additional: With Type 3 Recirculation System Applied Membranes Y-Series RO Membrane Clean In Place CIP System Model: Y-CS10-216-11841 Serial: 11841-20111000 Electrical: 220 V, 1-ph, 220 A Applied Membranes XL Series Reverse Osmosis System Model: XL-34A-216 System Capacity: 5,800 Gals/day (22 cu. m/day) Qty of 4x40 Membrane Elements (XLE): 3 Line Sizes (NPT): 3/4" Inlet, 1/2" Permeate Outlet, 1/2" Concentrate Outlet Sump, pH Control & Chemical Dosing Components

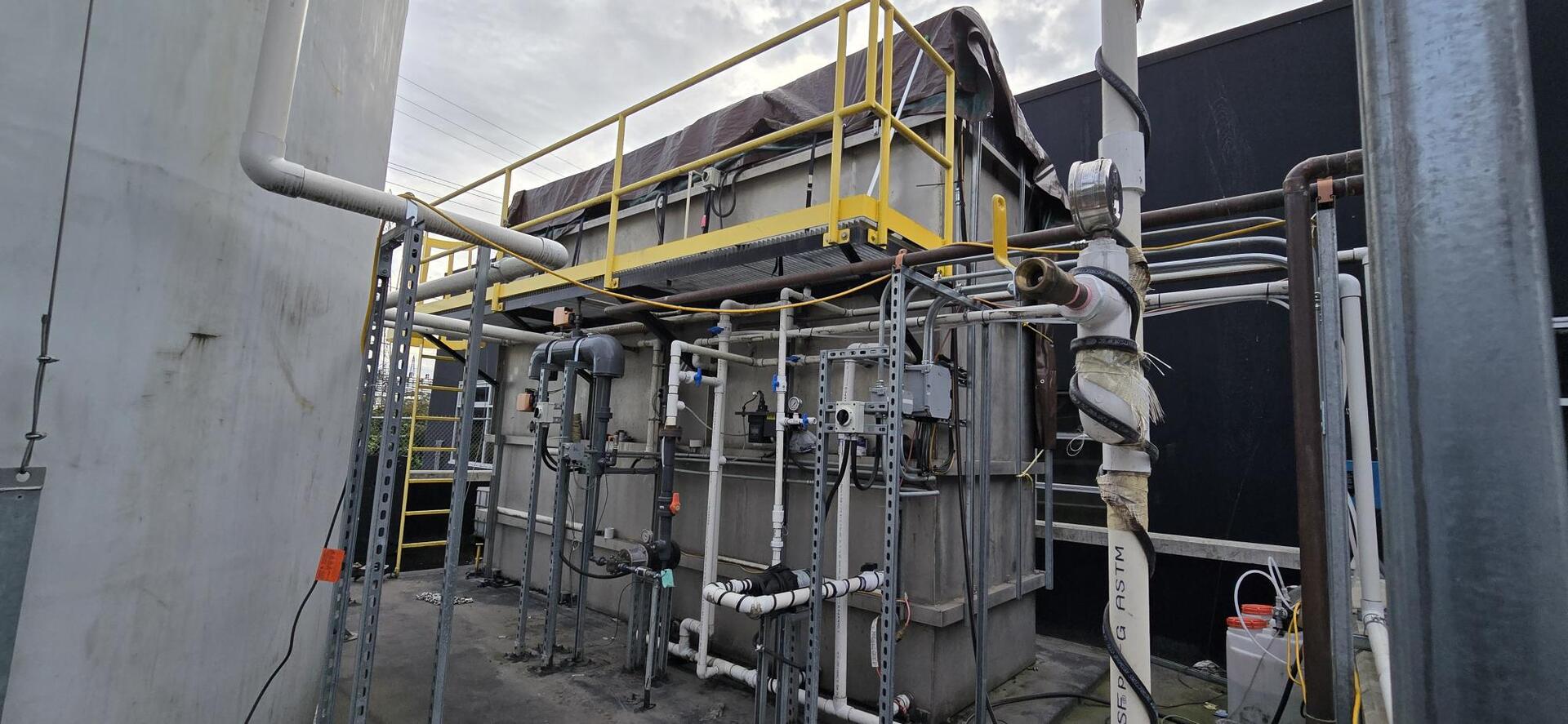

MBR Membrane Bioreactor Tank (T-300) Description: MBR tanks combine biological treatment with membrane separation technology. The biological treatment process is called "activated sludge". The membrane filtration process separates solids from liquids. MBR tanks can use hollow fiber or flat membranes. Additional:

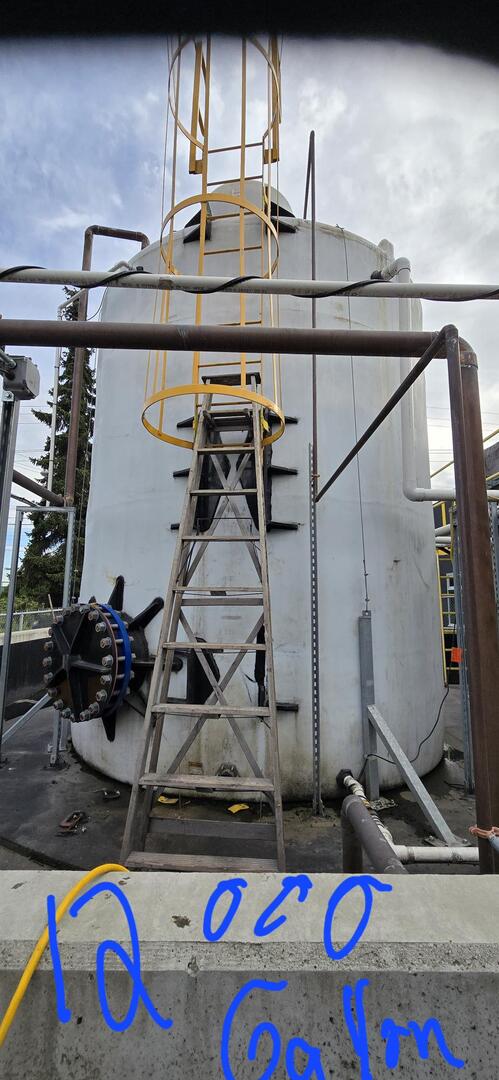

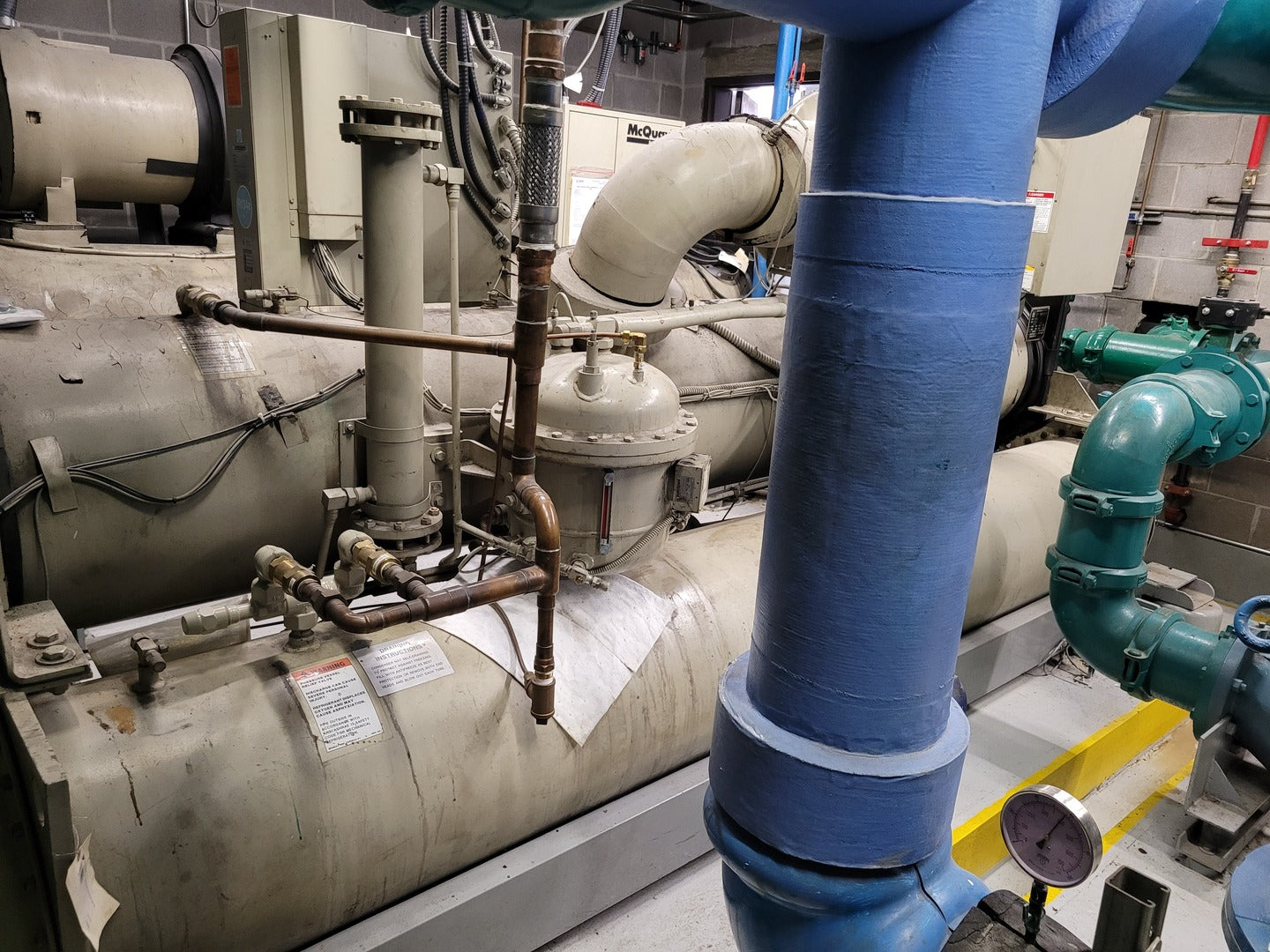

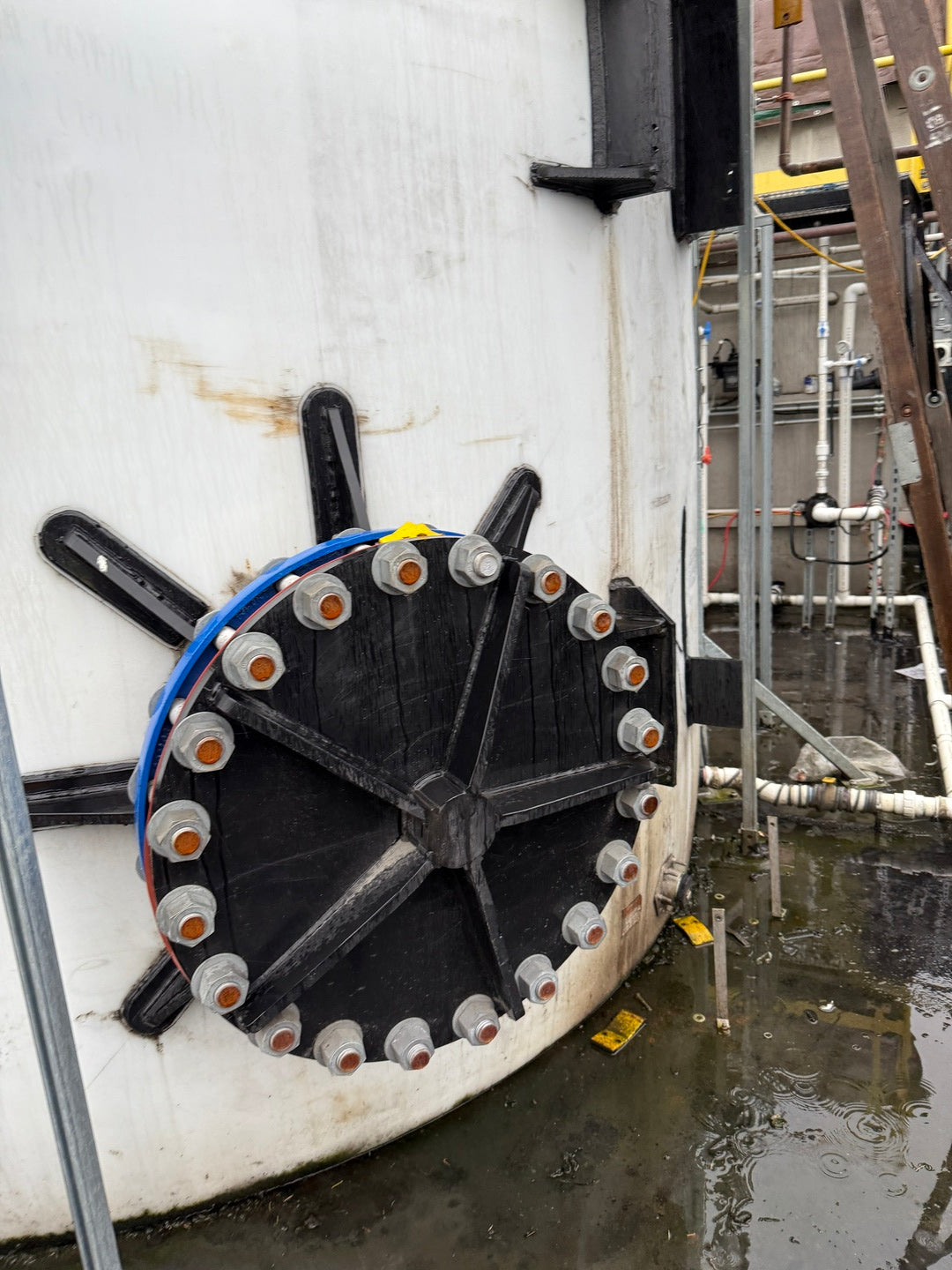

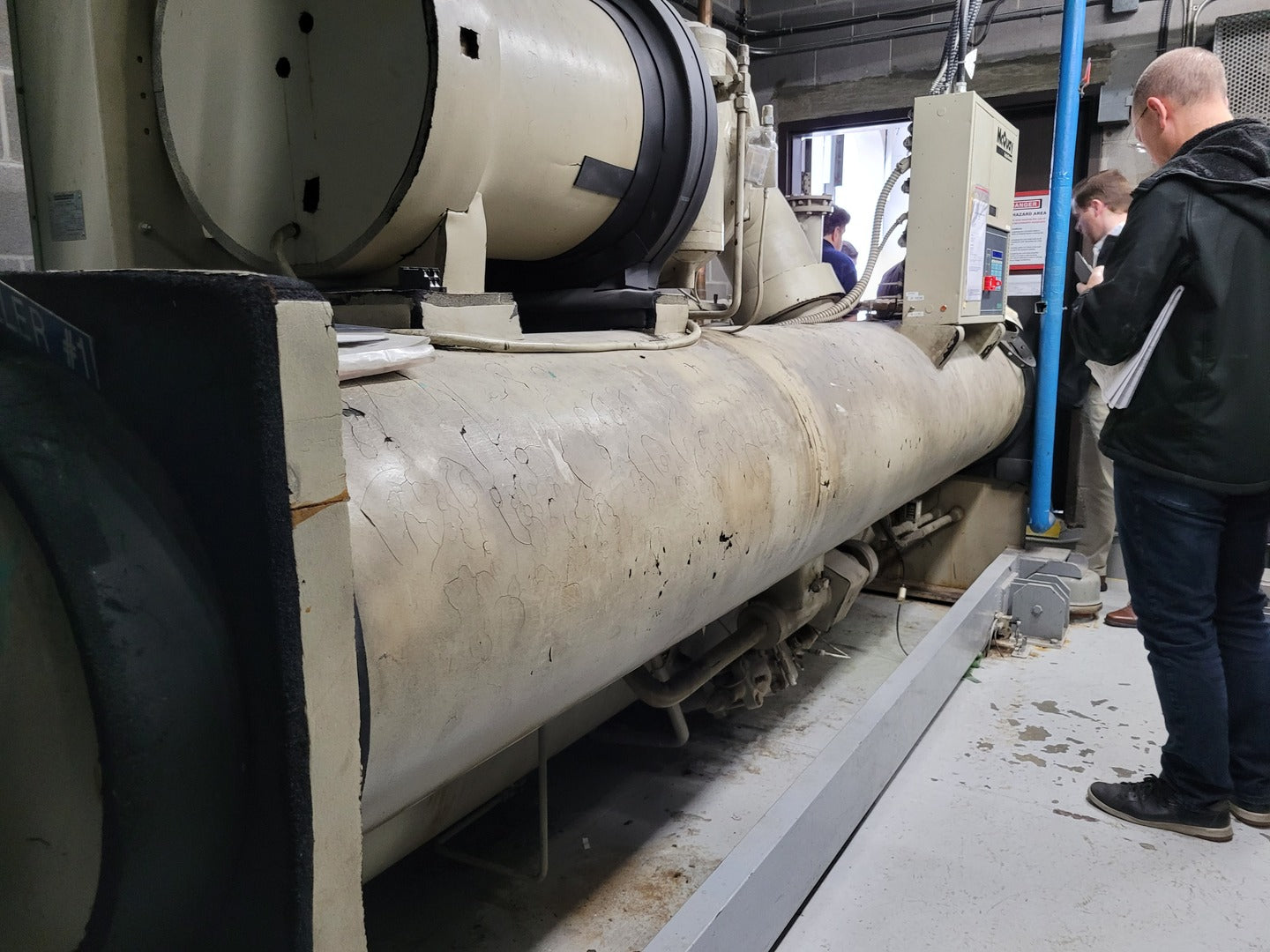

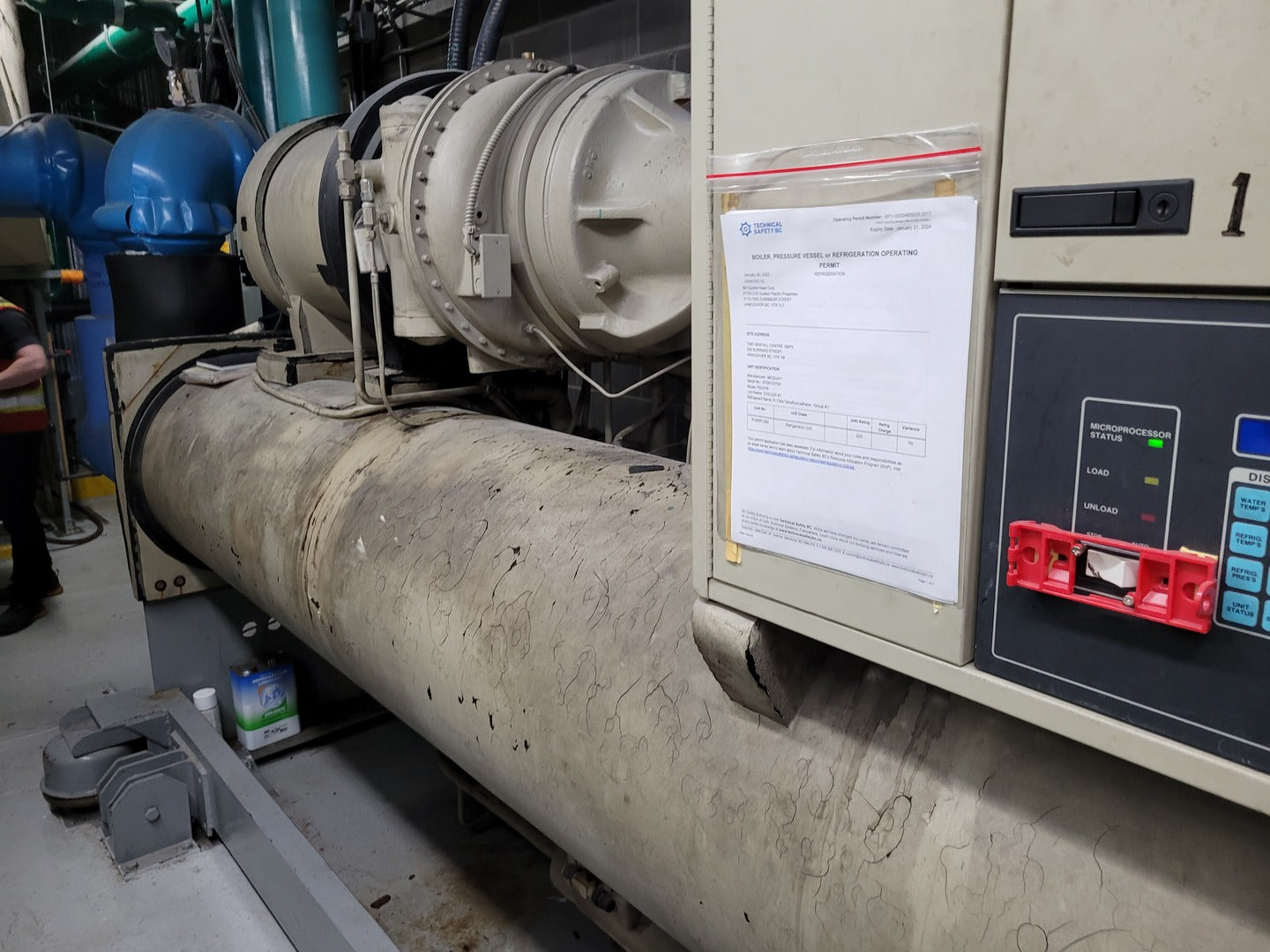

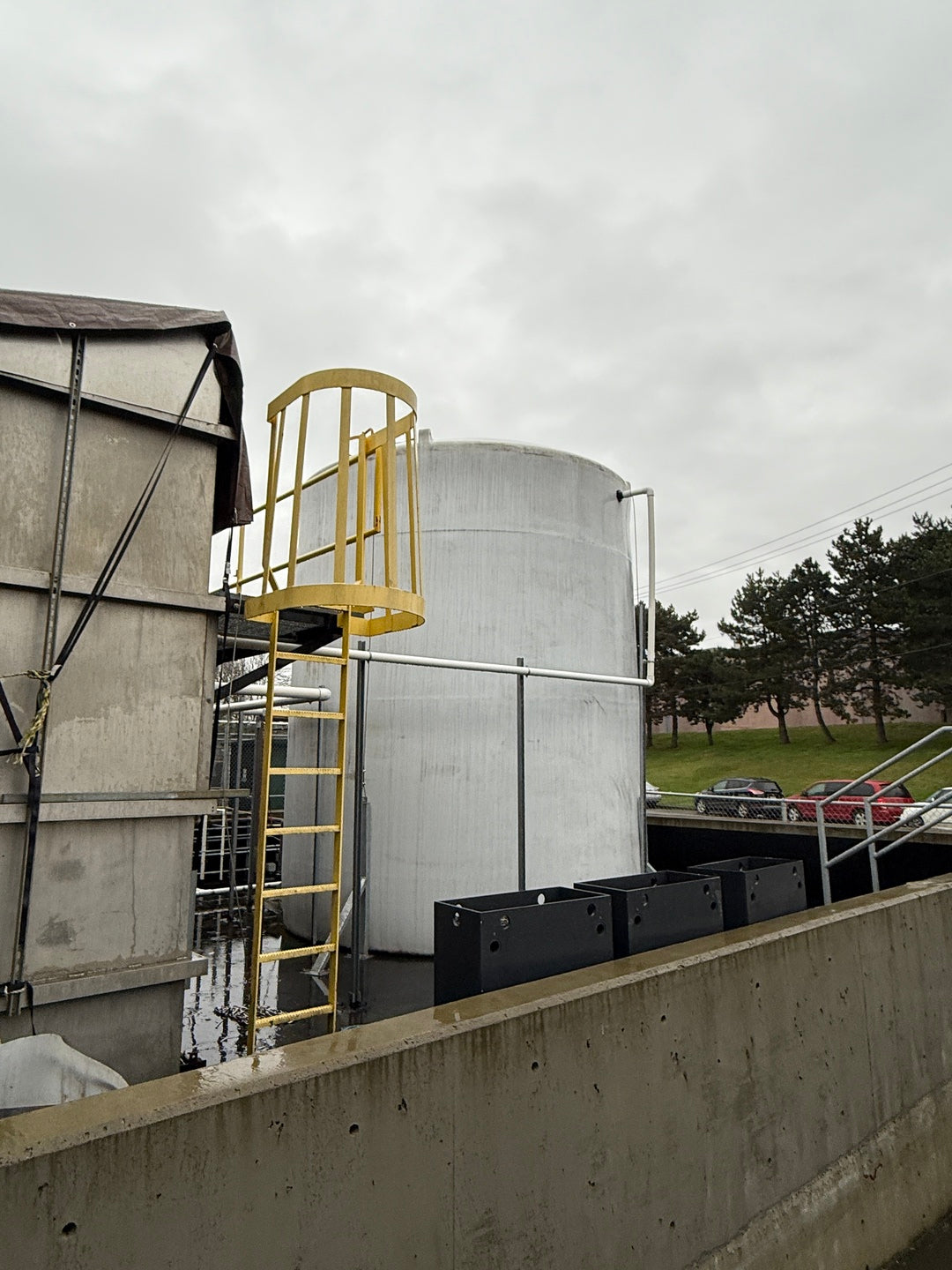

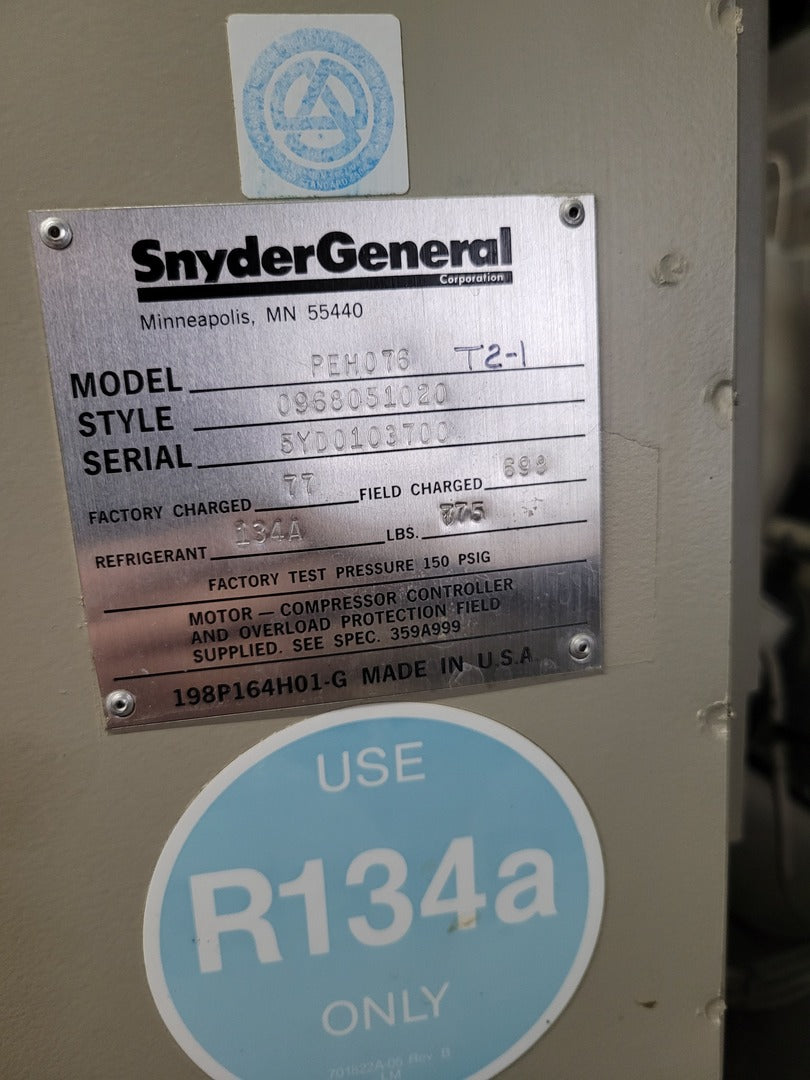

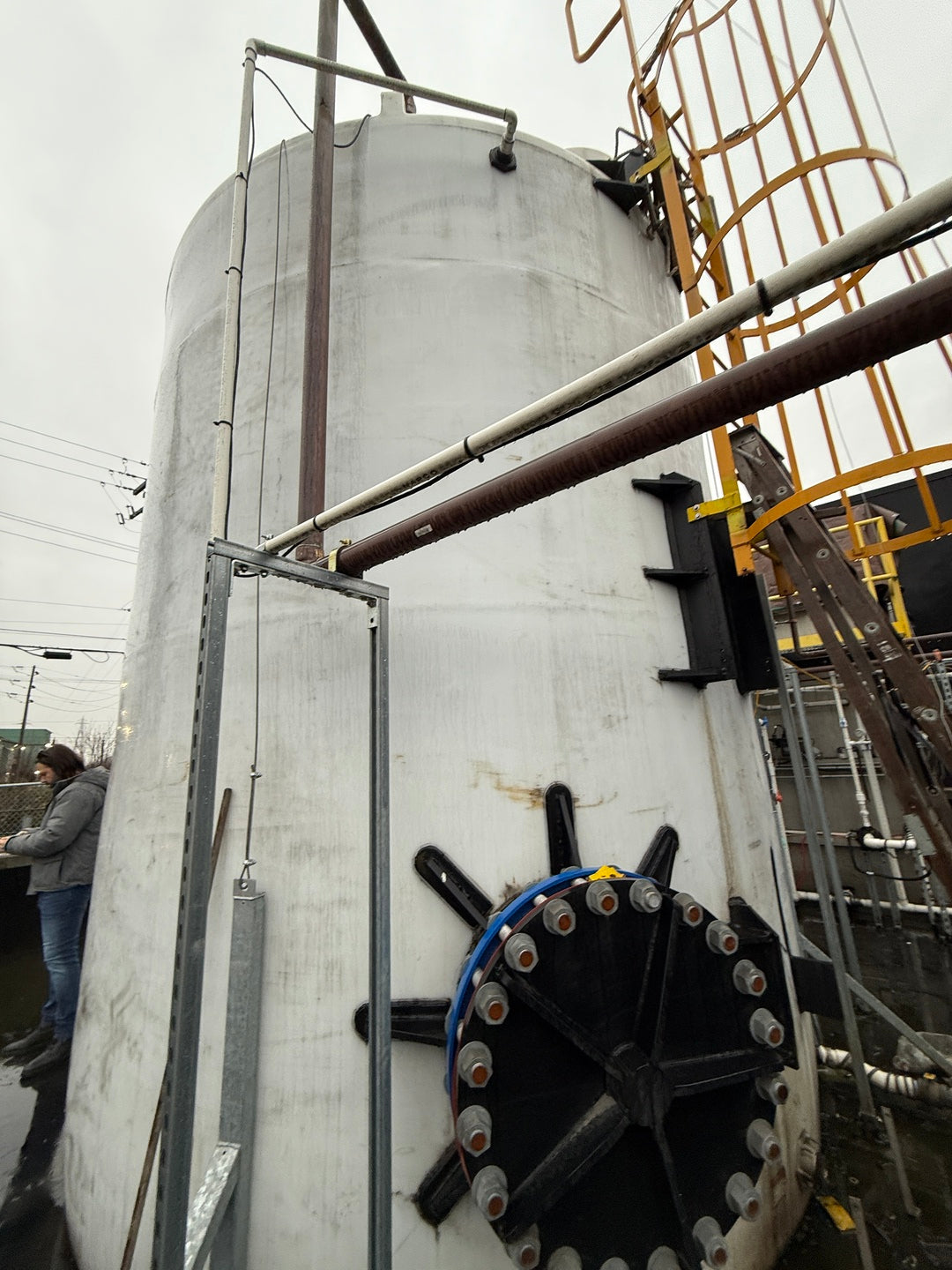

Fulton Electric Steam Boiler Model: FB-024-E Power: 24 kW Rated Output: 82,014 BTU/hr Steam Output (F&A 212 F, 0 PSIG): 84 lbs/hr Electrical: 600 VAC, 3-ph, 50/60 Hz, 120 VAC control, 12 A control McQuay Snyder Rooftop Water-Cooled Centrifugal Chiller Unit Model: PEH076 T2-1 Serial: 5YD0103700 Compressor Configuration: Single, Hermetic Compressor Motor Power: 220 kW Impeller Diameter: 7.6" Refrigerant: R134a, 775 lbs max. VDR Variable Depth Reactor Tank Volume: 12,000 Gallons Additional Features:

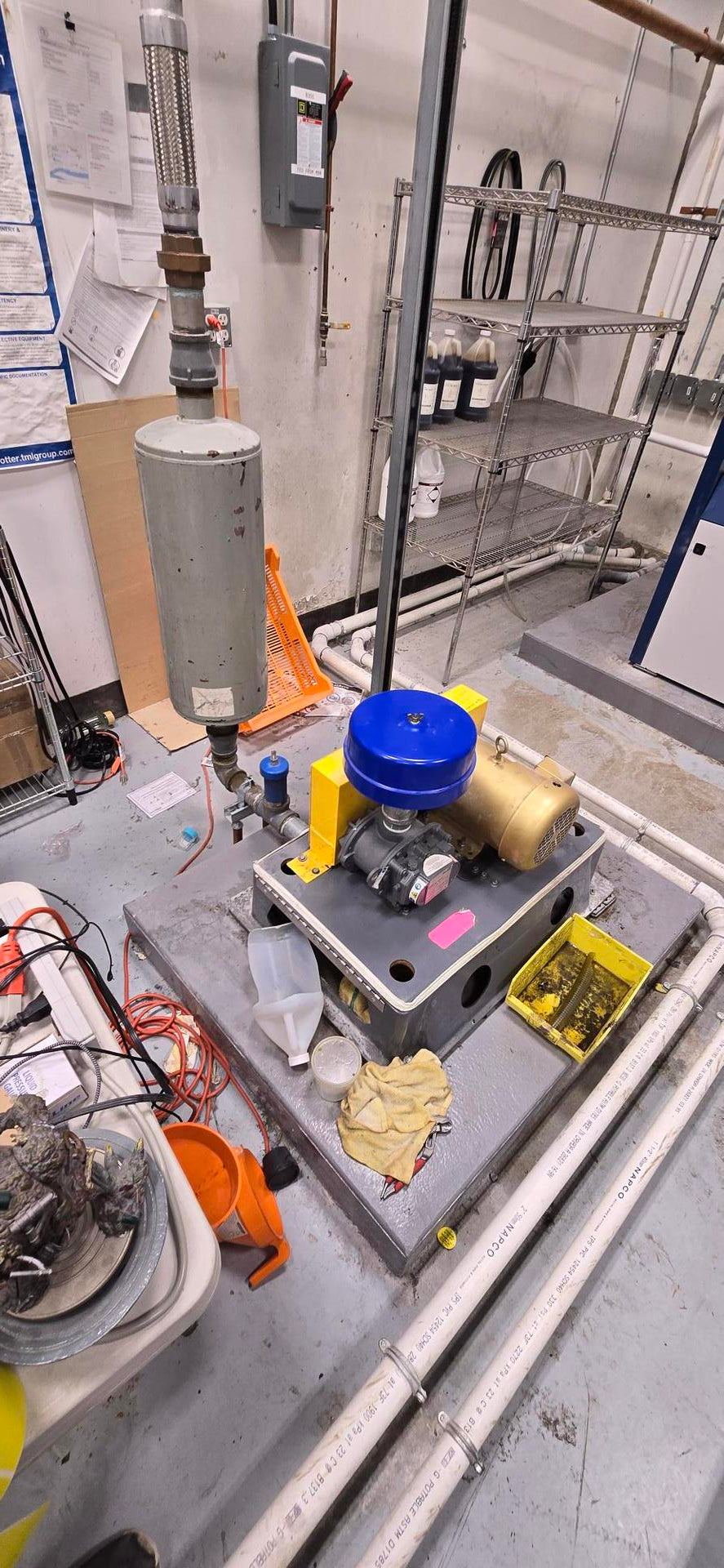

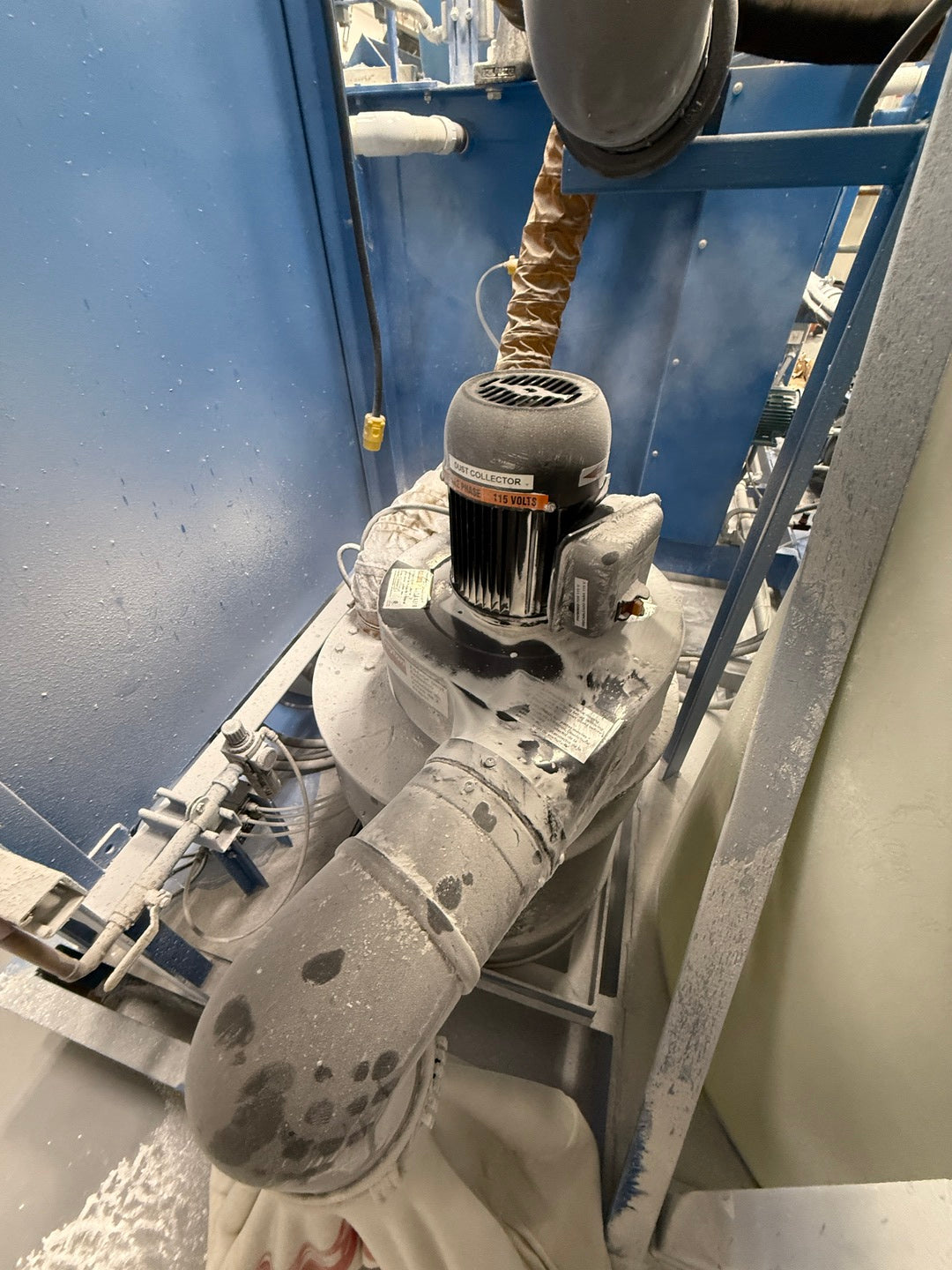

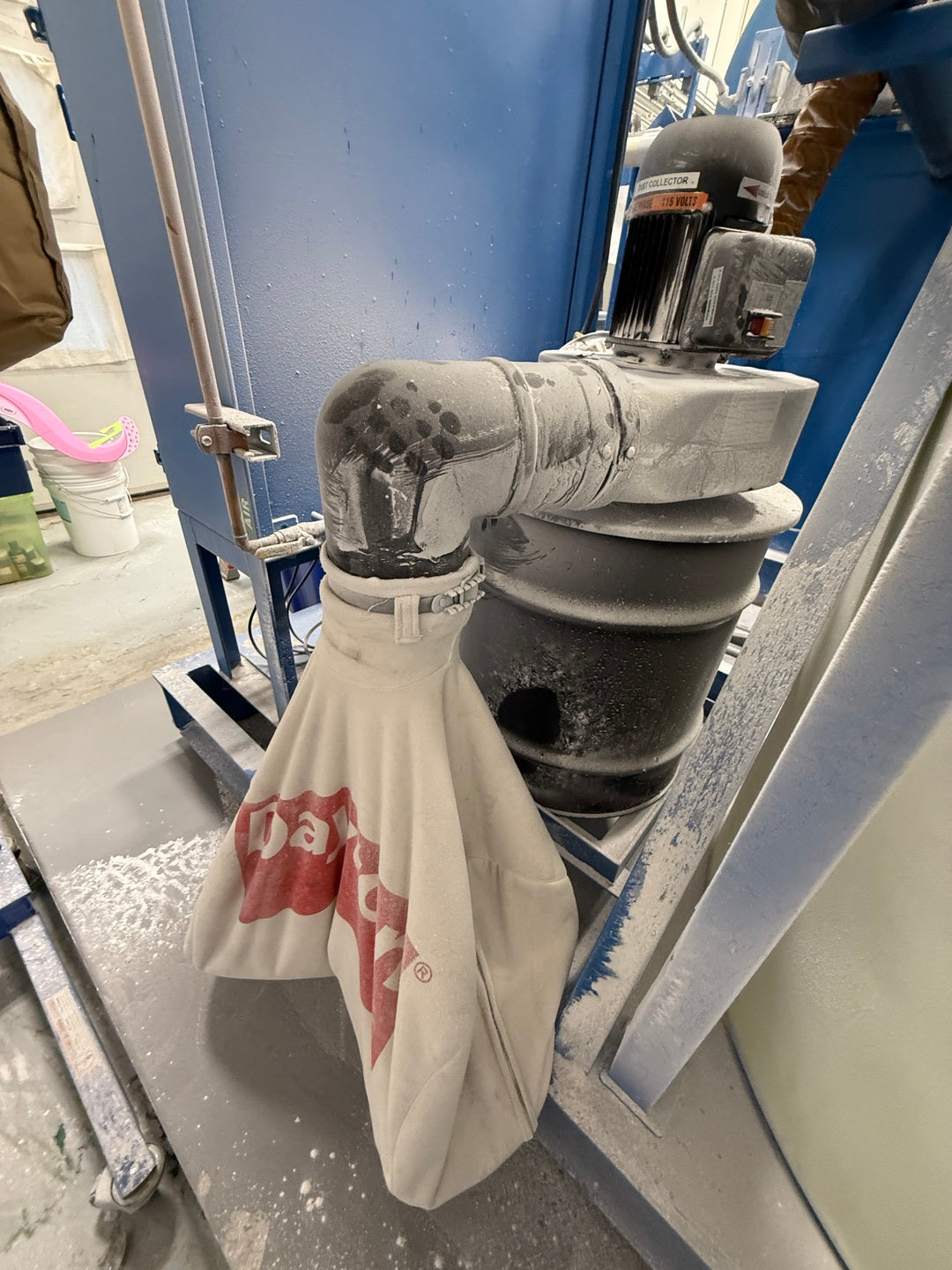

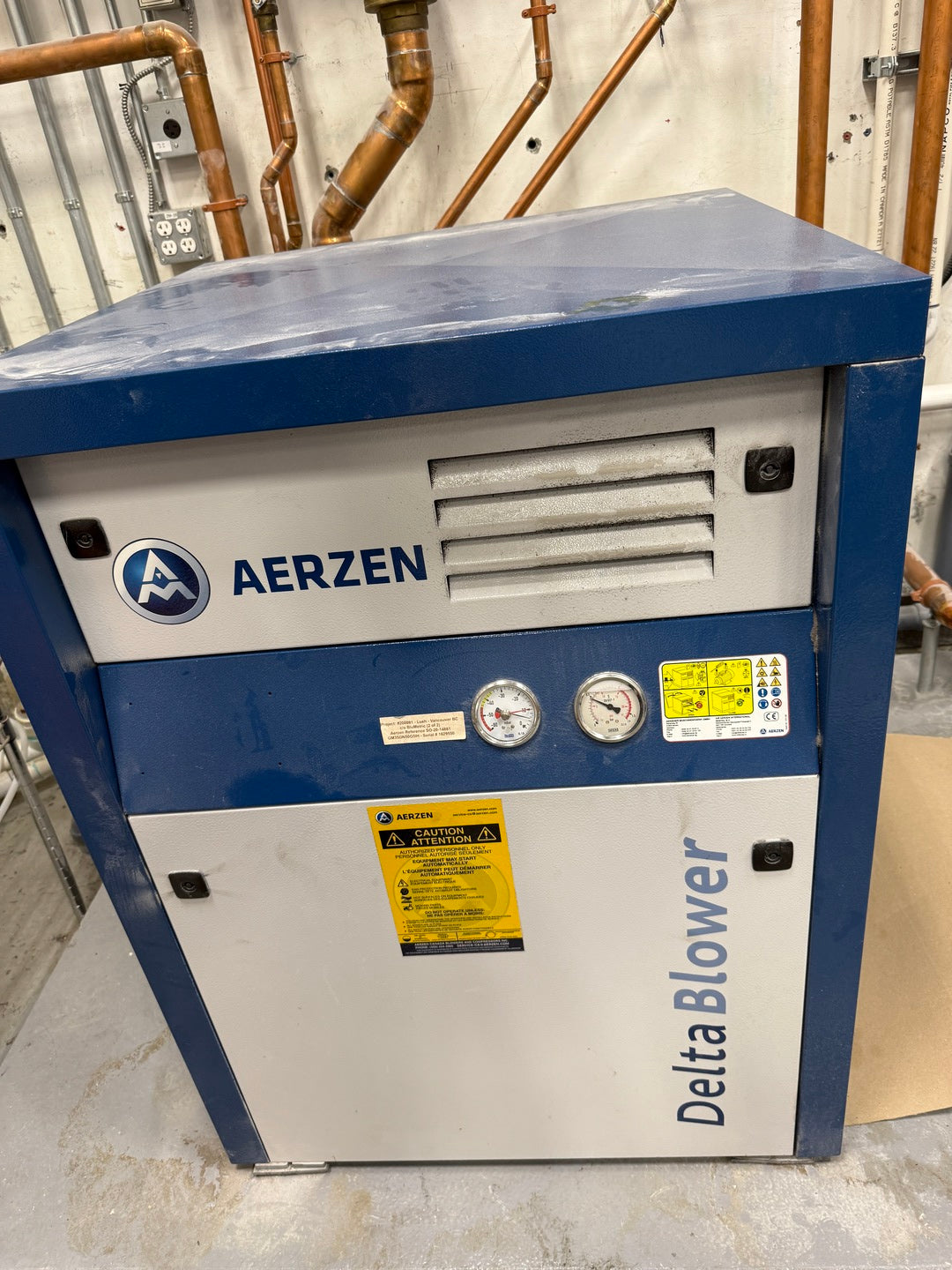

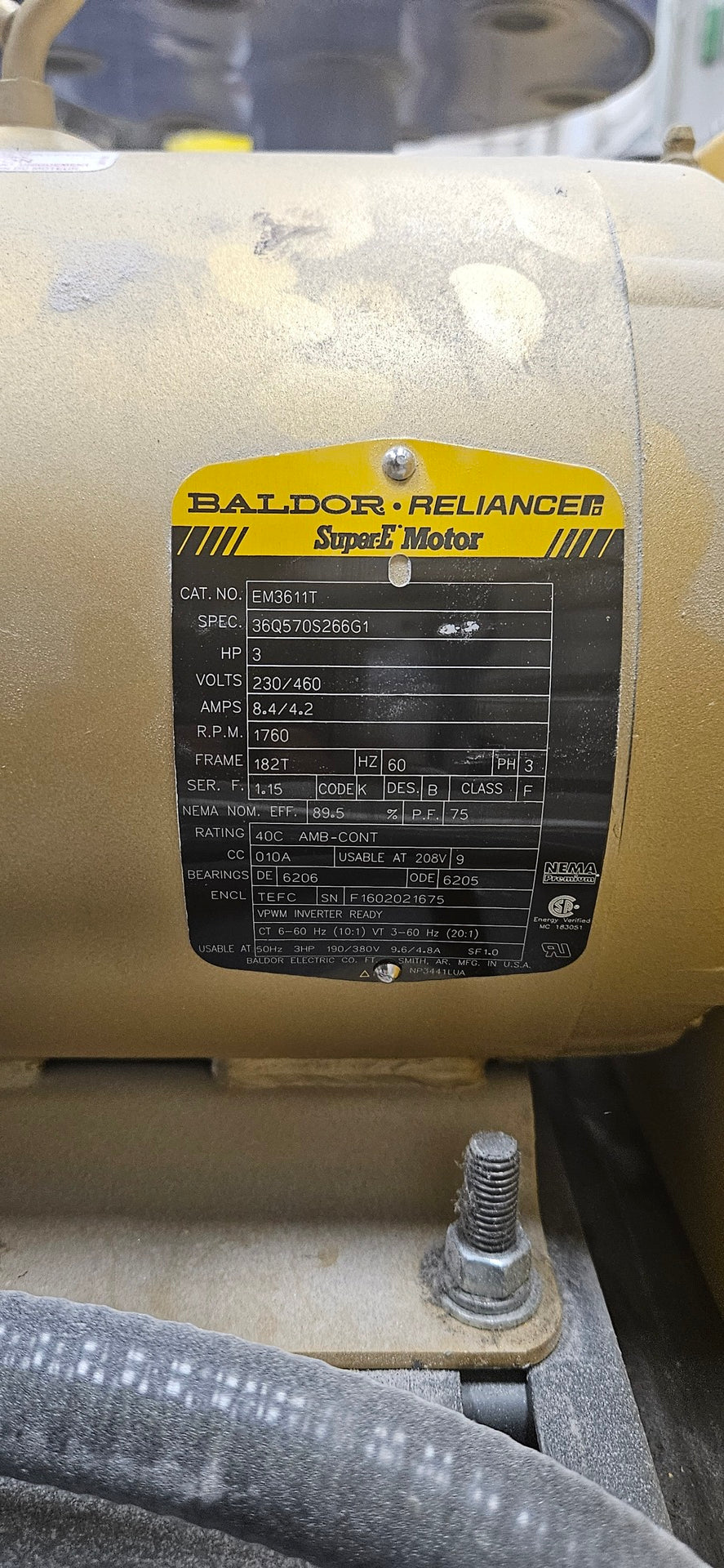

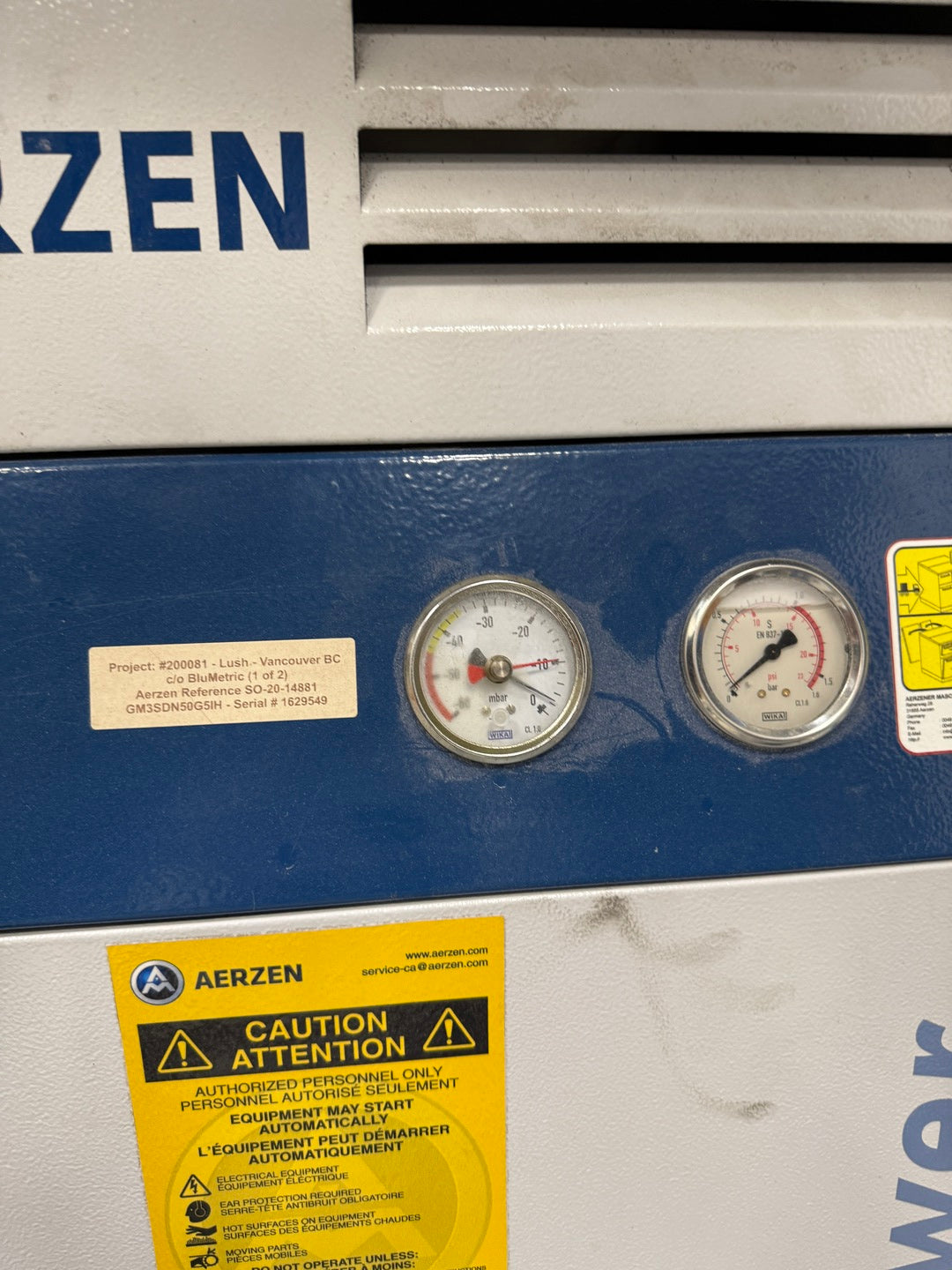

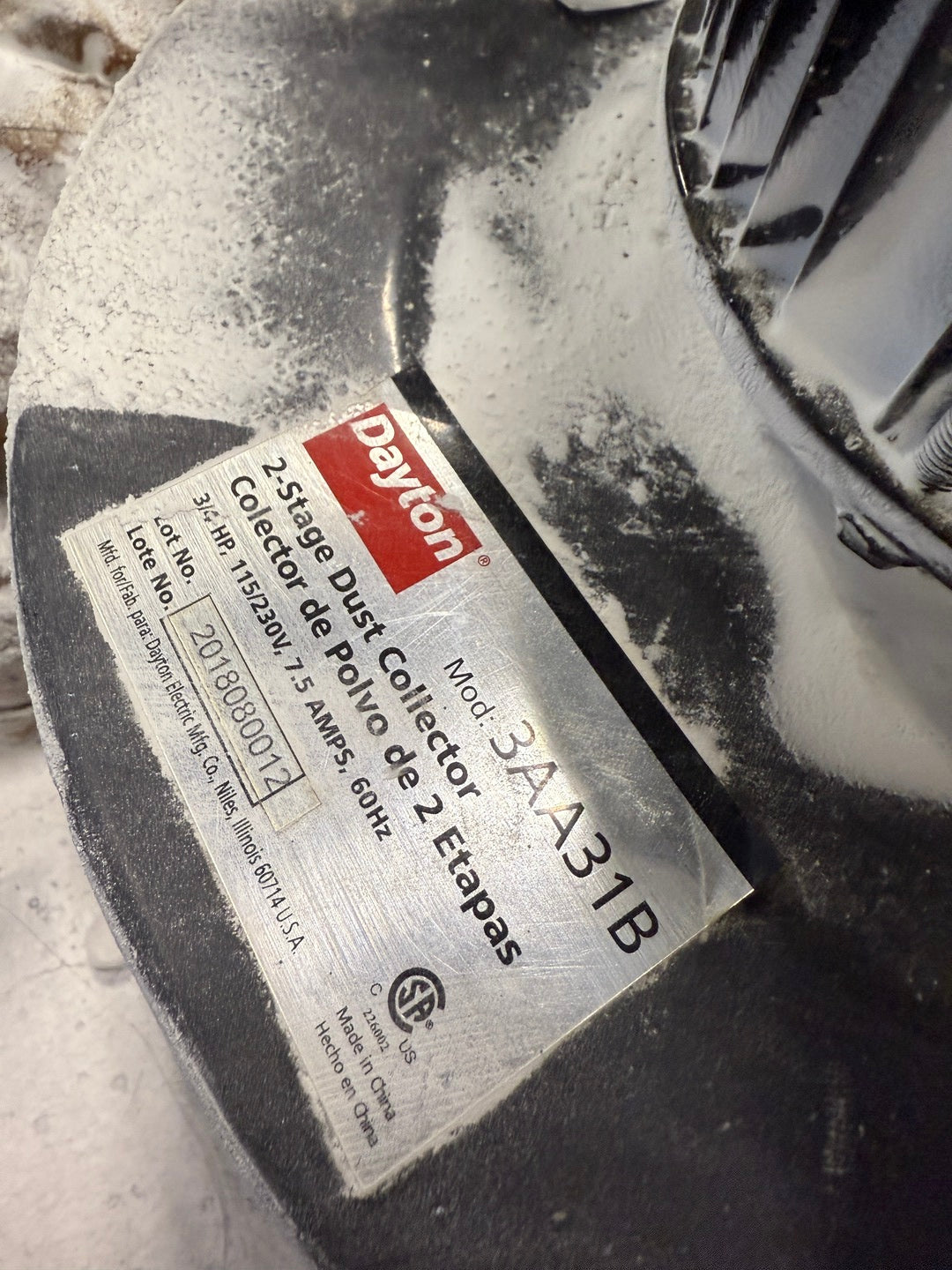

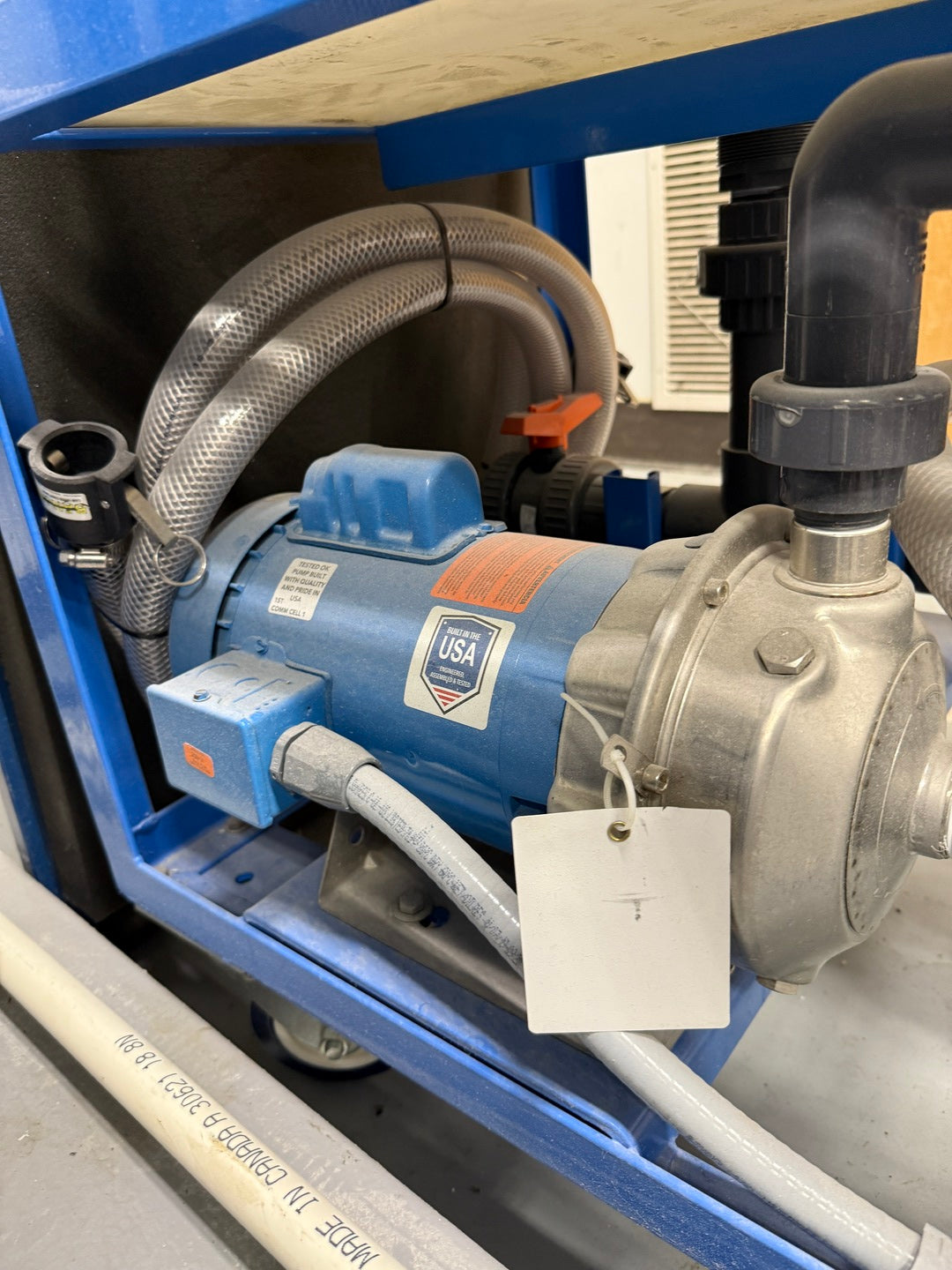

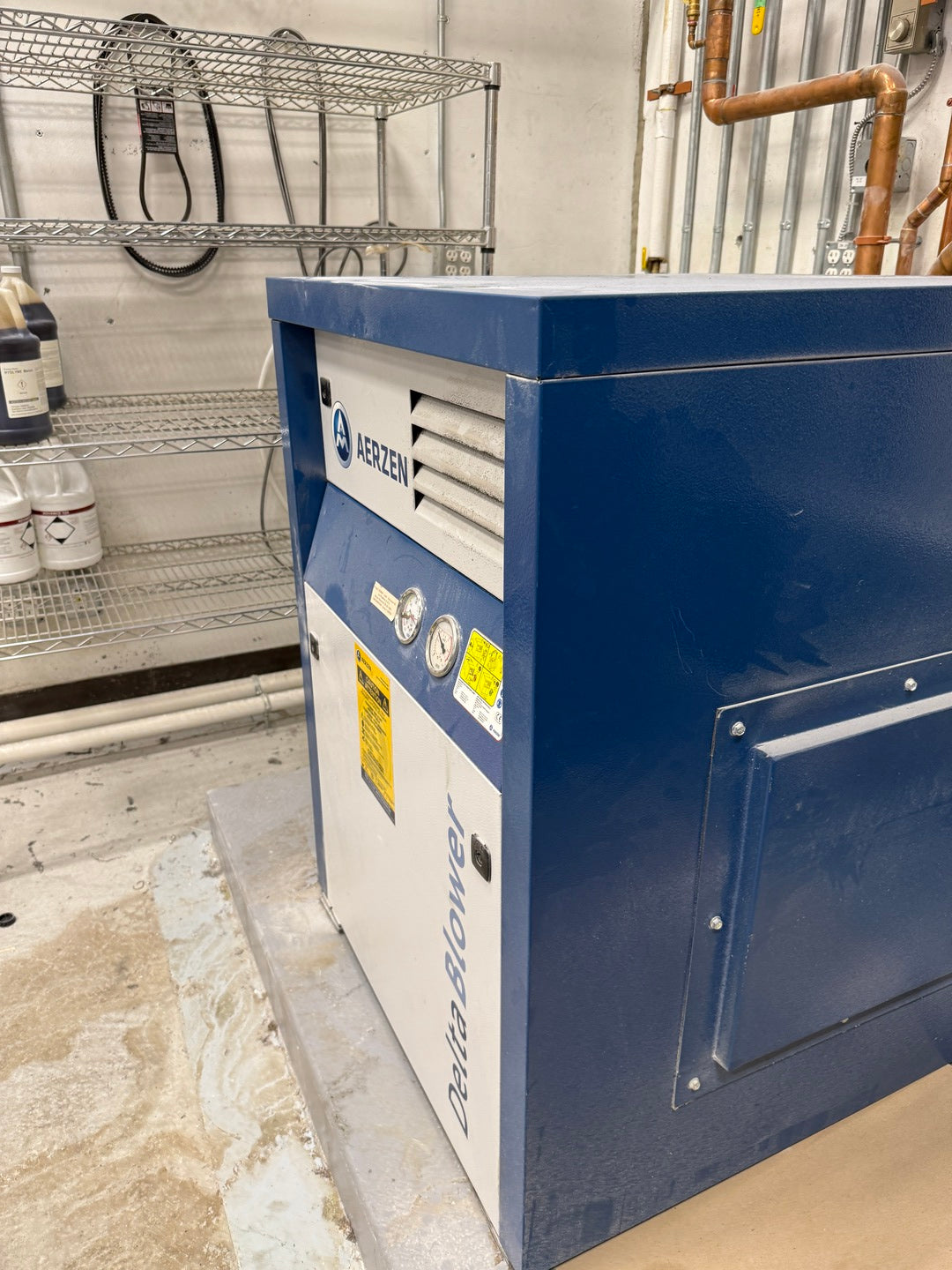

Aerzen Process Blowers (2) Model: GM 3S Inlet/Outlet Nominal Diameter: DN50 Max. Volume Flow (approx): 210 cu. m/hr Roots Air Scour Blower Model: 24 URAI Max. Flow: 148 CFM Max. Pressure Differential: 7 psi Motor: 3 hp, 230/460 V, 3-ph, 8.4/4.2 A, 1760 rpm Dayton 2-Stage Dust Collector Model: 3AA31B Motor: 3/4 hp, 115/230 V, 7.5 A Activator Tank (T-400) Pump: Goulds WS0537BF Pump Motor: 1/2 hp, 575 V, 3-ph, 60 Hz Low Level Switch: LSL-400 High Level Switch: LSH-400 Permeate Assembly
Permeate Tank (T-500)
Chemically Enhanced Backwash (CEB)
Nano Filter NF Feed Pump (P600)
Ultraviolet Disinfection (UV)
Process Water Tank (T-1000)
|
