Descripción

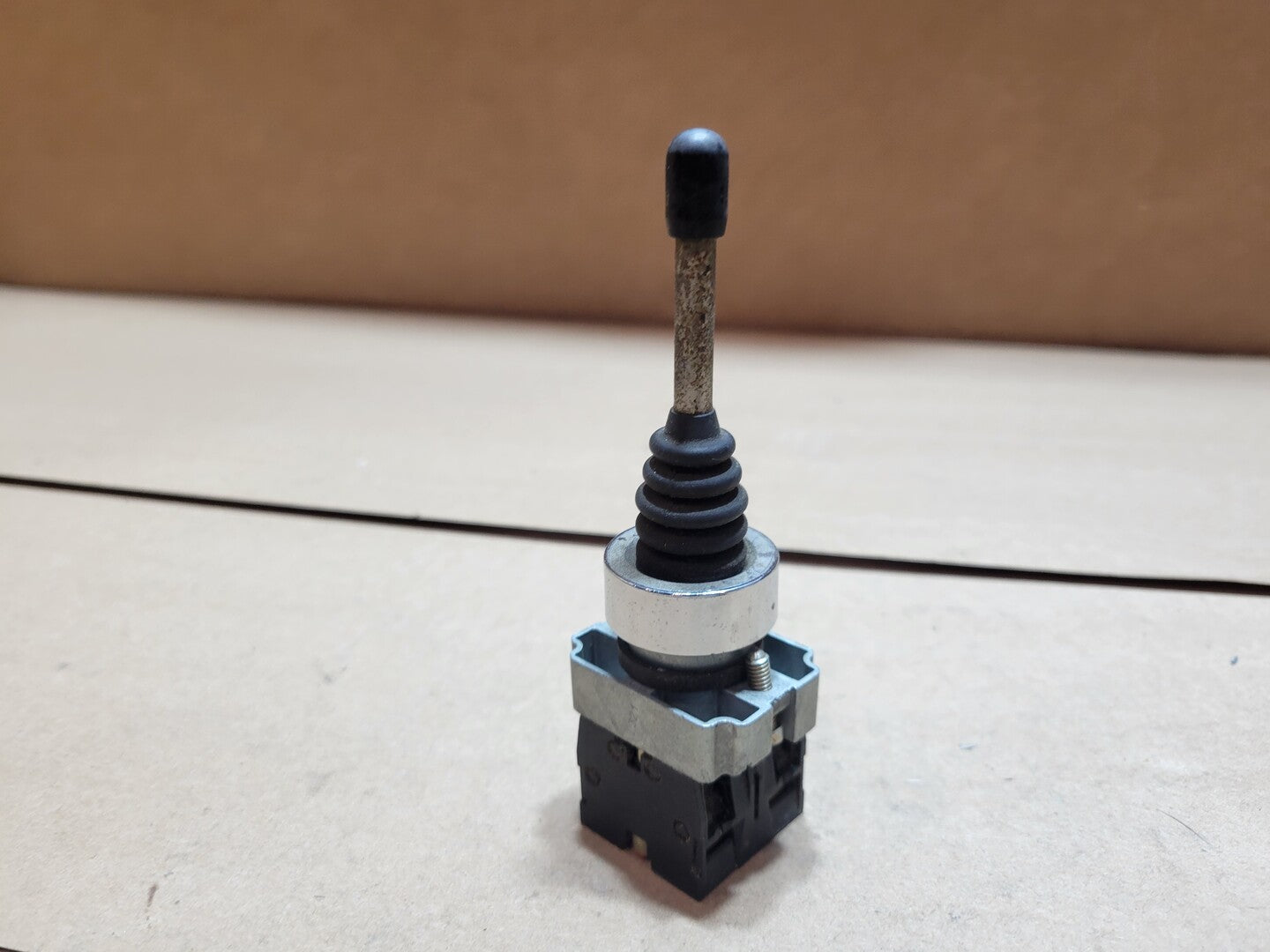

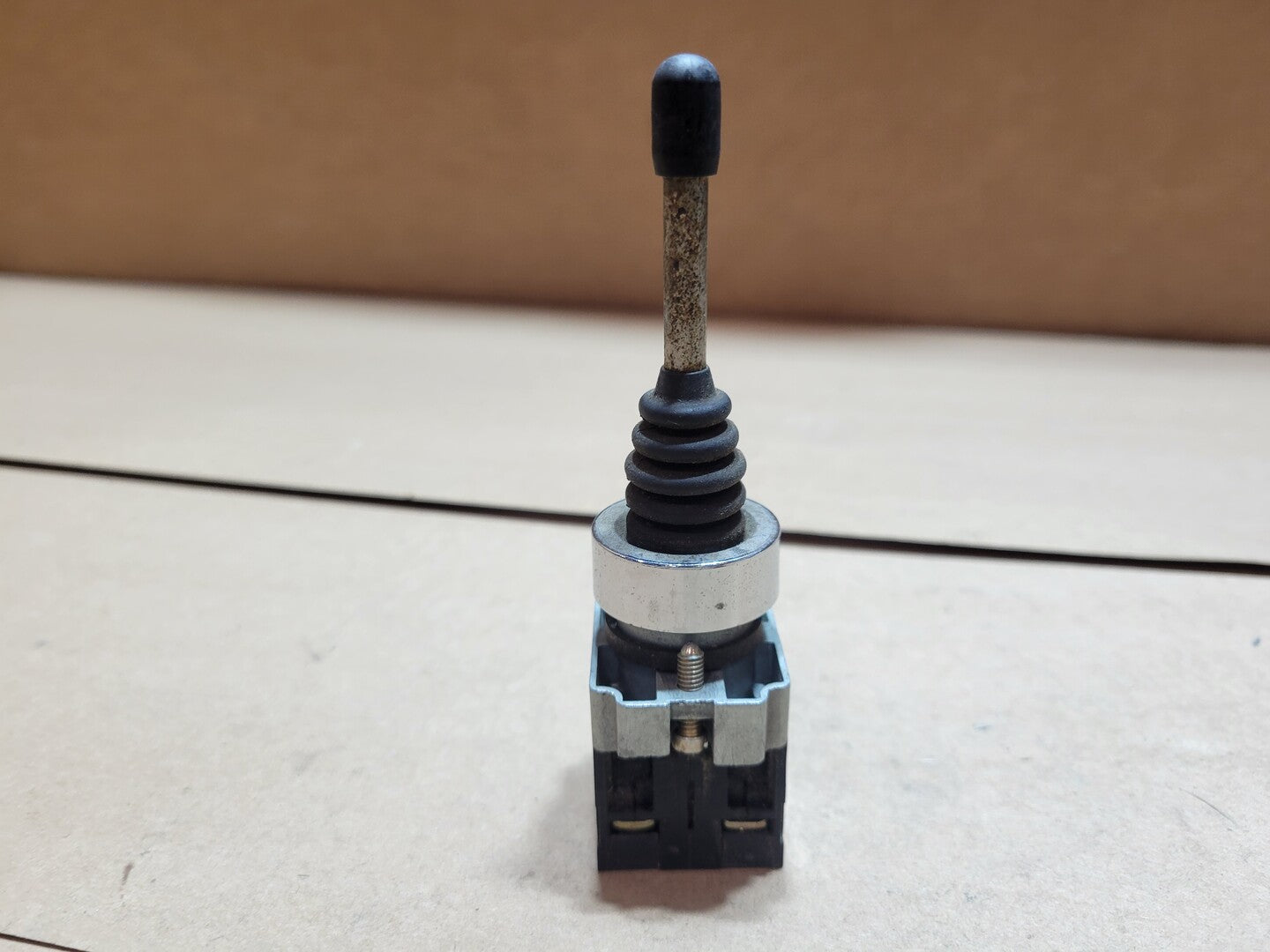

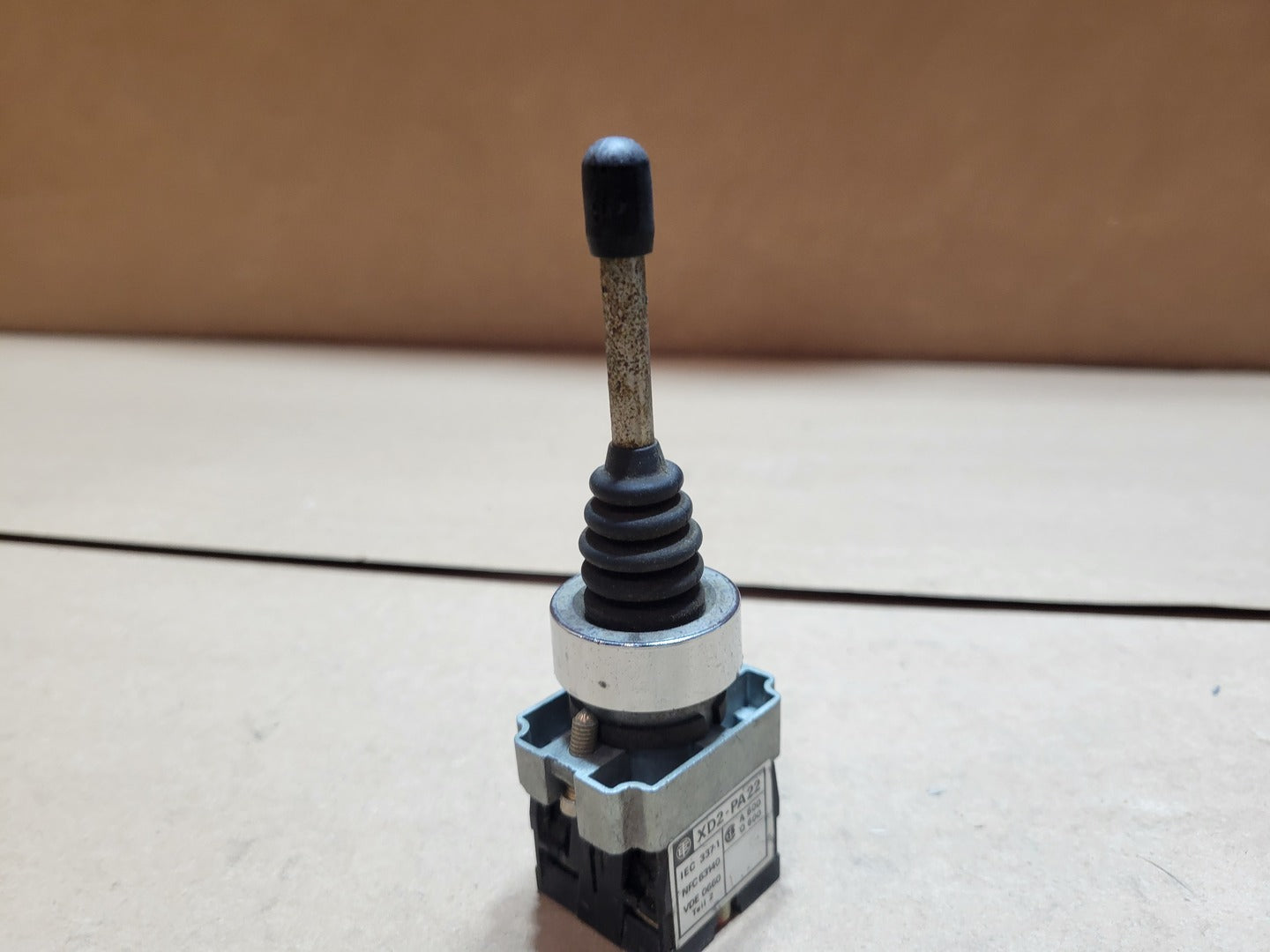

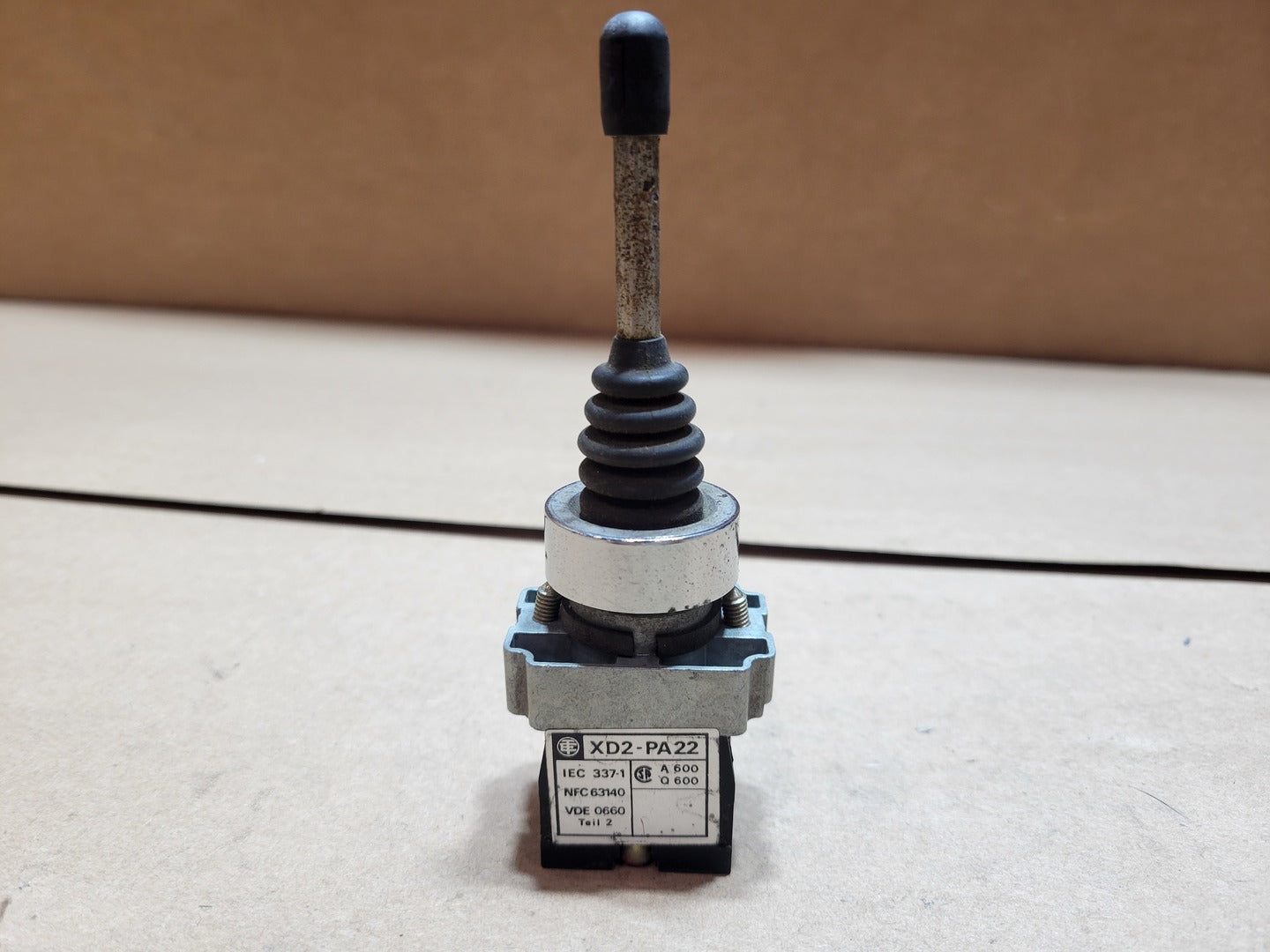

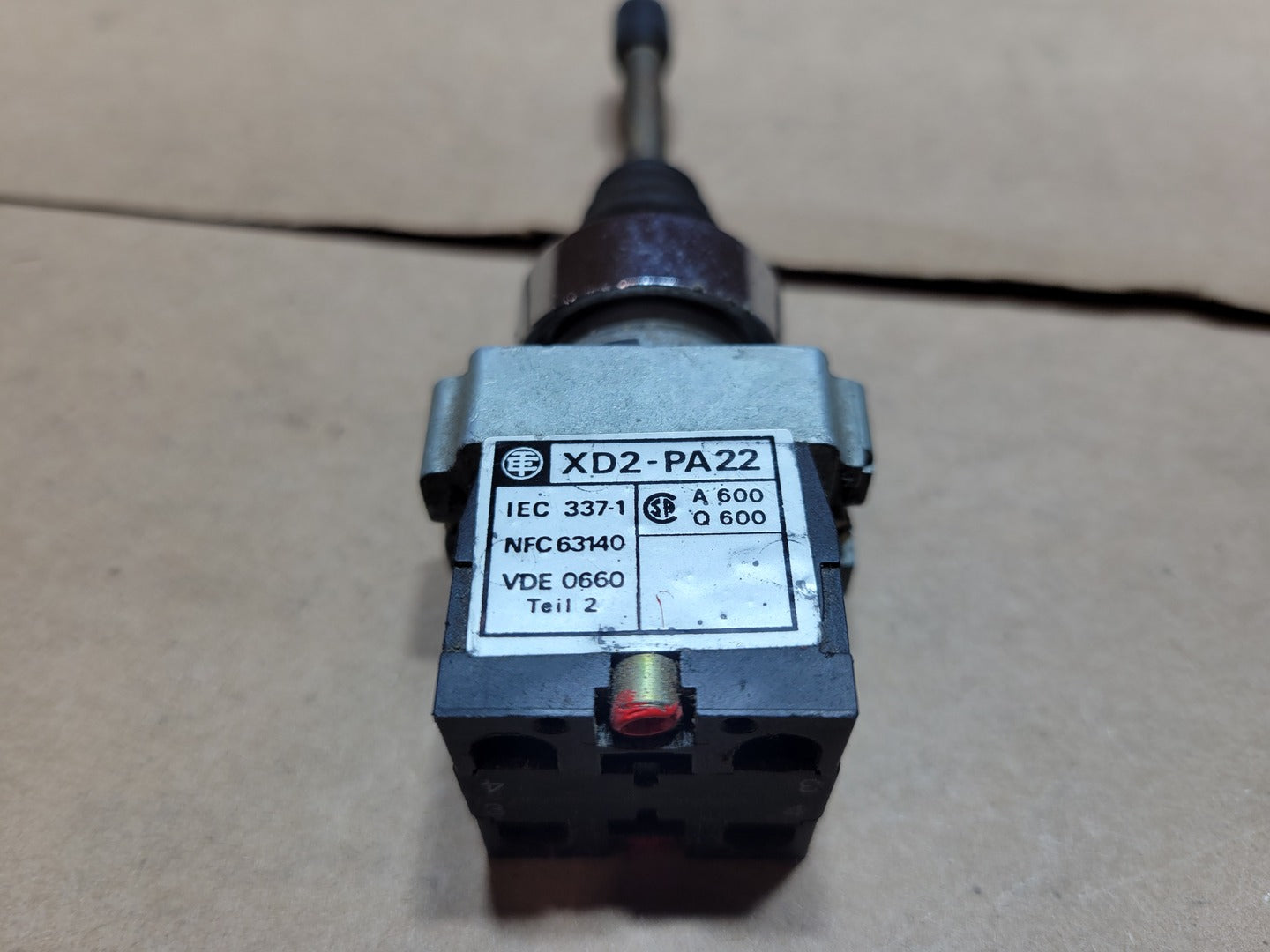

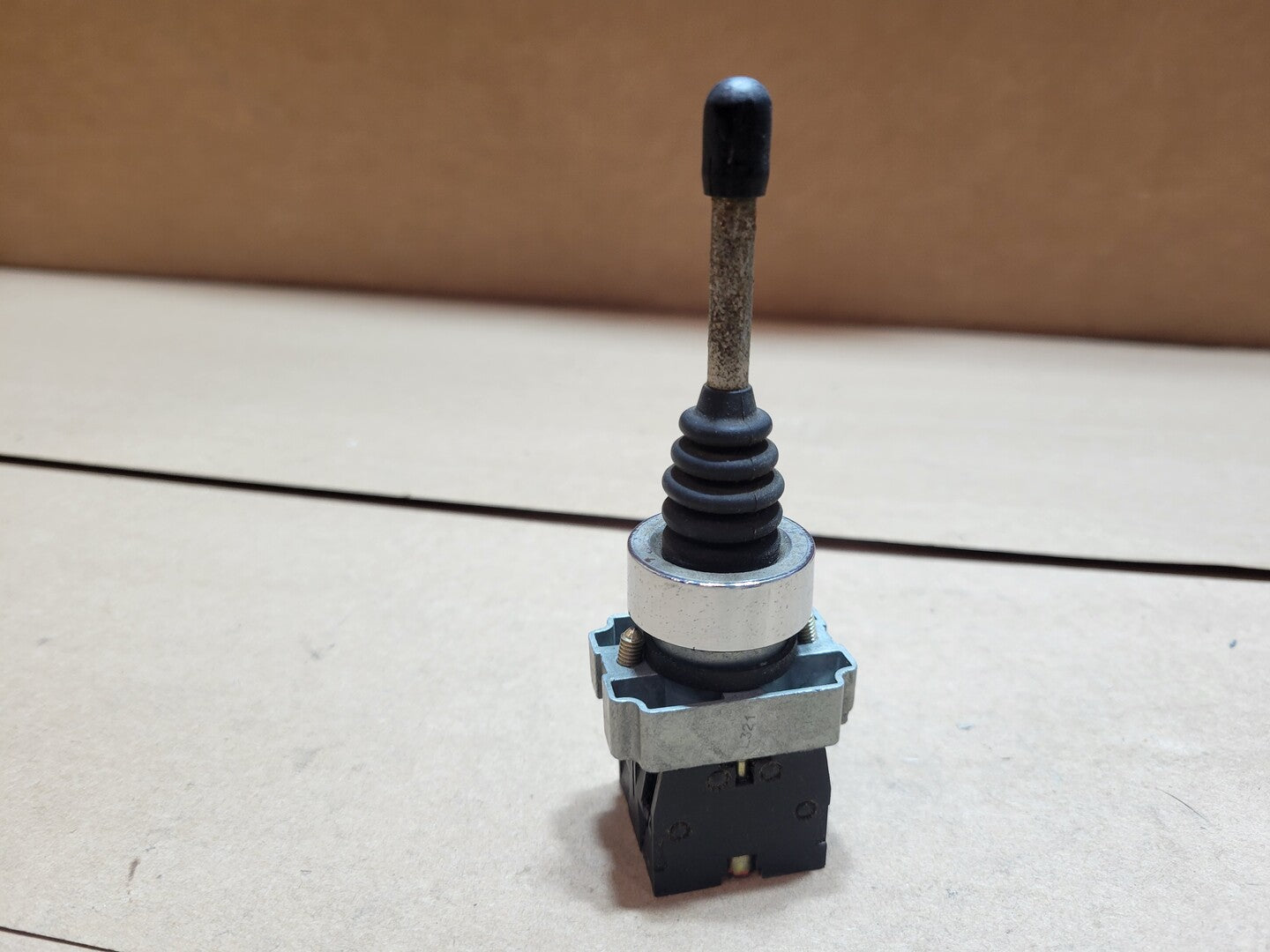

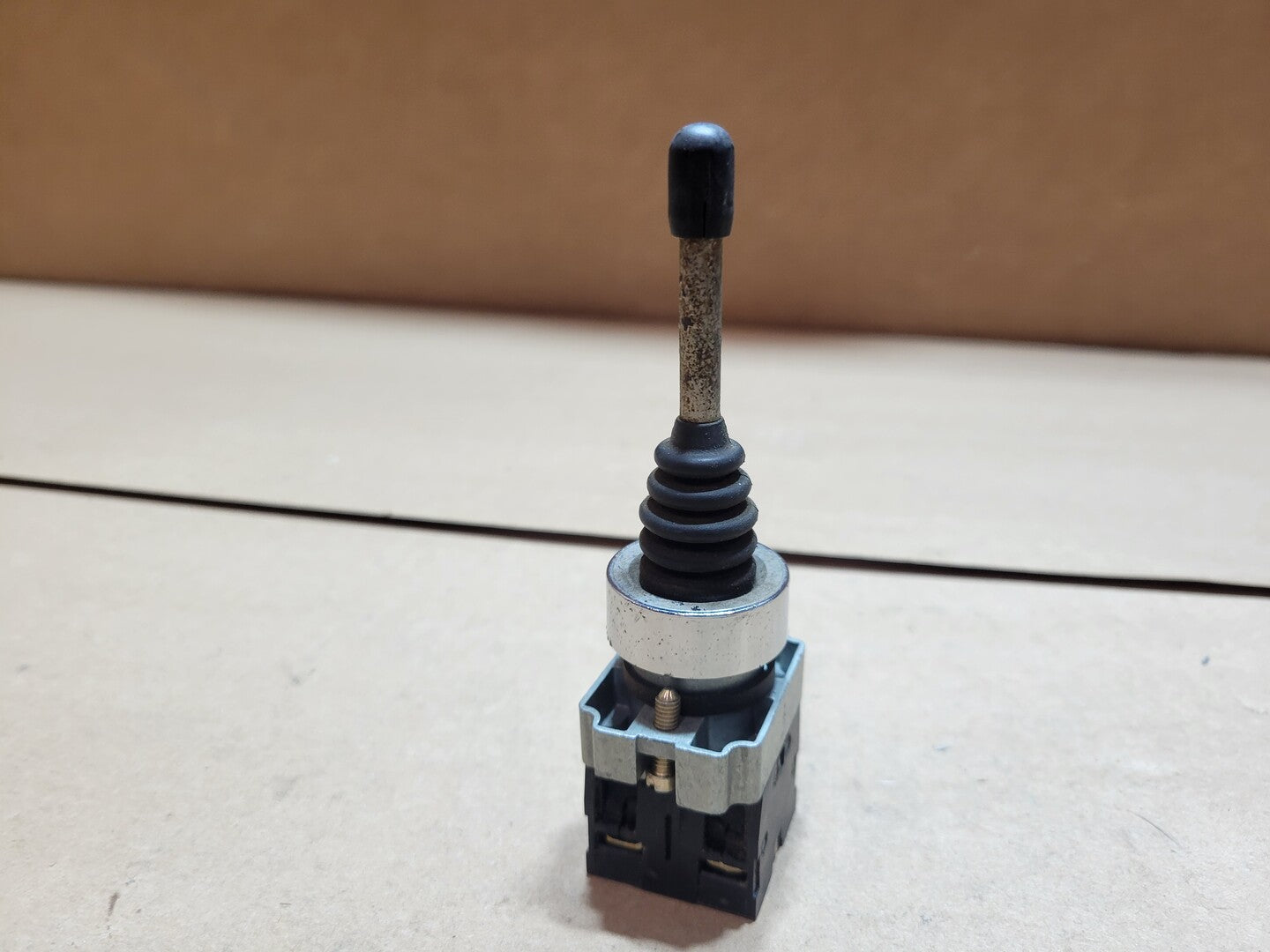

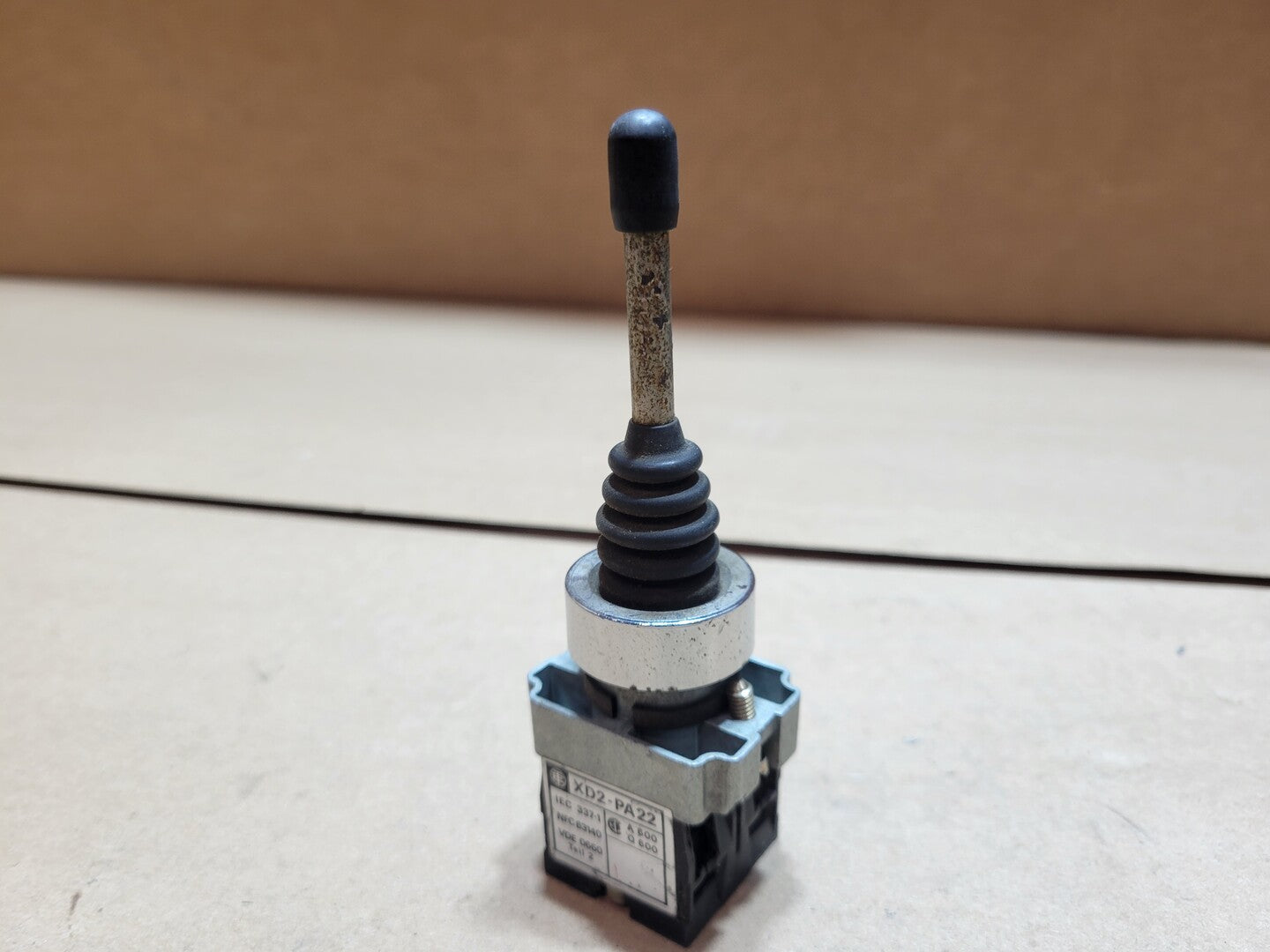

Telemecanique XD2-PA22 industrial panel-mount joystick controller with two-direction momentary operation and spring return to center. The original XD2-P documentation specifies one normally-open contact per direction, chromium-plated metal bezel and 22 mm-class panel mounting. This unit is marked A600 / Q600 and includes the joystick operator and attached contact assembly.
| Specifications | |
|---|---|
| Model | XD2-PA22 |
| Condition | Used |
| Other Specifications |
|---|
|
Product Type: Industrial Joystick Controller / Control Switch Series: XD2-P Directions: 2 Operating Positions: Center plus 1 operating notch in each direction Return Action: Spring return to zero/center Contacts: 1 N/O contact per direction Total Directional Contacts: 2 normally-open contacts Contact Rating Marking: A600 / Q600 AC Utilization: AC-15 DC Utilization: DC-13 Rated Operational Reference: 3 A at 240 VAC AC-15; 0.27 A at 250 VDC DC-13 Bezel: Chromium-plated metal Panel Thickness Range: 1-6 mm Joystick: Long metal shaft with black end knob Boot: Flexible rubber bellows |
