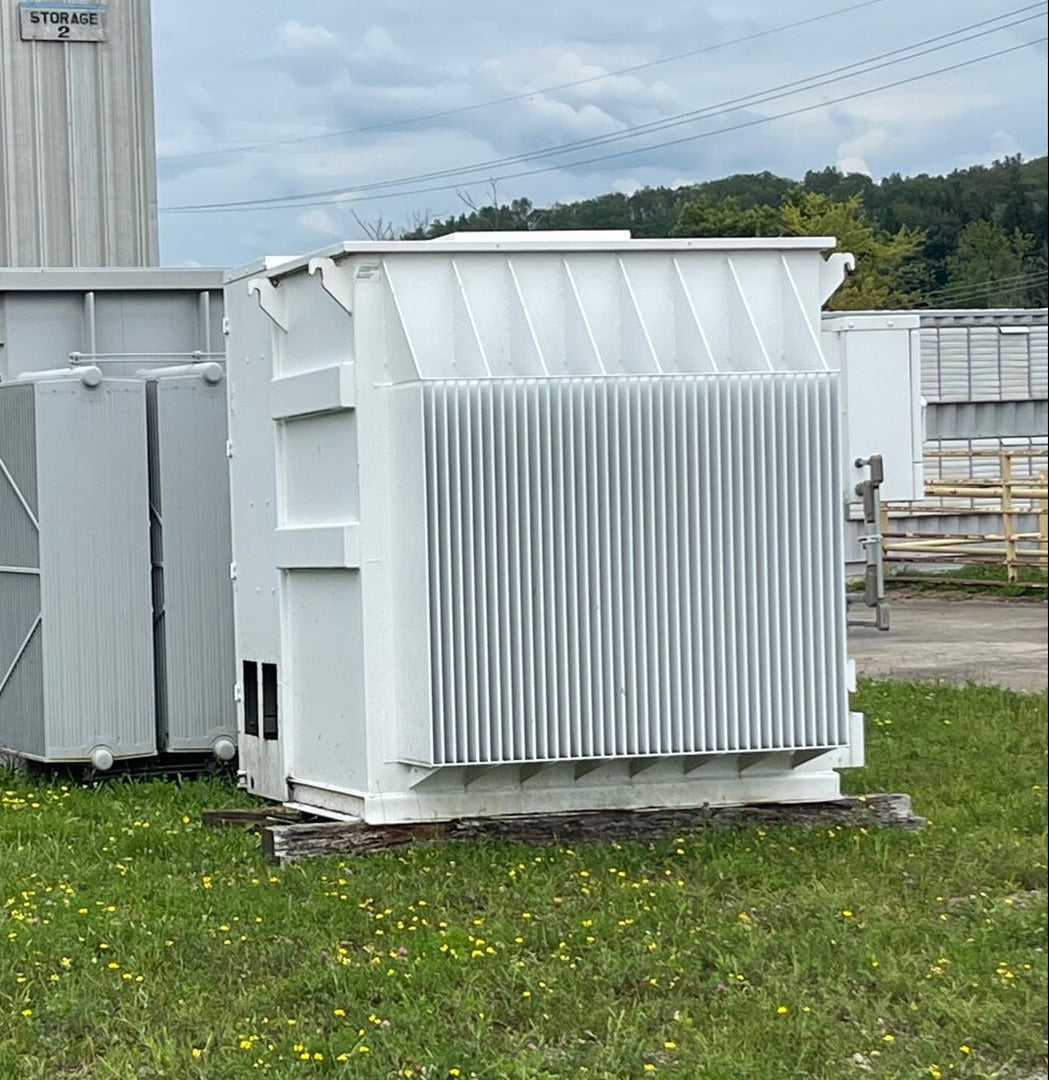

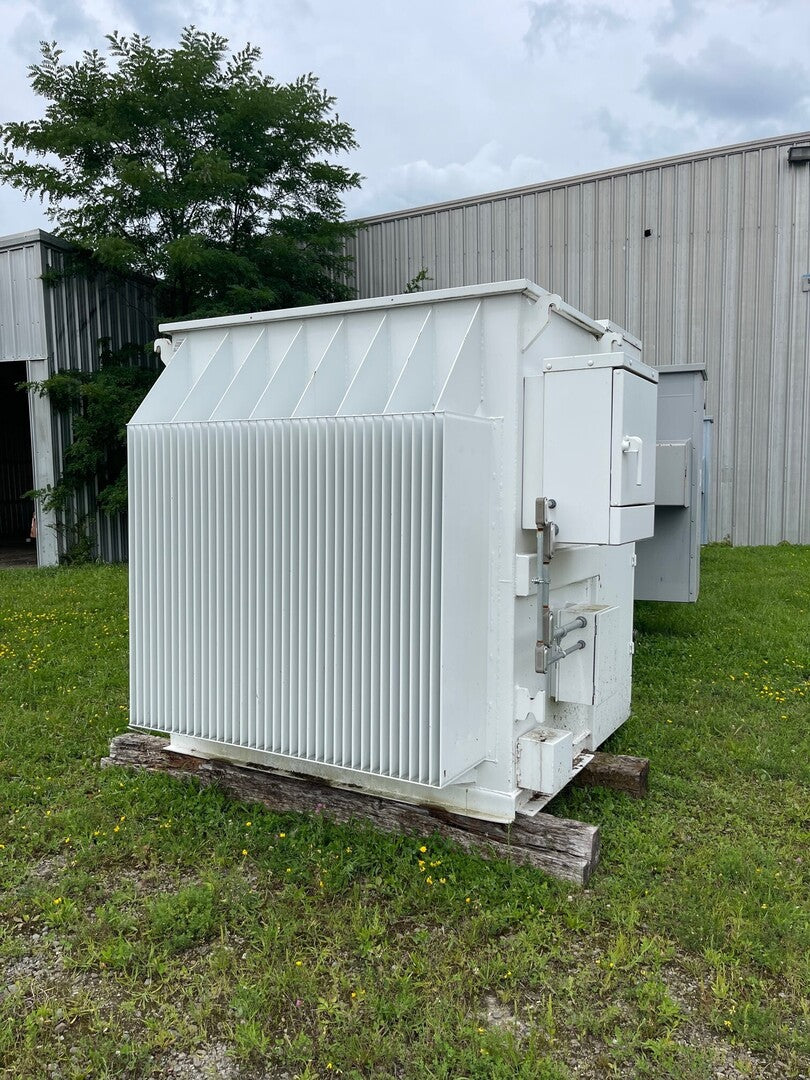

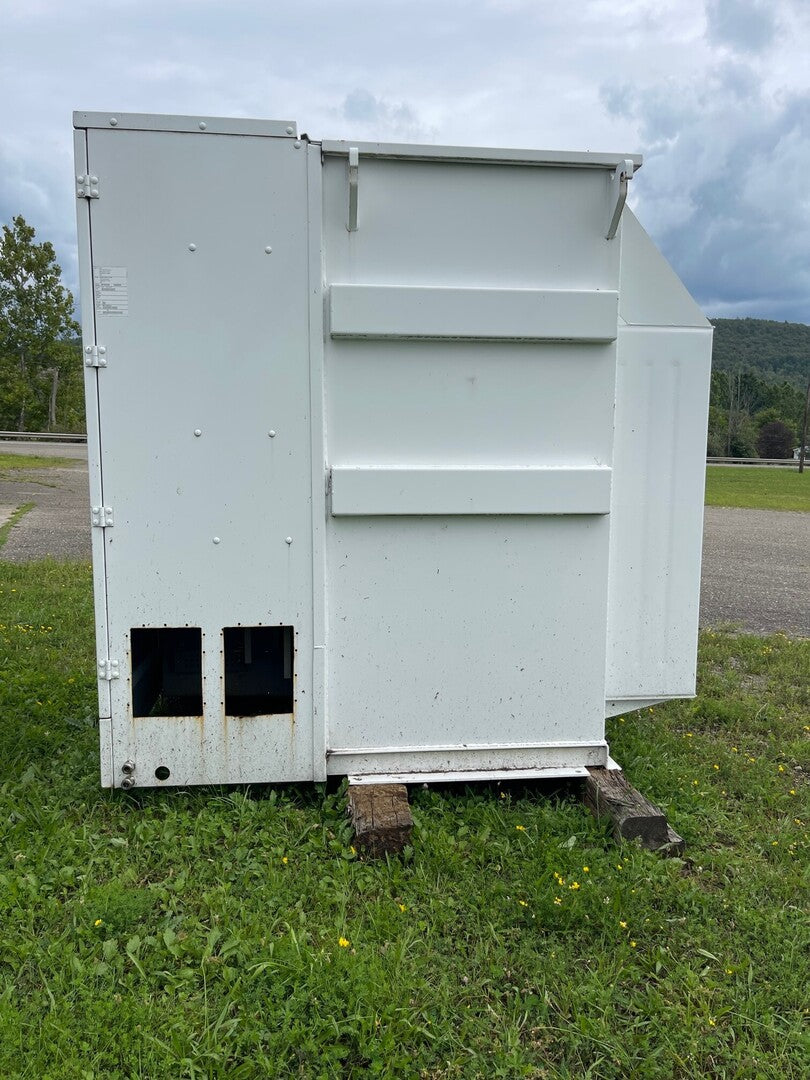

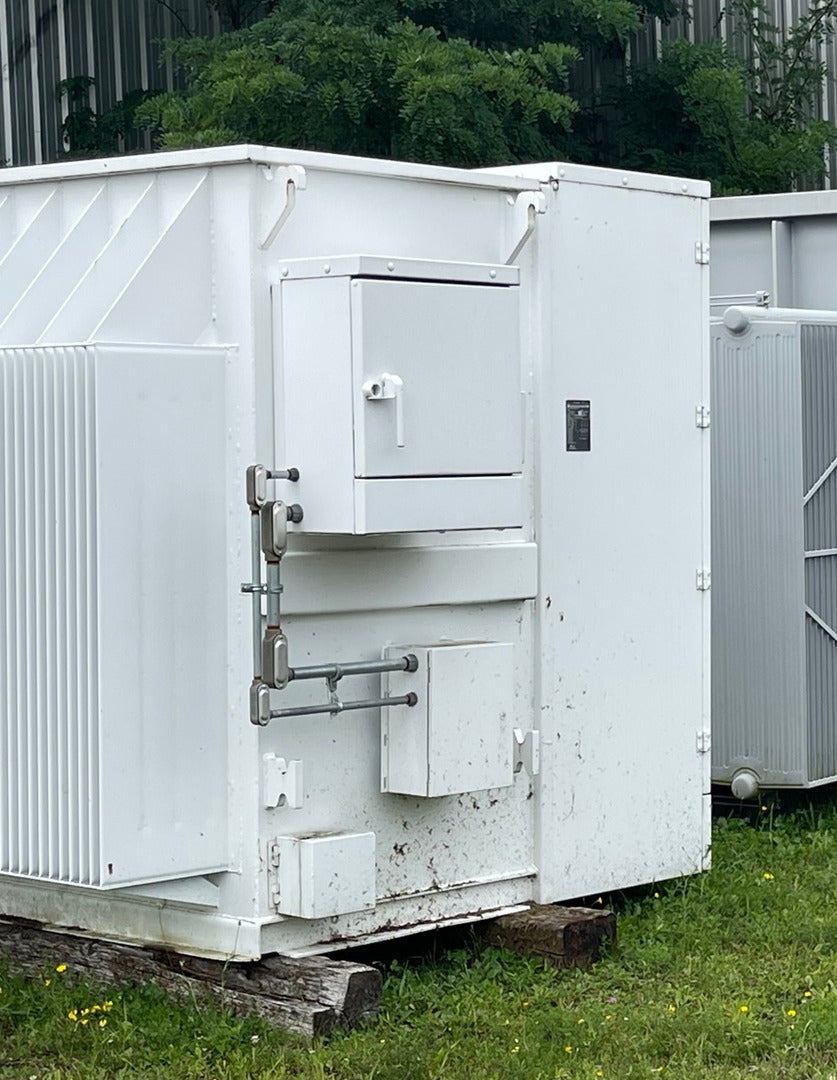

1,800 kVA Pad Mounted Transformer 34500 pri. volts, 405Y sec. volts

SKU: 136236
Price:
$45,000 CAD

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

Finance

Amount:
Email Finance

Description

Specifications

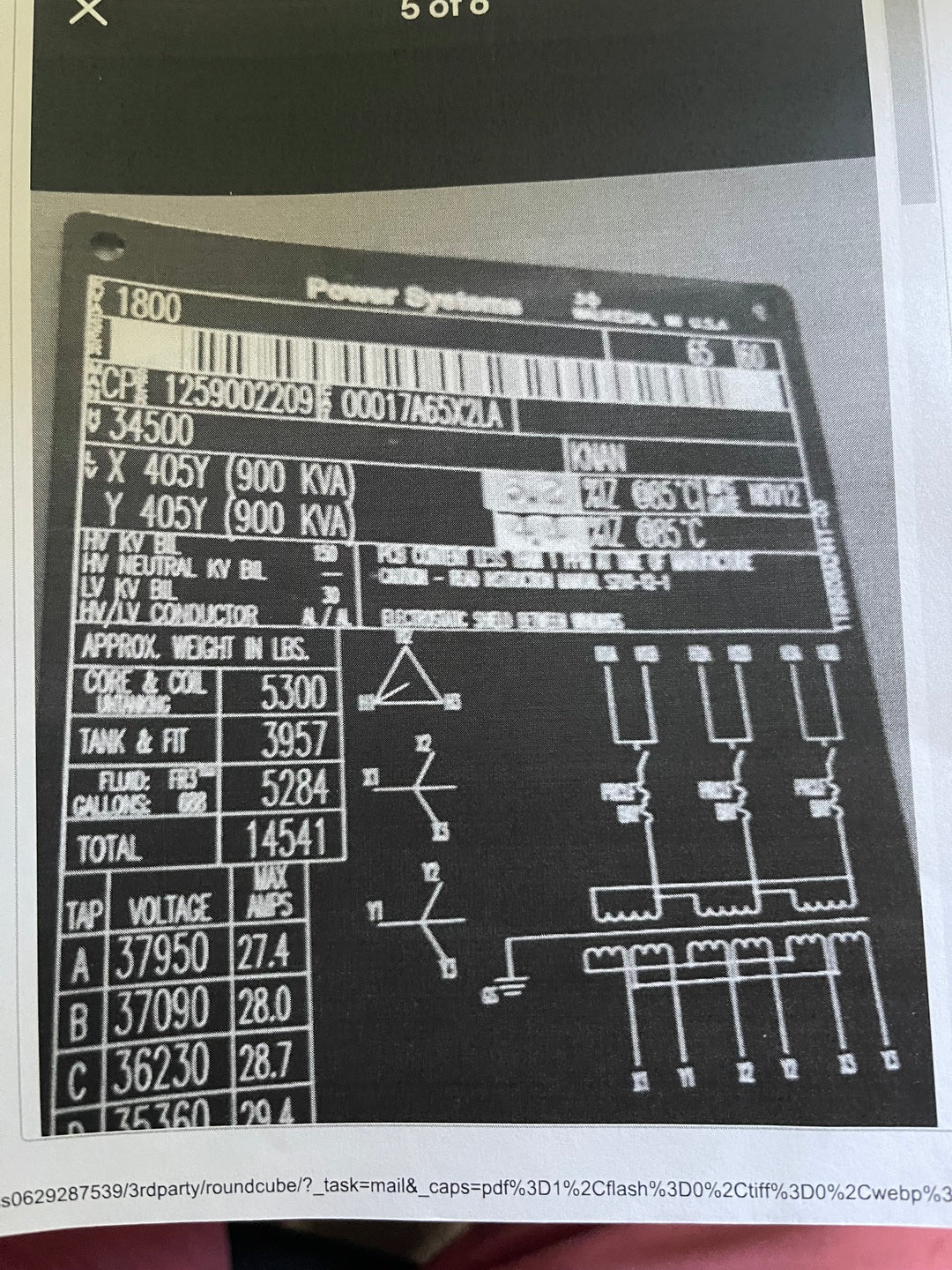

Model 00017A65X2LA
Year: 2012
S/N: 1259002209
Condition Used
Electrical
kVA 1800 kVA
Primary Voltage 34500 volts
Secondary Voltage 405 volts
Phase 3-phase
General
Transformer Type Distribution Transformer
Auto VS Isolation Isolation
Oil vs Dry Oil
Other Specifications

Cooling Type: ONAN (Oil Natural Air Natural)

65°C Temp Rise Winding Insulation System

Top Oil Temp Rise: 47°C

Winding Temp Rise: 65°C

Core & Coil Weight: 5300 lbs

Tank & Fittings Weight: 3957 lbs

Fluid (Oil) Weight: 5284 lbs

  • Gallons: 682 gallons

Total Weight: 14,541 lbs

Vector Group: Dyn (Delta primary, Wye secondary)

High Voltage Configuration: Delta (D)

Low Voltage Configuration: Wye (Y)

HV Bushing Labels: H1, H2, H3

LV Bushing Labels: X0 (Neutral), X1, X2, X3
