Description
| Specifications | |
|---|---|

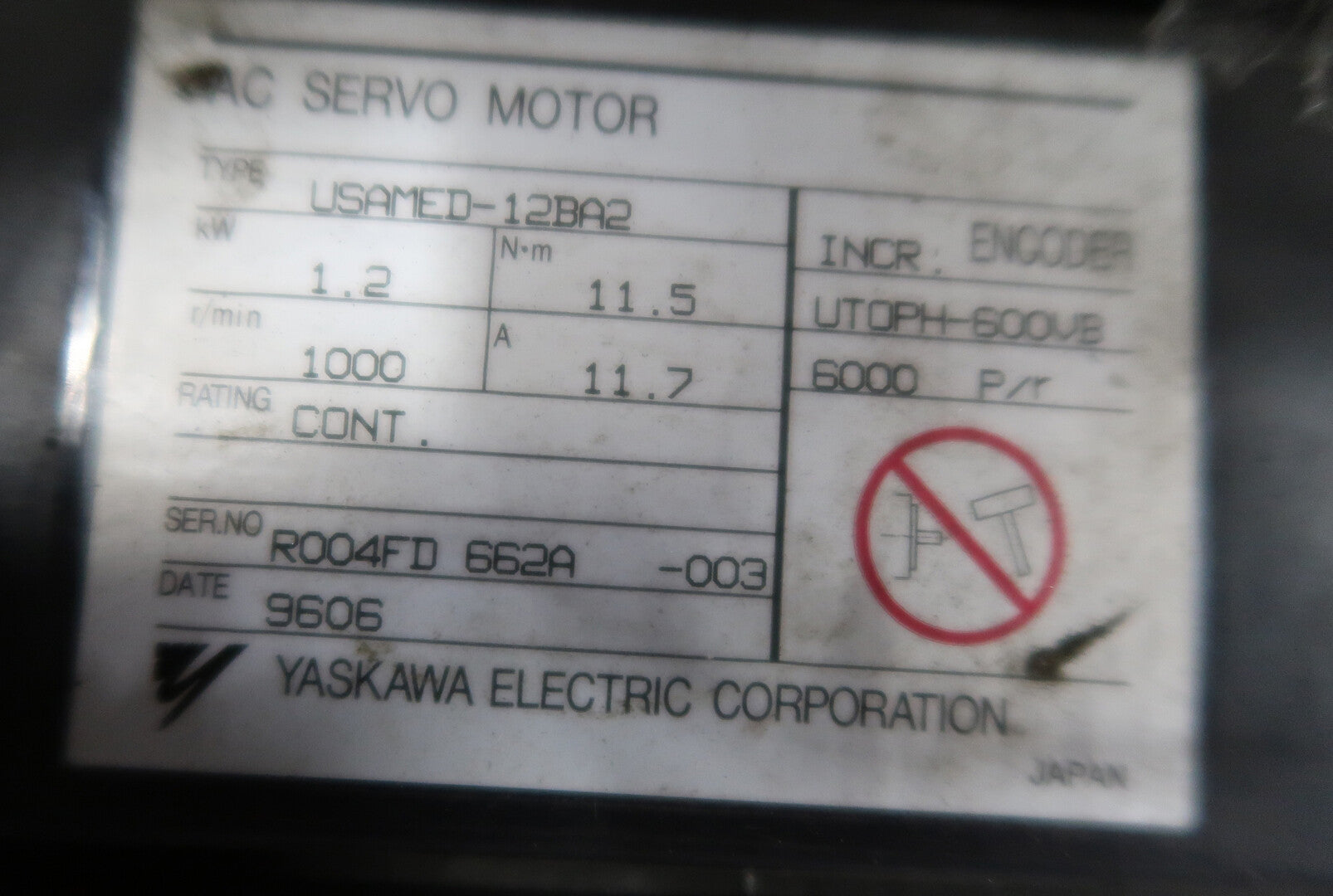

| Model | USAMED-12BA2 |
| S/N: | R004FD 662A-003 |
| Condition | Surplus New | Electrical |
| Amps | 11.7 amps |
| Other Specifications |
|---|
|
Time Rating: Continuous Insulation: Class F Isolation Voltage: 1500 VAC, one minute Insulation Resistance: 500 VDC, 10m ohm or more Enclosure: Totally-enclosed, self-cooled (Equivalent to IP-55 exclusive shaft opening) Ambient Temperature: 0 to +40 deg. C Ambient Humidity: 20% to 80% ( non-condensing) Vibration: 15 um or below Finish in Munsell Notation: N1.5 Excitation: Permanent Magnet Mounting: Flange Mounted Drive Method: Direct Drive Rated Output: 1.2 kW (1.6 hp) Rated Torque: 11.5 N.m (102 lb. in) Continuous Max Torque: 11.8 N.m (104 lb.in) Instantaneous Max Torque: 28.0 N.m (248 lb.in) Rated Current: 11.7 A Rated Speed: 1000 r/min Instantaneous Max Speed: 2000 r/min Torque Constant: 1.02 N.m/A (9.0 lb. in/A) Power Rate: 19.7 kW/s Inertia Time Constant: 6.9 ms Inductive Time Constant: 10.4 ms |
