DIGITRACE Heat Trace Controller Panel, CM 2000+, AC 2000+ (30 modules total)
DIGITRACE

Heat Trace Controller Panel, CM 2000+, AC 2000+ (30 modules total)

SKU: 148688
Price:
$7,061

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model CM 2000+
Condition Used
Other Specifications

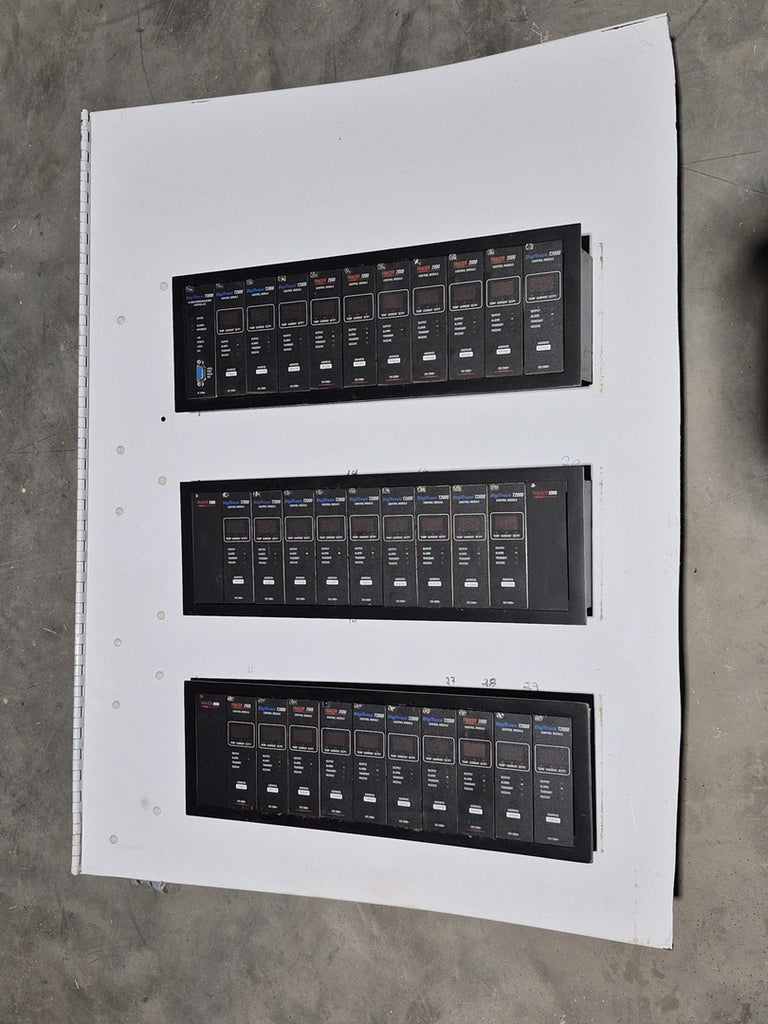

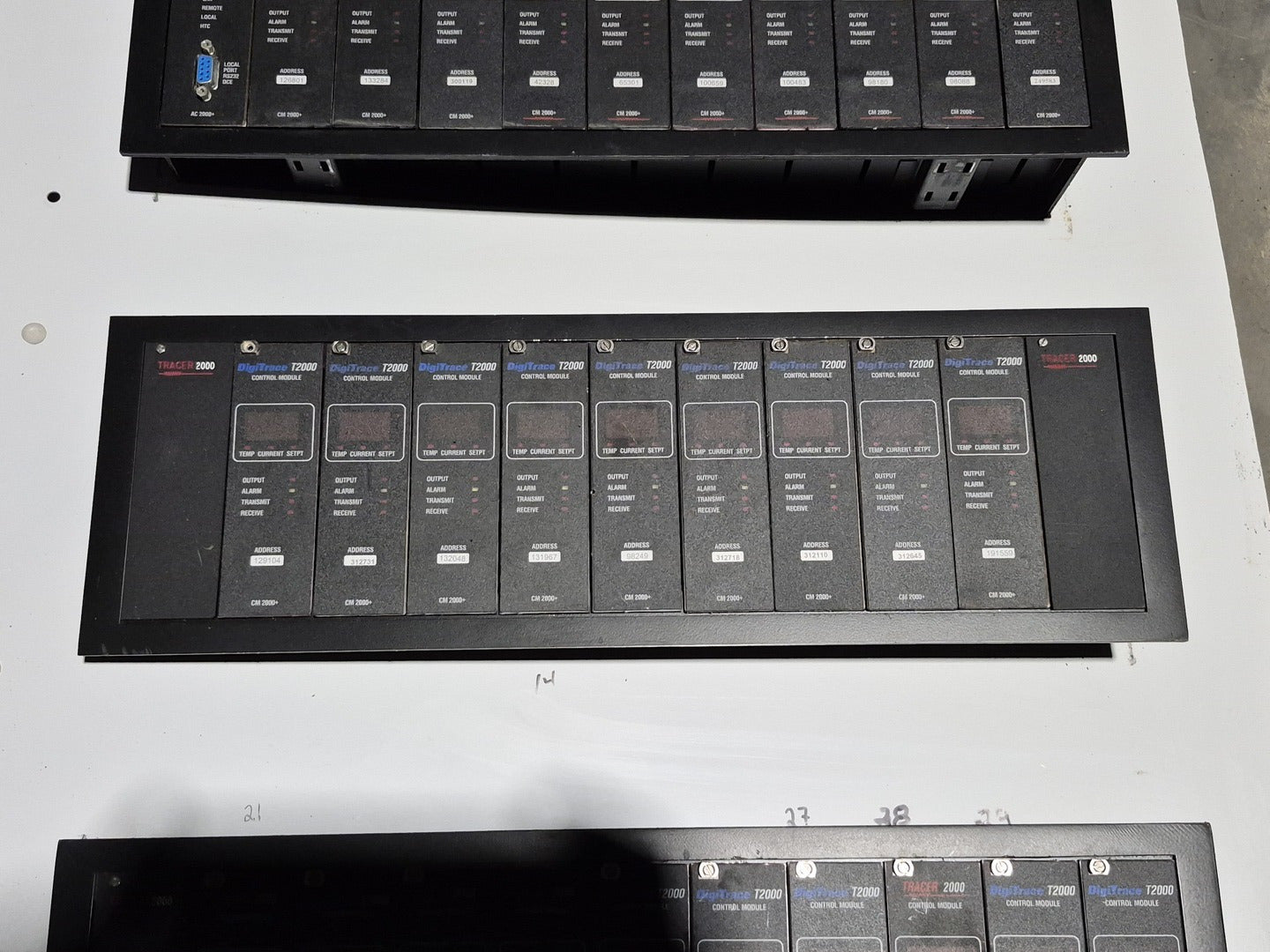

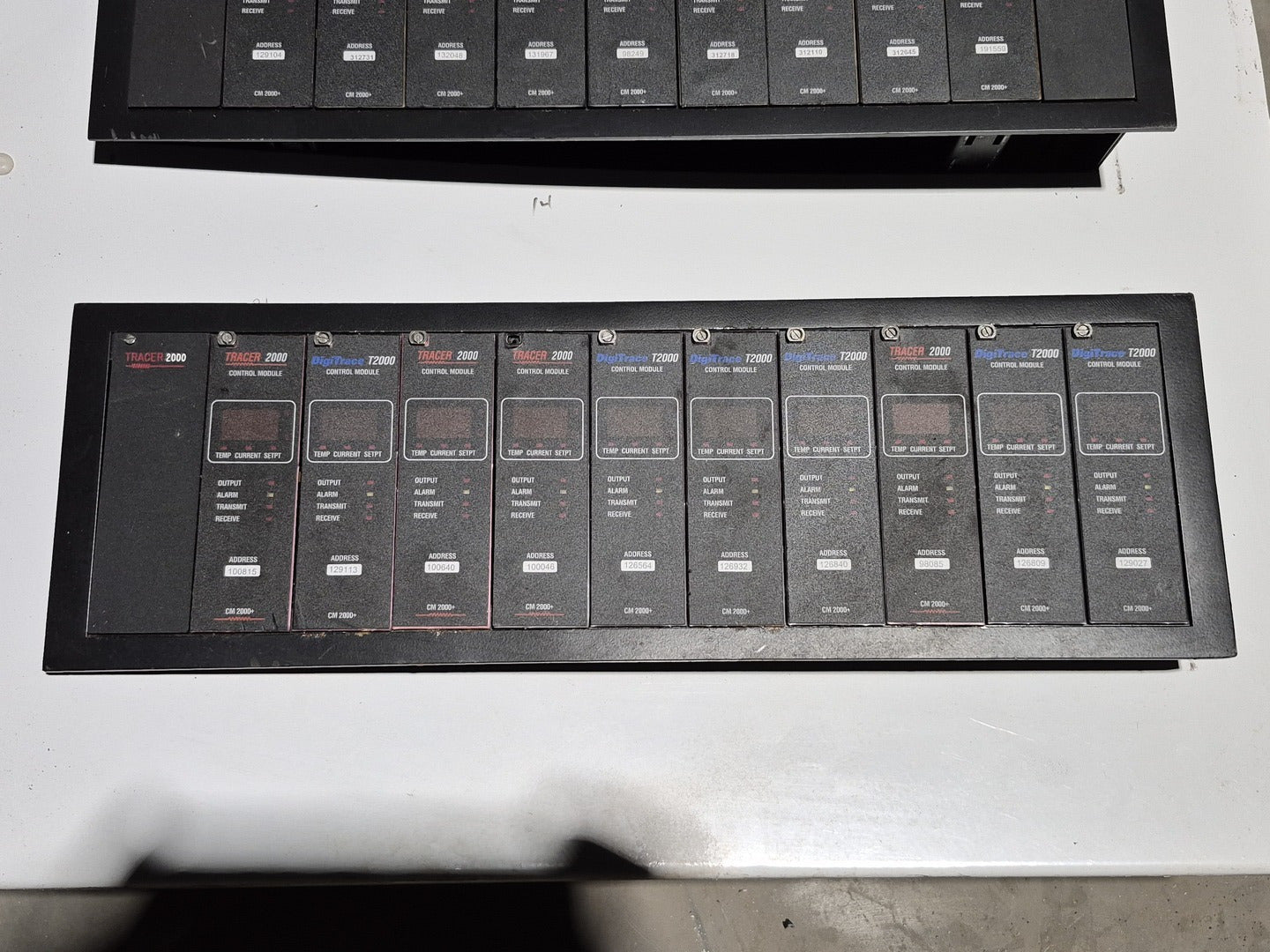

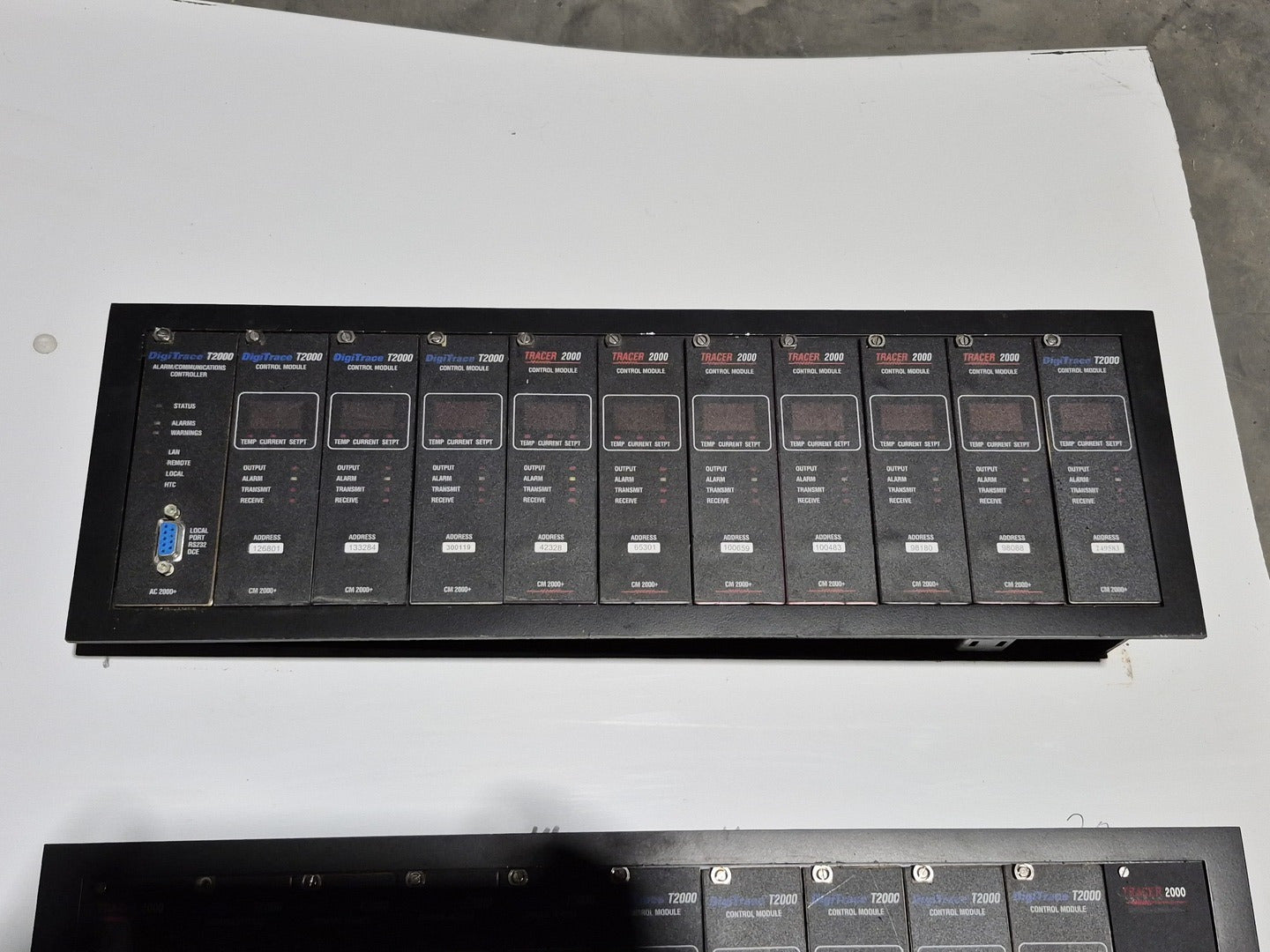

Description: Heat trace controller panel with 29 control modules and 1 alarm/communications module present. All control modules are model CM 2000+, but, some are under different production era branding names. Alarm communications module has model number AC 2000+.

CM 2000+ Module Specifications

Operating Ambient: -40F to 149F

Control Output: 12 VDC nominal, 50 mA max.

Sensor Inputs: Two 3-wire 100 ohm platinum RTDs

Power Requirements: 120 to 240 VAC nominal, 1-Phase, 5 W max.

Temperature Measurement Range:

  • -76F to 1058F
  • Accuracy: +/- 0.5% of span +/- 1 LSD

Voltage Measurement Range:

  • 80 to 295 VAC
  • Accuracy: +/- 1% of span +/- 2 LSD
  • Repeatability: +/- 1.5% of span

Current Measurement Range:

  • 0.3 to 100 A
  • Accuracy: +/- 2.5% of reading +/- resolution where resolution = 0.1 A (0.3 to 11 A range), 0.3 A (11 to 40 A range), 0.7 A (40 to 100 A range)
  • Repeatability: +/-3% of reading +/- resolution

Ground Fault Measurement Range:

  • 20 to 100 mA
  • Accuracy: +/- 2.5% of span +/- 2 LSD at nominal load
  • Repeatability: +/- 4% of span

AC 2000+ Module Specifications

Operating Ambient: -40F to 149F

Output Devices: Individual N.C. Alarm and Warning relay drive outputs

Communications: Local Port RS-485 mode / RS-232C mode
