Description
| Specifications | |
|---|---|

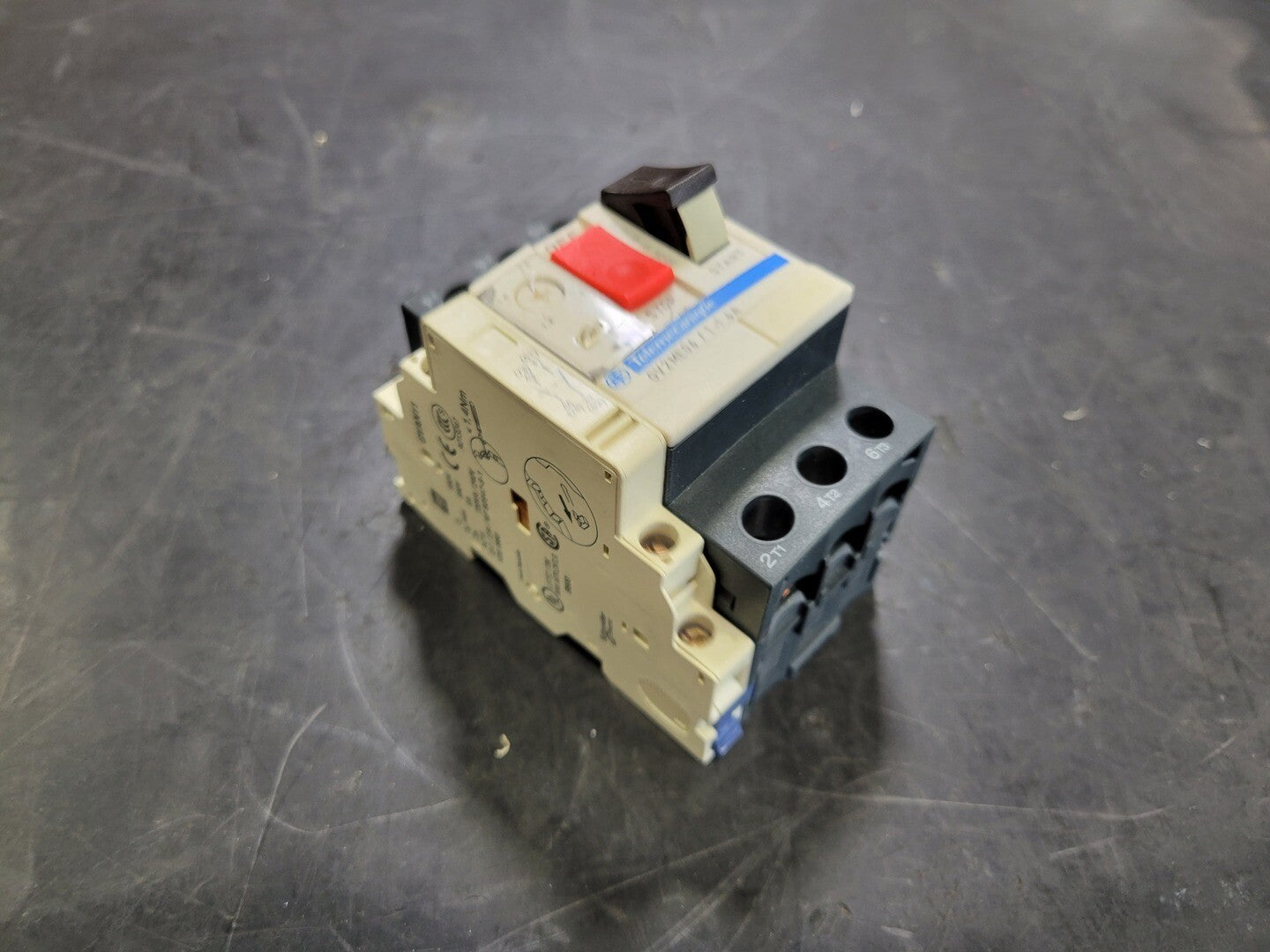

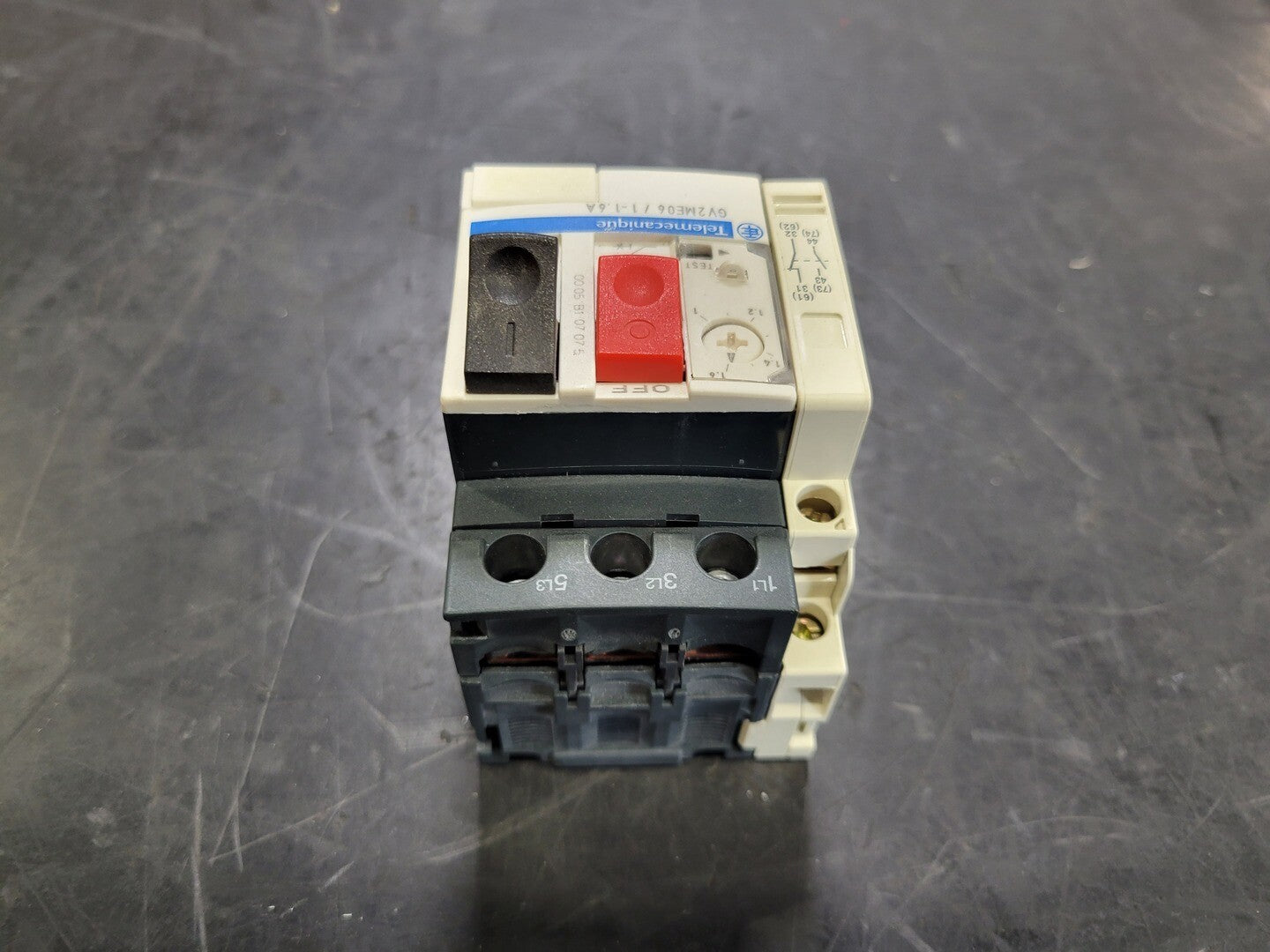

| Model | GV2ME06 |
| Made In | CZECH REPUBLIC |
| Condition | Used | General |
| Amps | 1-1.6 amps |
| Series | GV |
| # of Poles | 3 |
| Voltage | 600 volts |
| Other Specifications |
|---|
|
Poles description: 3P Network typ: AC Utilisation category: Category A conforming to IEC 60947-2 AC-3 conforming to IEC 60947-4-1 Network frequency: 50/60 Hz conforming to IEC 60947-4-1 Fixing mode: 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) Motor power kW: 0.37 kW at 400/415 V AC 50/60 Hz 0.55 kW at 400/415 V AC 50/60 Hz 0.37 kW at 500 V AC 50/60 Hz 0.55 kW at 500 V AC 50/60 Hz 0.75 kW at 500 V AC 50/60 Hz 0.75 kW at 690 V AC 50/60 Hz 1.1 kW at 690 V AC 50/60 Hz Breaking capacity: 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 Control type: Push-button rated current: 1.6 A Thermal protection adjustment range: 1?1.6 A conforming to IEC 60947-4-1 Magnetic tripping current: 22.5 A conventional free air thermal current: 1.6 A conforming to IEC 60947-4-1 rated operational voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2 rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2 rated impulse withstand voltage: 6 kV conforming to IEC 60947-2 Phase failure sensitivity: Yes conforming to IEC 60947-4-1 Suitability for isolation: Yes conforming to IEC 60947-1 7-1-6 Power dissipation per pole: 2.5 W Mechanical durability: 100000 cycles Electrical durability: 100000 cycles for AC-3 at 415 V In Rated duty: Continuous conforming to IEC 60947-4-1 Tightening torque: 1.7 N.m - on screw clamp terminal |
