Description
| Specifications | |
|---|---|

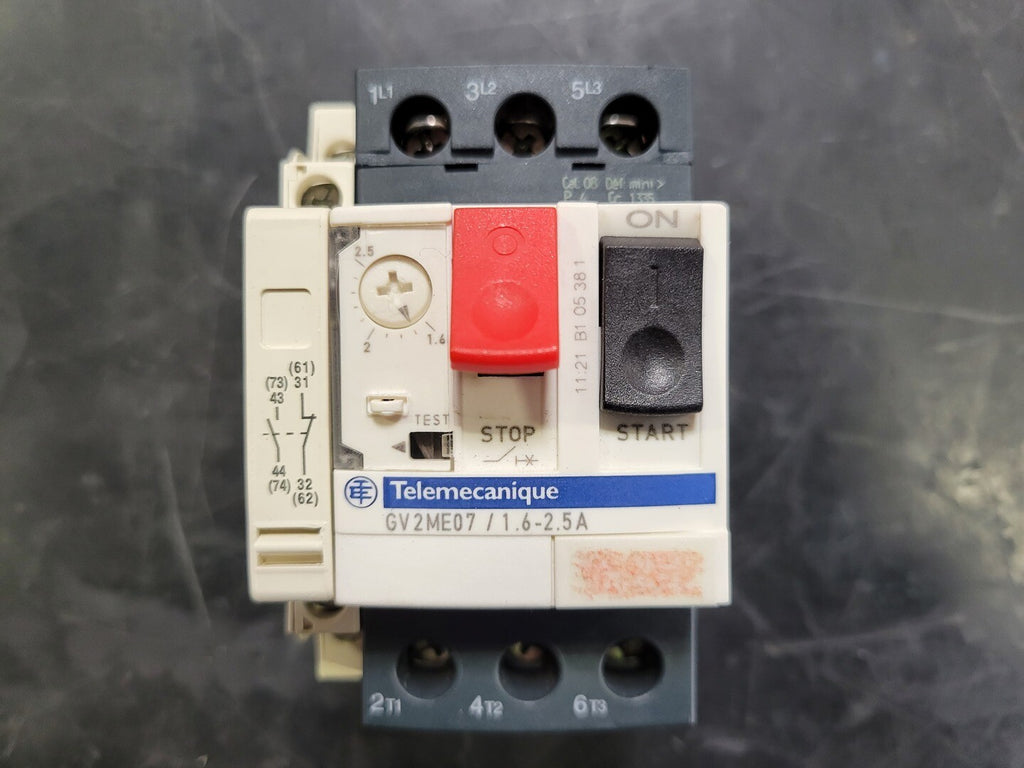

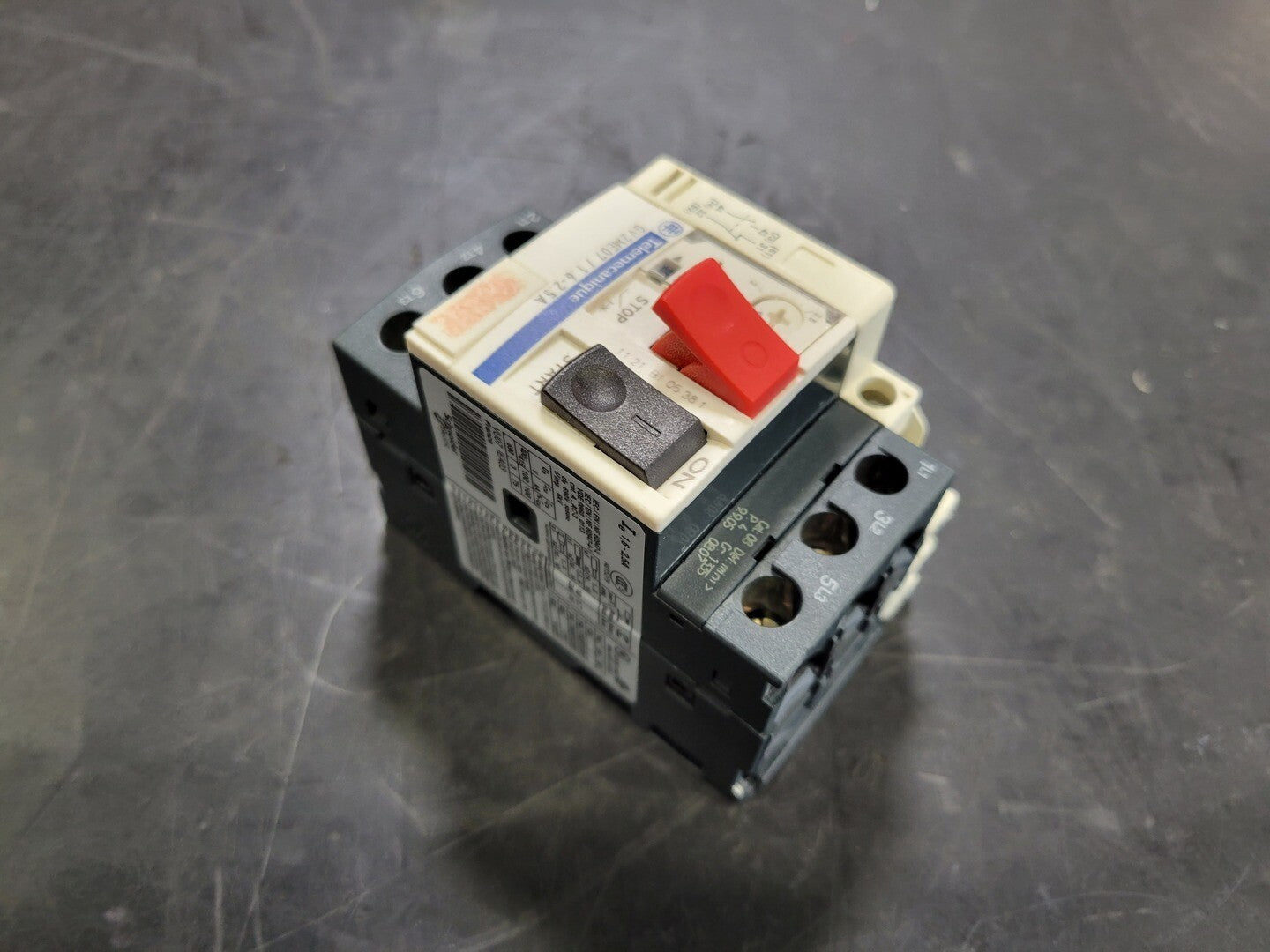

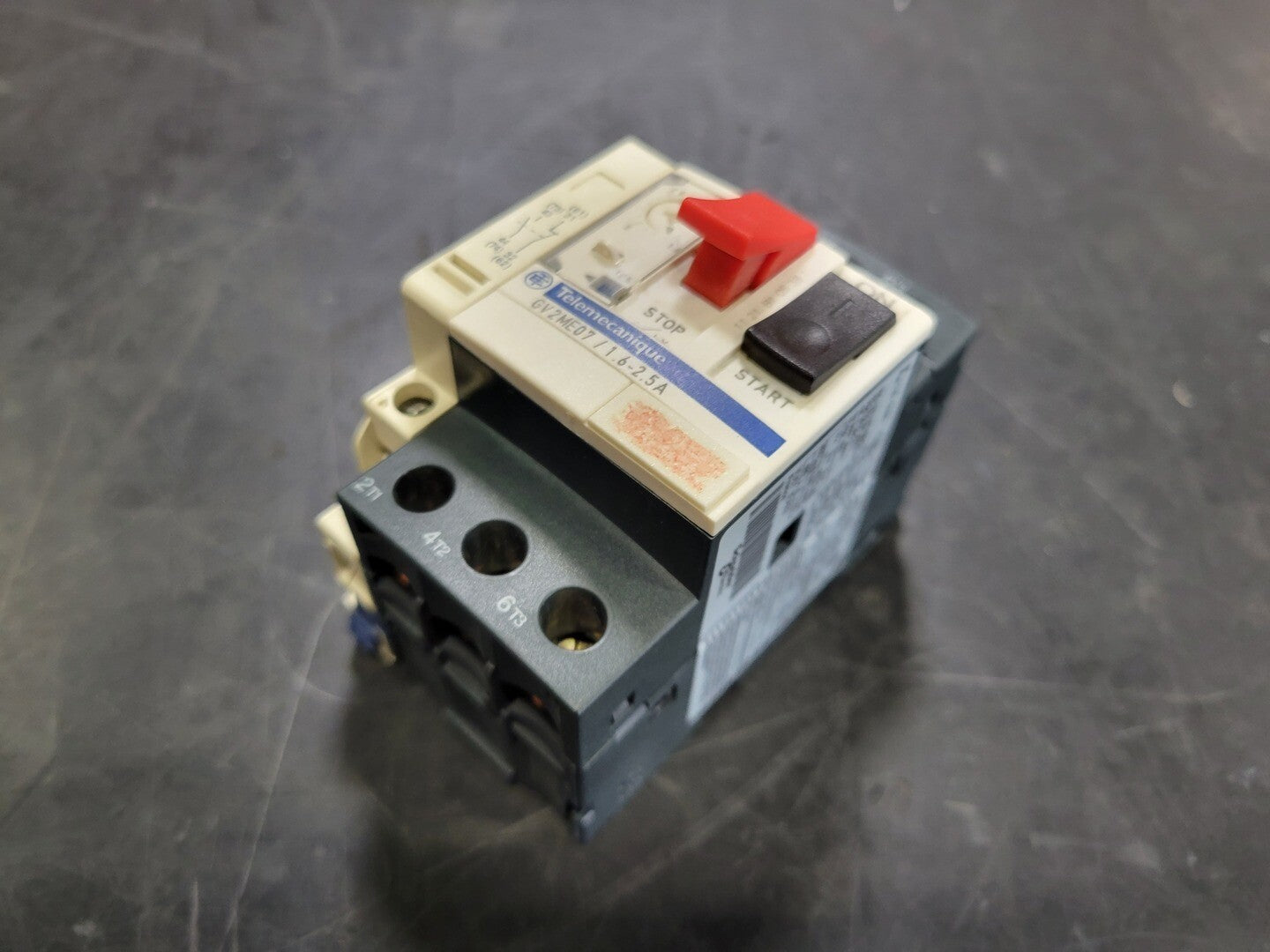

| Model | GV2ME07 |
| Condition | Used | General |
| Trip | Yes |
| Other Specifications |
|---|
|
Poles description: 3P Network type: AC Utilisation category: AC-3 conforming to IEC 60947-4-1 Category A conforming to IEC 60947-2 Network frequency: 50/60 Hz conforming to IEC 60947-4-1 Fixing mode: Clipped on 35 mm symmetrical DIN rail Screwed on panel (with adaptor plate) Operating position: Any position Motor power kW: 0.75 kW at 400/415 V AC 50/60 Hz 1.1 kW at 500 V AC 50/60 Hz 1.5 kW at 690 V AC 50/60 Hz Breaking capacity: 3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 100 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 [Ics] rated service short-circuit breaking capacity: 100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 440 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 500 V AC 50/60 Hz conforming to IEC 60947-2 75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2 100 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2 Control type: Push-button [In] rated current: 2.5 A Thermal protection adjustment range: 1.6...2.5 A Magnetic tripping current: 33.5 A System Voltage: AC 50/60 Hz conforming to IEC 60947-2 [Ui] rated insulation voltage: 690 V AC 50/60 Hz conforming to IEC 60947-2 [Ith] conventional free air thermal current: 2.5 A conforming to IEC 60947-4-1 [Uimp] rated impulse withstand voltage: 6 kV conforming to IEC 60947-2 Power dissipation per pole: 2.5 W Mechanical durability: 100000 cycles Electrical durability: 100000 cycles AC-3 at 440 V Operating rate: 25 cyc/h Rated duty: Continuous conforming to IEC 60947-4-1 |
