Description
| Specifications | |
|---|---|
| Model | 131-DPL-12R |
| S/N: | 1363 |
| Condition | Used |
| Other Specifications |
|---|
|

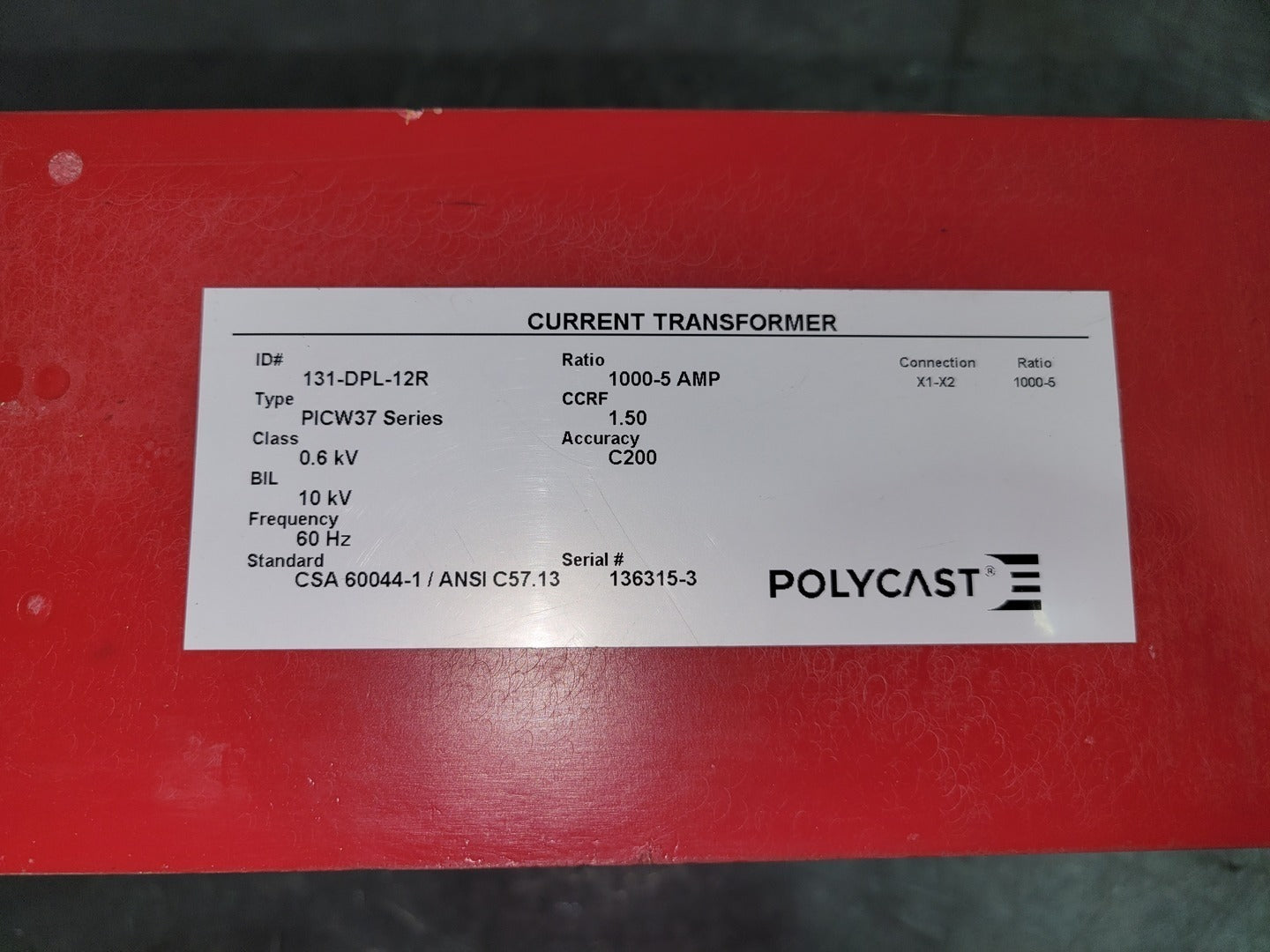

ID#: 131-DPZ-12R
Type: PICW37 Series
Class: 0.6 kV
BIL (Impulse): 10 kV
Frequency: 60 Hz
Standard: CSA 60044-1 / ANSI C57.13
Ratio: 1000-5 Amp
CCRF: 1.50
Accuracy: C200
General Description
- Voltage rating of 0.72kV
- Impulse rating of 10kV BIL
- Cast in high dielectric strength Bis-A Epoxy
- Suitable for higher voltage installation over bushing or insulated cable
Applications
The PICW series current transformers are designed for indoor service, for ambient
temperatures between -5°C to +70°C. Applications include:
- Metering functions, including revenue billing
- Protective relay applications
- Installation over bus bar or cable to 720V
- For use in air and oil environments
- Low temperature designs available for some models
Construction
- Annealed toroidal cores of high grade electrical steel
- 200°C enamel coated copper magnet wire
- Secondary turns uniformly distributed around the core for each tap position
- Brass secondary terminals
- Prominent polarity markings
- Secondary terminal box available for some models
|
