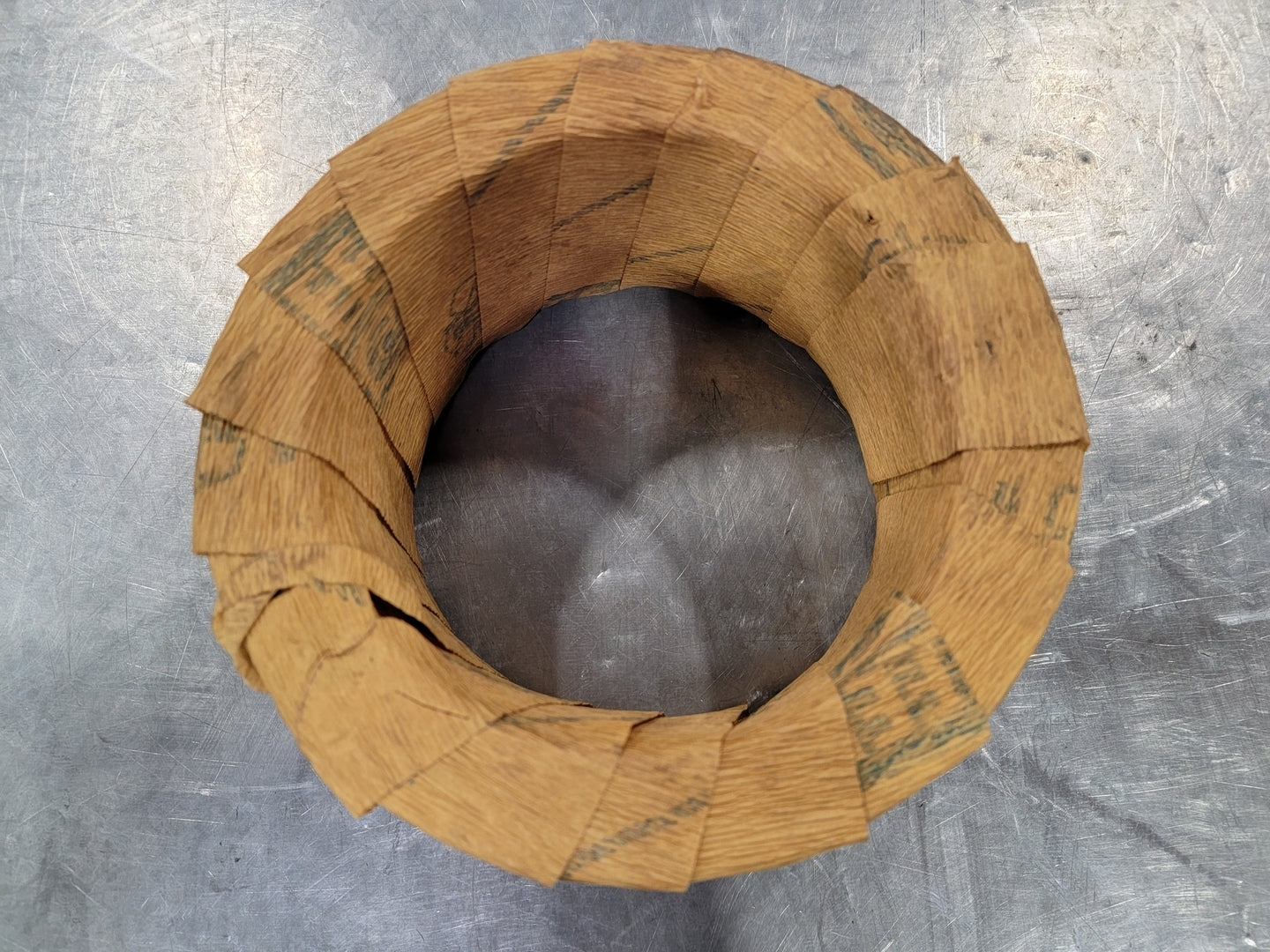

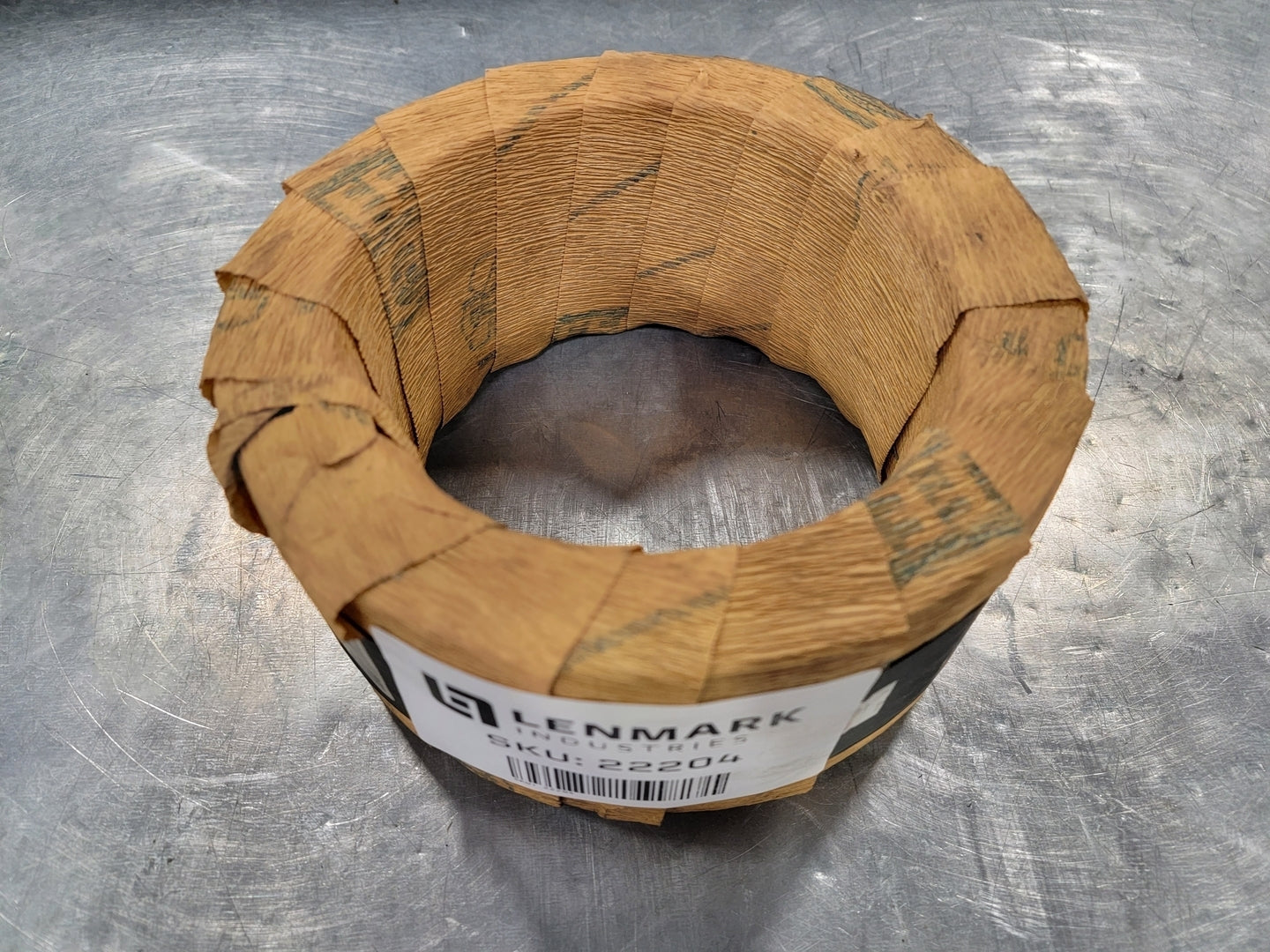

New surplus MAV 1008 Series keyless locking assembly designed to provide a rigid, zero-backlash friction connection between a 150 mm shaft and a 200 mm hub bore. The self-centering locking device eliminates the need for keys or splines while providing high torque transmission for pulleys, gears, sprockets, couplings, rotors, and other rotating equipment.
| Specifications | |
|---|---|

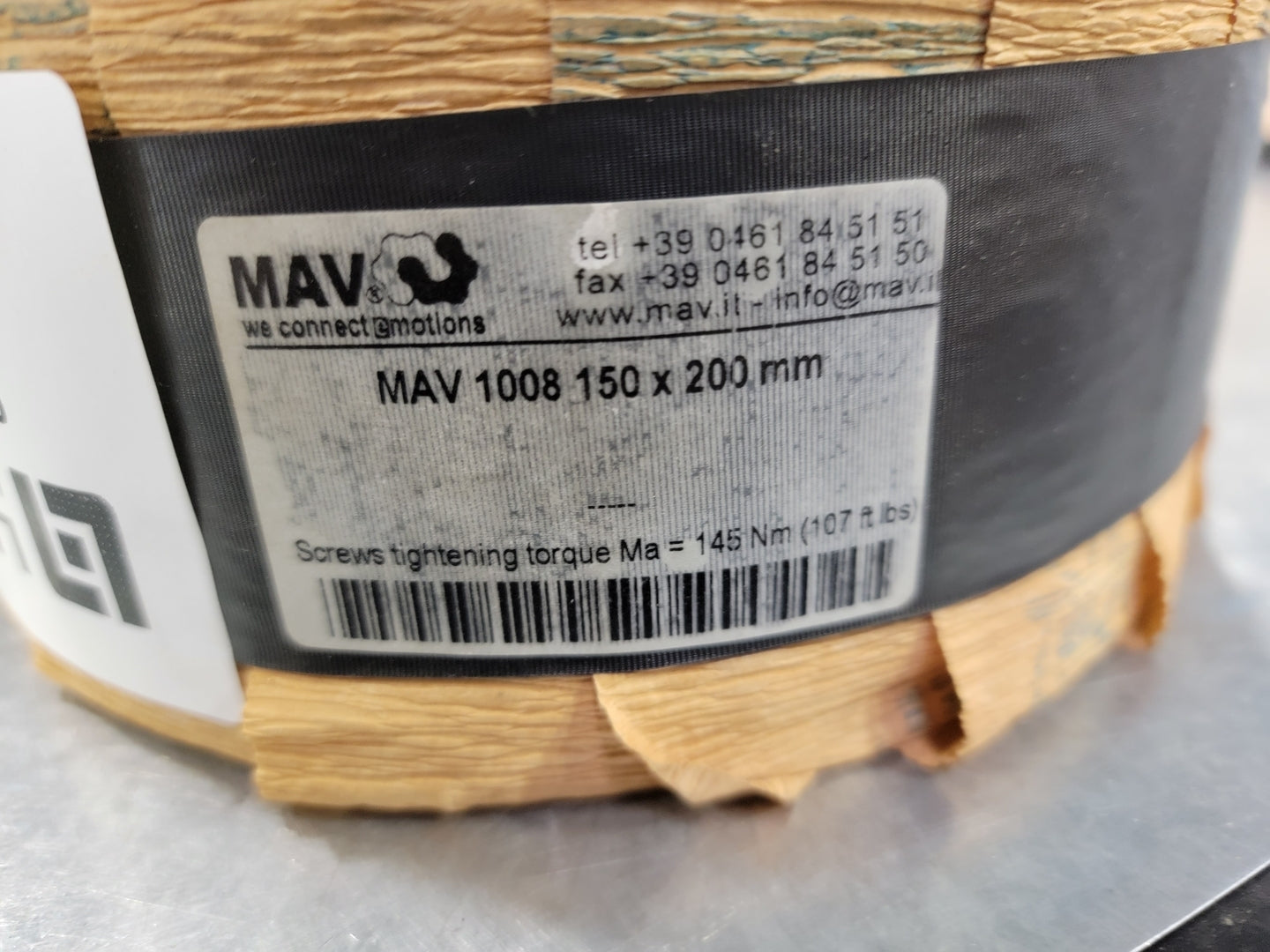

| Model | MAV 1008 150 x 200 mm |
| Made In | ITALY |
| Condition | Surplus New | General |
| Type | Keyless Bushing |
| Series | 1008 |
| Bore Diameter | 5.905 " |
| Other Specifications |
|---|
|
Product Type: Keyless Locking Assembly Series: 1008 Shaft Diameter (d): 150 mm Hub Bore Diameter (D): 200 mm Connection Type: Self-centering, keyless friction locking assembly Mounting Style: Internal shaft-to-hub locking device Torque Capacity: Up to 43,700 N.m Hub Pressure: 143 MPa Recommended Screw Tightening Torque (Ma): 145 N.m (107 ft-lb) Features:-
Ideal Applications:-
|
