Features:
-
Y1, Y2, X+R (4 axis with X=750mm)
-

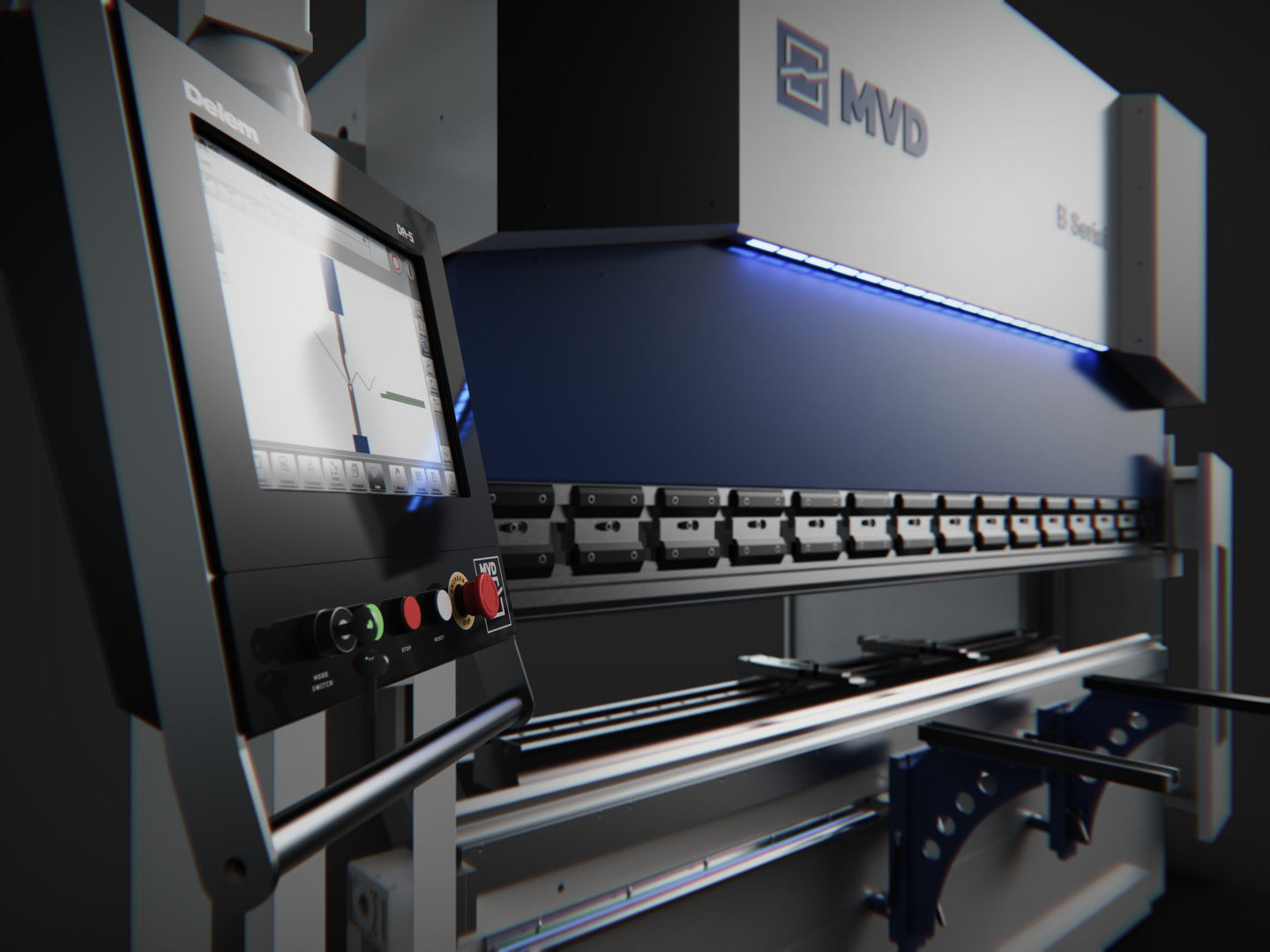

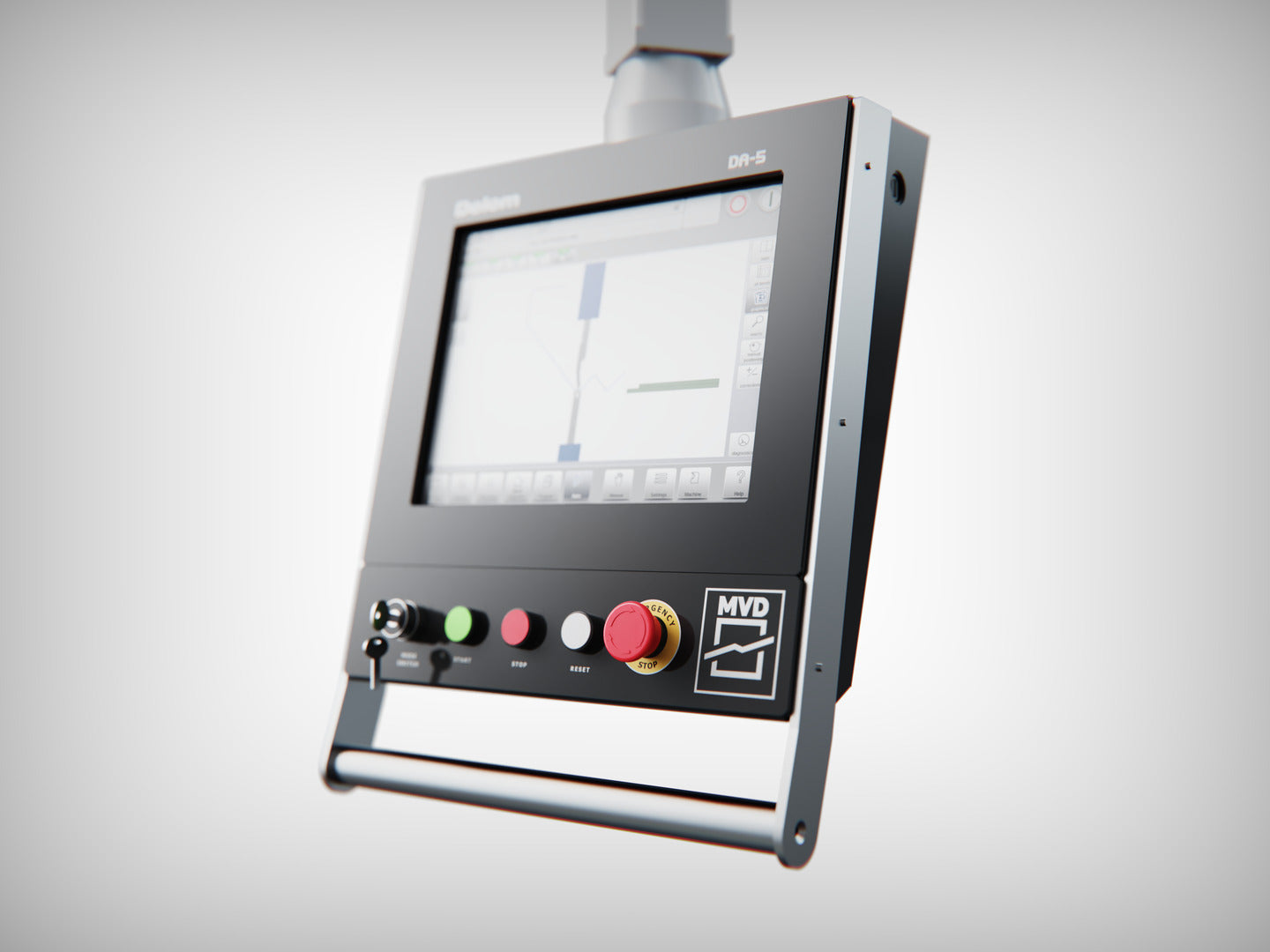

CNC unit Delem DA-66S, 24" Touch Screen, 2D Graphical, (3-8 axis)
-
Stroke 260mm & Throat depth 410 mm
-

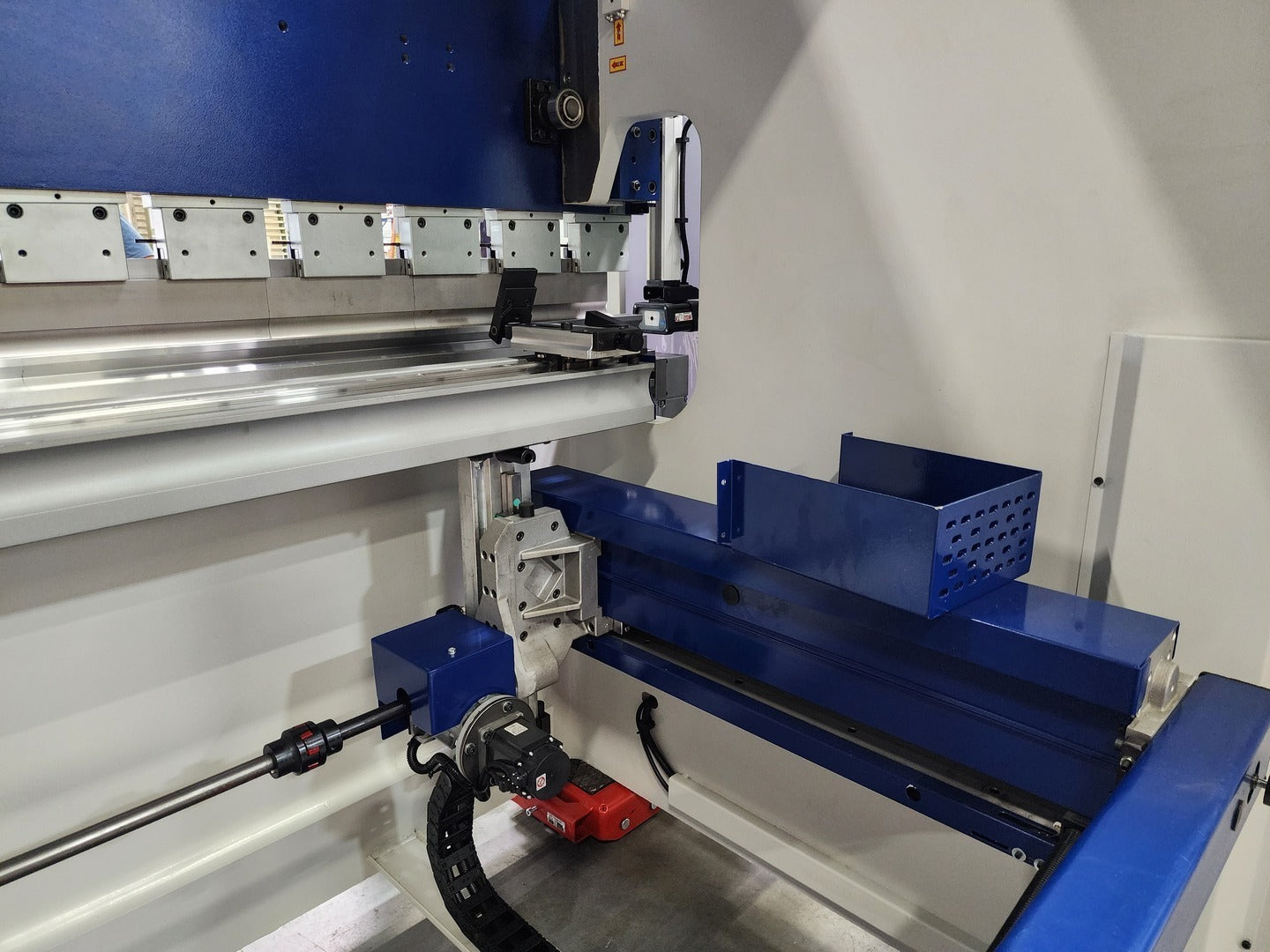

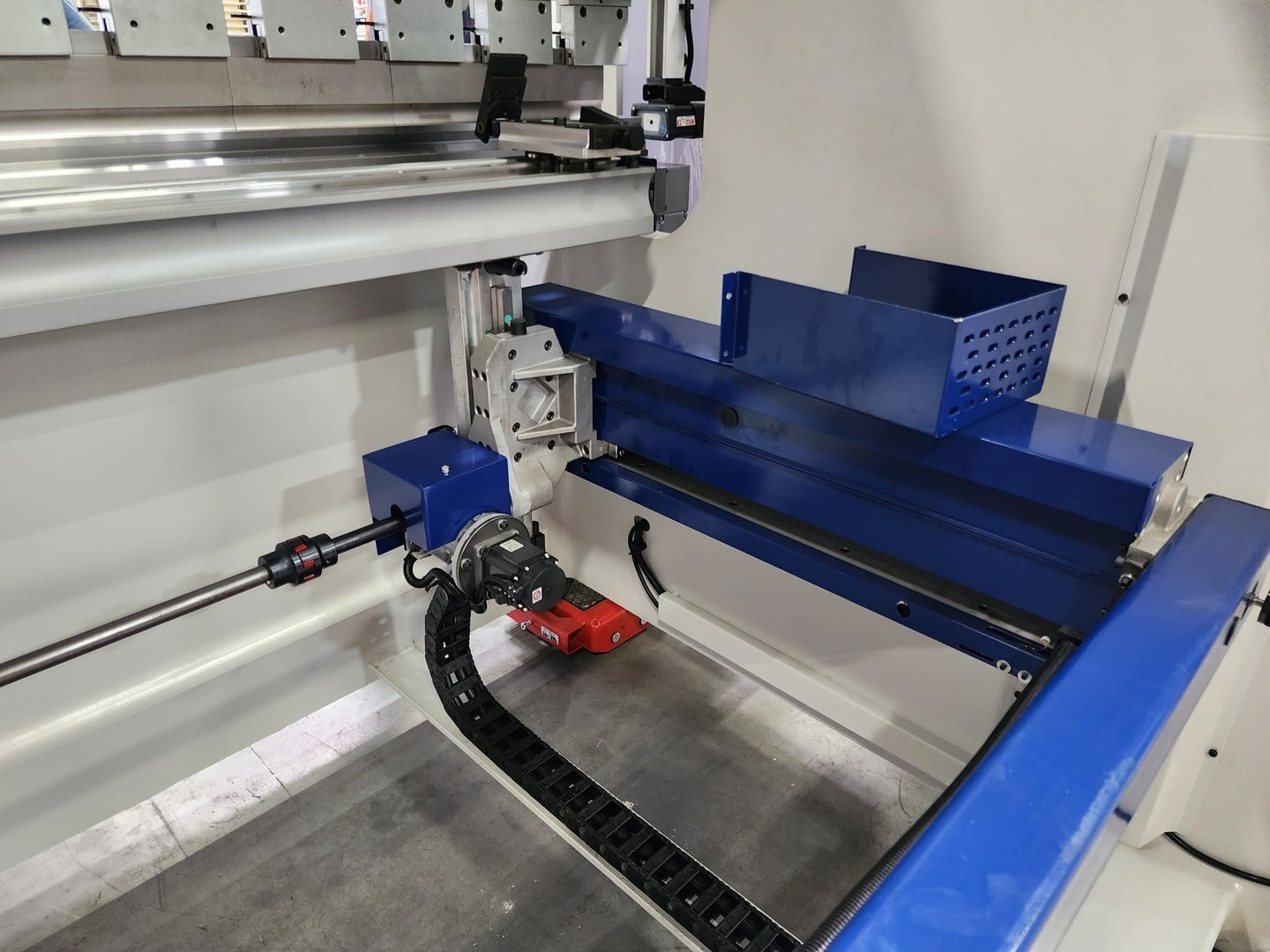

MVD Servo motorised backgauge with ball screws, linear guided, Mitsubishi/LS/Delta Motors&Drivers
-
CNC Controlled Type#1 Crowning (by MVD wedges and GEC motor)
-
GIVI (Italy) Optic Linear Scales
-

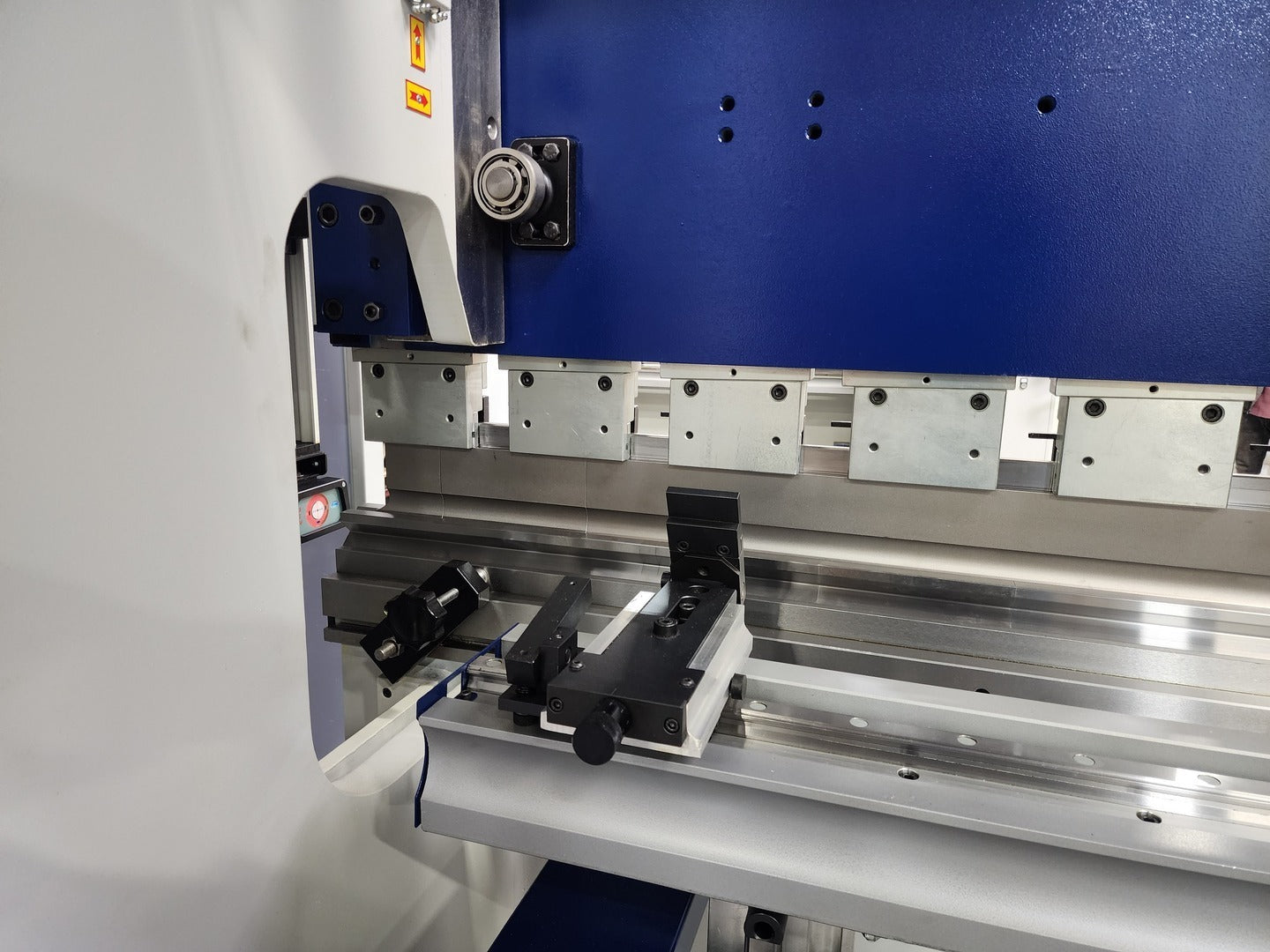

2 Pieces backgauge fingers, manually movable along the linear guide, precisely adjusted
-

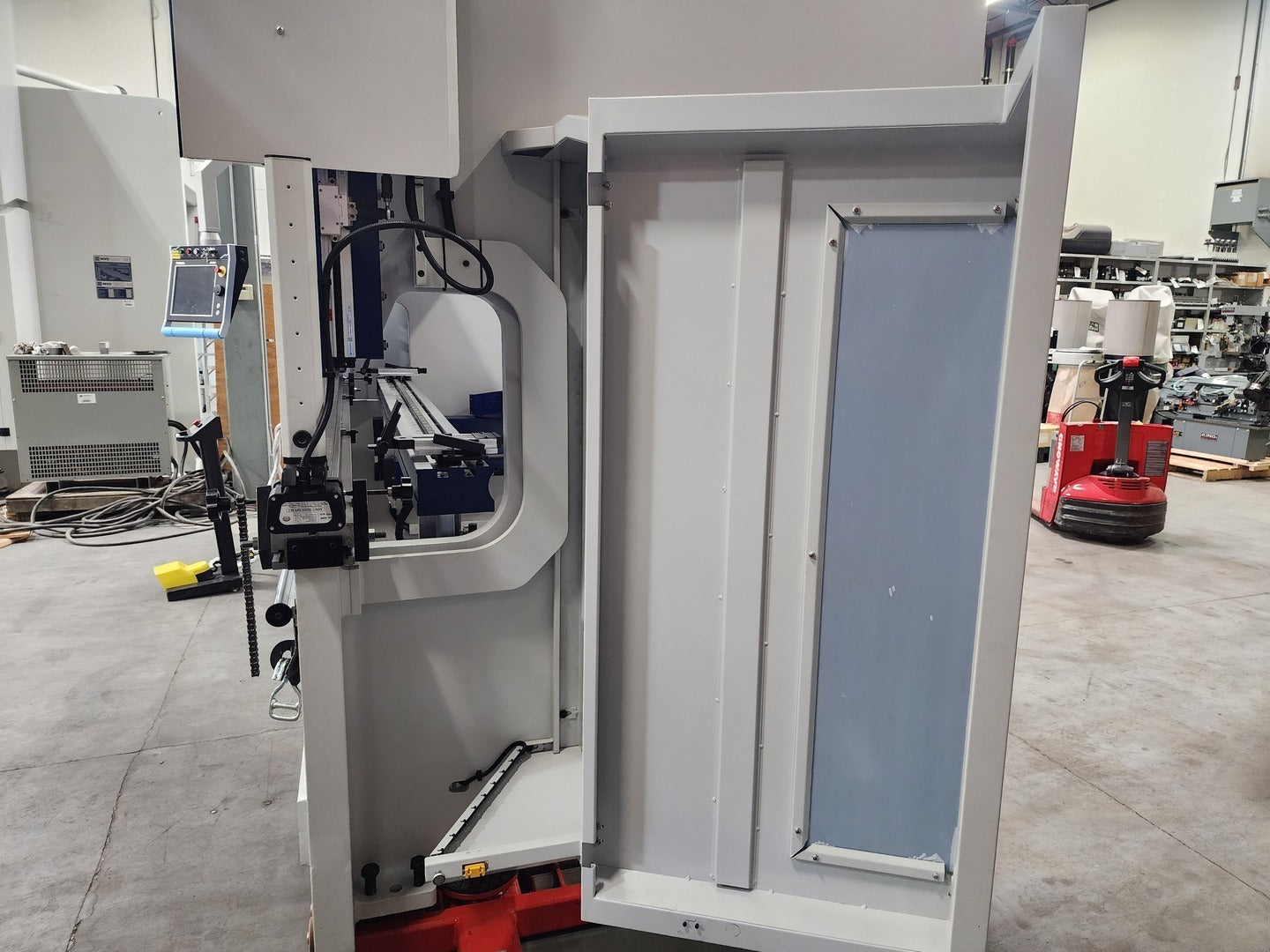

Side safety doors and cylinder covers
-
HAWE=Hoerbiger (Germany) hydraulic blocks with proportional valves
-
Eckerle (Germany) oil pump, internal gear type
-
M-EASY Manual Promecam ES4389/Z1 (vertical removal/insertion)
-
Narrow Bottom table (MVD Special design) IW = 60mm+10mm spacer (F<= 270Tons) IW=90mm (F>=320 ton)
-
Sliding Front support arms (2pcs)
-

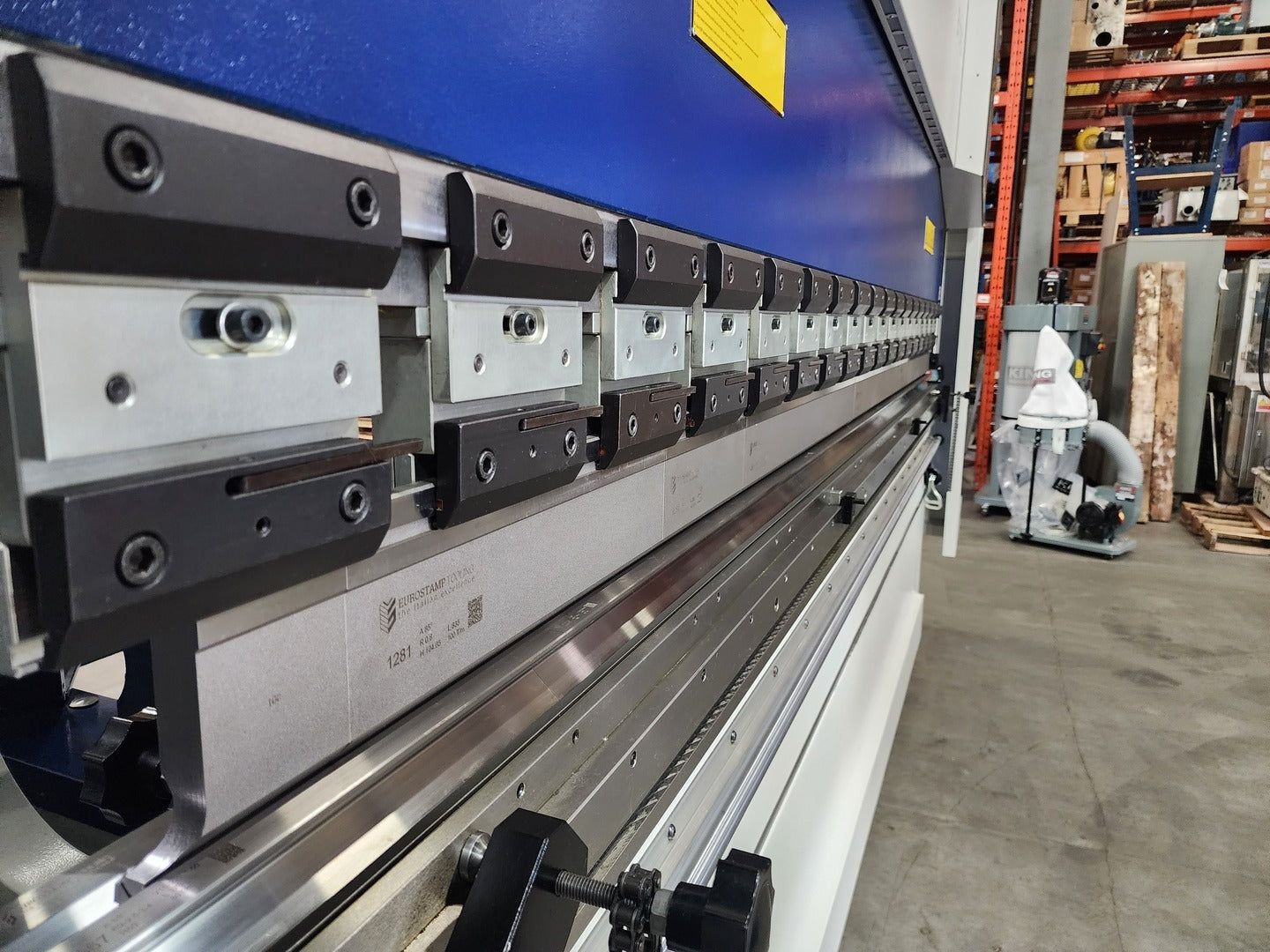

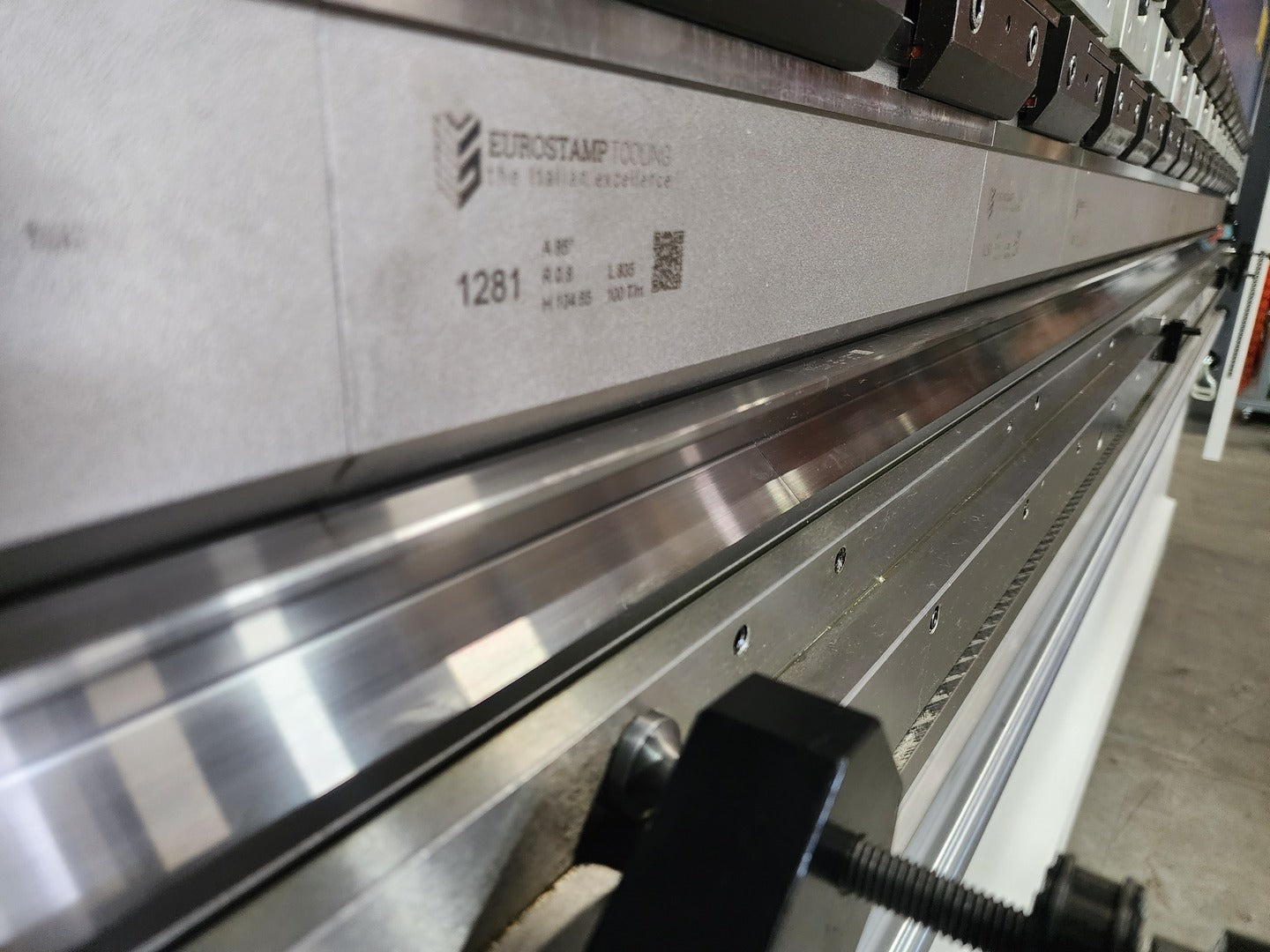

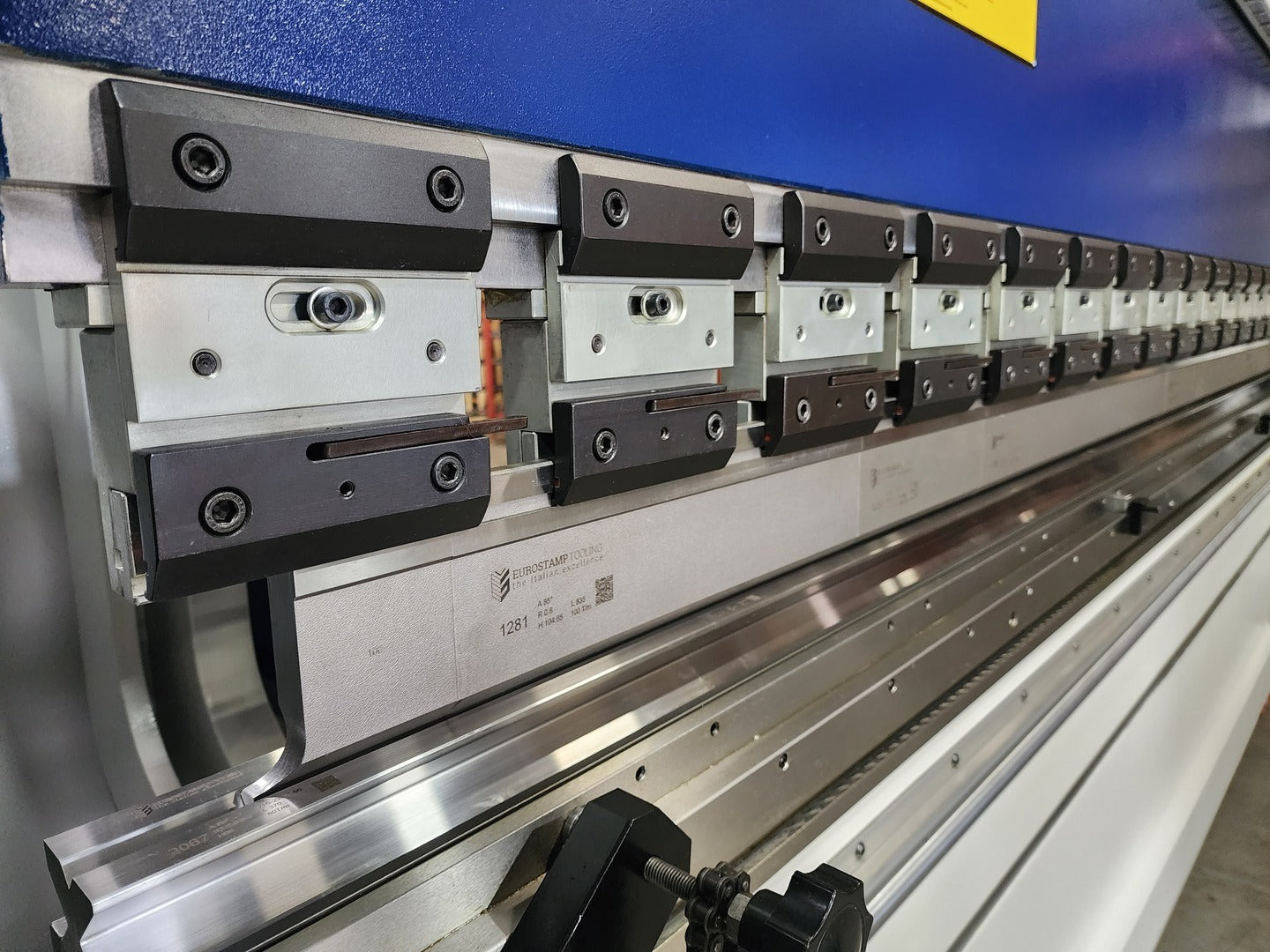

Top Tool : Eurostamp 1260, H:67, 85°, R:0,8
-
Bottom Die : Eurostamp 2067, 4 way V=16-22-35-50mm, 85°, H:60
-
AKAS(FPBS) front safety lasers + rear light beams
-
Set-up and Training
-
1 Year Warranty
Dimensions (L x W x H): 5300 x 2430 x 2990 mm
Total Weight (approx): 10500 kg
|
