Description

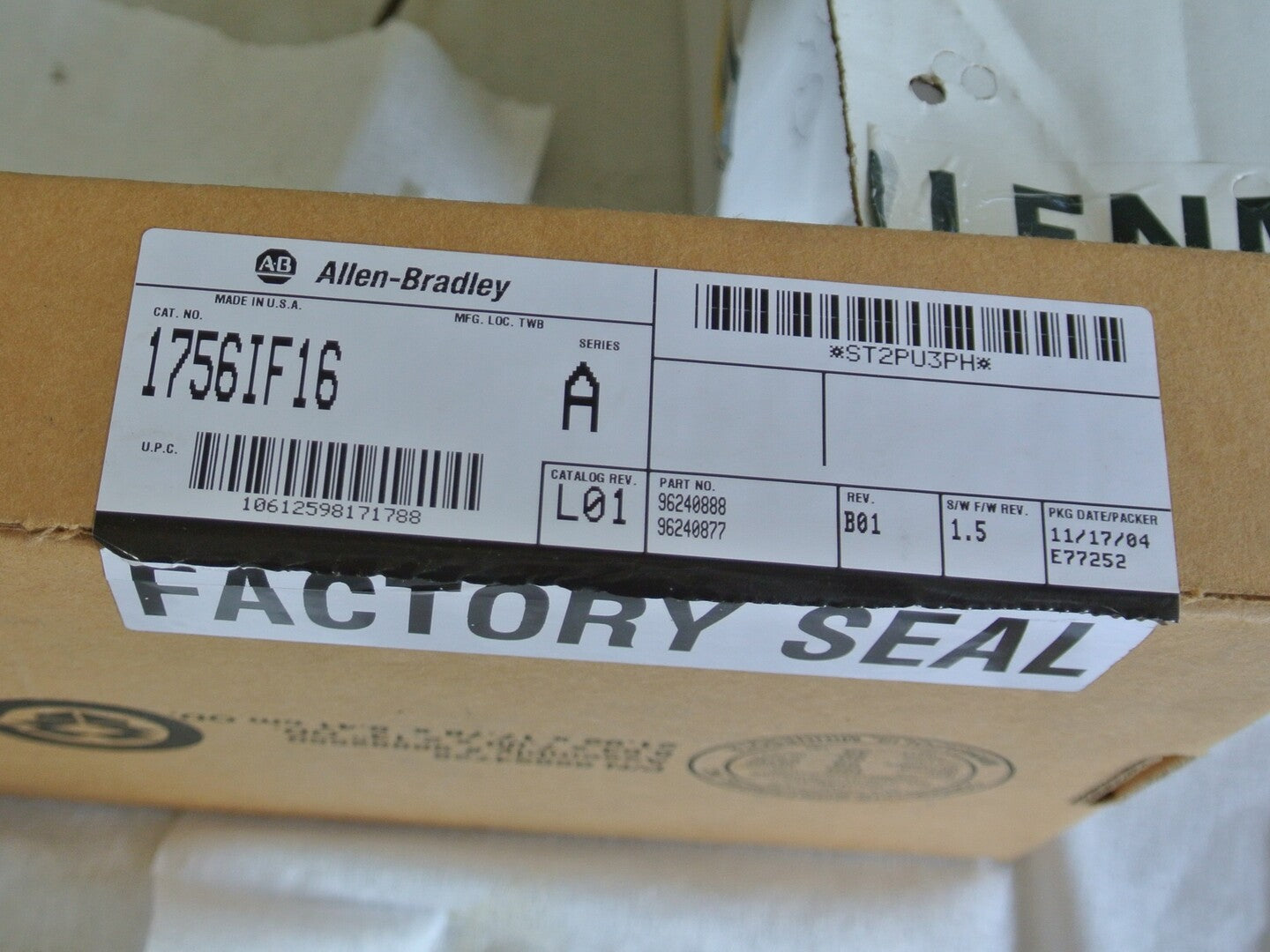

Allen-Bradley 1756-IF16 Series A analog input module for compatible ControlLogix systems. Supports 16 single-ended inputs, eight differential inputs, or four high-speed differential inputs, depending on configuration. Accepts voltage and current signals for industrial measurement and control applications. Supplied in original packaging marked Factory Seal.
| Specifications | |
|---|---|
| Model | 1756-IF16 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series: A Product Family: ControlLogix Module Type: Analog input Signal Types: Voltage or current Single-Ended Inputs: 16 Differential Inputs: 8 High-Speed Differential Inputs: 4 Voltage Input Ranges: 10 V, 0-10 V, 0-5 V Current Input Range: 0-20 mA, accommodating 4-20 mA signals Resolution: 16-bit unipolar; 15-bit plus sign bipolar Backplane Current at 5.1 VDC: 150 mA Backplane Current at 24 VDC: 65 mA Voltage Input Impedance: Greater than 10 Mohm Current Input Impedance: 249 ohm Channel Isolation: No isolation between individual inputs Mounting: Compatible ControlLogix chassis |
