Description

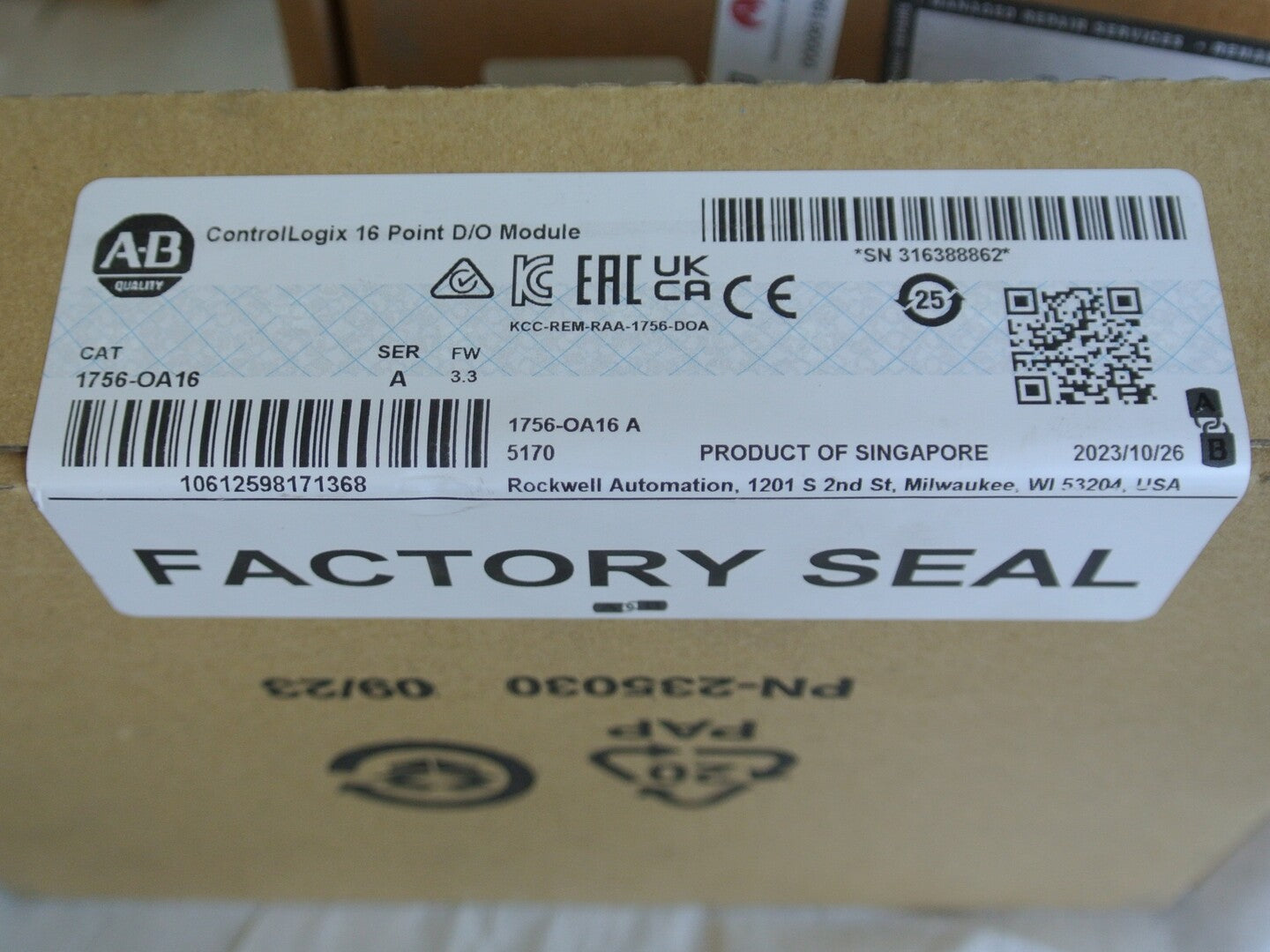

Allen-Bradley 1756-OA16 Series A output module for compatible ControlLogix systems. Provides 16 AC outputs arranged in two fused groups of eight, with a 74-265 VAC operating range and a maximum output current of 0.5 A per point at 60 °C. Offered in original packaging marked Factory Seal.
| Specifications | |
|---|---|
| Model | 1756-OA16 |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Series: A Product Family: ControlLogix Module Type: Digital AC output Output Points: 16 Output Grouping: 2 groups of 8 points Nominal Voltage: 120/240 VAC Nominal Frequency: 50/60 Hz Operating Voltage Range: 74-265 VAC Operating Frequency Range: 47-63 Hz Maximum Current per Point: 0.5 A at 60 °C Maximum Current per Group: 2 A at 60 °C Maximum Current per Module: 4 A at 60 °C Protection: Mechanical fuse per output group Connection: 20-pin removable terminal block interface Compatible Terminal Blocks: 1756-TBNH or 1756-TBSH |
