Description
| Specifications | |
|---|---|

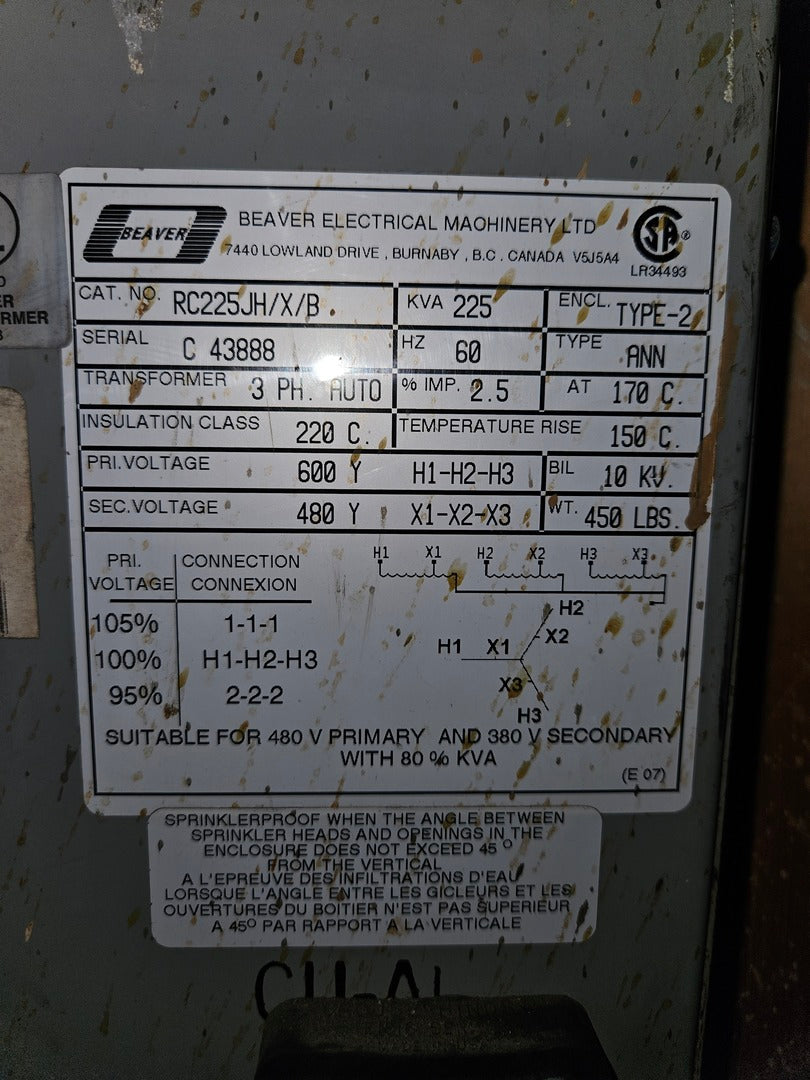

| Model | RC225JH/X/B |
| Condition | Used | Electrical |
| kVA | 225 kVA |
| Primary Voltage | 600 volts |
| Secondary Voltage | 480 volts |
| Phase | 3-phase | General |
| Transformer Type | Distribution Transformer |
| Auto VS Isolation | Auto |
| Oil vs Dry | Dry |
| Enclosure Type | Nema 2 |
| Other Specifications |
|---|
|

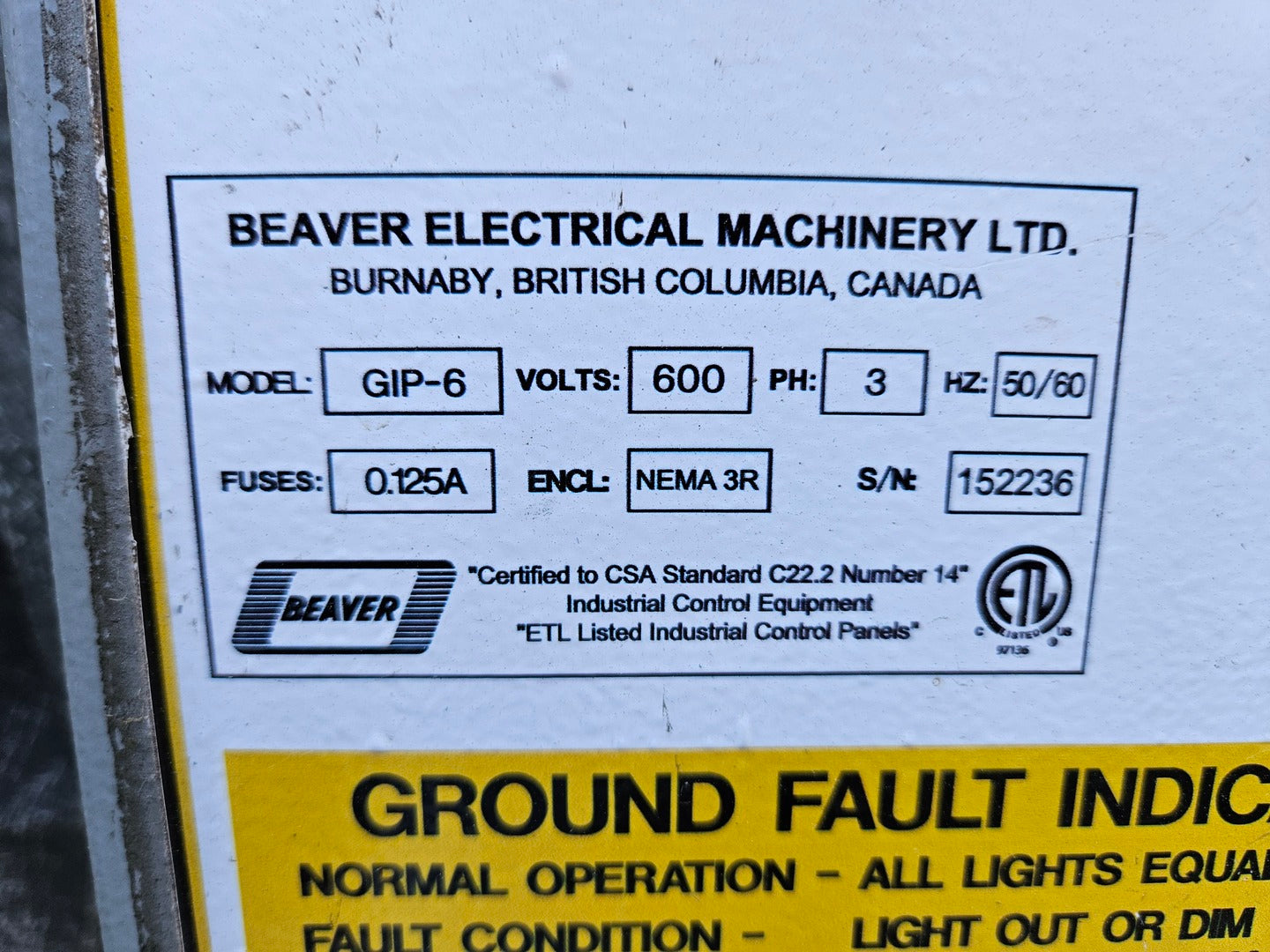

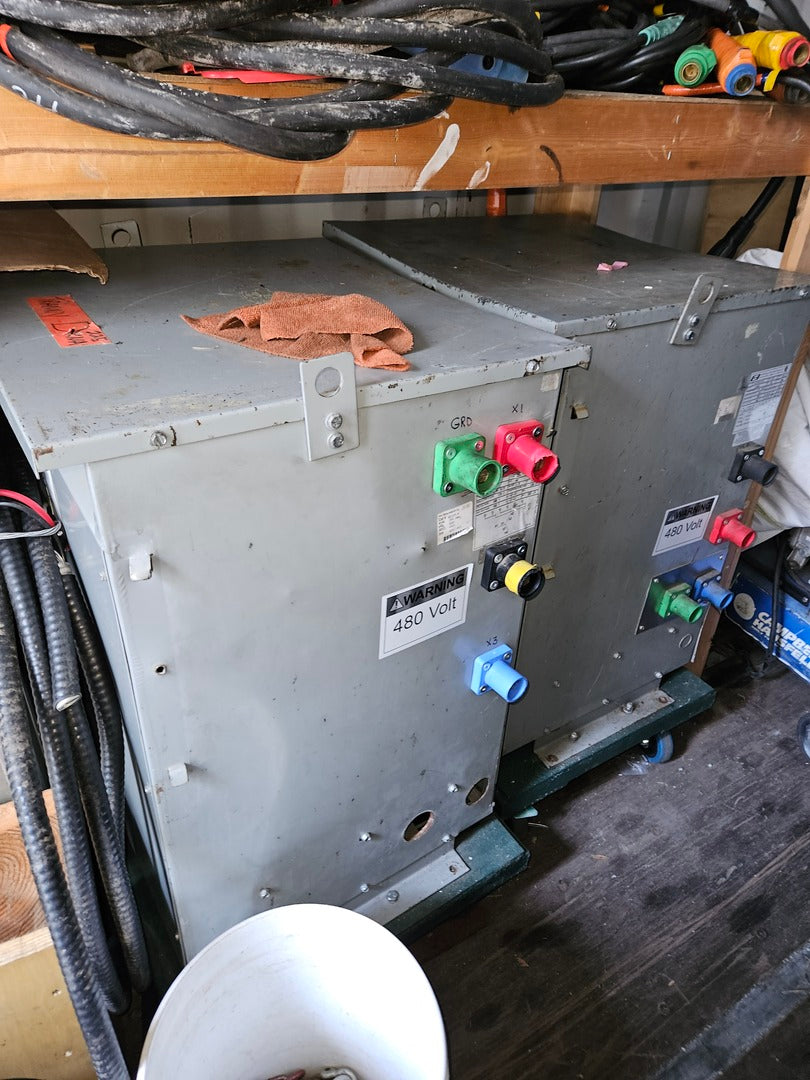

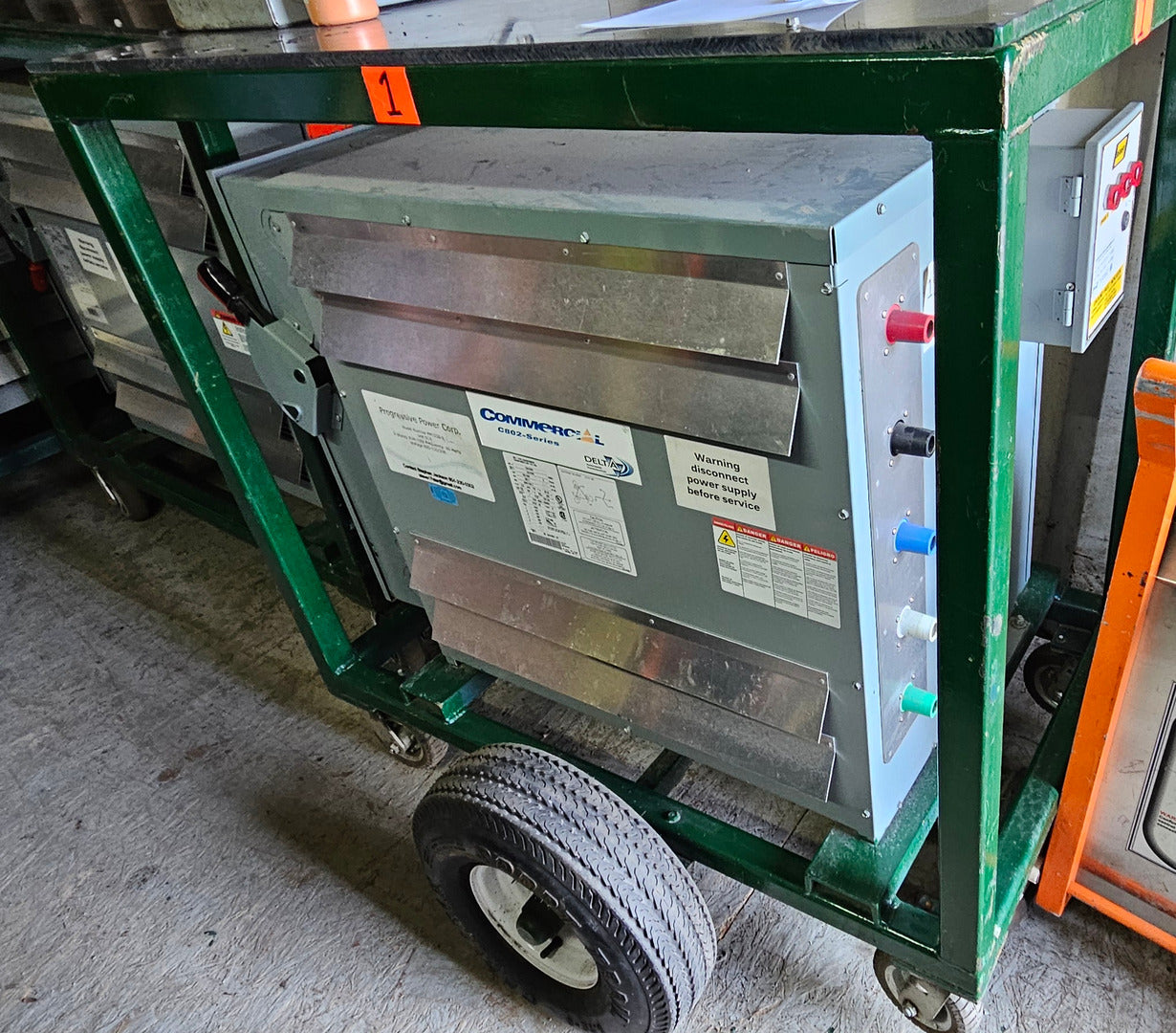

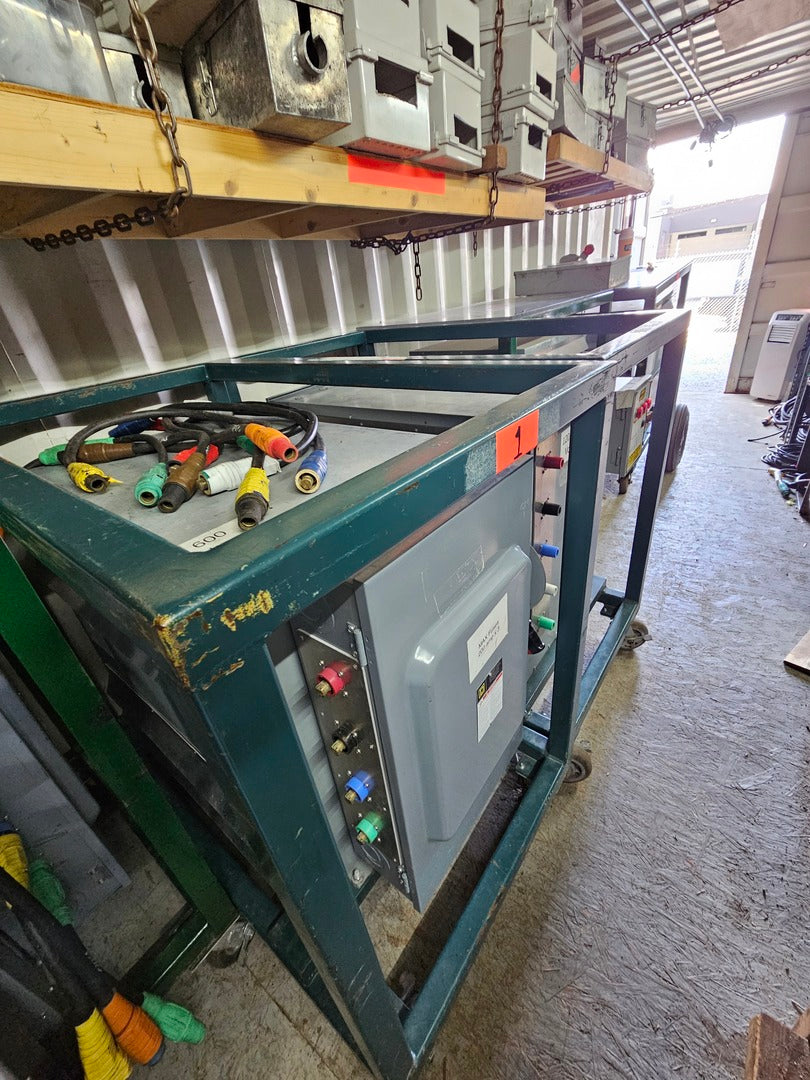

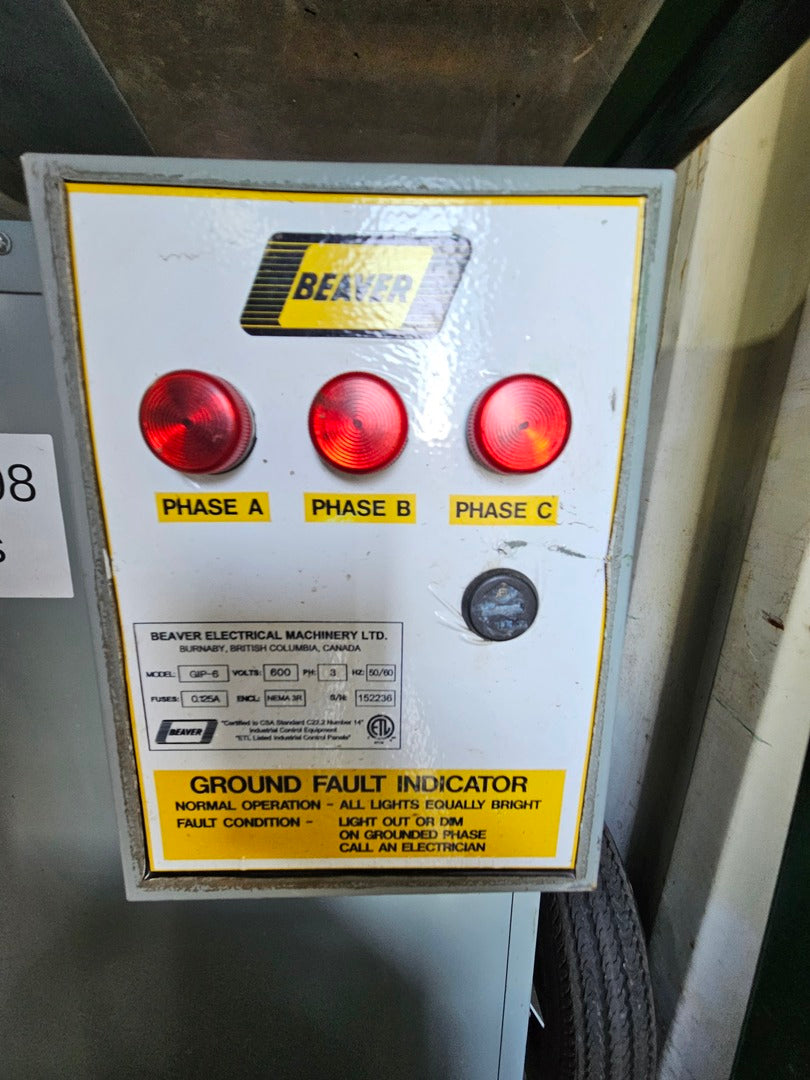

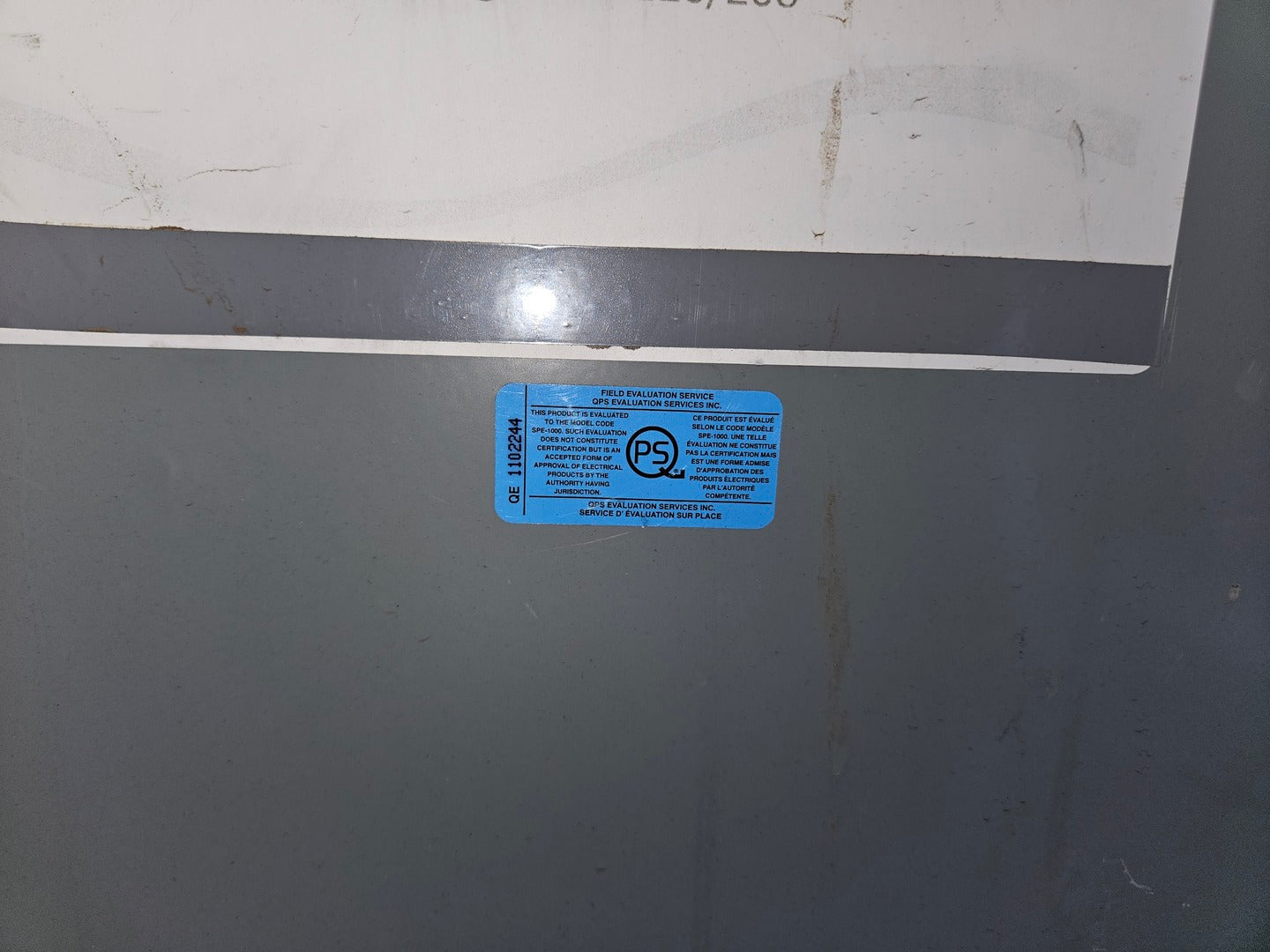

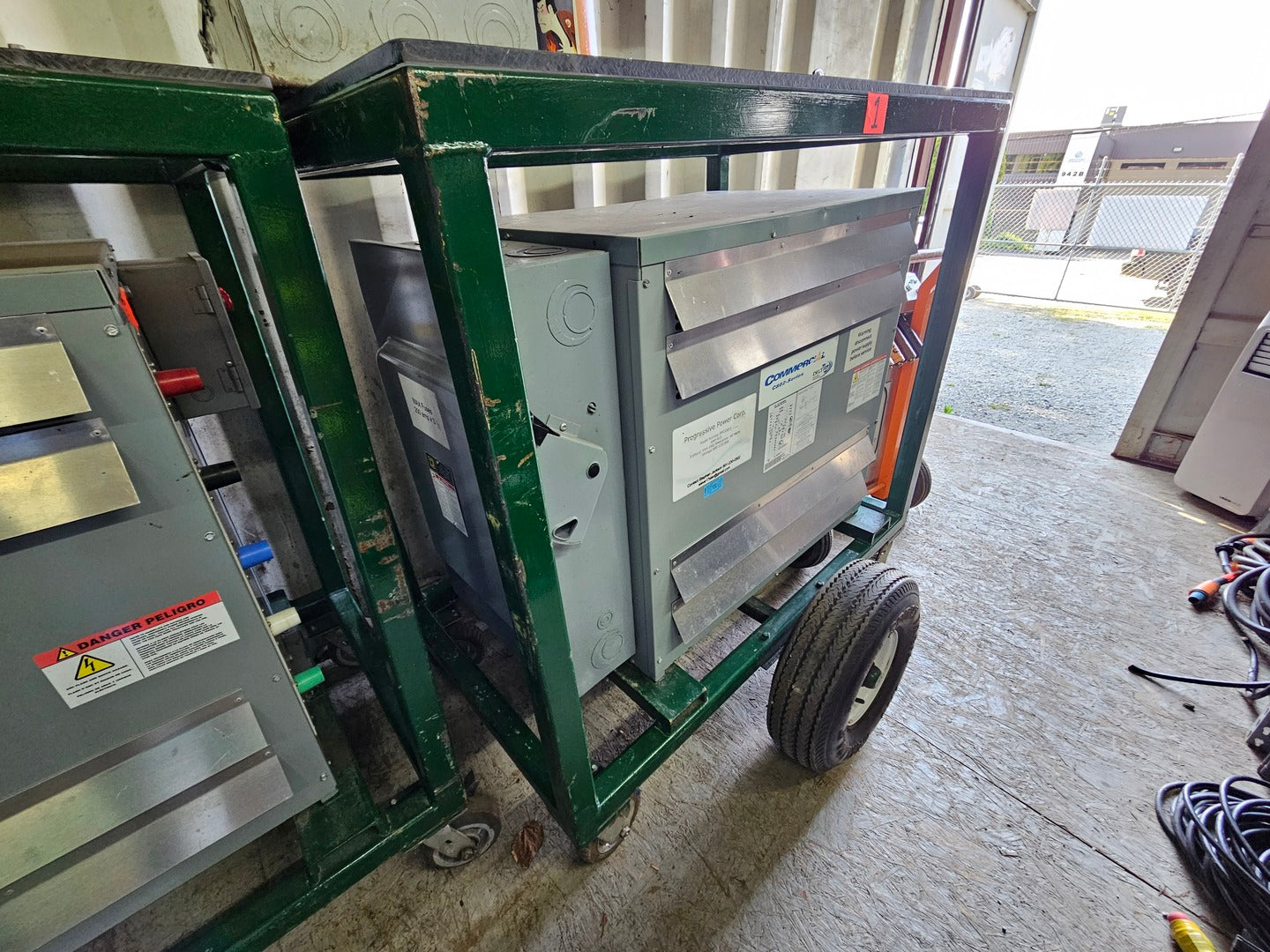

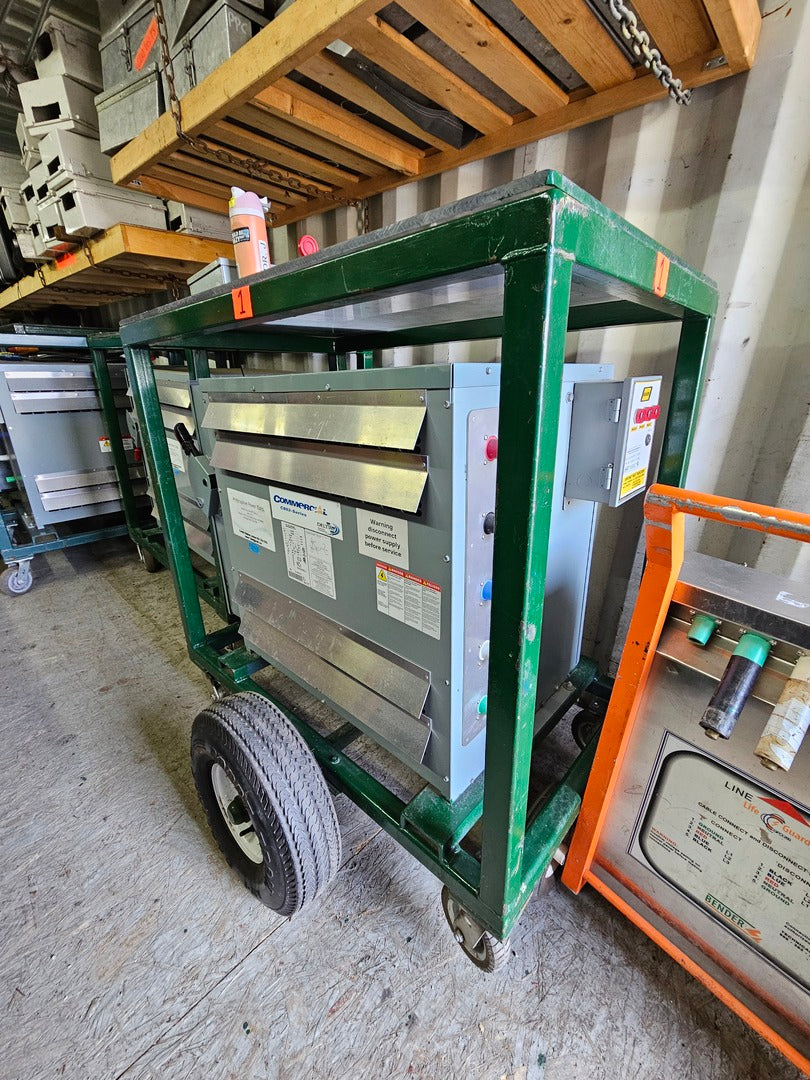

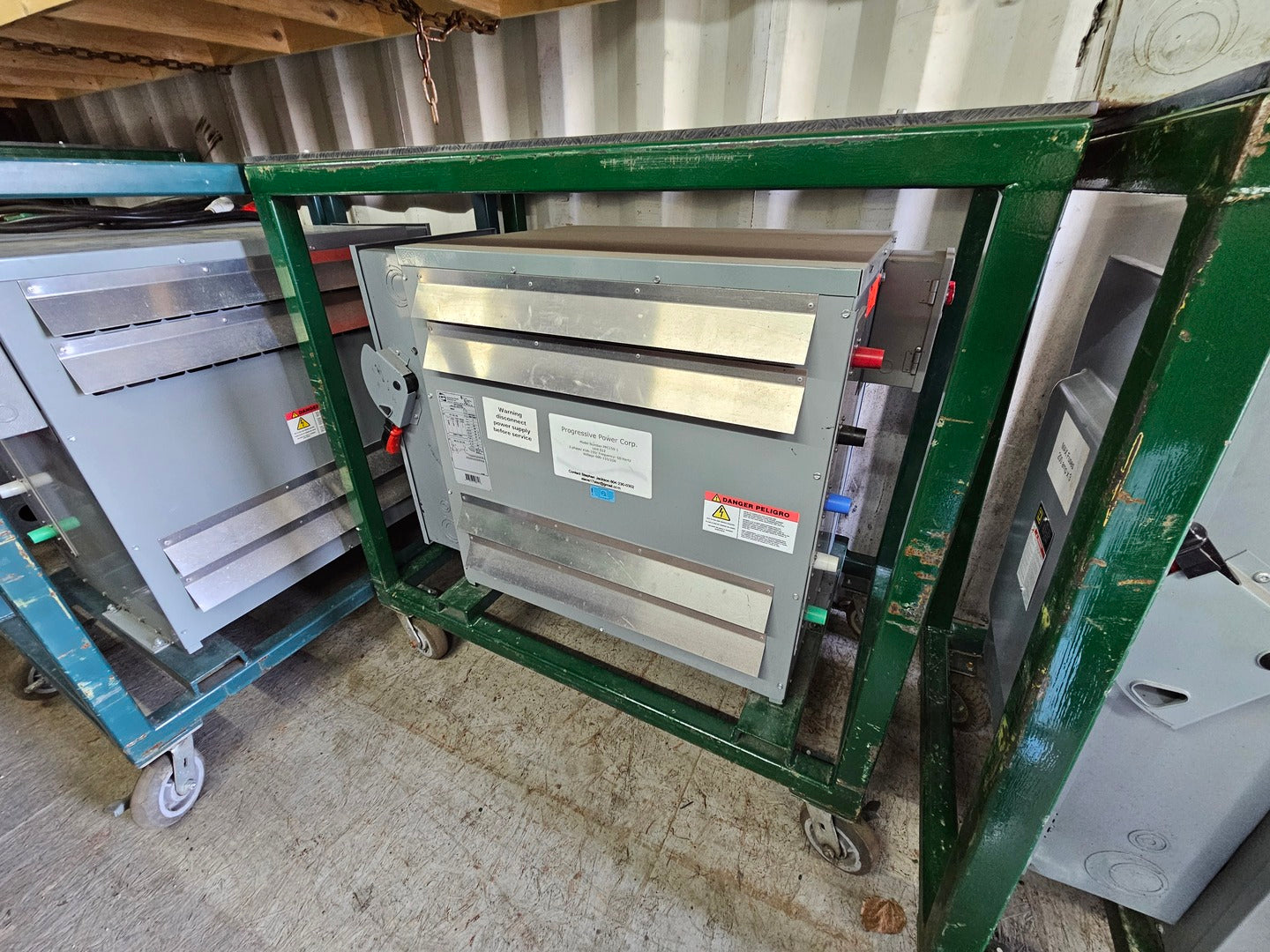

The transformers were built to be mobile and installed into film studios or warehouses for set power. All inspected and have the little blue stickers on them. Also all of them have ground fault indicators. The cages are up to code for protection to be used in warehouses. Can be installed and powered up as is, up to code They have cam lock connectors in and out, 200 amp switches and ground fault indicators. Transformer Frequency: 60 Hz Primary Terminals: H1-H2-H3 Secondary Terminals: X1-X2-X3 Impedance: 2.5% @ 170°C Insulation Class: 220°C Temperature Rise: 150°C BIL: 10 kV Cooling Type: ANN / air natural Ground fault indicator Manufacturer: Beaver Model: GIP-6 Voltage: 600V Phase: 3 Frequency: 50/60 Hz Fuse: 0.125A Enclosure: NEMA 3R |
