Description
| Specifications | |
|---|---|

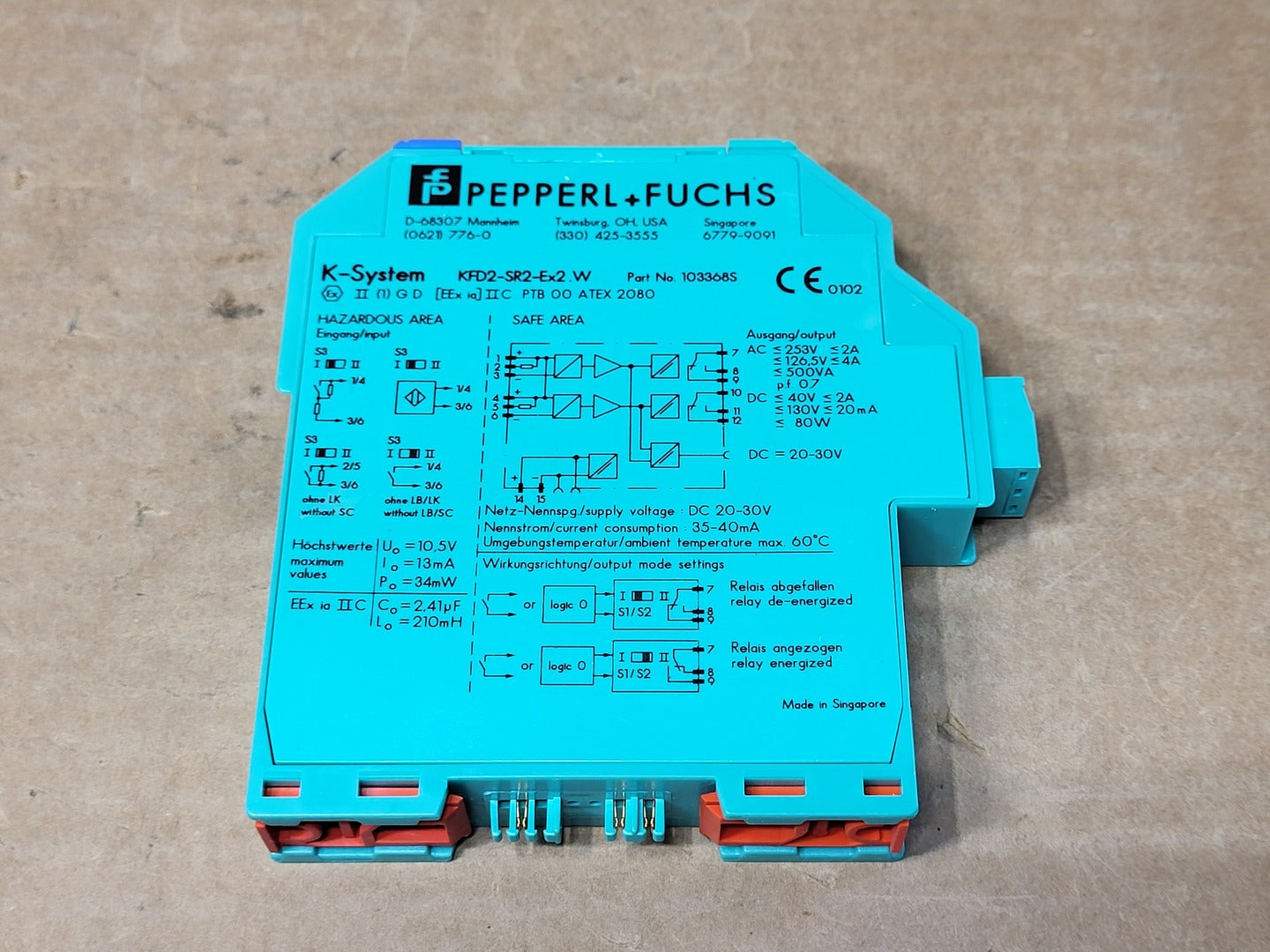

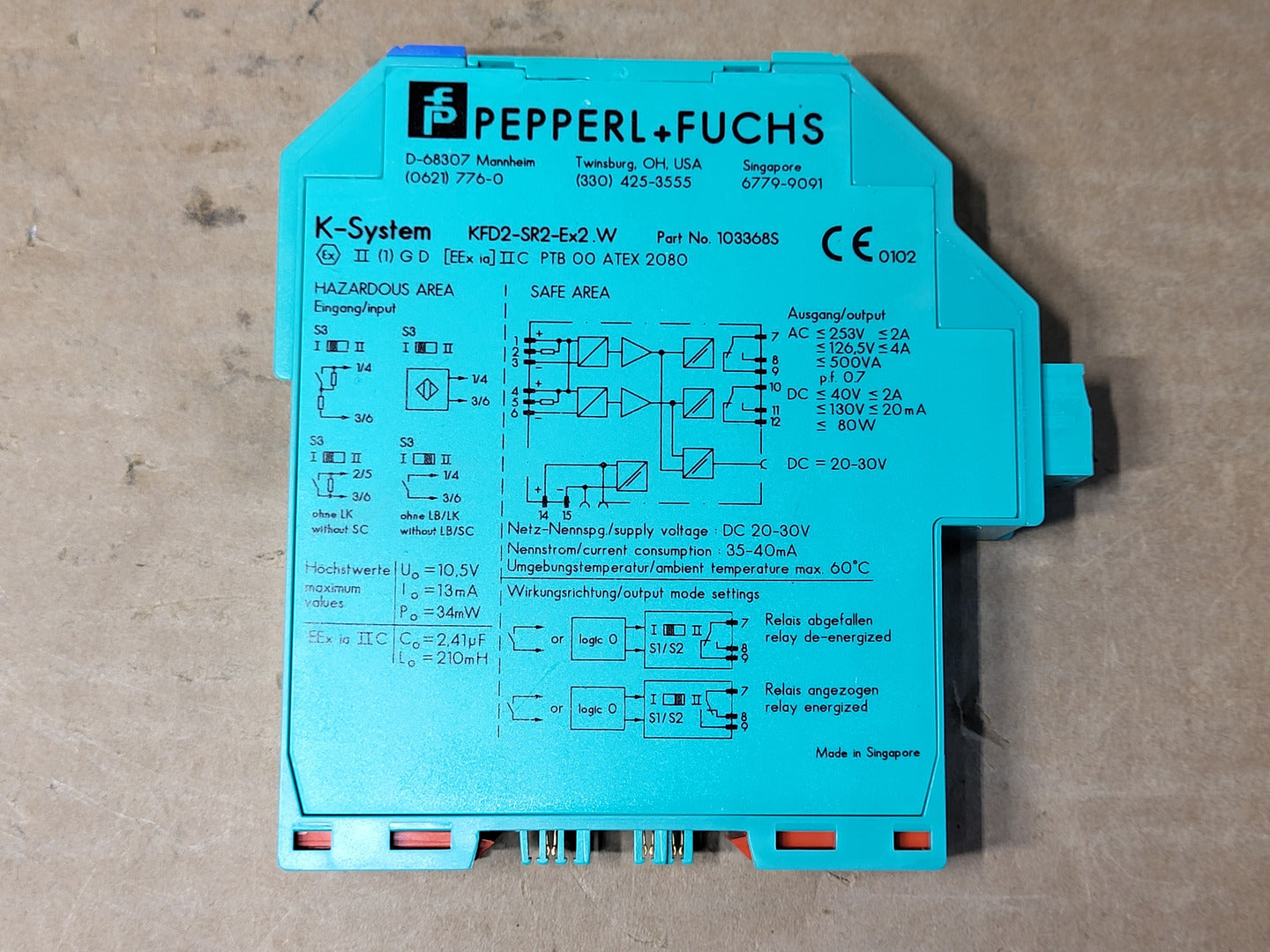

| Model | KFD2-SR2-Ex2.W |
| Condition | Used |
| Other Specifications |
|---|
|
Number of Channels: 2 Input Type: NAMUR sensor or dry contact Hazardous Area Rating: Class I II III Div 1 Gas Groups: A B C D Dust Groups: E F G Explosion Protection: Ex ia IIC Supply Voltage: 20 to 30 VDC Nominal Supply Voltage: 24 VDC Current Consumption: 35 to 40 mA Relay Output Rating AC: 250 VAC 2 A Relay Output Rating DC: 30 VDC 2 A Maximum Output Voltage Uo: 10.5 V Maximum Output Current Io: 13 mA Maximum Output Power Po: 34 mW Ingress Protection Rating: IP20 Mounting Type: DIN rail |
