Description

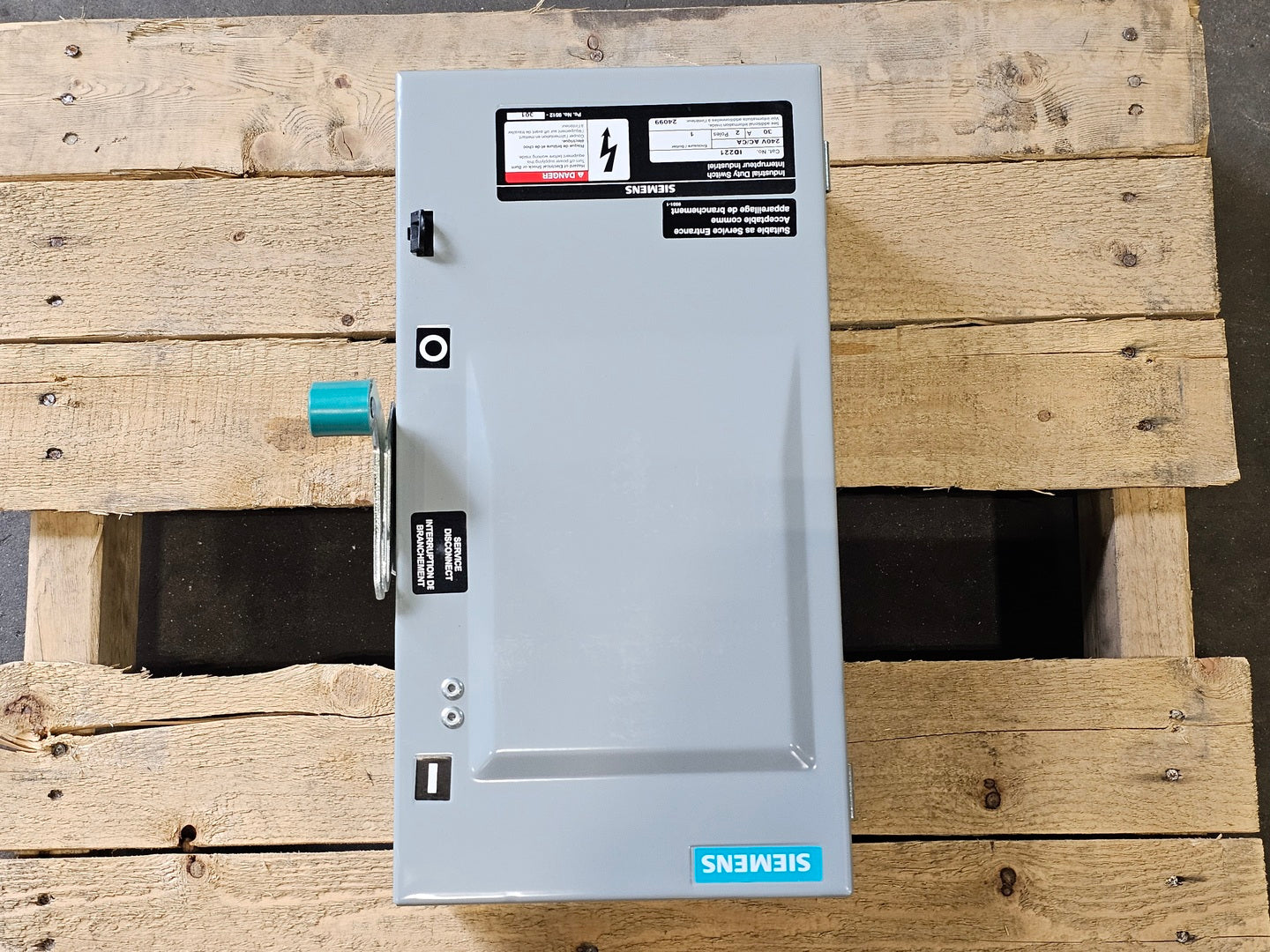

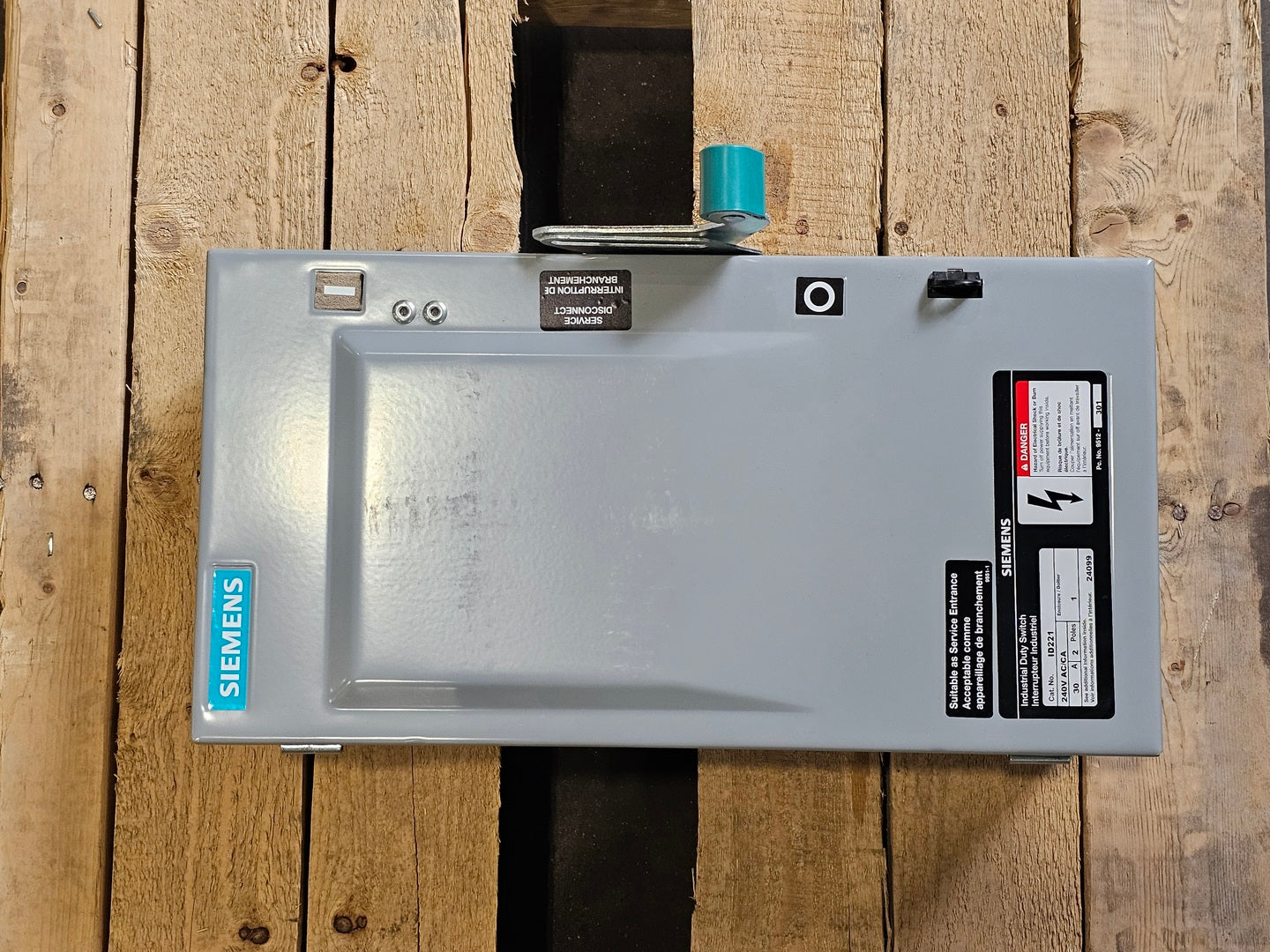

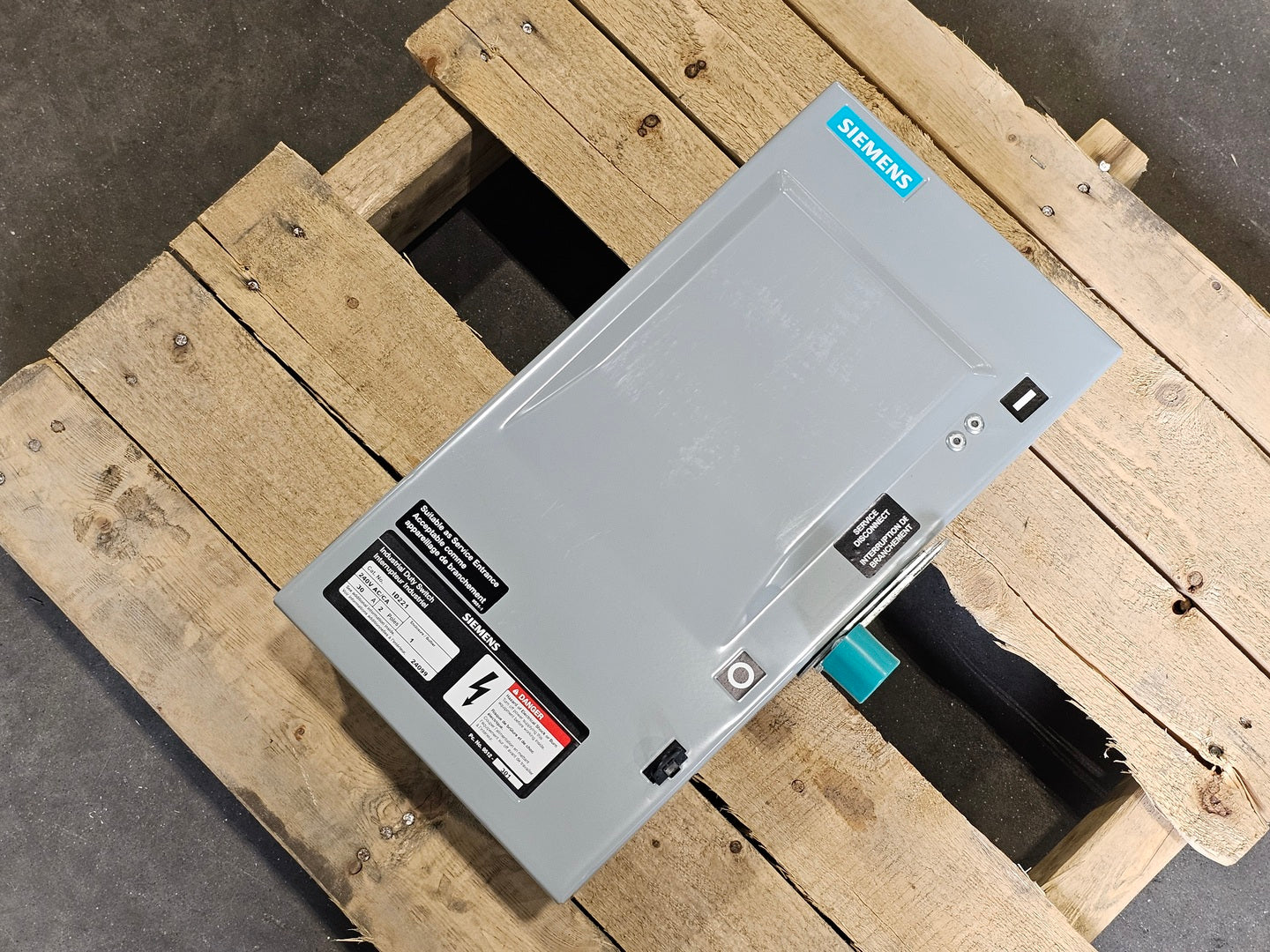

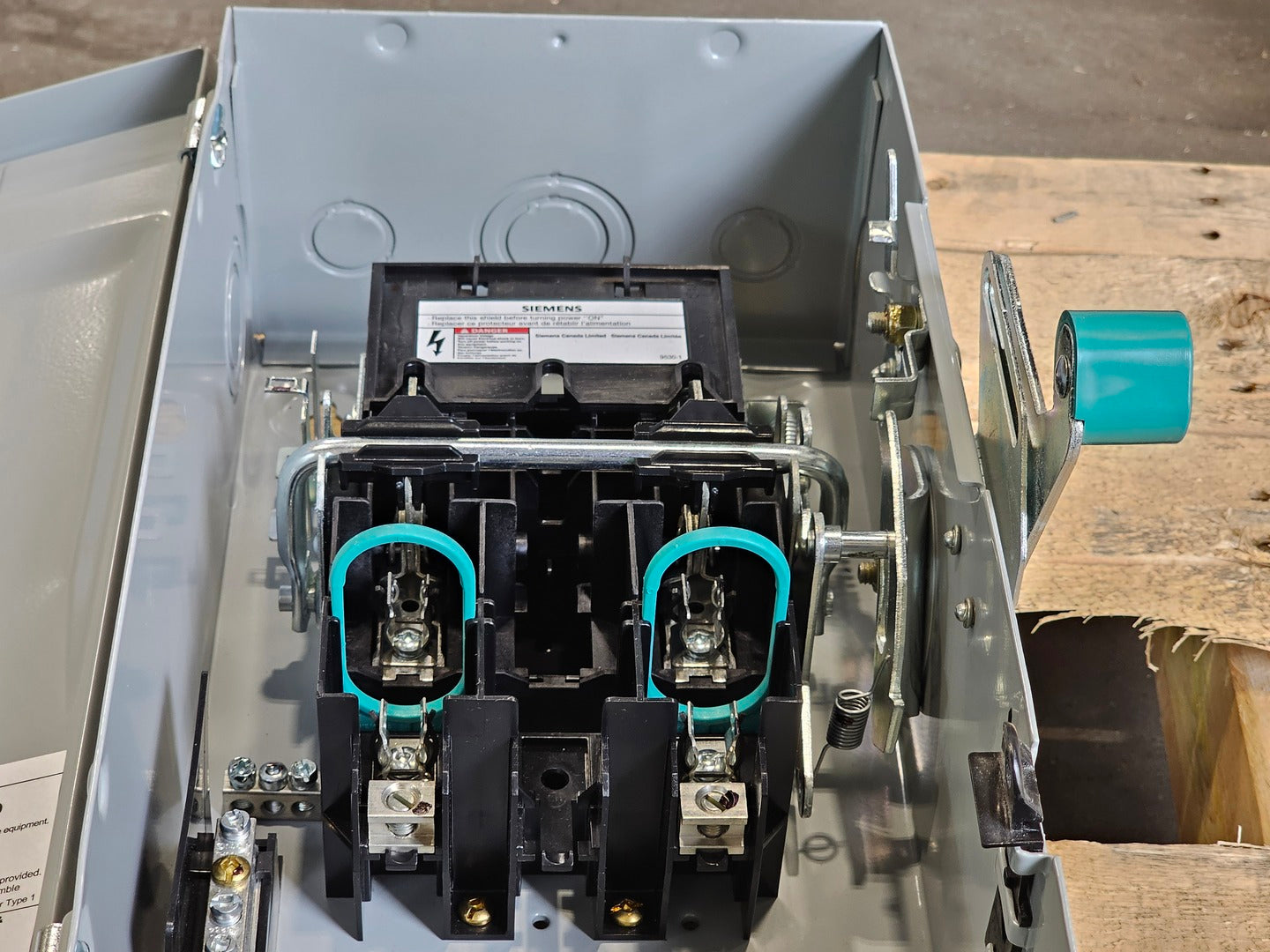

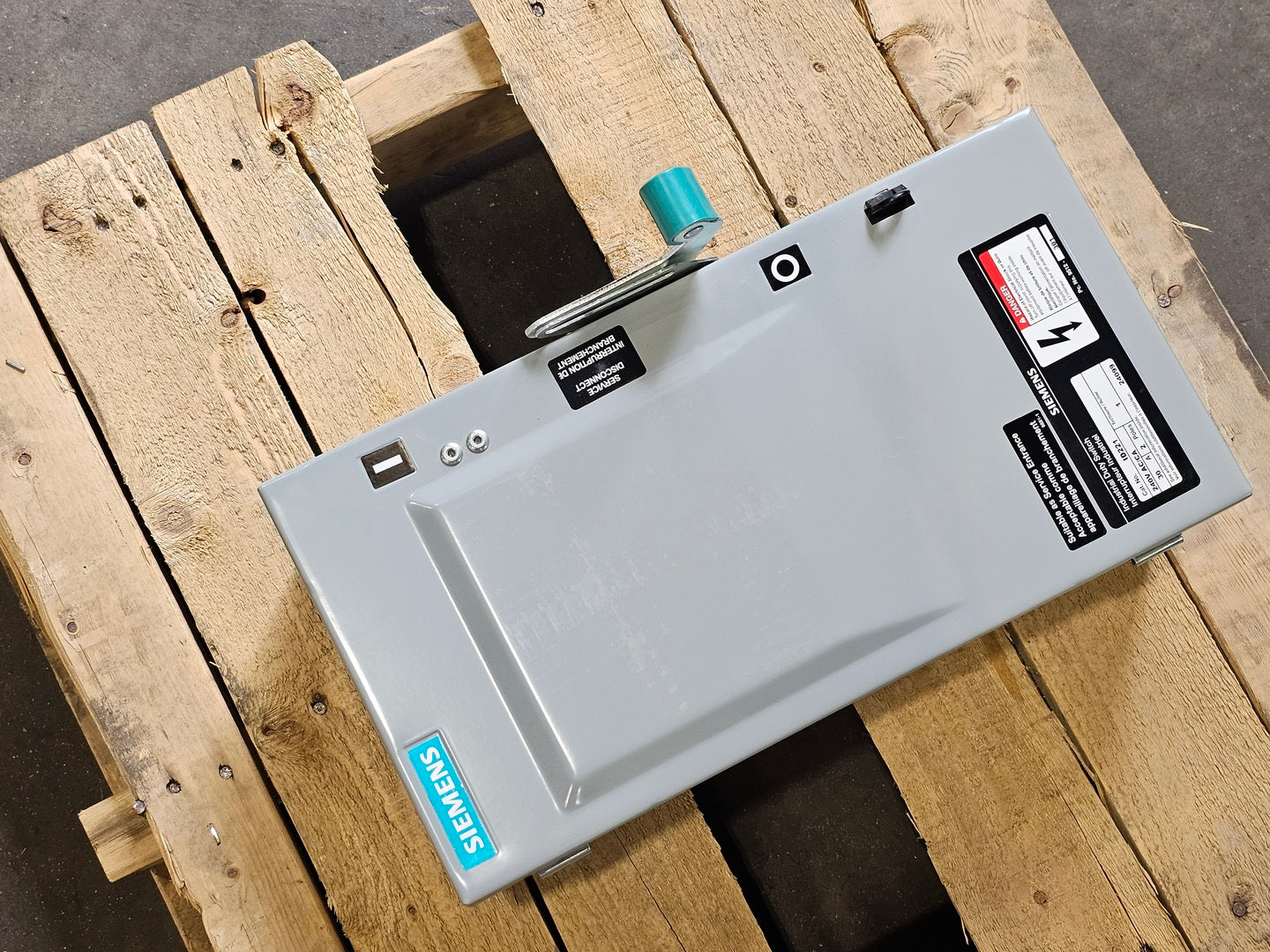

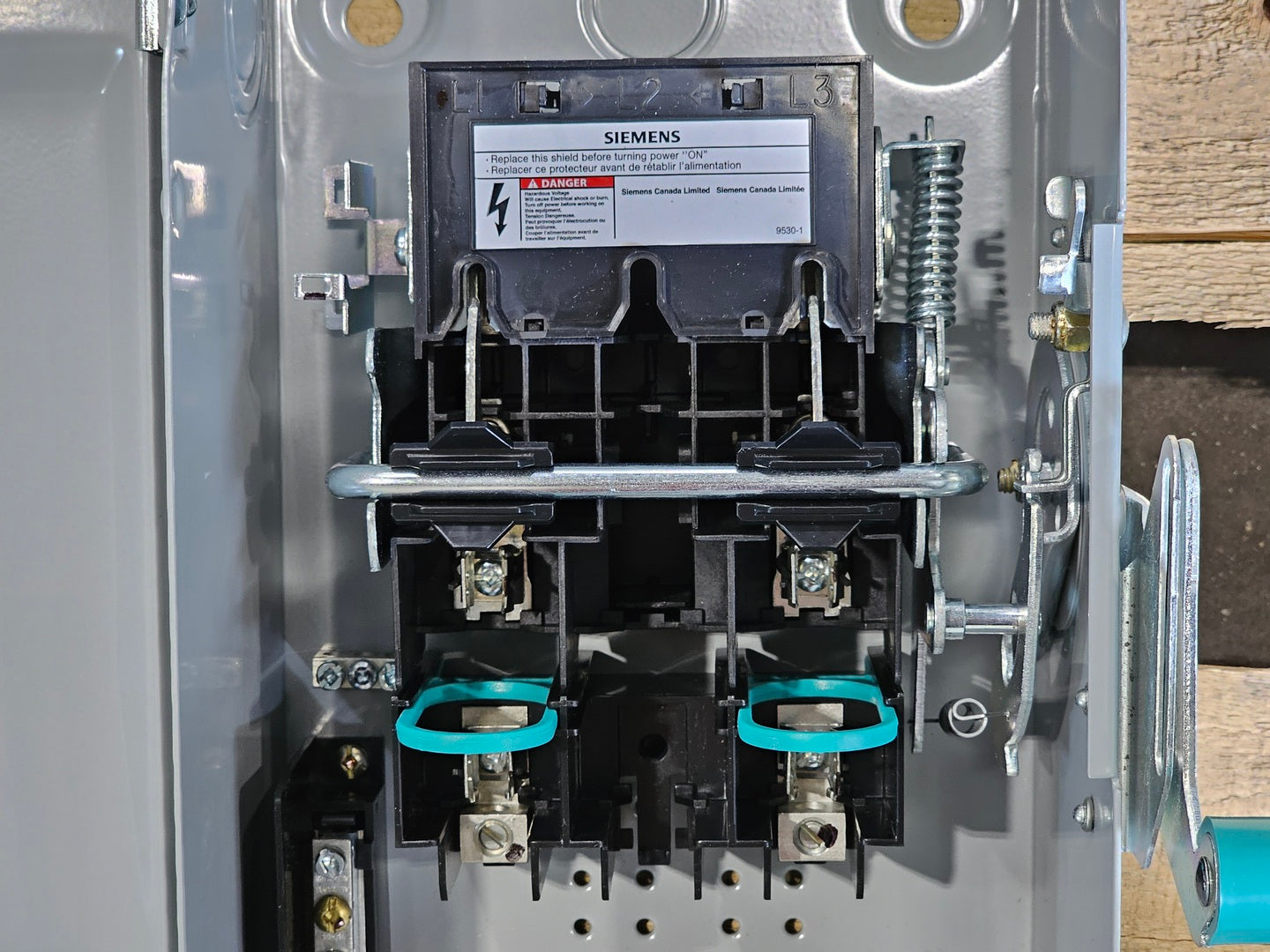

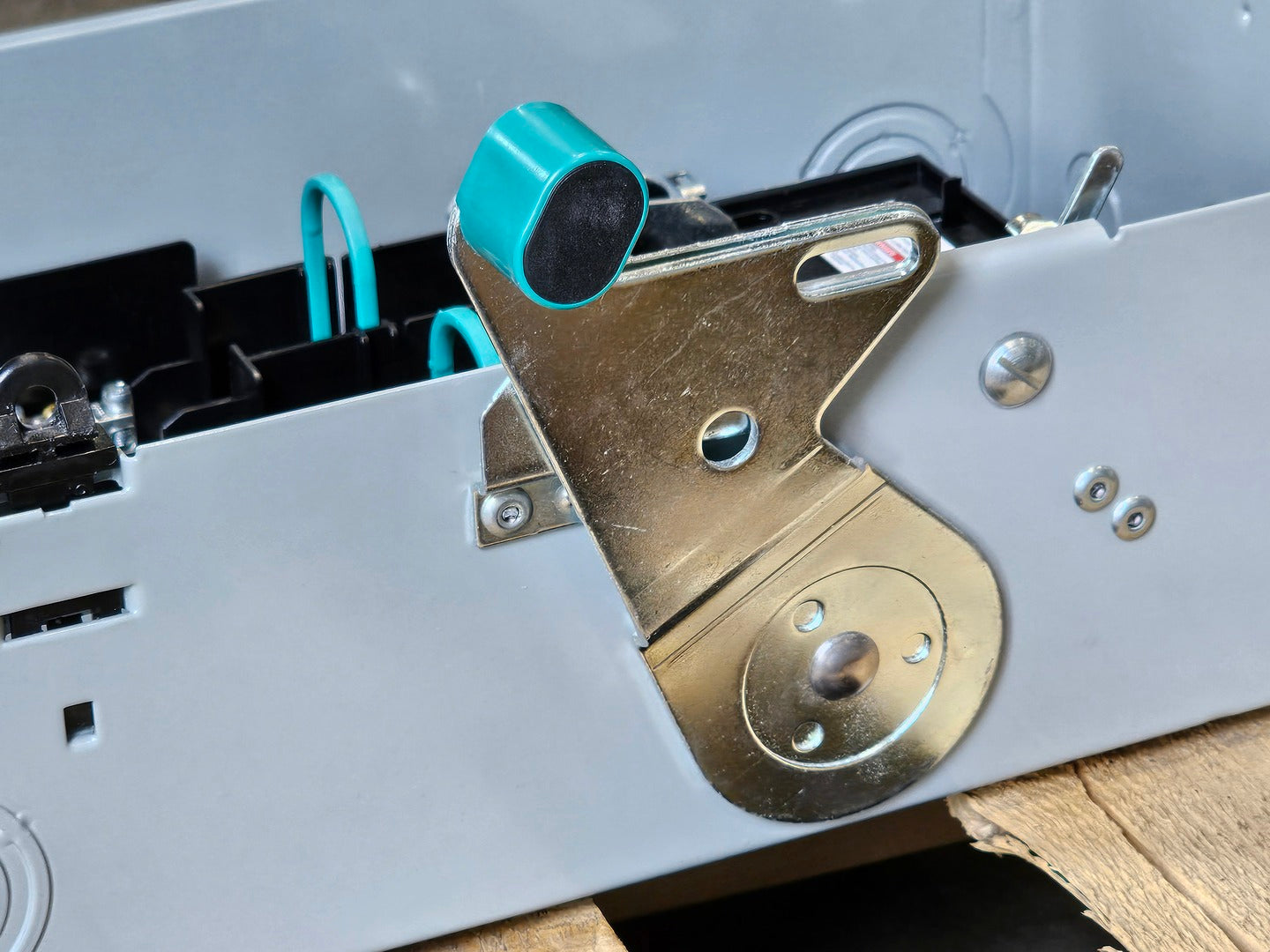

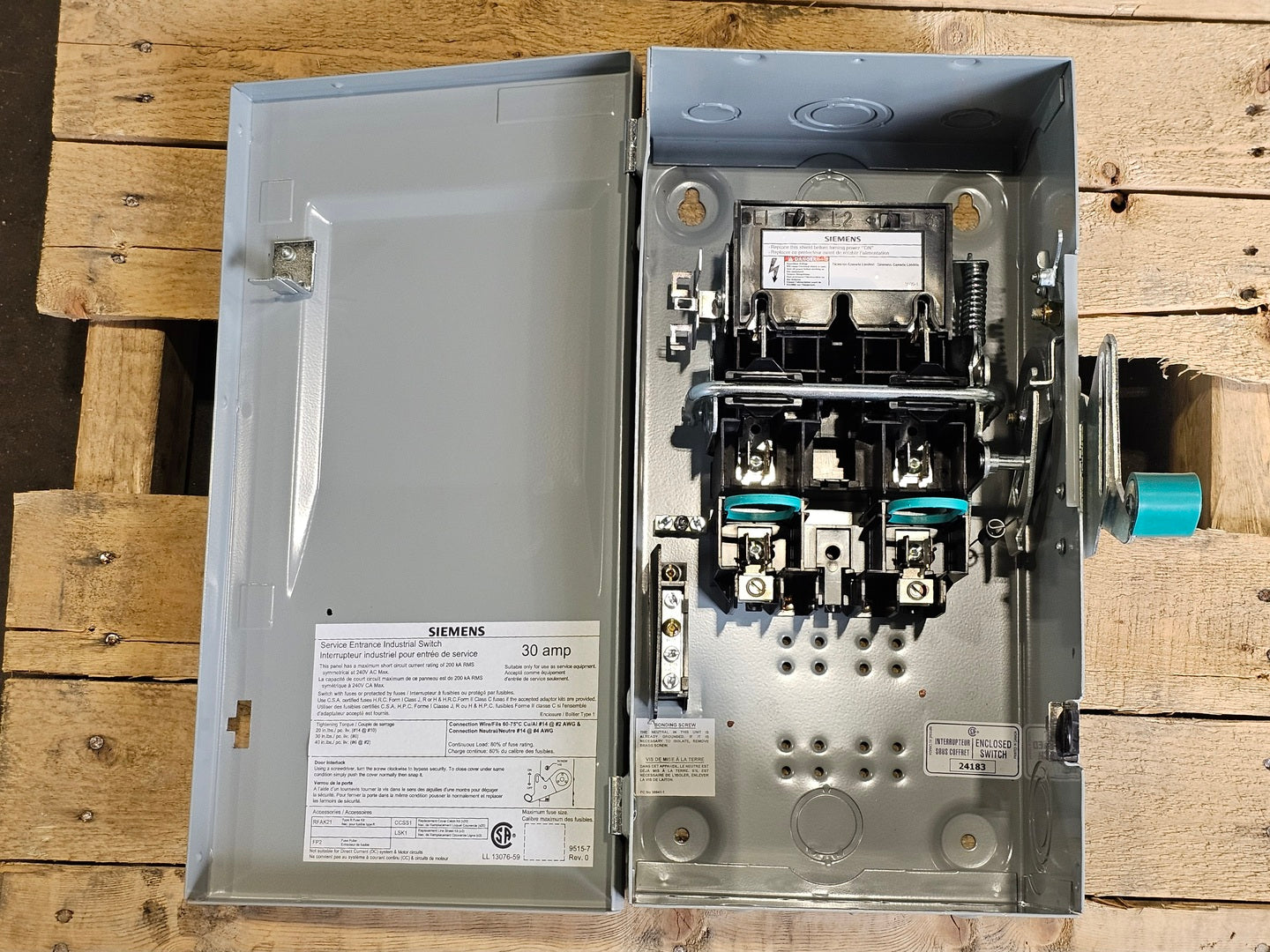

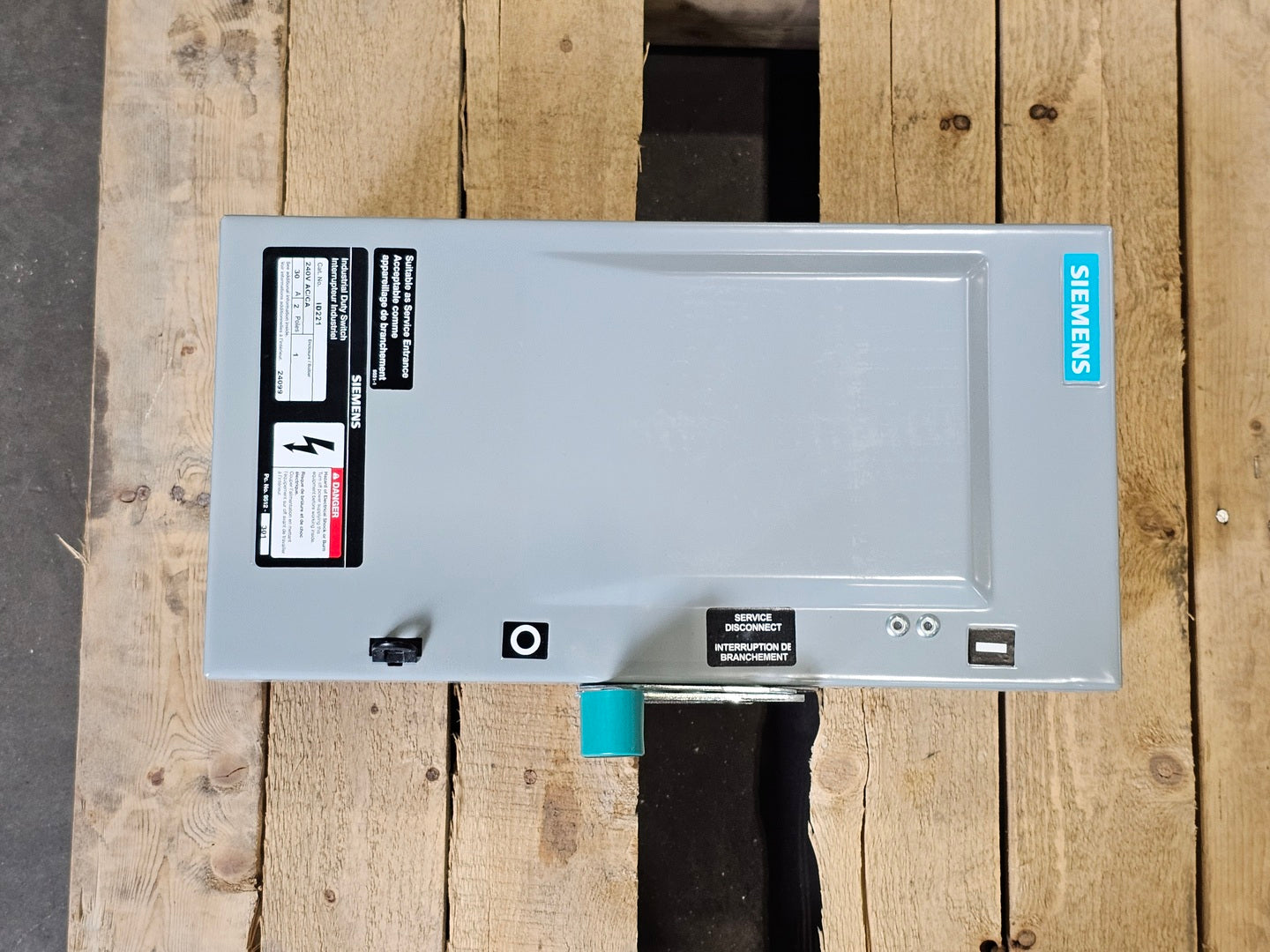

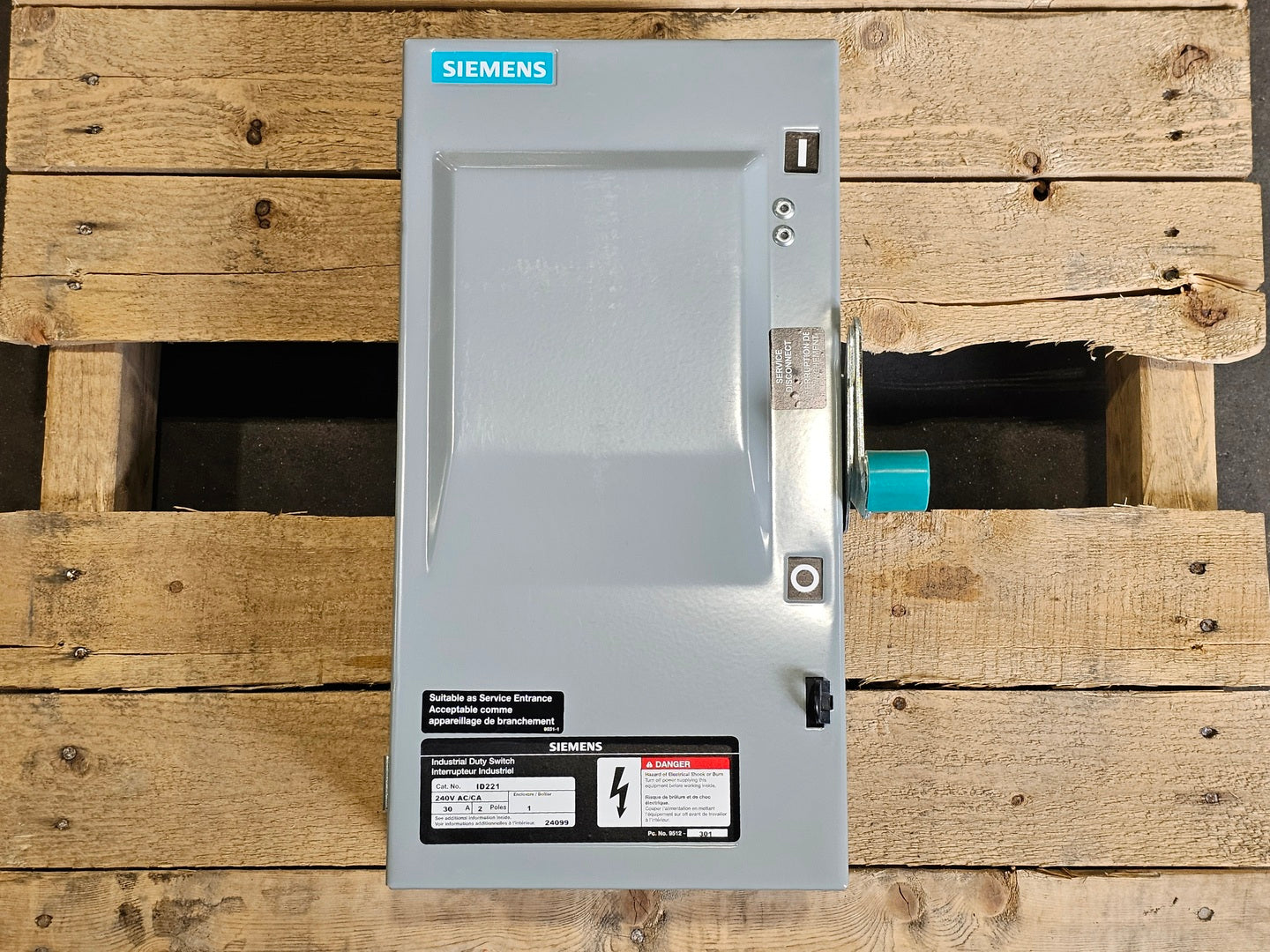

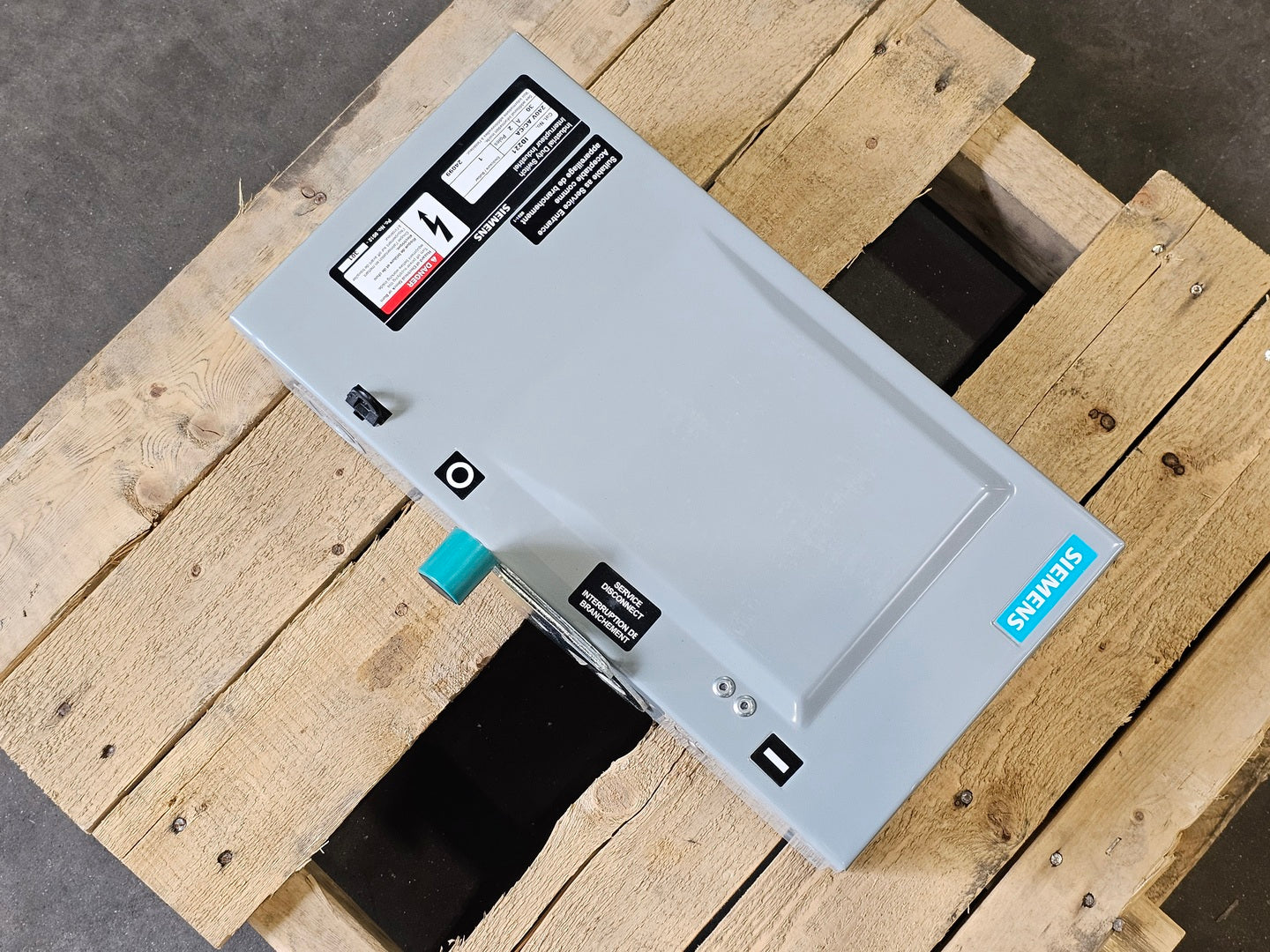

Siemens ID221 industrial-duty fusible safety disconnect switch rated 30A, 240VAC, 2-pole with neutral and Type 1 indoor steel enclosure. Suitable for service-entrance applications and equipped with an external operating handle, door interlock and padlock provision. The ID221 is rated for 1- or 3-phase applications and has published motor ratings of 3 HP at 240V single-phase and 7.5 HP at 240V three-phase.
| Specifications | |
|---|---|

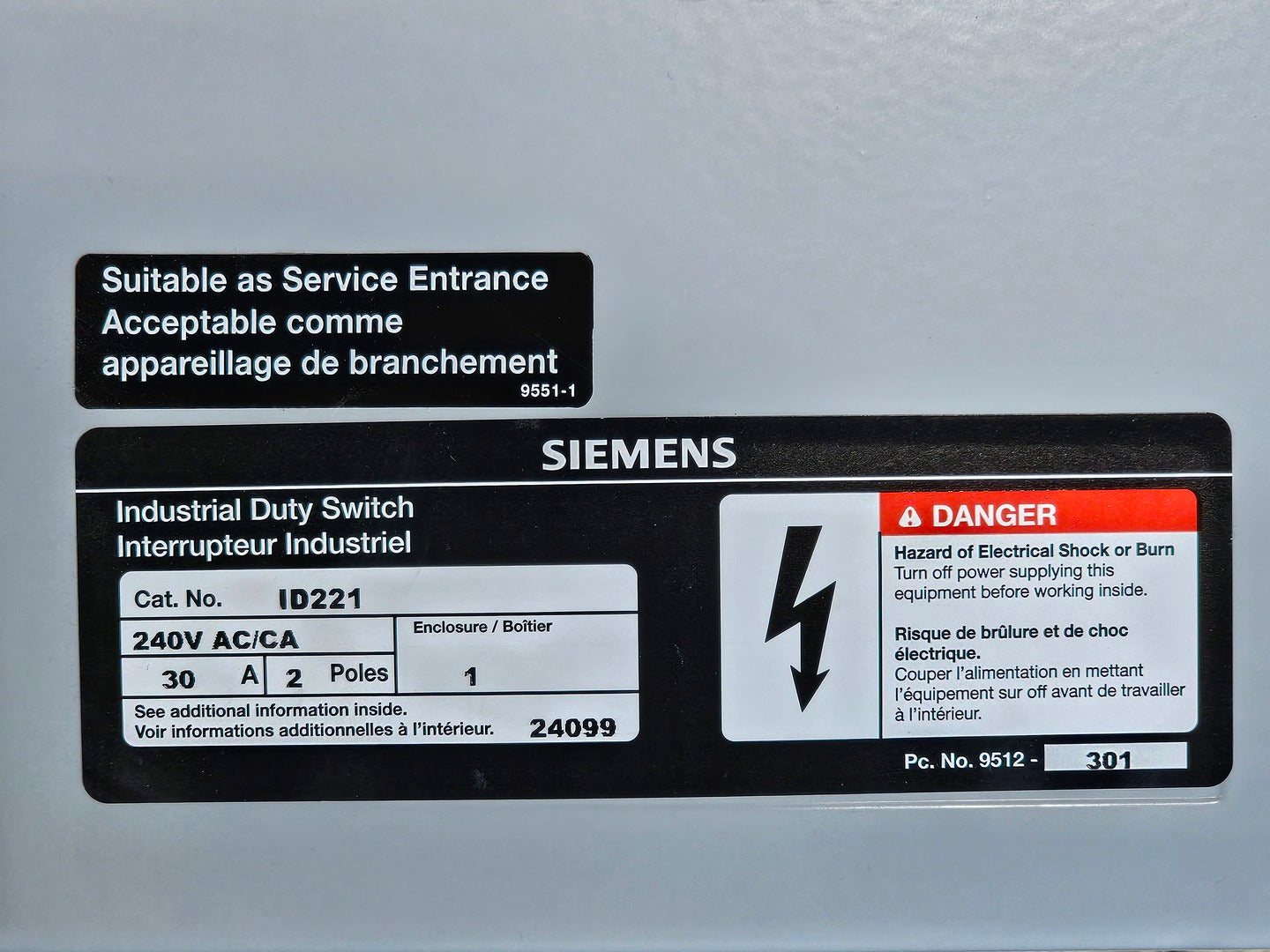

| Model | ID221 |
| Made In | CANADA |
| Condition | Surplus New | Electrical |
| Amps | 30 amps |
| Voltage | 240 volts |
| Phase | 3-phase |
| Fused | Fused |
| Other Specifications |
|---|
|

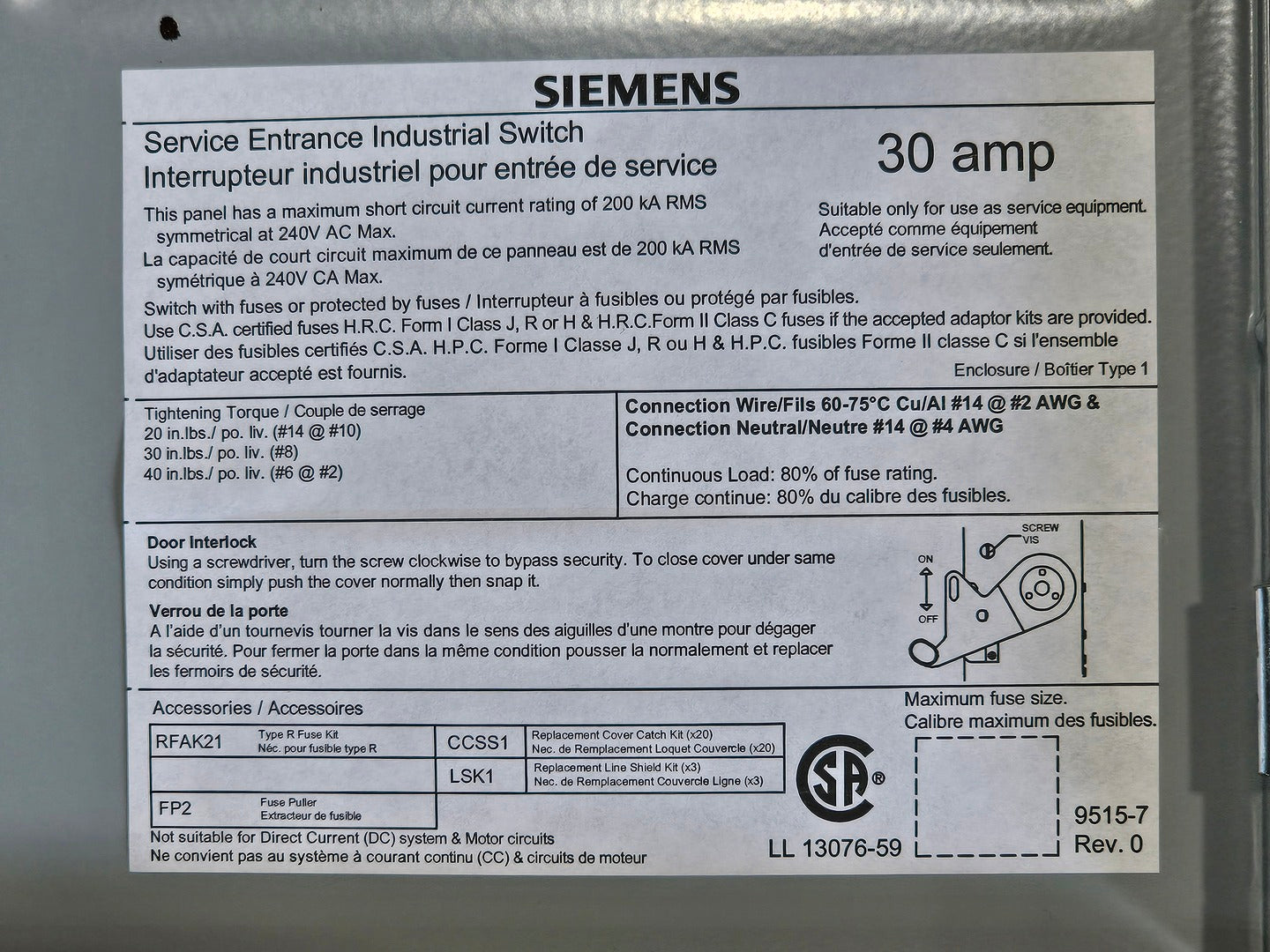

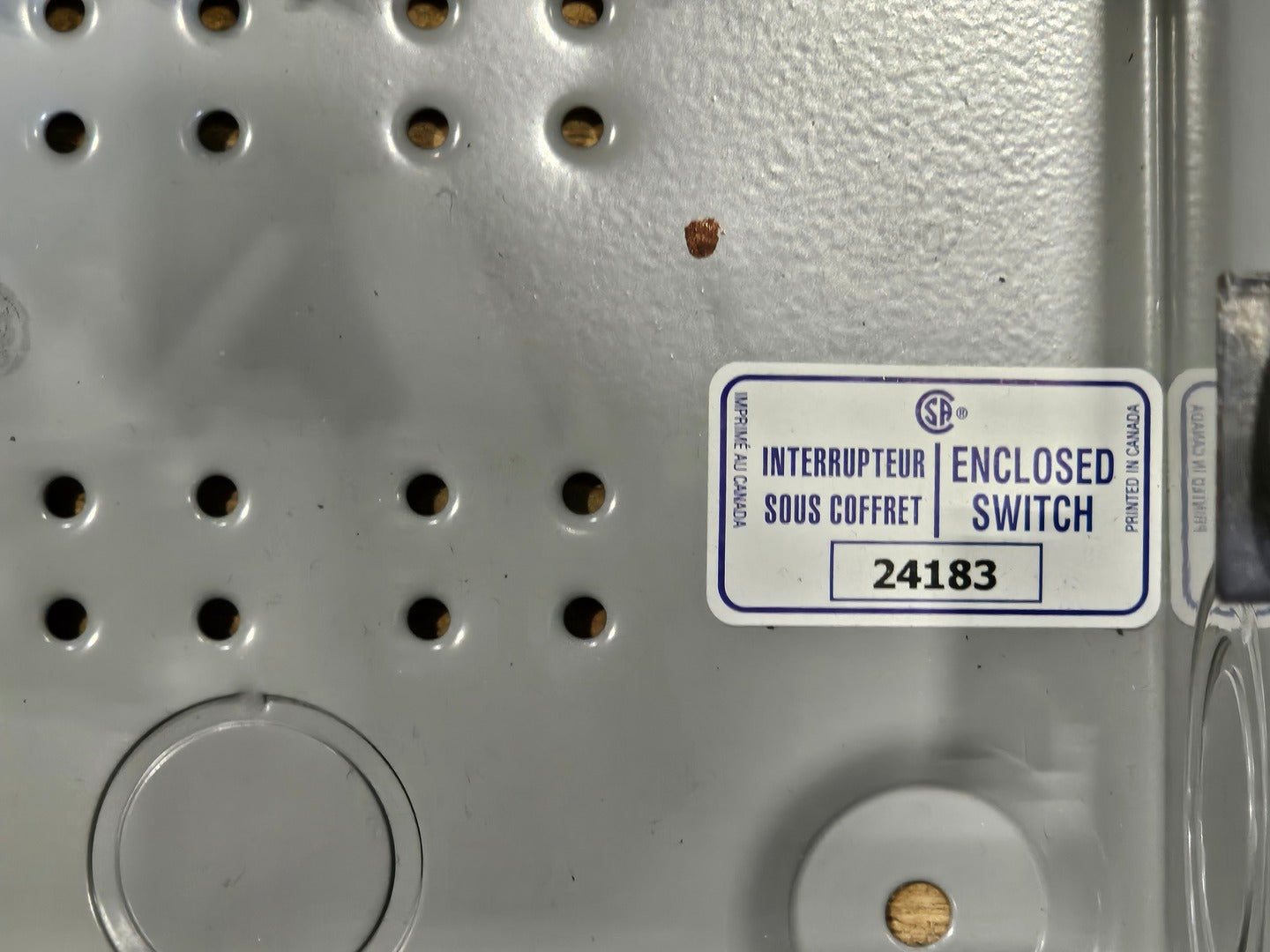

Switch Type: Single Throw Number of Poles: 2 Number of Wires: 3 Phase: 1-Phase or 3-Phase Horsepower Rating: 3 HP at 240V 1-Phase / 7.5 HP at 240V 3-Phase Neutral: Included Enclosure: Type 1 / NEMA 1 Application Environment: Indoor Service Entrance Rated: Yes Maximum Short-Circuit Rating: Up to 200 kA RMS symmetrical at 240VAC Continuous Load: 80% of fuse rating Line/Load Wire Range: #14-#2 AWG Cu/Al Neutral Wire Range: #14-#4 AWG Cu/Al Wire Temperature Rating: 60-75°C Enclosure Material: Steel Certification: CSA |
