Description

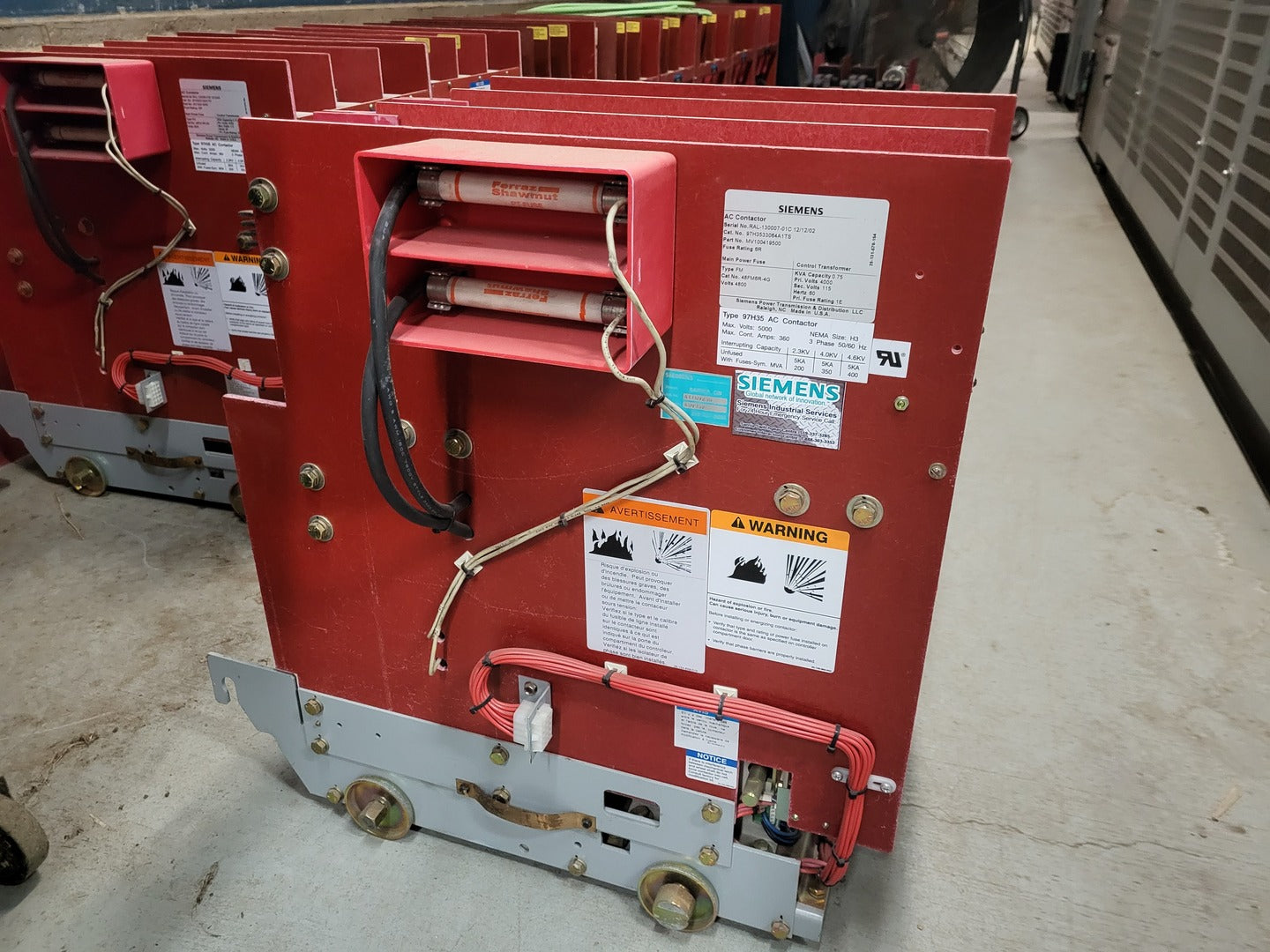

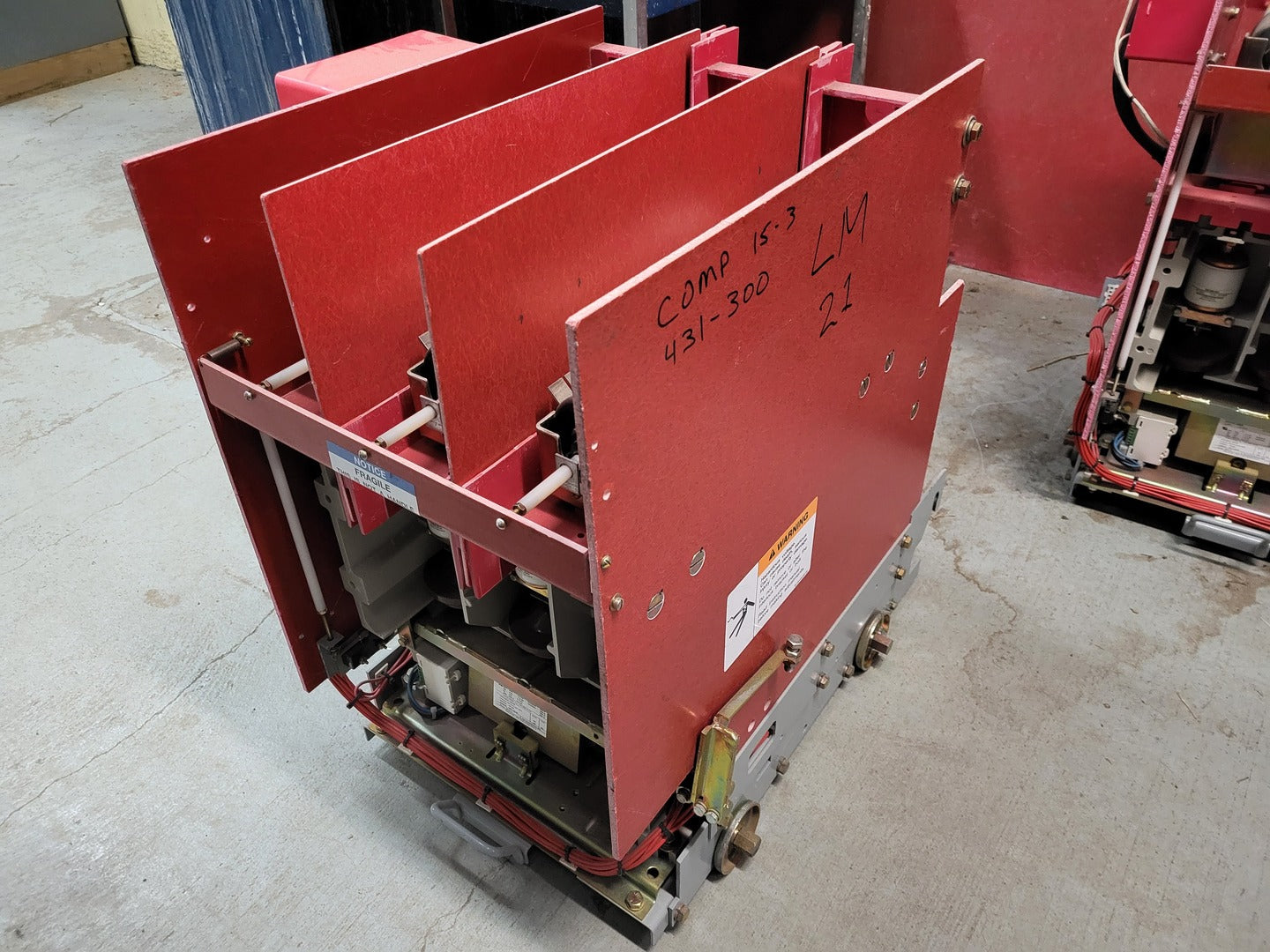

This 360 Amp, 3 Pole, 5.0 kV NEMA H3 AC Vacuum Contactor Type 97H35 by Siemens is designed for high-voltage applications. It features a drawout, special contactor design with an insulation voltage of 5 kV and an interruption capacity of 350 MVA. The contactor size is NEMA 3, suitable for three-phase systems. It includes a control transformer and main power fuse for efficient and safe operation.
| Specifications | |
|---|---|
| Model | 97H3533064A1TS |
| Condition | Used | Electrical |
| Voltage | 5000 volts |
| Amps | 360 amps | General |
| Includes Fuses | Yes |
| Control Transforms Sometimes | Yes |
| Other Specifications |
|---|
|

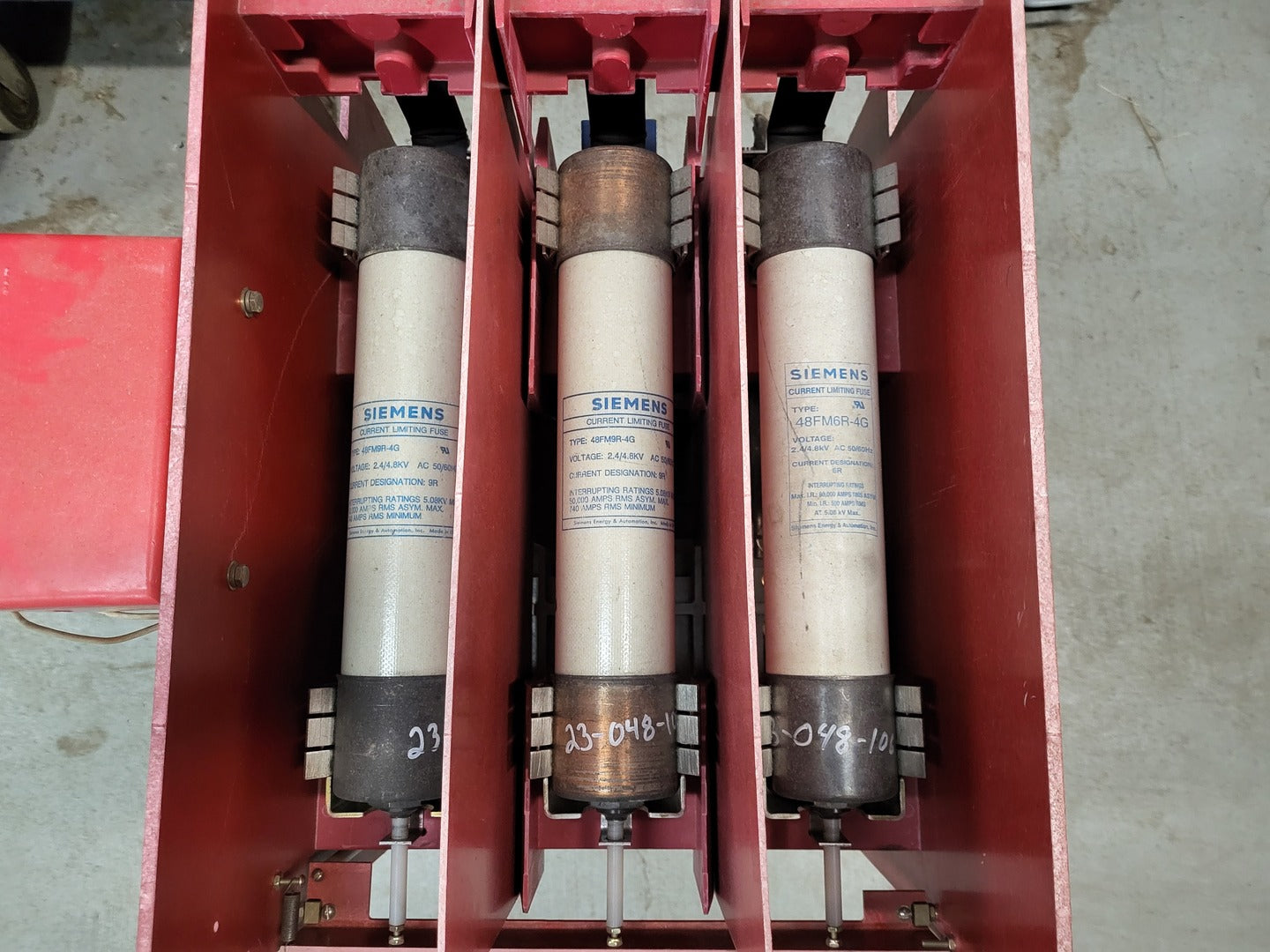

Poles: 3 Insulation Voltage: 5 kV Interruption Capacity: 350 MVA Main Fuse Rating: 6R Contactor Type: Drawout, Special Contactor Size: NEMA 3 Phase: 3 Control Transformer:- CPT Primary Voltage: 4000 V CPT Secondary Voltage: 115 VAC CPT Capacity: 0.75 kVA CPT Primary Fuse Rating: 1 E Main Power Fuse:- Make: Siemens Model: 48FM6R-4G Type: FM Voltage Rating: 4800 V |
