Description

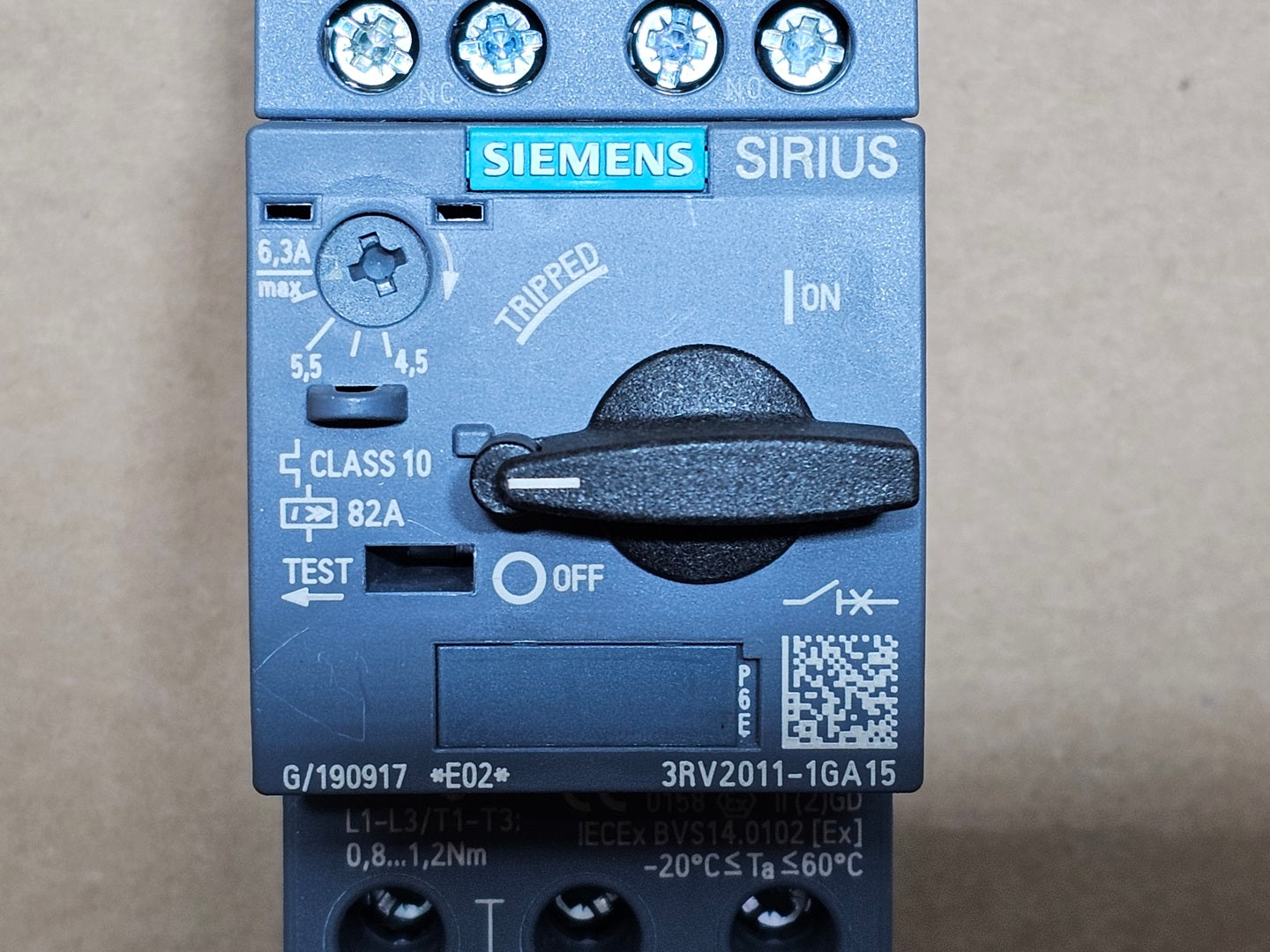

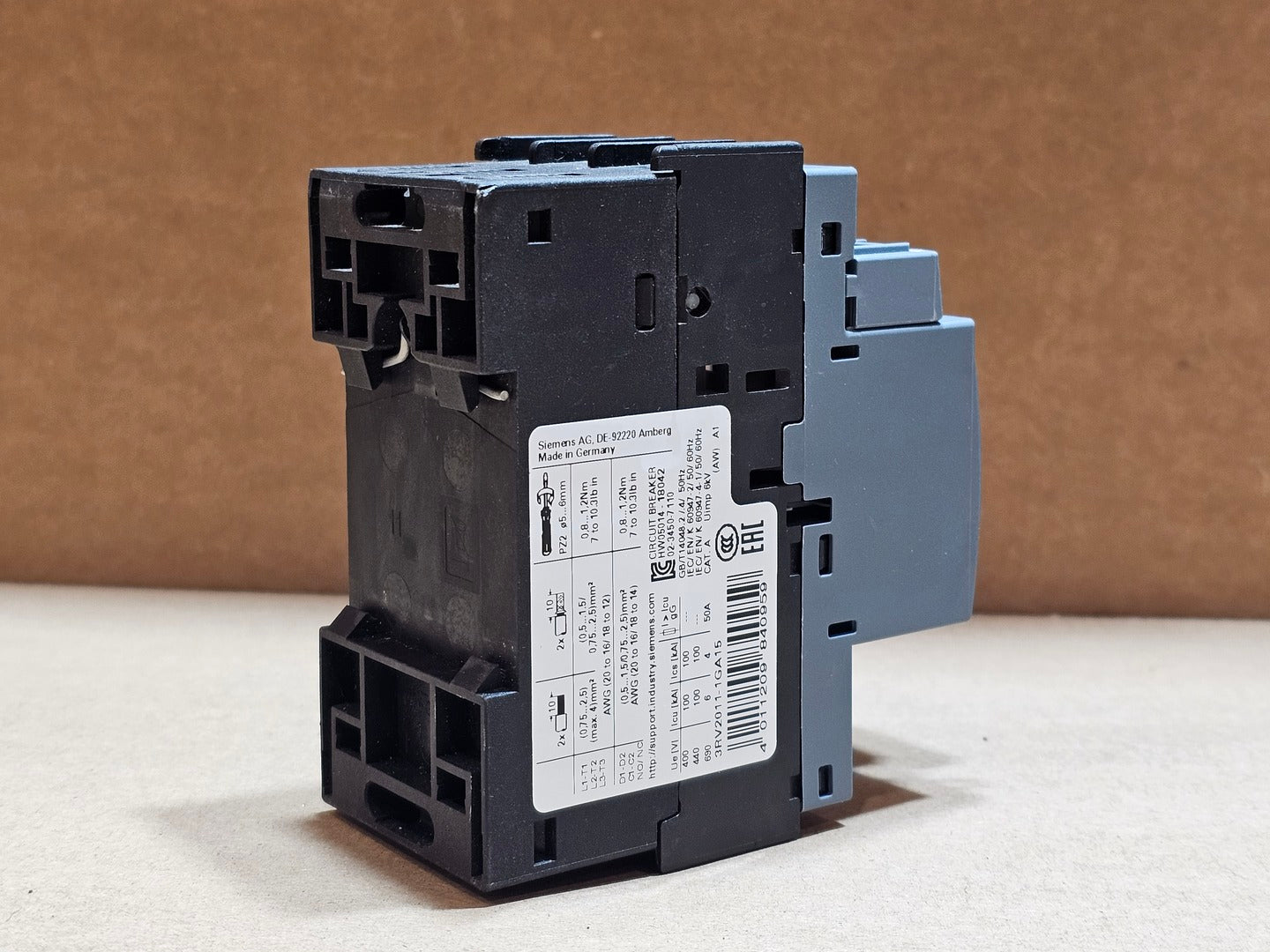

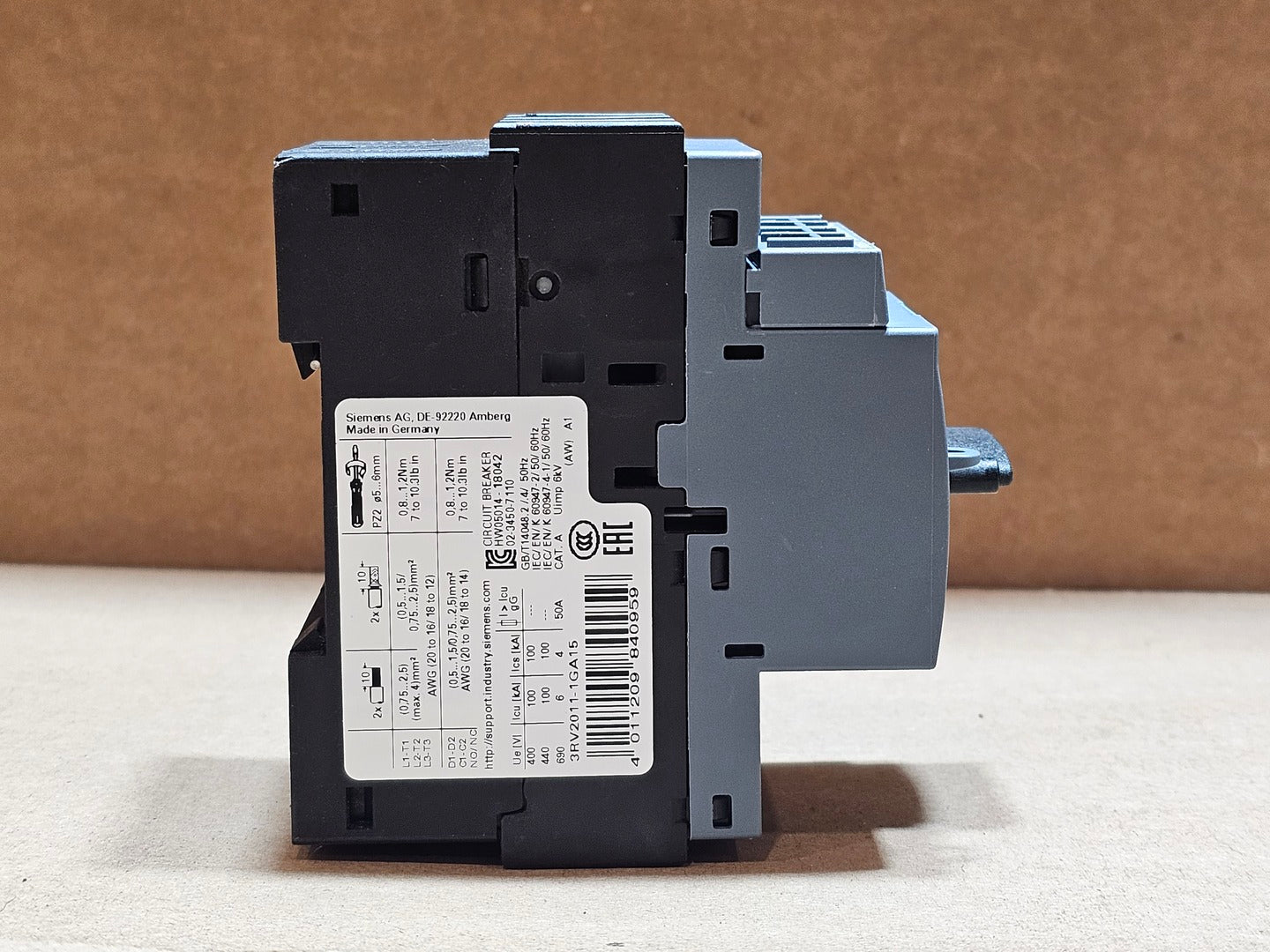

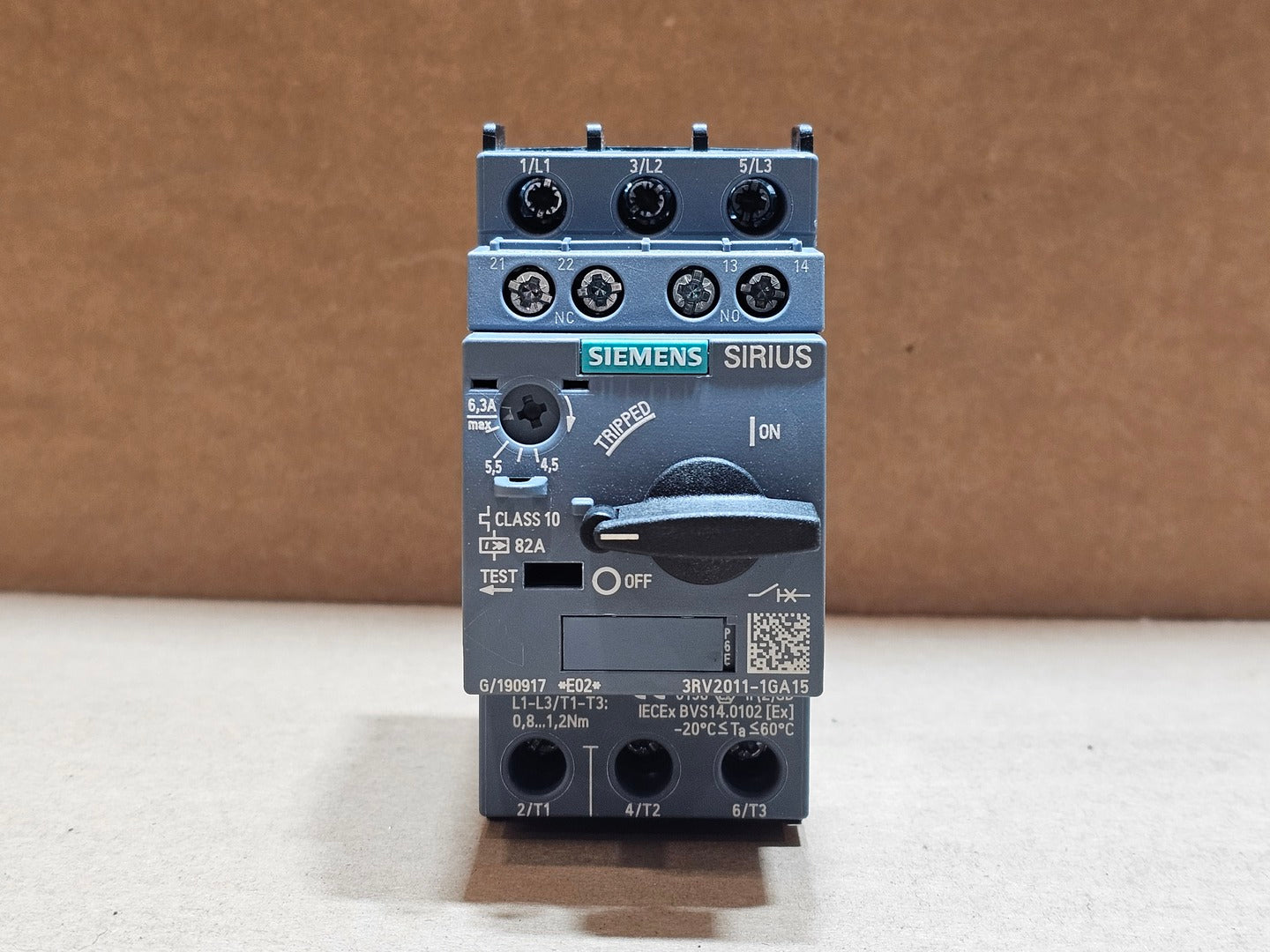

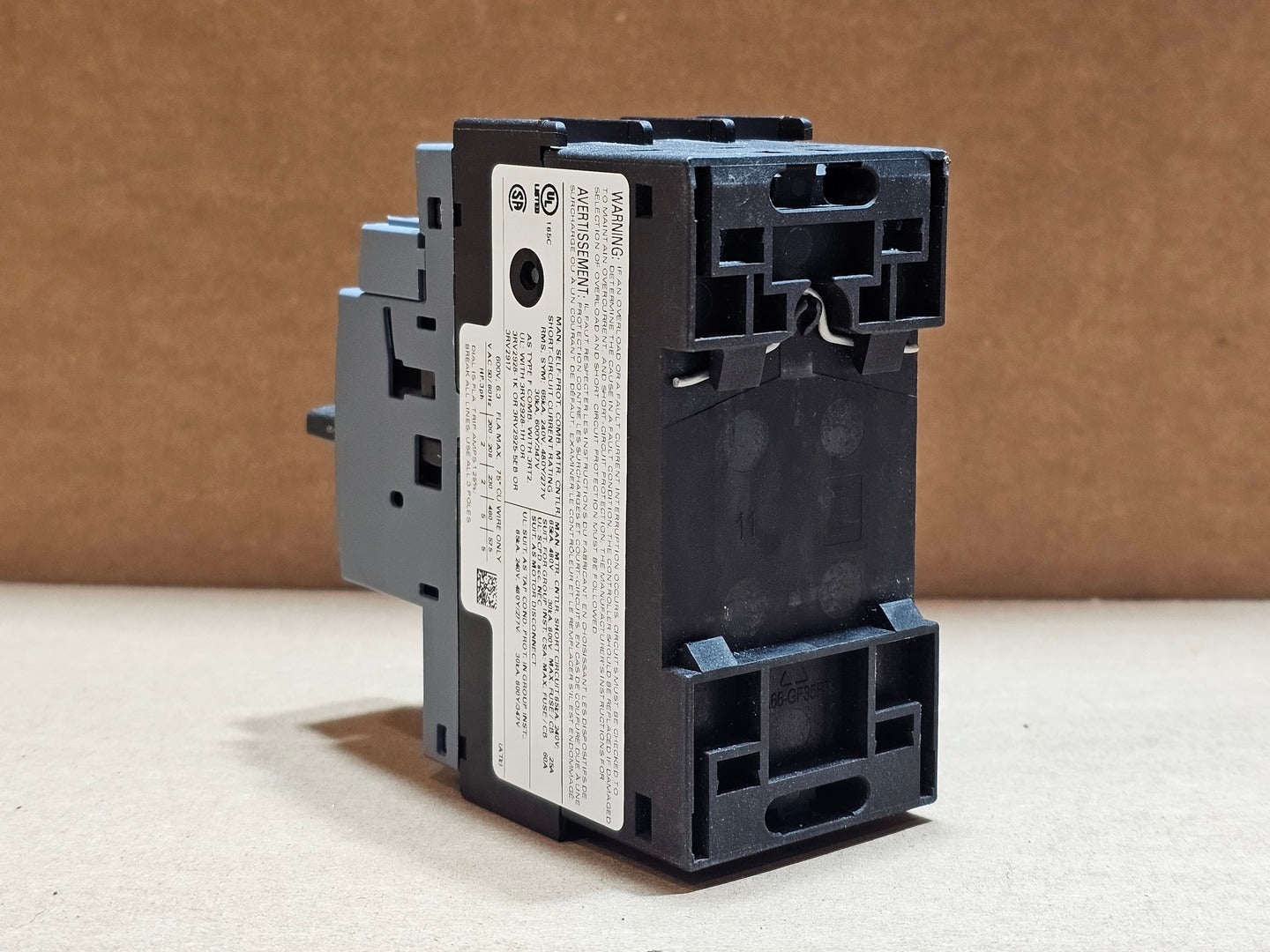

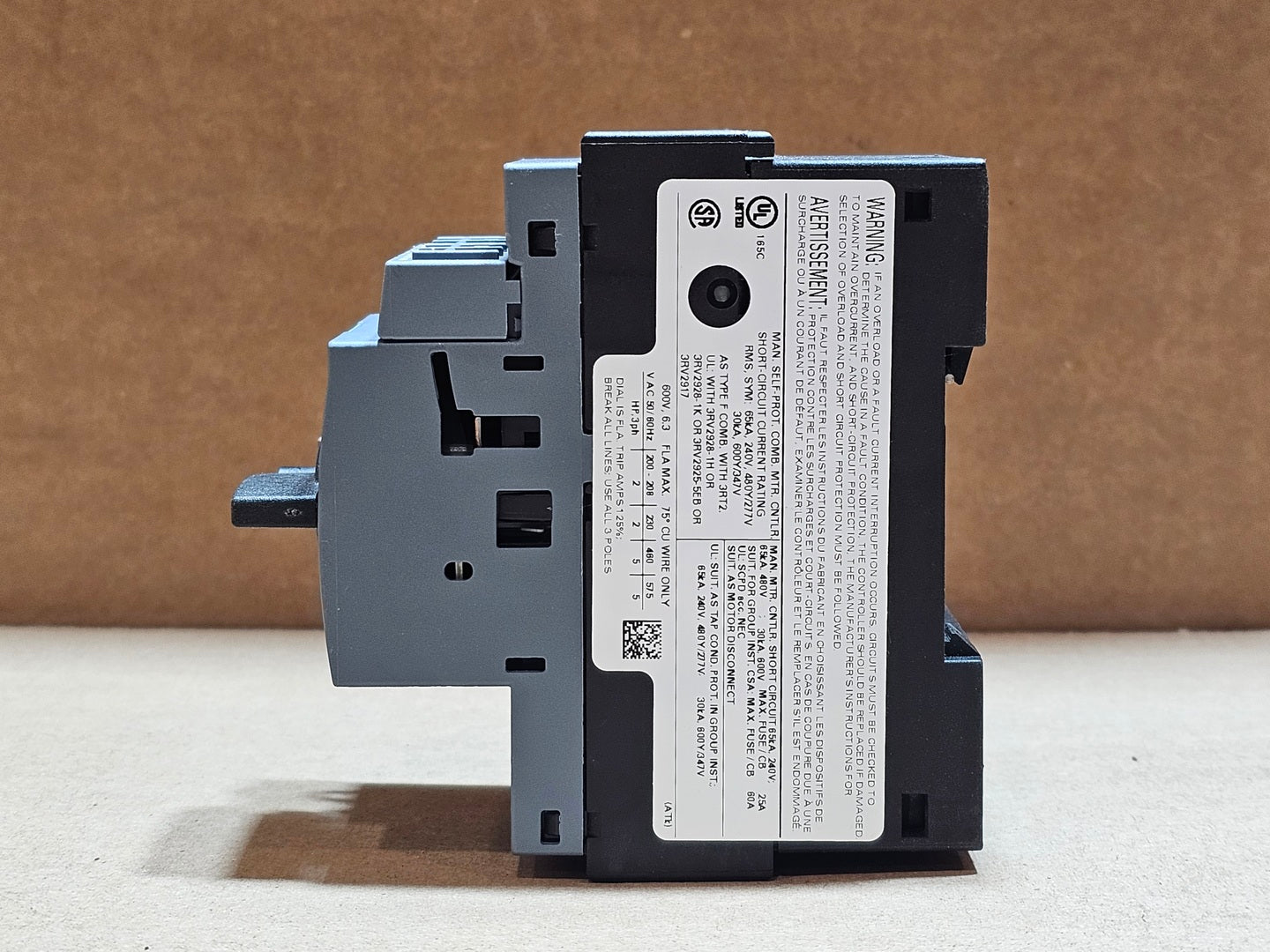

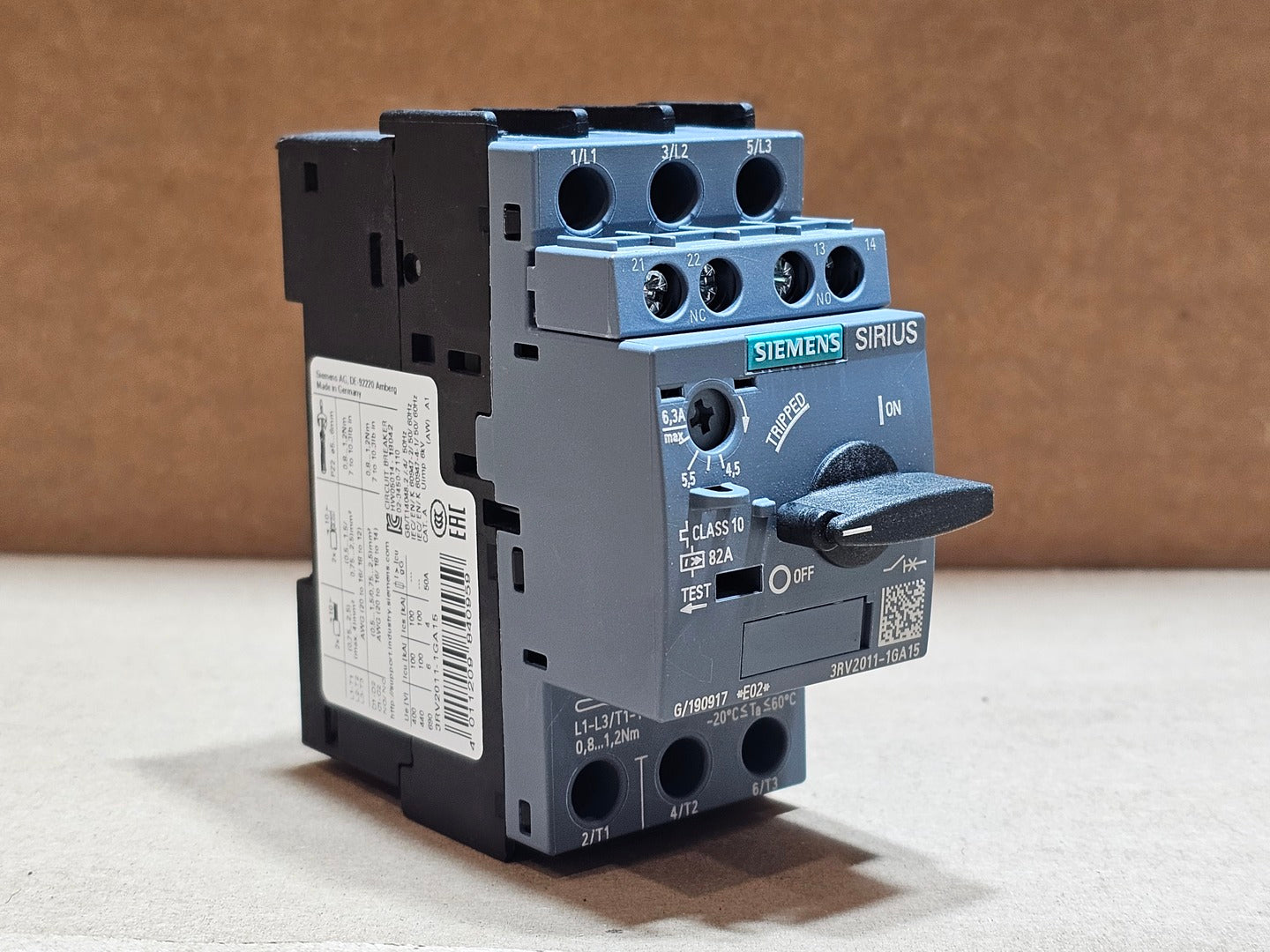

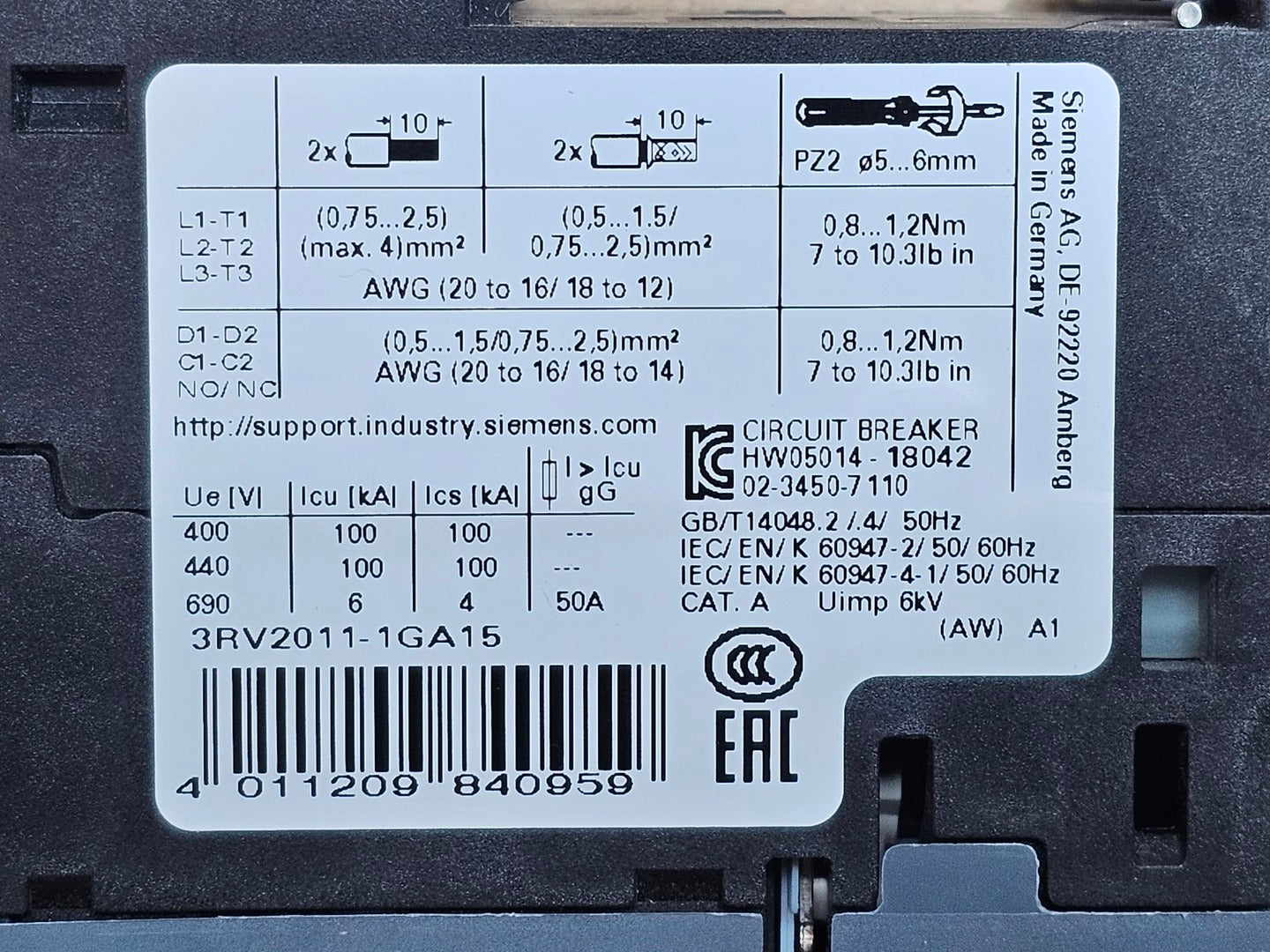

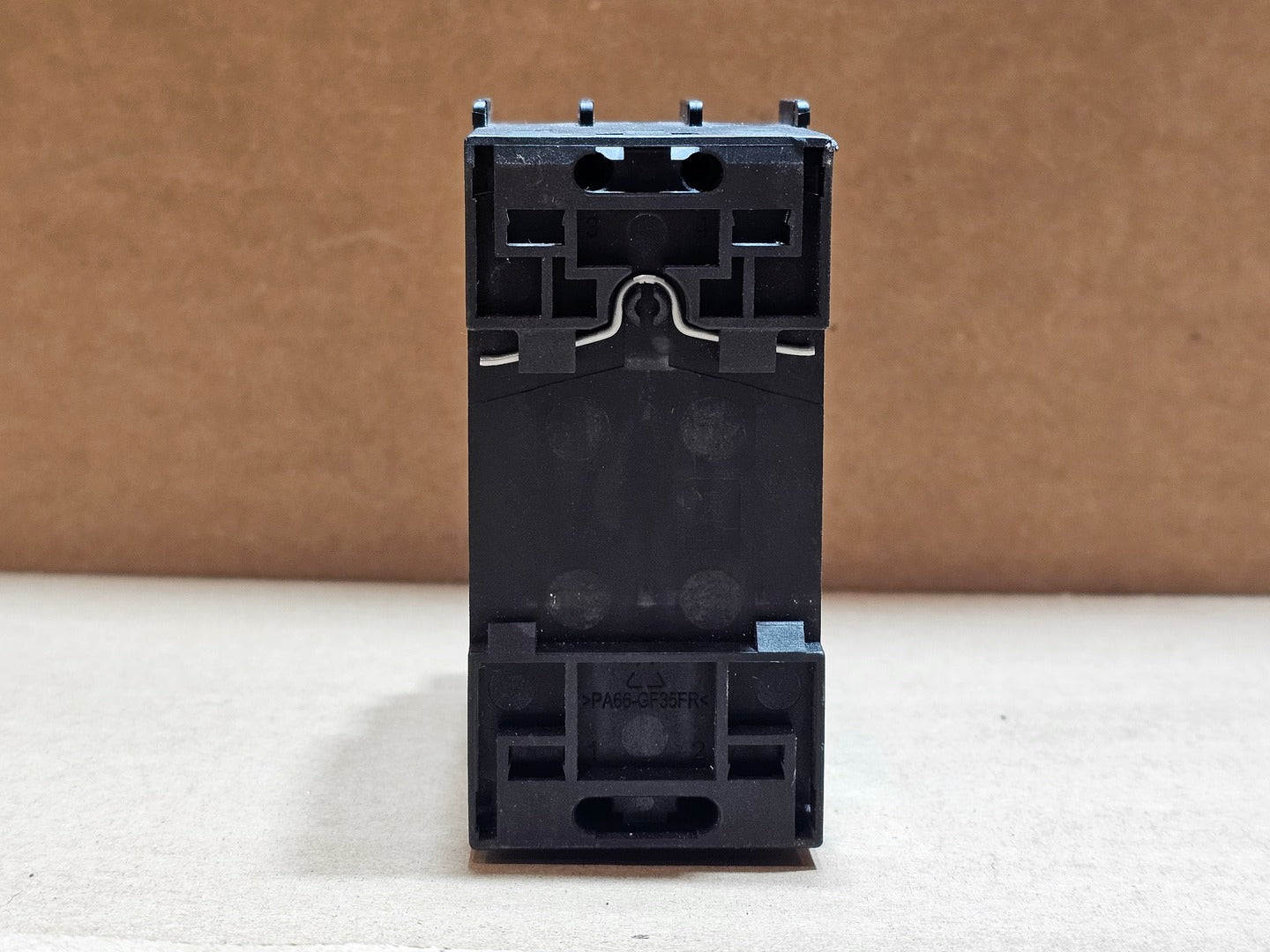

The Siemens SIRIUS 3RV2011-1GA15 is a compact 3-pole motor protection circuit breaker designed to protect industrial electric motors against overload, short circuits and phase failure.
| Specifications | |
|---|---|
| Model | 3RV2011-1GA15 |
| Made In | GERMANY |
| Condition | Surplus New | General |
| Amps | 4.5-6.3 amps |
| # of Poles | 3 |
| Voltage | 690 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Number of Poles: 3 Pole Frequency: 50/60 Hz Trip Class: Class 10 Short Circuit Trip Current: 82A Auxiliary Contacts: 1NO + 1NC Auxiliary Contact Terminals: 13-14 (NO), 21-22 (NC) Breaking Capacity (Icu): 100 kA @ 400V AC // 6 kA @ 690V AC Frame Size: S00 Connection Type: Screw Terminals Mounting Type: DIN Rail or Screw Mounting Operating Temperature: -20°C to +60°C |
