Description

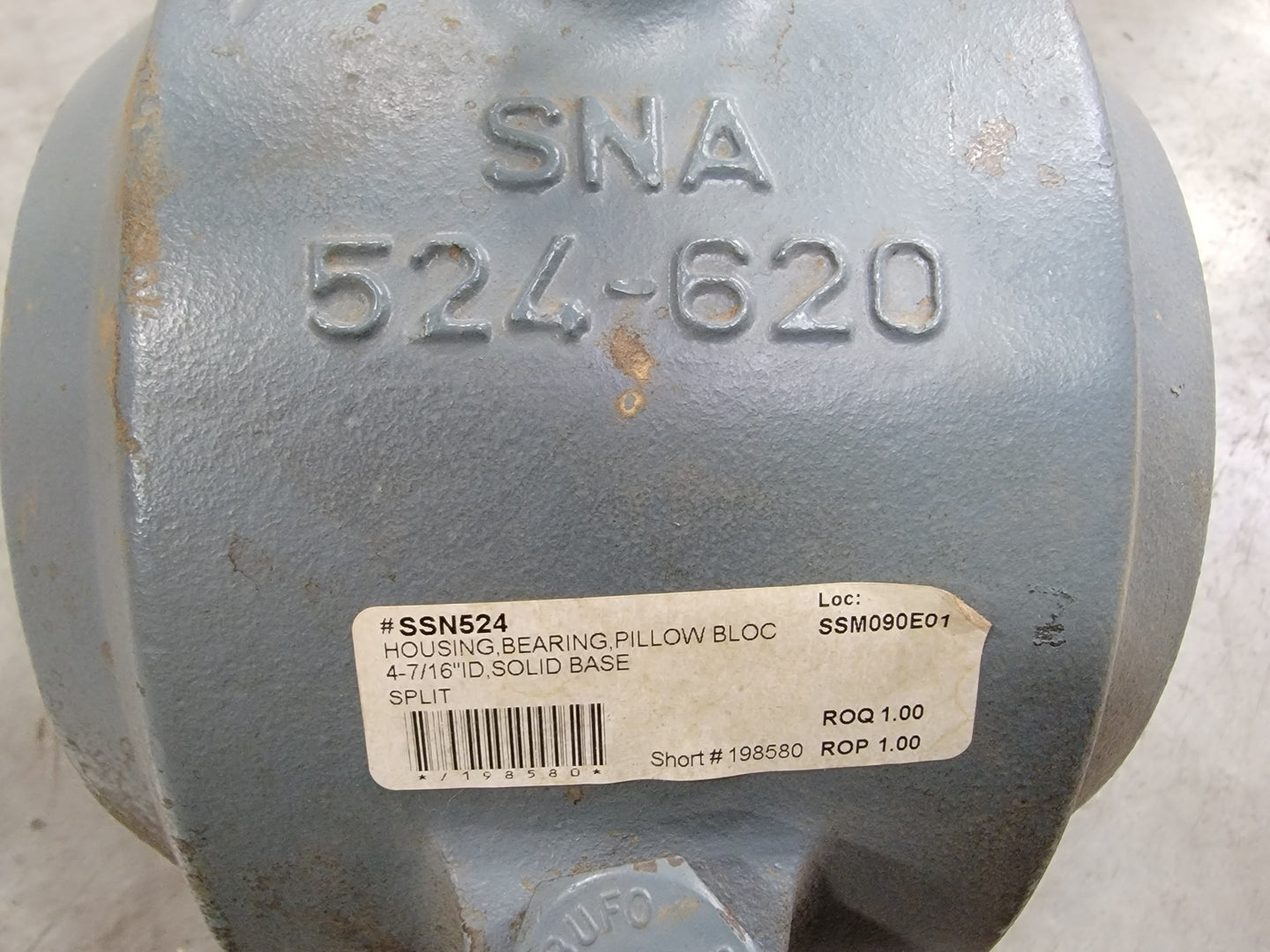

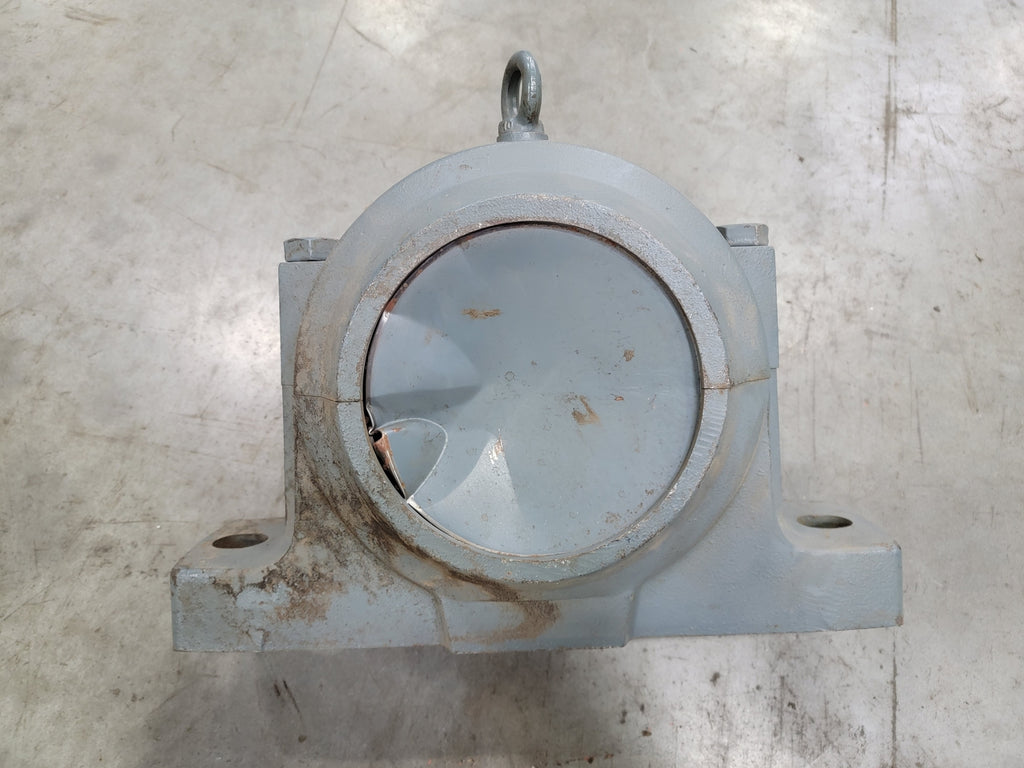

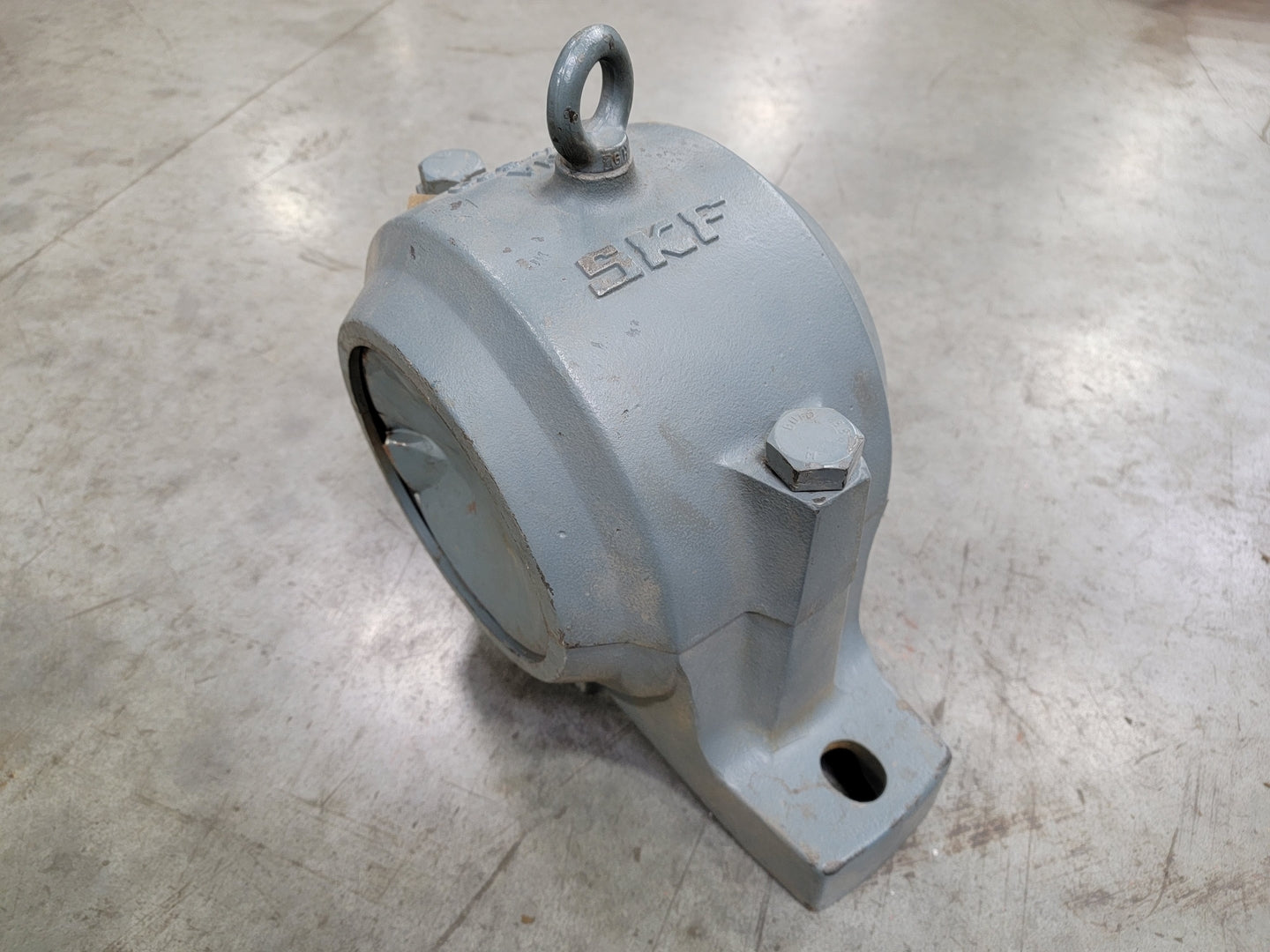

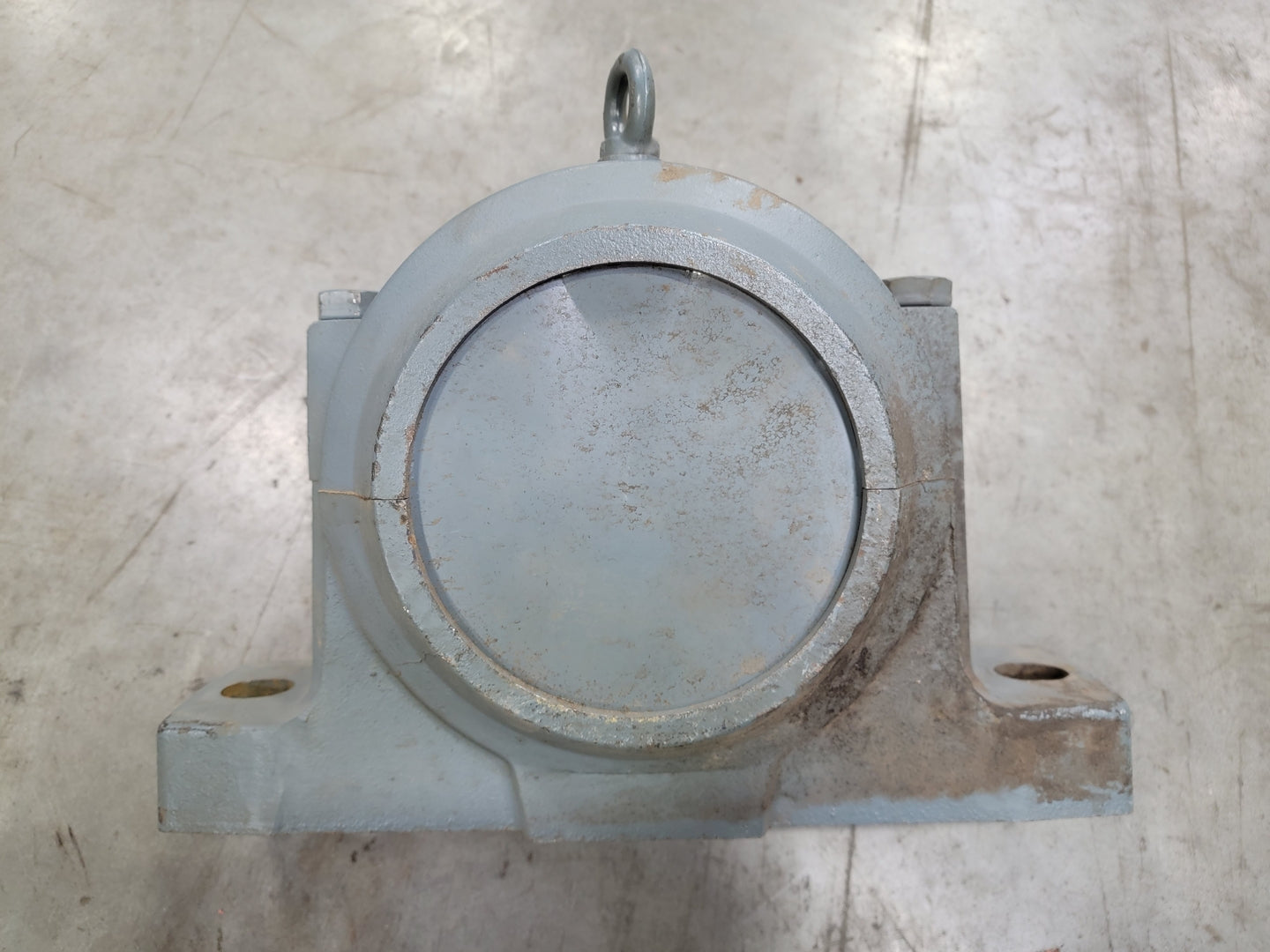

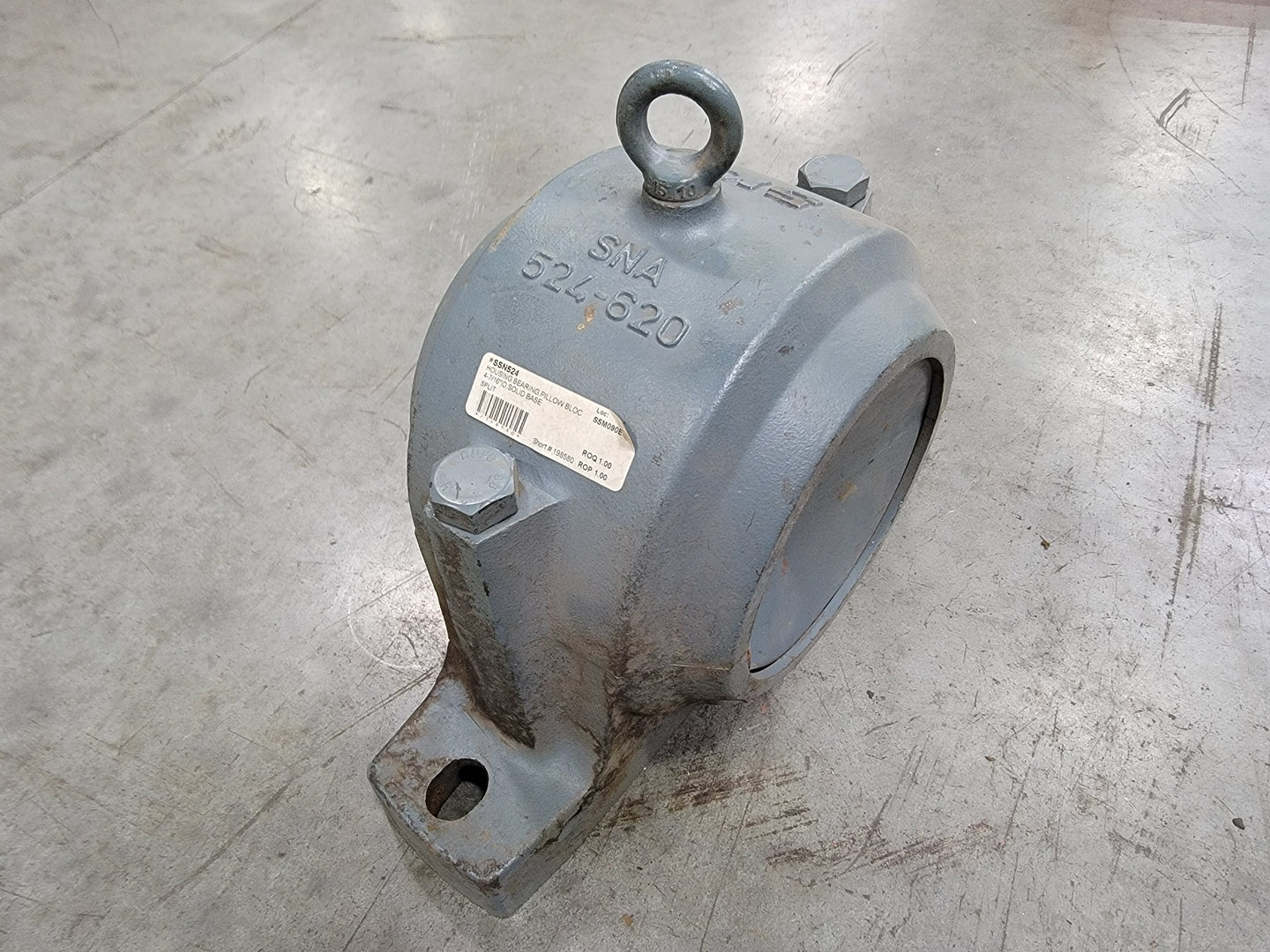

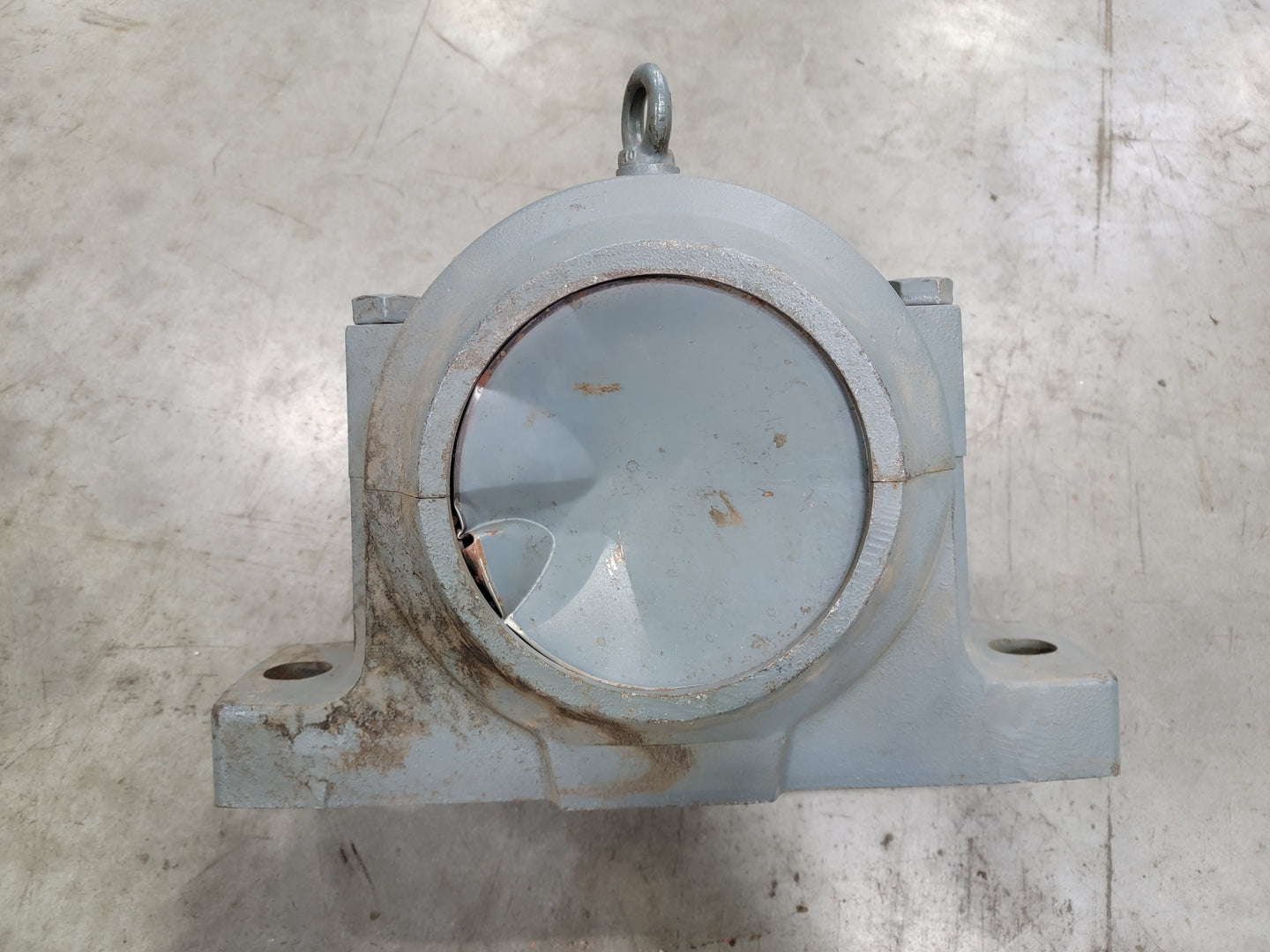

The Split Plummer Block Bearing Housing SNA524-620 has a shaft diameter of 4-7/16" and is compatible with the 23224 CCK/W33 bearing series/part. It is a split plummer block type with dimensions of 8.50 x 13.00 x 16.00 and a weight of 57.00. The housing is designed for a 4-7/16" bore and has a base length of 16.13", base width of 4.72", and base center height of 5.51". It has a mounting of 2 bolts (7/8" size) and is suitable for use with spherical roller bearing types. There are currently 2 units available for purchase.
| Specifications | |
|---|---|
| Model | SNA524-620 |
| Condition | Used | General |
| Type | Split Plummer Block |
| Height | 10.67 in. |
| Outside Length | 16.13 in. |
| Base to Bore Centerline | 5.51 in. |
| Distance Between Bolts | 13.78 in. |
| Housing Compatible Bore Diameter | 4-7/16 in. |
| Compatible Bearing Series/Part # | 23224 CCK/W33 |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Shaft Diameter: 4-7/16", 110 mm
Base Length: 16.13"
Base Width: 4.72"
Base Center Height: 5.51"
Bolt Center Length: 13.78"
Mounting: 2 Bolts, 7/8"
|
