Description

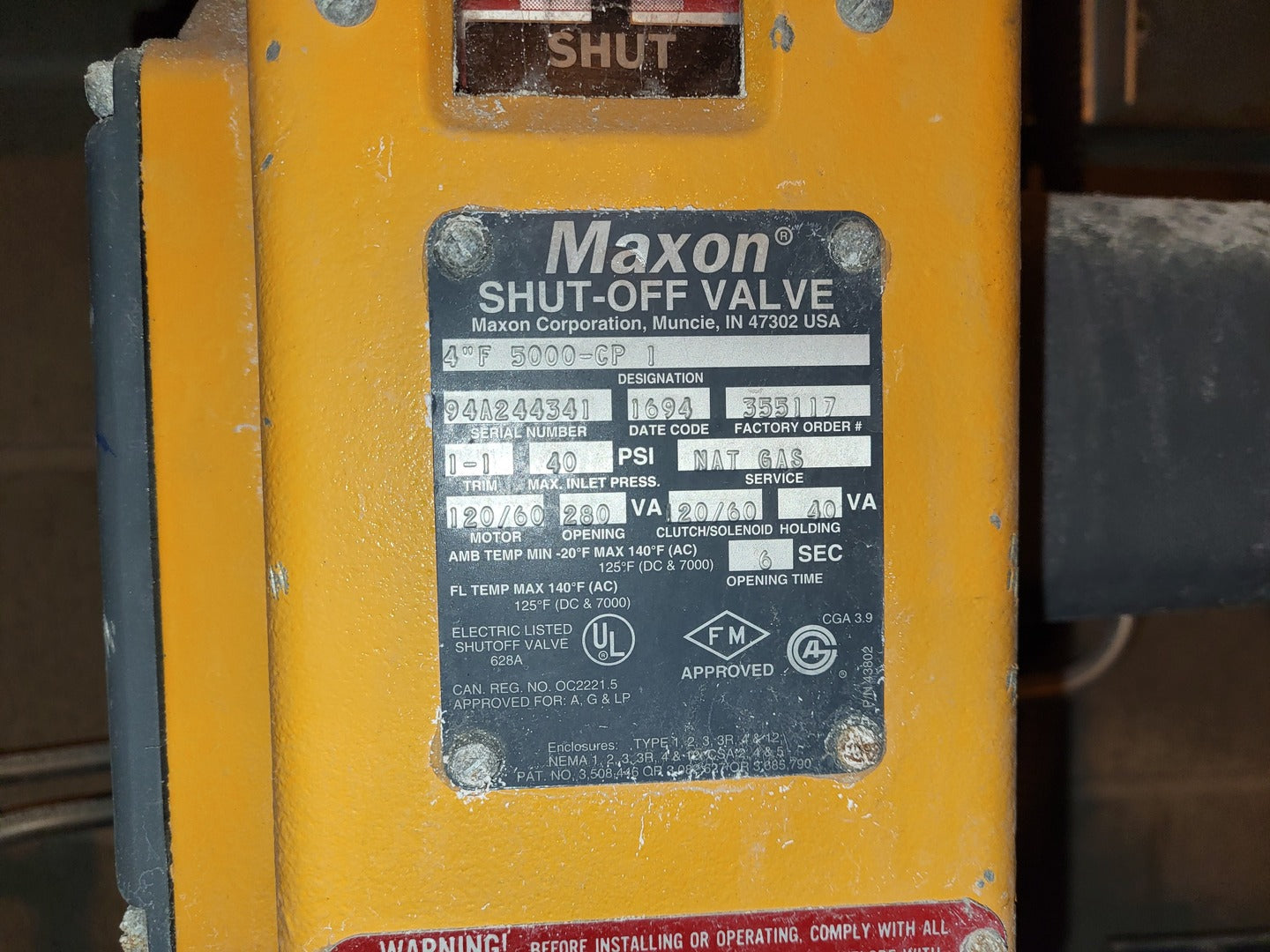

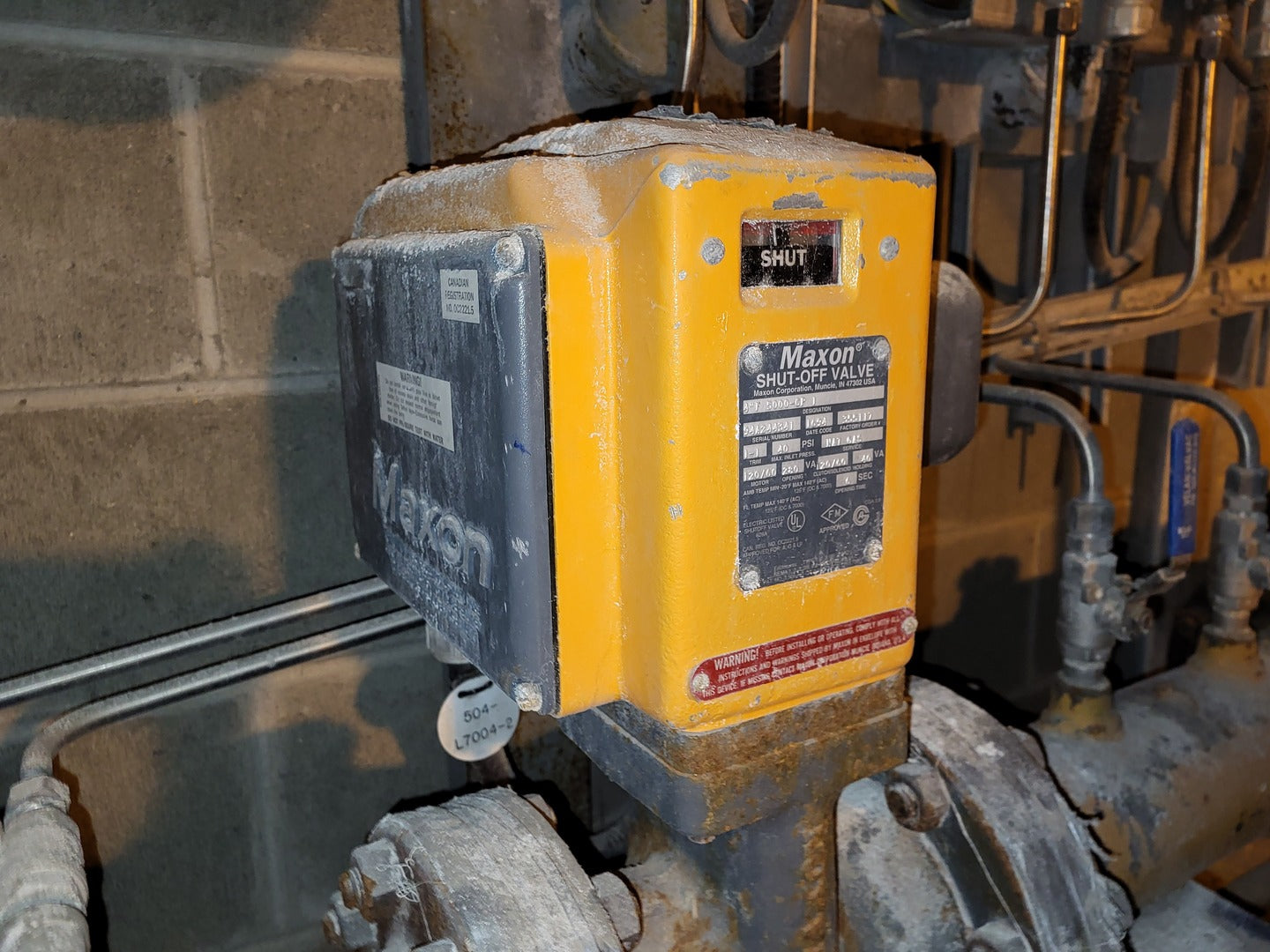

This is a 4" Natural Gas Shut-Off Valve model 5000-CP-1 manufactured by MAXON CORPORATION. It is an automatic (motorized) valve with a normally closed shut-off position. The valve is suitable for general purpose applications, operates on a motor voltage rating of 120V and 280 VA, with a solenoid voltage rating of 120V and 40 VA. It has an opening time of 6 seconds and can withstand a maximum inlet pressure of 40 psi. The body material is cast iron with various enclosure type options available. The valve has a Class 400 and connection ends are flanged.
| Specifications | |
|---|---|
| Model | 5000-CP-1 |
| S/N: | 94A244341 |
| Condition | Used | General |
| Diameter | 4" |
| Class | 400 |
| Connection Ends | Flange |
| Other Specifications |
|---|
|
Flow Capacity: CP Body Construction Valve Type: Automatic (Motorized) Valve Normal Position: Normally Closed Shut-Off Valve Classification Area: General Purpose Switch Options: VCS-2 and VOS-2 Motor Voltage Rating: 120V, 280 VA Solenoid Voltage Rating: 120V, 40 VA Opening Time: 6 Seconds Maximum Inlet Pressure: 40 psi Body Trim: 1-1 Body Material: Cast Iron Enclosure Type: 1, 2, 3, 3R, 4 & 12 |
