Description
| Specifications | |
|---|---|

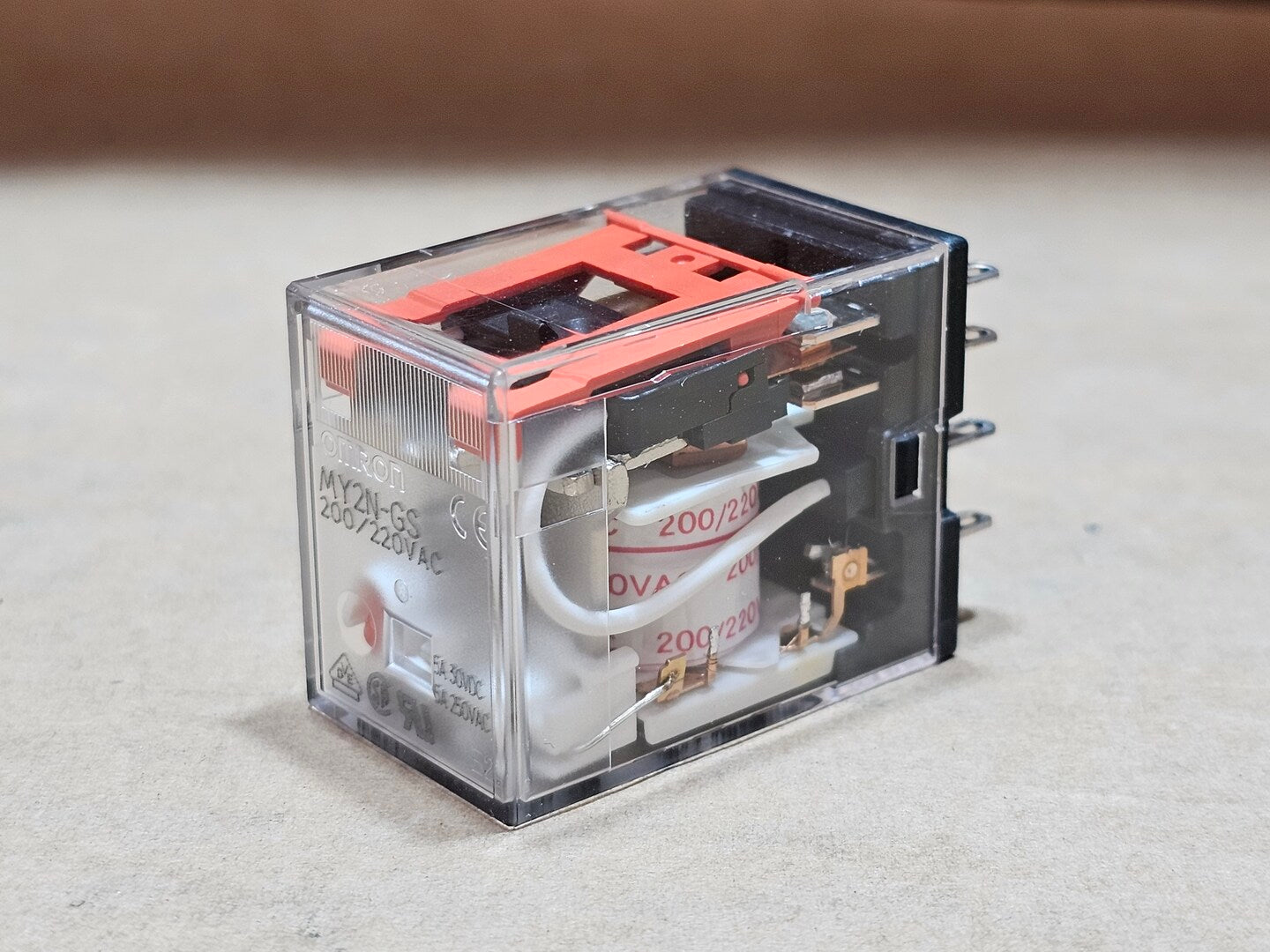

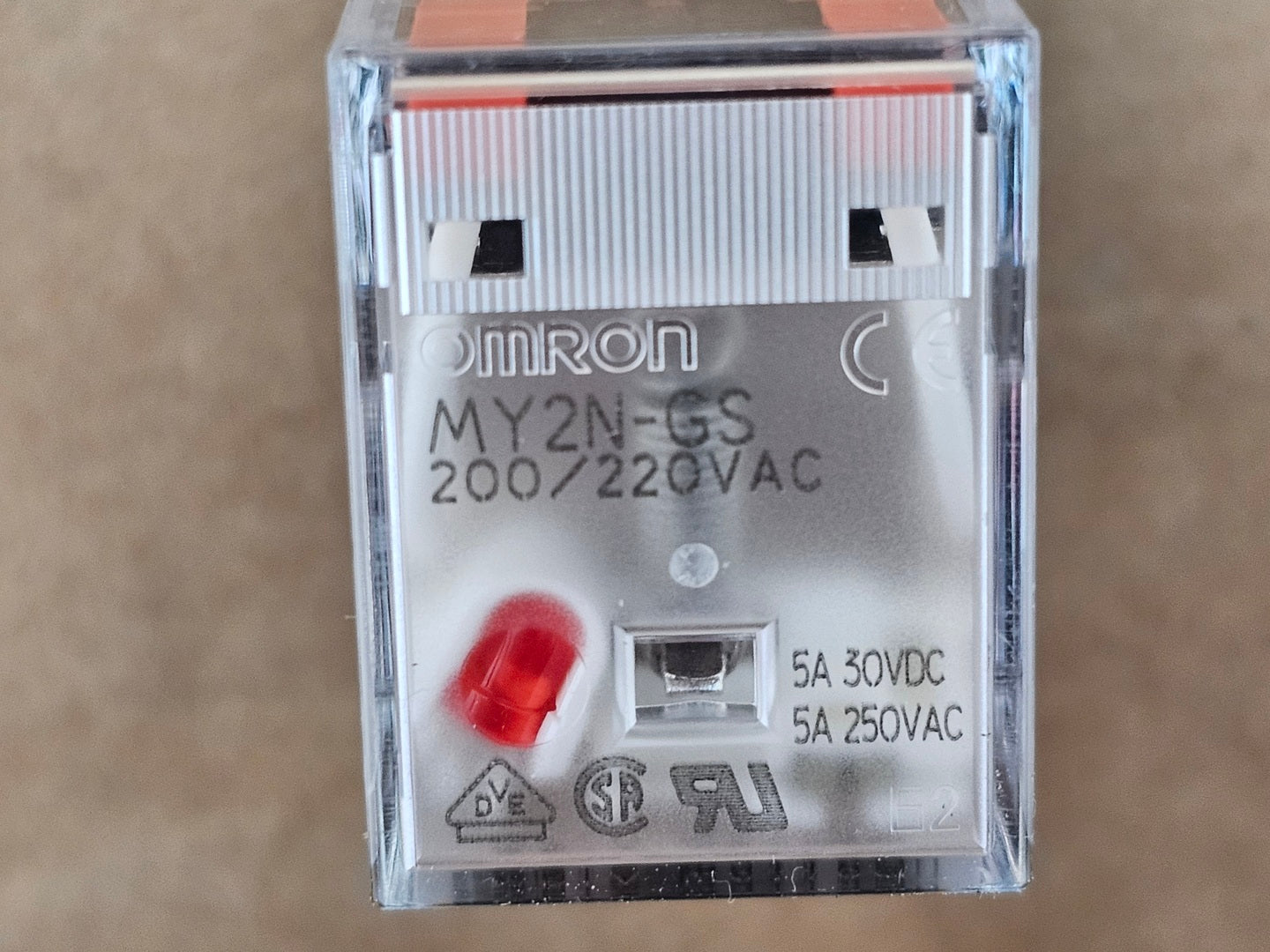

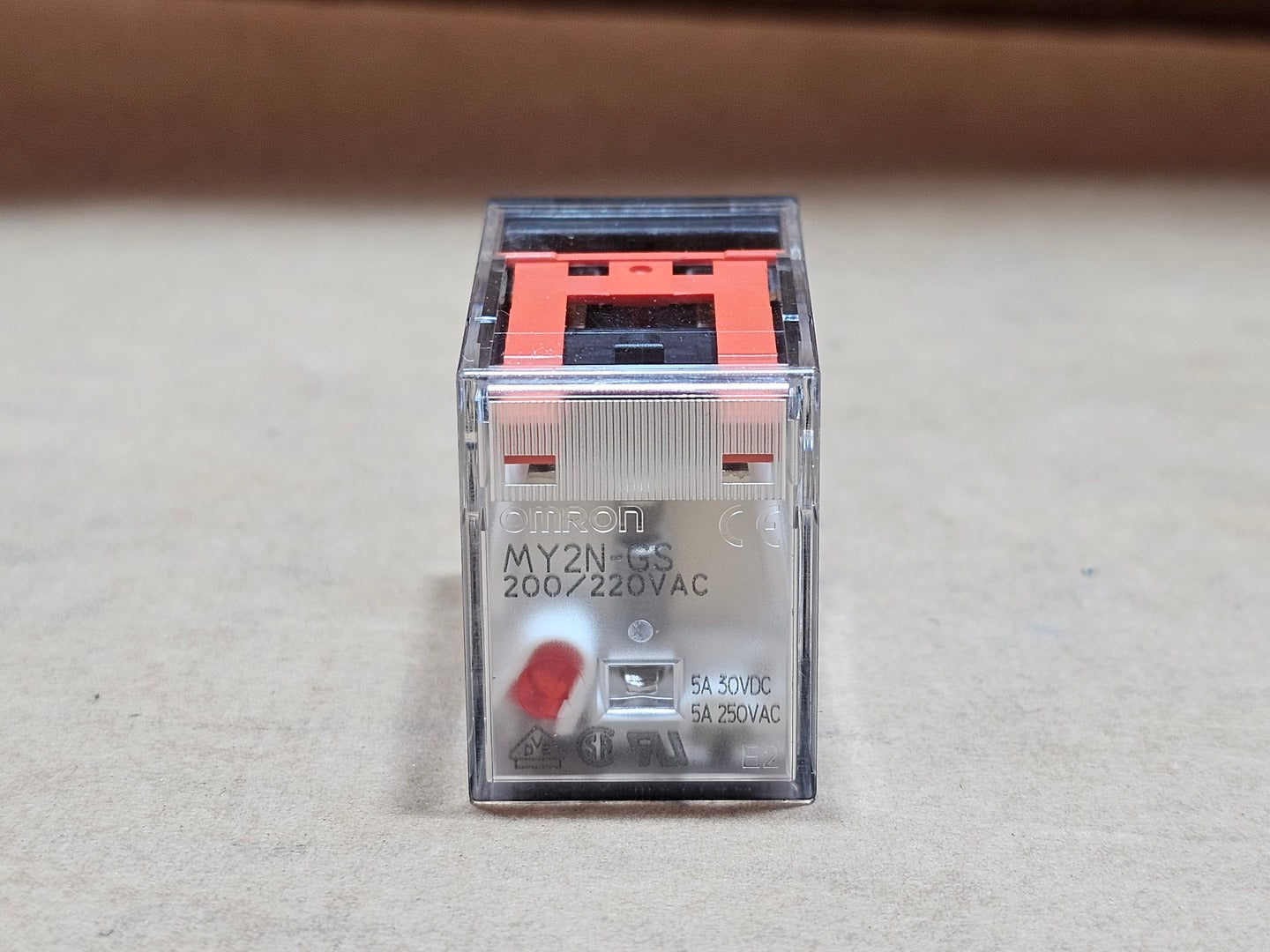

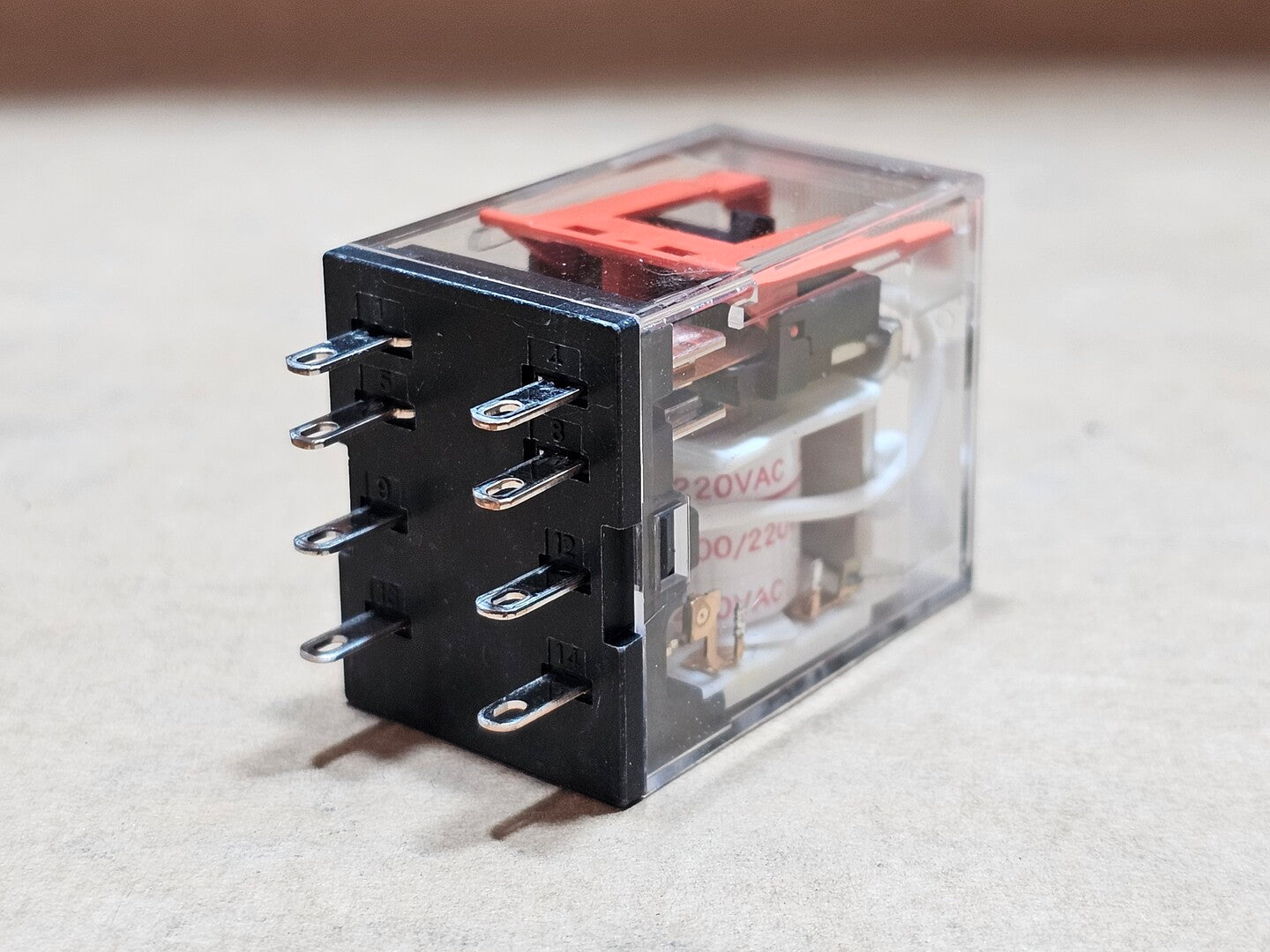

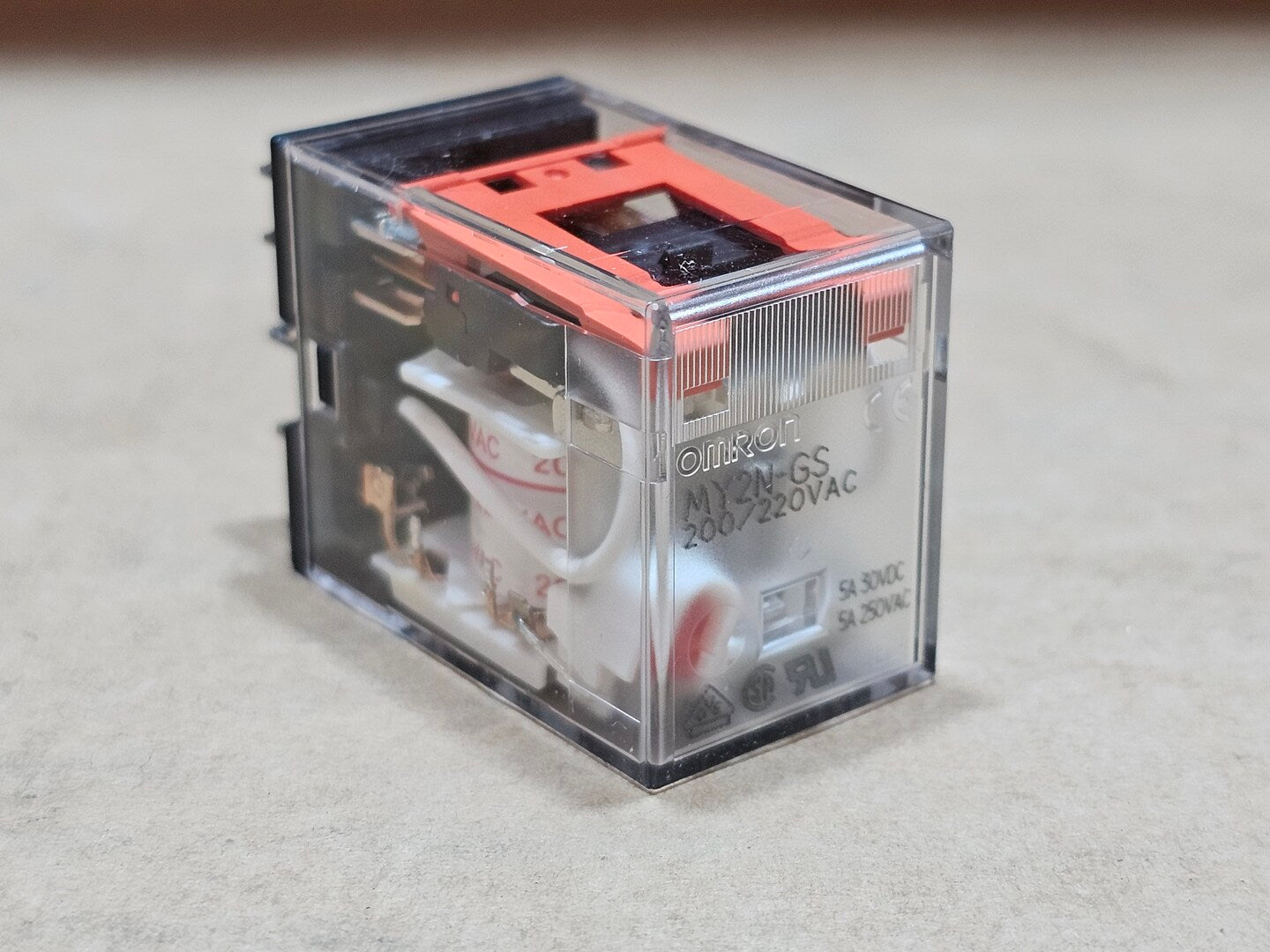

| Model | MY2N-GS |

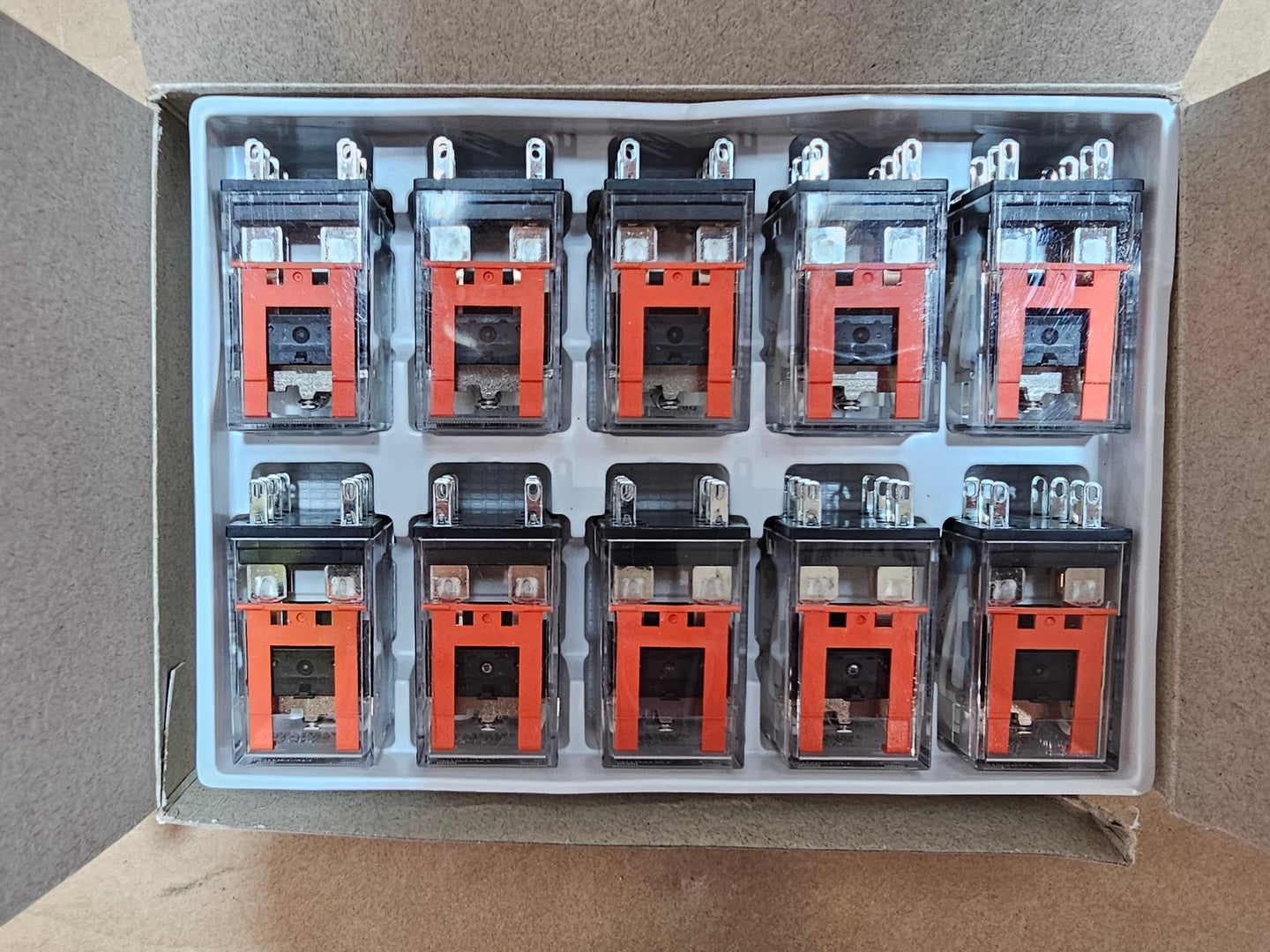

| Condition | Surplus New | General |
| Amps | 5 amps |
| Voltage | 220 volts |
| Mounting Style | Plug-In |
| Other Specifications |
|---|
|

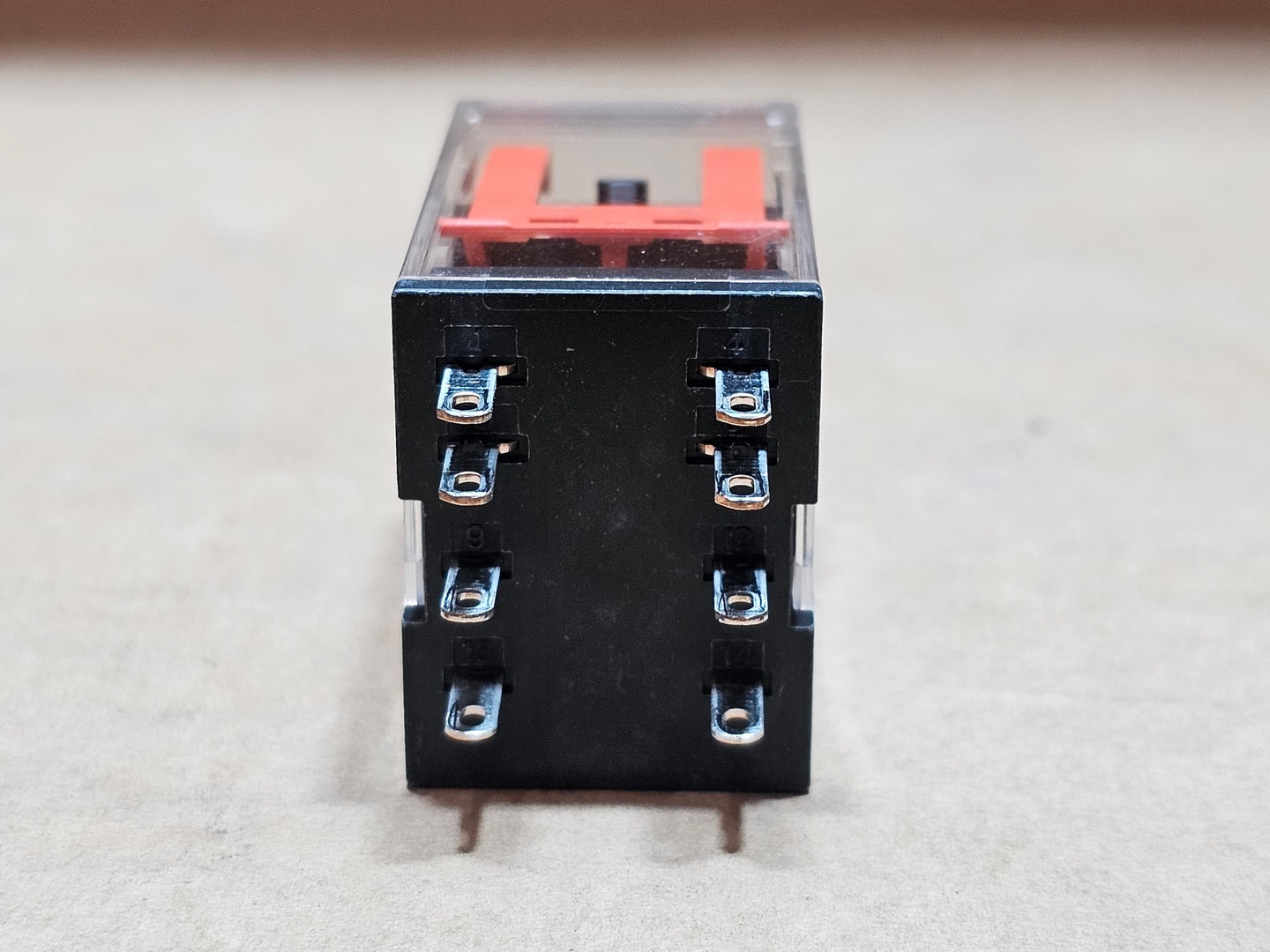

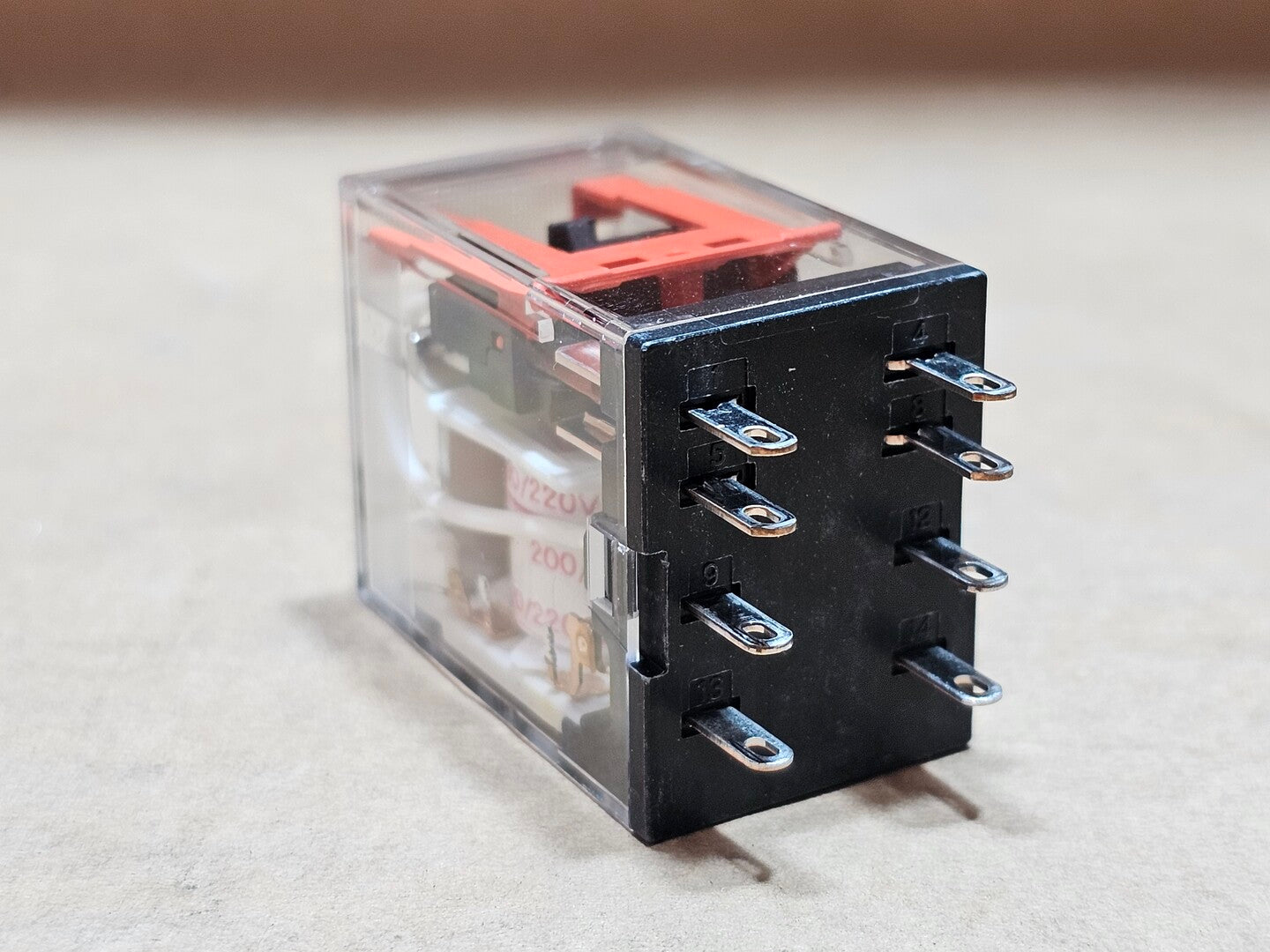

Coil Voltage: 200/220 VAC Contact Form: DPDT / 2 Form C Number Of Poles: 2 Contact Structure: Single contact Contact Material: Ag Contact Rating Marked On Relay: 5 A at 30 VDC; 5 A at 250 VAC Maximum Contact Voltage: 250 VAC; 220 VDC Terminal Type: Plug-in octal pins Pin Count: 8 pin Mounting Type: Plug-in socket mount Indicator: LED operation indicator Mechanical Indicator: Yes Coil Current: 6.2/6.8 mA at 50 Hz; 5.3/5.8 mA at 60 Hz Coil Resistance: 12950 ohms Operate Time: 20 ms max Release Time: 20 ms max Insulation Resistance: 1000 megohms min Dielectric Strength: 2000 VAC between coil and contacts for 1 min Operating Humidity: 5 percent to 85 percent |
