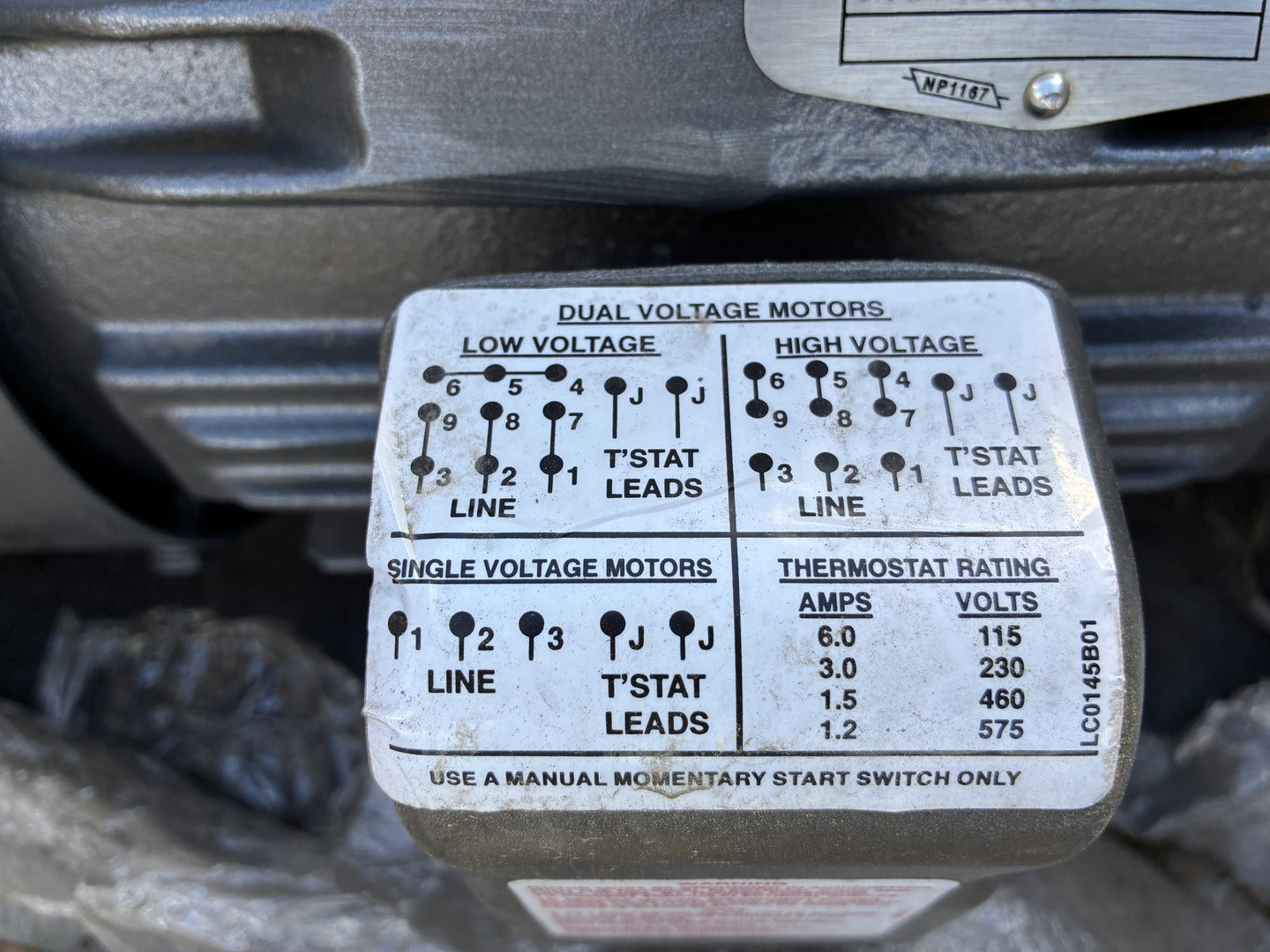

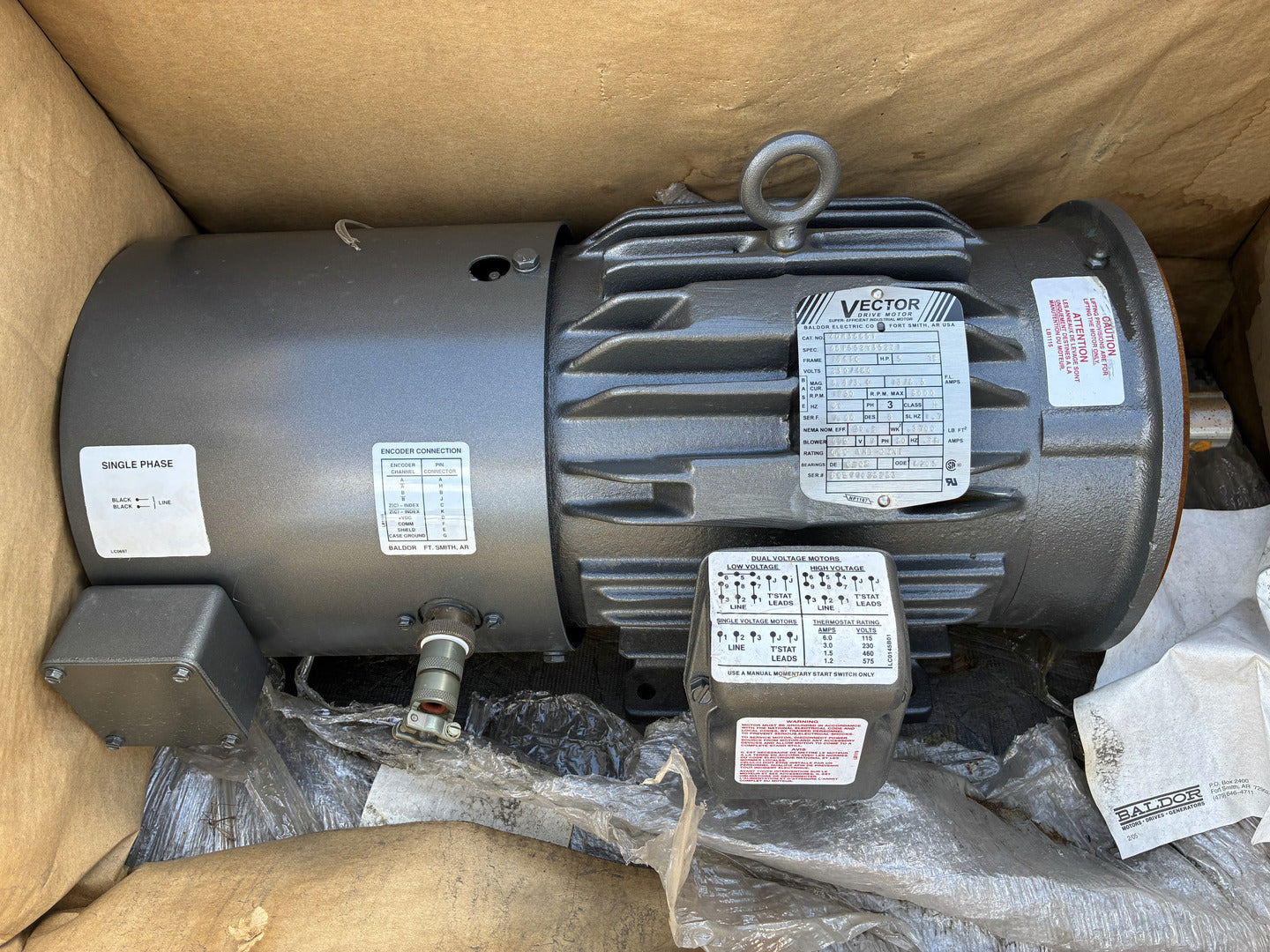

Baldor 5 HP vector drive motor designed for variable-speed and closed-loop drive applications. It operates on 230/460V three-phase power and is rated at 1750 RPM base speed with a maximum operating speed of 6000 RPM. The motor features a NEMA 184TC C-face frame, Class H insulation, integrated encoder feedback, thermostat leads and a separately powered 115V cooling blower.
| Specifications | |
|---|---|

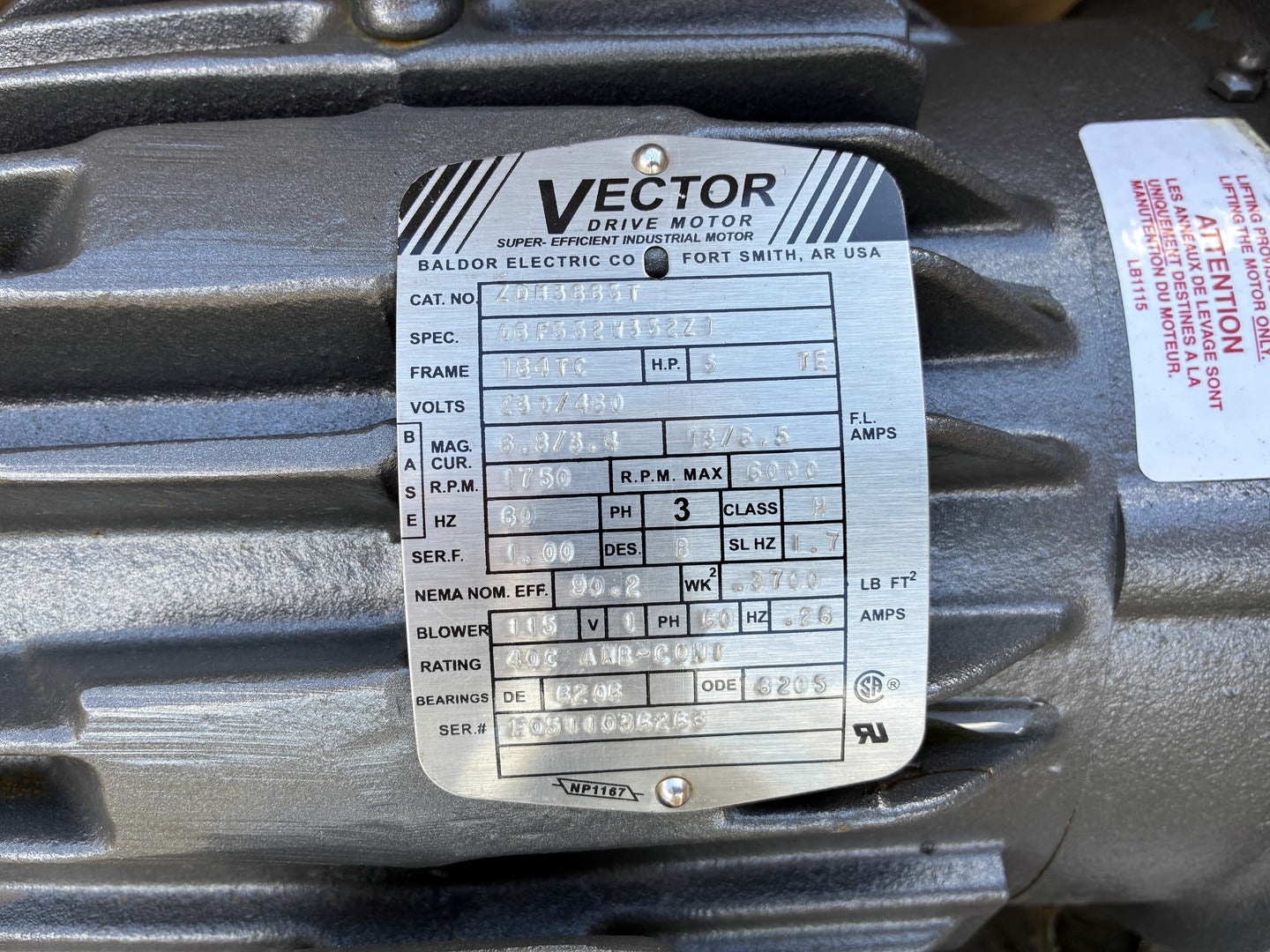

| Model | ZDM3665T |
| S/N: | F0511036263 |
| Condition | Surplus New | General |
| Current Type | AC |
| Horsepower | 5 hp |
| Voltage | 230/460 volts |
| Phase | 3-phase |
| RPM | 1750 rpm |
| Frame | 184TC | Additional Data |
| Alt. RPM | 6000 rpm |
| Duty | Continuous |
| Other Specifications |
|---|
|
Product line: Vector Drive Motor Motor type: Vector-duty industrial AC induction motor Frequency: 60 Hz Full-load current: 13/6.5 A Magnetizing current: 6.8/3.4 A Maximum speed: 6000 RPM Insulation class: Class H Service factor: 1.00 NEMA design: Design B Slip frequency: 1.7 Hz Nominal efficiency: 90.2% Rotor inertia: 0.700 lb-ft2 Duty rating: Continuous Ambient temperature: 40°C Auxiliary blower: 115V, single-phase, 60 Hz |
