Description

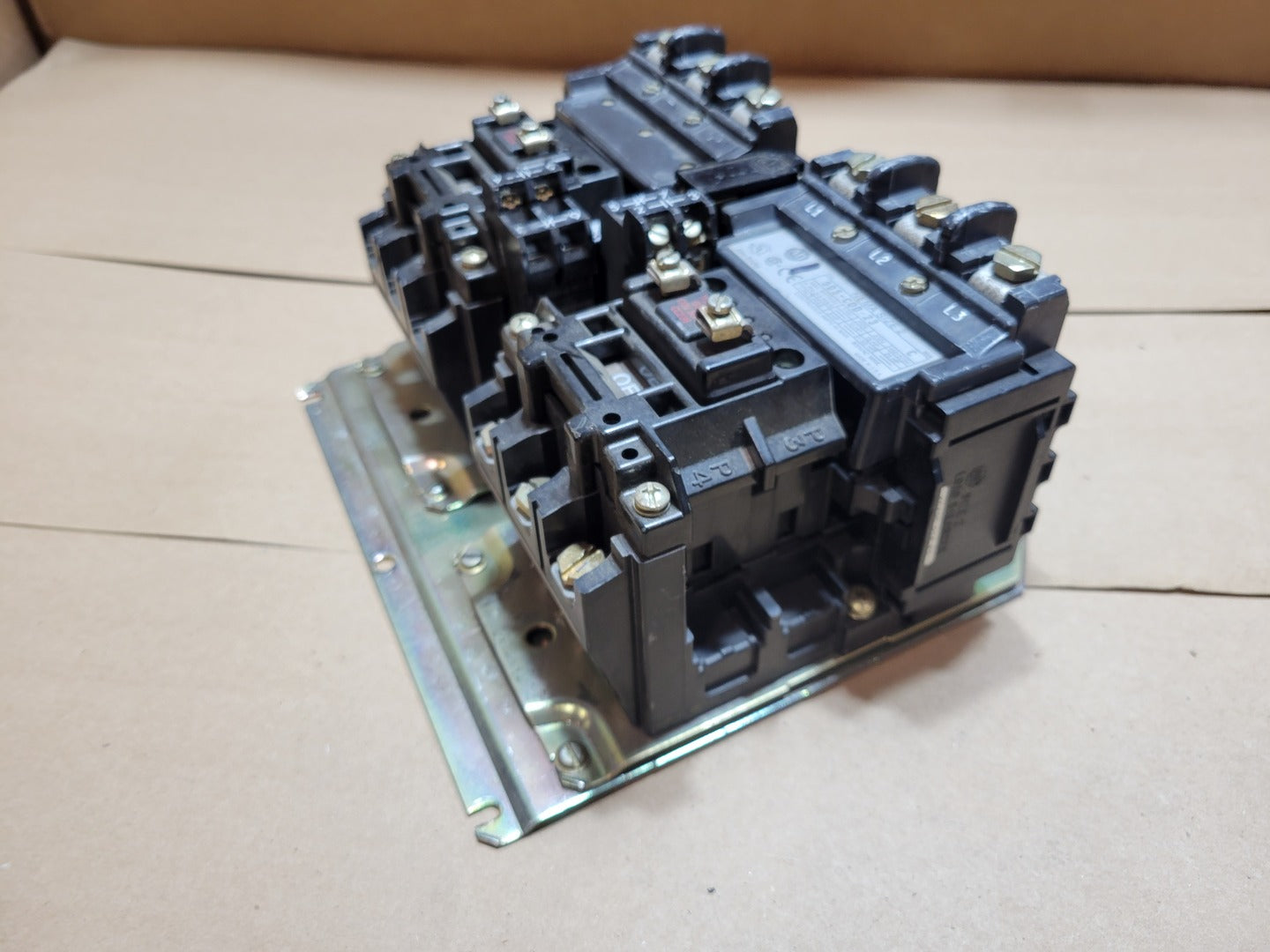

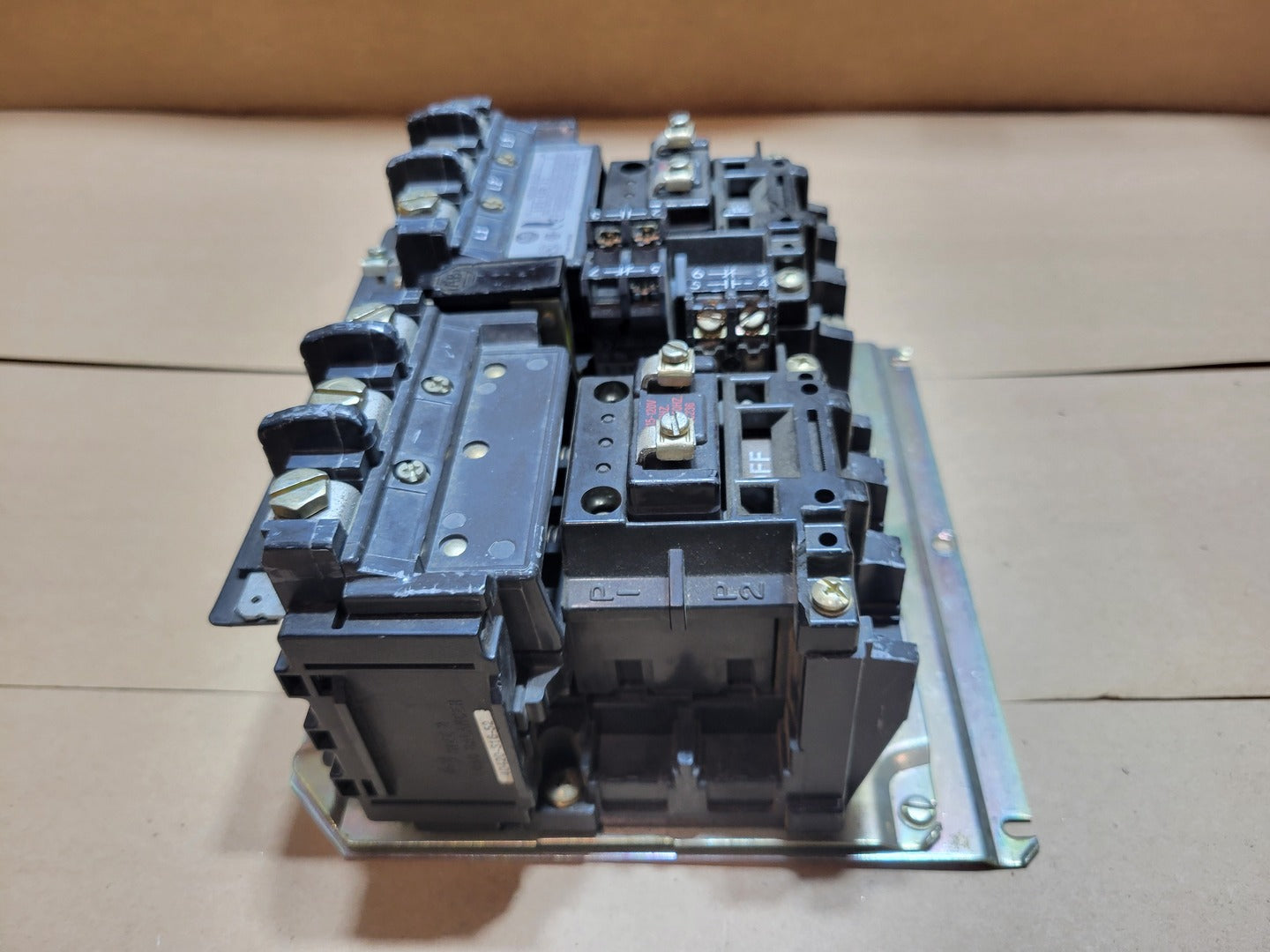

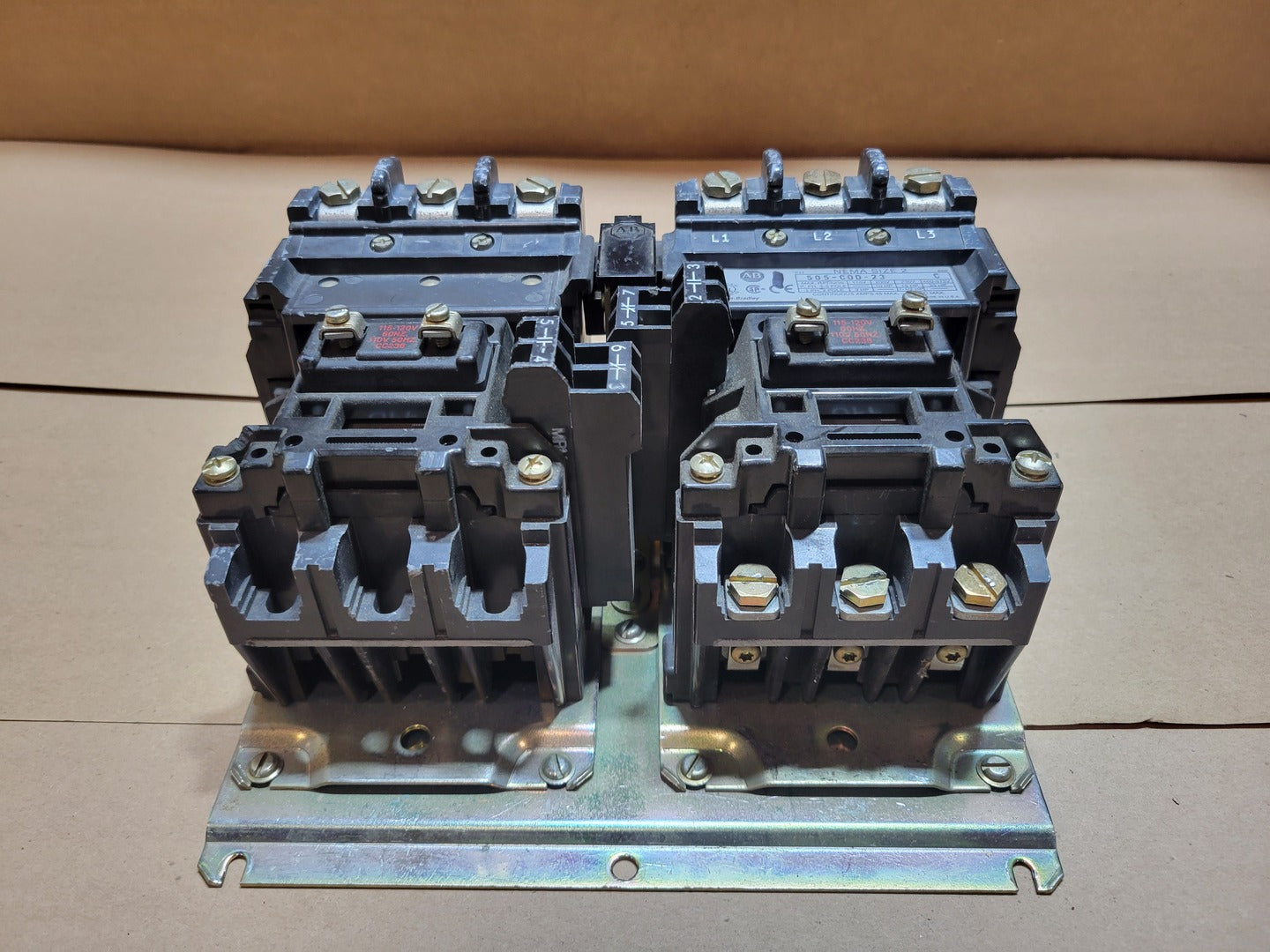

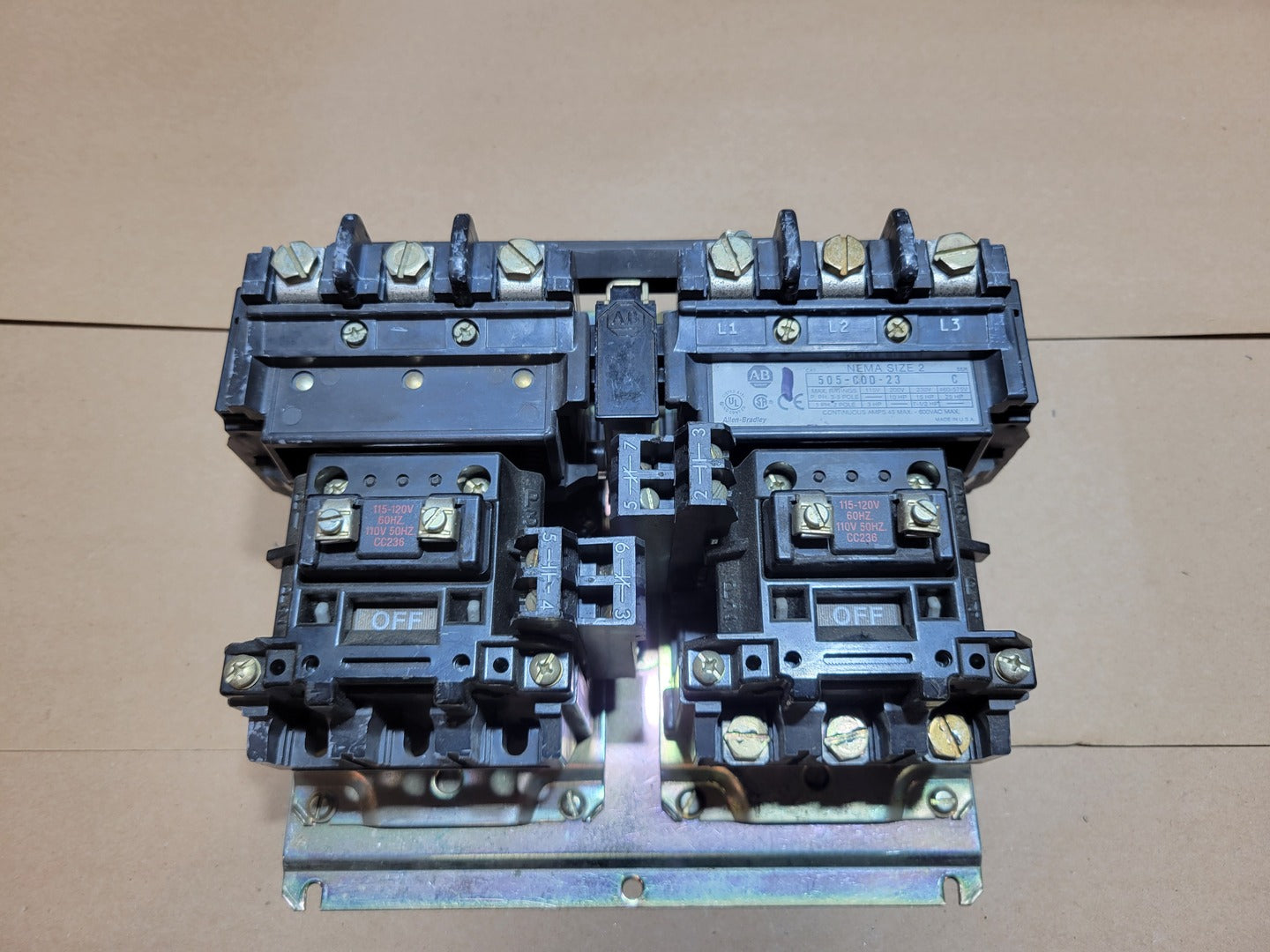

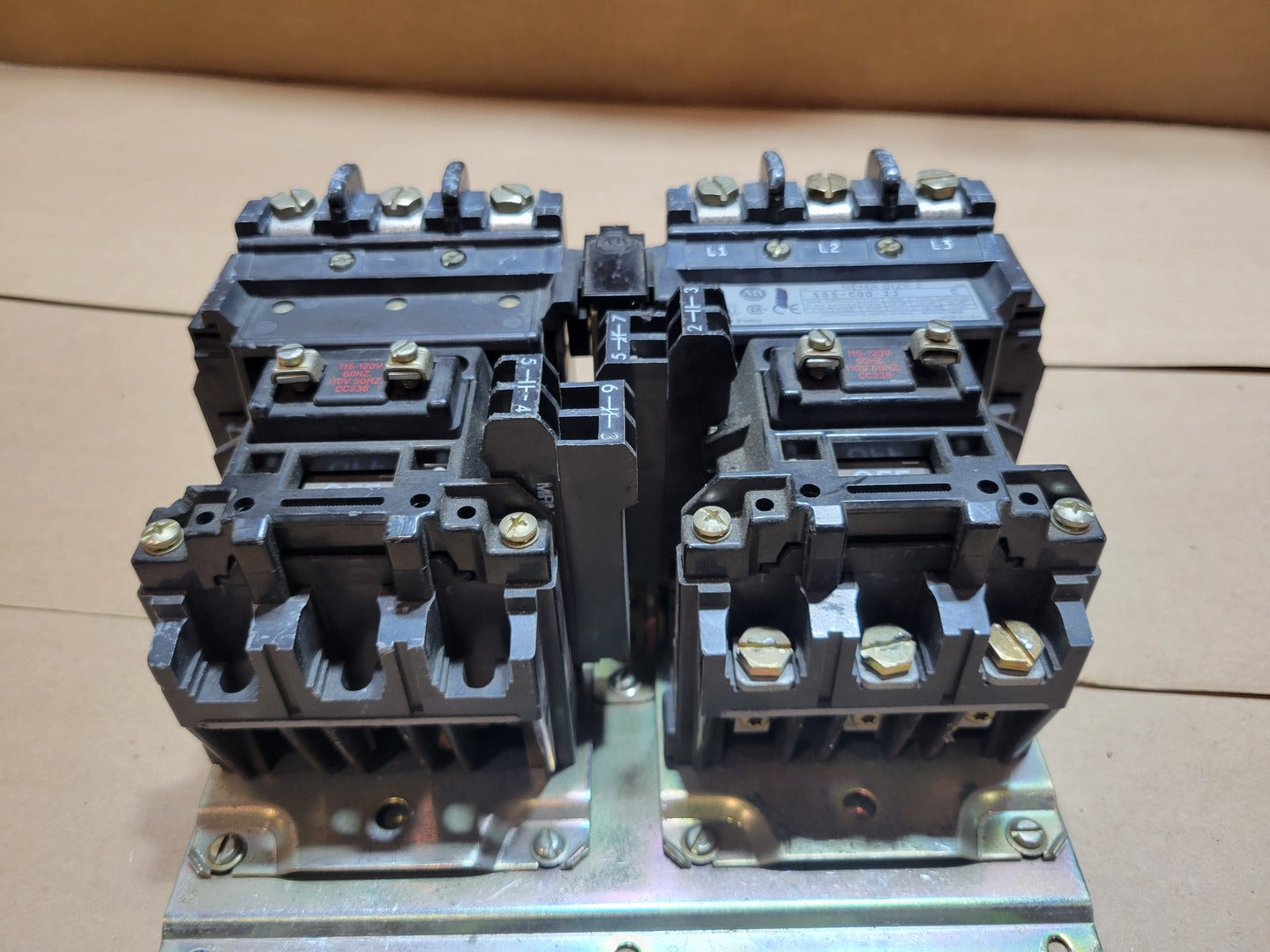

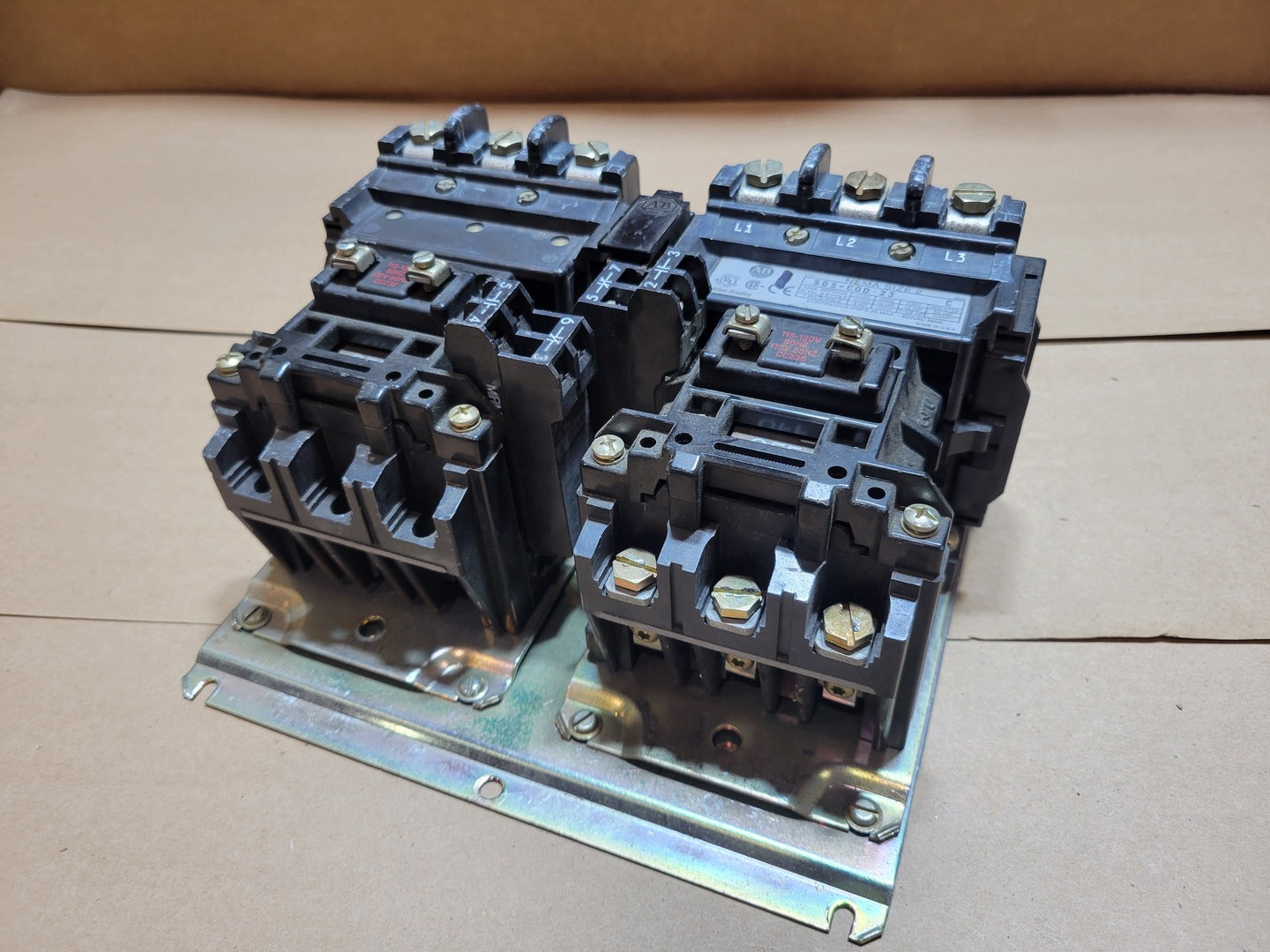

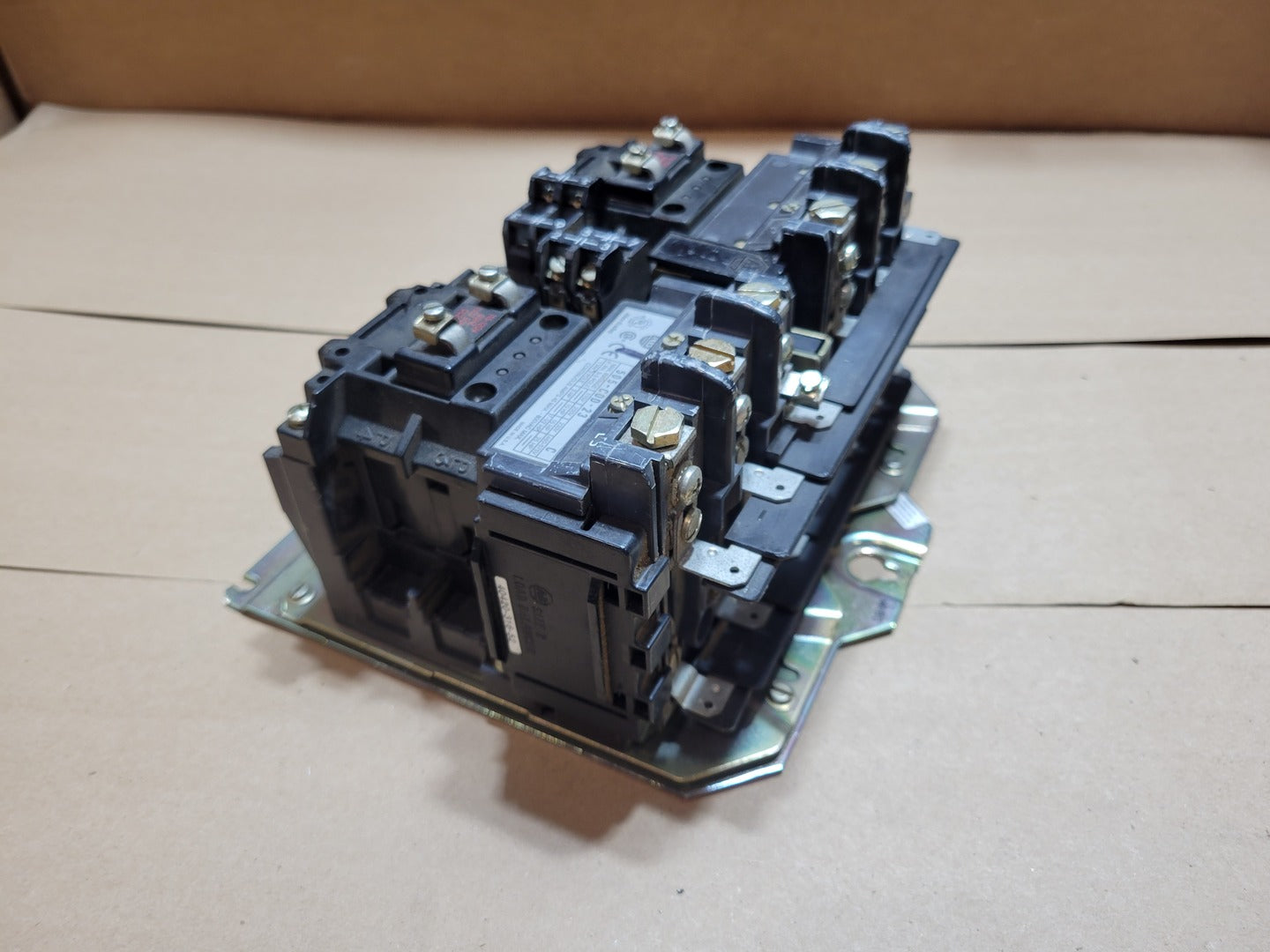

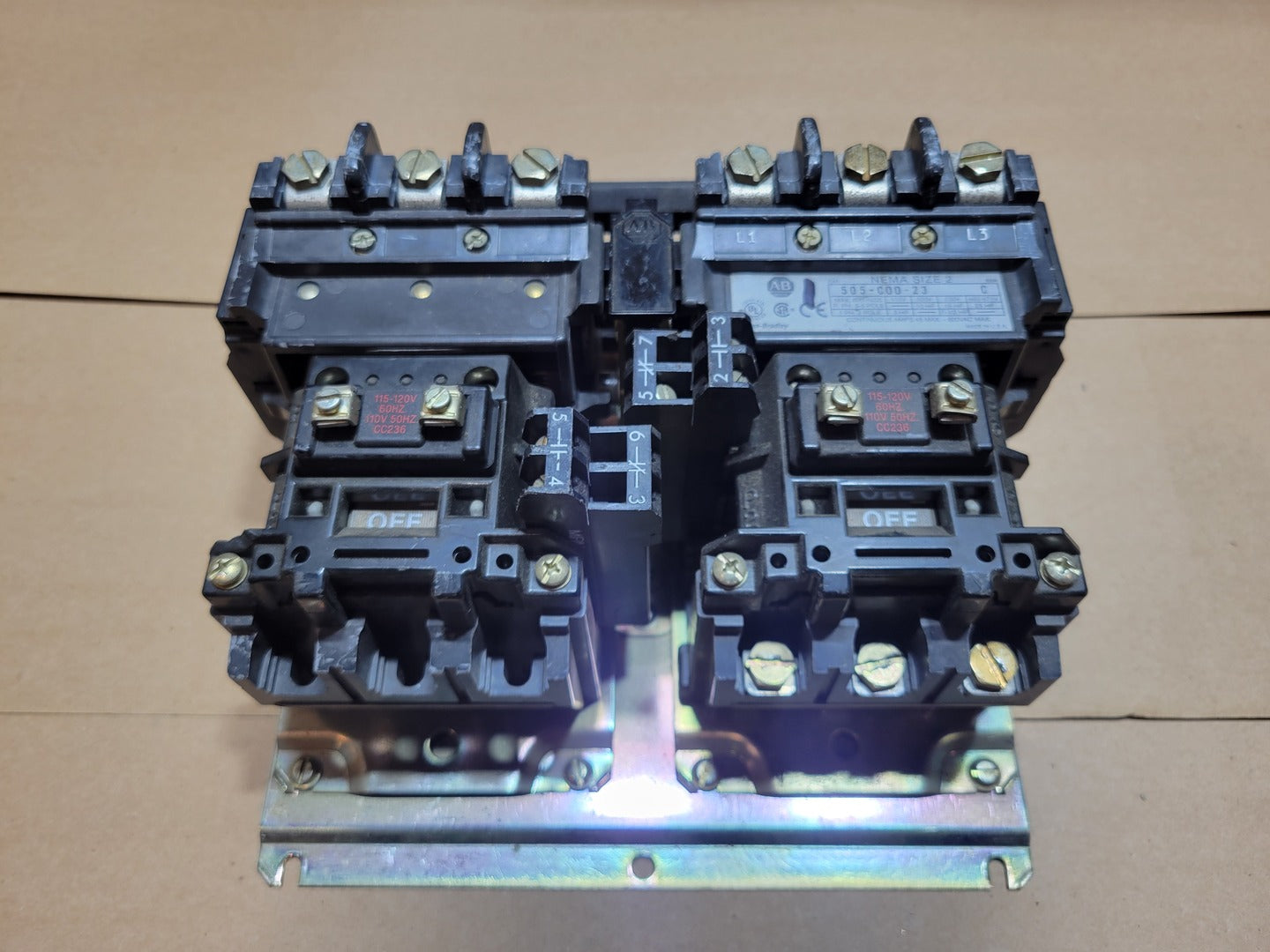

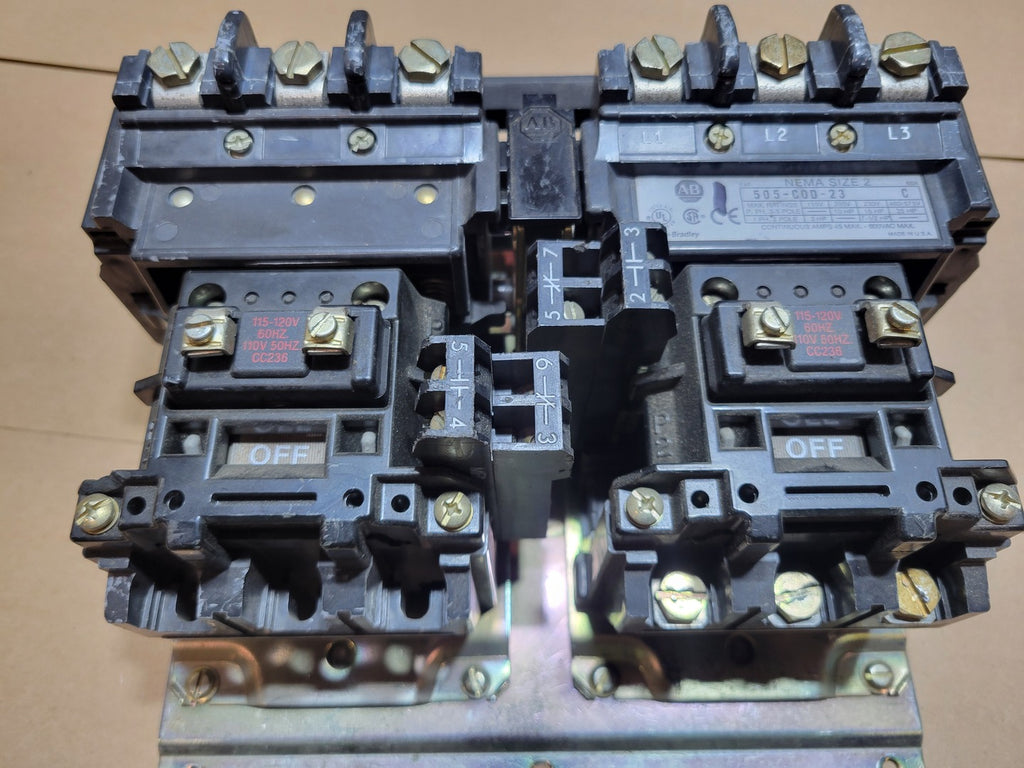

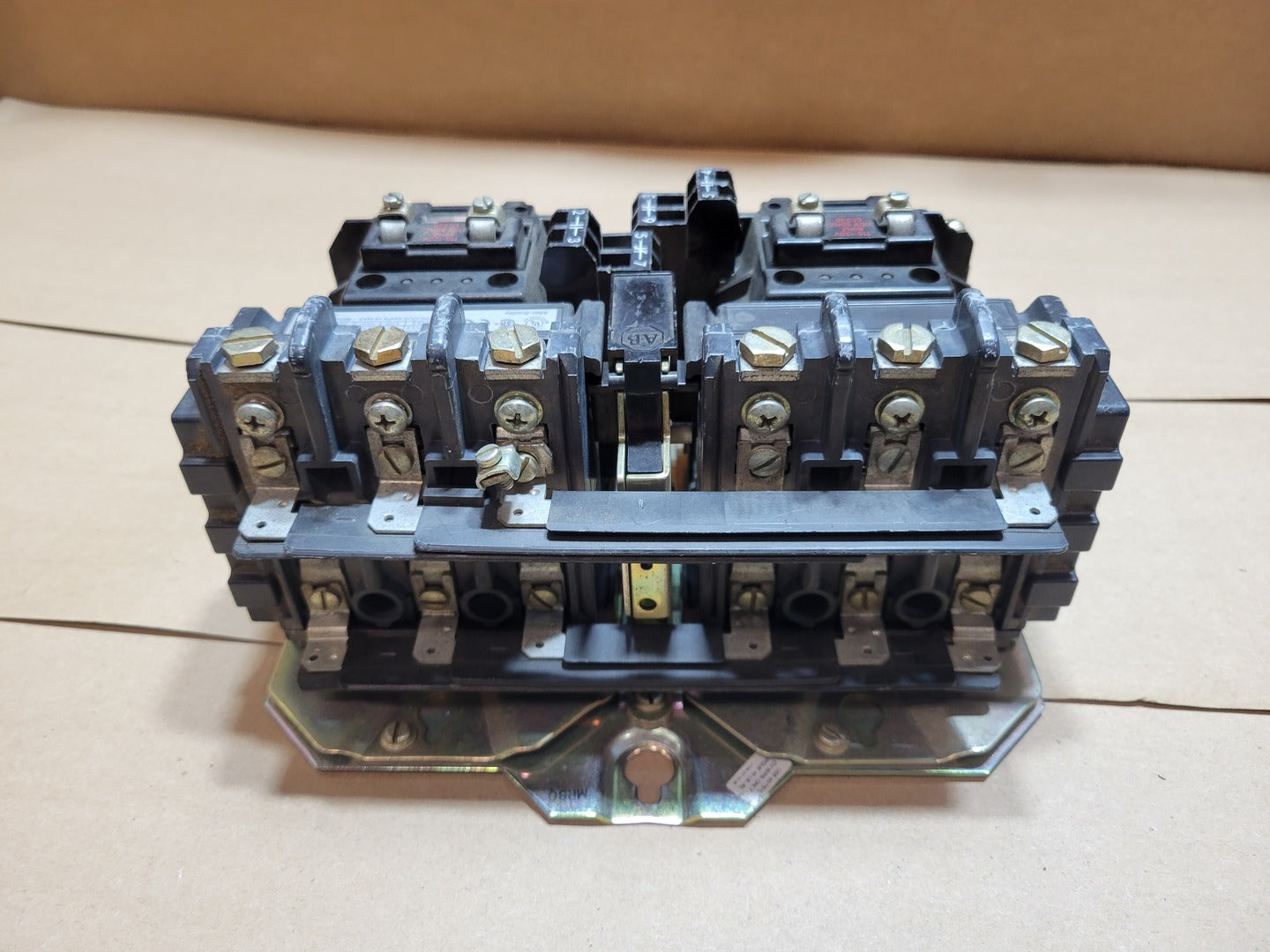

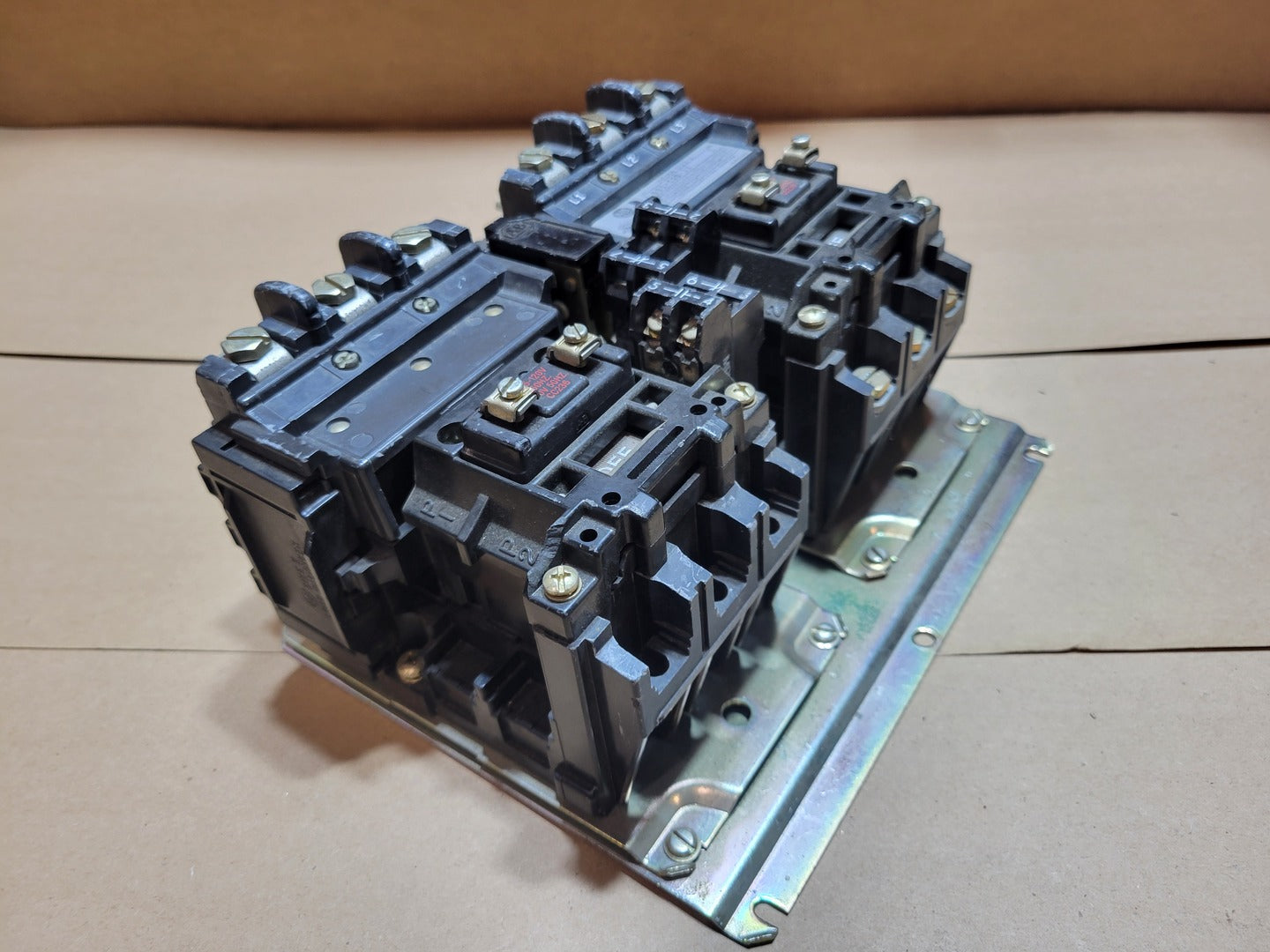

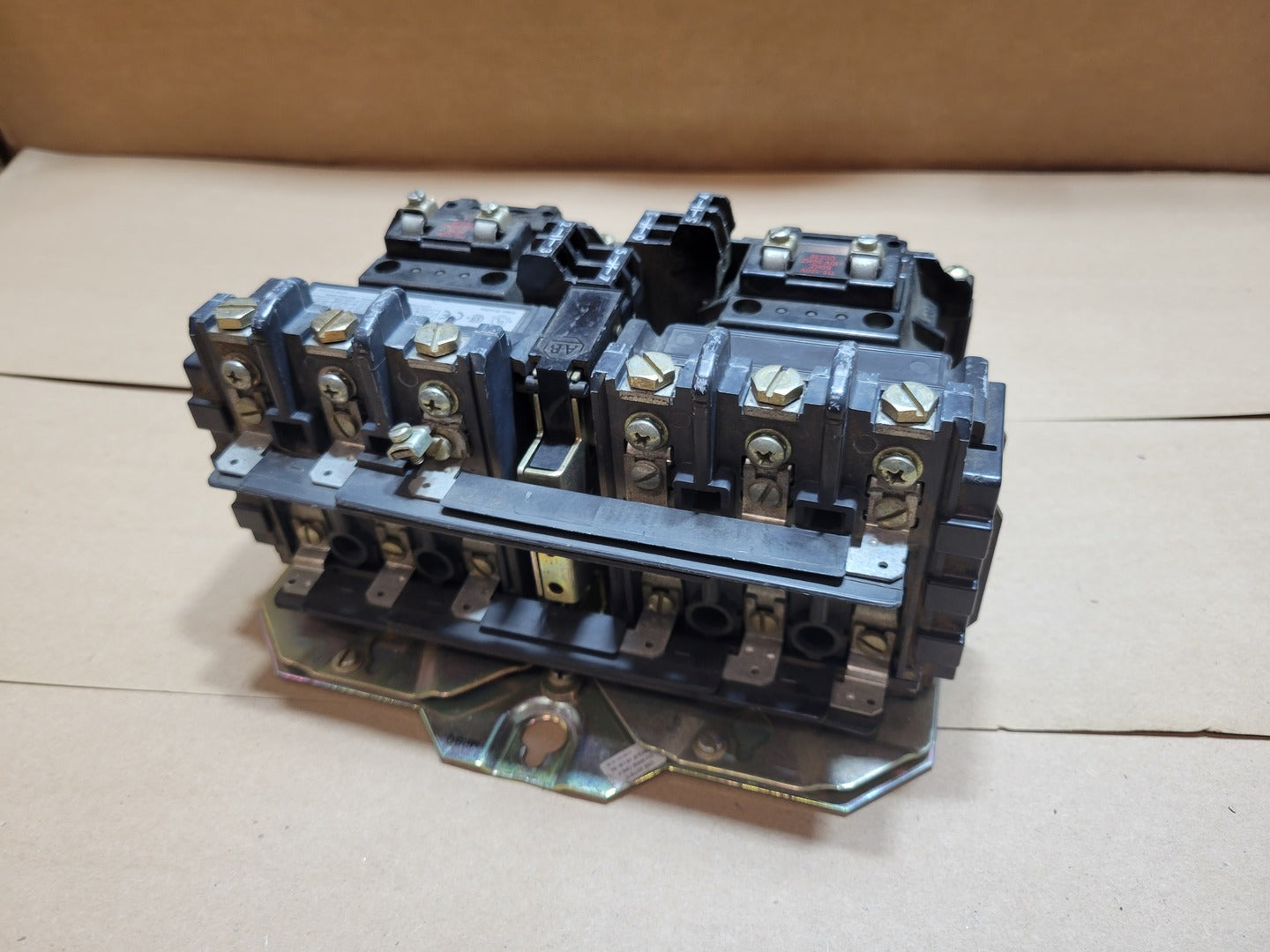

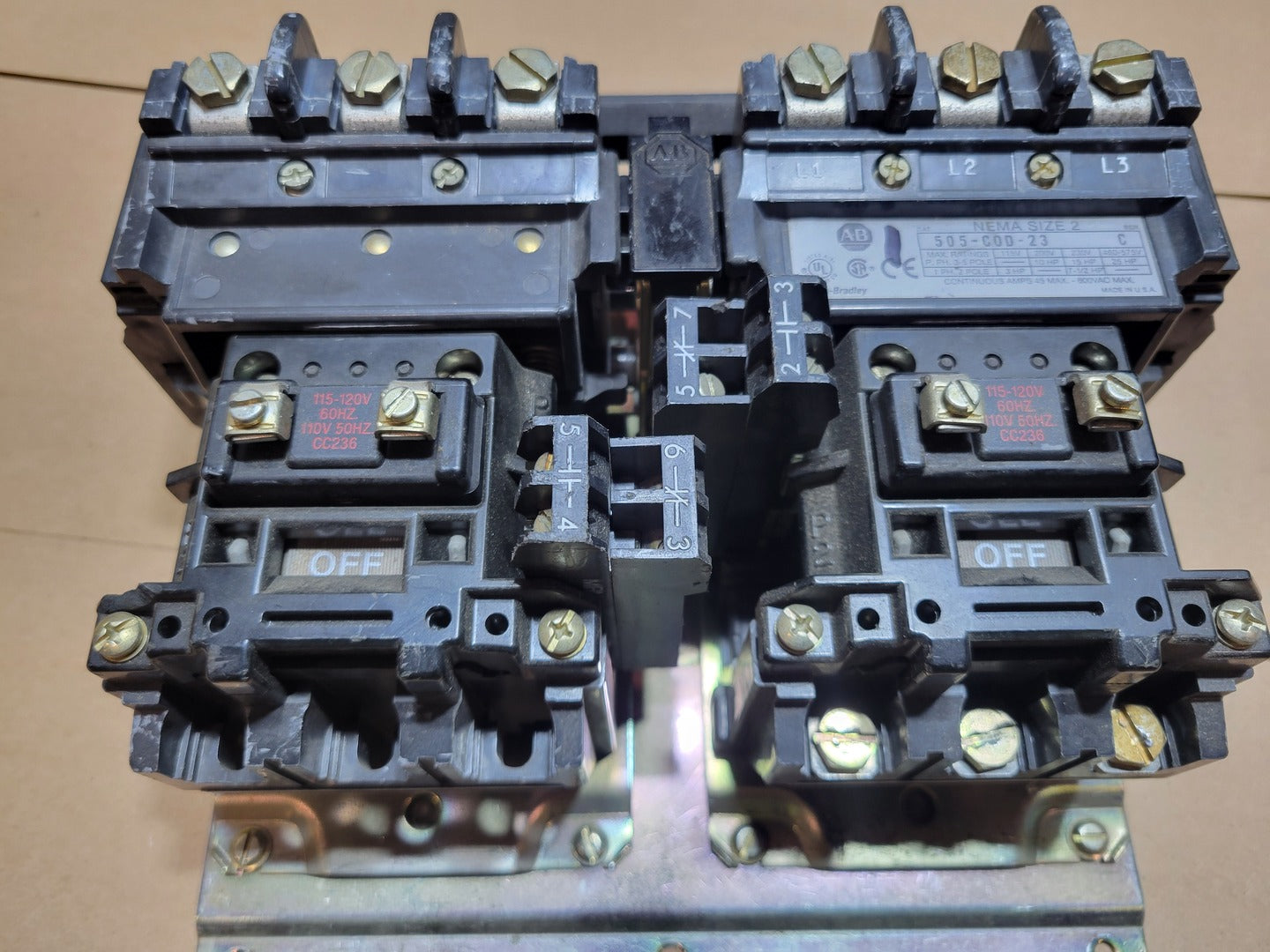

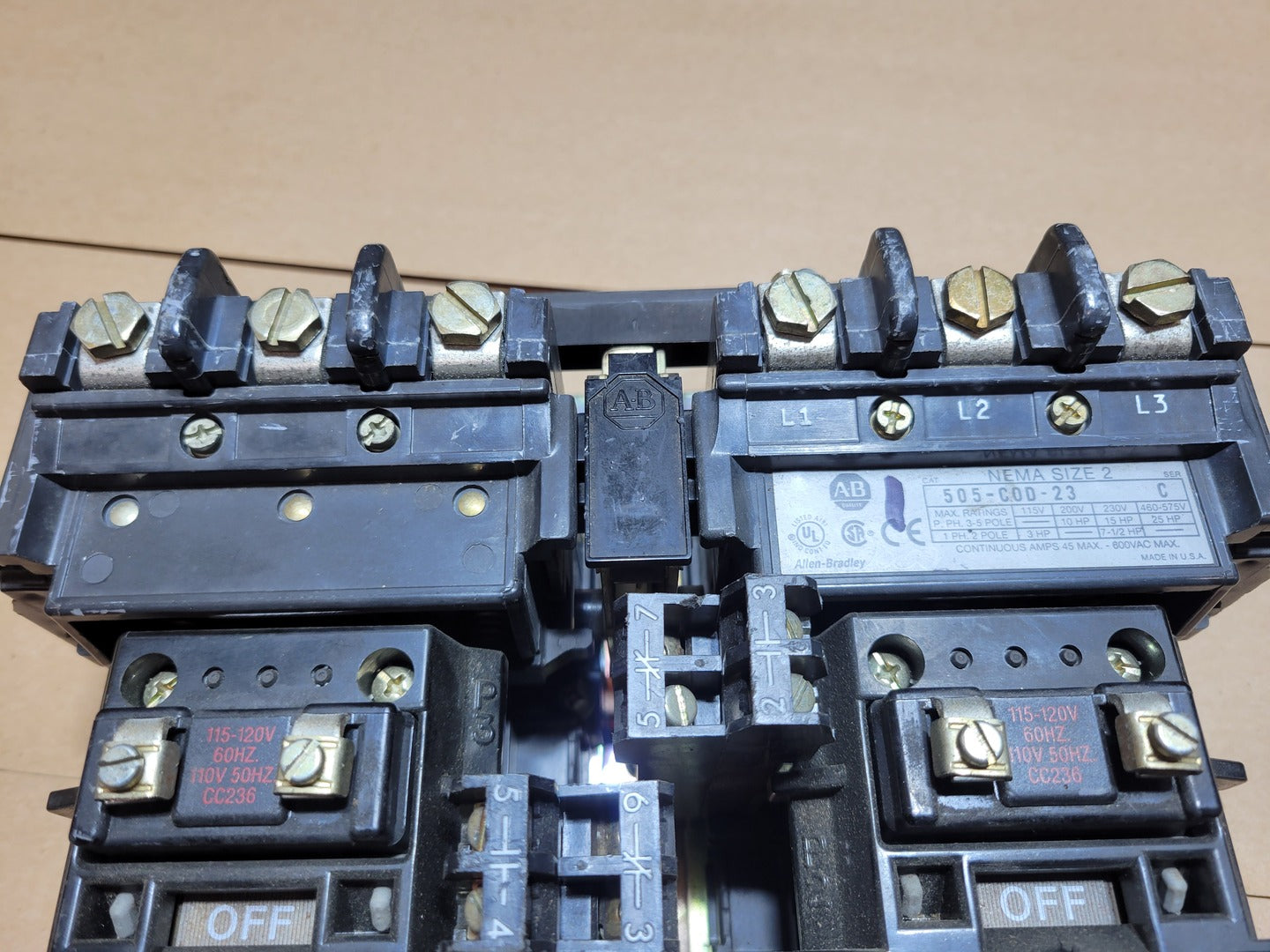

Allen-Bradley 505-COD-23 Series C open-style NEMA Size 2 full-voltage reversing motor starter. Features dual mechanically interlocked 3-pole contactors, 115-120 VAC 60 Hz coils, 45 A maximum continuous current and 600 VAC maximum power rating.
| Specifications | |
|---|---|
| Model | 505-COD-23 |
| Condition | Used | Electrical |
| Amps | 45 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| HP Rating | 25 hp | General |
| Enclosure | No |
| Starter Type | Magnetic |
| Other Specifications |
|---|
|

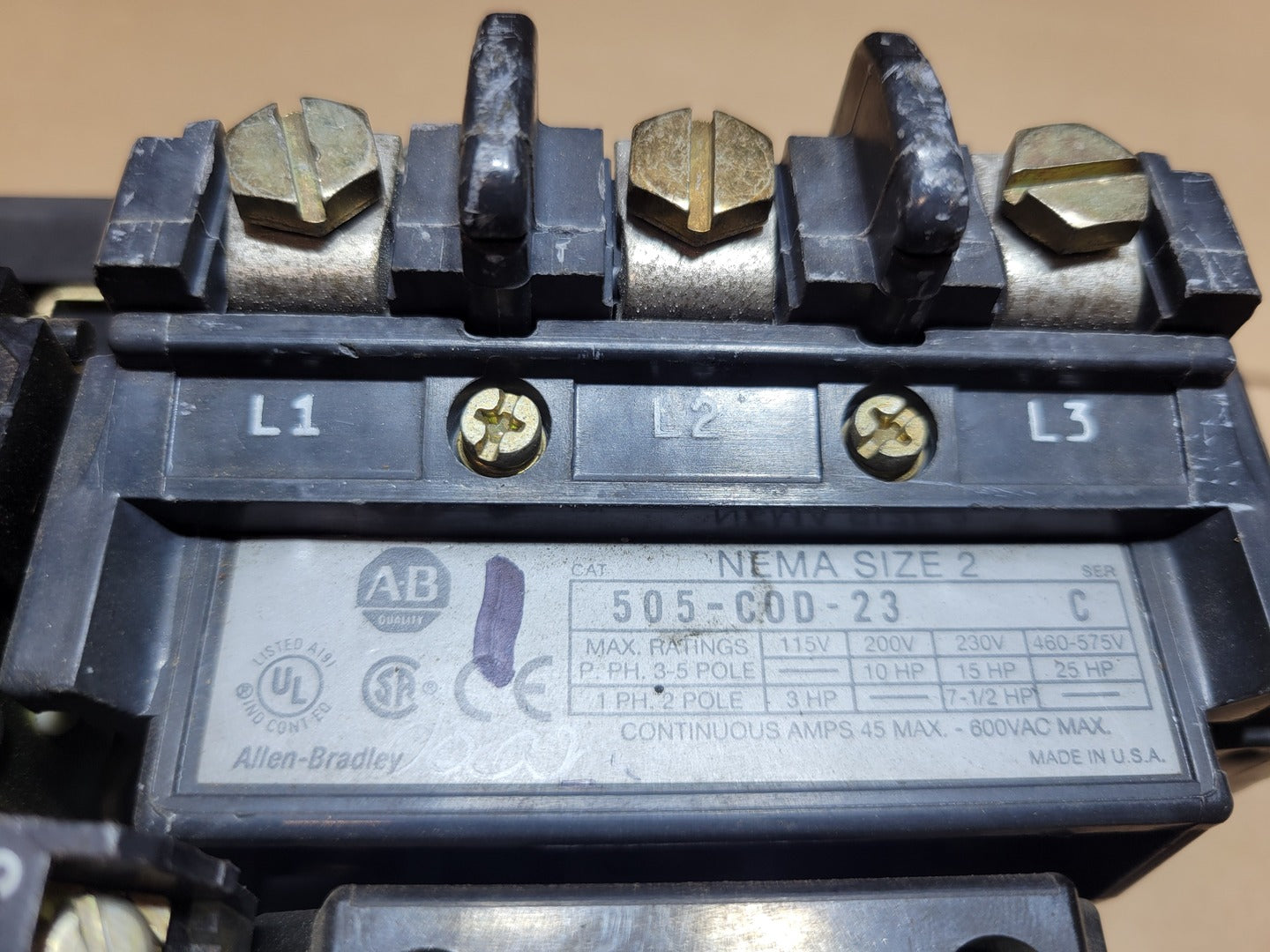

Series: C Product Type: Full-Voltage Reversing Motor Starter Bulletin / Family: 505 NEMA Size: 2 Configuration: Reversing Number of Main Contactors: 2 Main Poles: 3 poles per contactor Control Coil Voltage: 115-120 VAC at 60 Hz Alternate Coil Frequency Rating: 110 VAC at 50 Hz Coil Marking: CC236 Mechanical Interlock: Yes Power Terminals: Screw/pressure type Mounting: Metal panel/base plate Motor Ratings 3-Phase, 200 VAC: 10 HP 3-Phase, 230 VAC: 15 HP 3-Phase, 460-575 VAC: 25 HP 1-Phase, 115 VAC: 3 HP 1-Phase, 230 VAC: 7-1/2 HP |
