Description
| Specifications | |
|---|---|

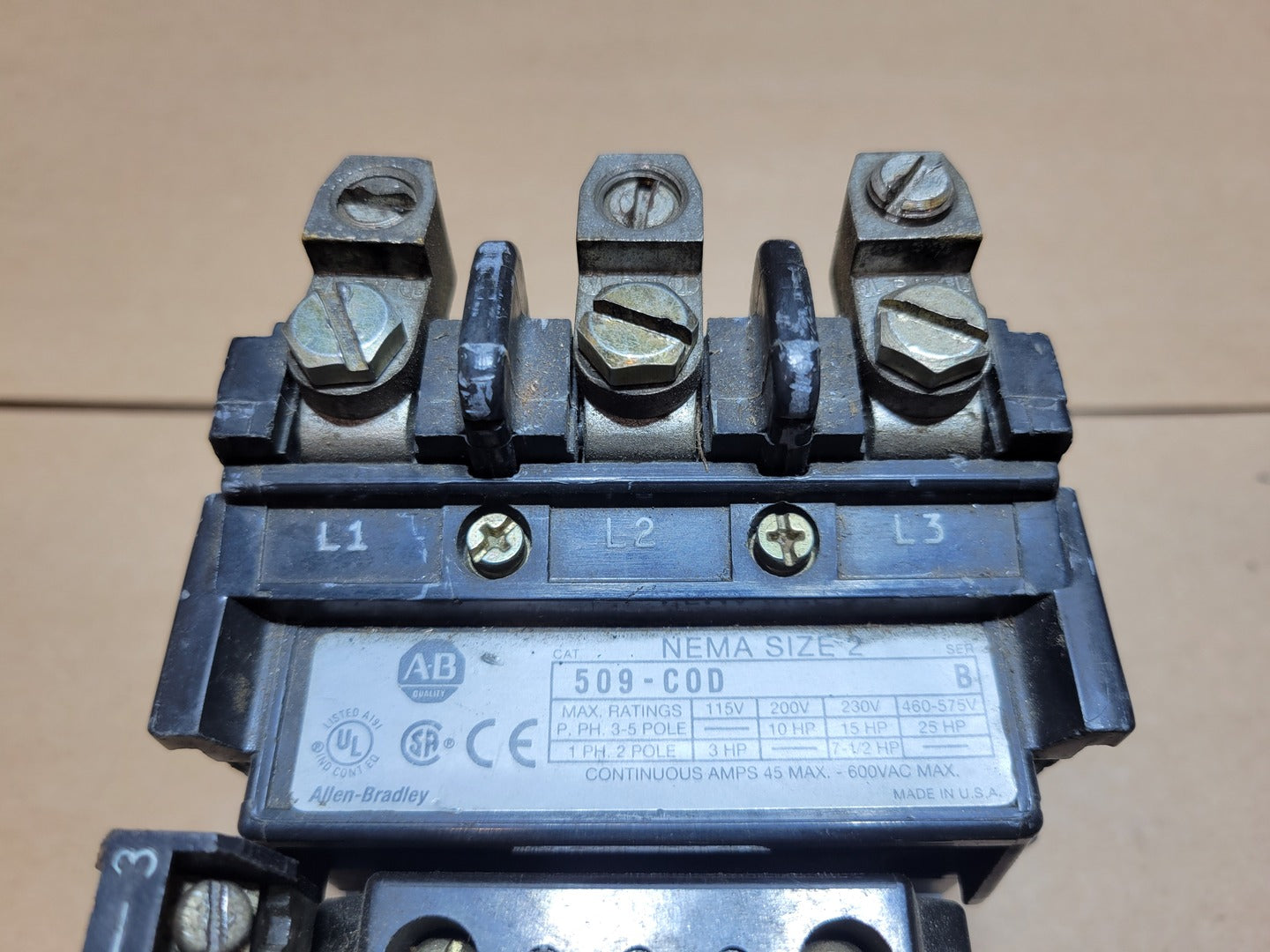

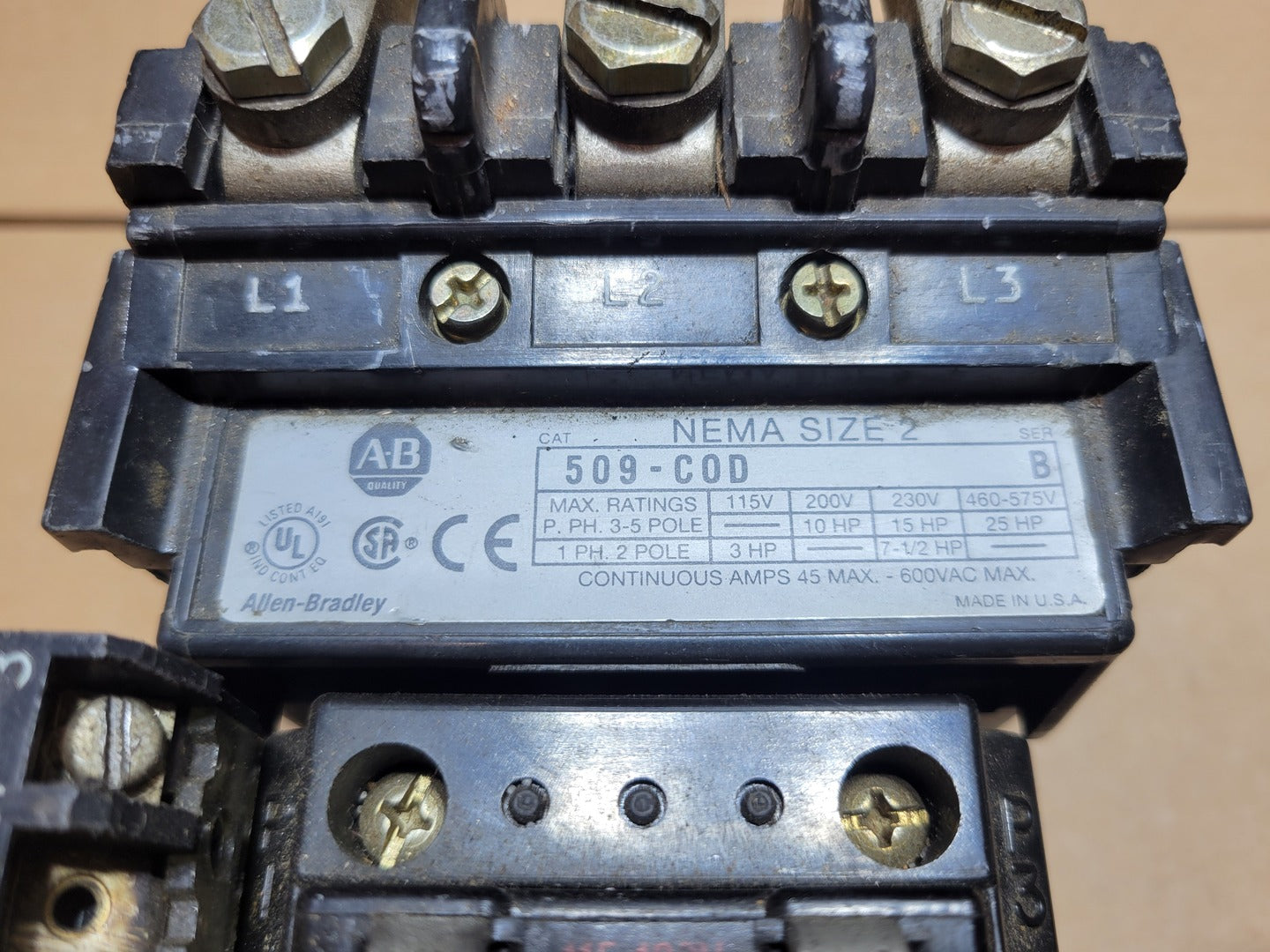

| Model | 509-COD |
| Condition | Used | Electrical |
| Amps | 45 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| HP Rating | 25 hp | General |
| Starter Type | Magnetic |
| Other Specifications |
|---|
|

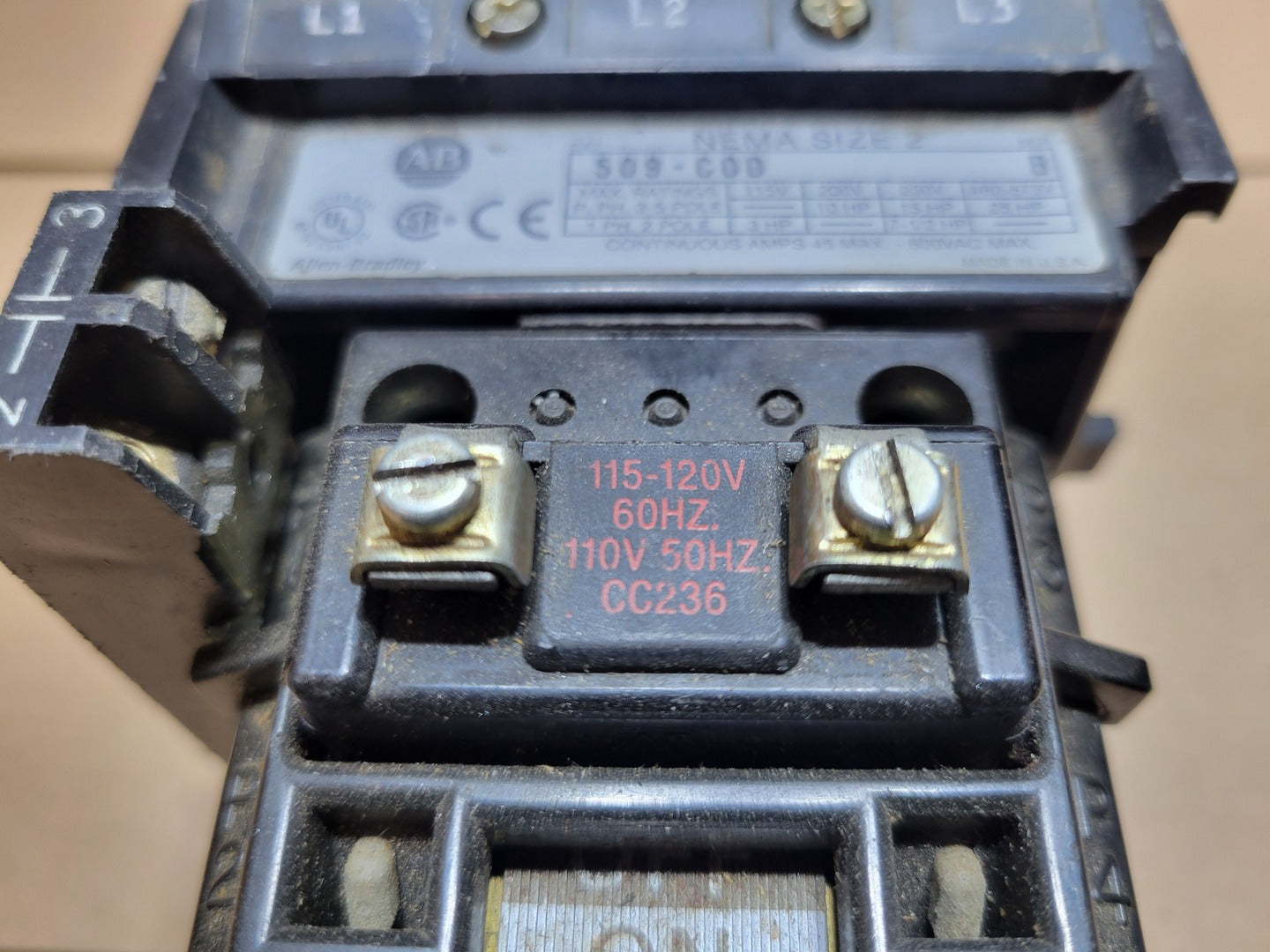

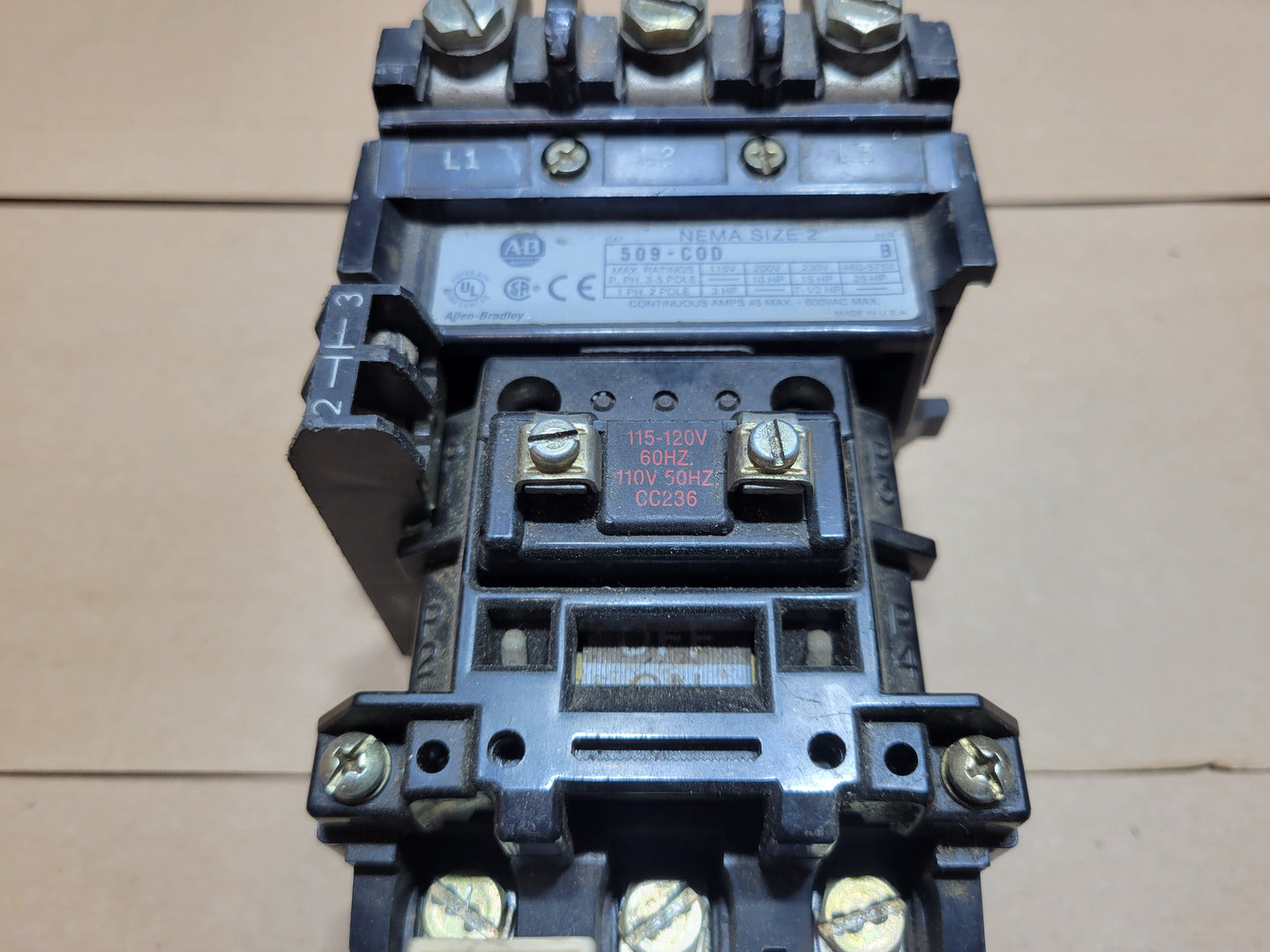

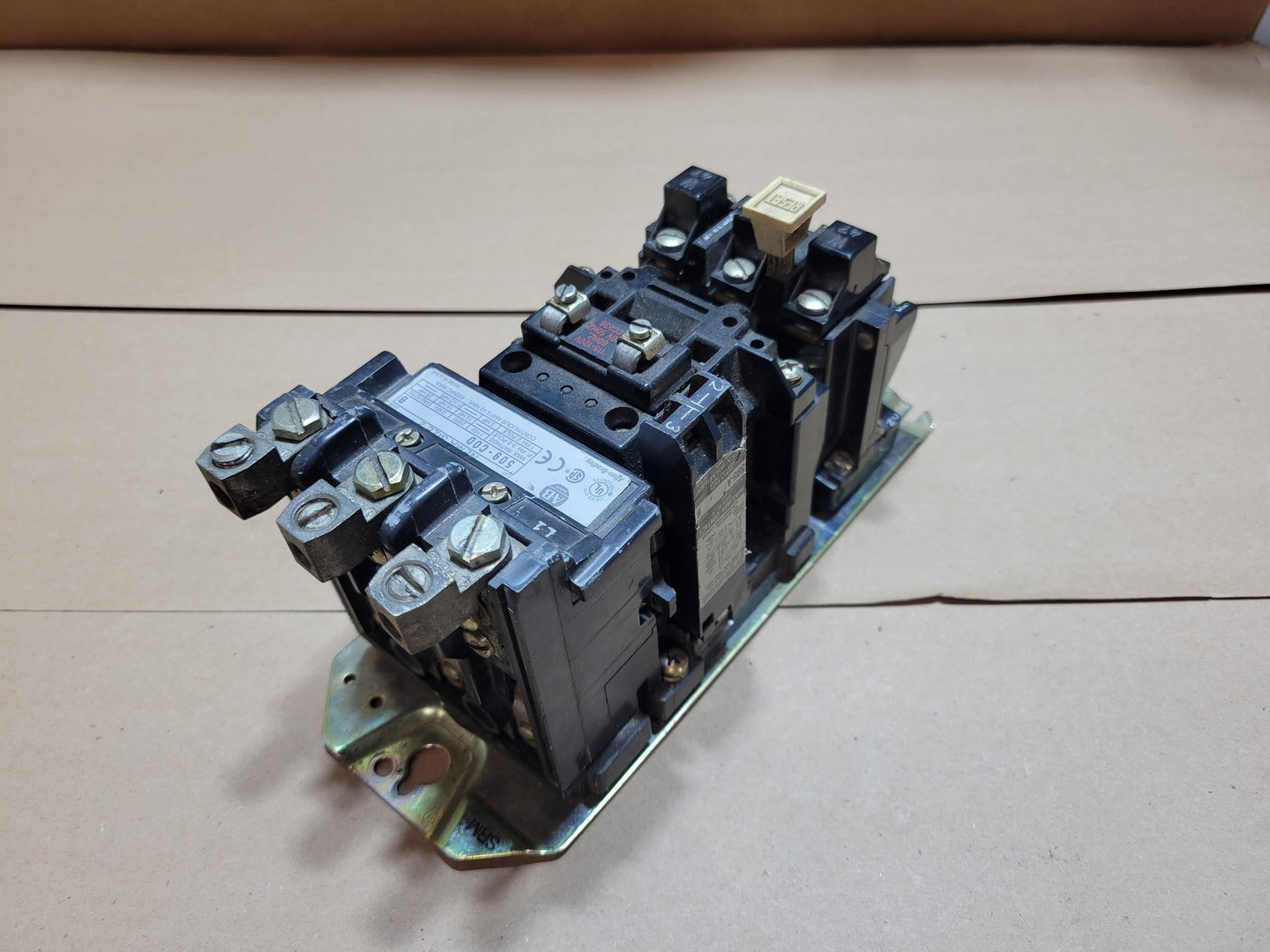

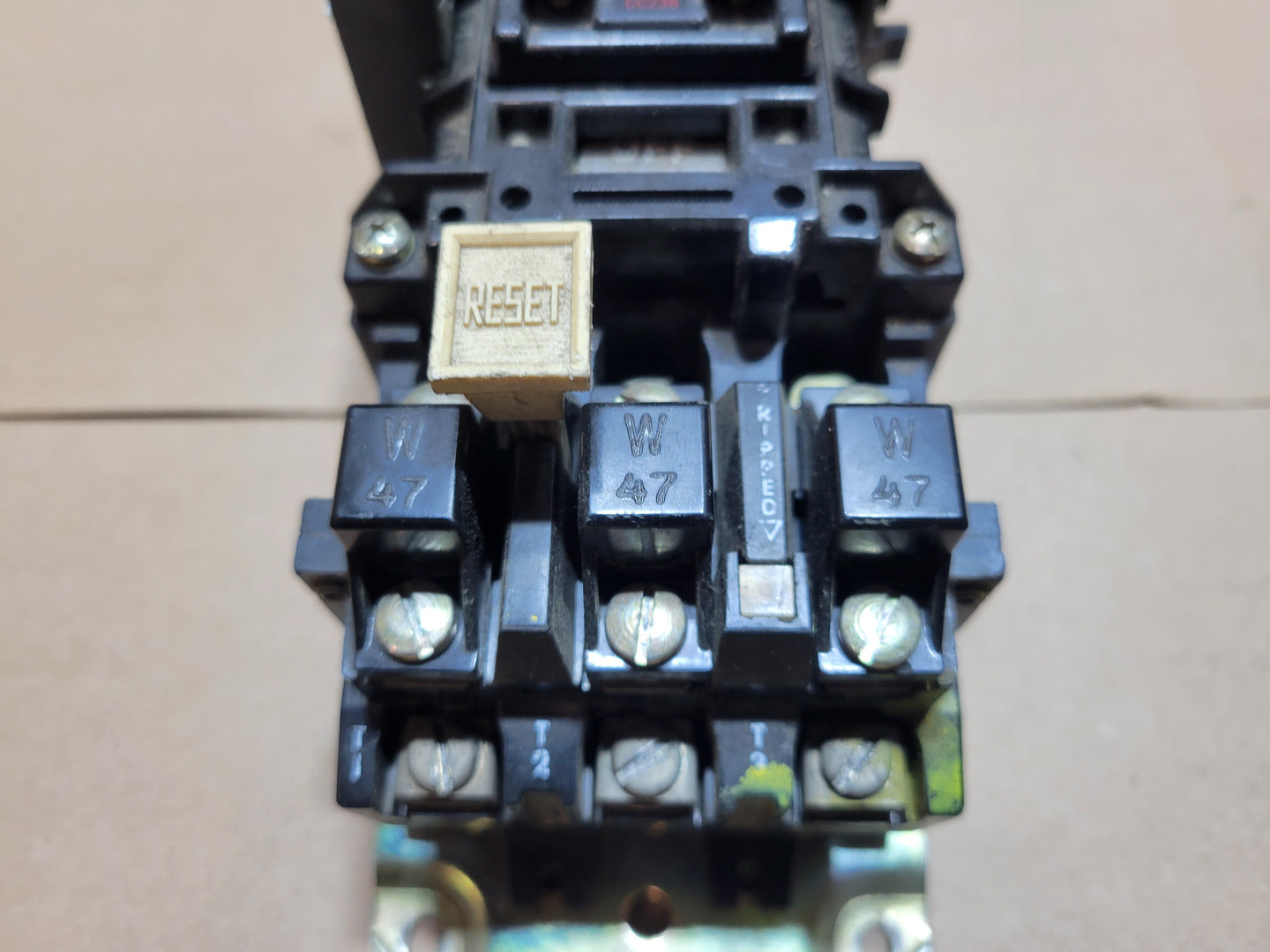

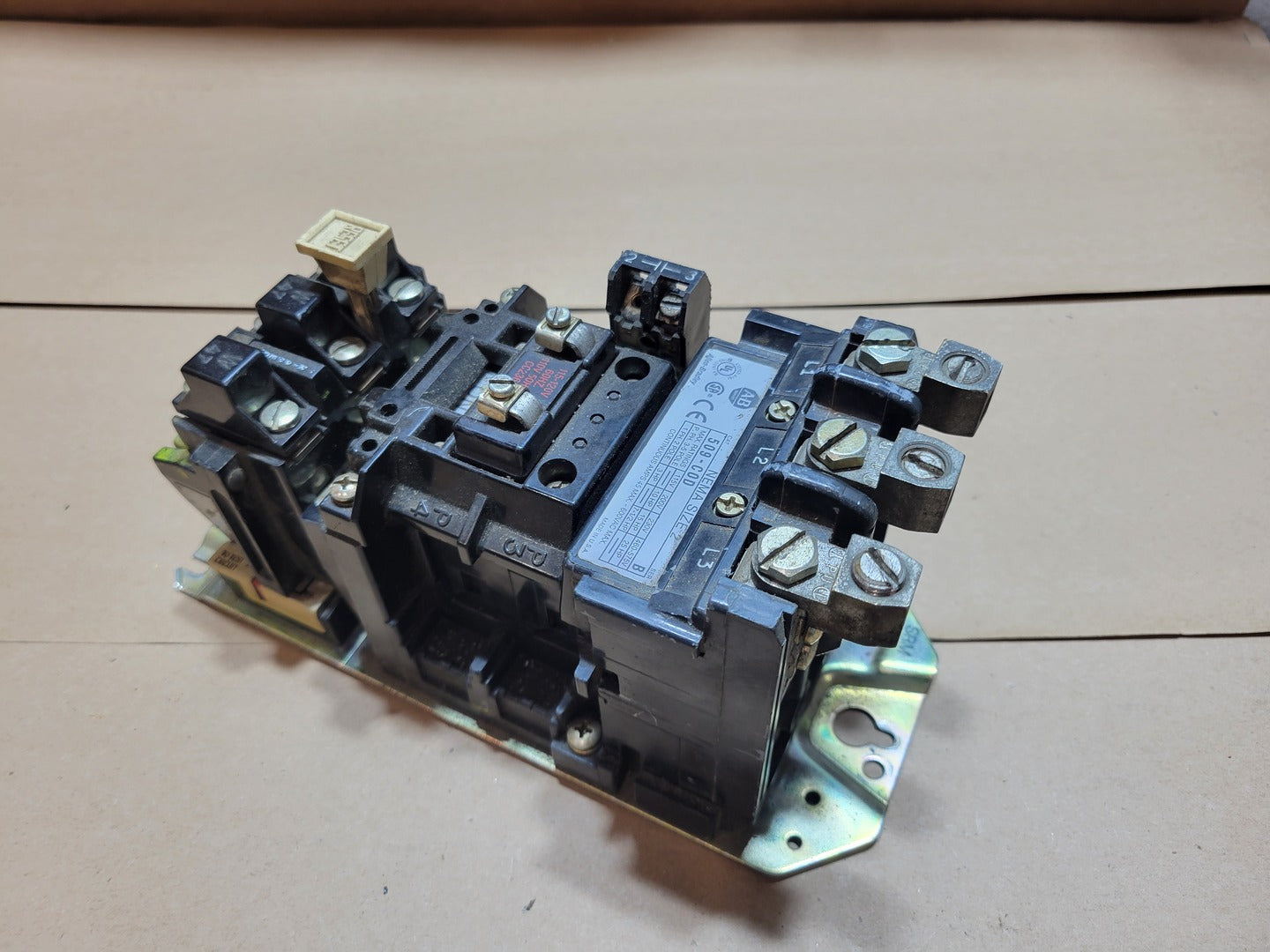

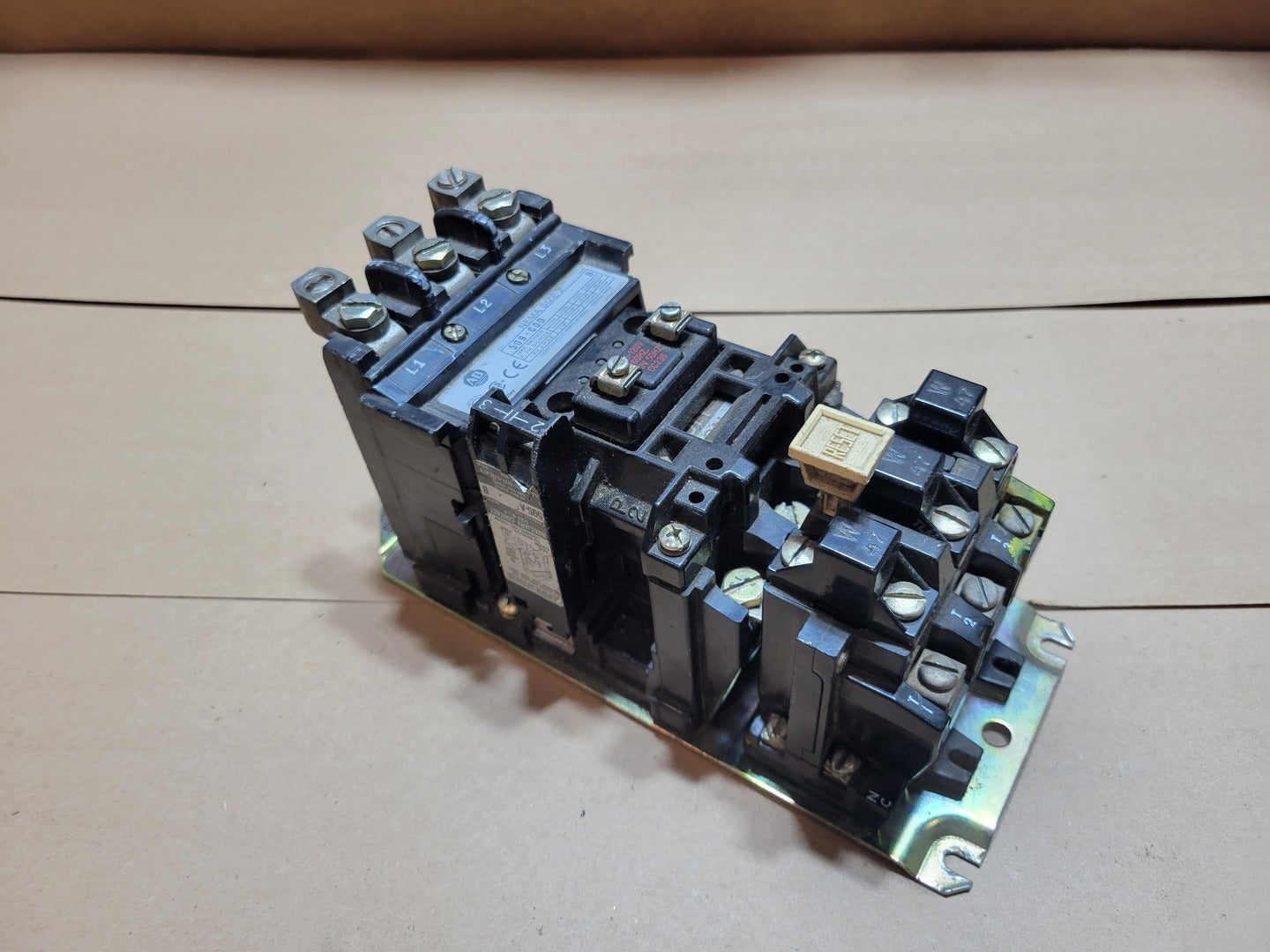

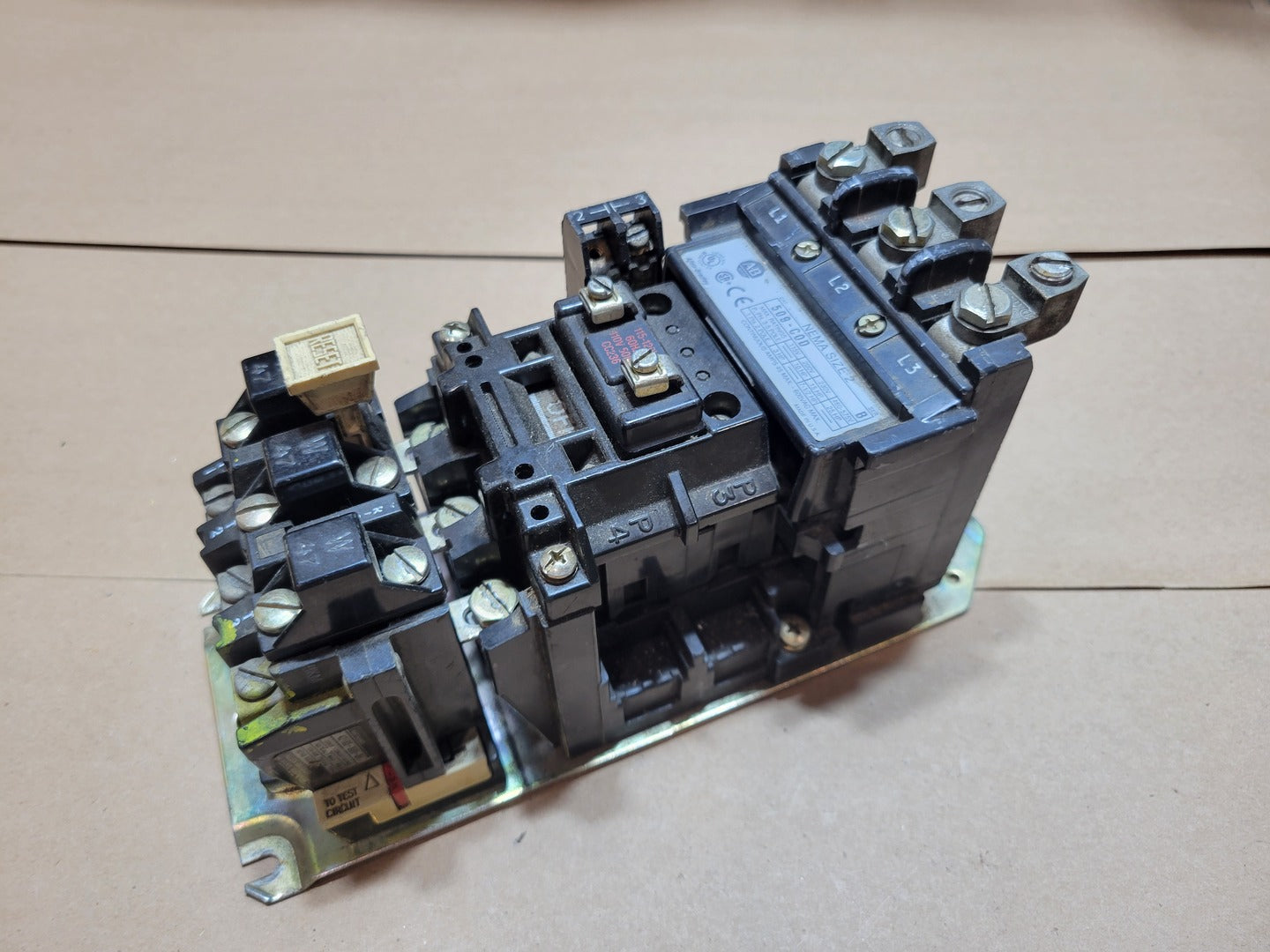

Series: B Device Type: Full-voltage non-reversing magnetic motor starter Configuration: Open type / unenclosed NEMA Size: 2 Main Power Poles: 3 Coil Number: CC236 Coil Voltage: 115-120 VAC at 60 Hz; 110 VAC at 50 Hz 3-Phase Motor Rating at 200 VAC: 10 HP 3-Phase Motor Rating at 230 VAC: 15 HP 3-Phase Motor Rating at 460-575 VAC: 25 HP 1-Phase Motor Rating at 115 VAC: 3 HP 1-Phase Motor Rating at 230 VAC: 7.5 HP Overload Protection: Eutectic-alloy overload relay Overload Reset: Manual reset Line Terminals: L1, L2, L3 Load Terminals: T1, T2, T3 Power Terminal Wire Range: 14-4 AWG Recommended Power-Terminal Torque: 45 lb-in Mounting: Base / panel mount |
