Description

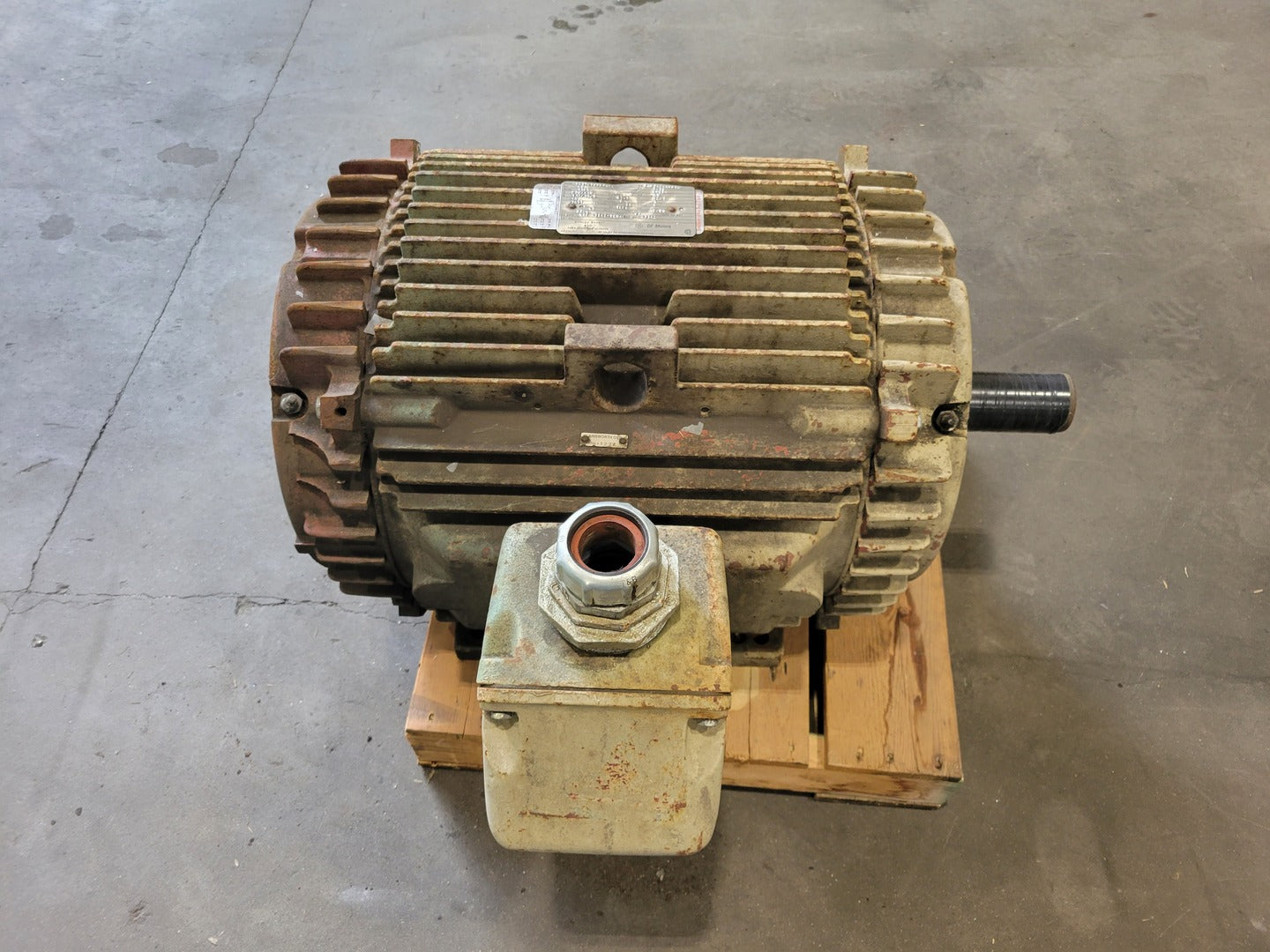

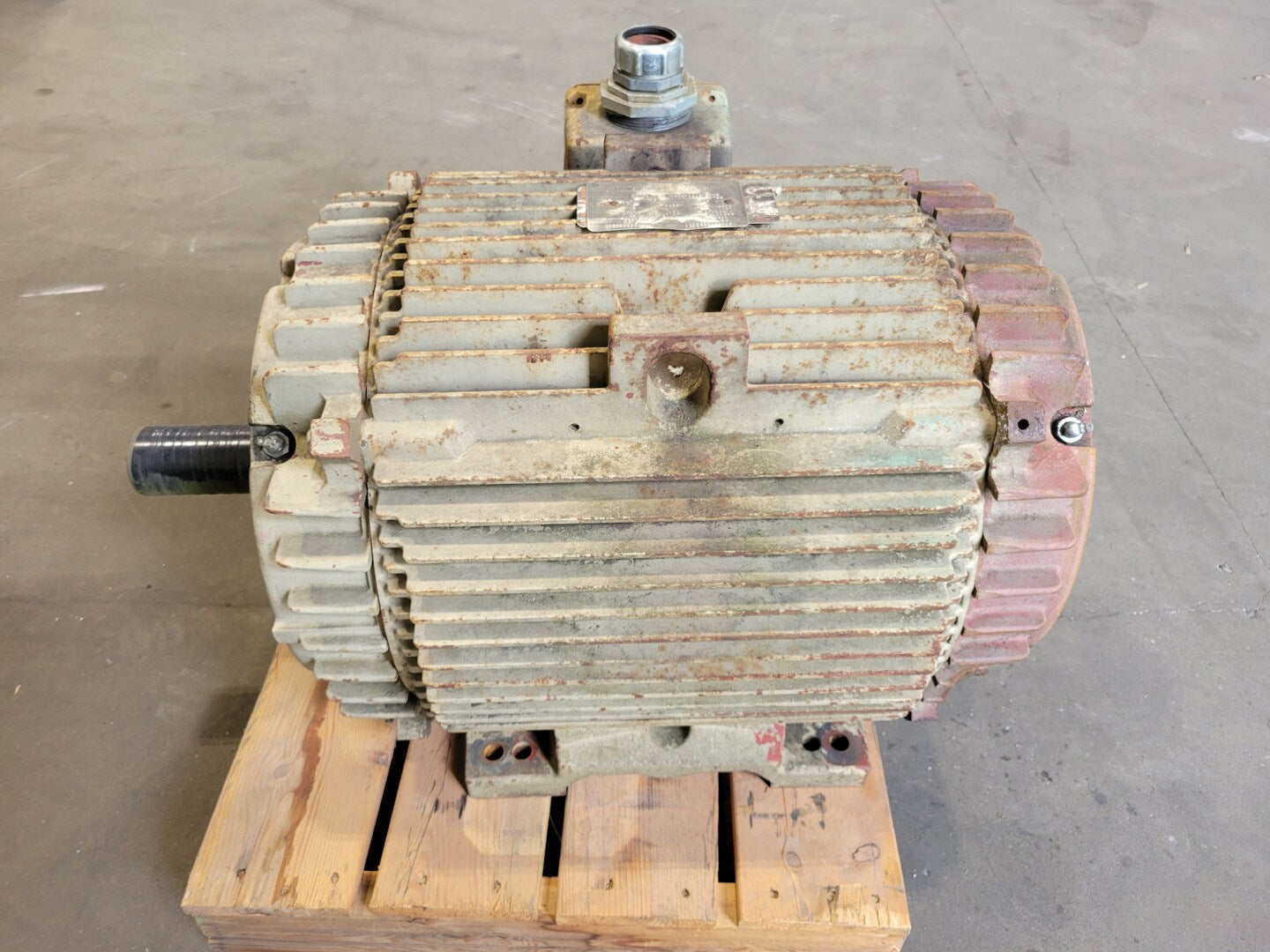

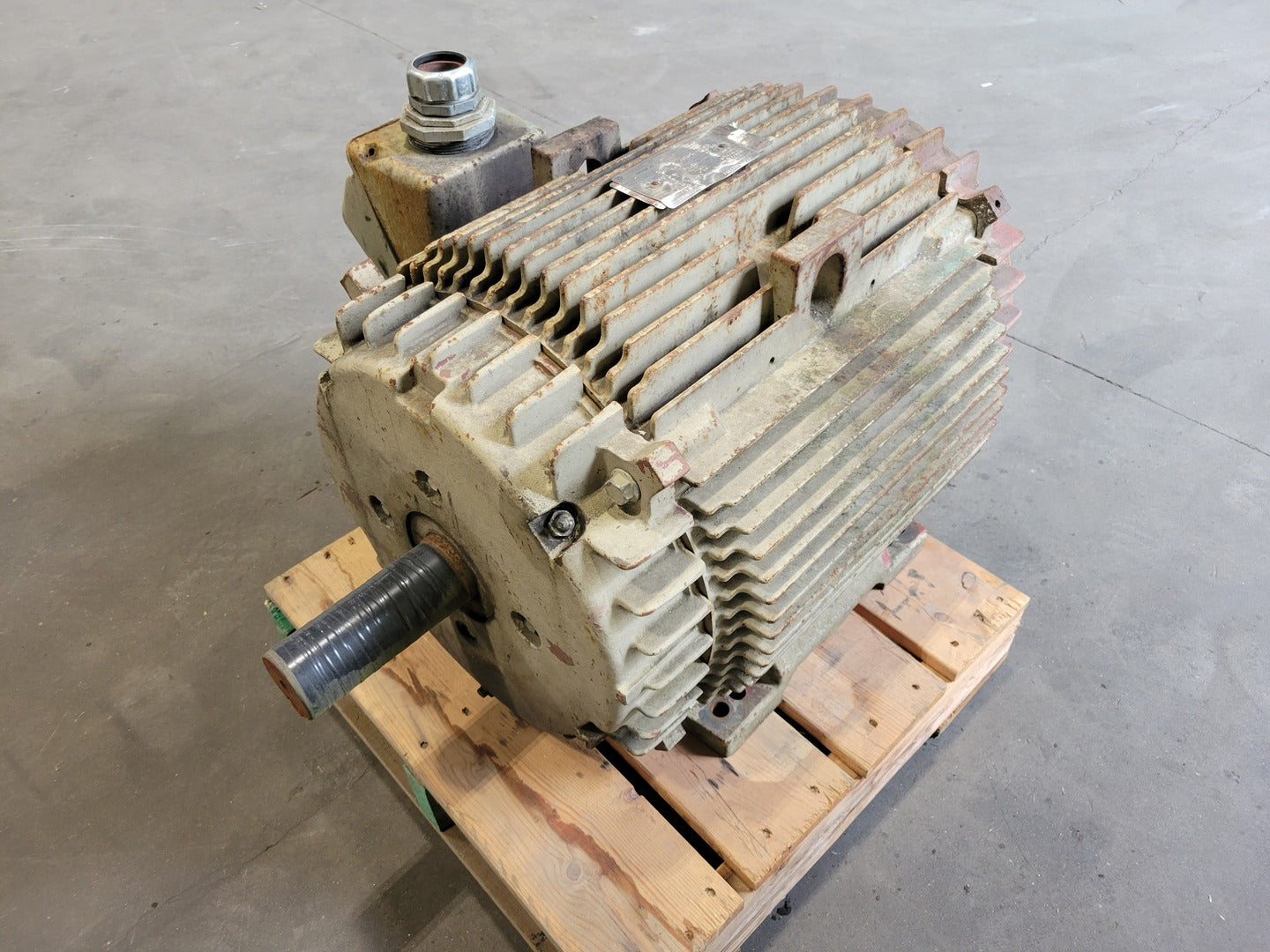

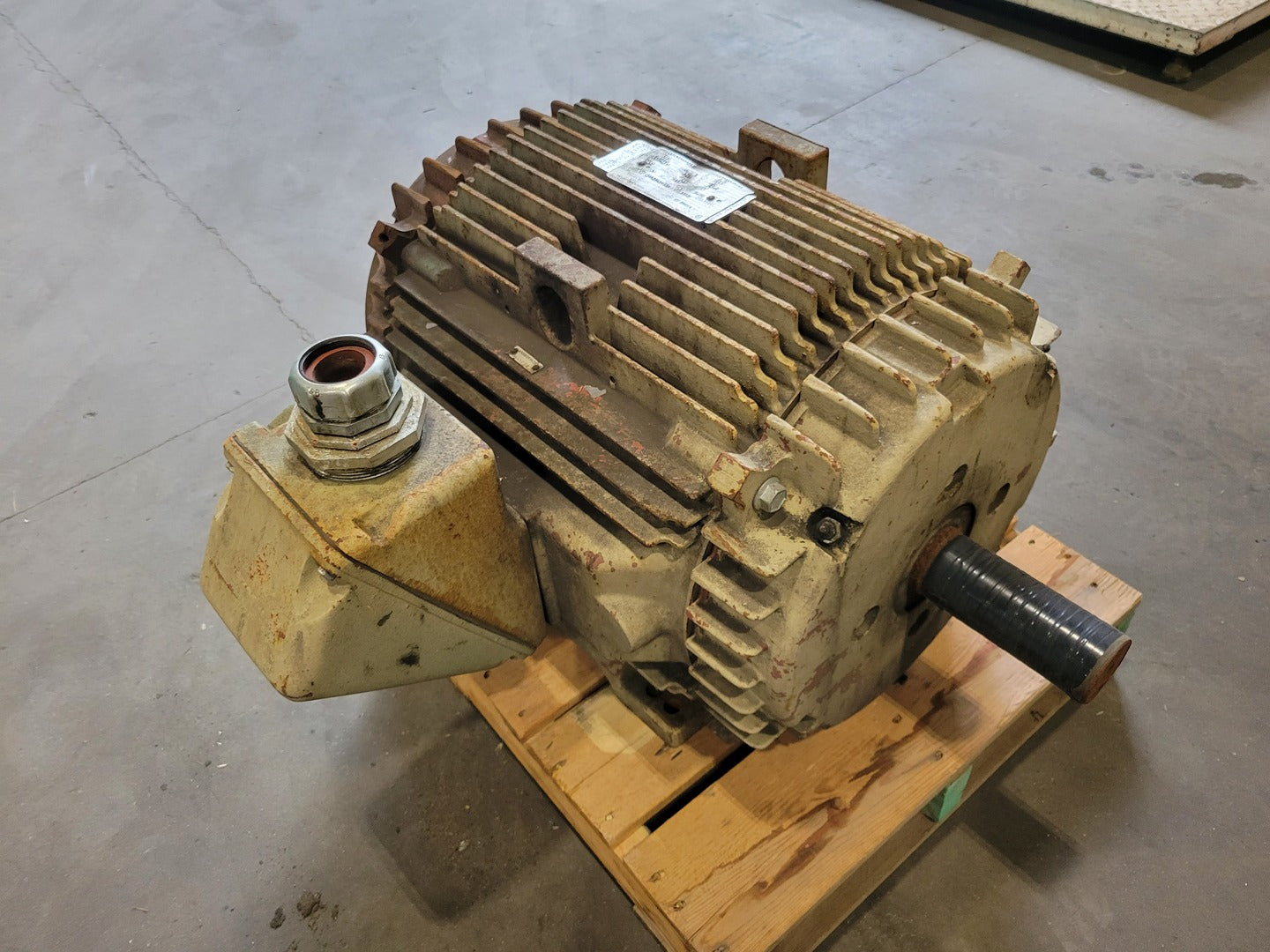

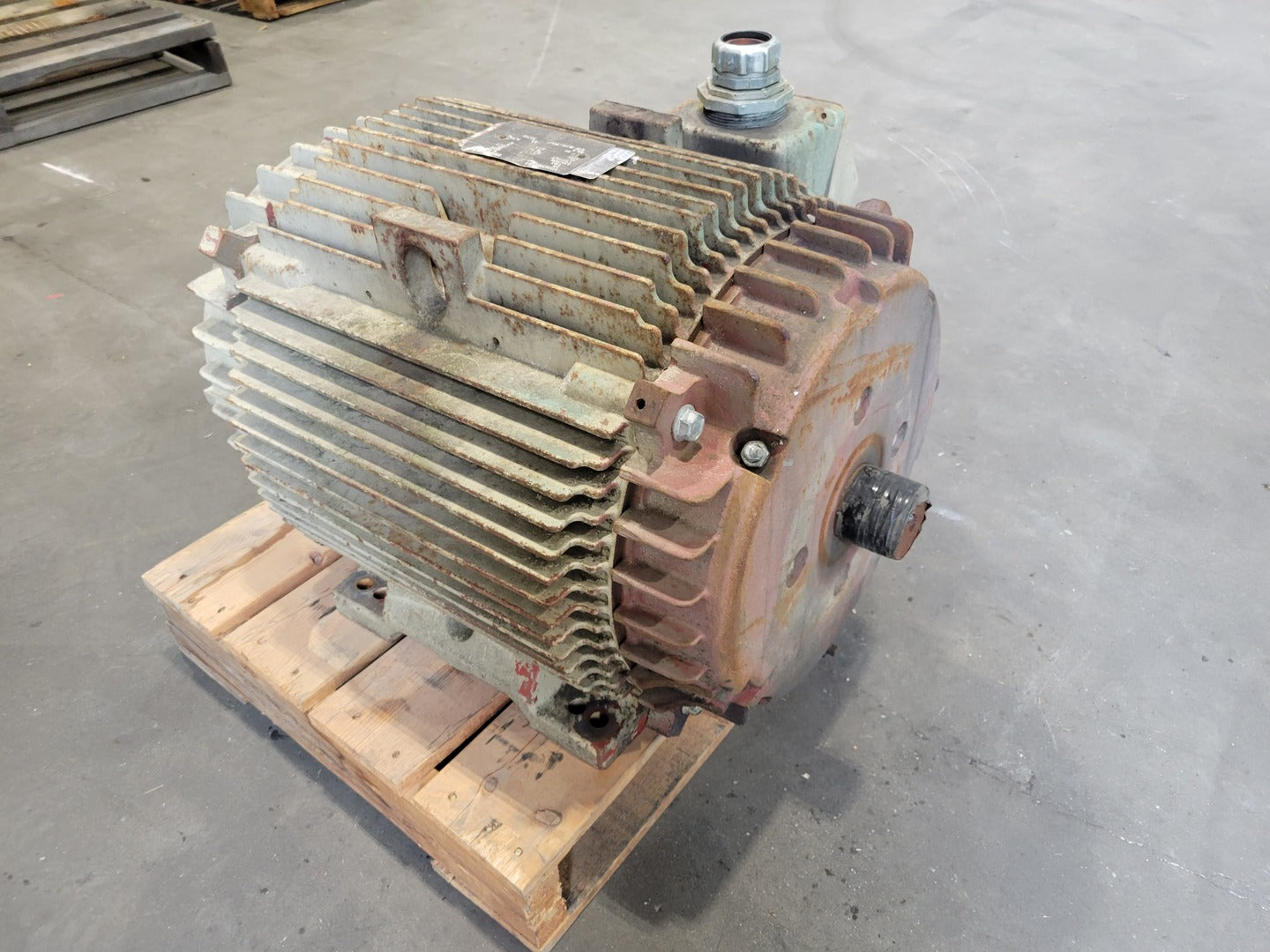

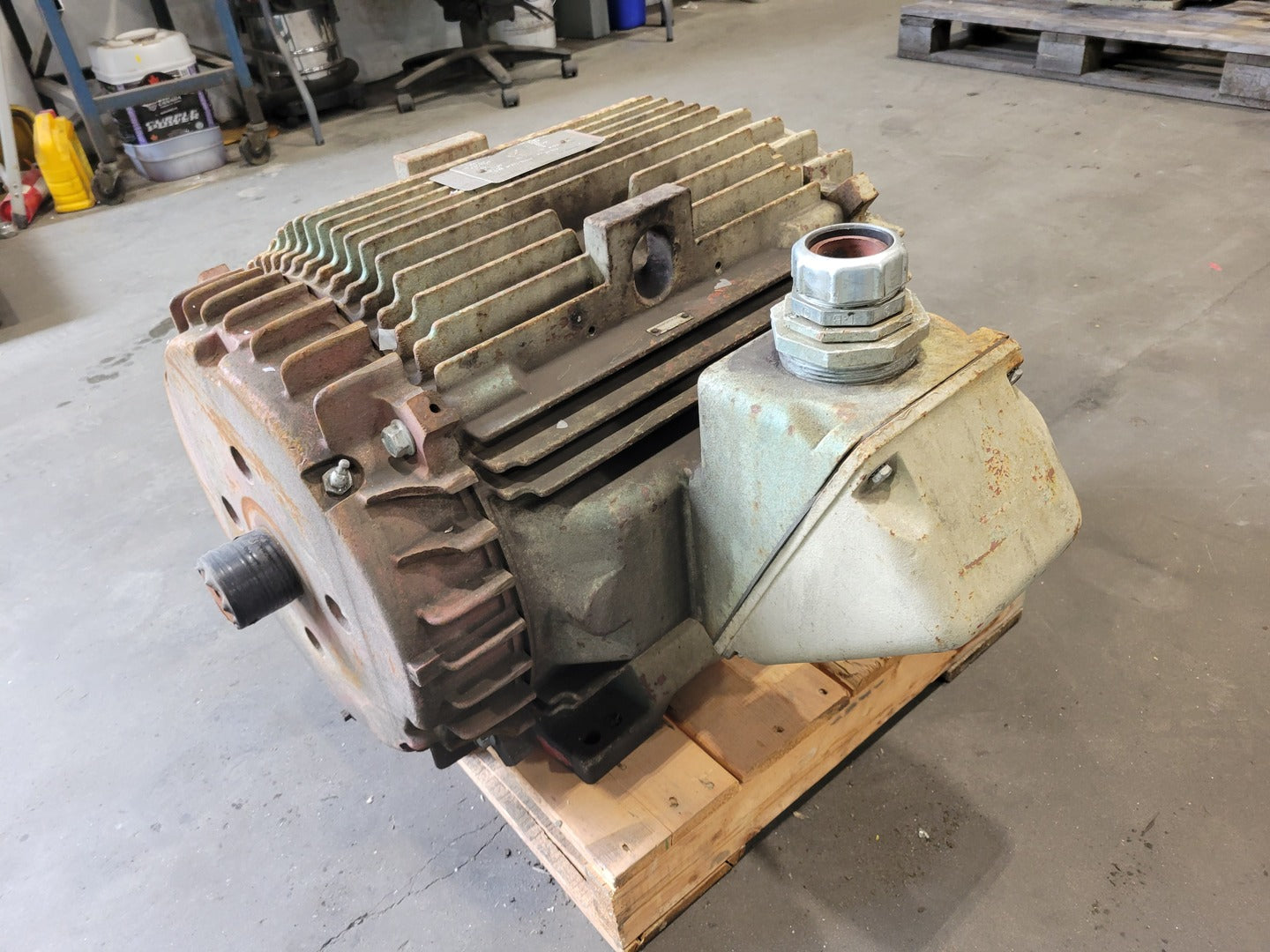

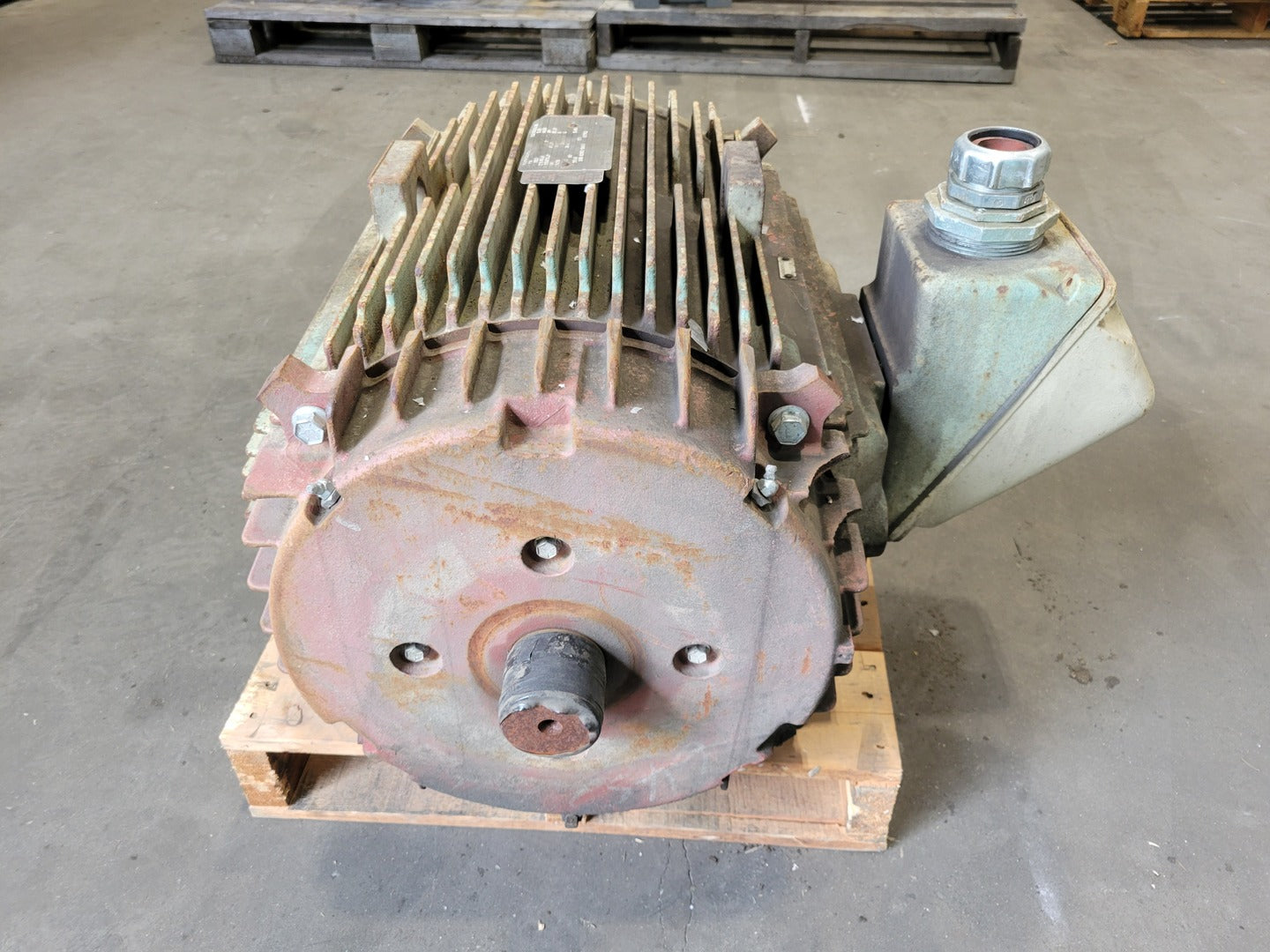

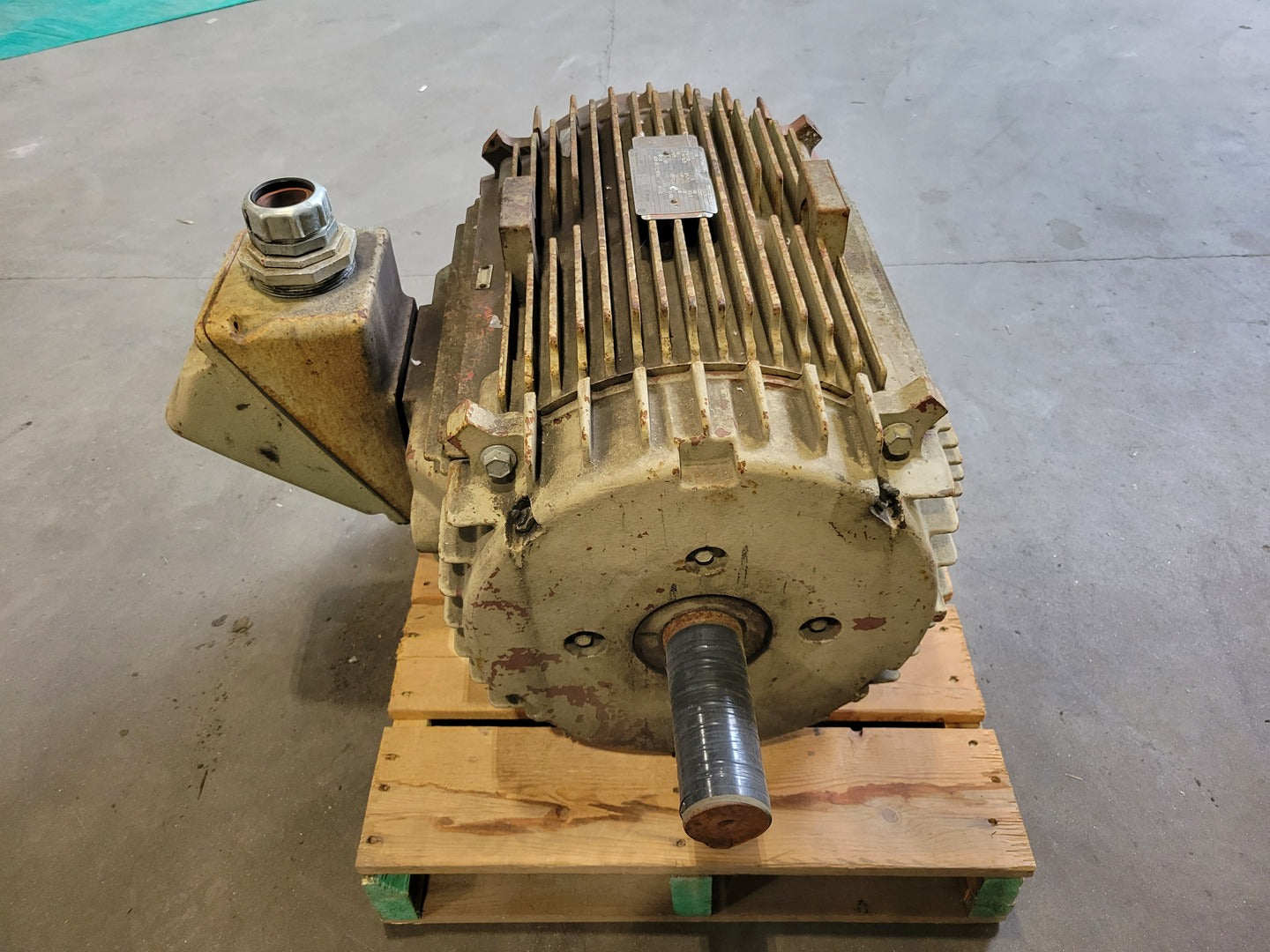

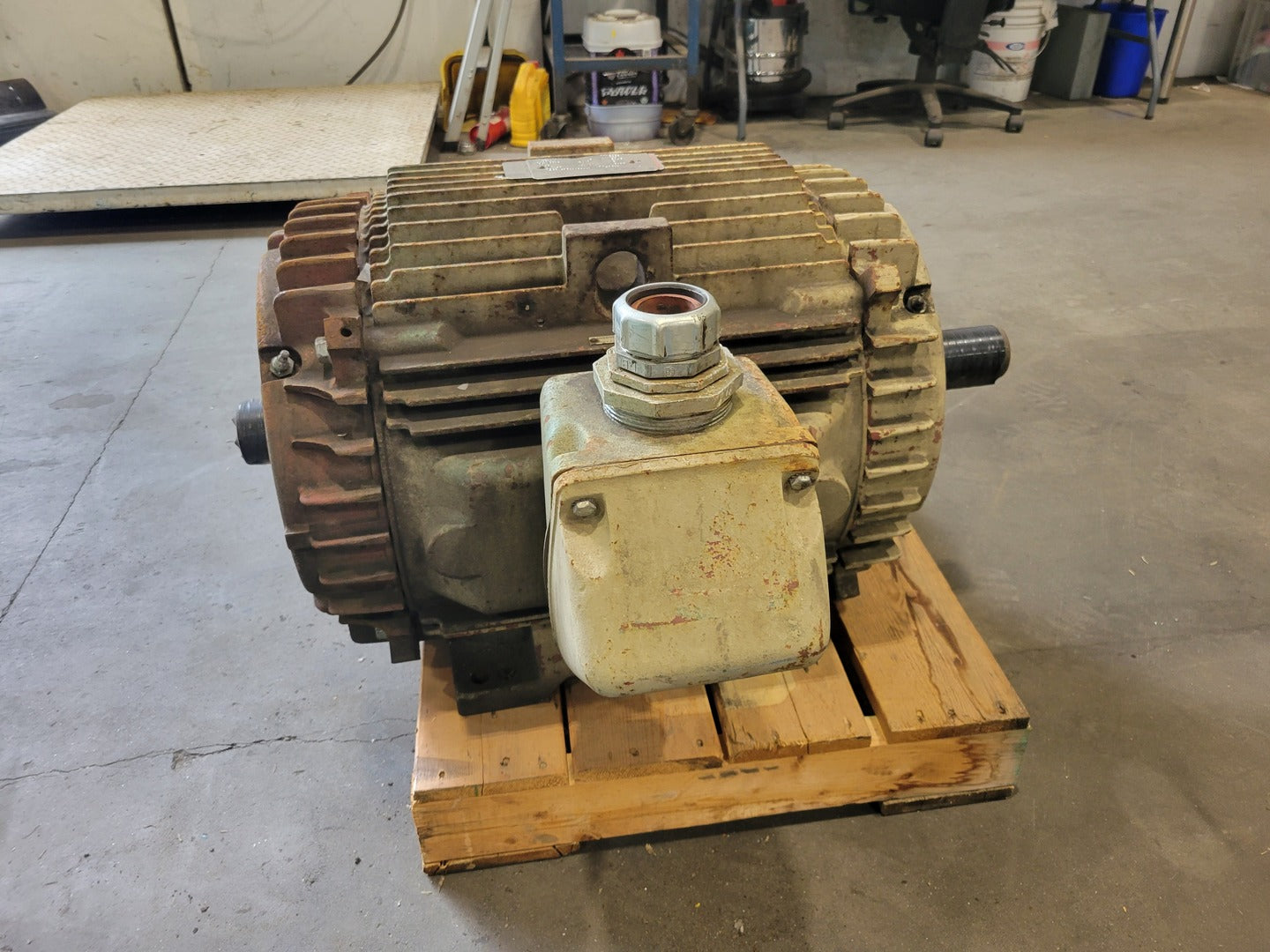

GE Motors 5KSG363SS249A Energy $aver XSD Extra Severe Duty AC Motor rated 30 HP, 1185 RPM, 230/460 V, 3-phase, and 60 Hz. Features a NEMA 365T frame, TEFC enclosure, continuous-duty rating, Class F insulation, 1.15 service factor, NEMA Design B, and 93.6% nominal efficiency. Heavy-duty industrial construction with foot mounting, large terminal box, and shaft extensions on both ends. The motor shows substantial cosmetic wear and surface oxidation consistent with previous industrial service.
| Specifications | |
|---|---|
| Model | 5KSG363SS249A |
| Made In | CANADA |
| Condition | Used | General |
| Current Type | AC |
| Horsepower | 30 hp |
| Voltage | 230/460 volts |
| Phase | 3-phase |
| RPM | 1185 rpm |
| Frame | 365T | Additional Data |
| Duty | Continuous |
| Other Specifications |
|---|
|

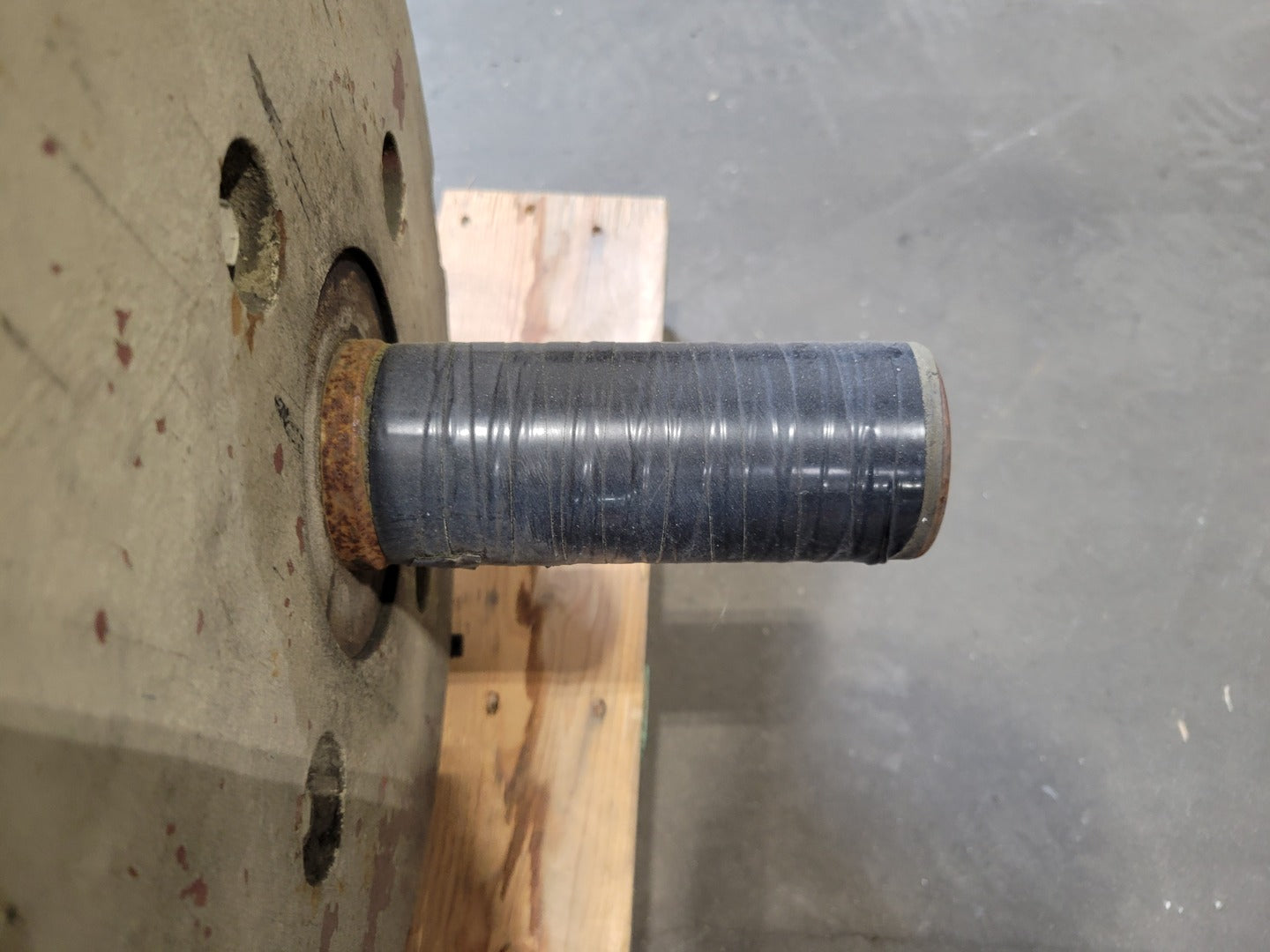

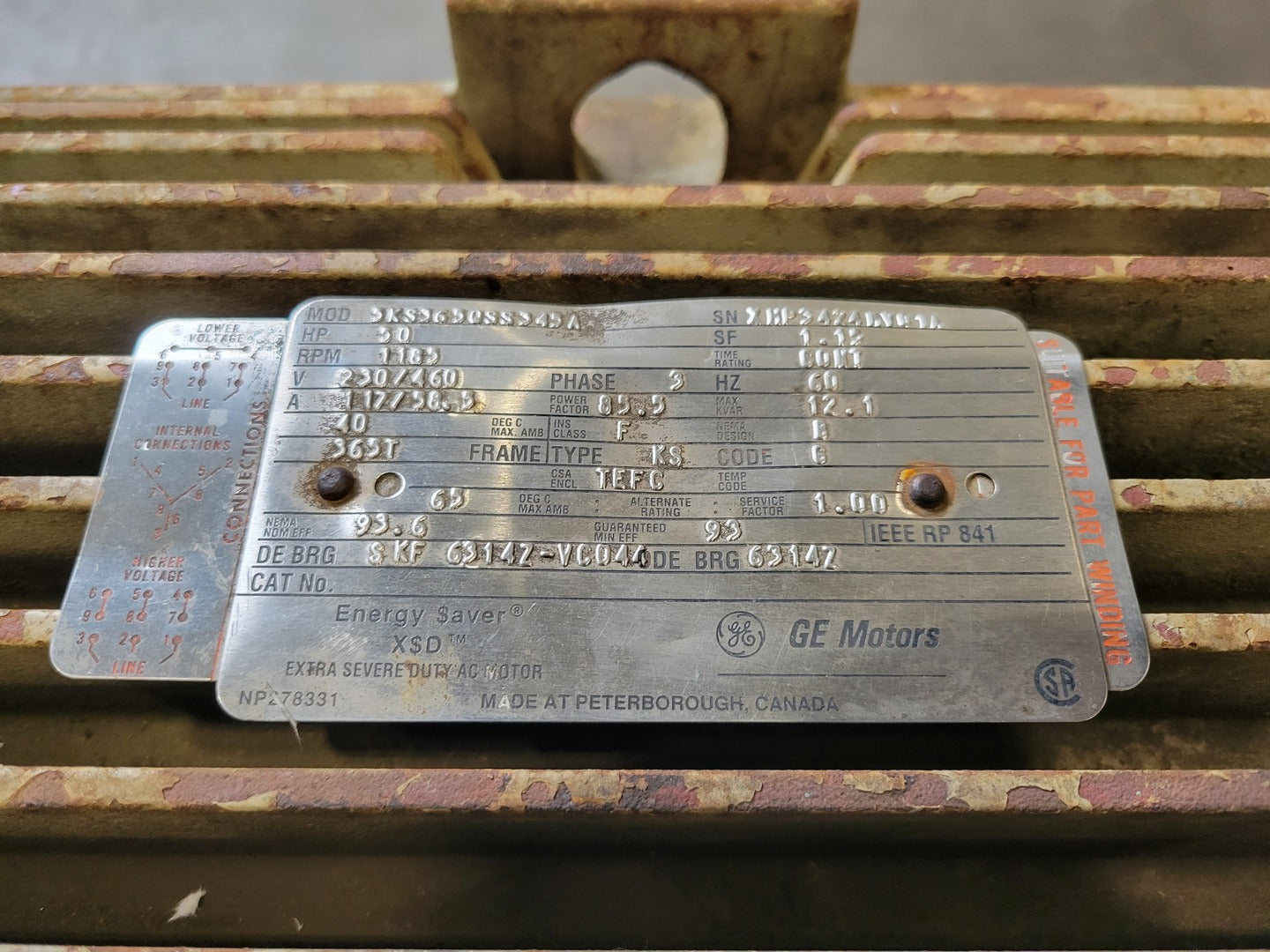

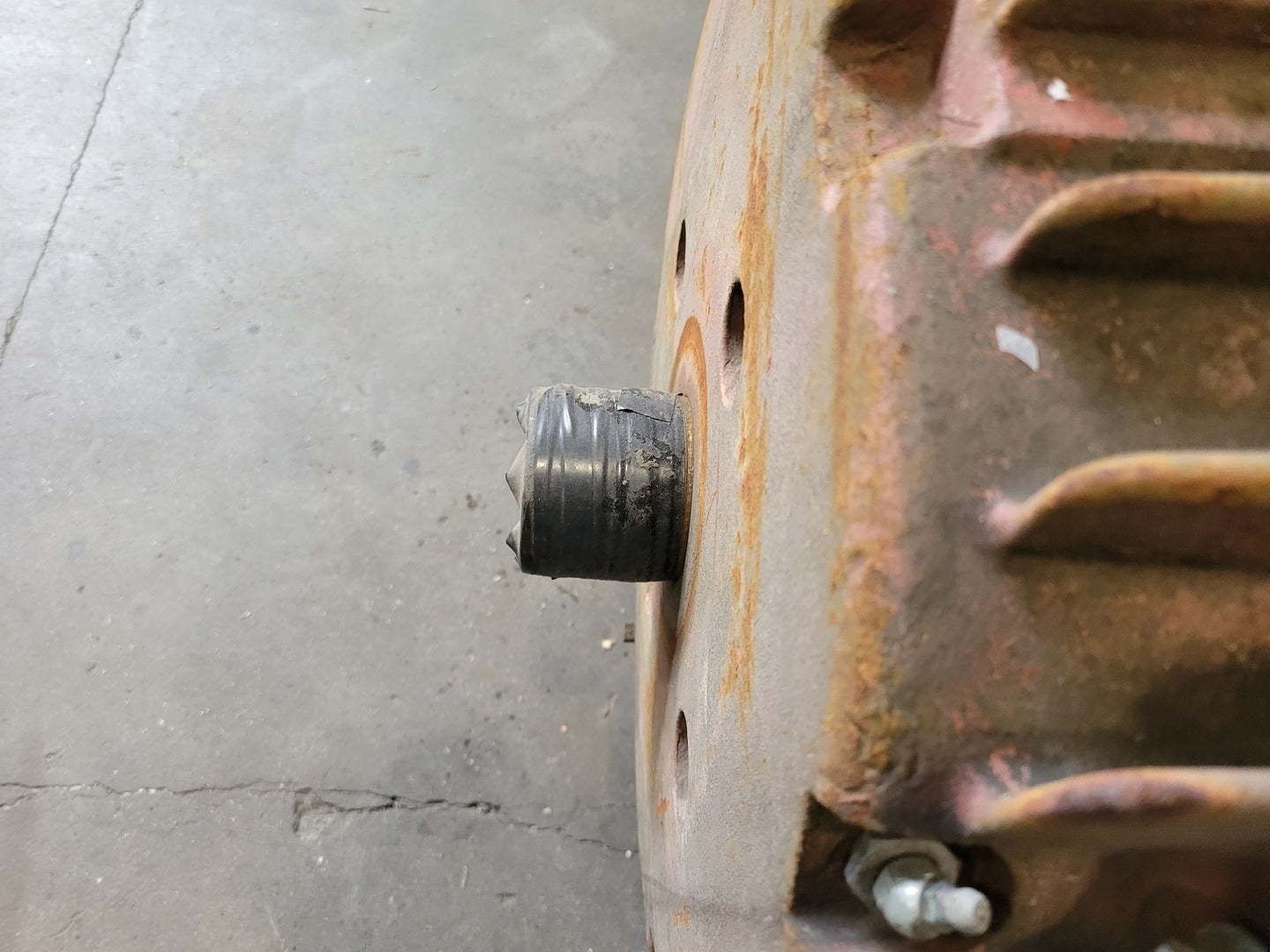

Series: Energy $aver XSD Motor Type: Extra Severe Duty AC Motor Current: 77 / 38.5 A Frequency: 60 Hz Type: KS Enclosure: TEFC Service Factor: 1.15 Alternate Service Factor: 1.00 at 60°C maximum ambient Insulation Class: F NEMA Design: B NEMA Code: G Power Factor: 81.5% NEMA Nominal Efficiency: 93.6% Guaranteed Minimum Efficiency: 93% Maximum Ambient Temperature: 40°C Maximum KVAR: 12.1 Standard / Reference: IEEE RP 841 Mounting: Horizontal foot mounted Shaft Configuration: Double-ended / shaft extension visible at both ends |
