Description
| Specifications | |
|---|---|
| Model | 3175S |
| S/N: | 286B286 |
| Condition | Used |
| Other Specifications |
|---|
|

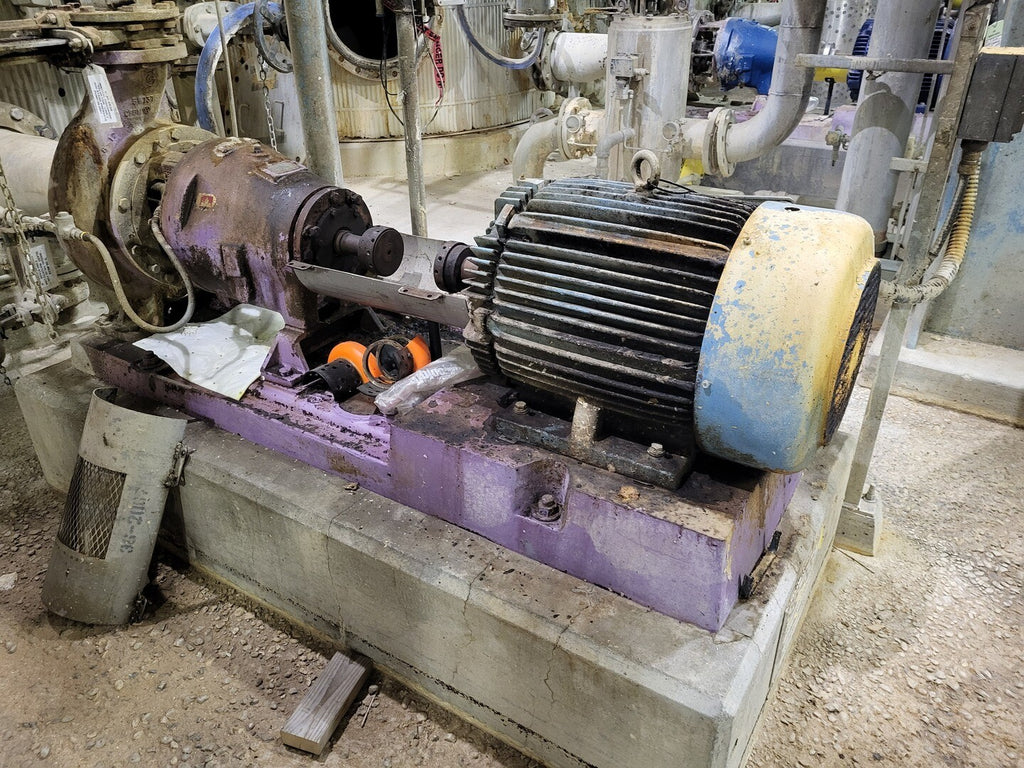

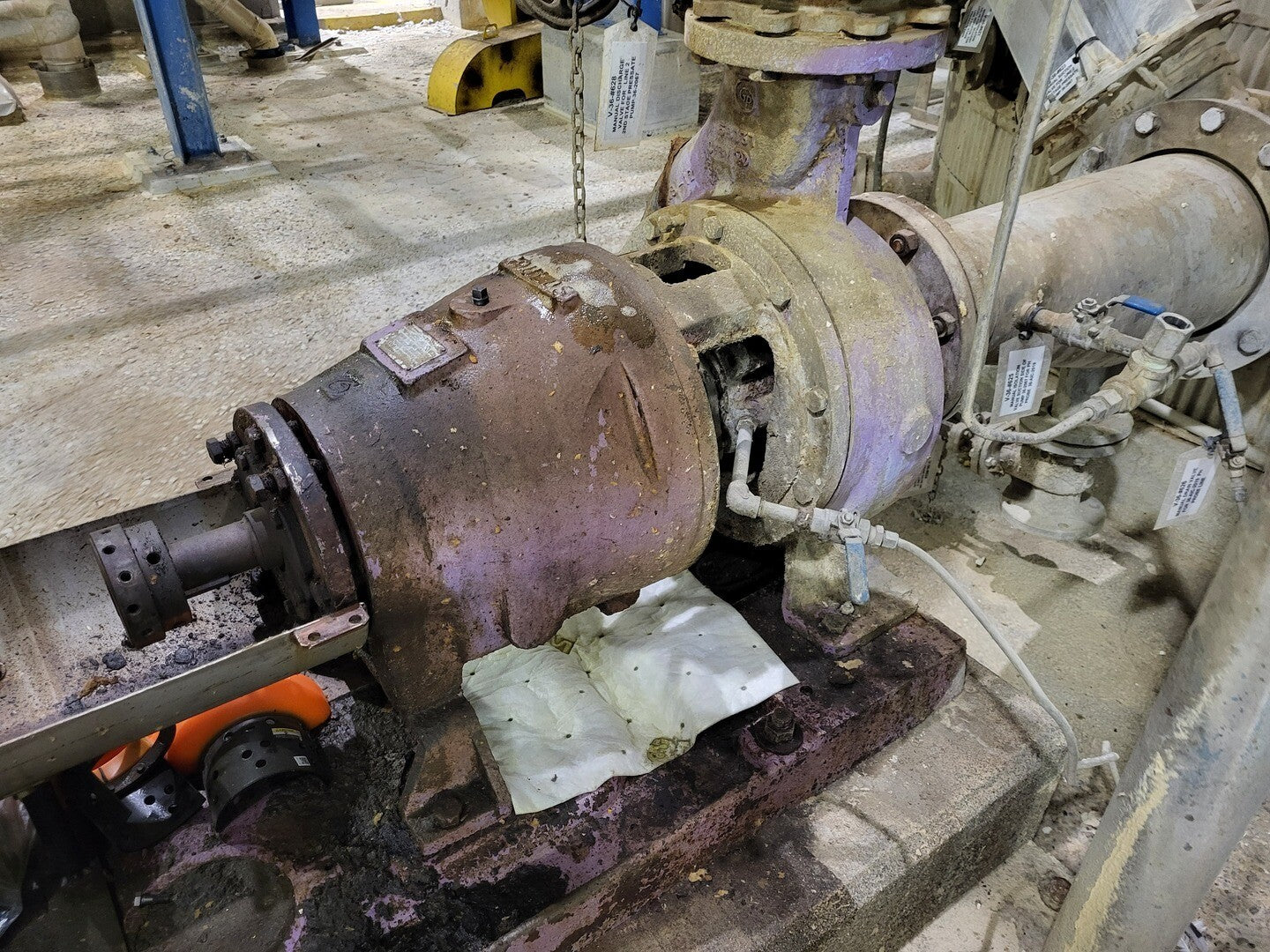

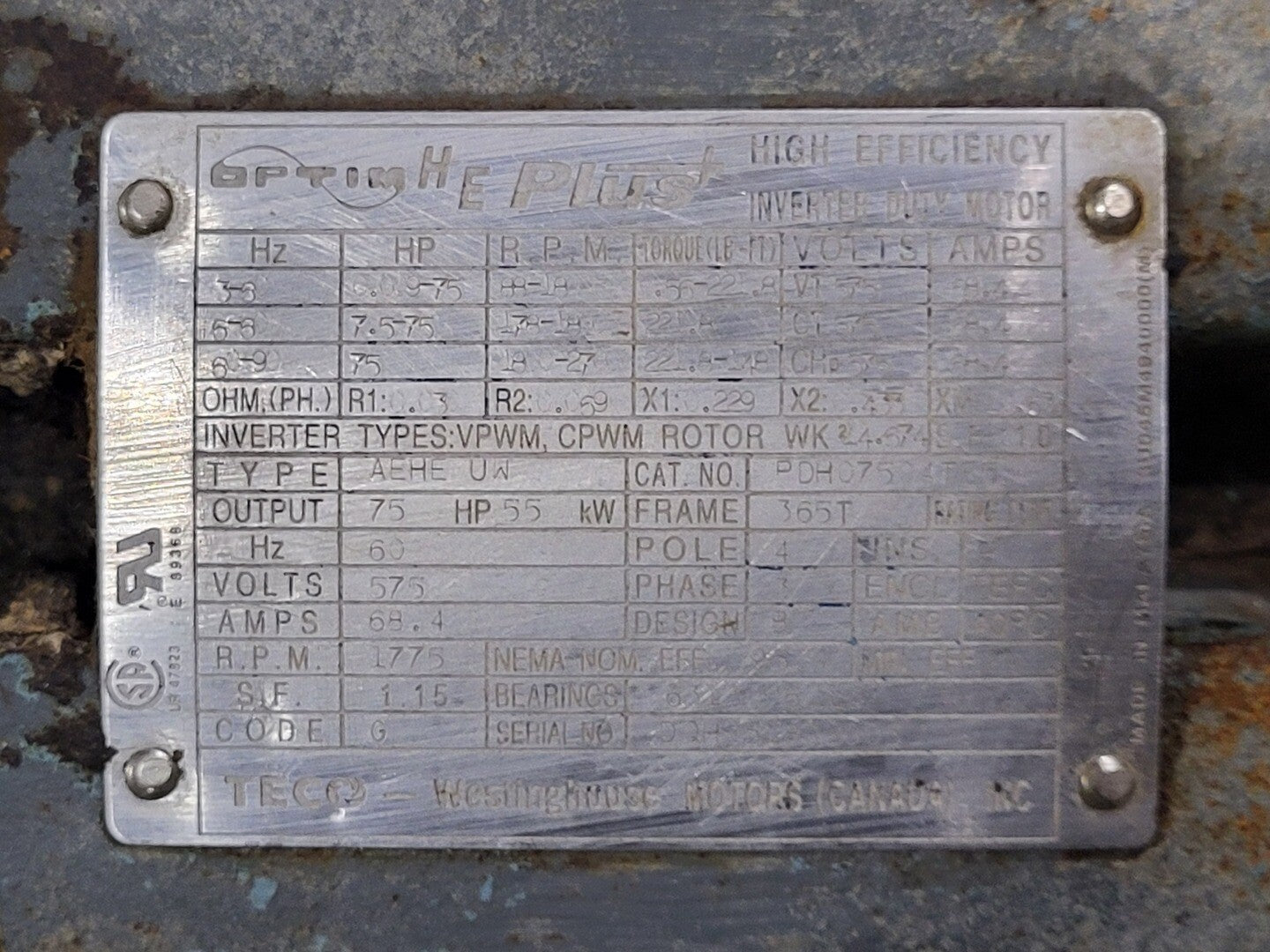

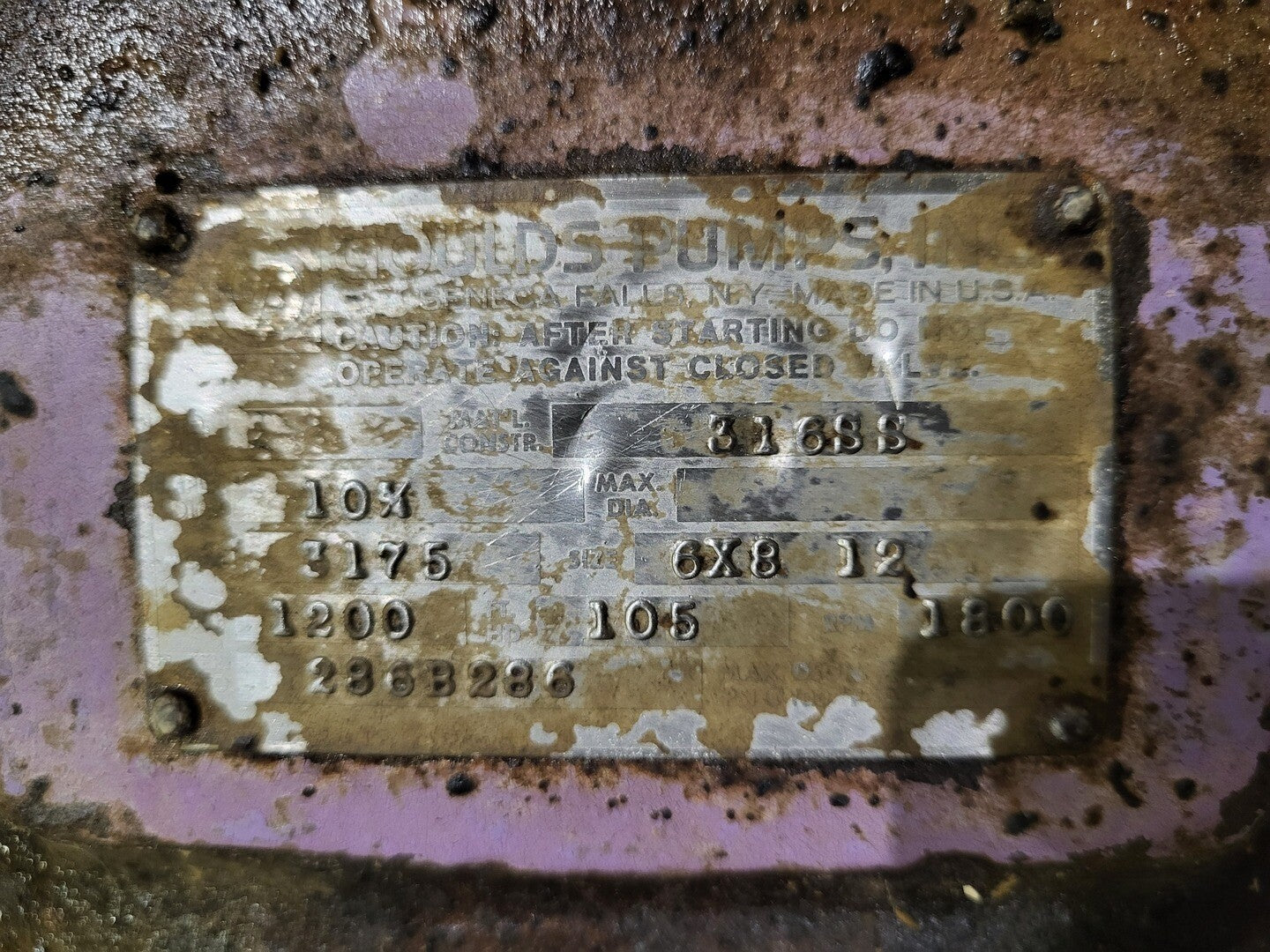

Size: 6x8-12 Discharge Size: 6" Suction Size: 8" Suction Size ( with suction piece): 12" Shaft Diameter at Coupling: 47.63 mm, 47.60mm Impeller Diameter: 10-3/4" Group: S Gallons Per Minute: 1200 Rated Pump Speed: 1800 Feet of Head: 105 ft. Material: 316SS (Stainless Steel) Motor Specifications: Make: TECO-Westinghouse Model: PDH07504TES Type: AEHE UW Frame: 365T Horsepower: 75 hp Volts: 575 V Amps: 68.4 A RPM: 1775 Pole: 4 Phase: 3 |
