Description

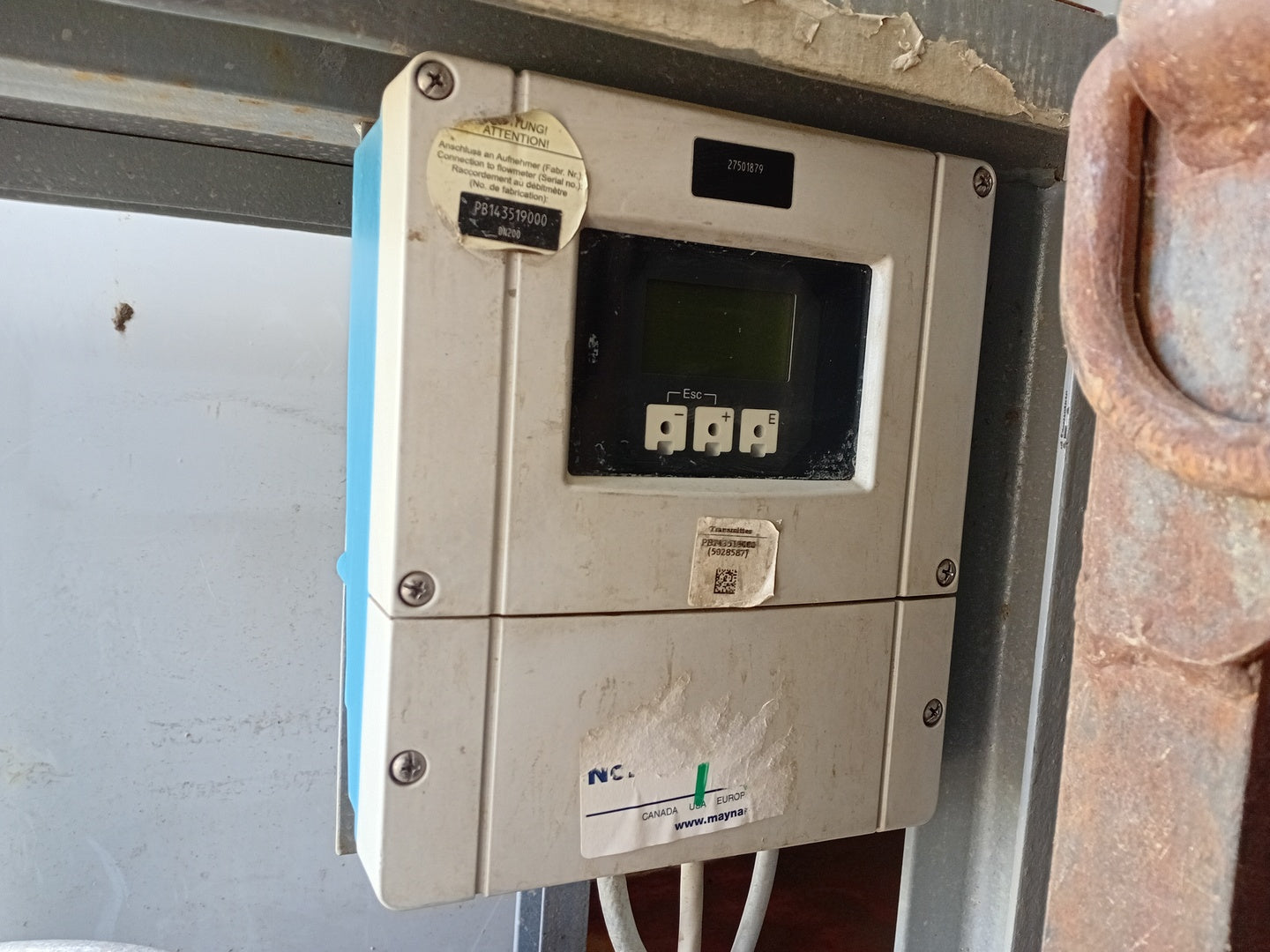

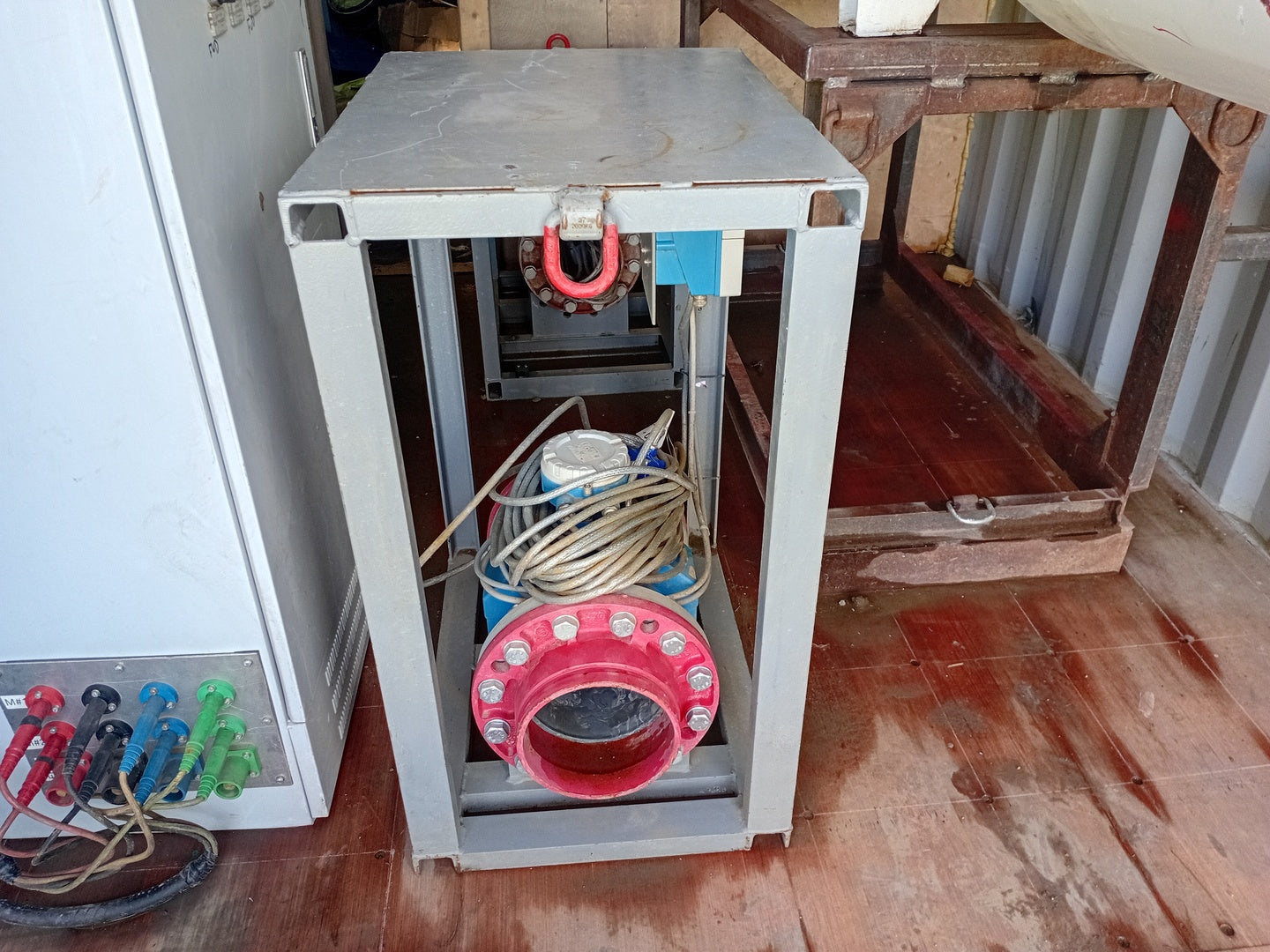

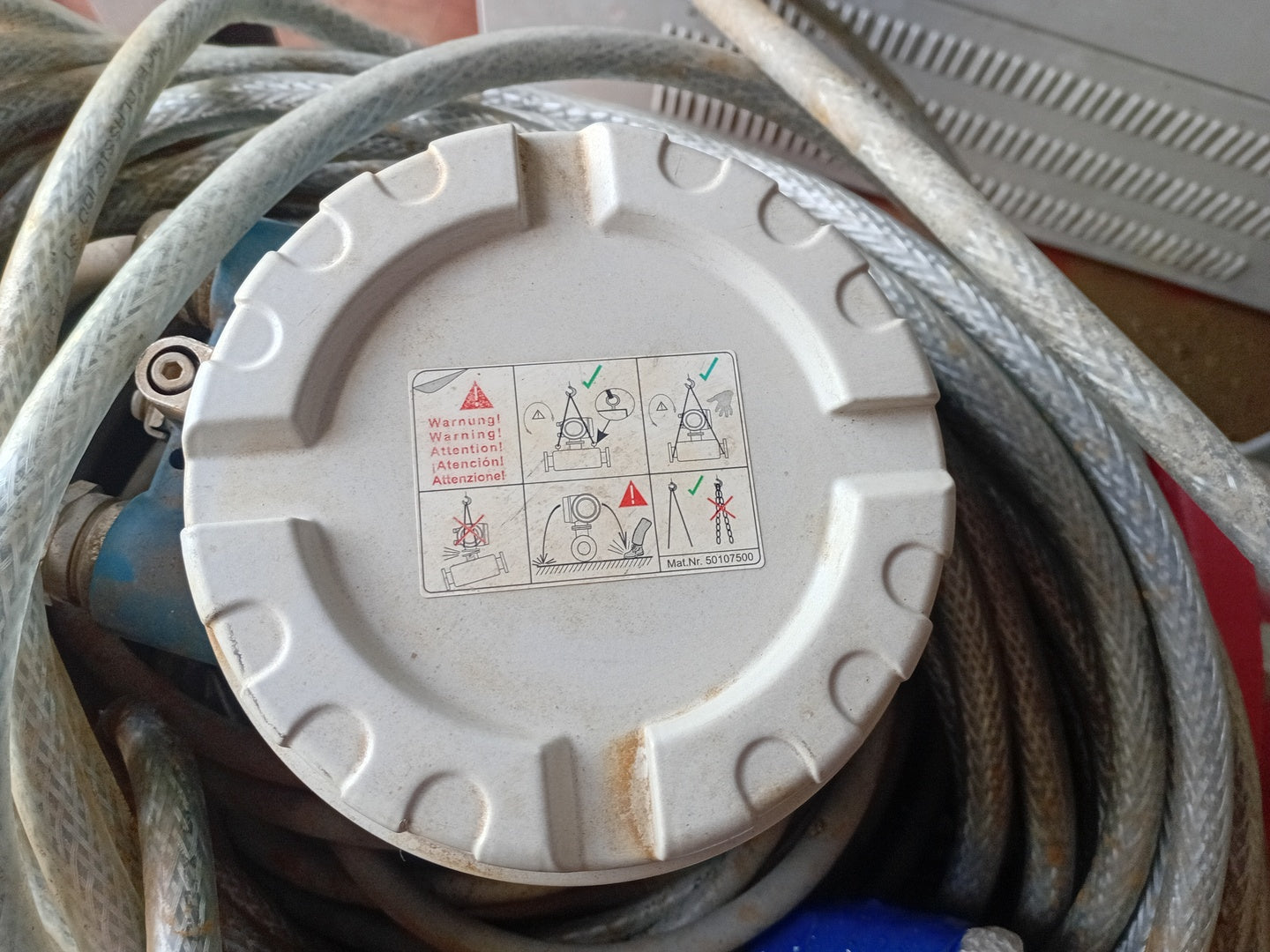

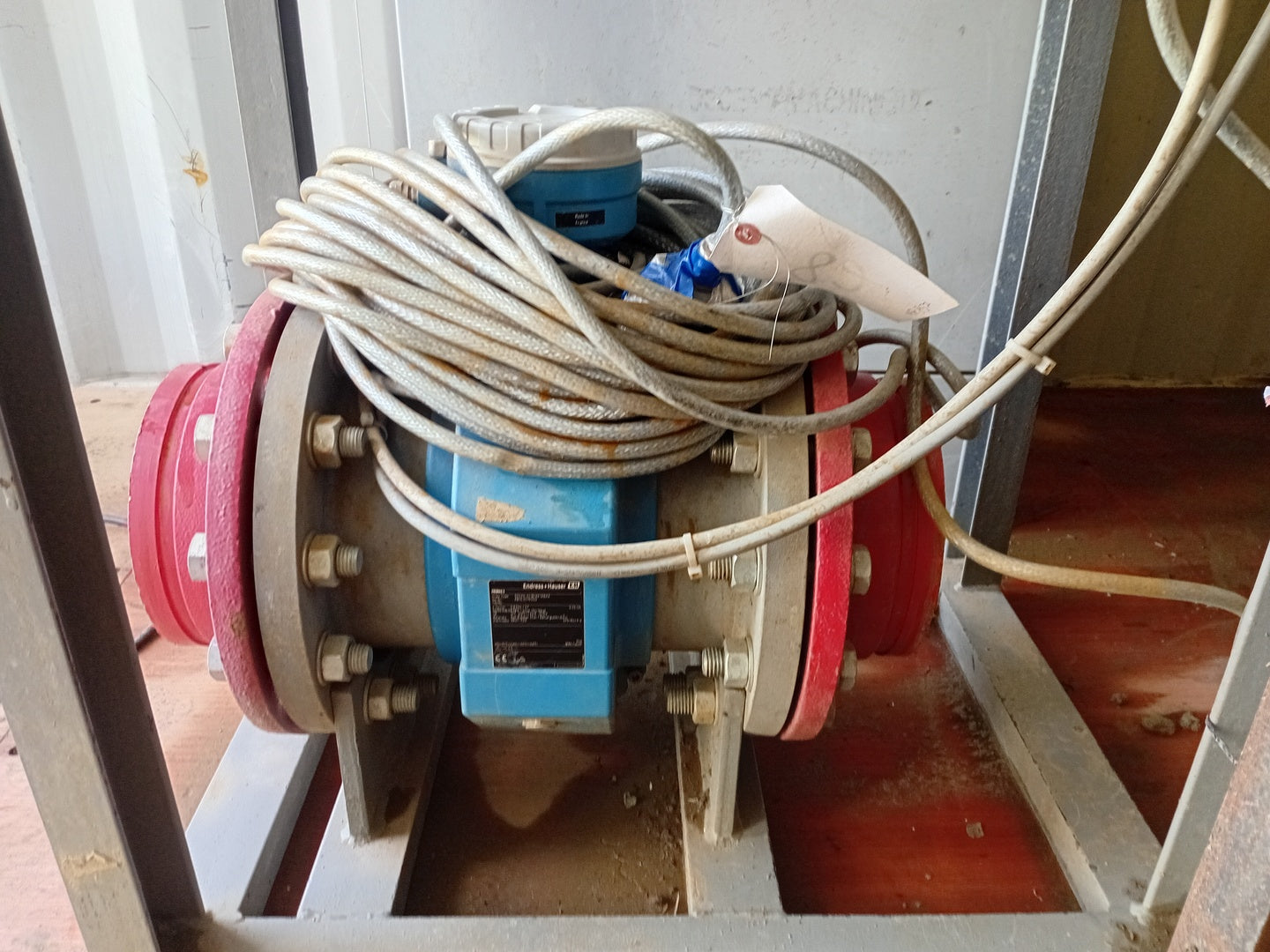

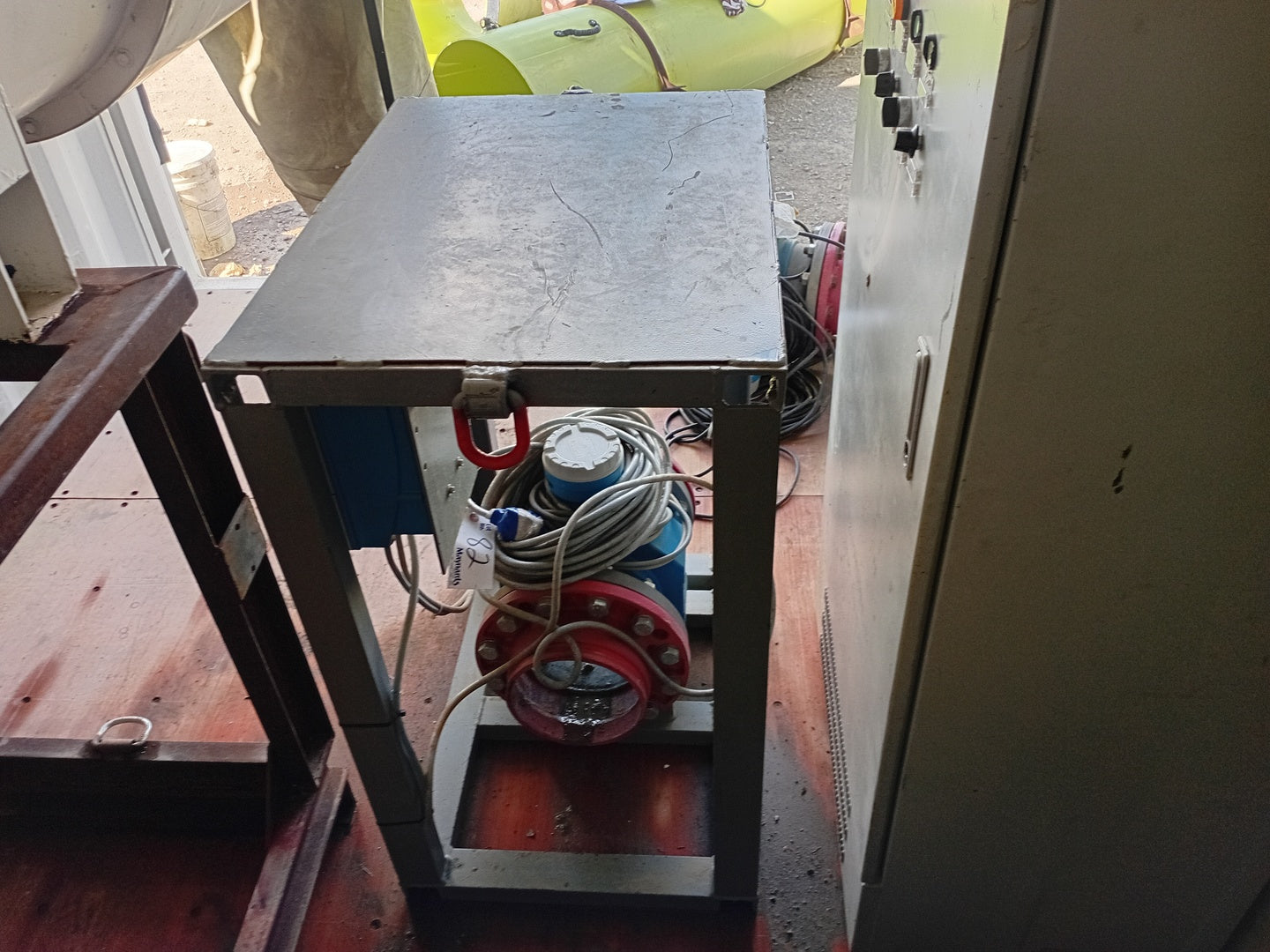

Endress+Hauser Promag S DN200 / 8-inch electromagnetic flow meter system with remote-mounted transmitter. The sensor is rated PN16, features an IP68 / NEMA 6P enclosure, natural/hard-rubber liner and Hastelloy C22 electrodes. The system includes the large flanged Promag S sensor, remote digital transmitter/display, cabling and protective steel support frame.
| Specifications | |
|---|---|

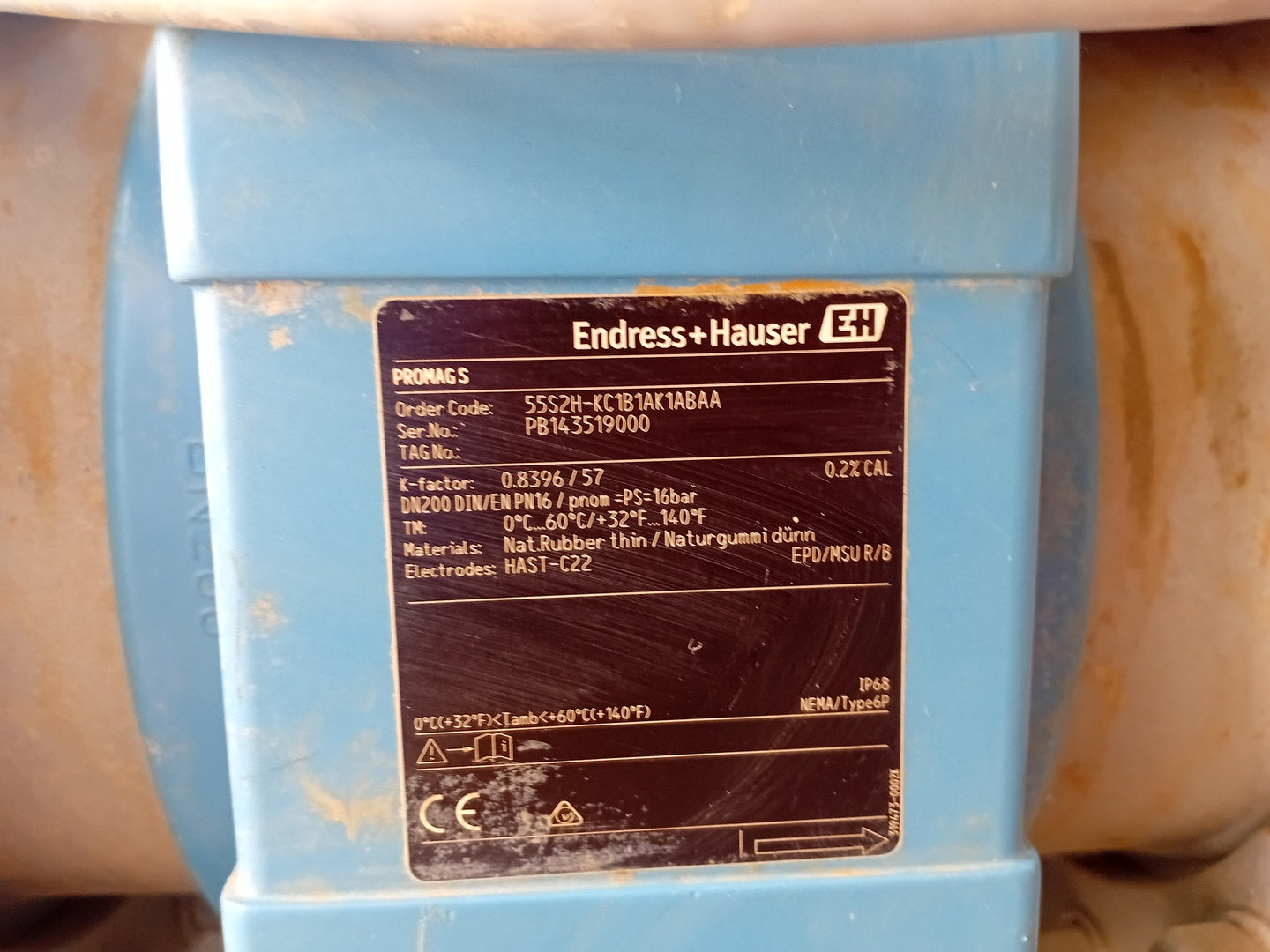

| Model | 55S2H-KC1B1AK1ABAA |

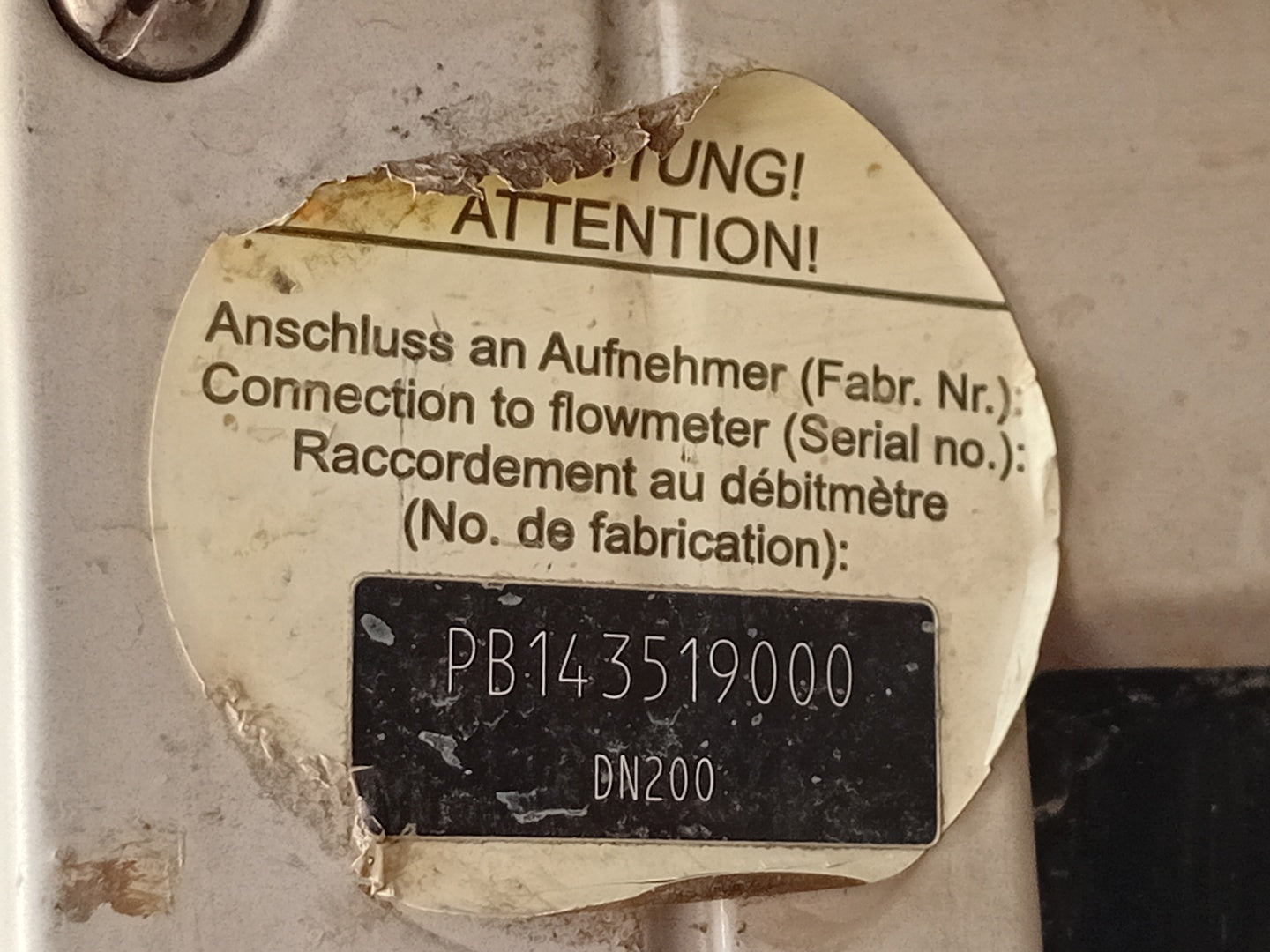

| S/N: | PB143519000 |
| Condition | Used |
| Other Specifications |
|---|
|

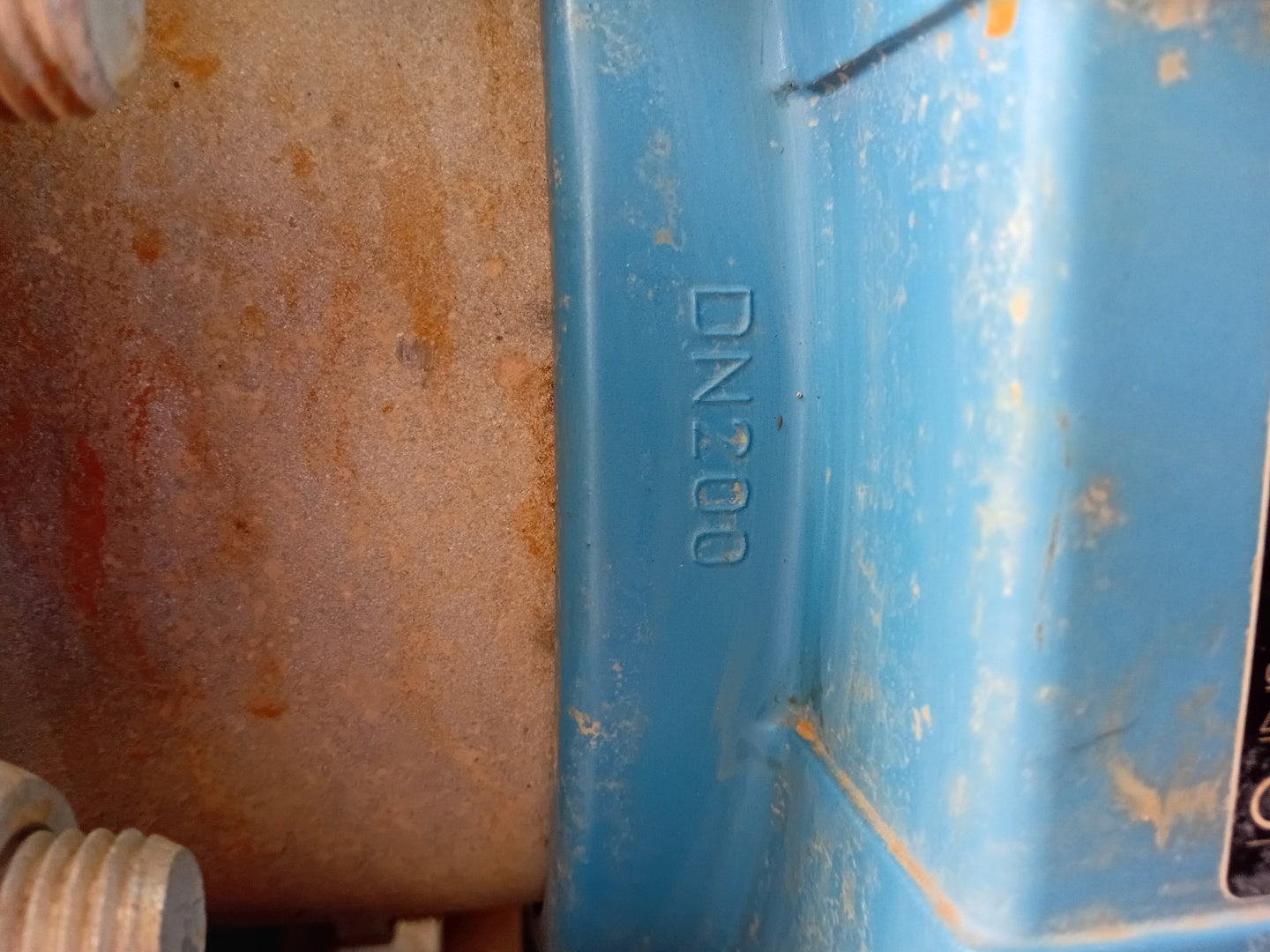

Type: Electromagnetic / Magnetic Flow Meter Nominal Size: DN200 // 8 in Process Connection: Flanged Flange Standard: DIN/EN Pressure Rating: PN16 Nominal Pressure: 16 bar Calibration: 0.2 CAL K-Factor: 0.8396 / 57 Medium Temperature Range: 0°C to 60°C / 32°F to 140°F Ambient Temperature Range: 0°C to 60°C / 32°F to 140°F Liner Material: Natural rubber / hard rubber Electrode Material: Hastelloy C22 Sensor Protection Rating: IP68 / NEMA Type 6P Measuring Principle: Electromagnetic |
