Description
| Specifications | |
|---|---|
| Model | PHASOR |

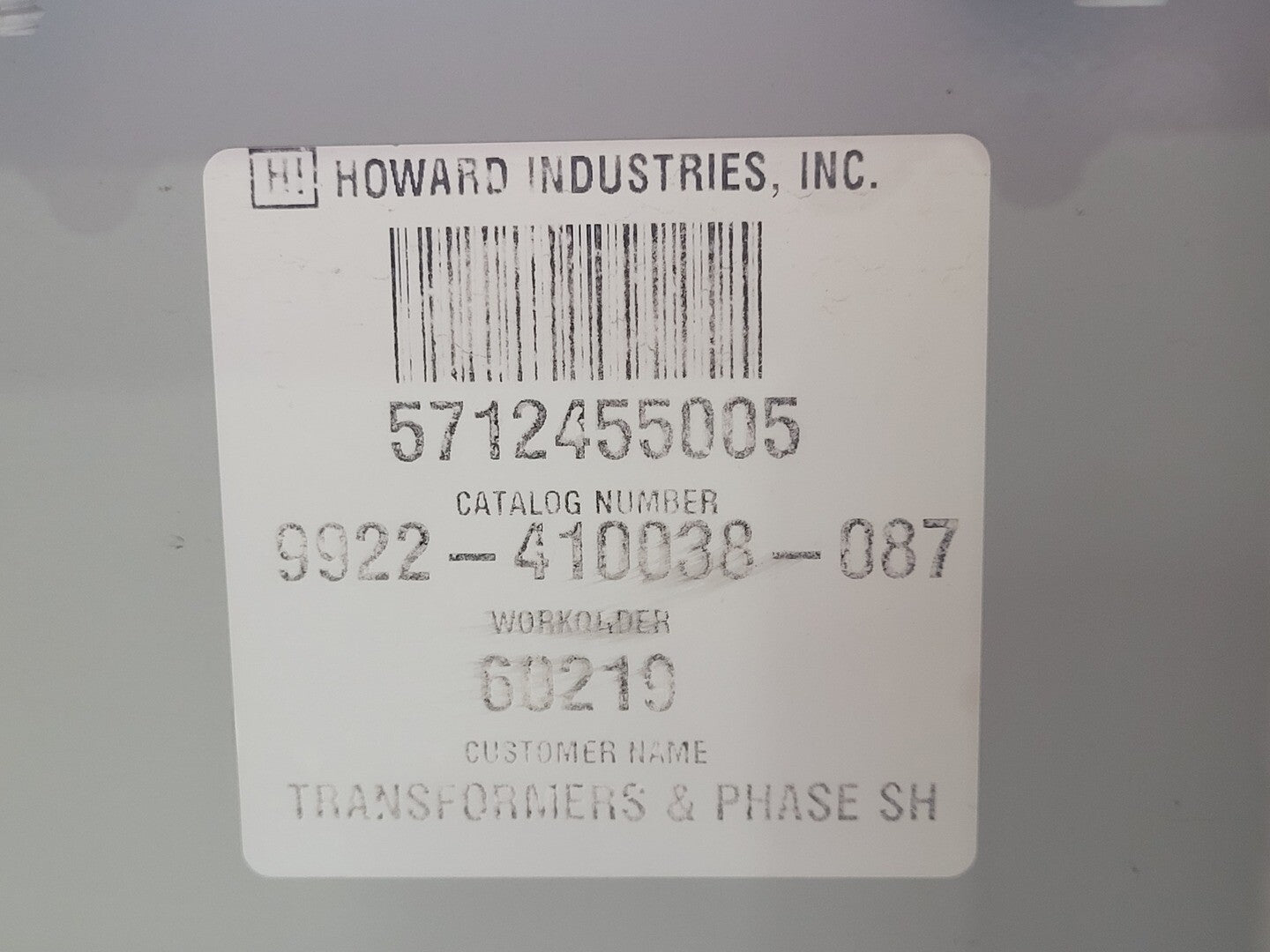

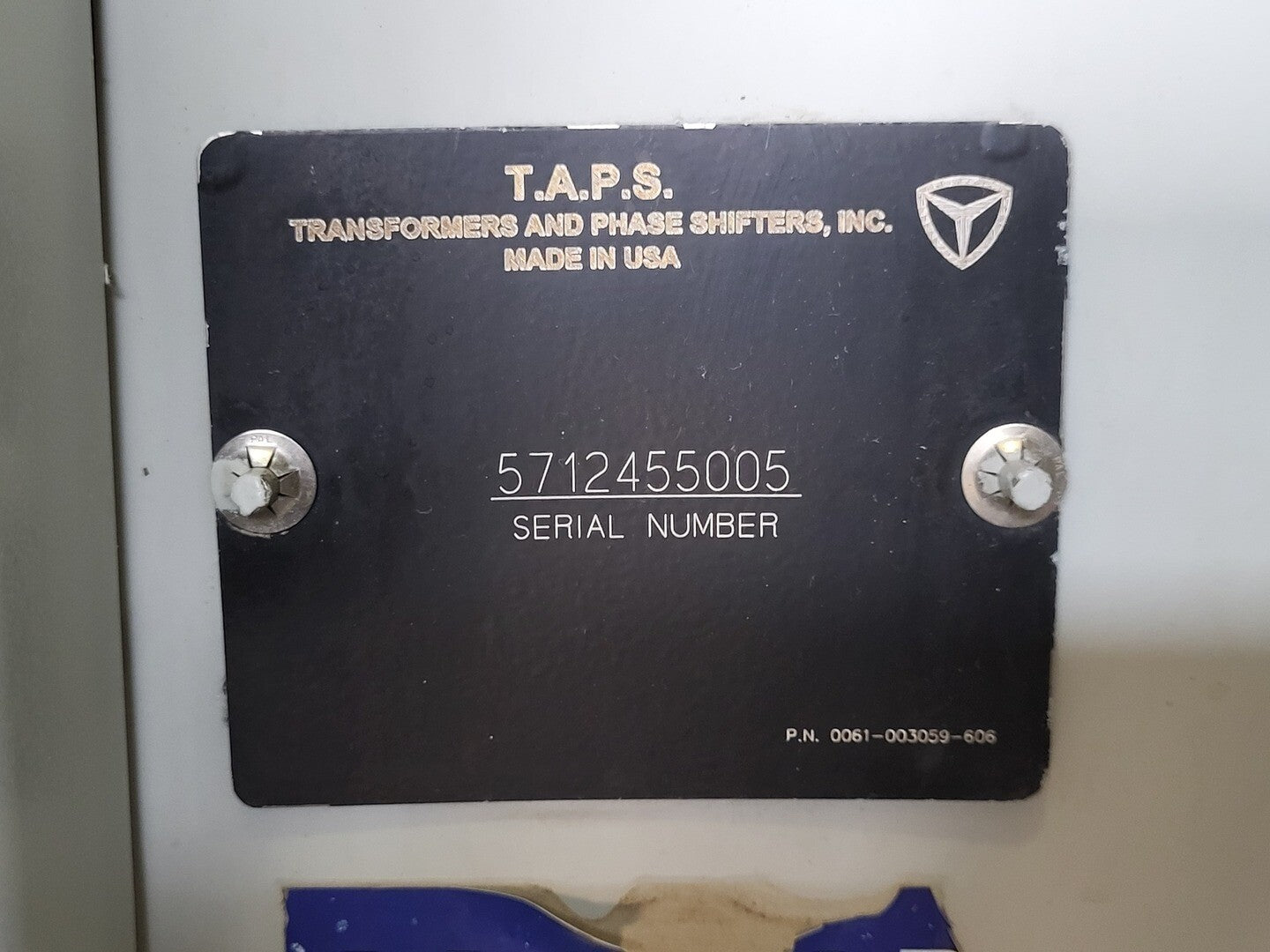

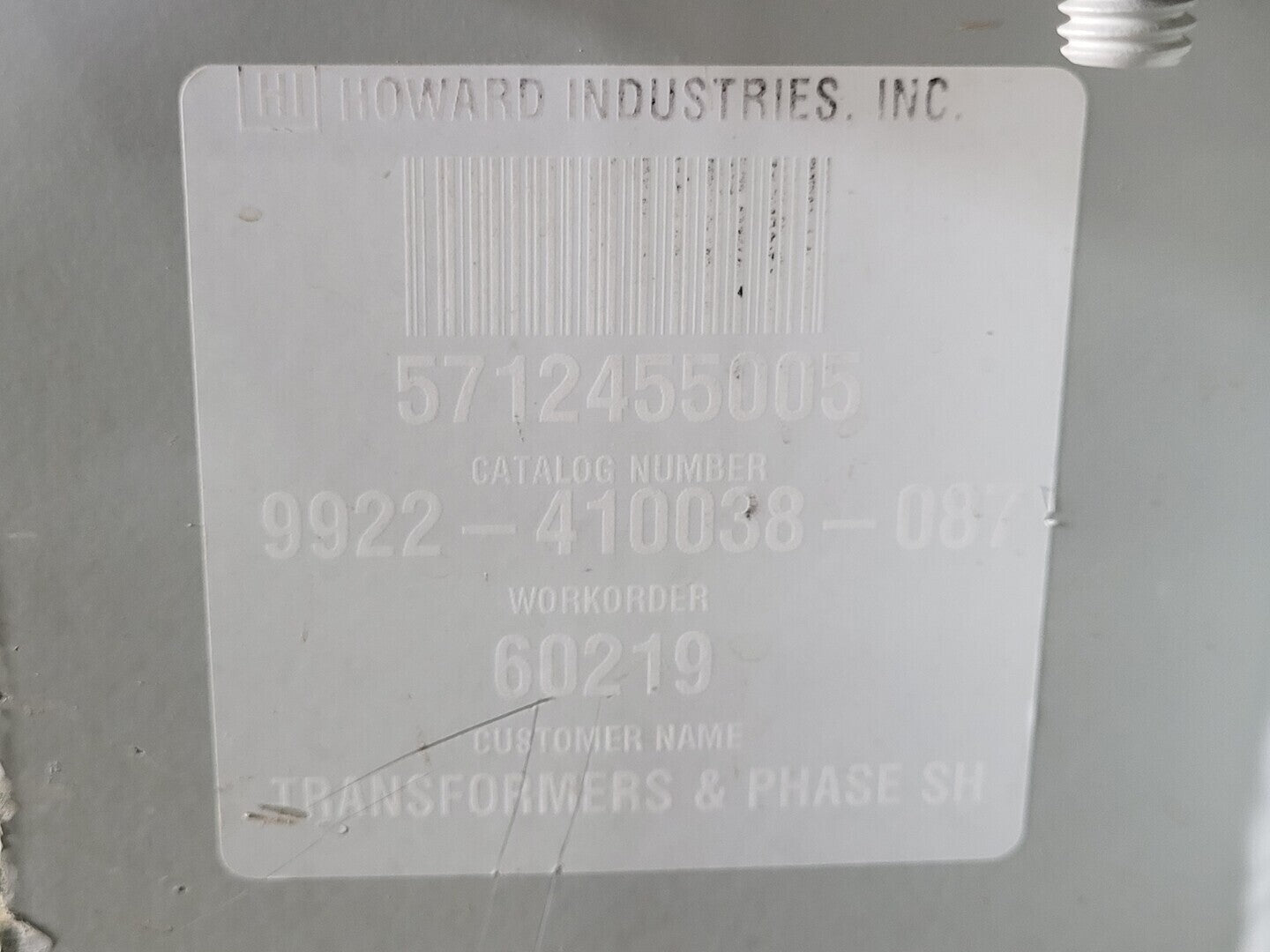

| S/N: | 5712455005 |
| Condition | Used | Electrical |

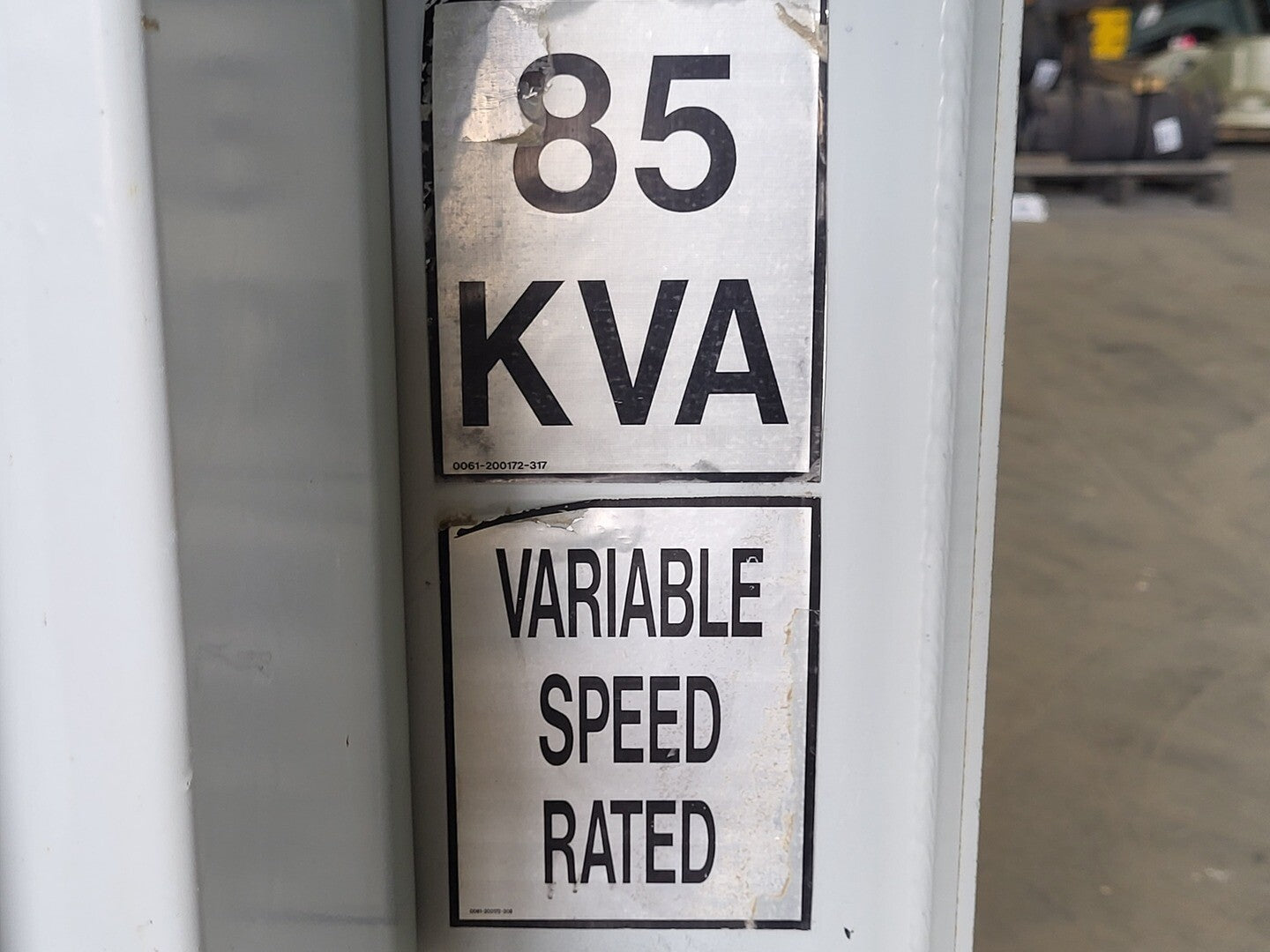

| kVA | 85 kVA |
| Primary Voltage | 480-1900 volts |
| Secondary Voltage | 480 volts |
| Phase | 3-phase | General |
| Transformer Type | Distribution Transformer |
| Auto VS Isolation | Isolation |
| Oil vs Dry | Oil |
| Other Specifications |
|---|
|

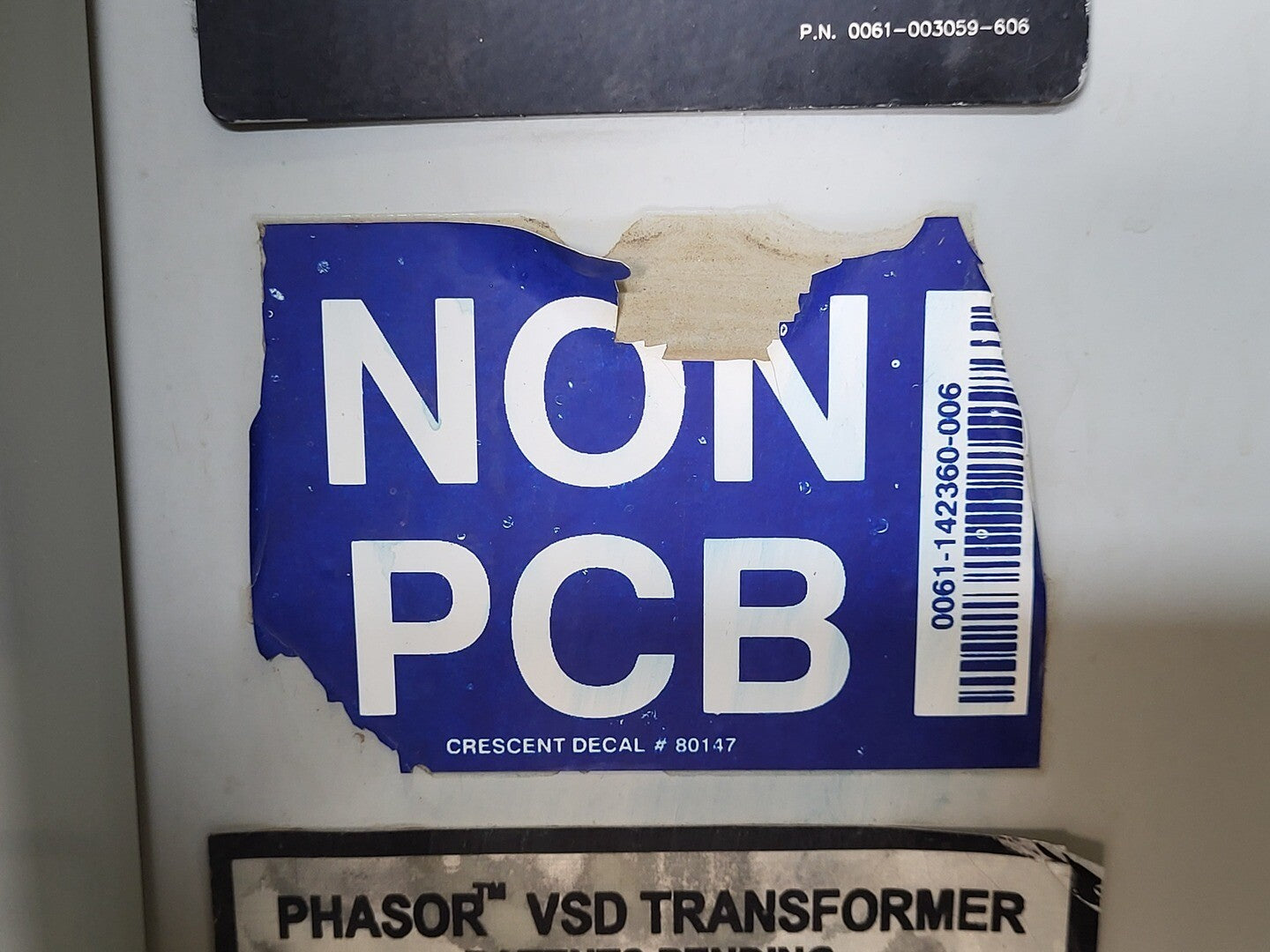

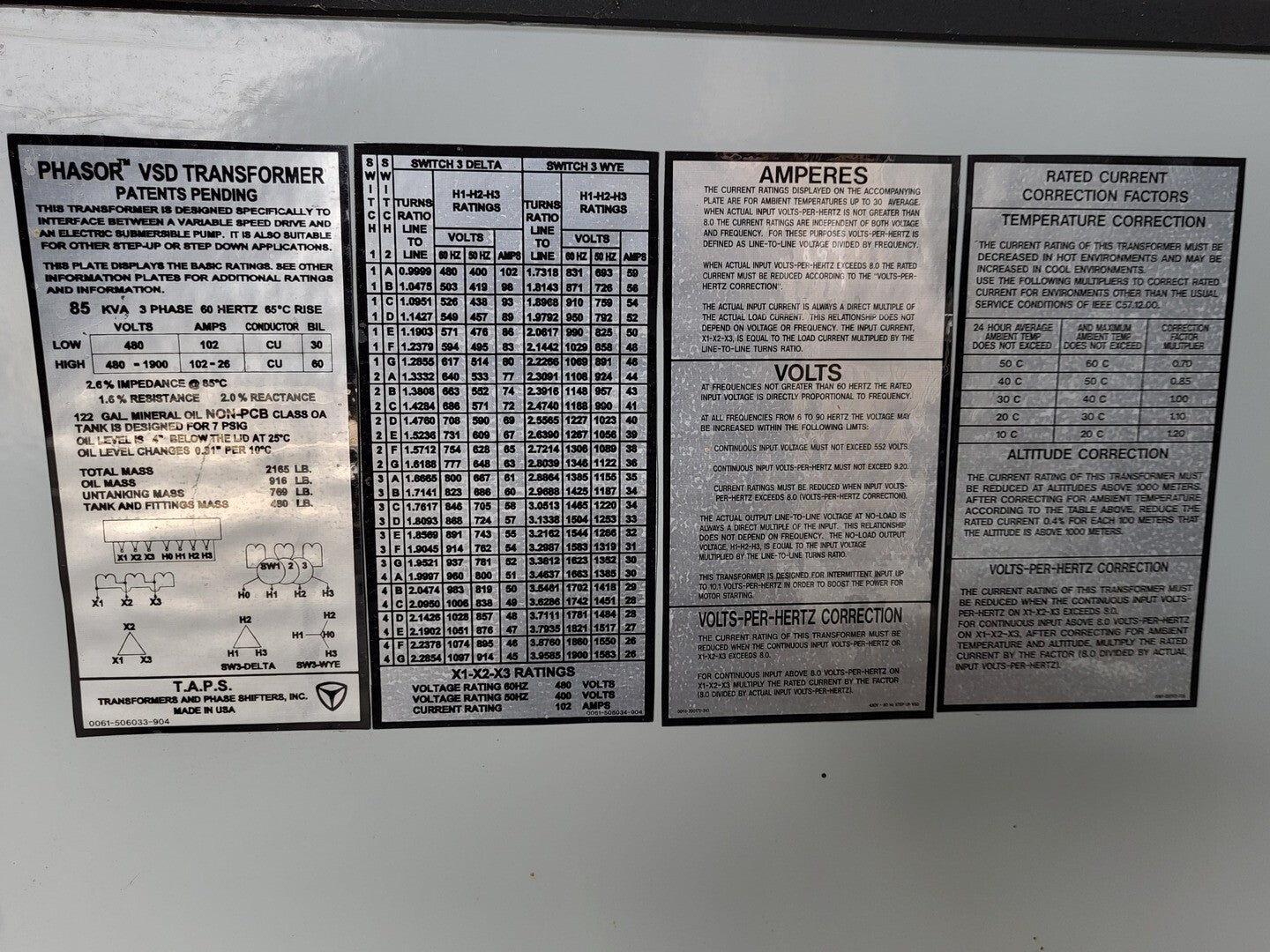

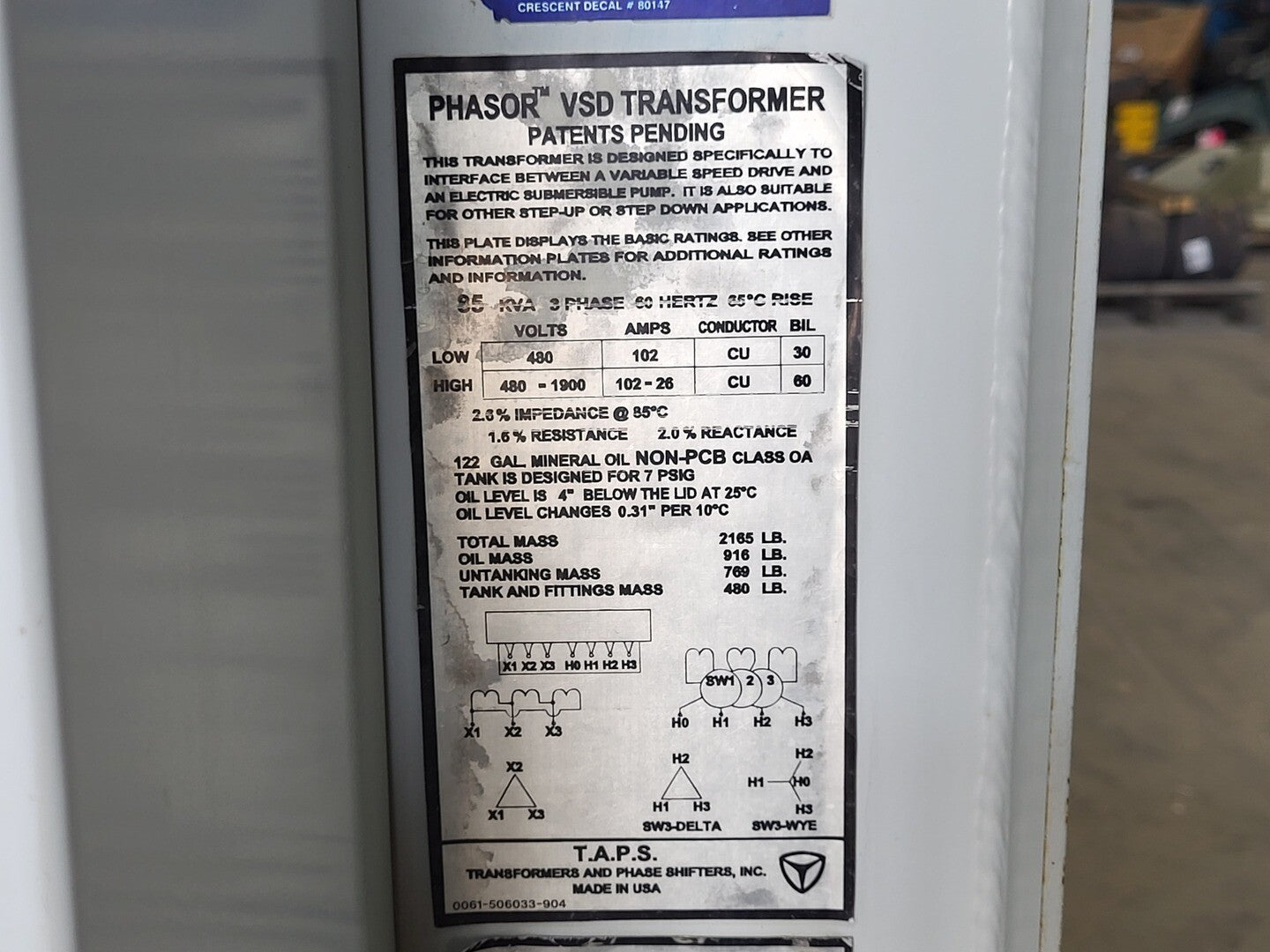

Phase: 3 Phase Frequency: 60 Hz Temperature Rise: 65°C Voltage - Low (Secondary): 480 volts Voltage - High (Primary): 480 - 1900 volts Amps - Low: 102 A Amps - High: 102 - 26 A Conductor Material: CU Basic Impulse Level (BIL): 30 kV (Low) / 60 kV (High) Impedance: 2.6% at 85°C Reactance: 2.0% Resistance: 1.6% Oil Type: Mineral Oil (Non-PCB, Class OA) Oil Capacity: 122 gallons Tank Pressure Rating: Designed for 7 PSIG Total Mass: 2,165 lbs Oil Mass: 916 lbs Untanking Mass: 769 lbs Tank & Fittings Mass: 480 lbs Cooling Type: Oil Natural Air Natural (ONAN) |
