Description

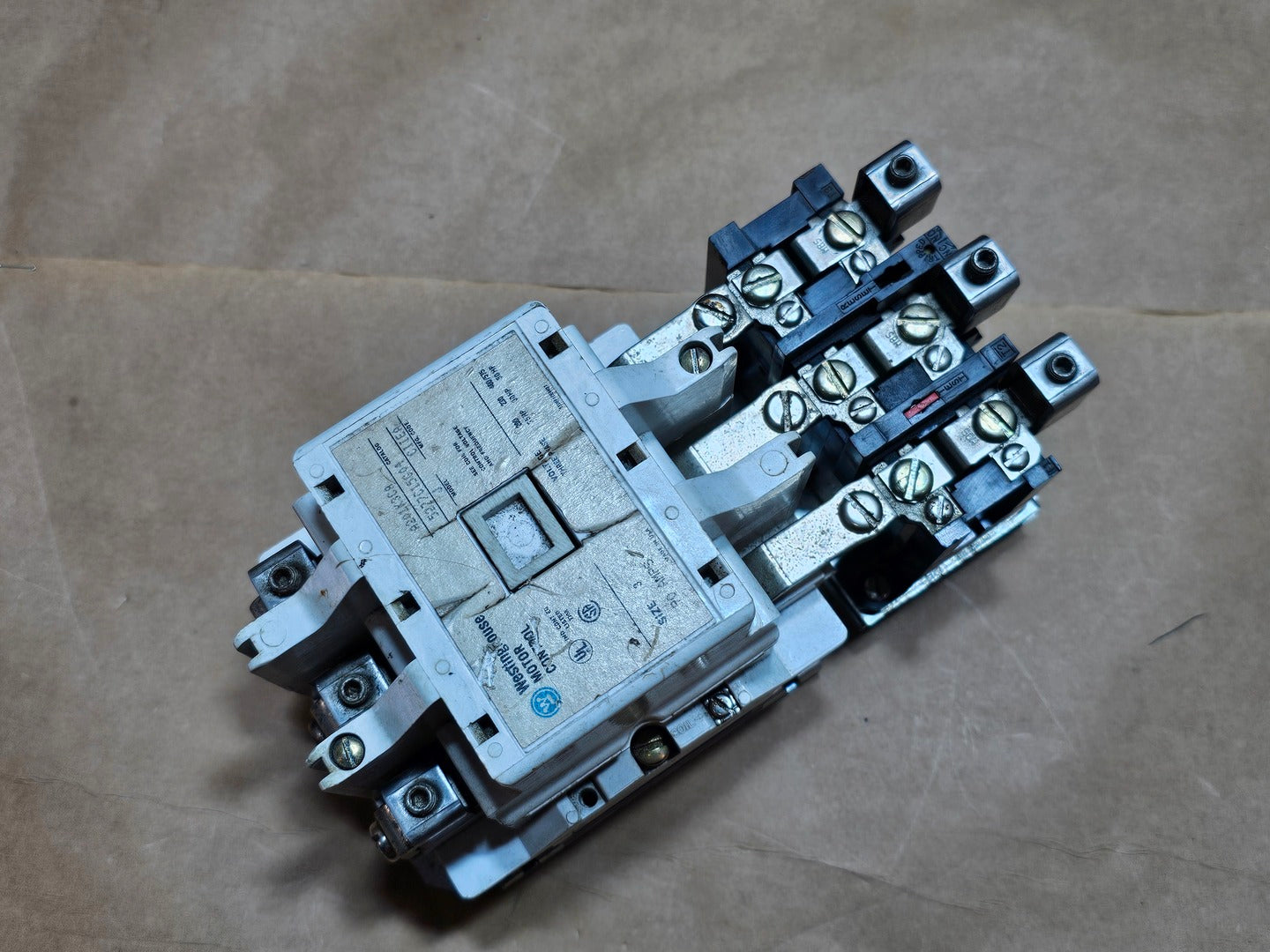

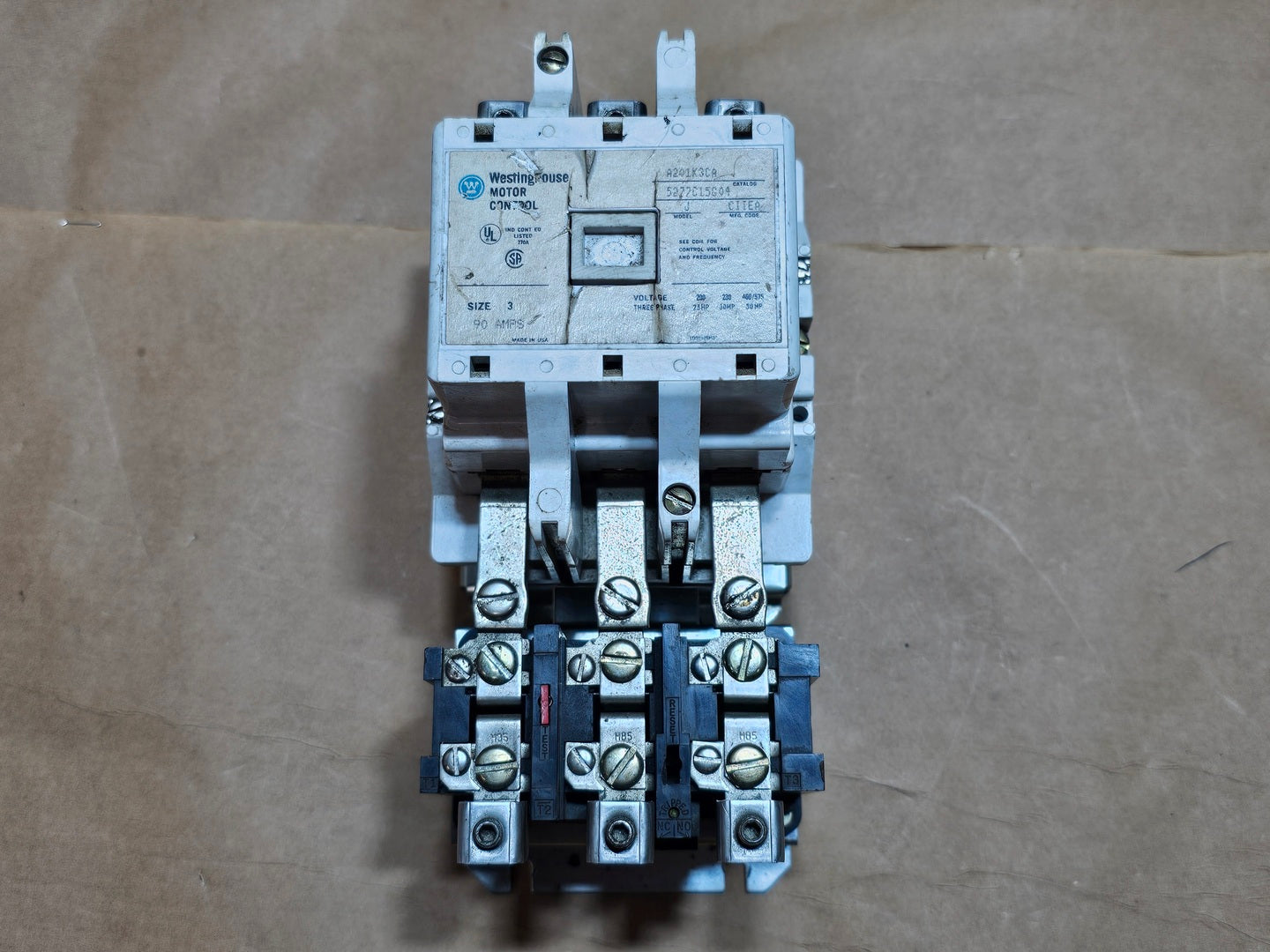

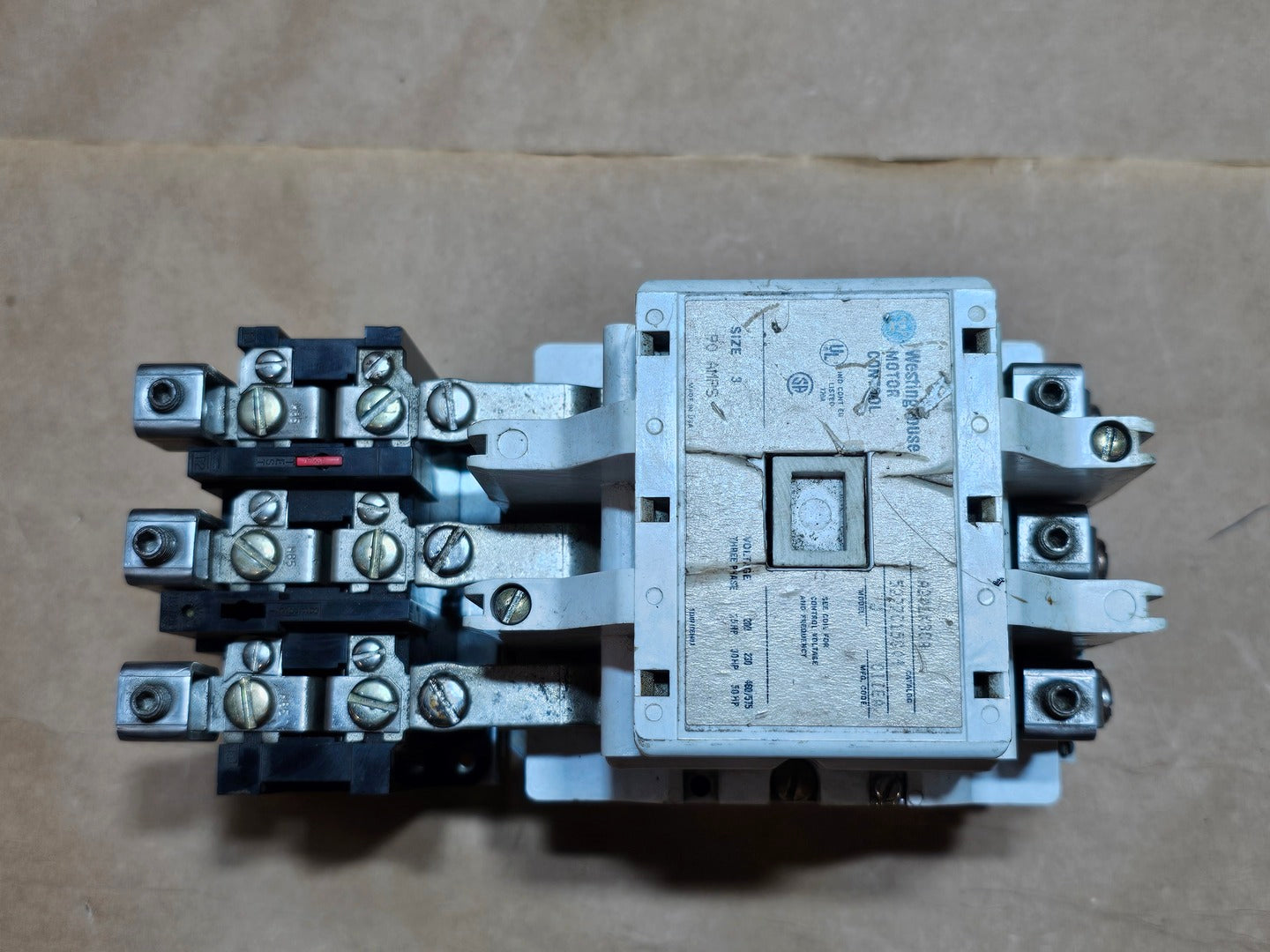

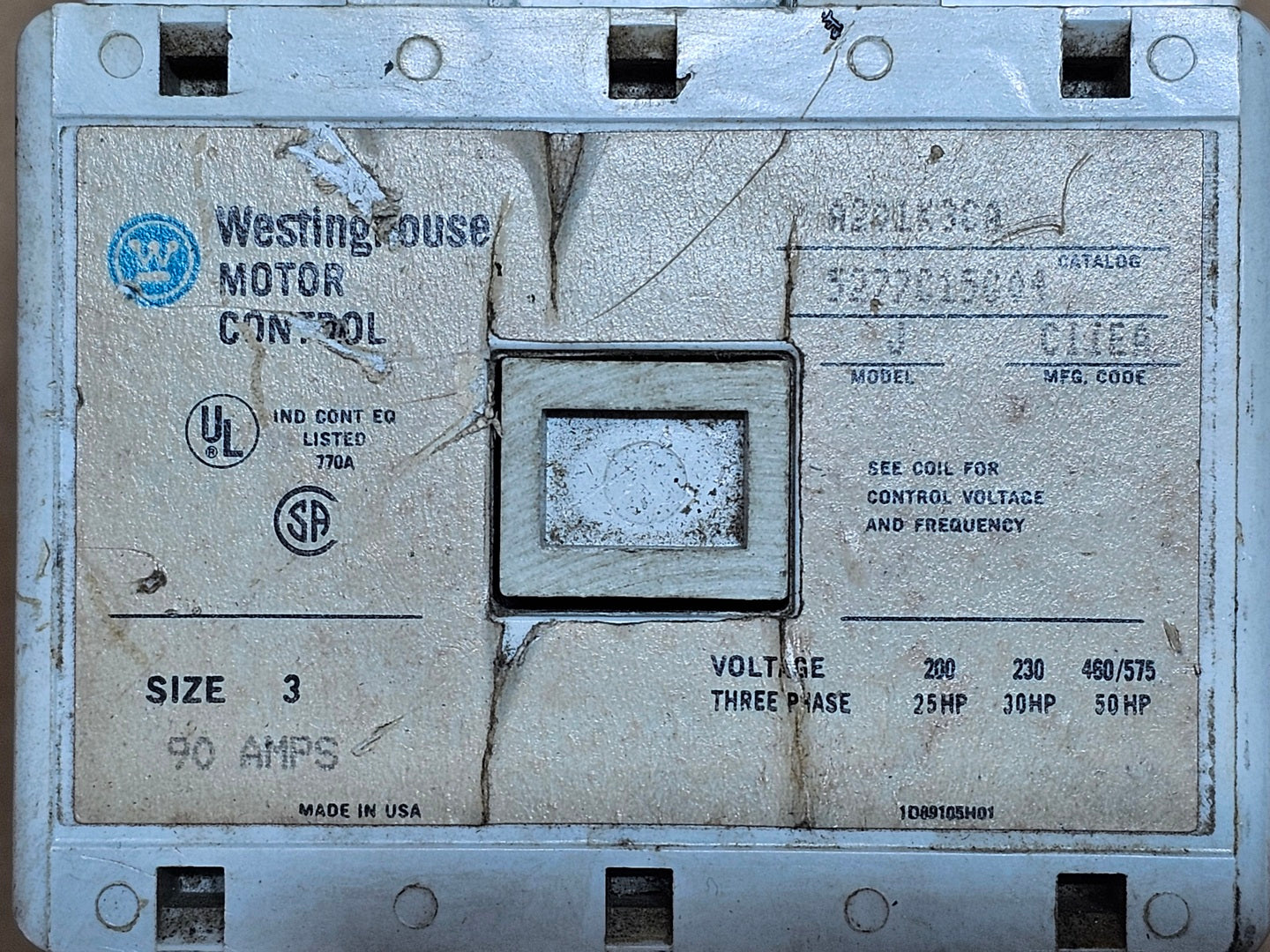

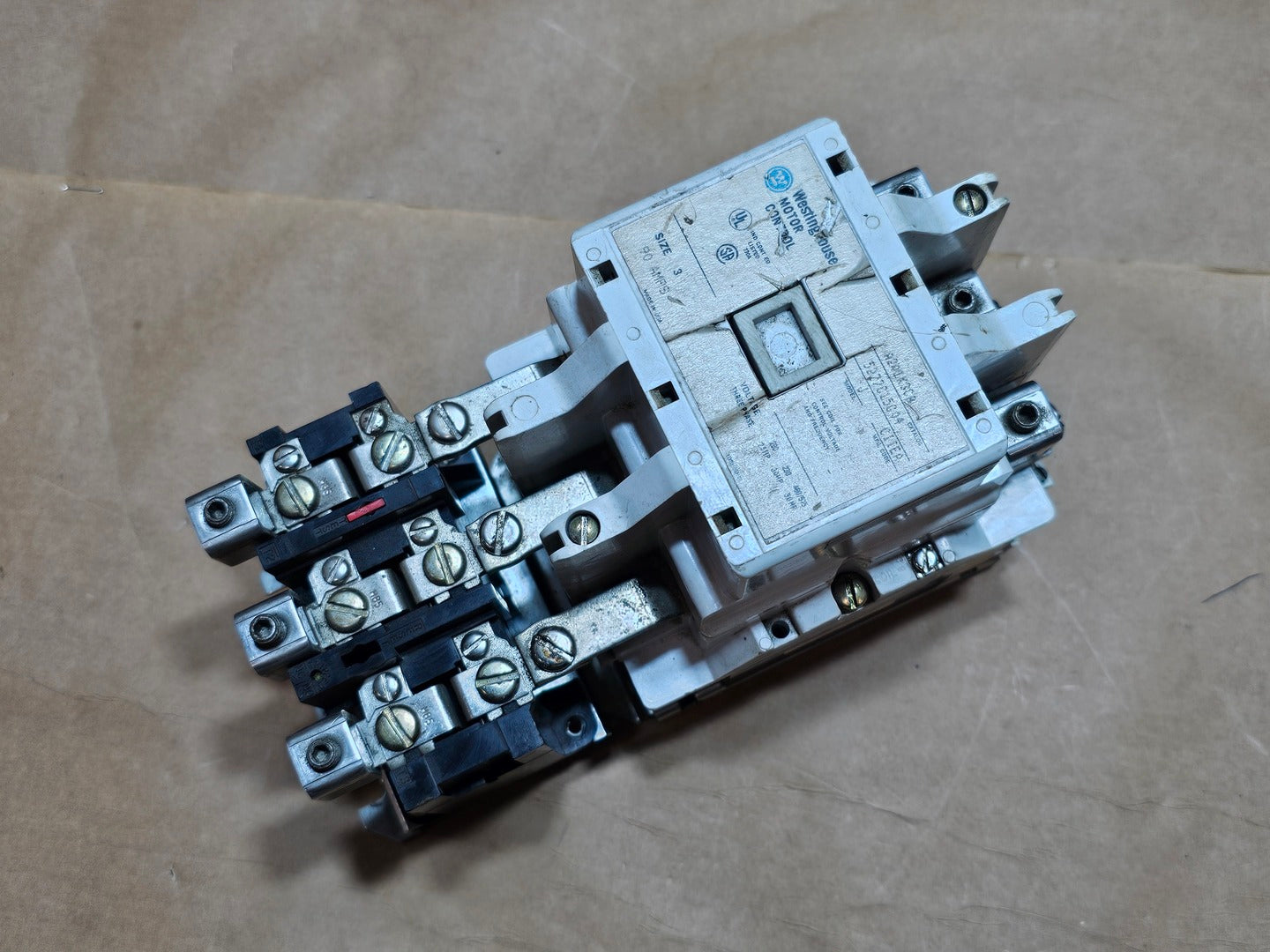

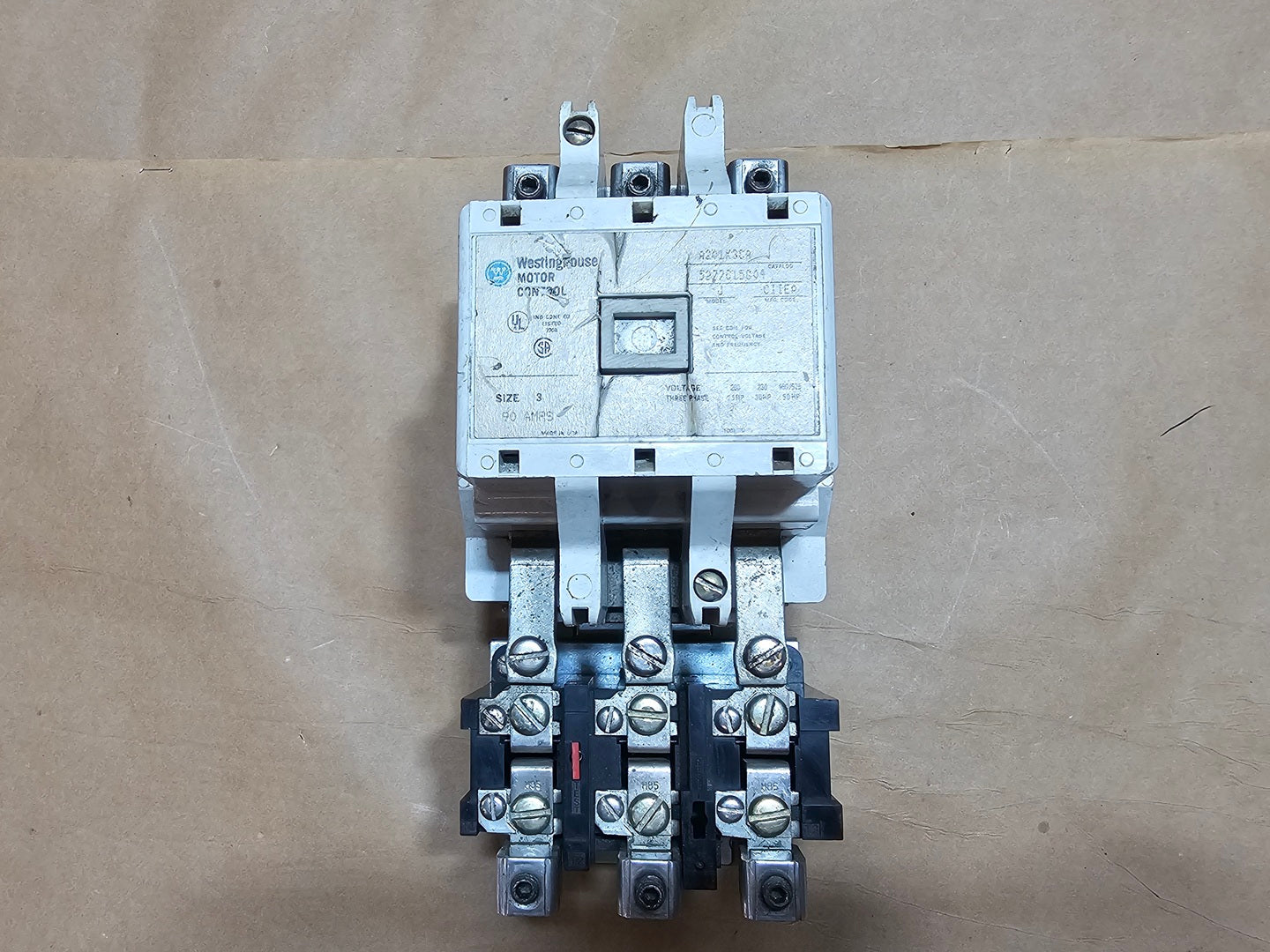

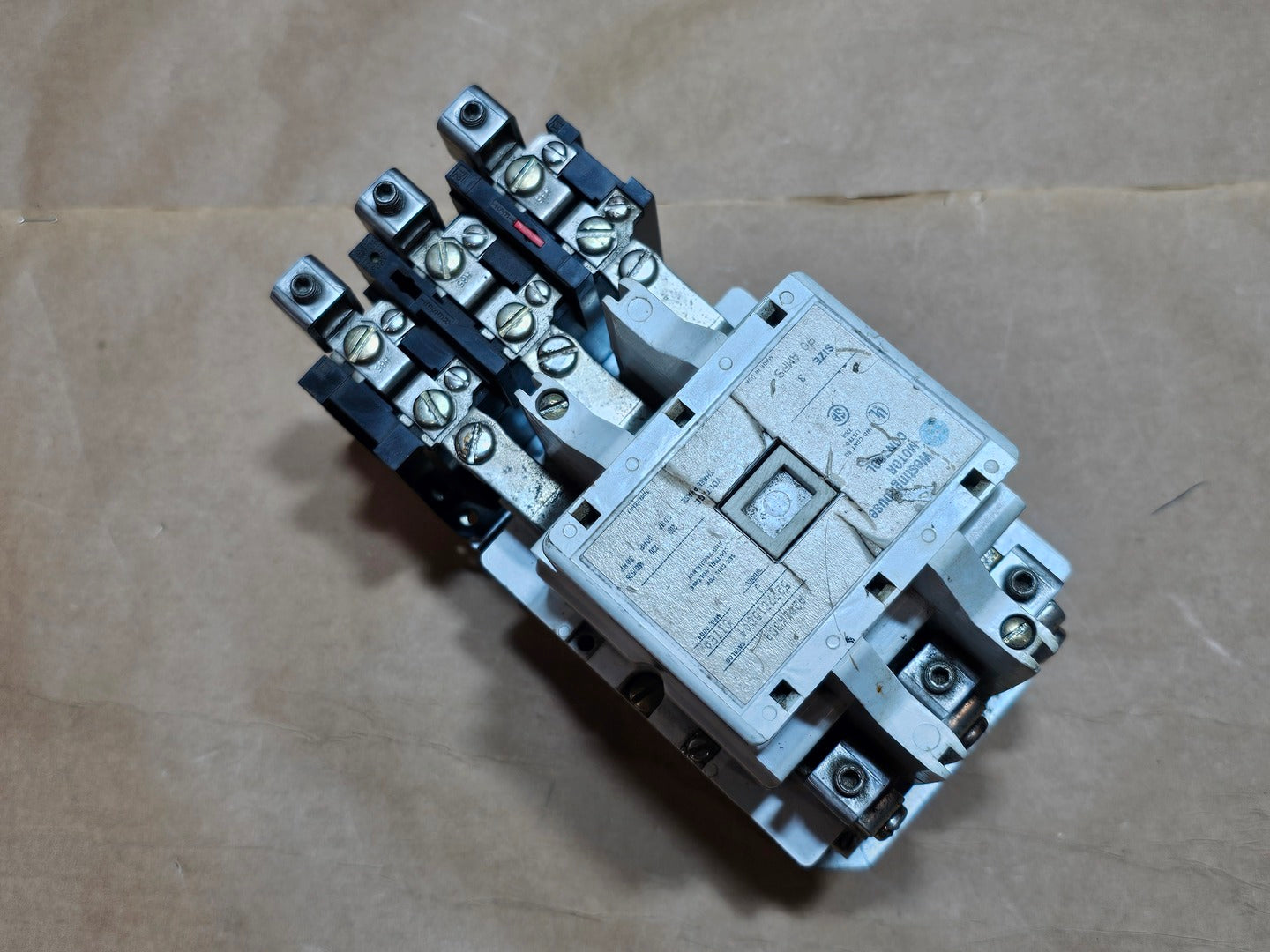

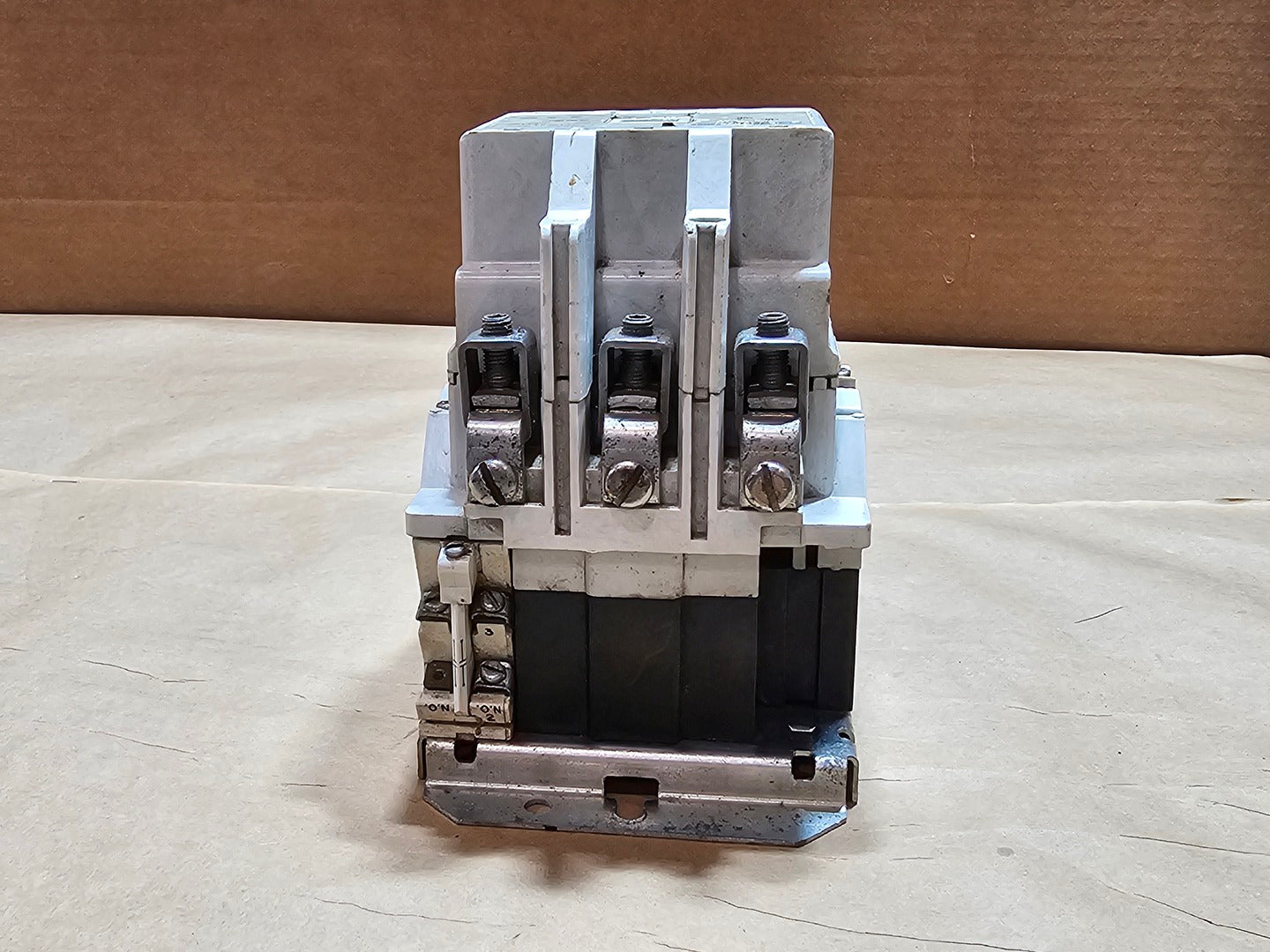

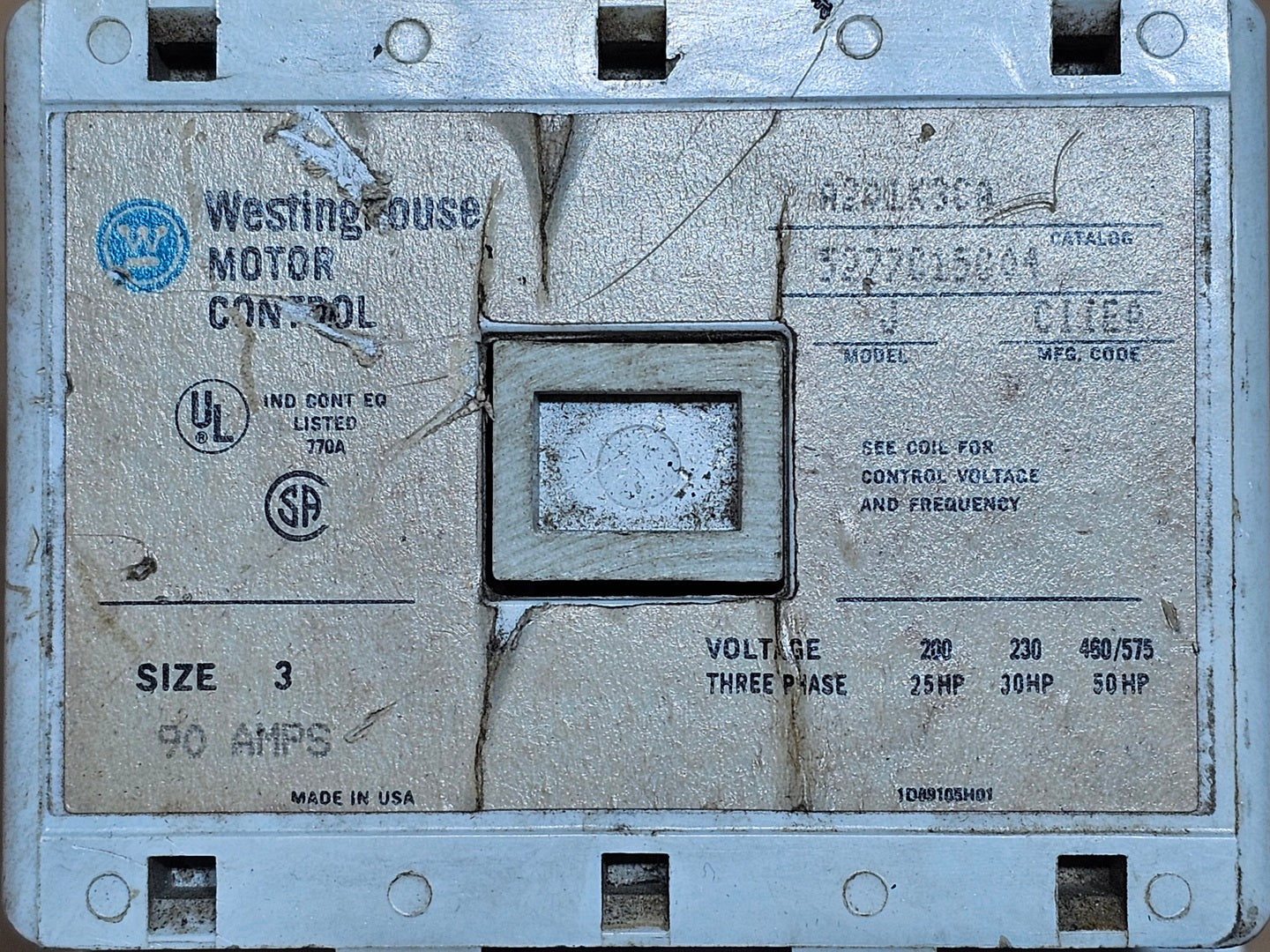

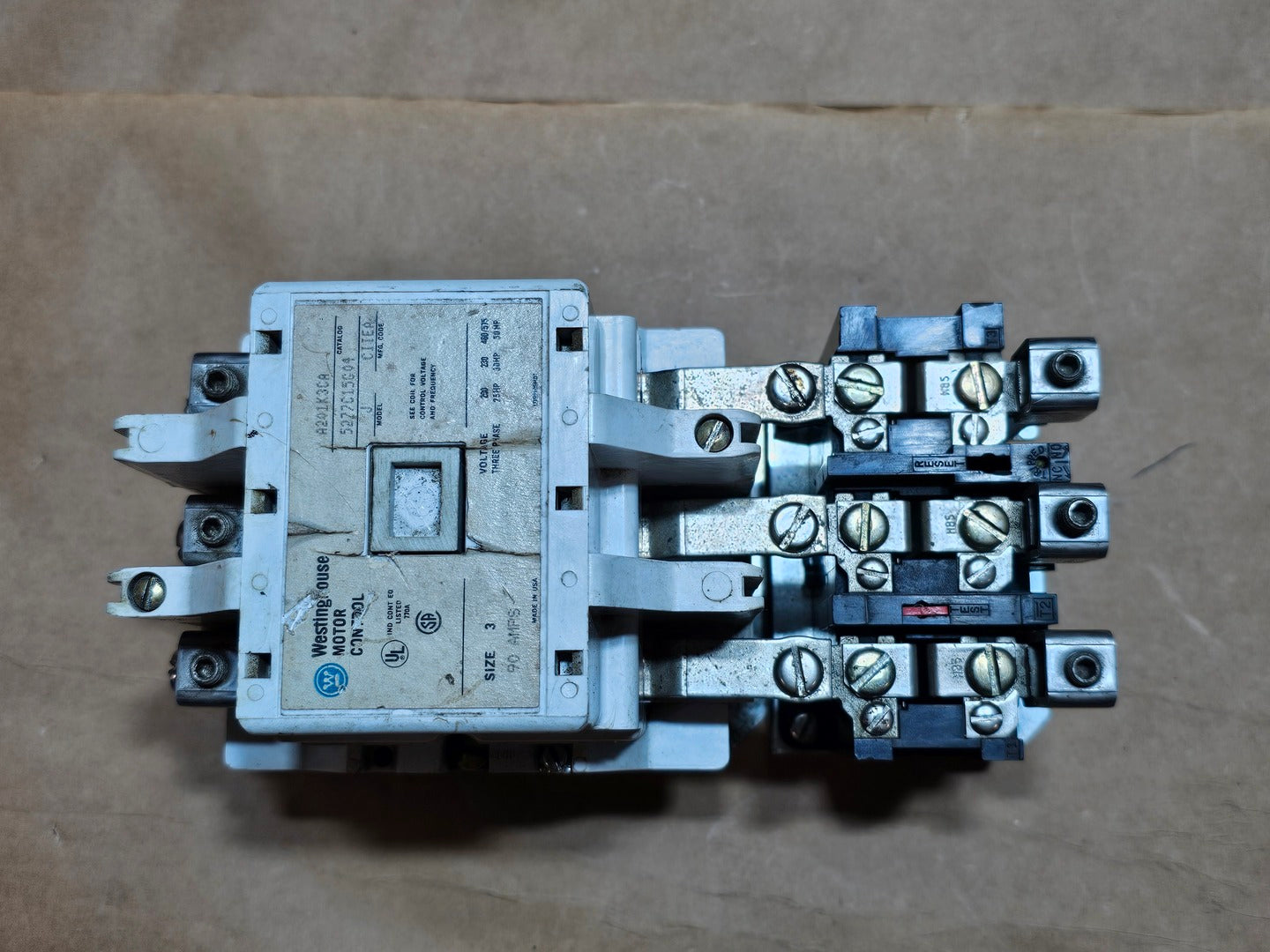

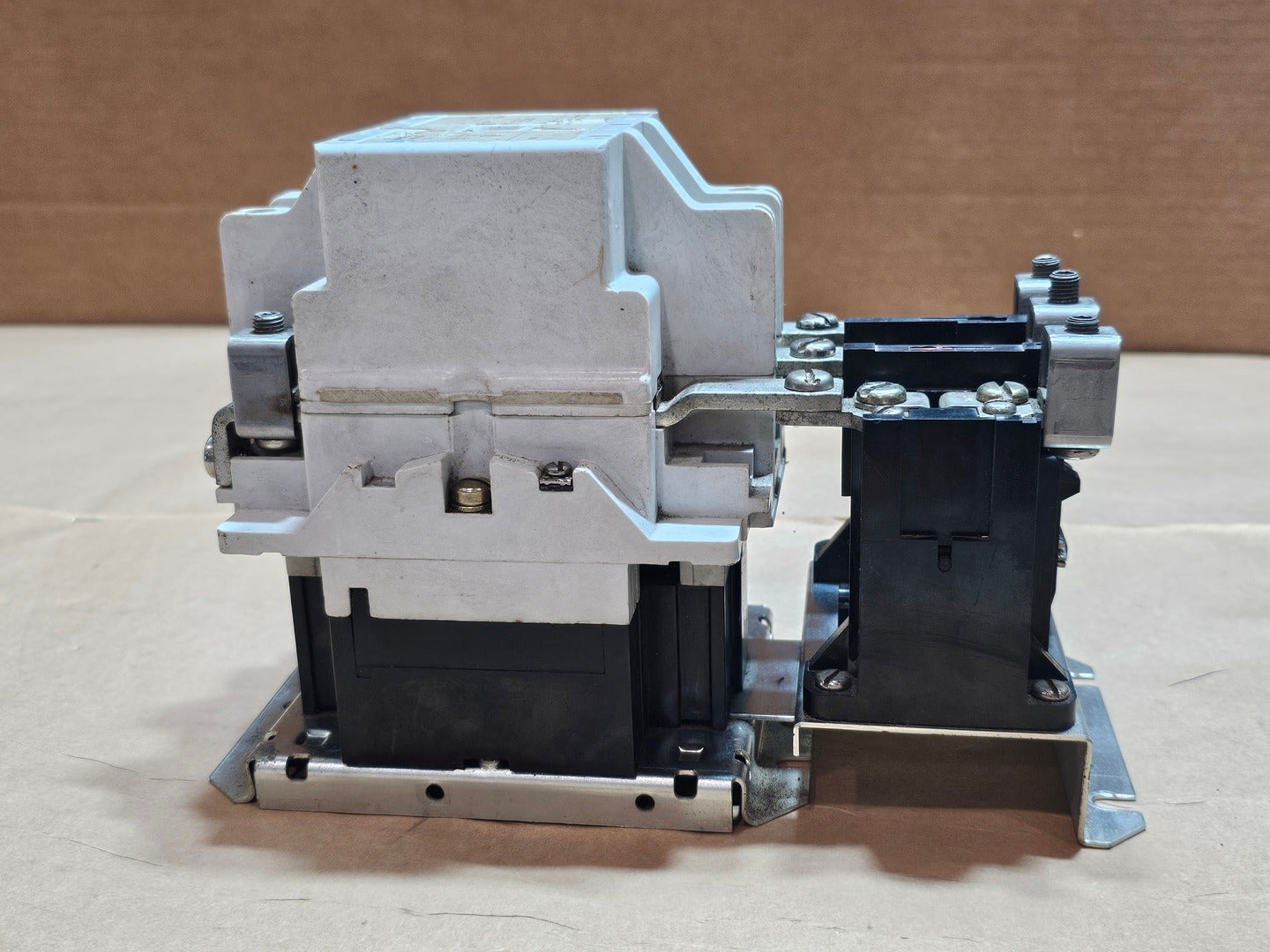

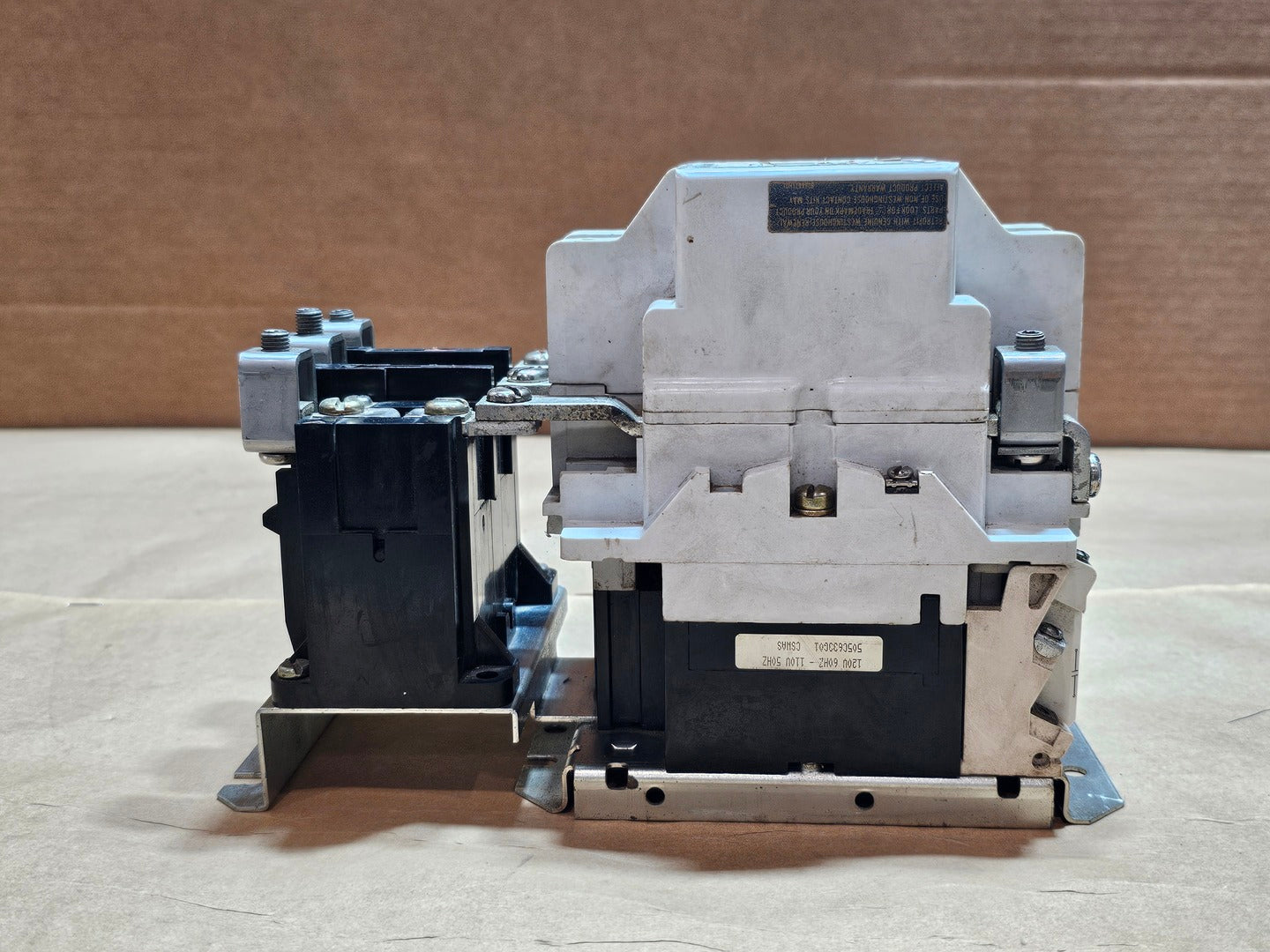

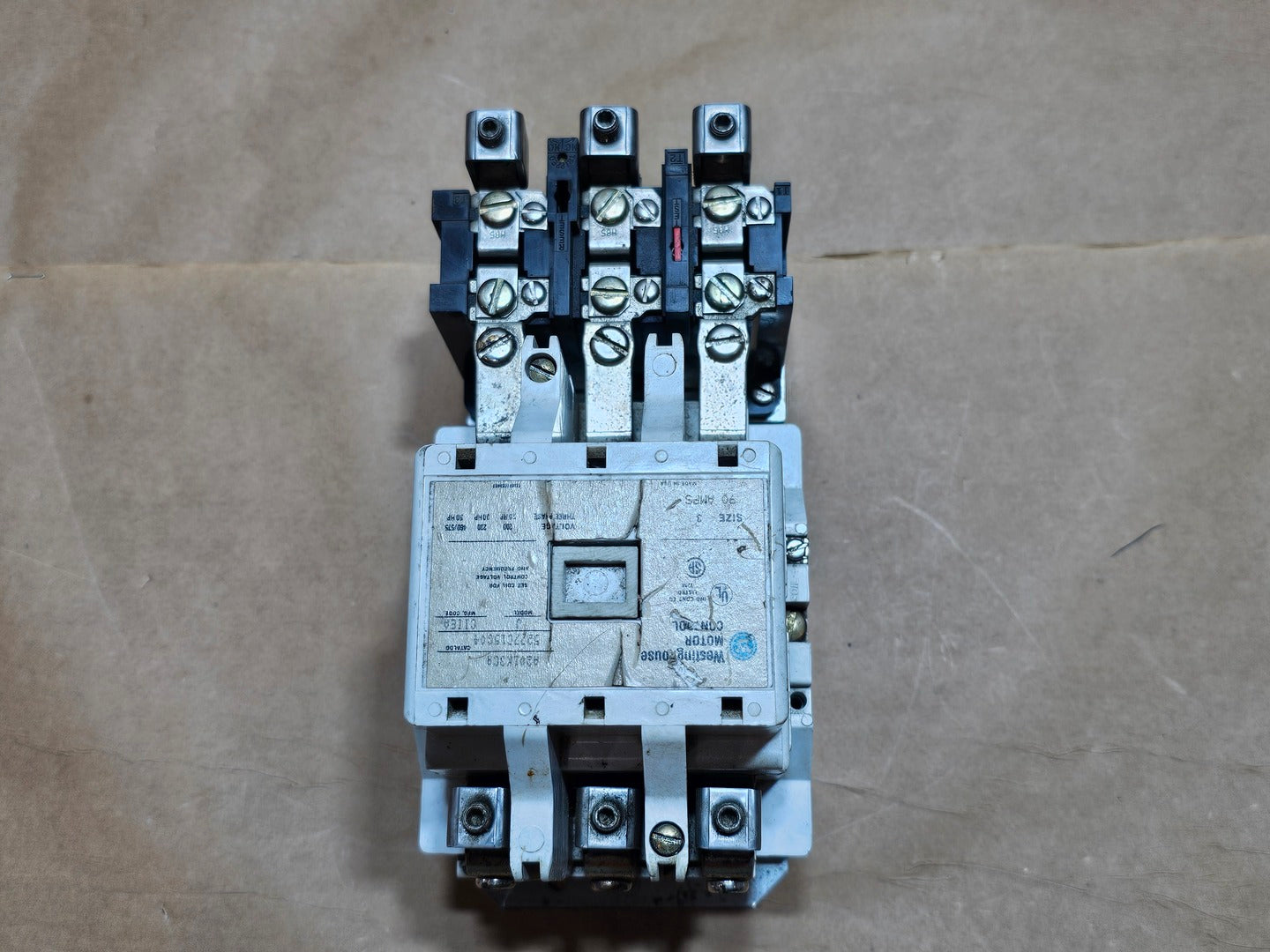

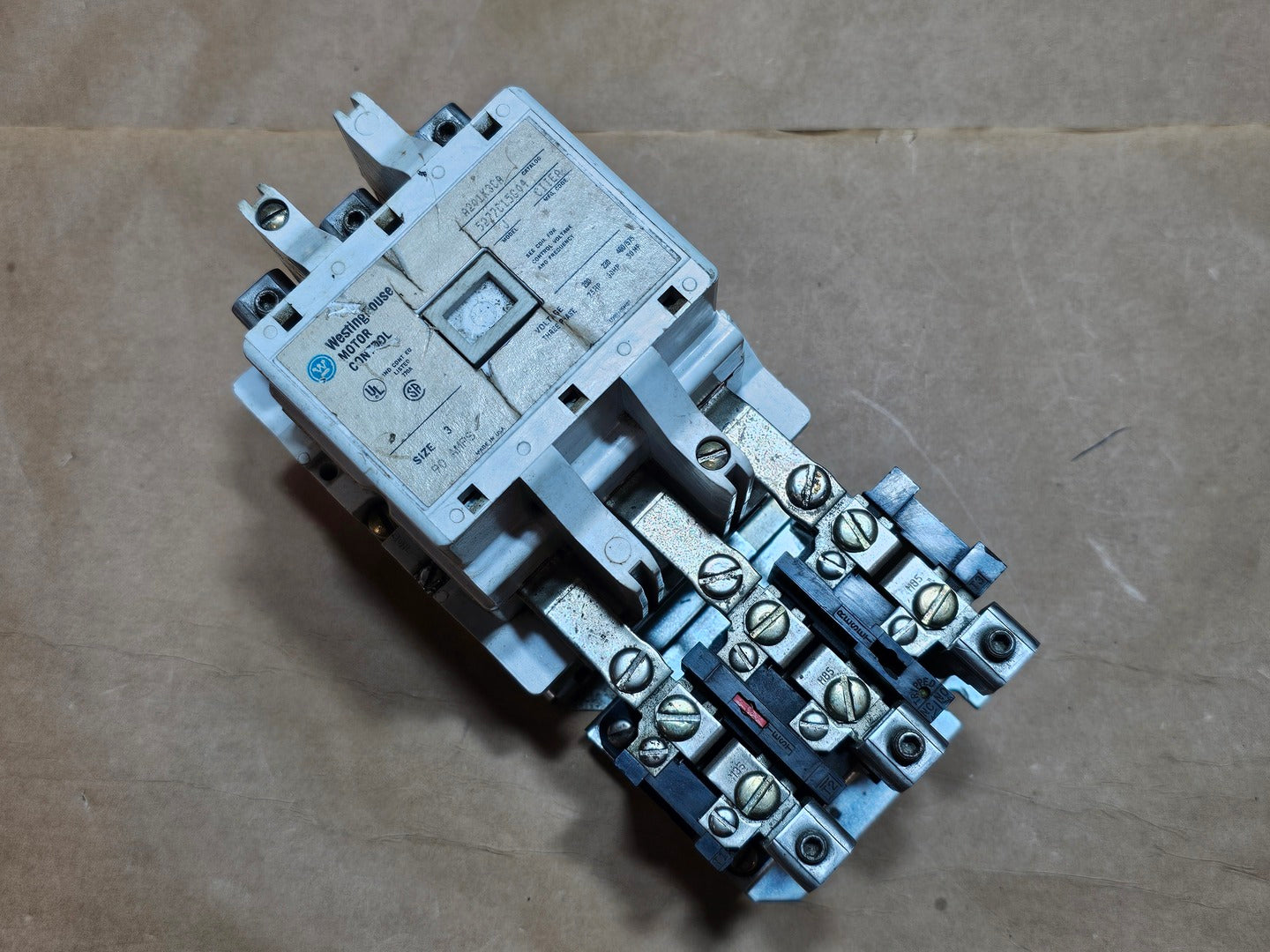

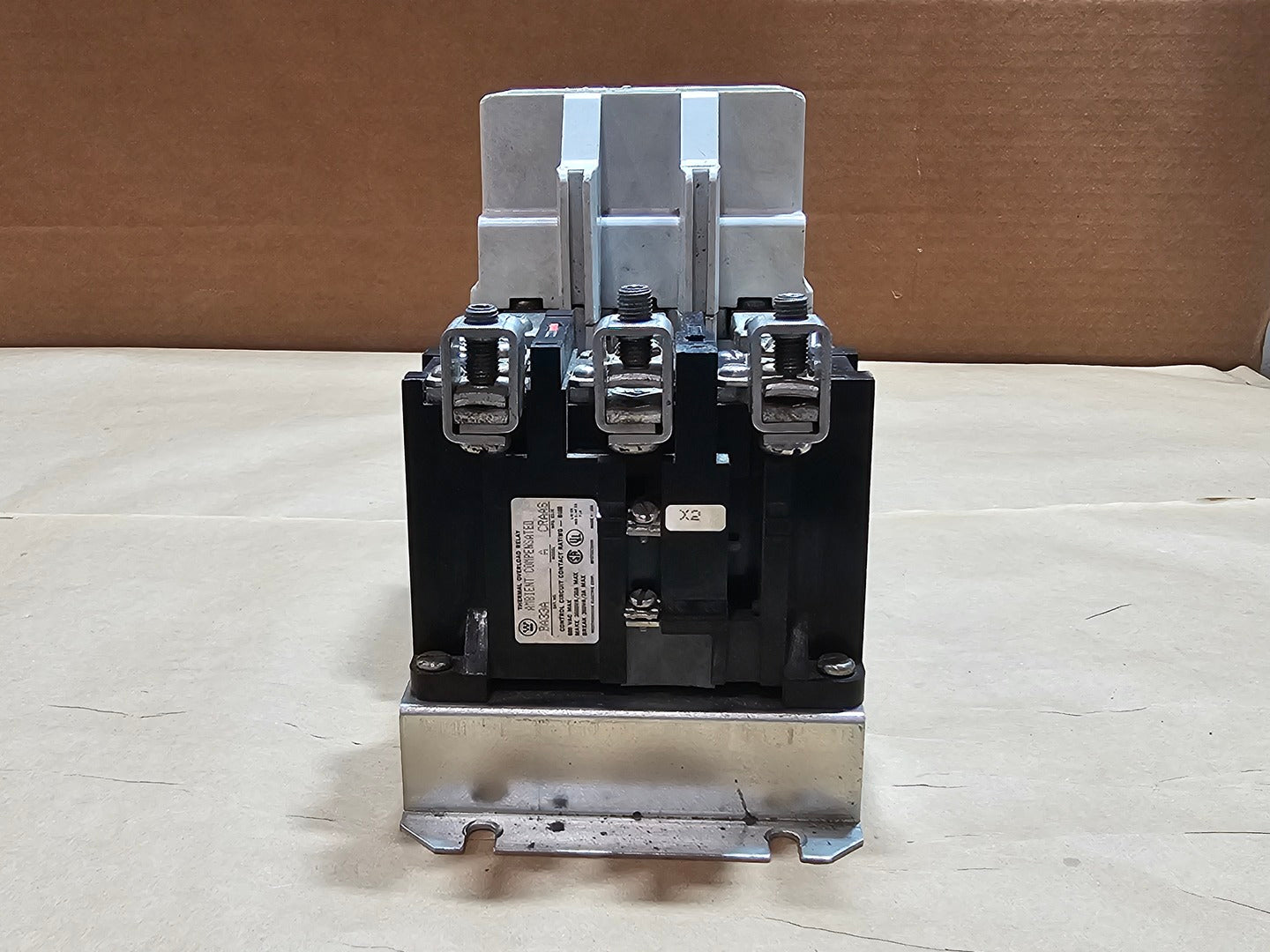

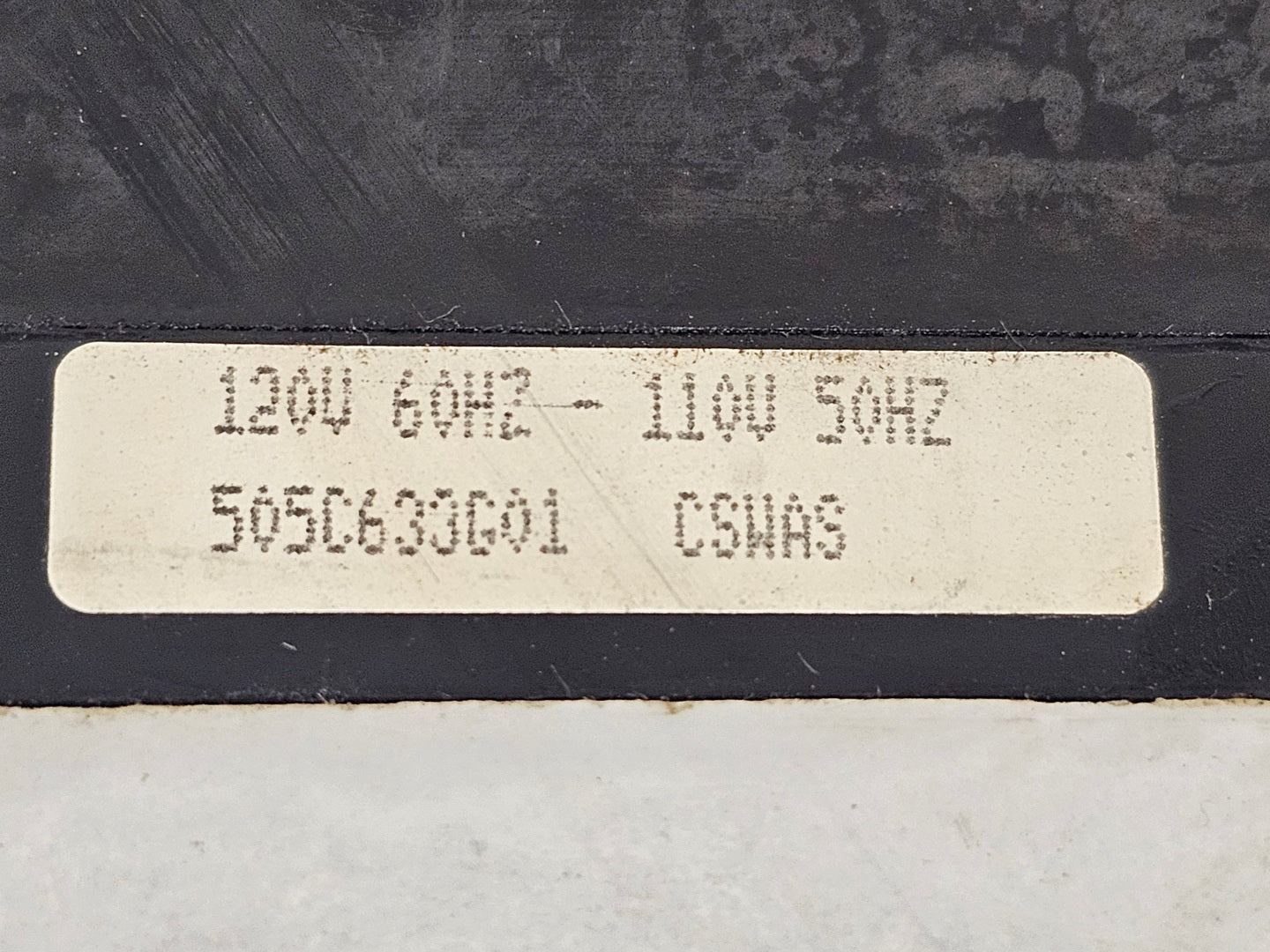

Westinghouse A201K3CA NEMA Size 3 motor starter assembly rated 90 amps, with three-pole contactor, 120V 60 Hz / 110V 50 Hz coil, and Westinghouse ambient-compensated thermal overload relay. The contactor nameplate lists three-phase motor ratings up to 50 HP at 460/575V.
| Specifications | |
|---|---|
| Model | A201K3CA |
| Made In | UNITED STATES |
| Condition | Used | Electrical |
| Amps | 90 amps |
| Voltage | 575 volts |
| Phase | 3-phase |
| HP Rating | 50 hp |
| Other Specifications |
|---|
|

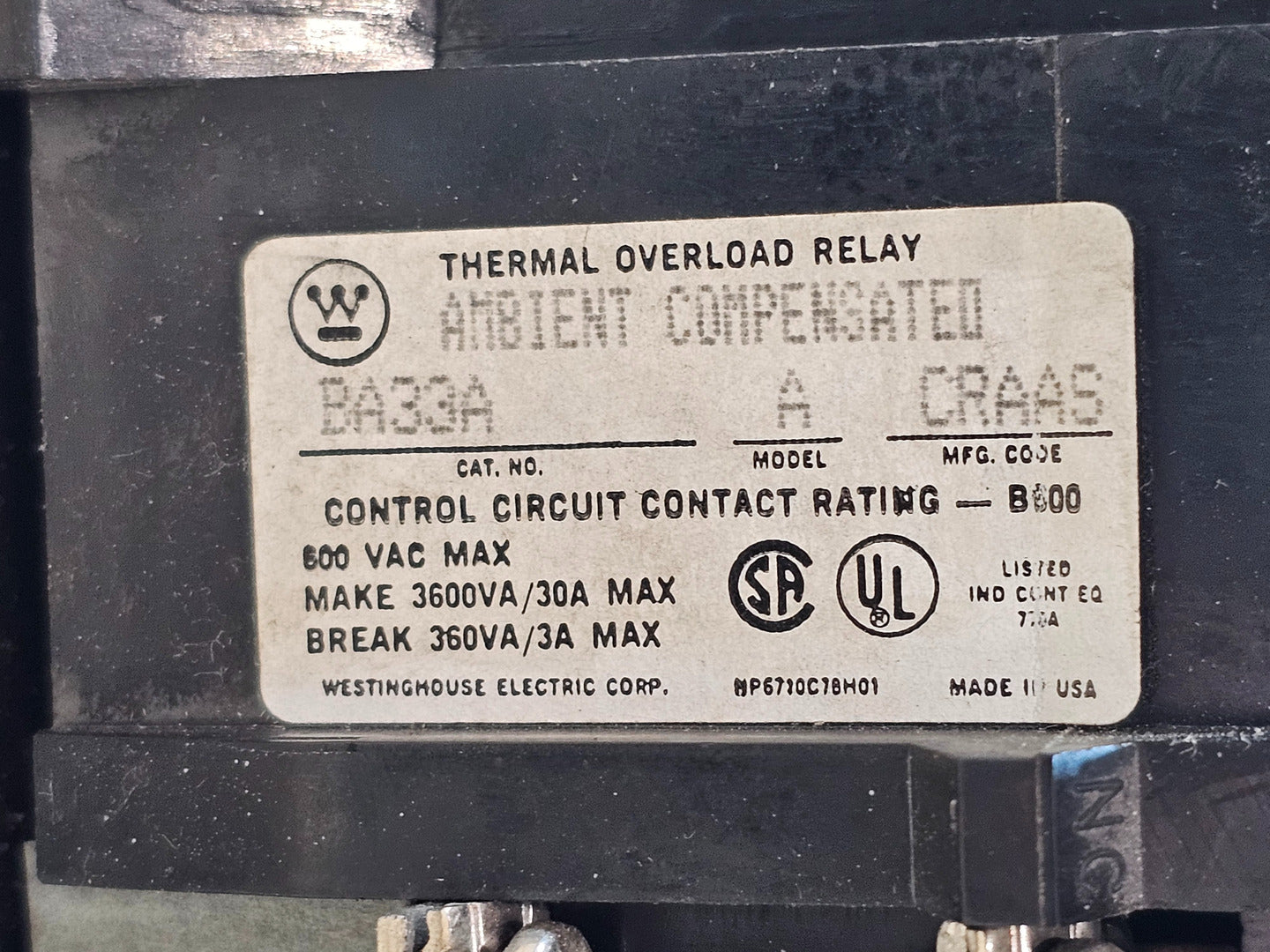

Model: J NEMA Size: 3 Number of Poles: 3 Application: Three Phase Motor Rating at 200V: 25 HP Motor Rating at 230V: 30 HP Motor Rating at 460/575V: 50 HP Coil Voltage: 120 VAC at 60 Hz / 110 VAC at 50 Hz Overload Relay Model: A Overload Control Circuit Rating: B600 Overload Maximum Voltage: 600 VAC Overload Contact Make Rating: 3600 VA / 30 A Max Overload Contact Break Rating: 360 VA / 3 A Max Approvals: UL Listed / CSA Marked |
