Boom Truck Crane 7621

SKU: 150608
Price:
$11,868

Shipping calculated at checkout

Stock:
Sold out
Make an Offer

Need An Answer Now?

Description

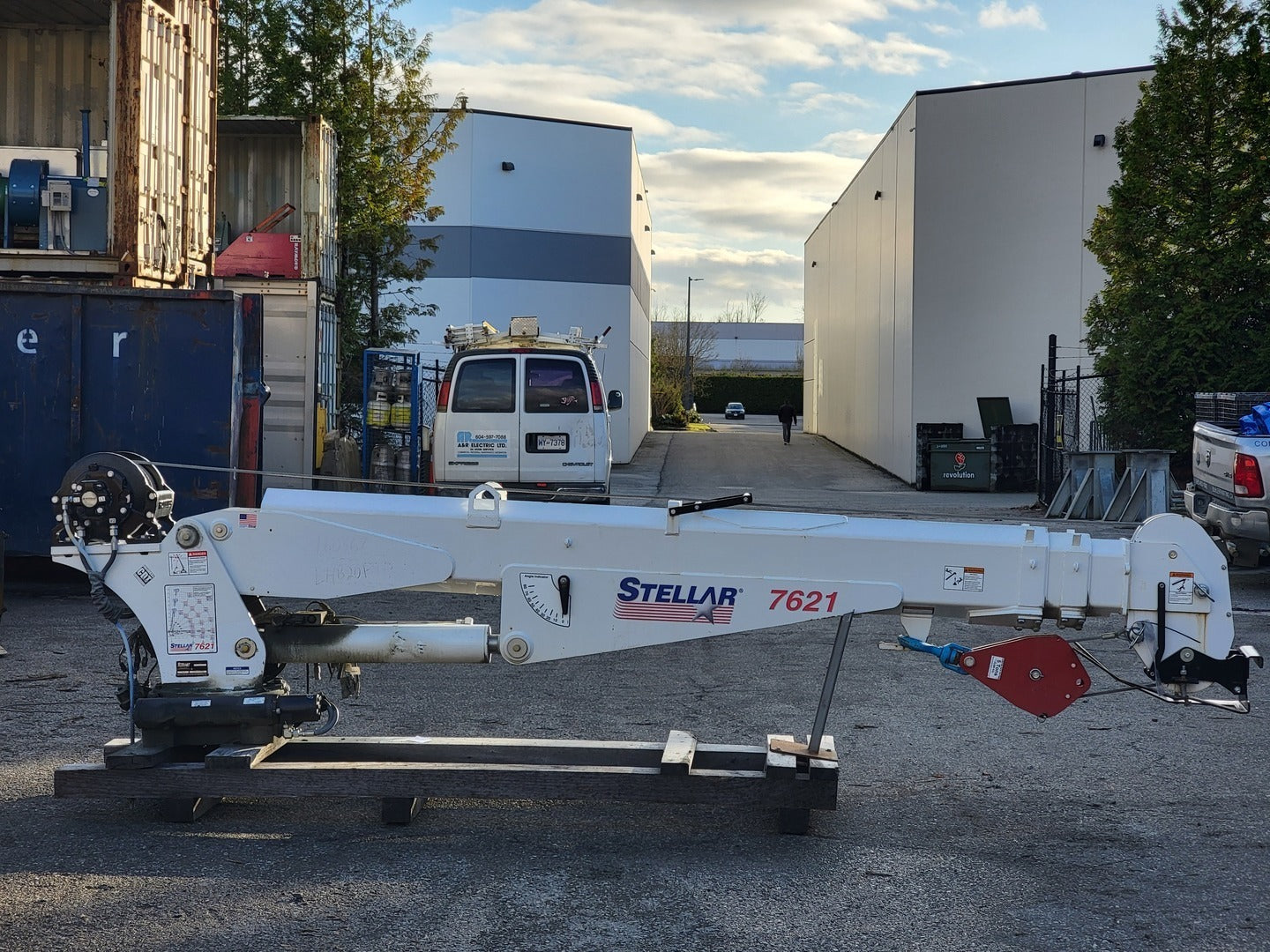

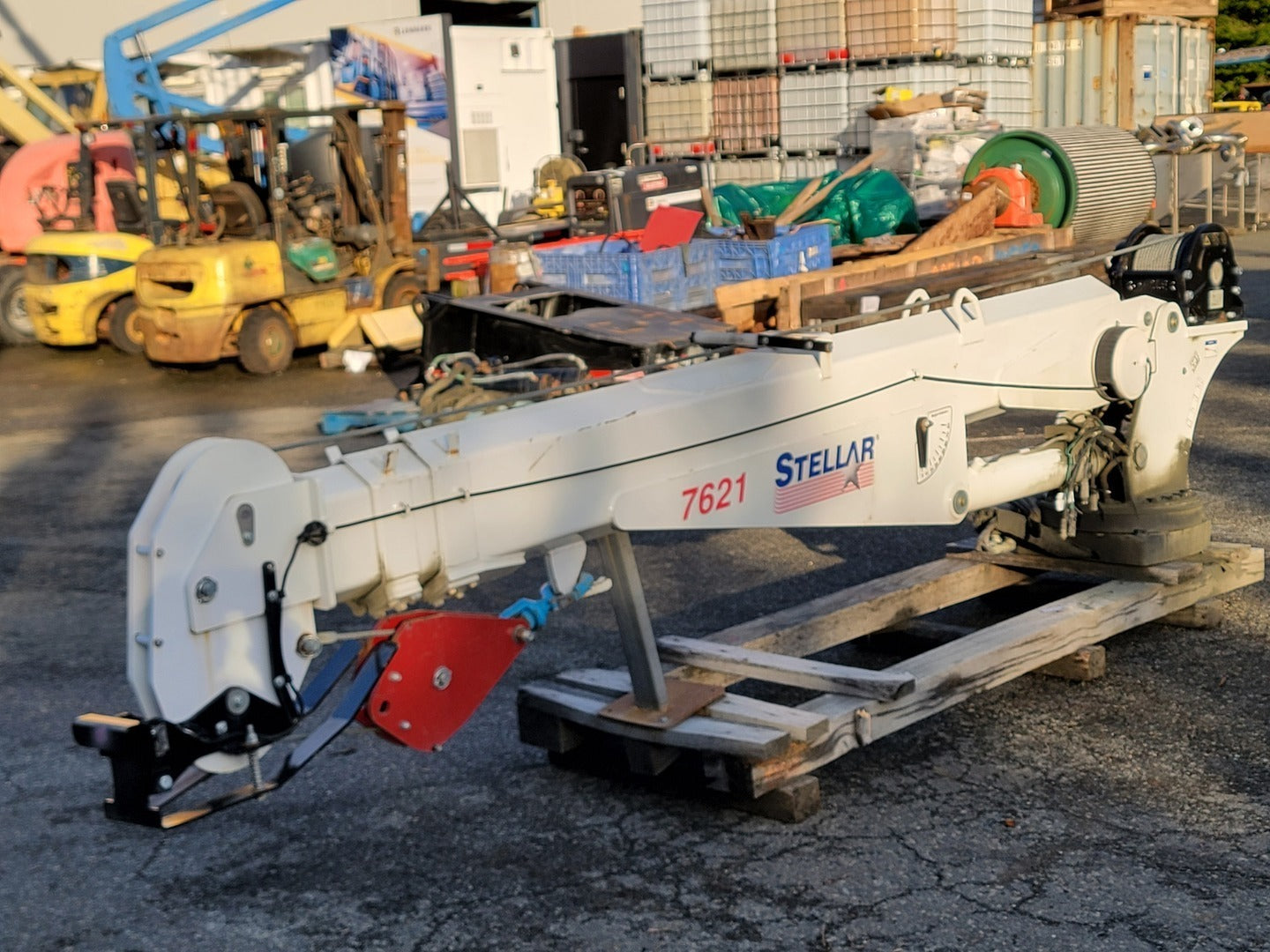

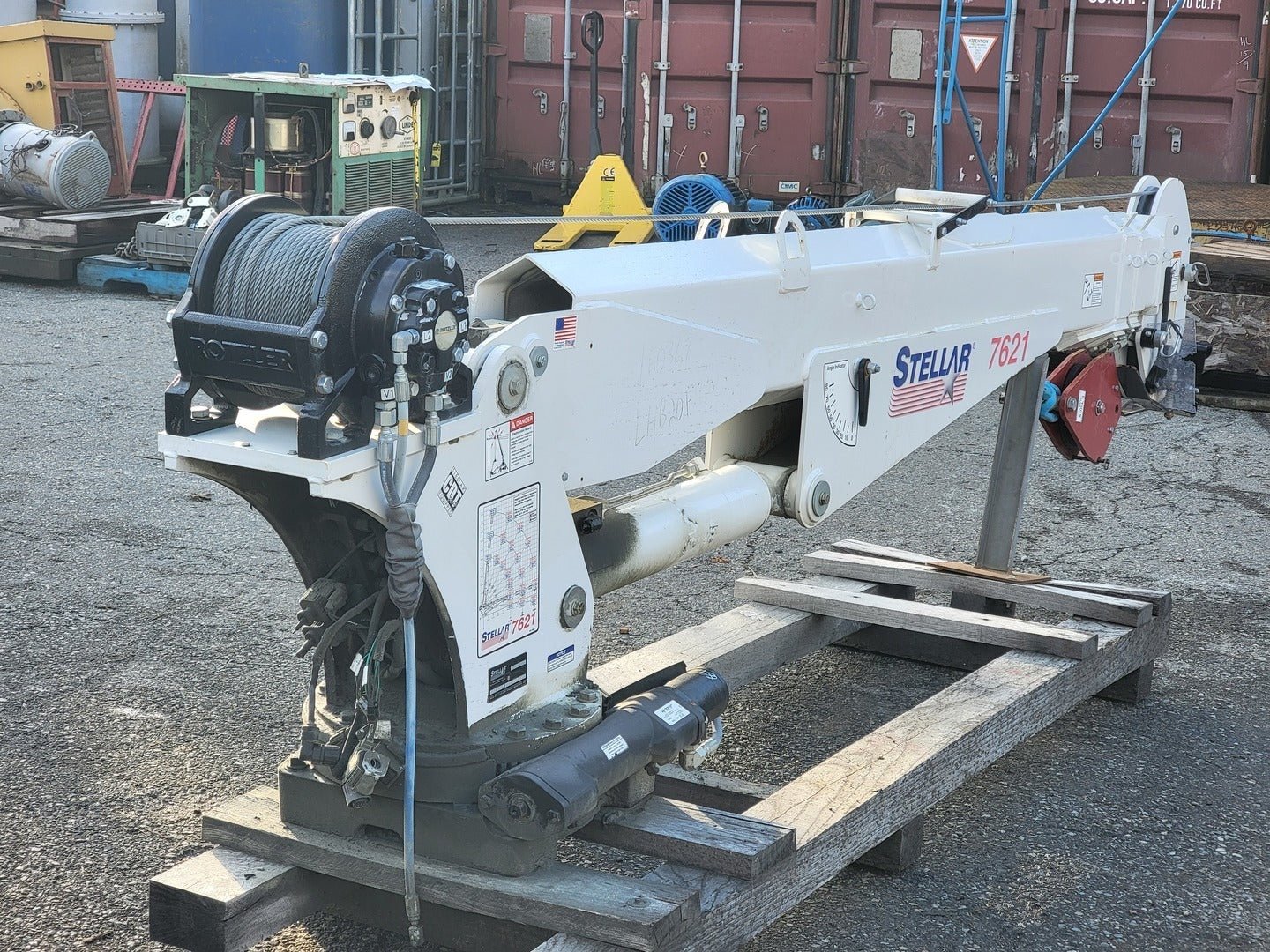

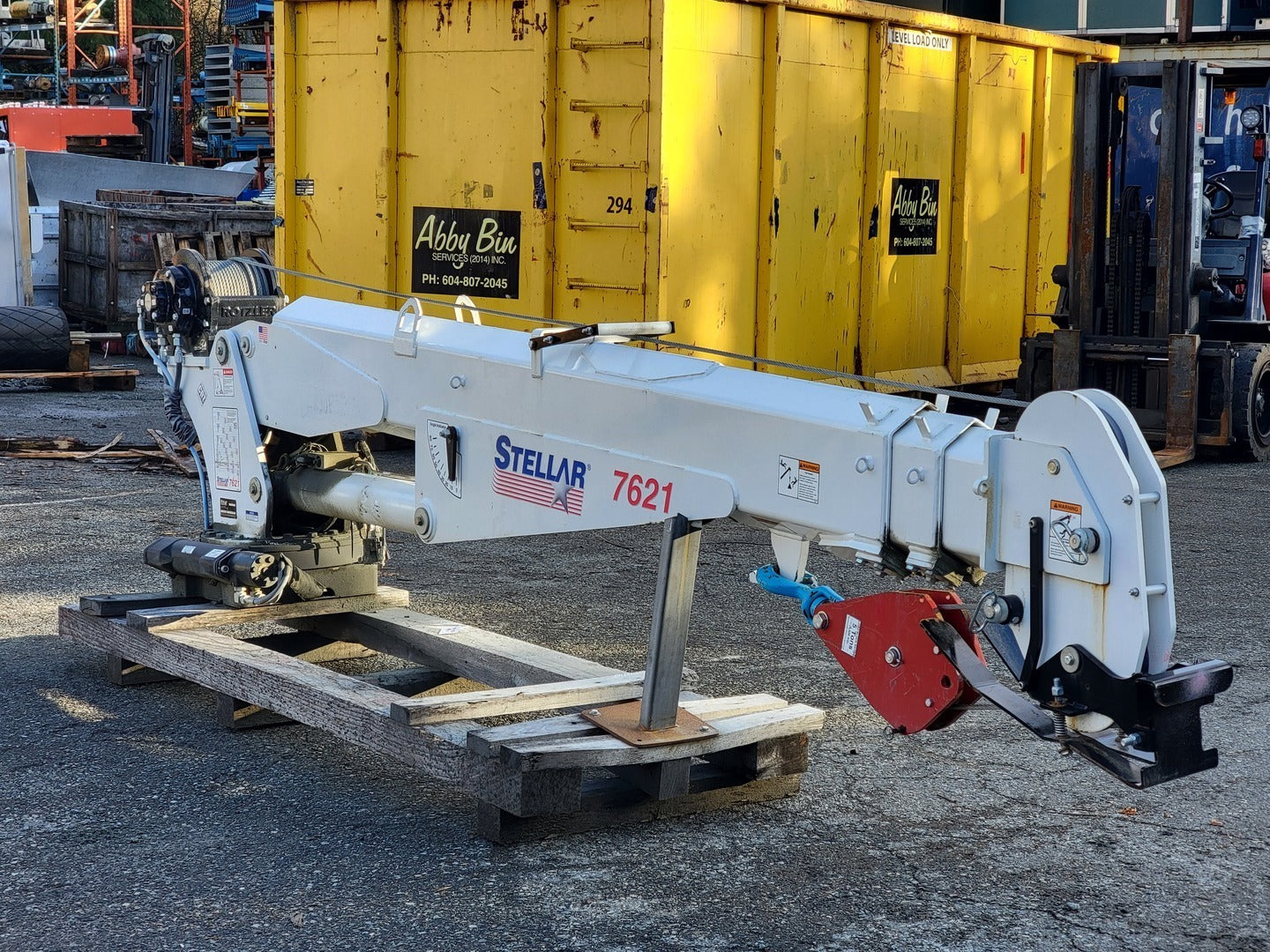

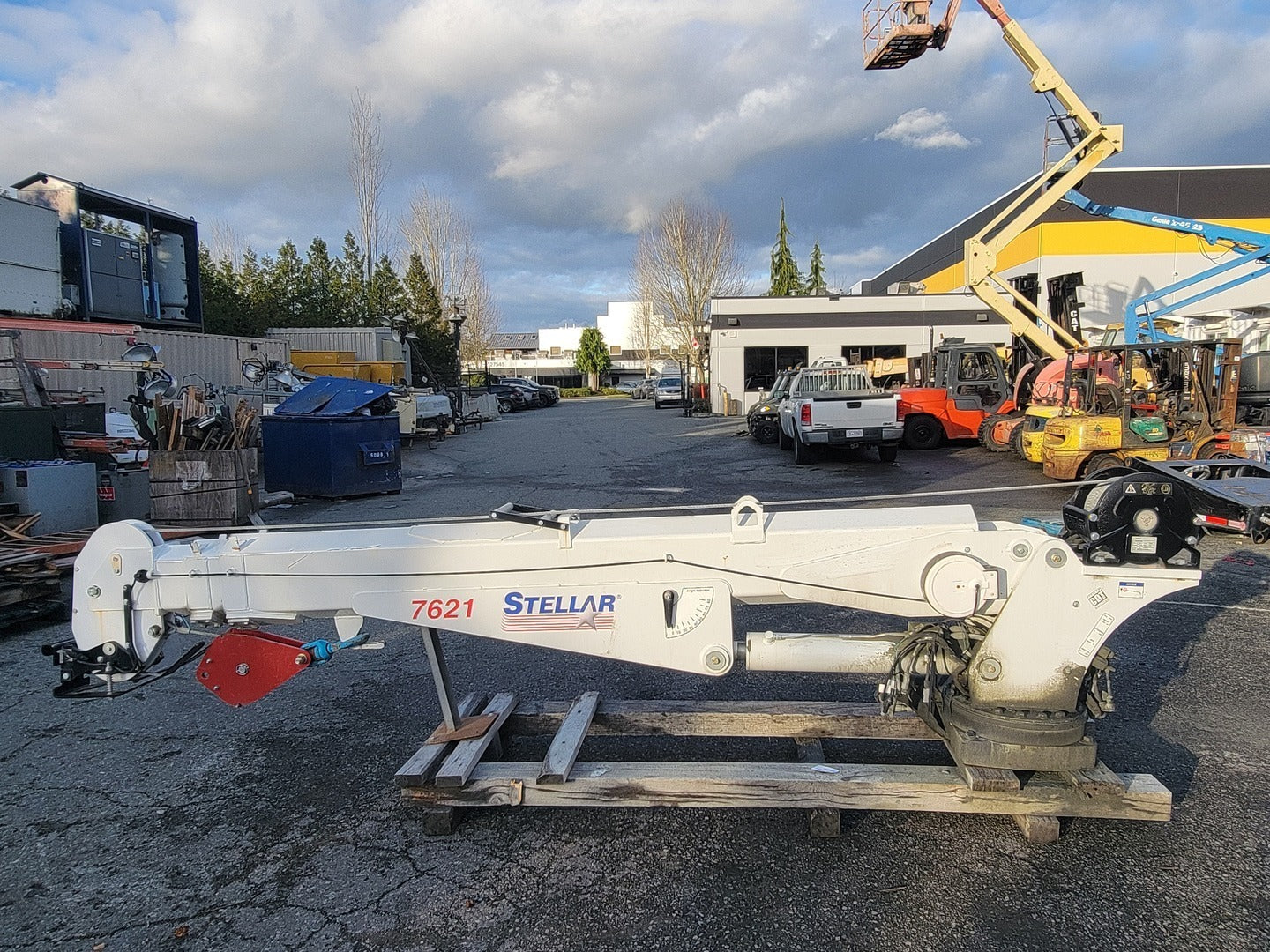

The Stellar 7621 is a truck mounted hydraulic telescopic service crane from the 76 Series designed for service and maintenance applications. It offers a maximum reach of 21 ft and a lifting height of approximately 23 ft with a lift capacity of up to about 7,500 lb at close radius. The crane is powered by the truck's hydraulic system and features 400 degree powered rotation a wire rope winch and controls commonly equipped with a radio remote making it ideal for mechanic and utility service trucks.
Specifications
Model 7621

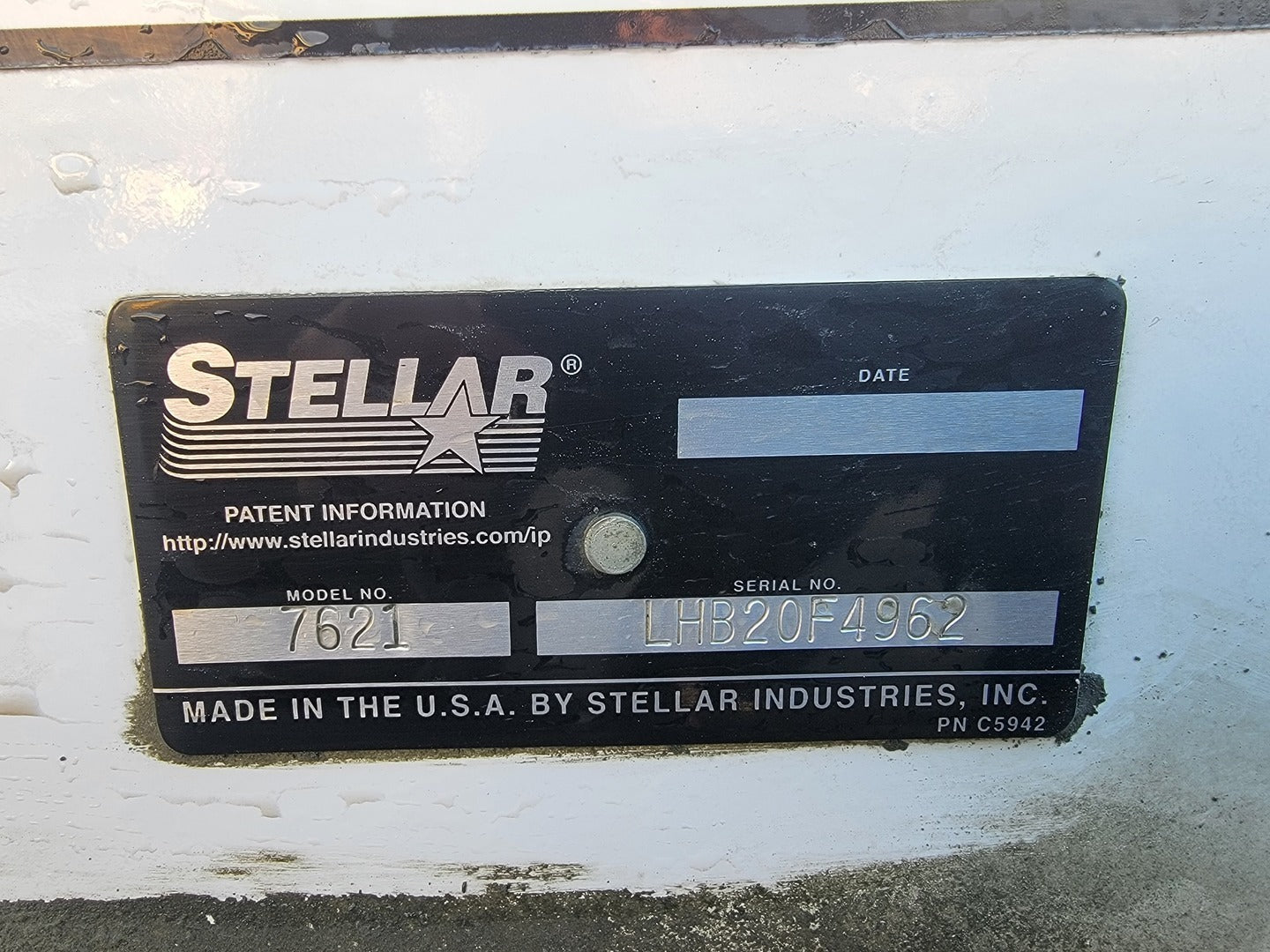

S/N: LHB20F4962
Made In UNITED STATES
Condition Used - Like New
General
Max. Lift Capacity 7500 lb
Max. Lift Height 22' 11"
Boom Length 11'
Other Specifications

Overview:

  • Type
  • Telescopic hydraulic service crane (truck-mounted)
  • 76 Series

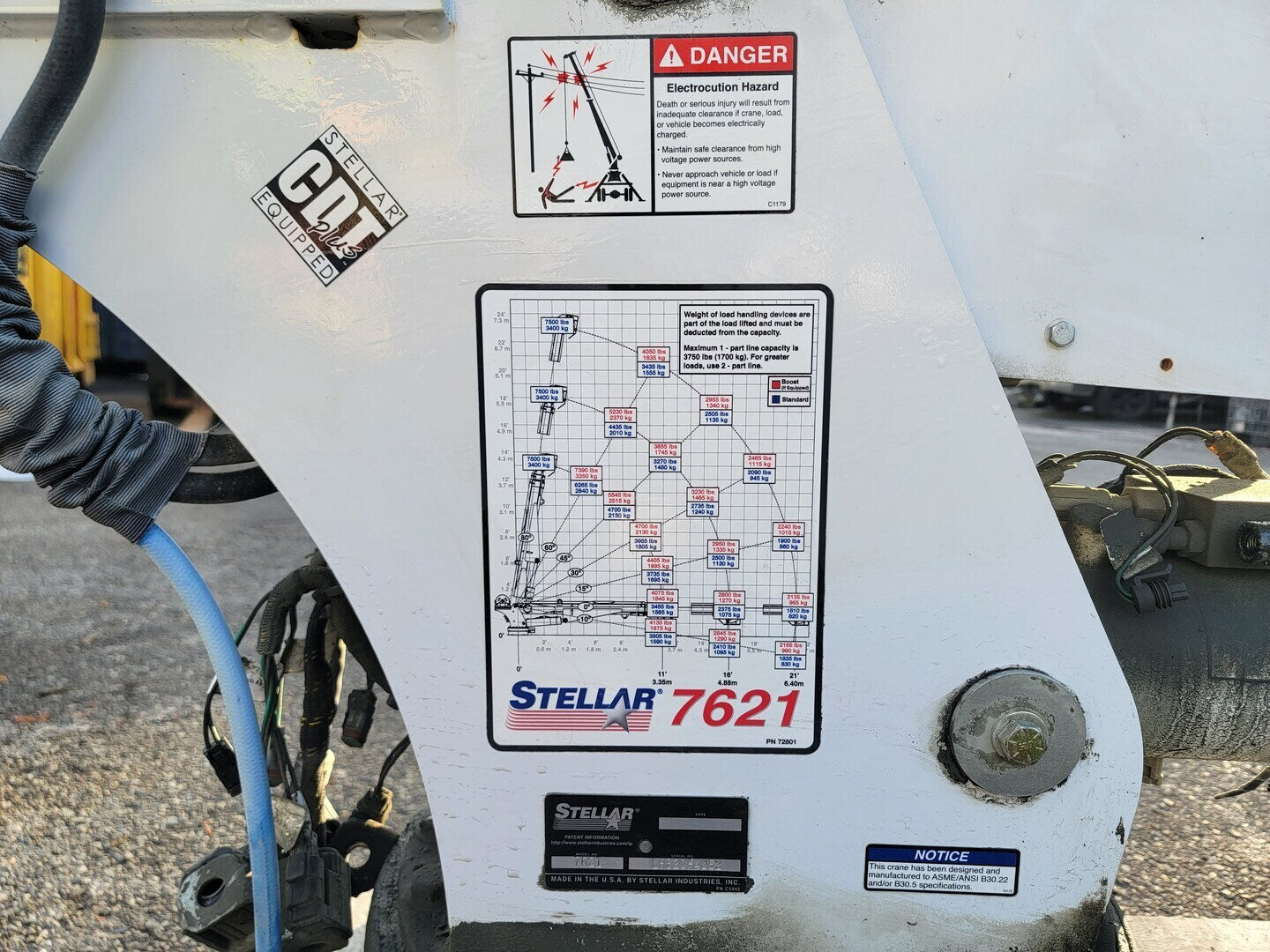

  • Capacity
  • Rated moment (standard): 38,000 ft-lb
  • Rated moment (boost): 44,840 ft-lb
  • Maximum lift:
  • 7,500 lb at 5.8 ft radius
  • 2,135 lb at 21 ft radius

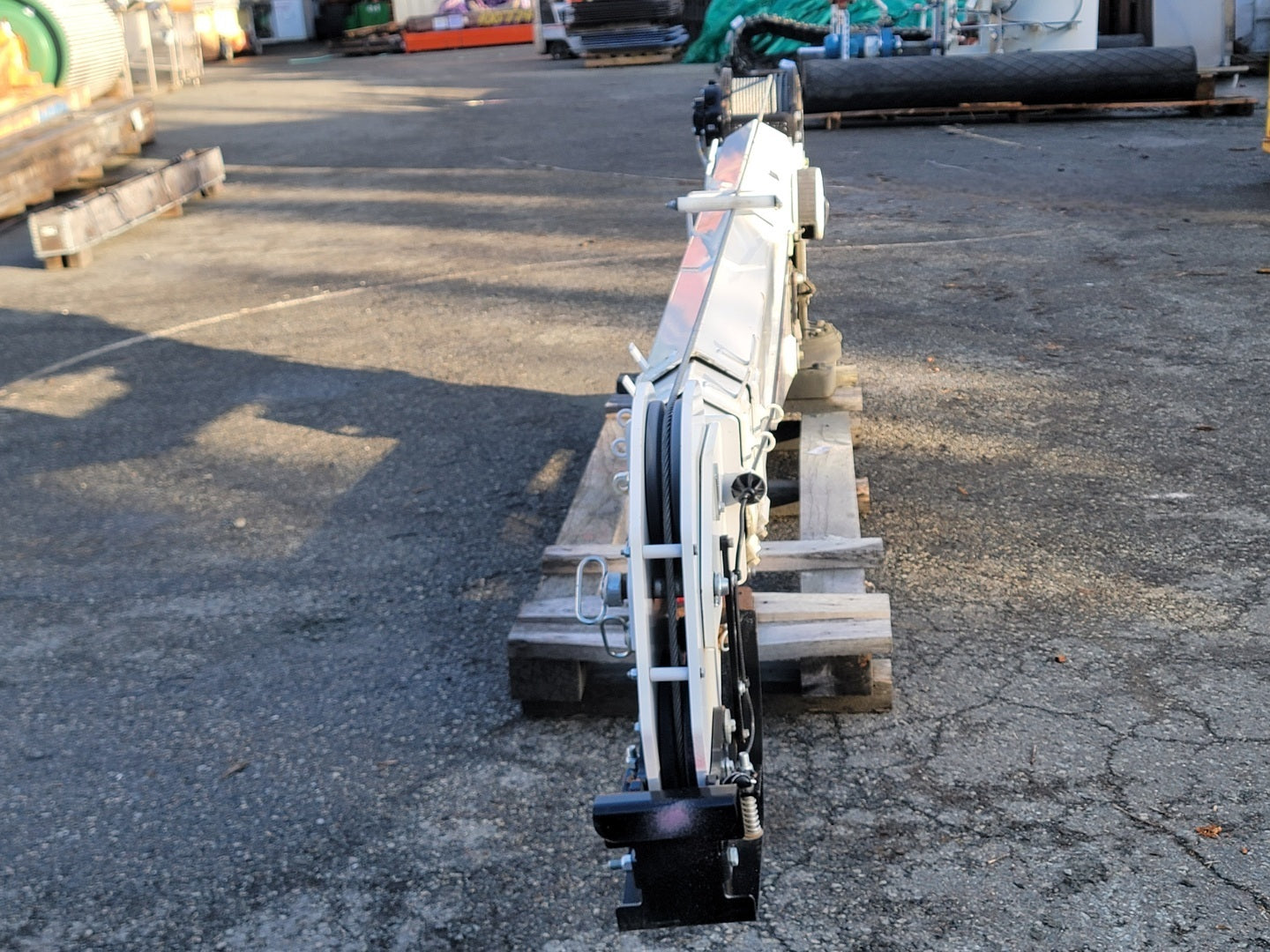

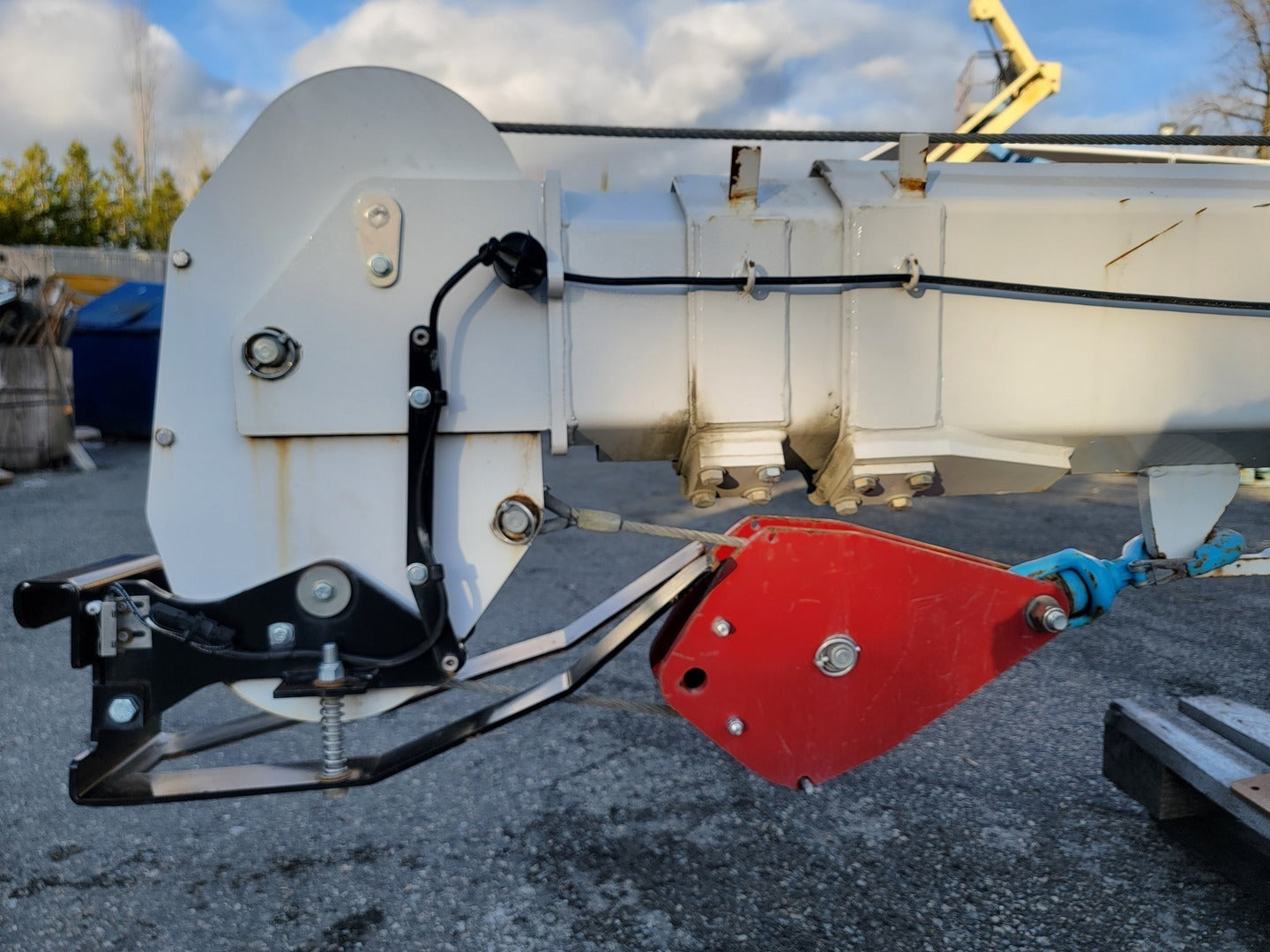

  • Boom
  • Base boom length: 11 ft
  • Extensions: Two hydraulic extensions, 60 in + 60 in
  • Maximum horizontal reach: 21 ft
  • Maximum vertical lift height: 23 ft

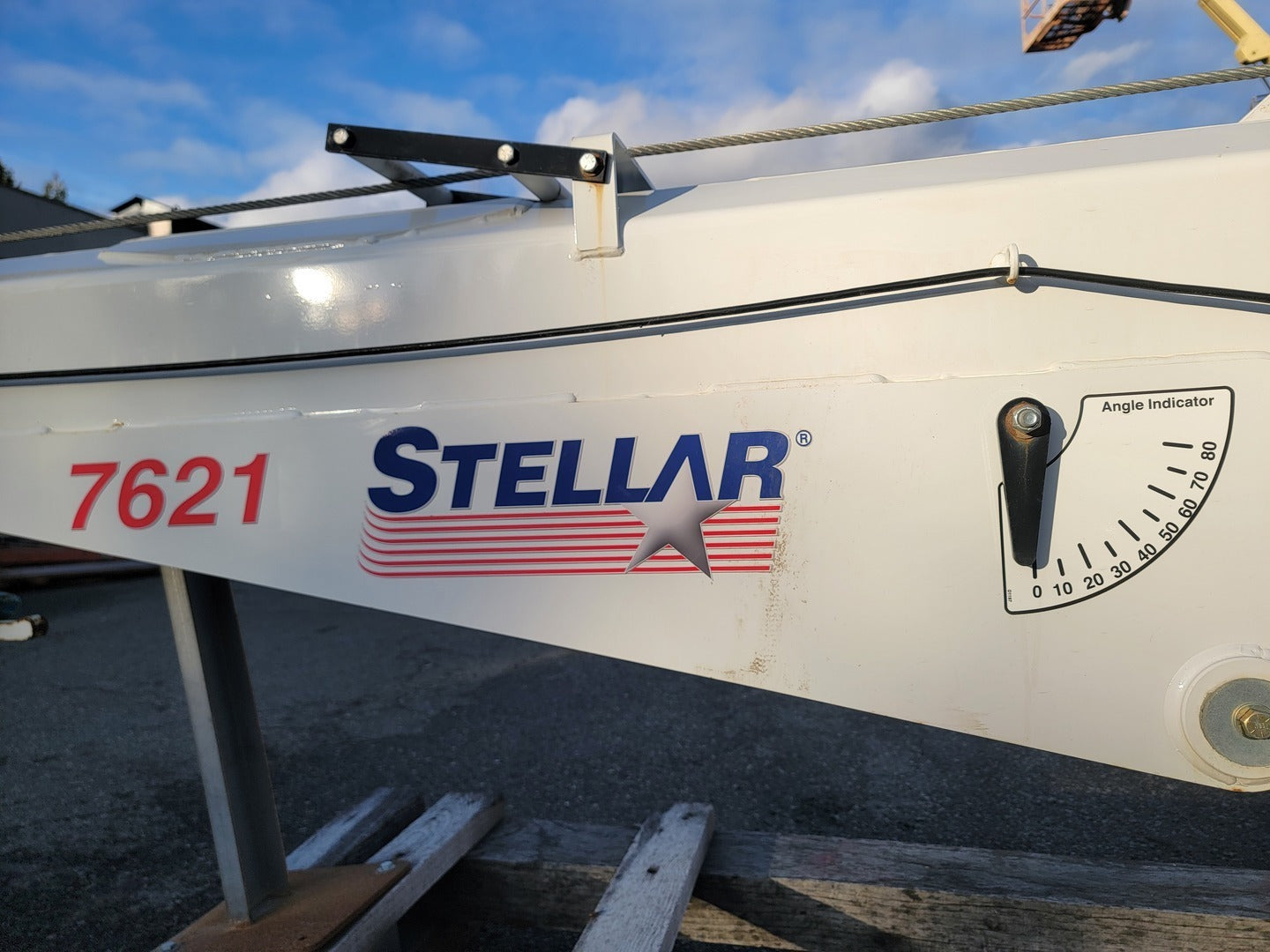

  • Boom elevation: - 10° to +80°

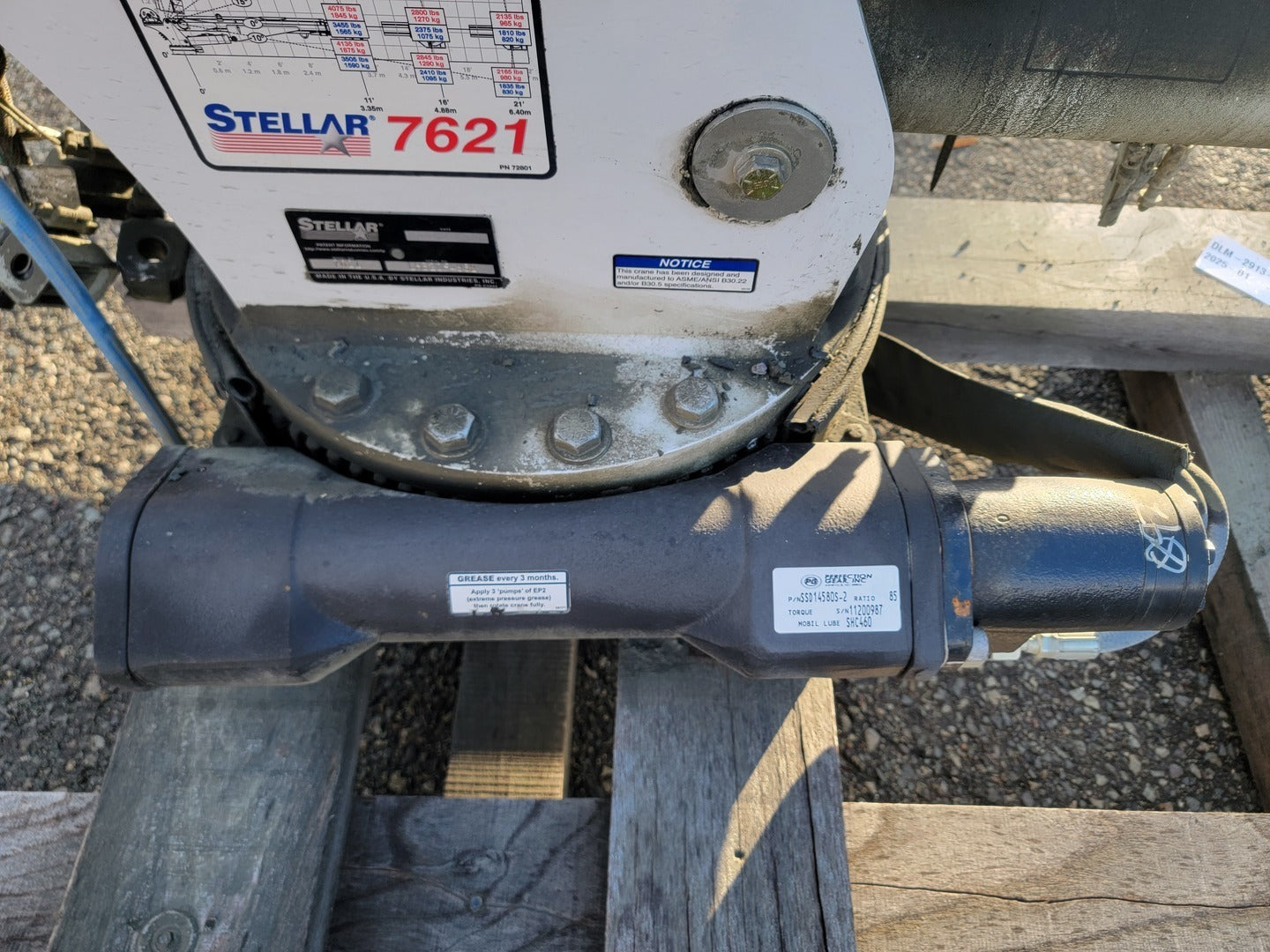

  • Rotation
  • 400° continuous powered rotation

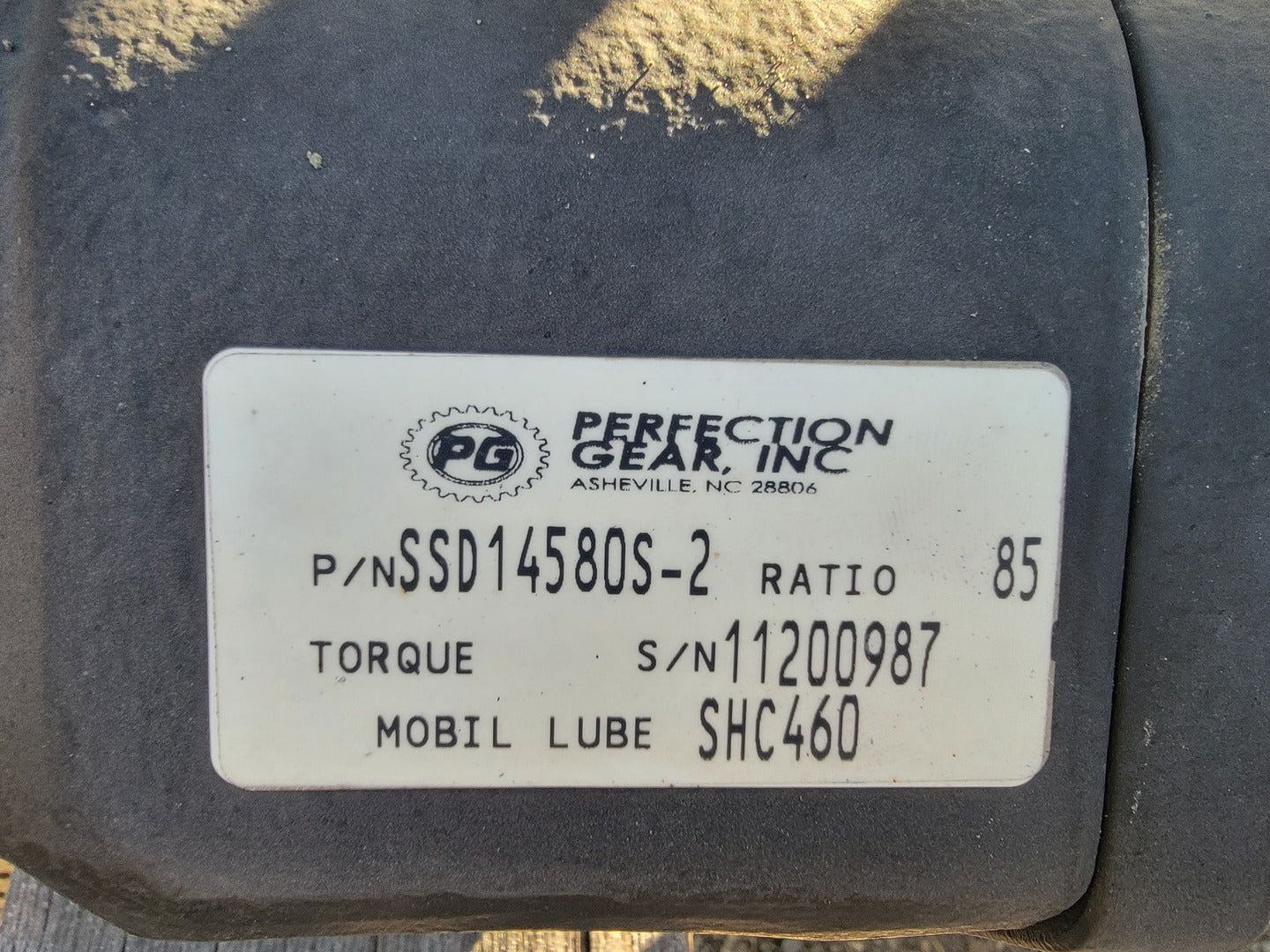

  • Worm gear rotation system

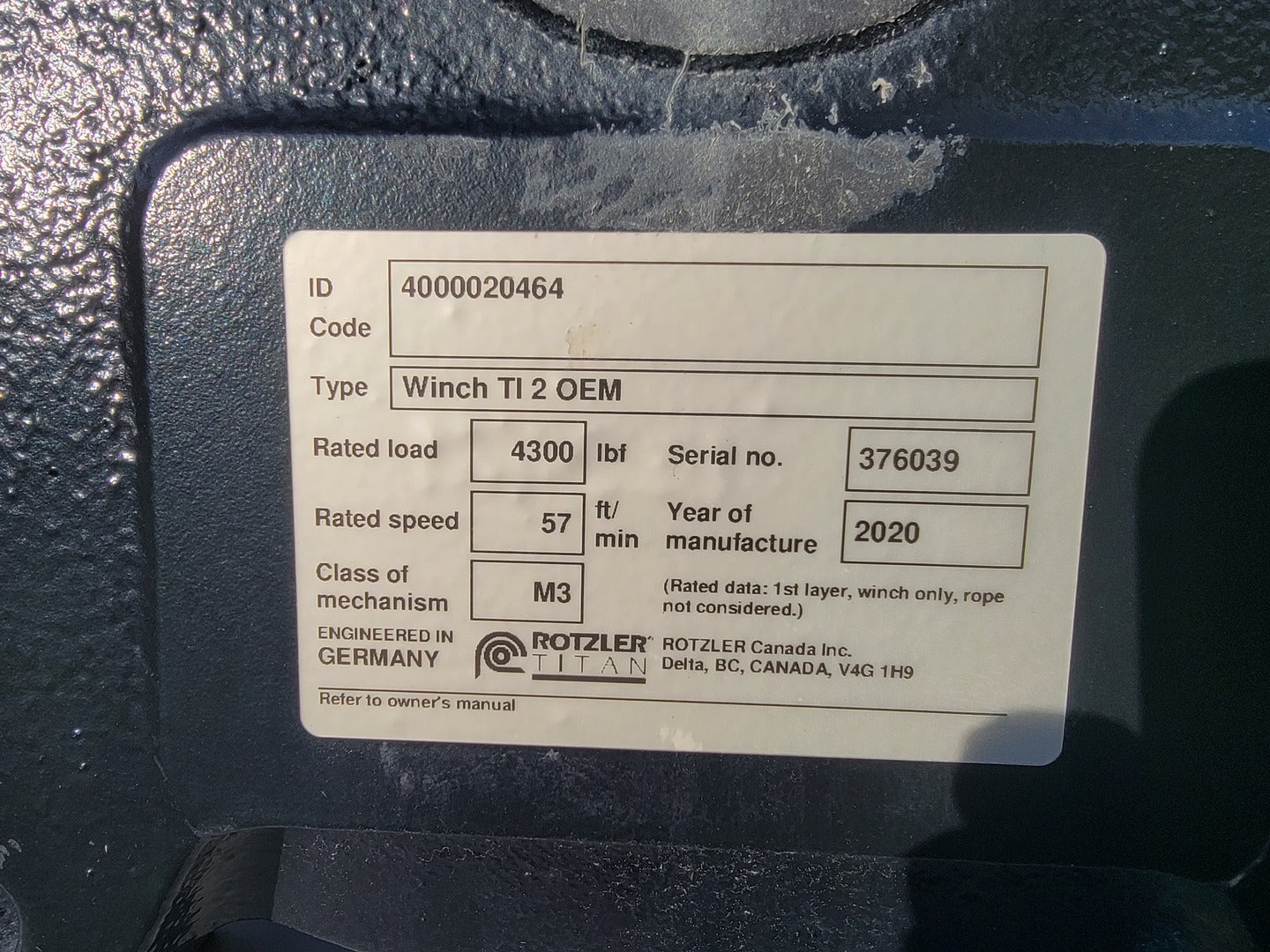

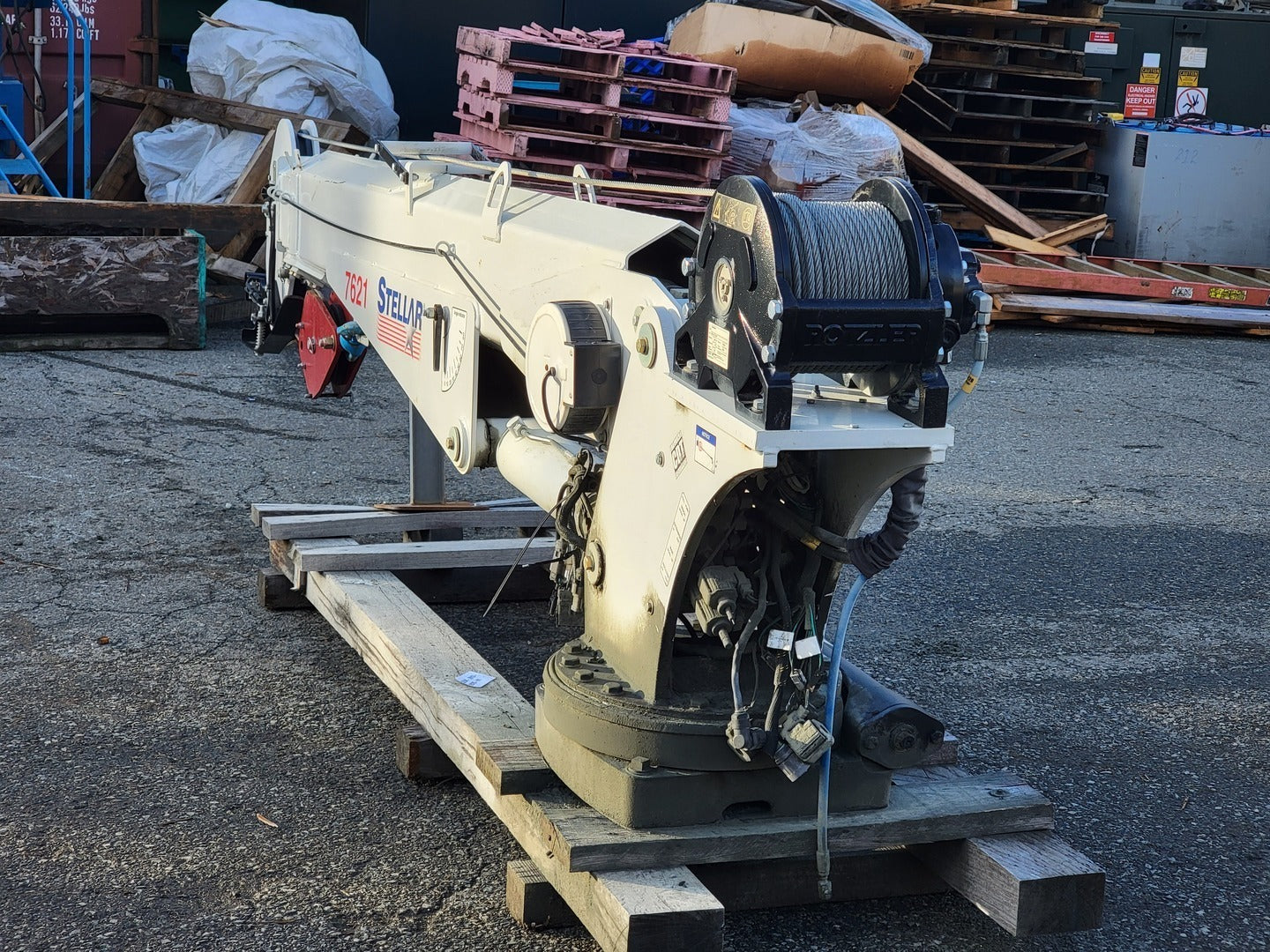

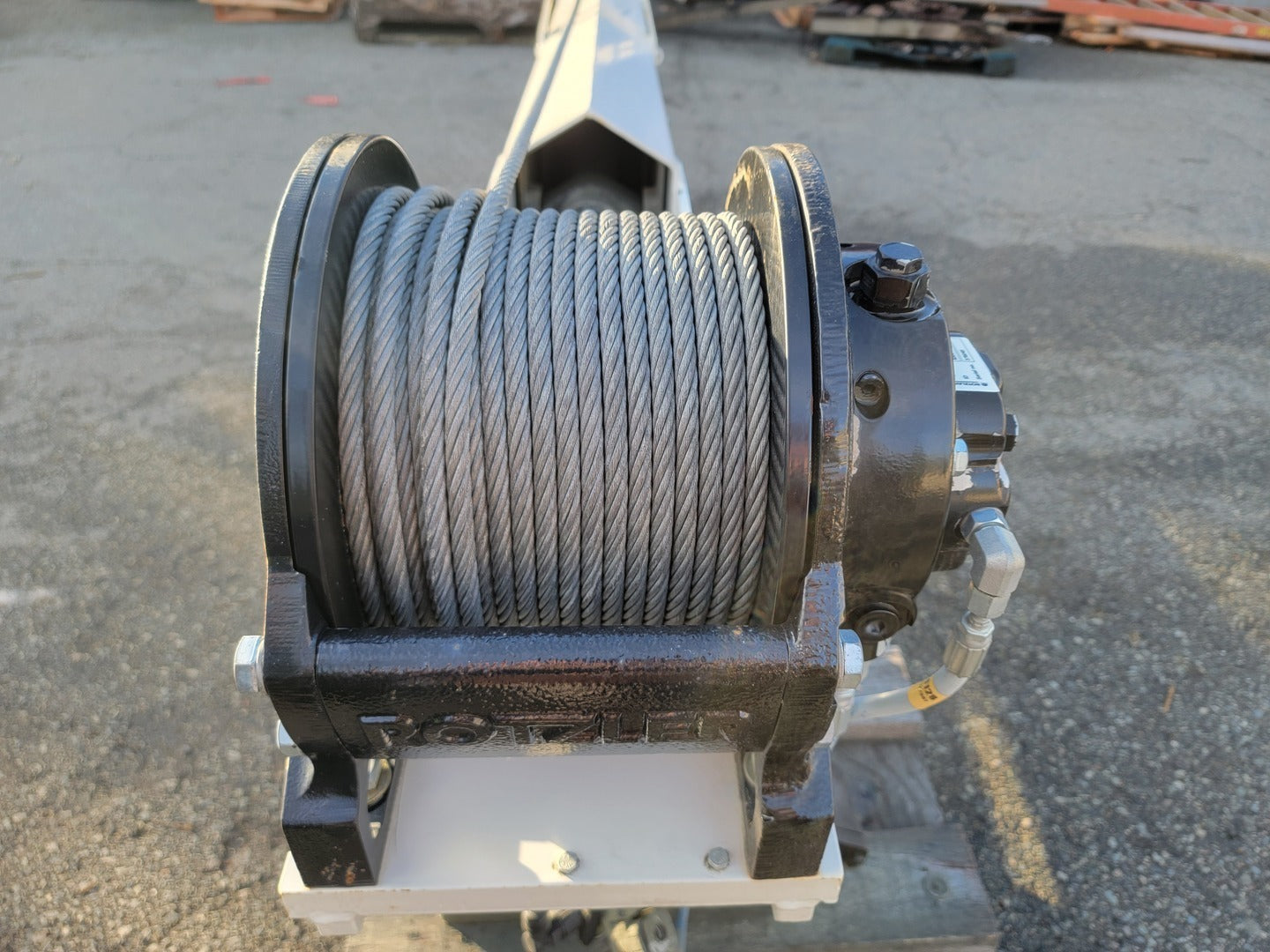

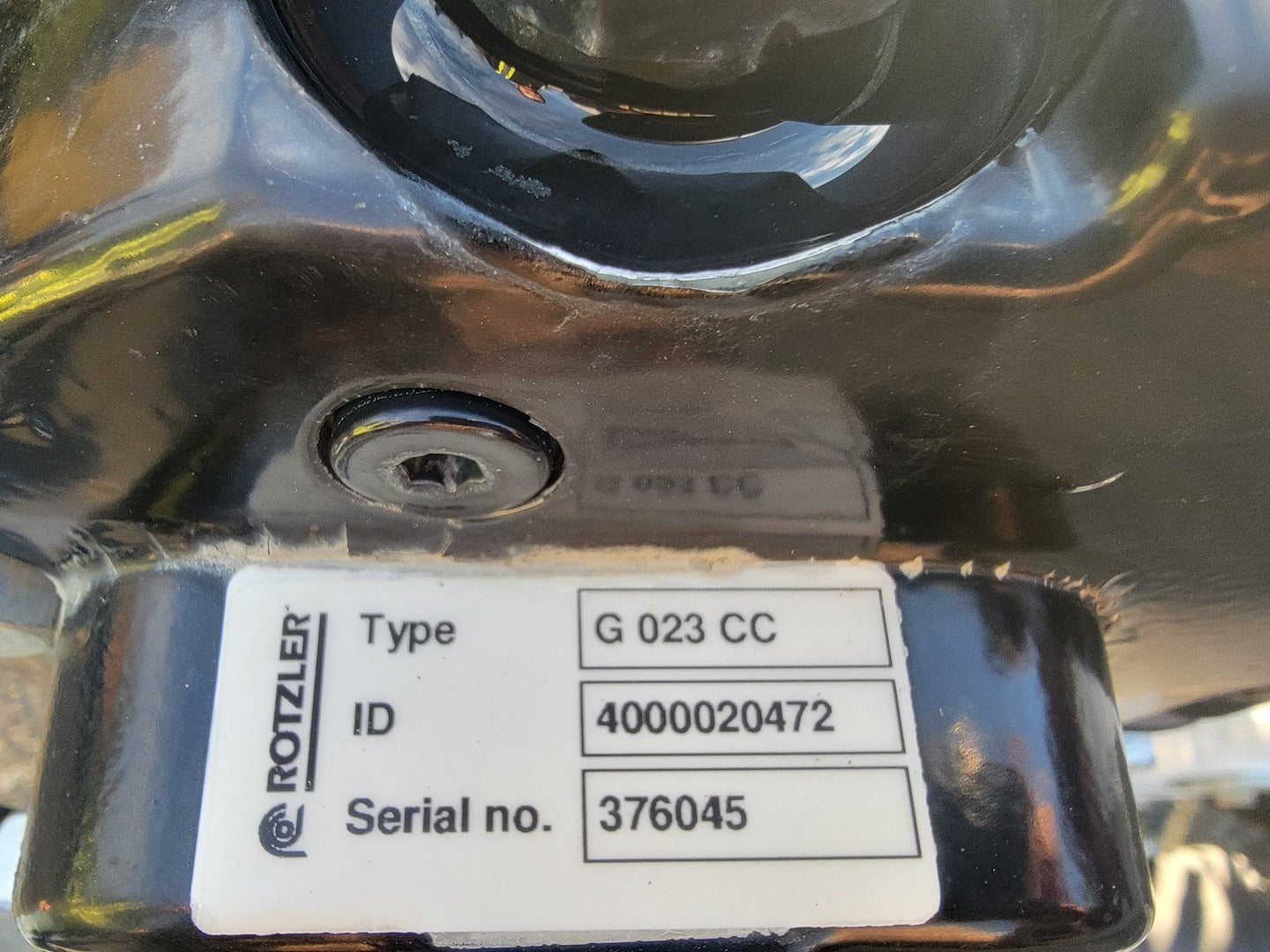

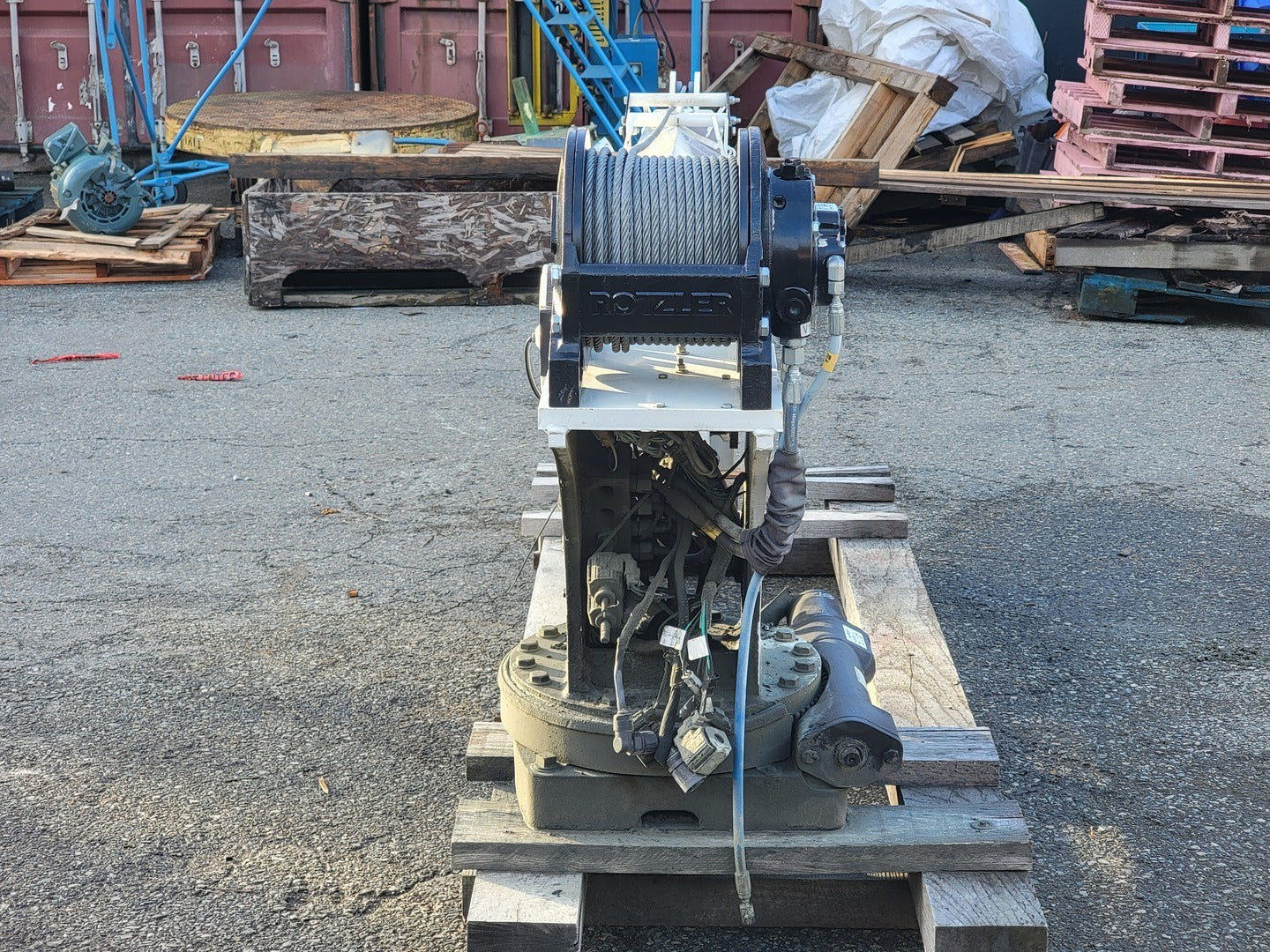

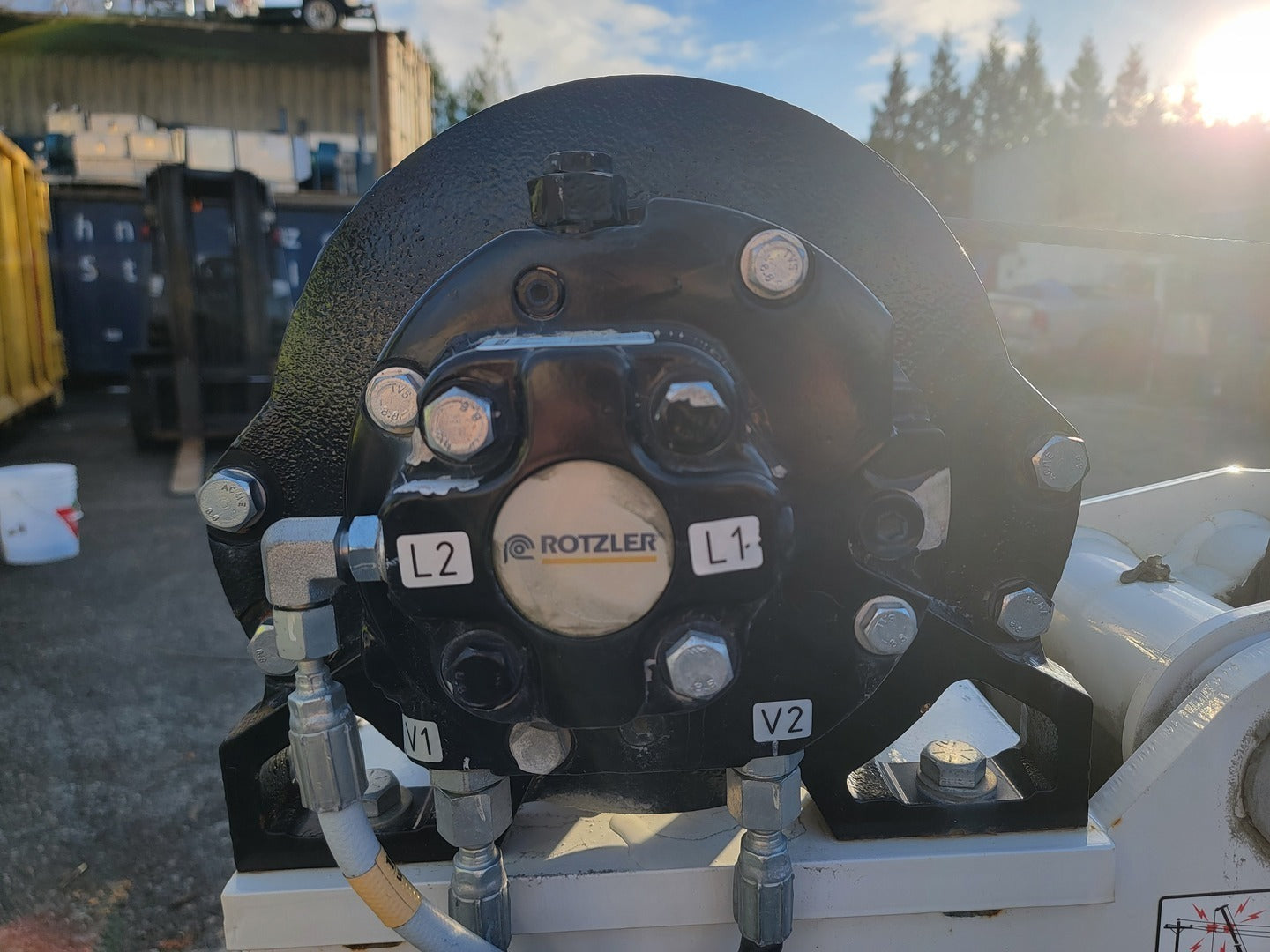

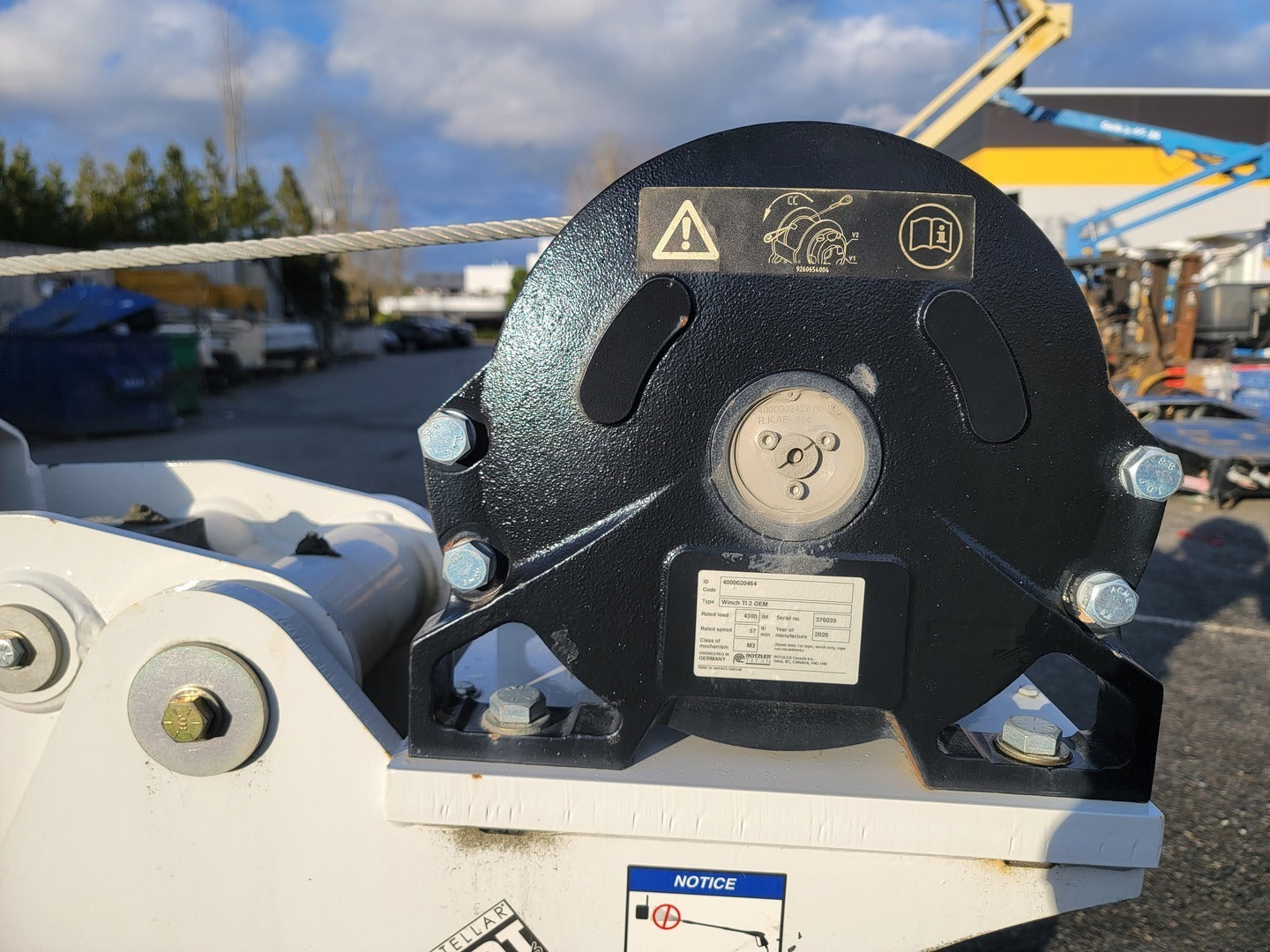

  • Winch
  • Line: 3/8 in wire rope, 6x31 IWRC
  • Rope length: 100 ft
  • Line pull:
  • 3,750 lb single-line
  • 7,500 lb double-line
  • Line speed: 60 ft/min
  • Hydraulics
  • Required flow: 8 GPM
  • Operating pressure: 3,000 PSI
  • PTO-driven hydraulic system
  • Installation
  • Typical minimum chassis requirement: 19,000 lb GVWR
  • Outriggers required (varies by install)
