Description
| Specifications | |
|---|---|

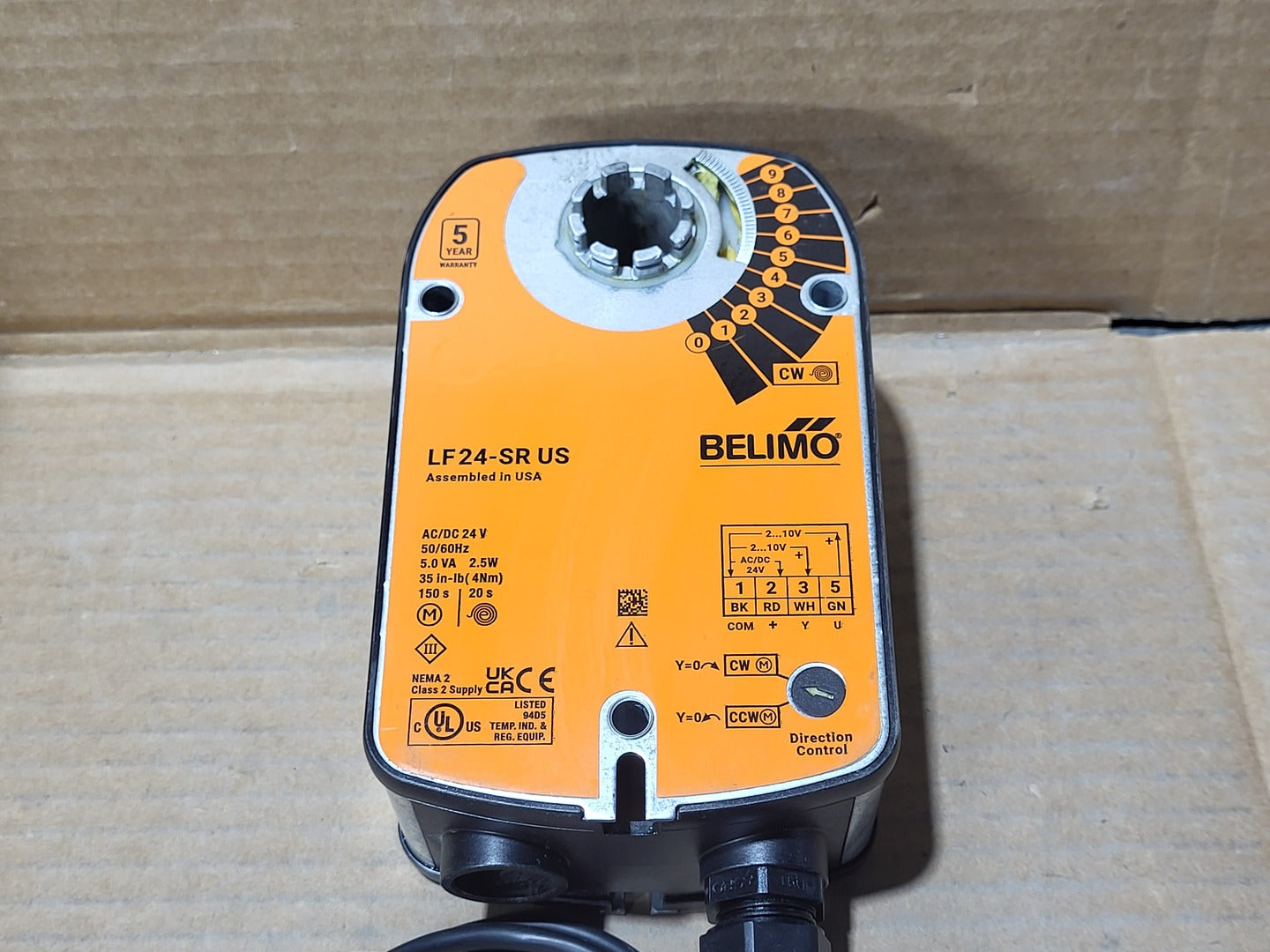

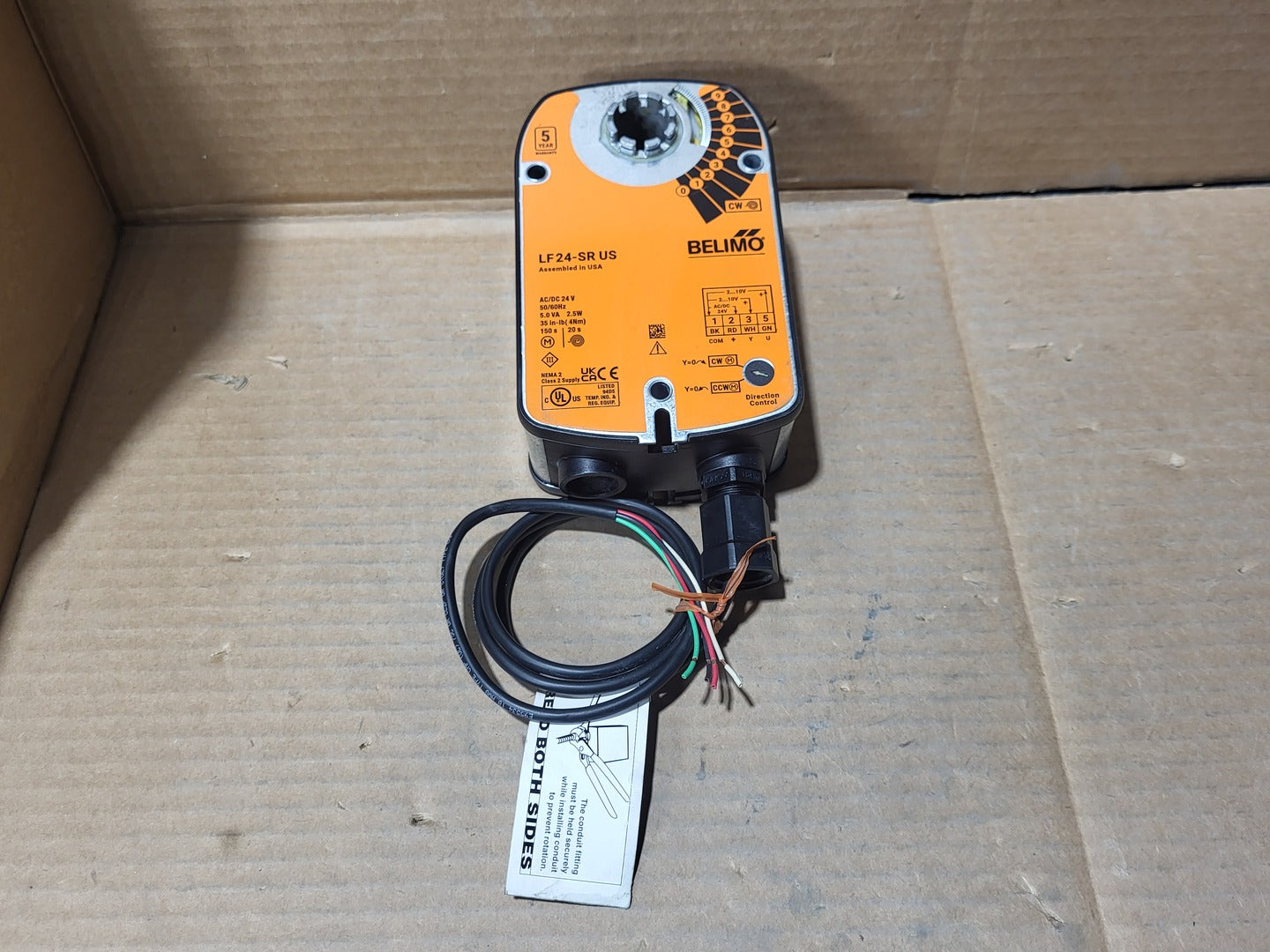

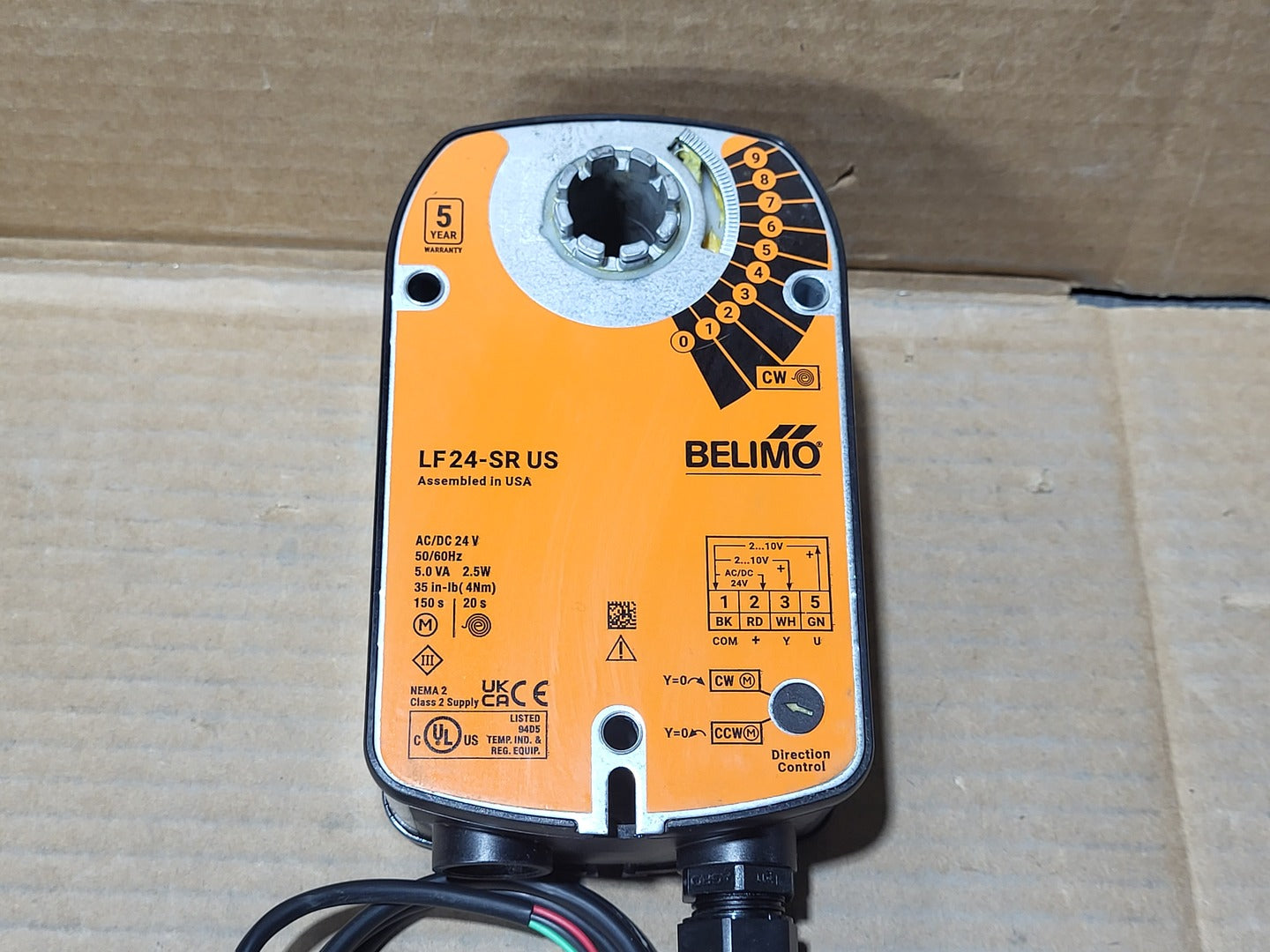

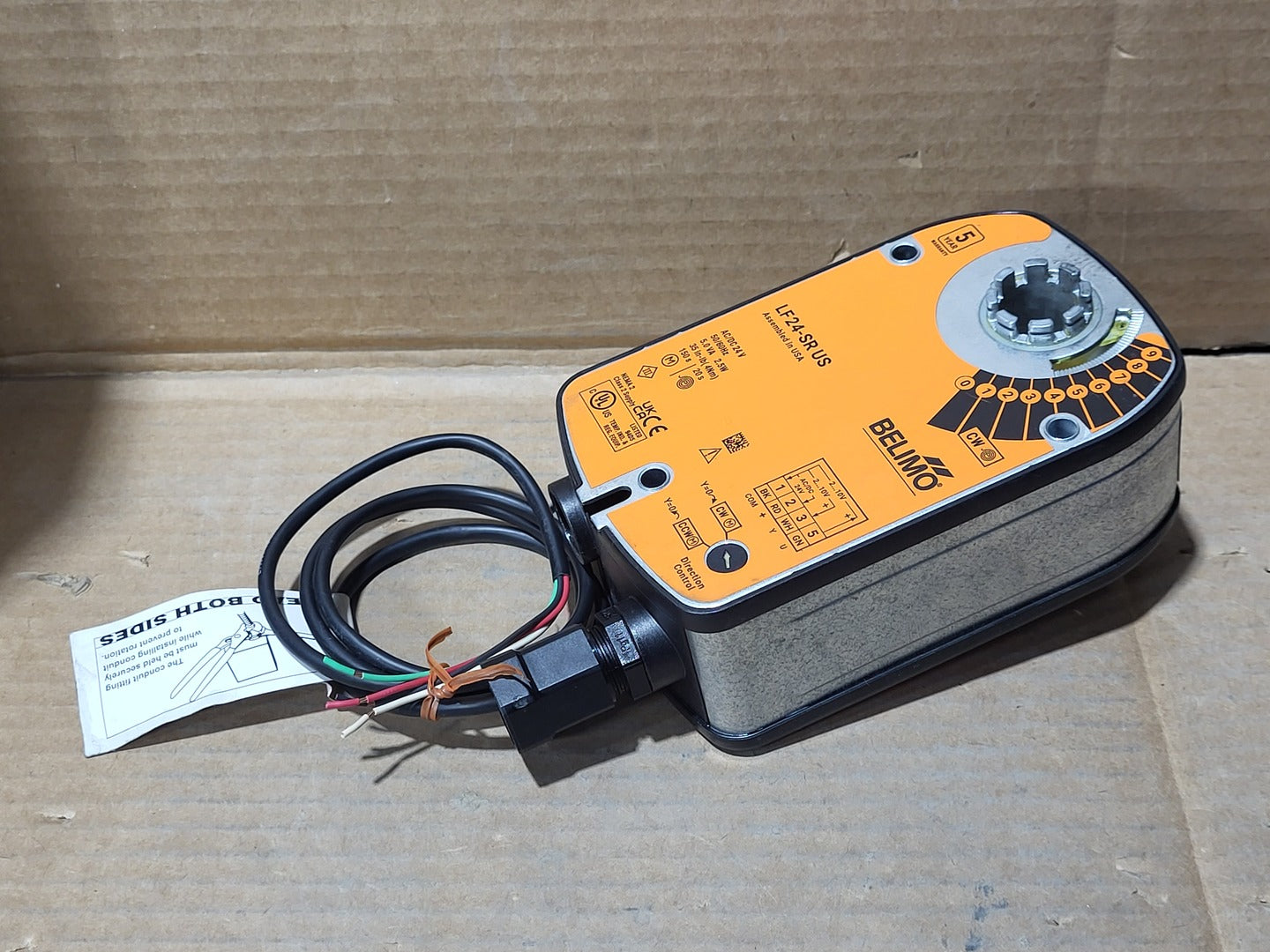

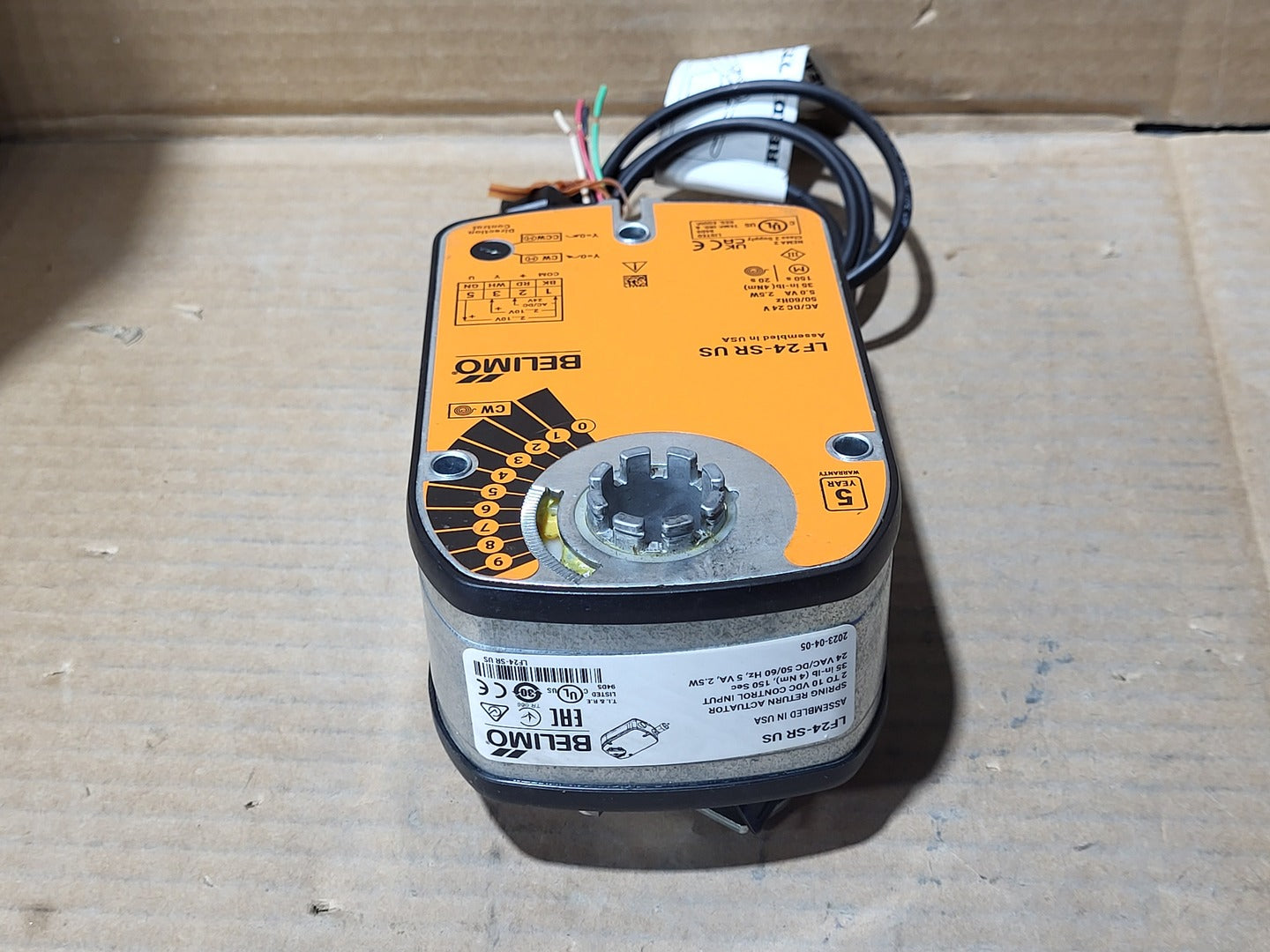

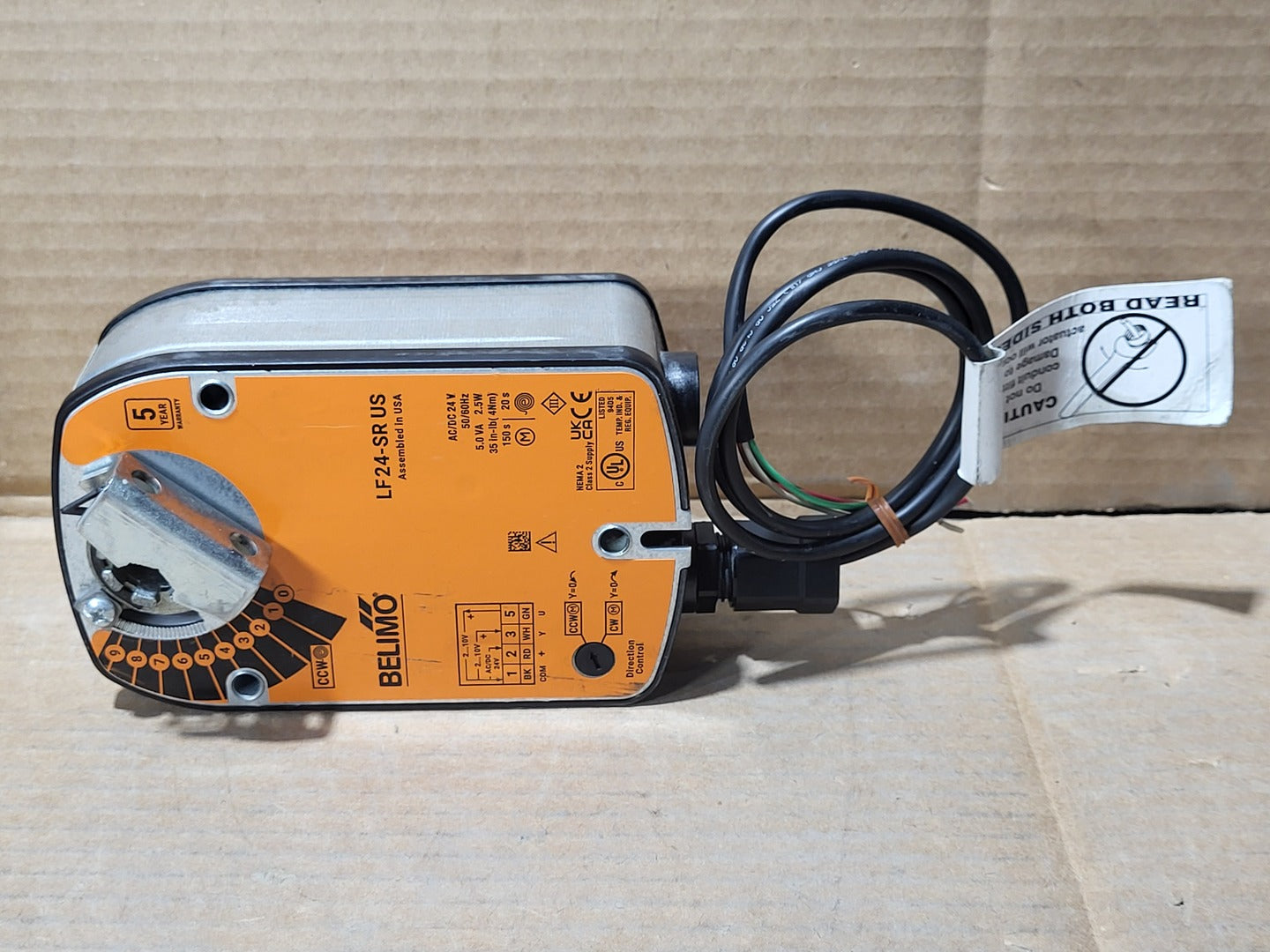

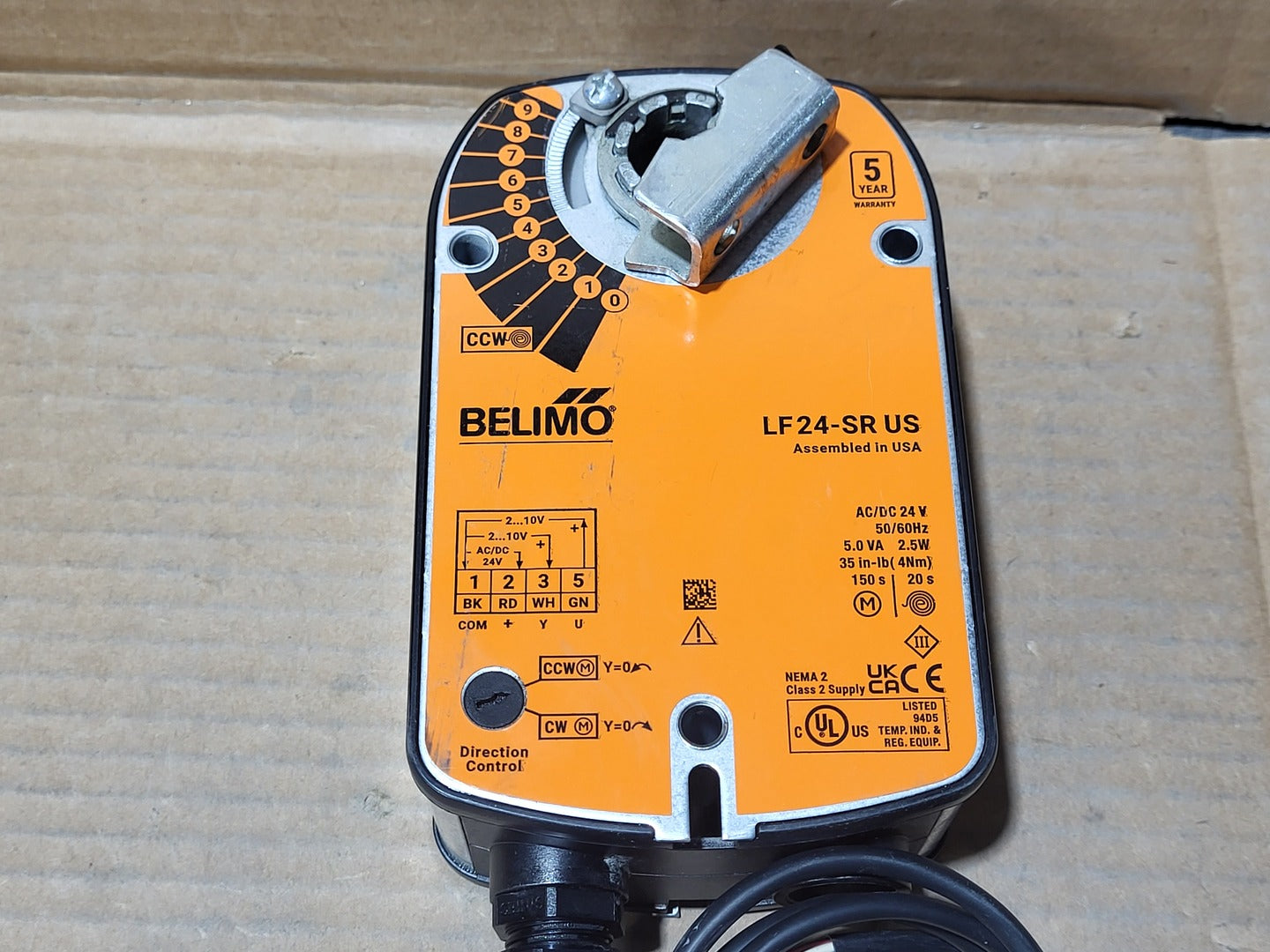

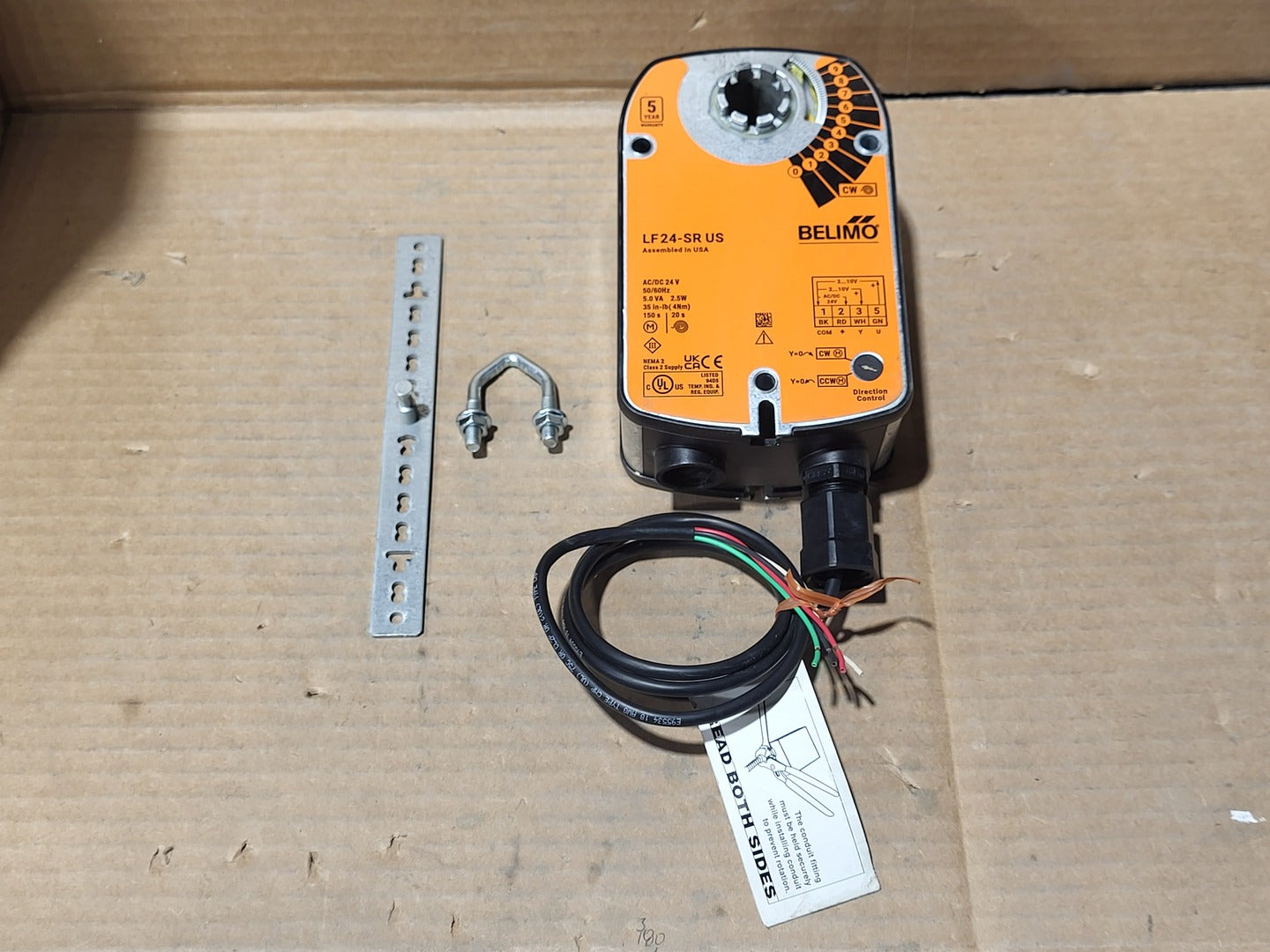

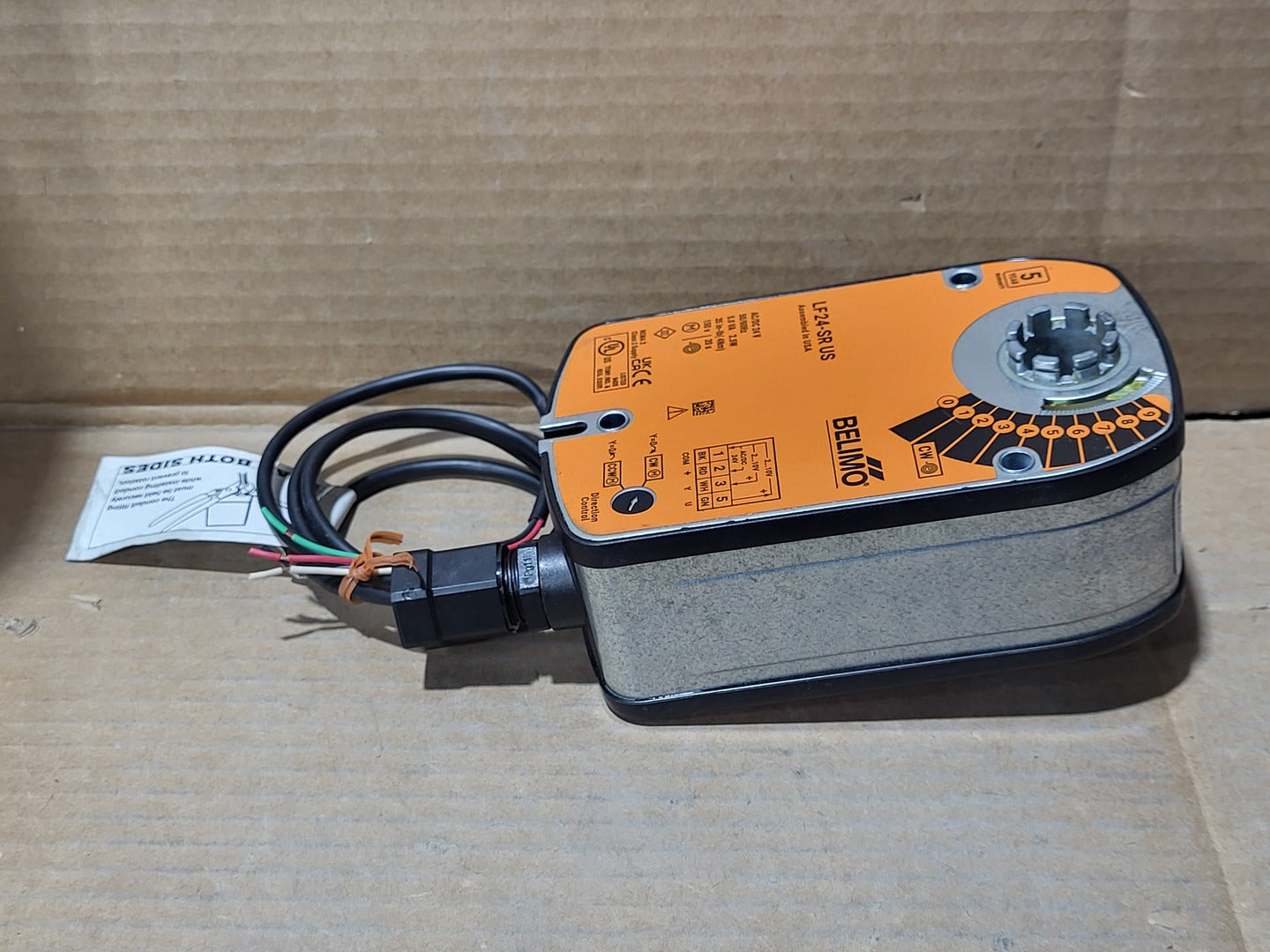

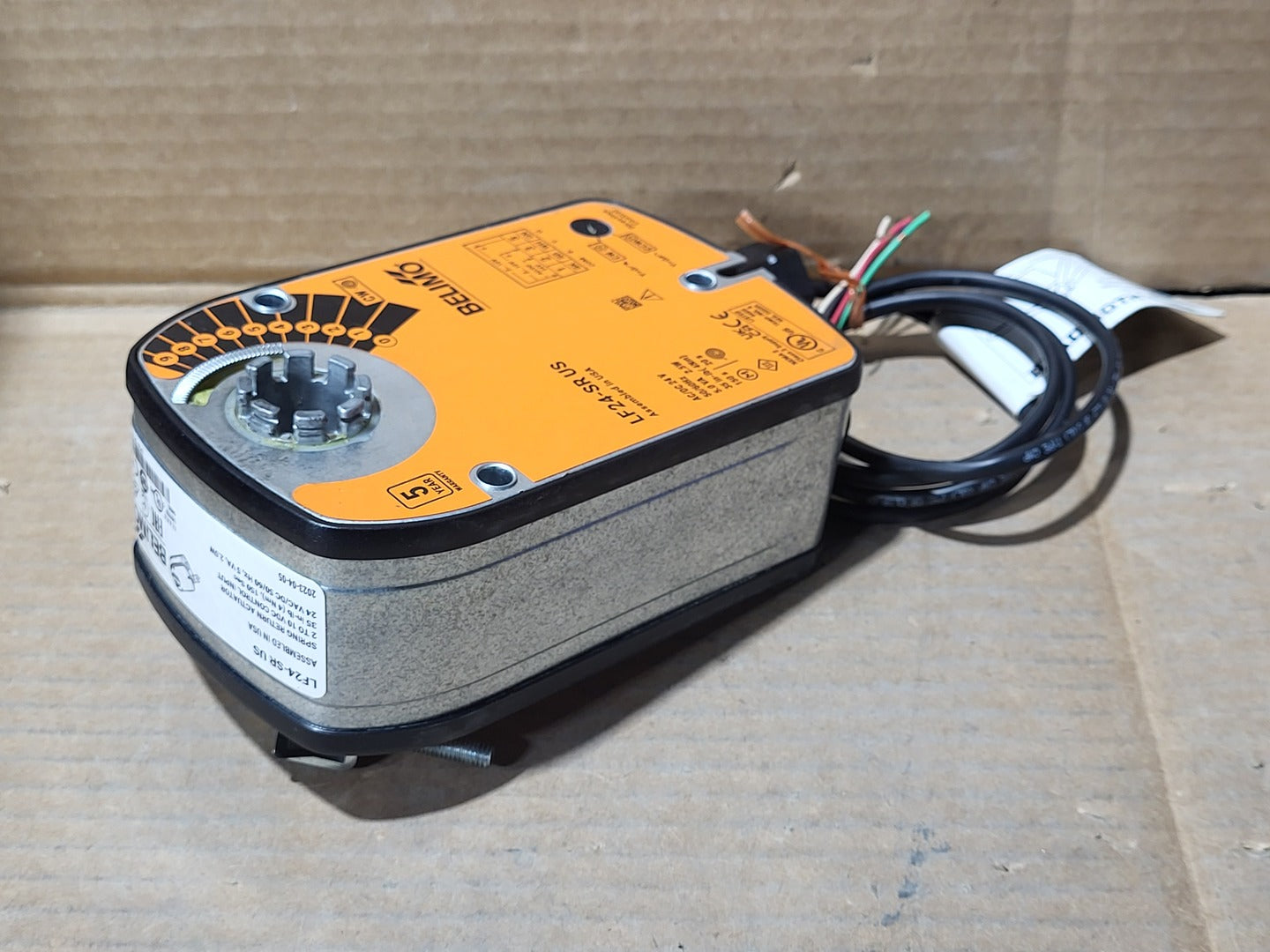

| Model | LF24-SR US |
| Made In | UNITED STATES |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Voltage AC/DC: AC/DC 24 V Power Consumption (Running): 2 W Power Consumption (Holding): 0.8 W Power Consumption For Wire Sizing: 3.5 VA Connection Supply Control: Cable 3 ft. // 1 m, 4x 0.75 mm2 Torque: 35 in-lb // 4 Nm Control Type: DC 2...10 V Direction Of Motion Motor: selectable with switch L/R Direction of Rotation (Fail-Safe): Selectable by mounting L/R Manual Override: No Angle of Rotation: 95° Running Time (Motor): 150 s / 90° Running Time range (Motor): 75...300 s Running Time (Fail-safe): <20 s Mechanical Interface: Universal shaft clamp 8...16 mm Degree Of Protection NEMA: NEMA 2 Enclosure Type: UL Enclosure Type 2 Ambient Temperature: -22...122°F [-30...50°C] |
