Description

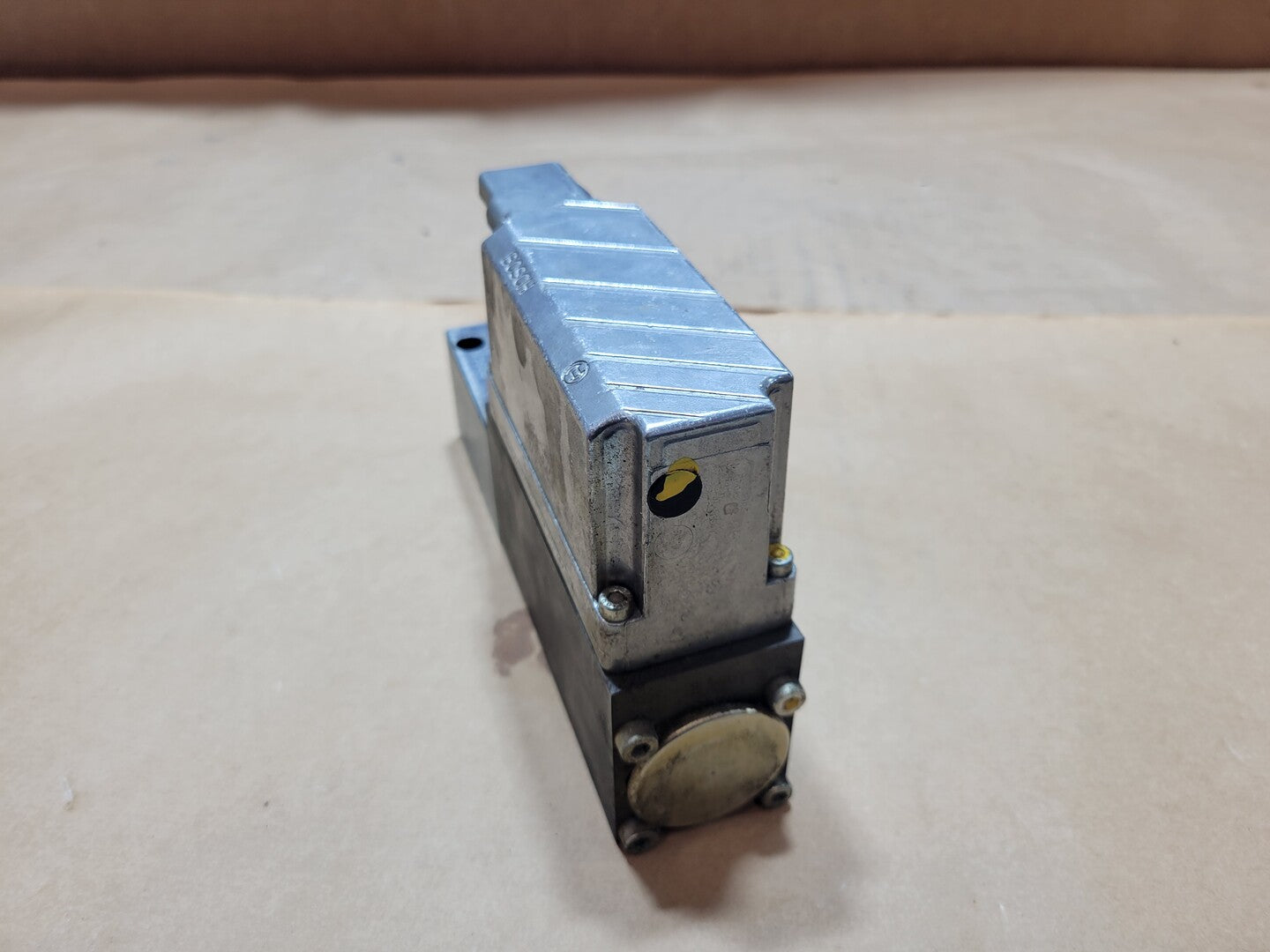

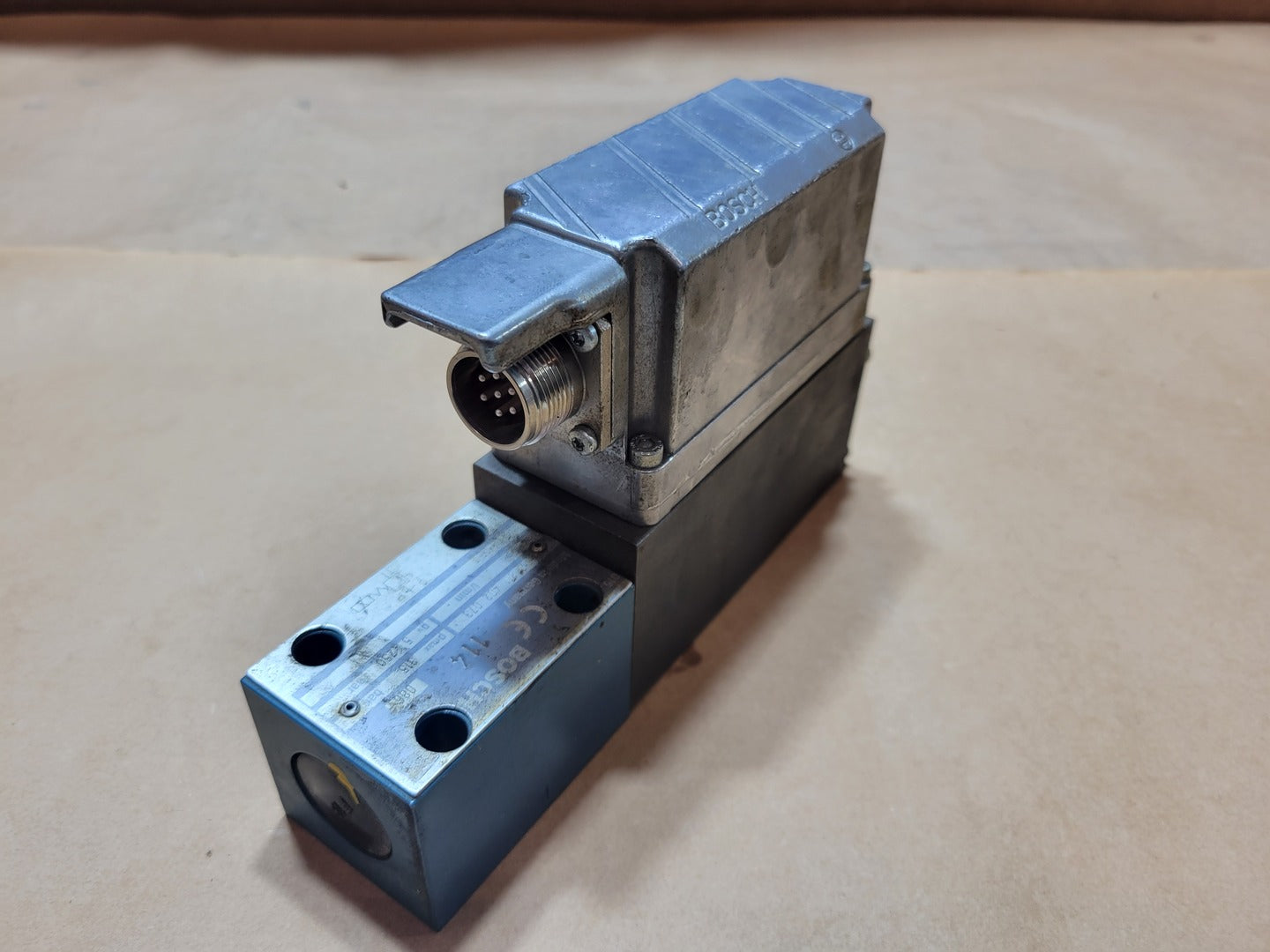

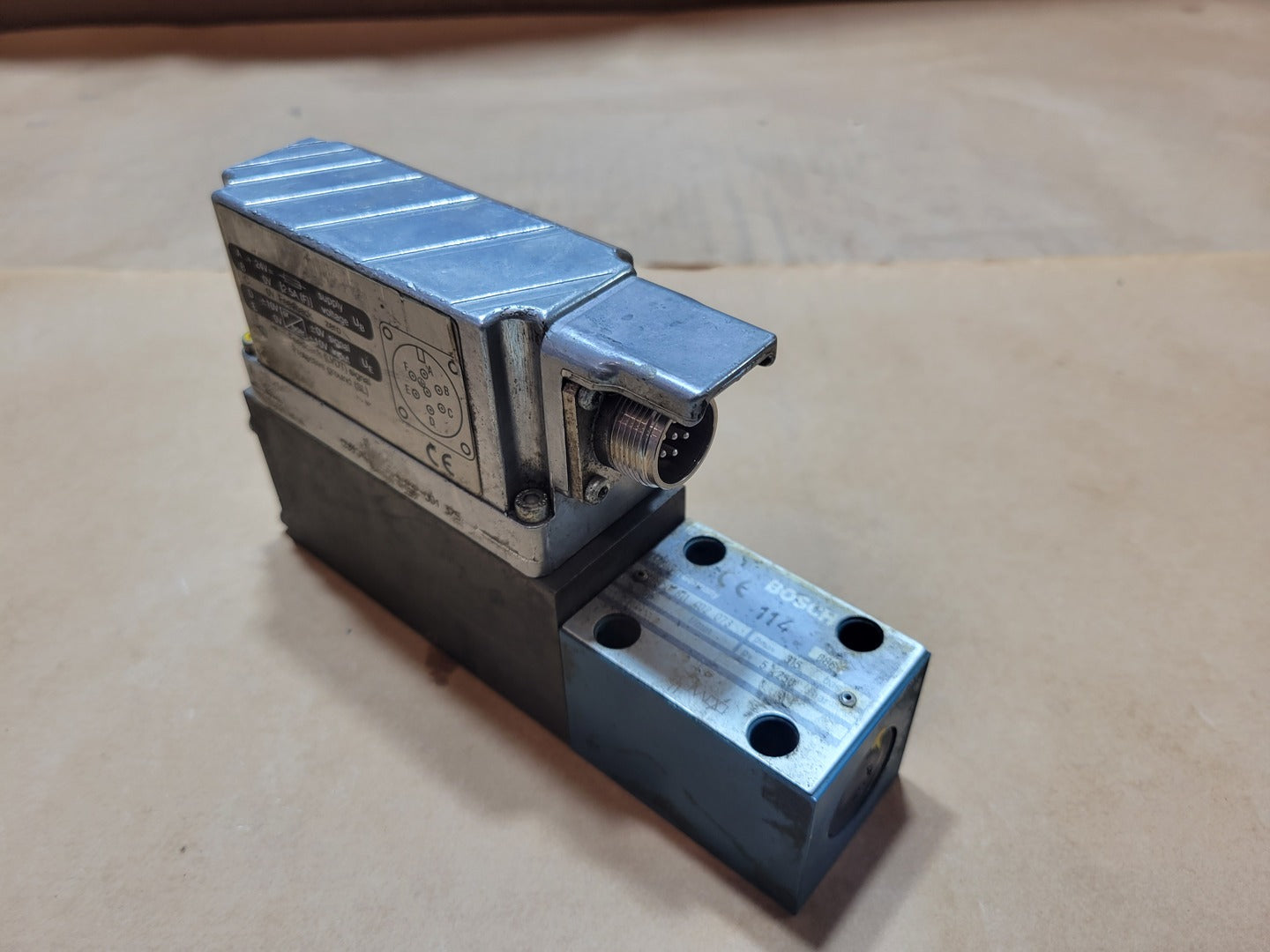

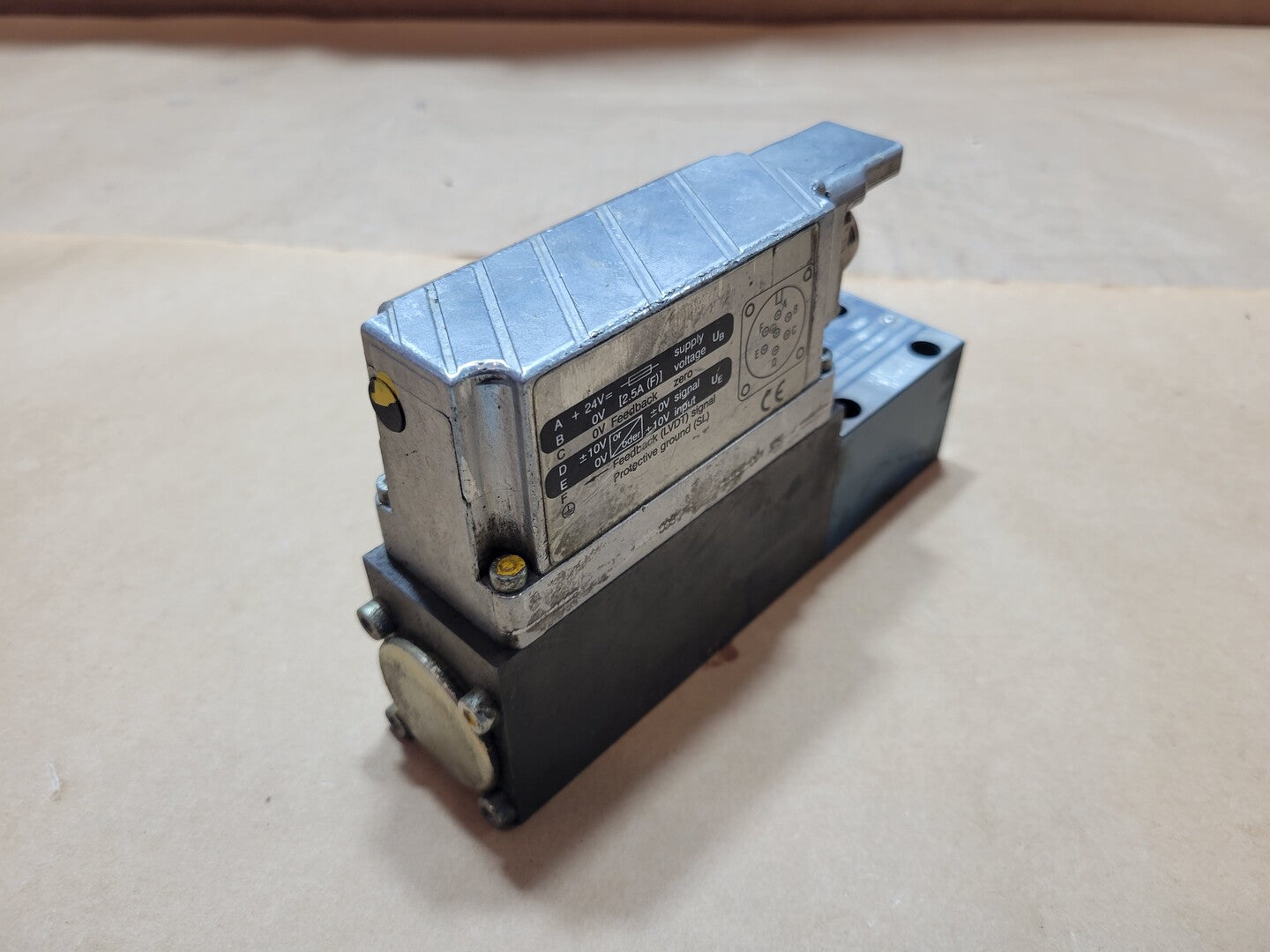

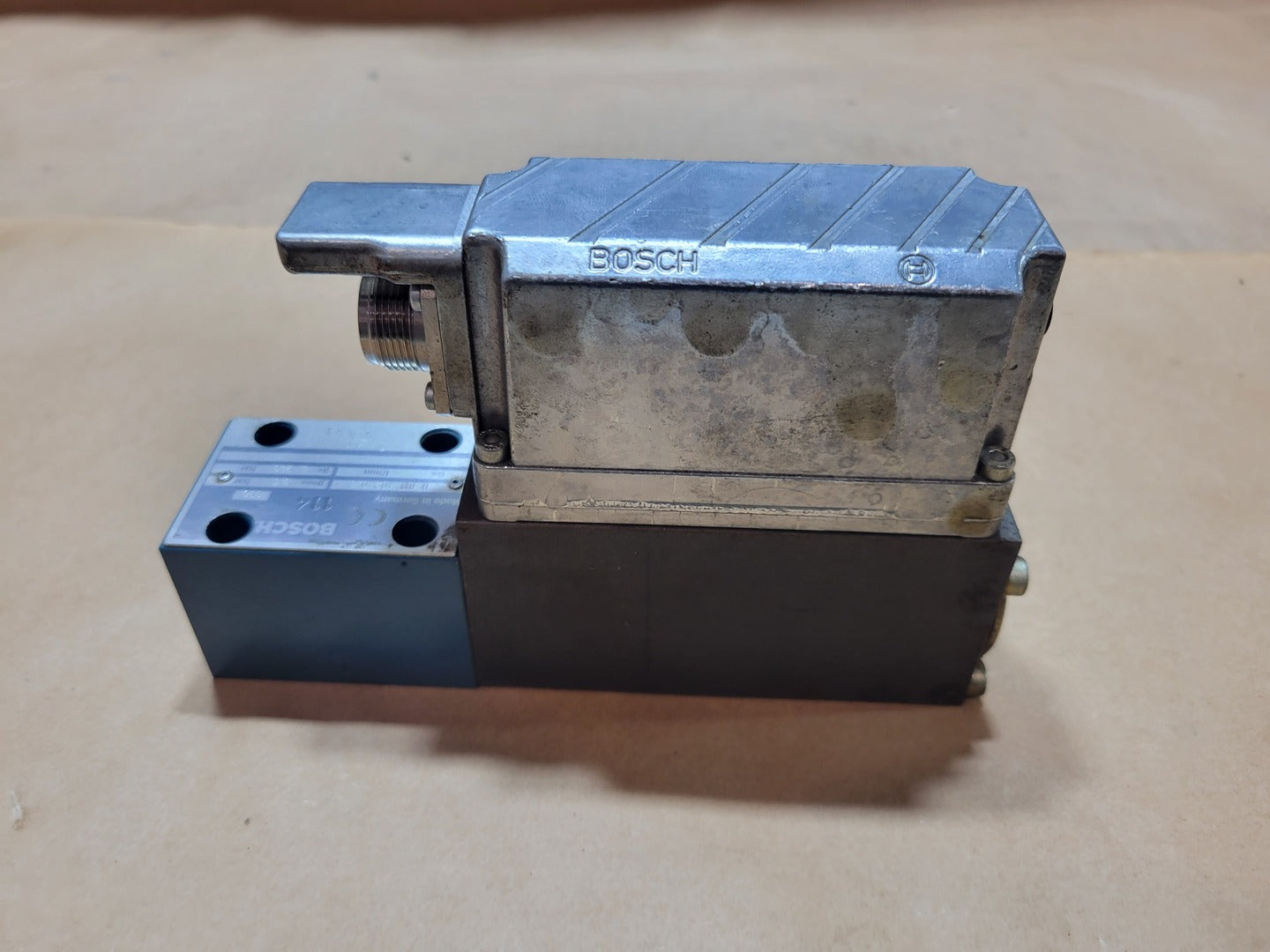

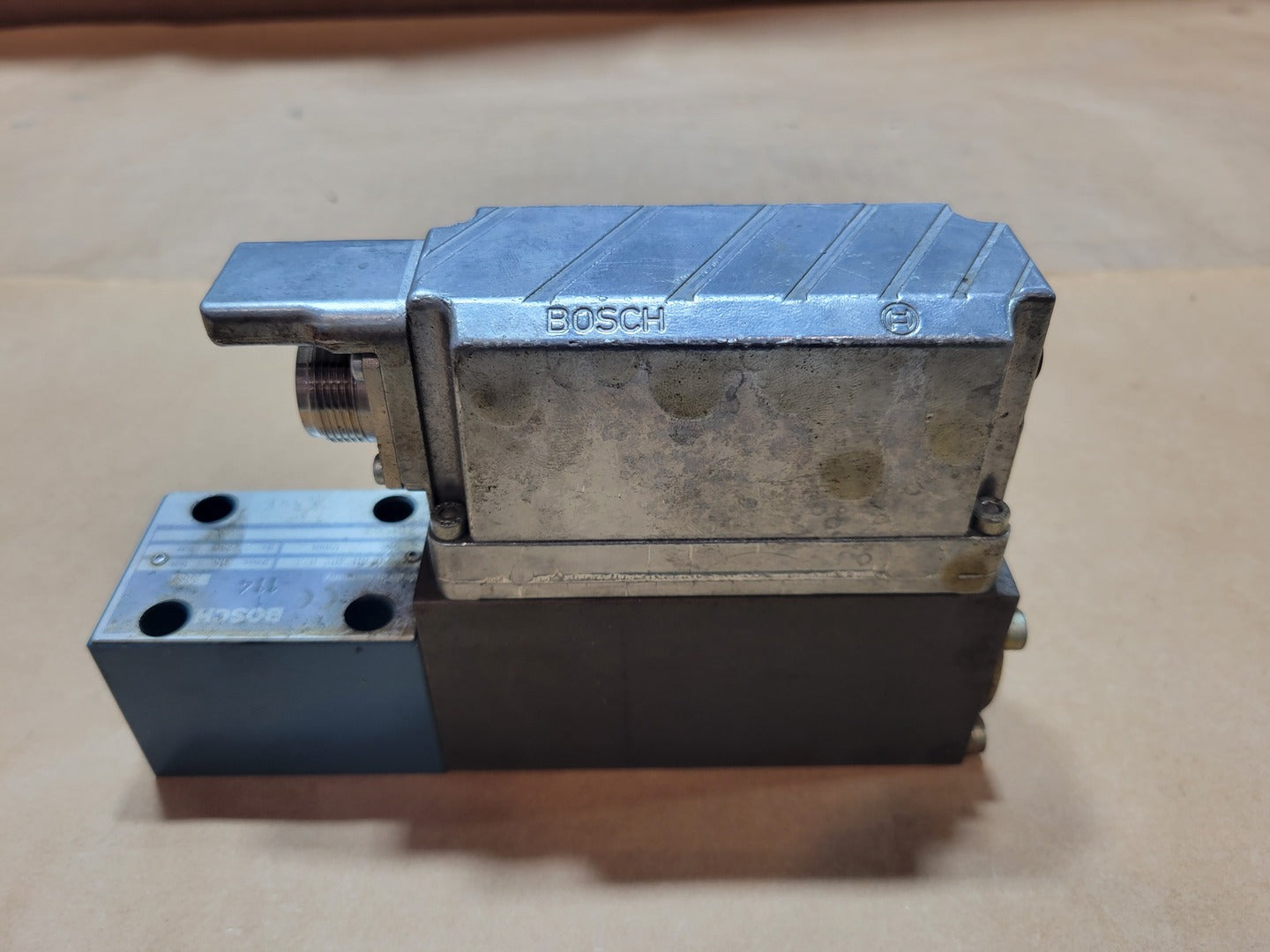

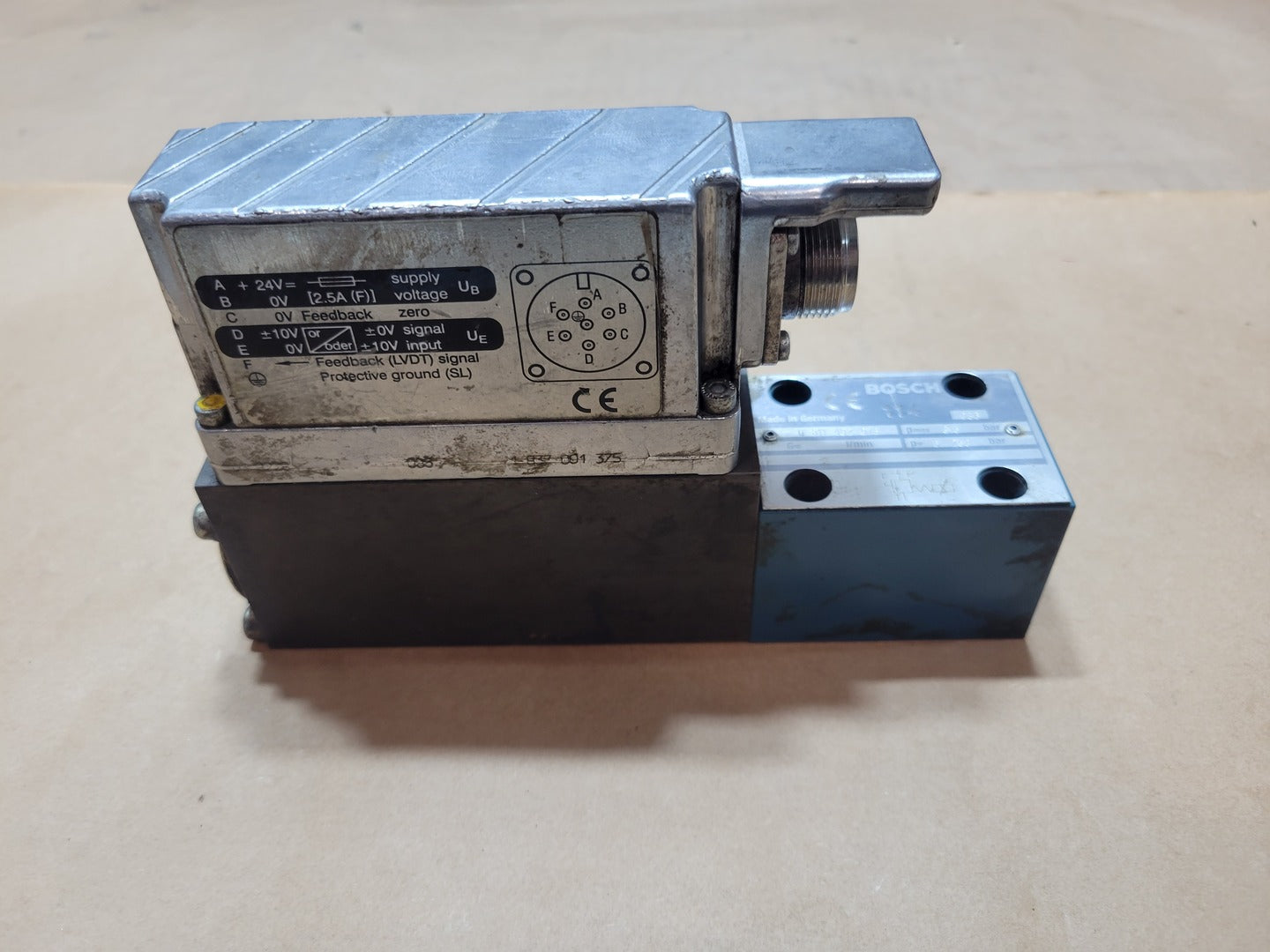

Bosch Rexroth direct-operated proportional pressure-relief valve designed for precise electrohydraulic pressure limitation. Model DBETBEX-1X/250G24K31A1M incorporates onboard control electronics and inductive position feedback.
| Specifications | |
|---|---|
| Model | 0811402073 |
| Made In | GERMANY |
| Condition | Used |
| Other Specifications |
|---|
|

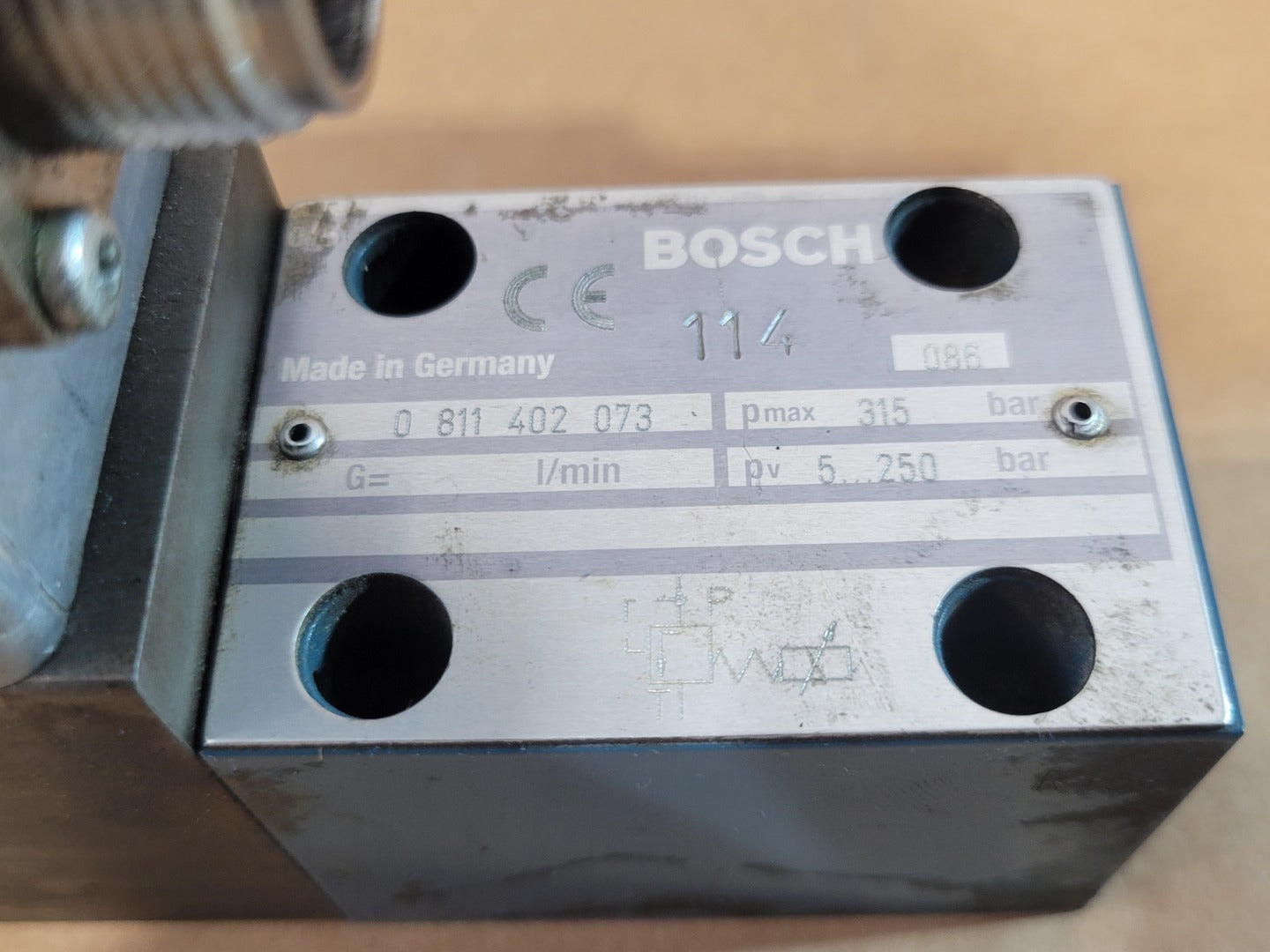

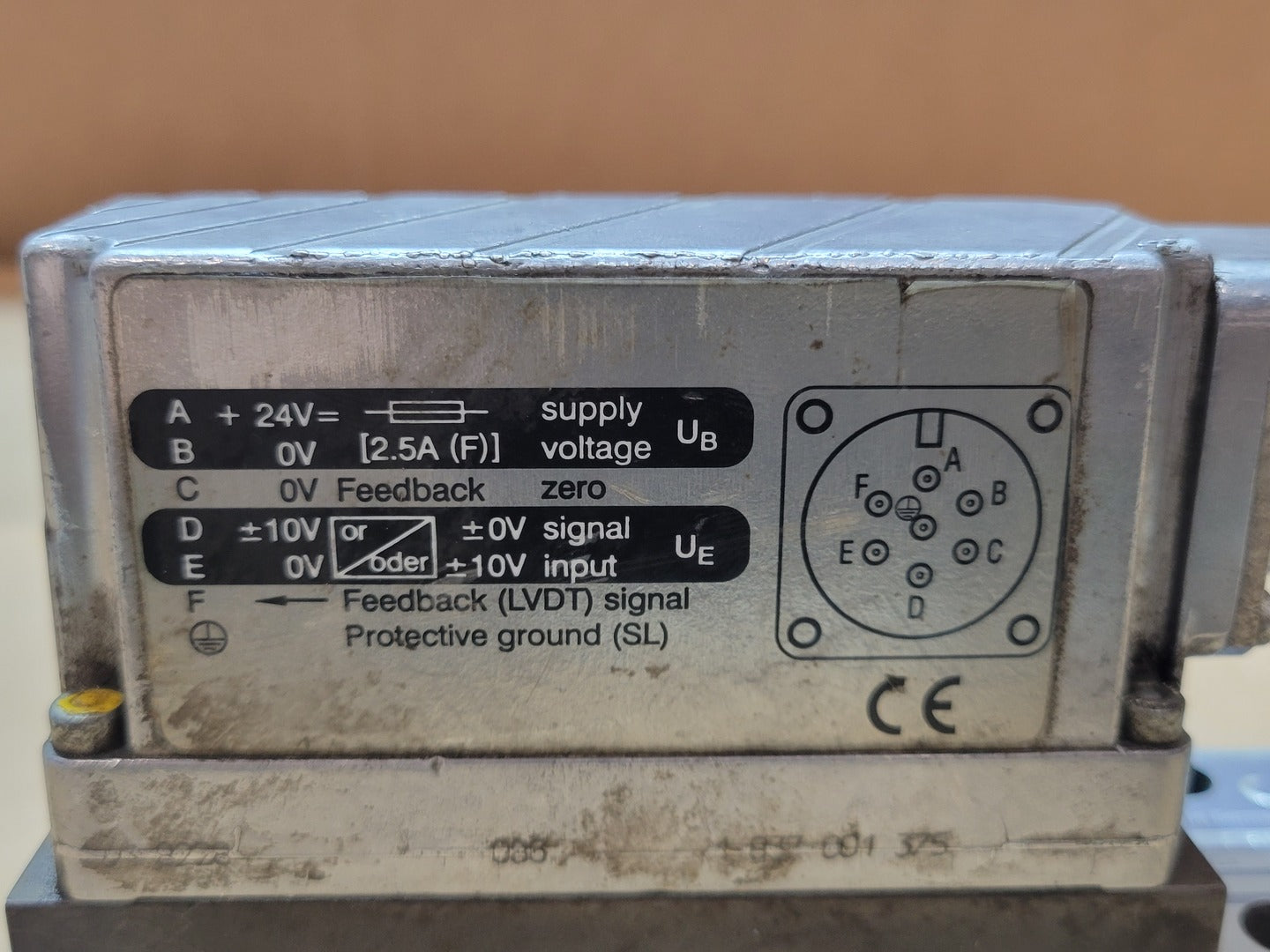

Material number: 0 811 402 073 Compact number: 0811402073 Type code: DBETBEX-1X/250G24K31A1M Product type: Proportional pressure-relief/pressure-limiting valve Actuation: Position-controlled proportional solenoid Valve design: Direct operated, poppet-seat type Nominal size: NG6 / Size 6 Component series: 1X Command pressure range: Approximately 5-250 bar Maximum operating pressure, port P: 315 bar Maximum pressure, port T: 250 bar Nominal flow: 1 L/min Supply voltage: 24 VDC Command input: 0-10 V |
