Description
| Specifications | |
|---|---|

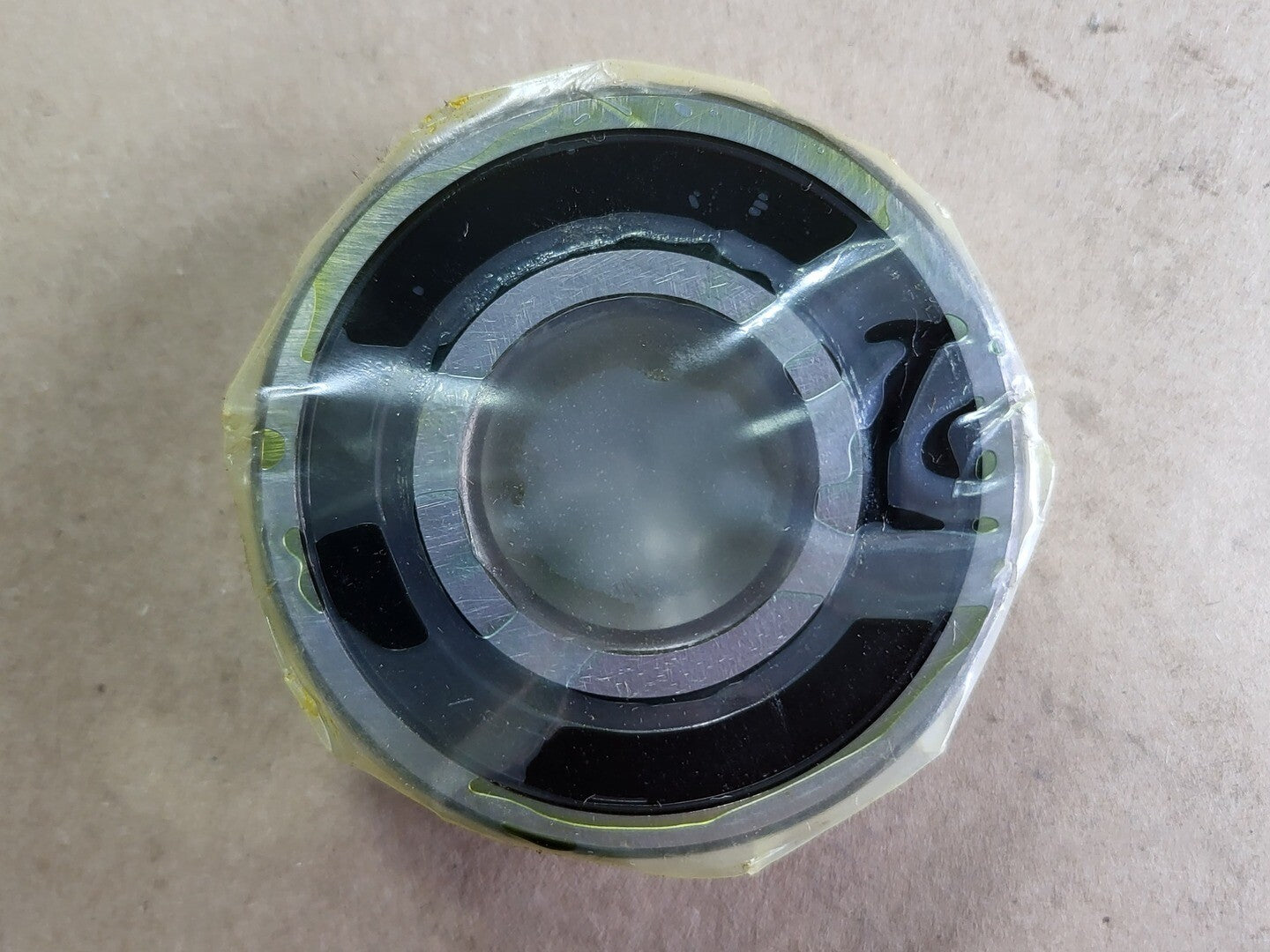

| Model | 3305 A-2RS1/C3 |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Bore Size (Metric) | 25 mm |
| Bore Size (Imperial) | 0.984 in |
| Outside Diameter (Metric) | 62 mm |
| Outside Diameter (Imperial) | 2.440 in |
| Snap Ring Included | No |
| Bearing Type | Ball |
| Internal Clearance | C3 |
| Other Specifications |
|---|
|
Material: Bearing Steel Bore Type: Straight Cage Material: Polyamide No. of Rows: 2 Width: 25.4 mm Arrangement of Contact Angle: Back-to-Back (O) Contact Angle: 30 deg. Sealing Arrangement: Sealing on Both Sides Sealing Type: Contact Seal Seal Material: Nitrile Rubber Fillet Radius: 1 mm Dynamic Load Rating: 32 kN Static Load Rating: 20.4 kN Fatigue Load Rating: 0.865 kN Limiting Speed: 7500 r/min |
