Description
| Specifications | |
|---|---|

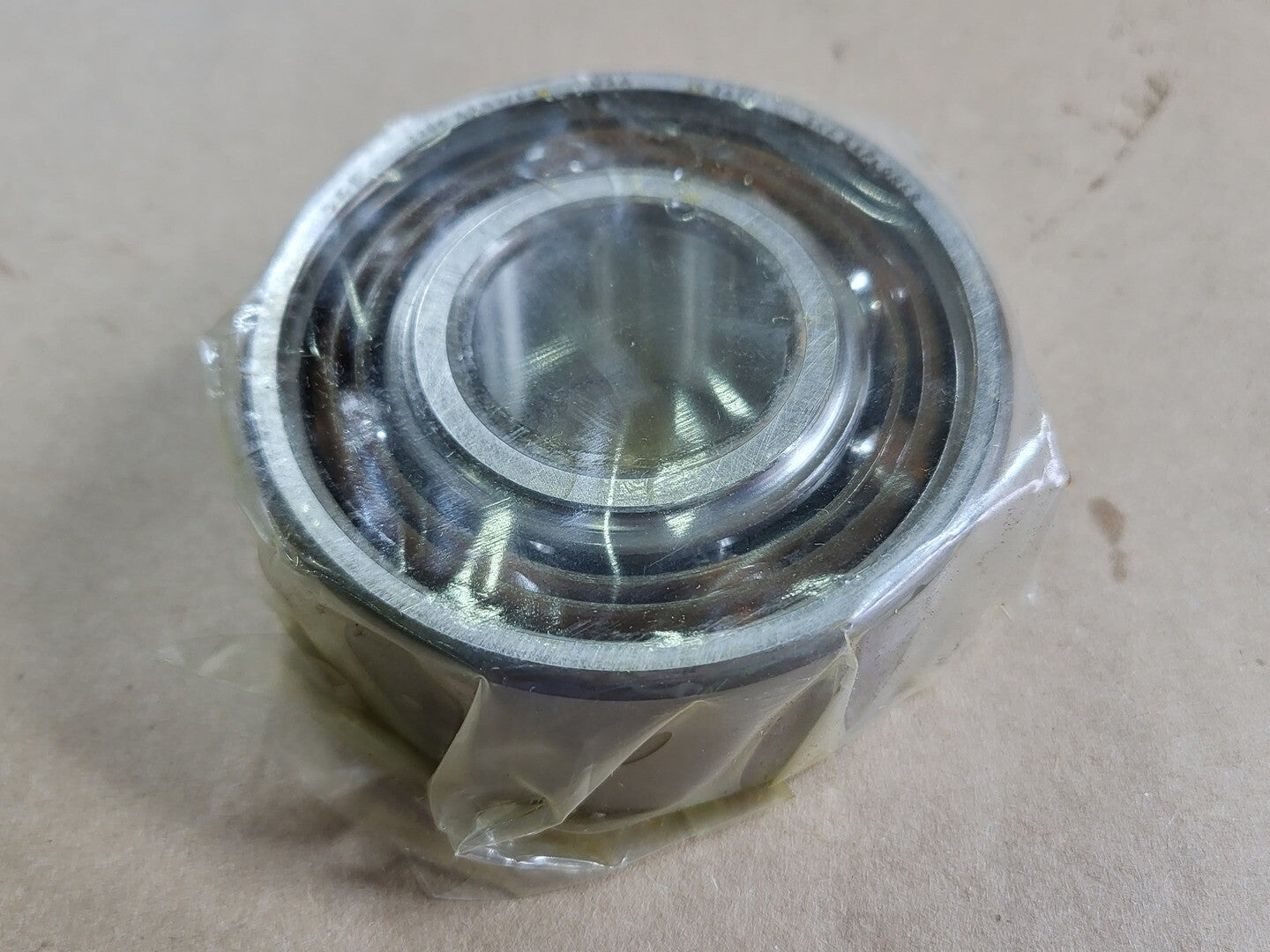

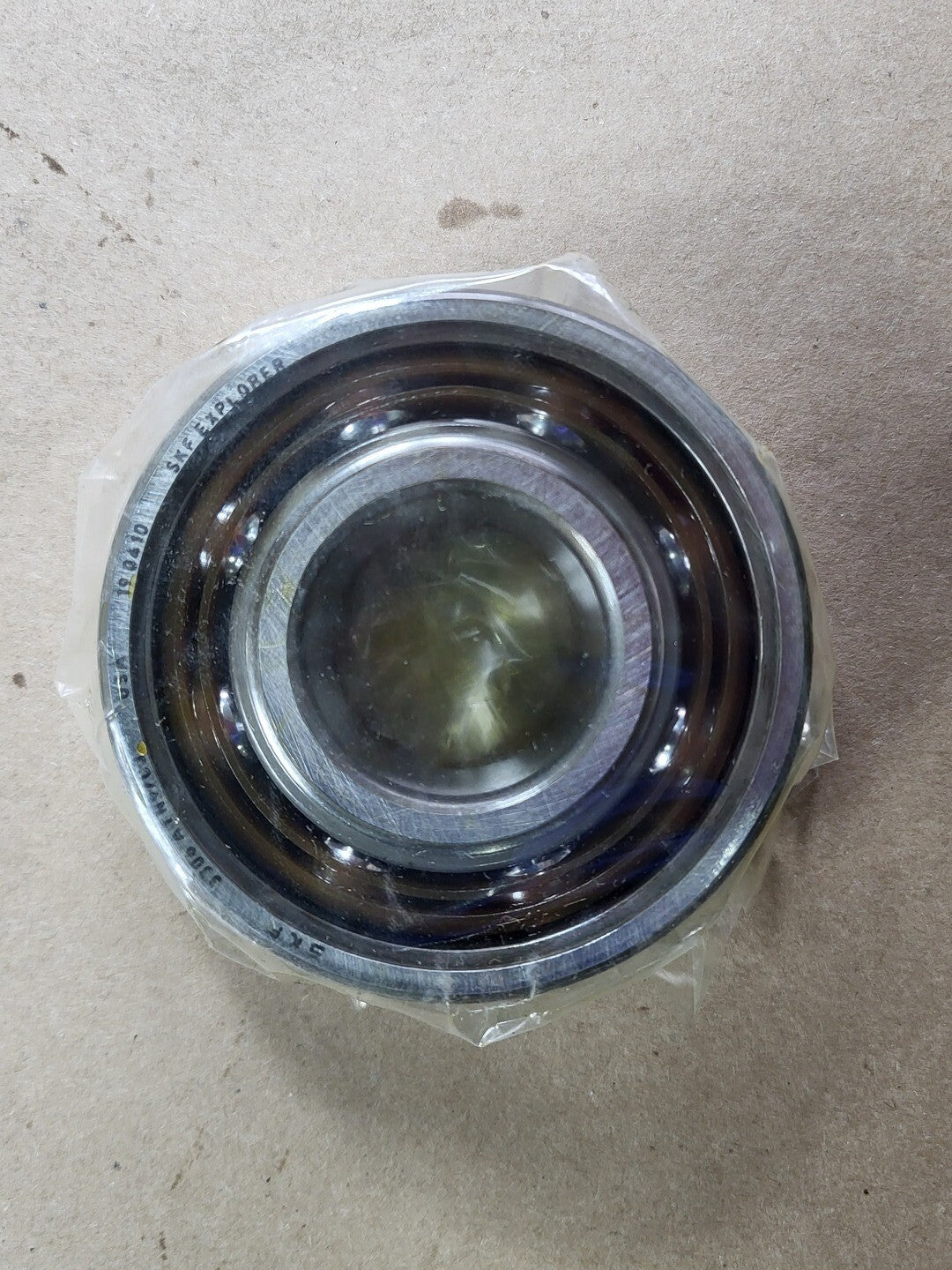

| Model | 3306 ATN9/C3 |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Bore Size (Metric) | 30 mm |
| Bore Size (Imperial) | 1.181 in |
| Outside Diameter (Metric) | 72 mm |
| Outside Diameter (Imperial) | 2.834 in |
| Snap Ring Included | No |
| Bearing Type | Ball |
| Internal Clearance | C3 |
| Other Specifications |
|---|
|
Material: Bearing Steel Bore Type: Cylindrical Cage Type: Glass- Fibre Reinforced PA66 Cage Cage Material: Polyamide No. of Rows: Double Series: 3220 Width: 30.16 mm Fillet Radius: 1 mm Precision Class: ABEC 1 Contact Angle: 30 deg. Dynamic Load Rating: 41.5 kN Static Load Rating: 27.5 kN Reference Speed: 10000 r/min Limiting Speed: 9000 r/min |
