Description

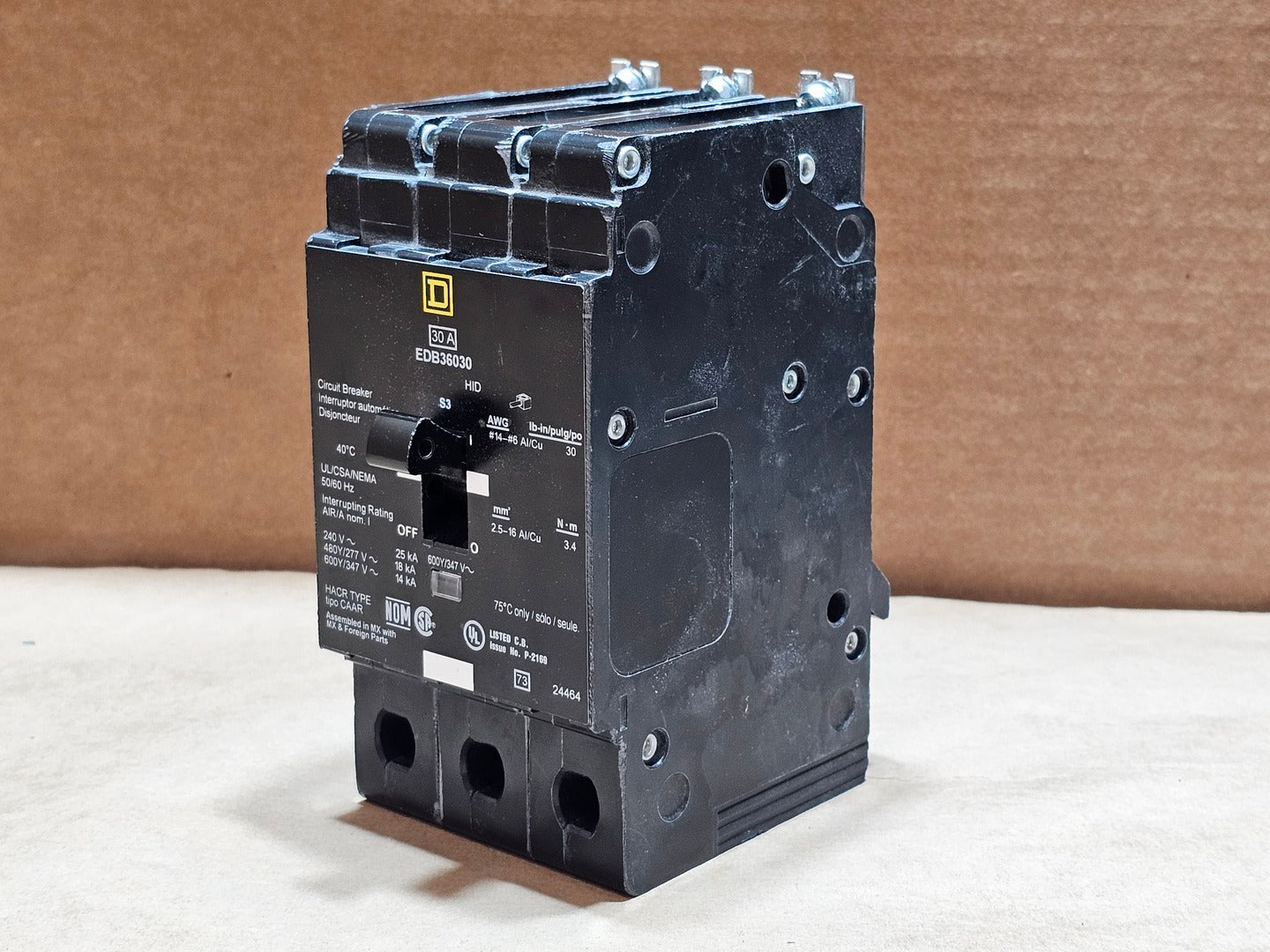

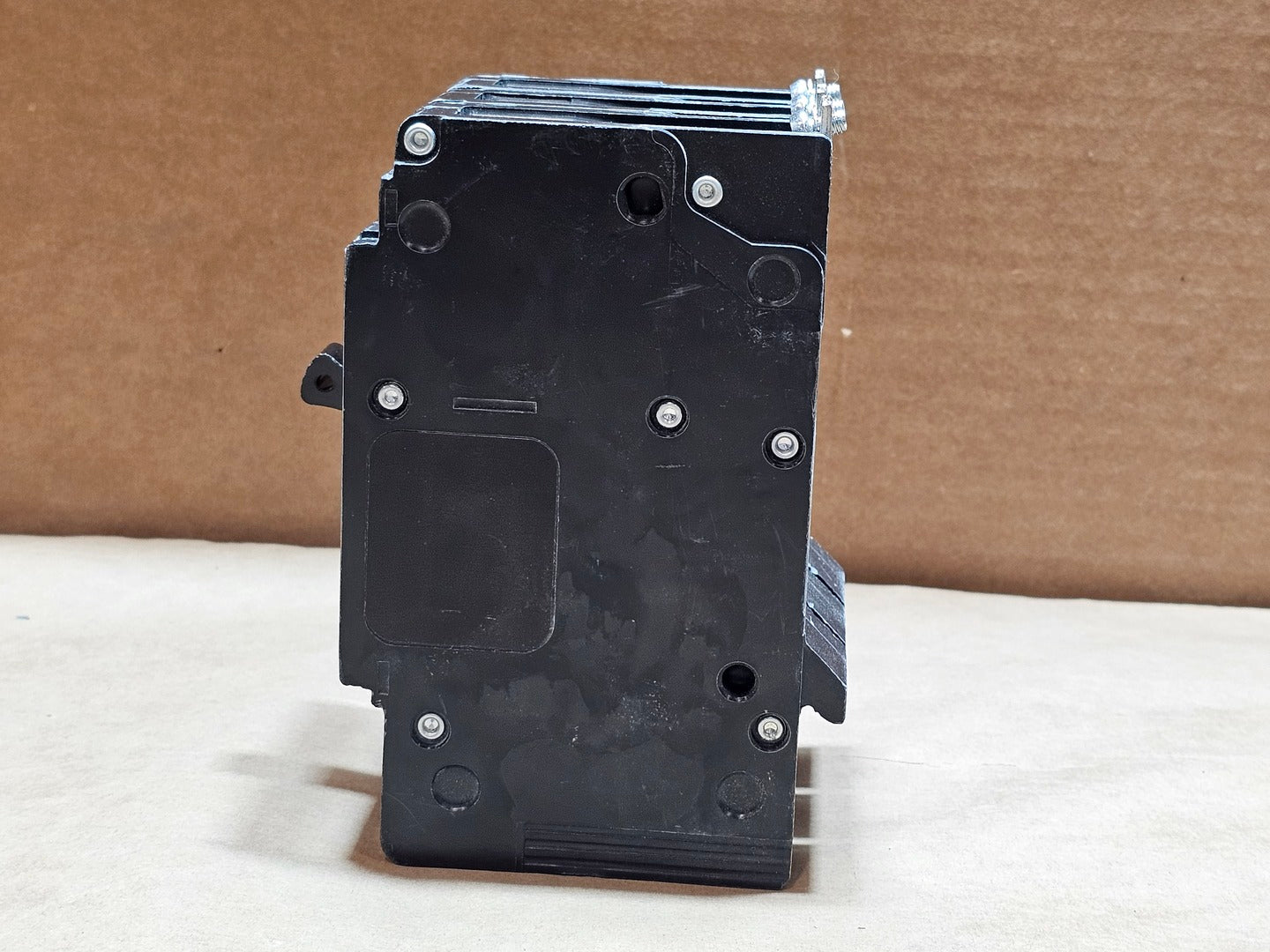

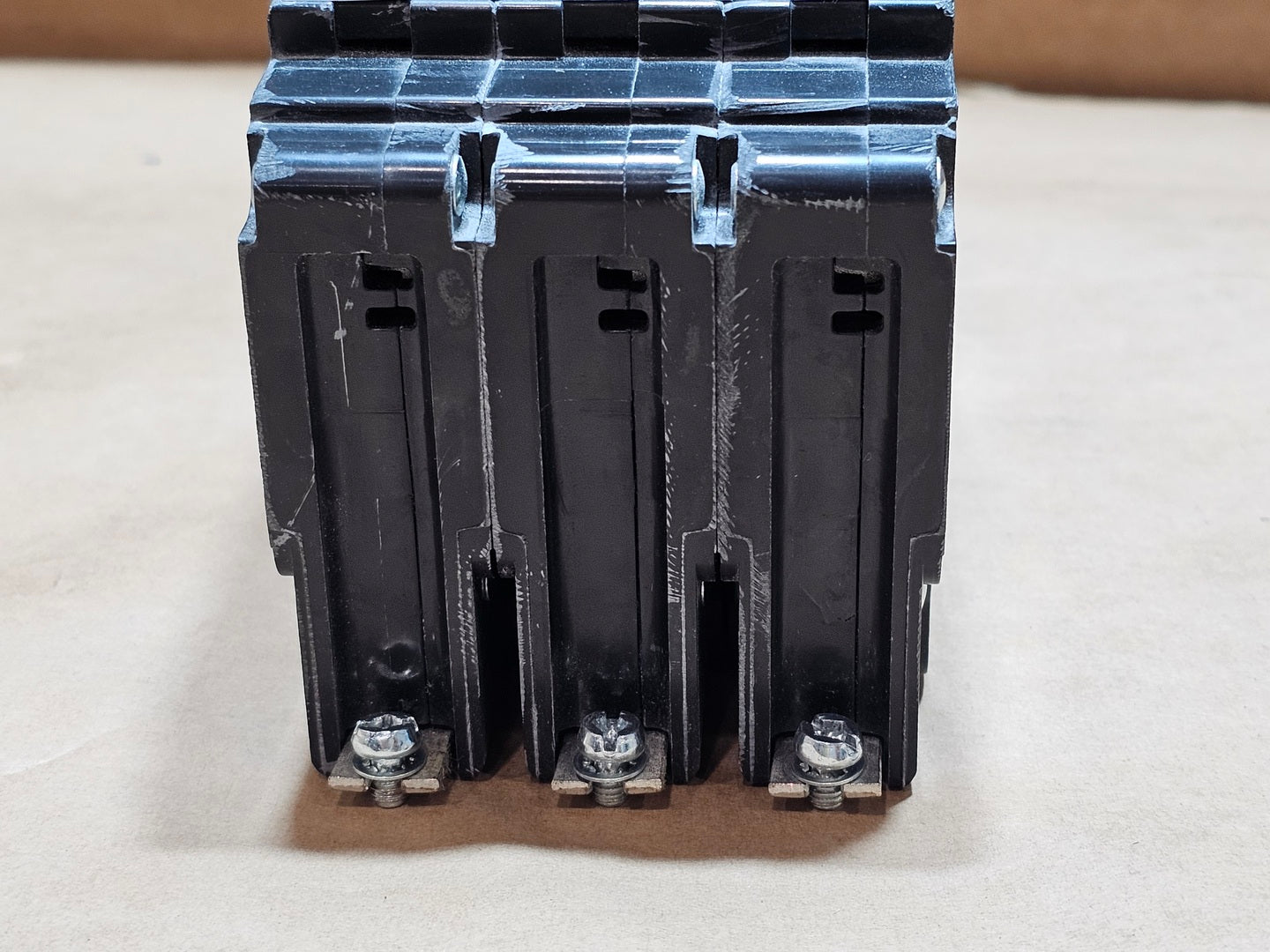

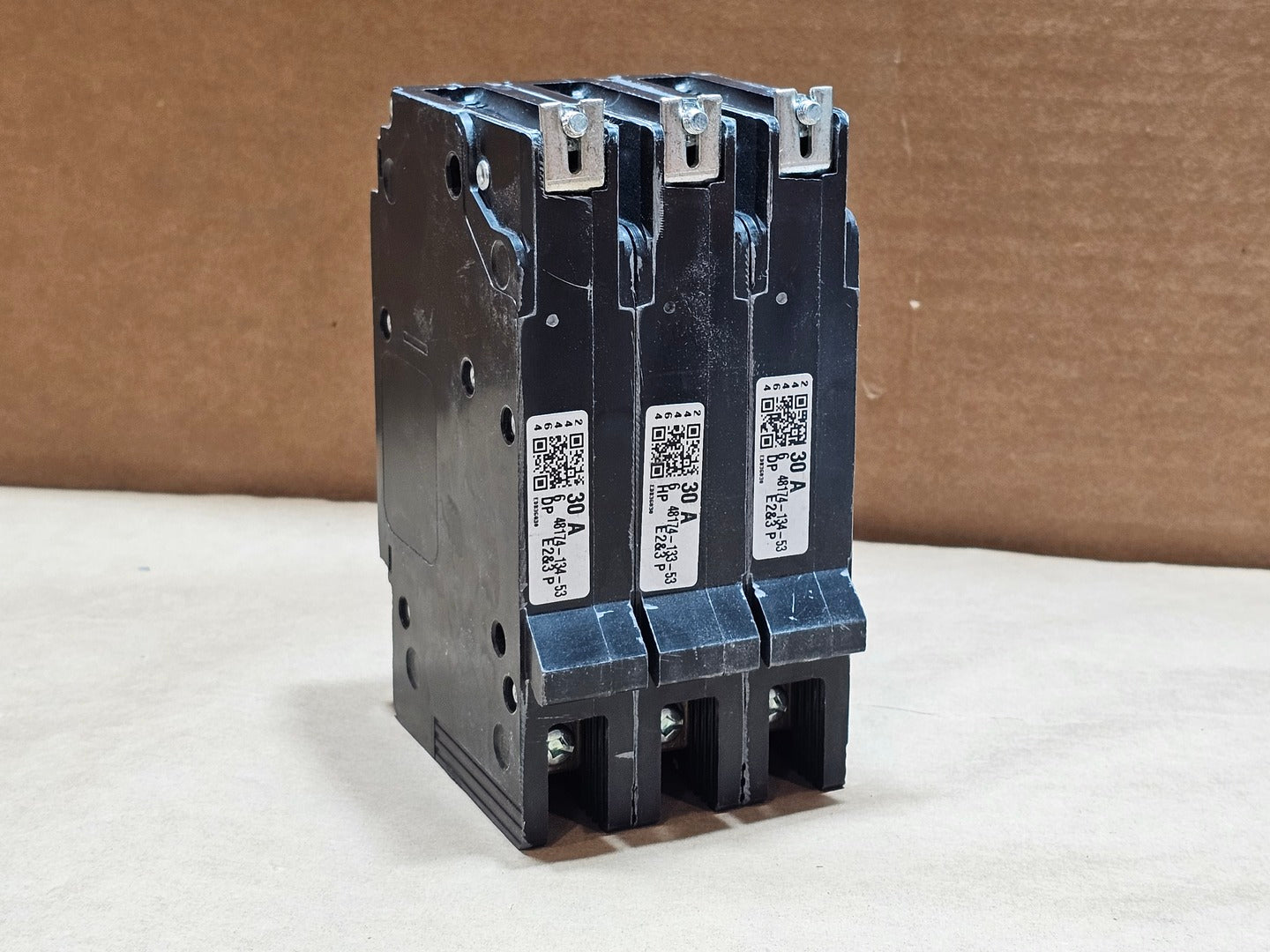

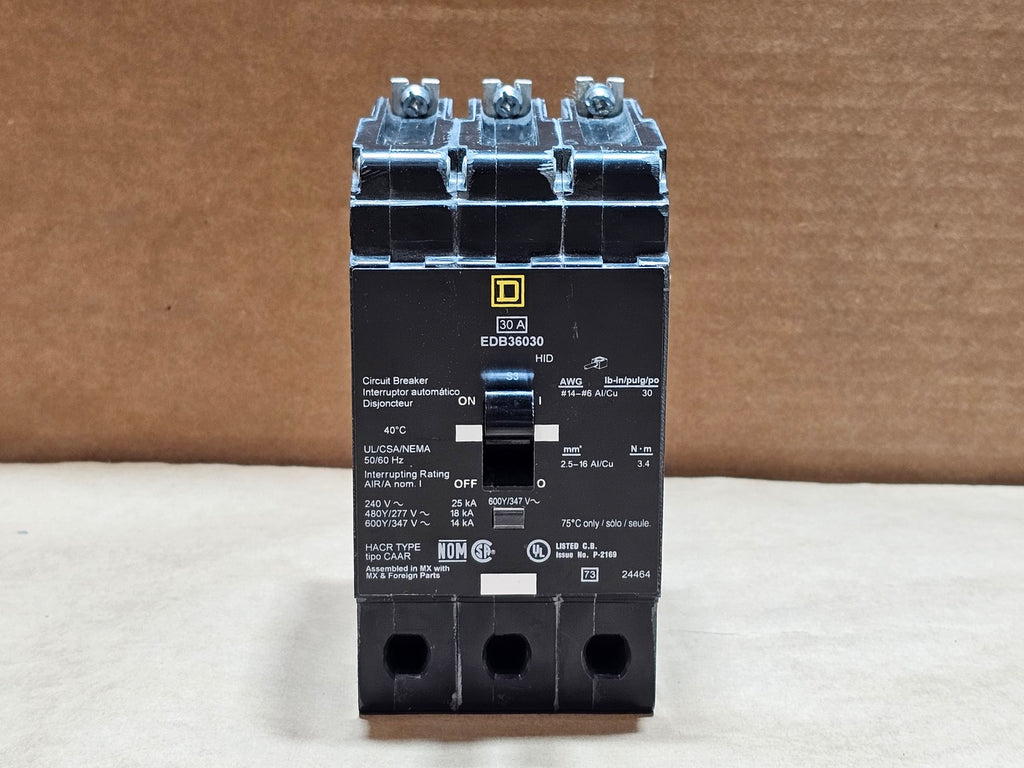

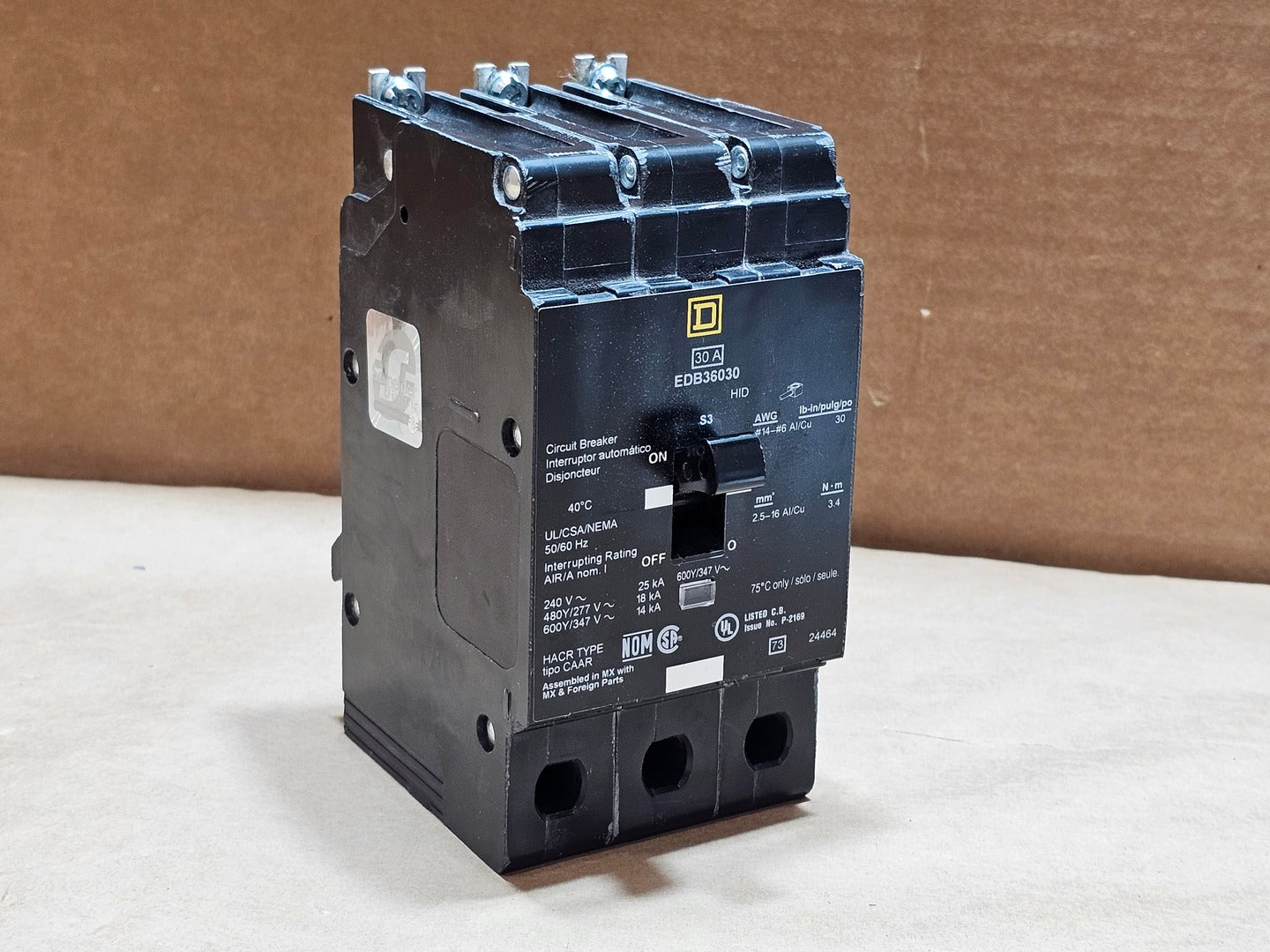

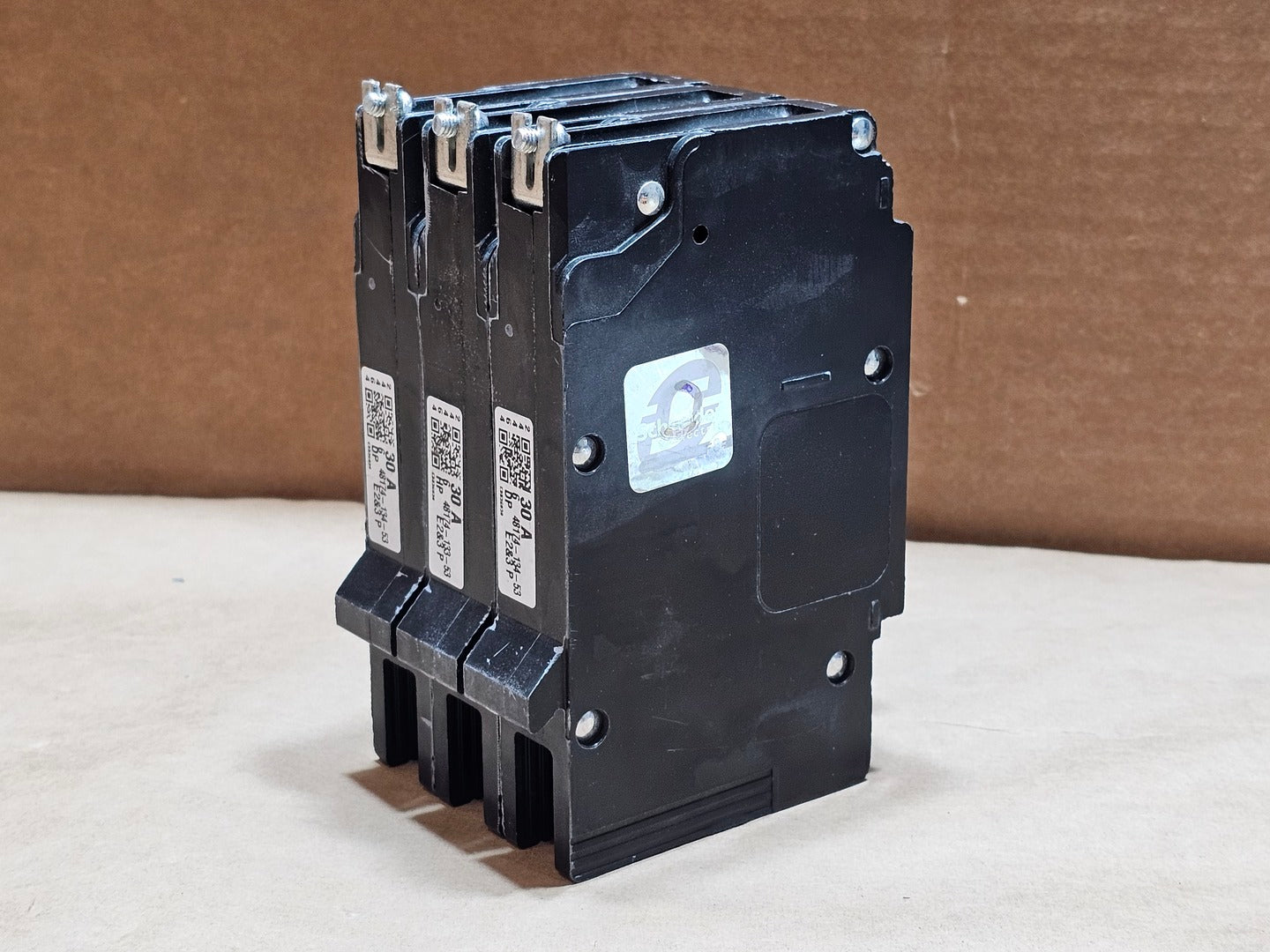

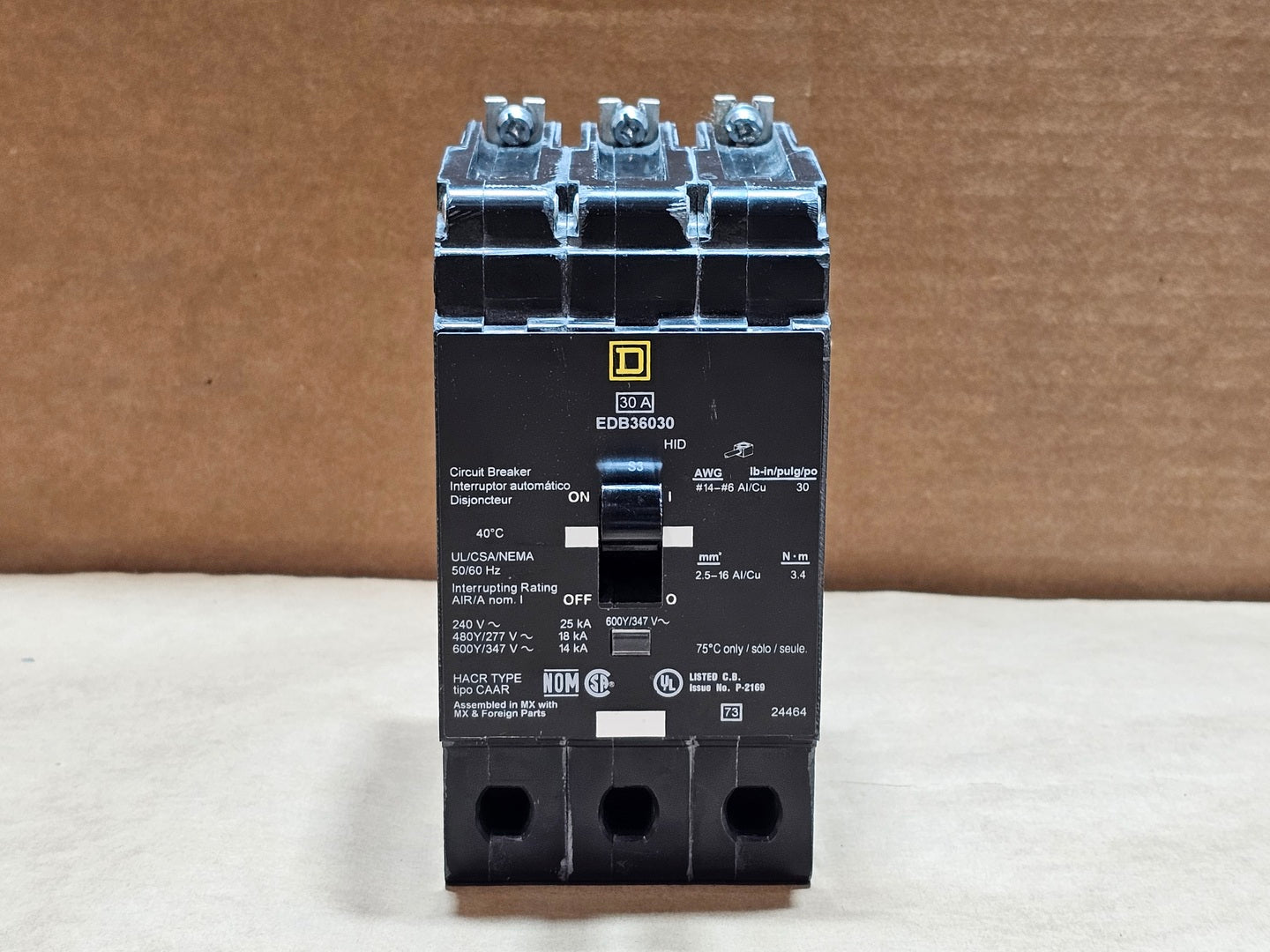

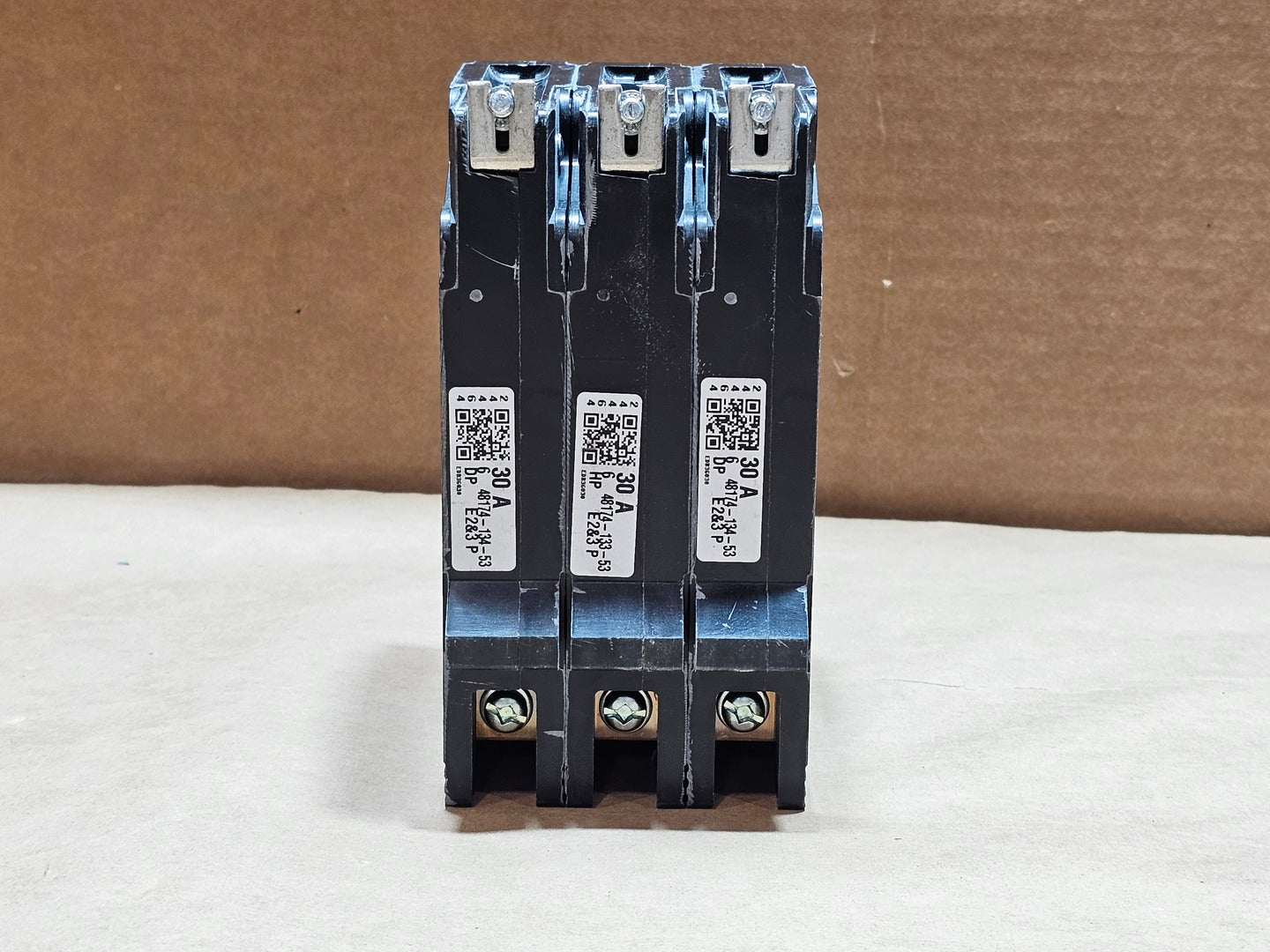

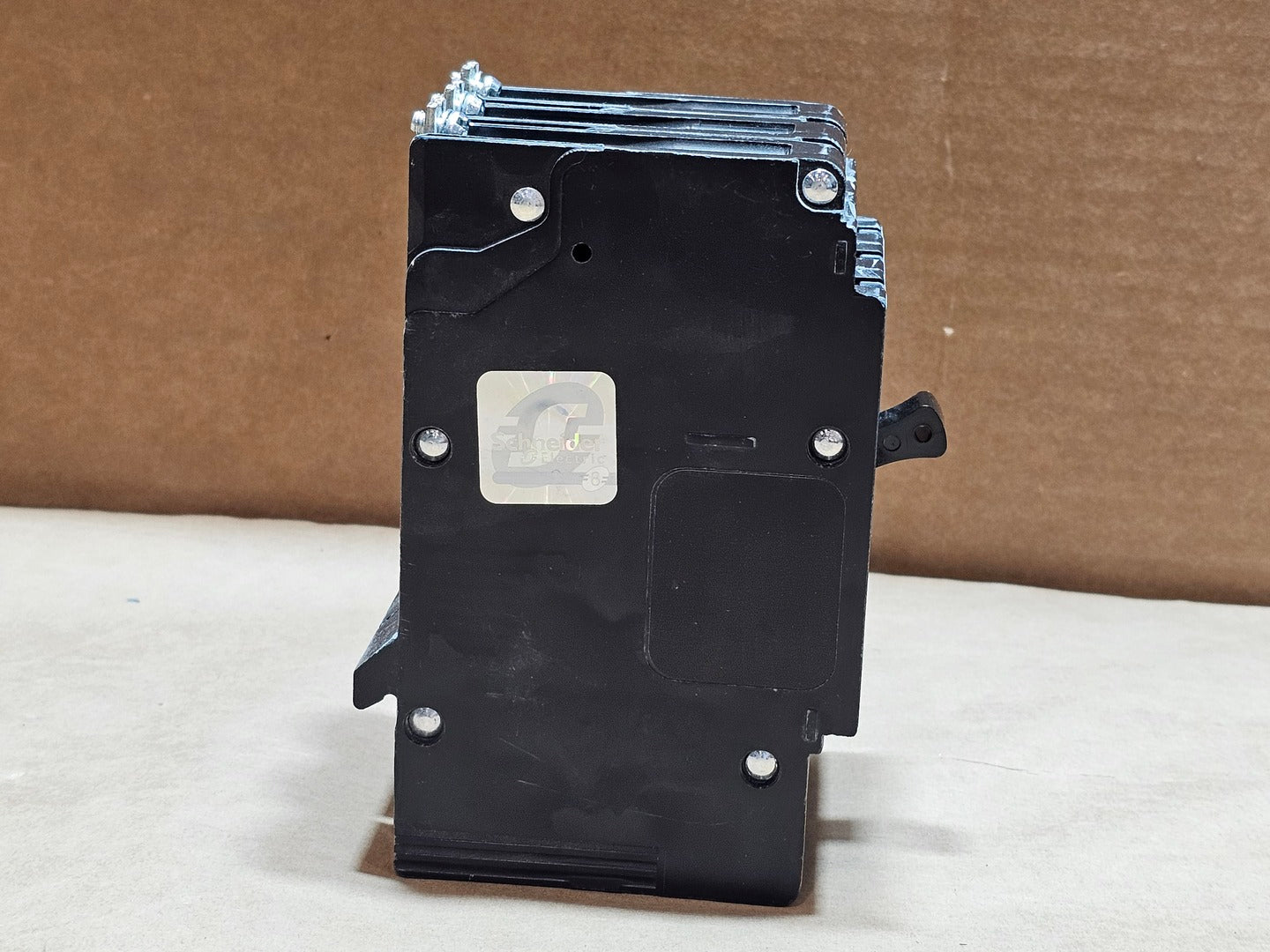

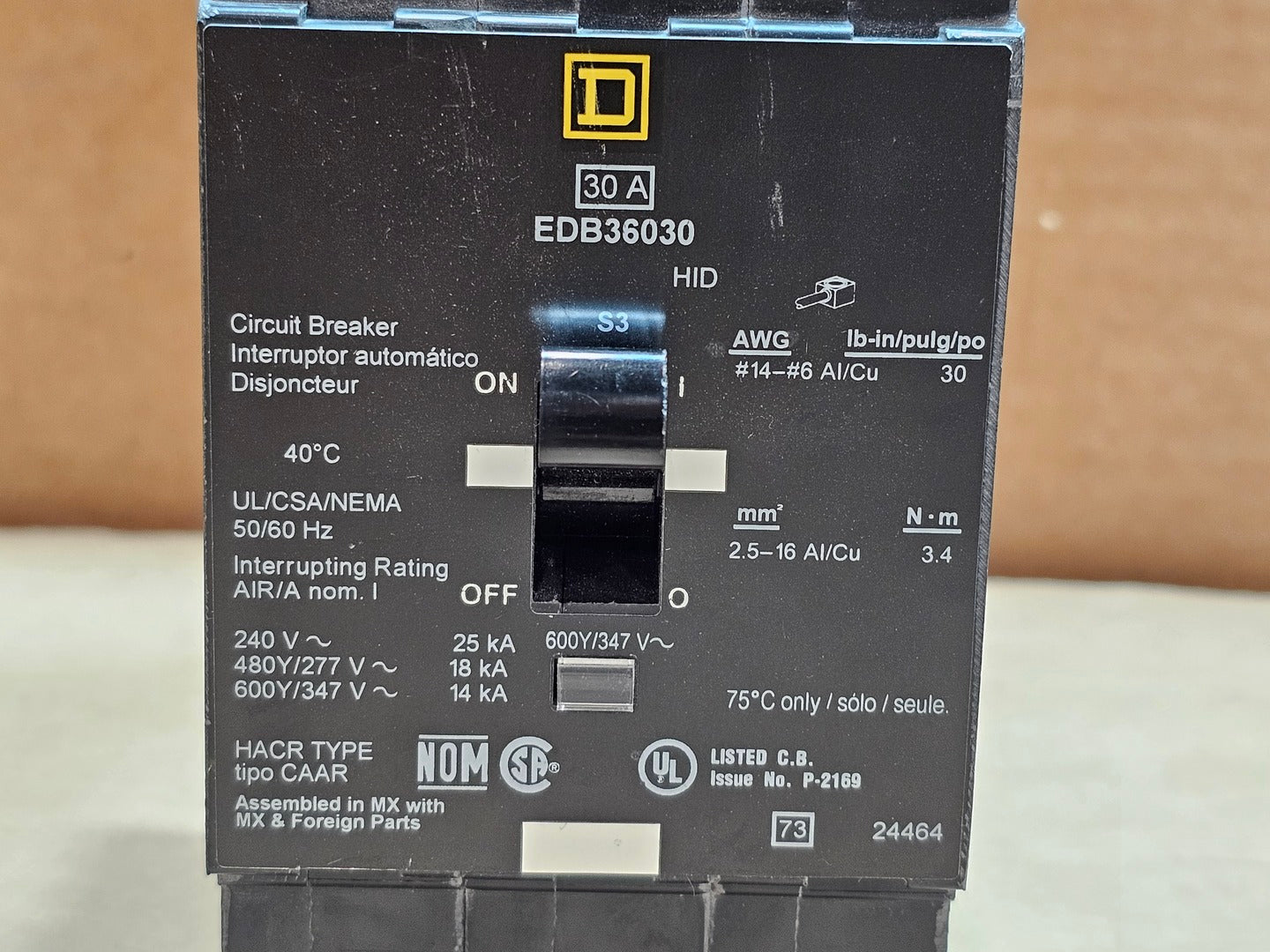

Square D / Schneider Electric EDB36030 E-Frame 3-pole branch circuit breaker rated 30 amps at 600Y/347 VAC. The breaker features bolt-on mounting, thermal-magnetic protection, and a common three-pole operating mechanism. The faceplate identifies interrupting ratings up to 25 kA depending on system voltage. Suitable as a replacement breaker for compatible Square D electrical distribution and lighting panelboard applications.
| Specifications | |
|---|---|
| Model | EDB36030 |
| Condition | Used | General |
| Amps | 30 amps |
| Series | EDB |
| # of Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 347 volts |
| Phase | 3-phase |
| Other Specifications |
|---|
|
Manufacturer: Square D / Schneider Electric Frame: E-Frame Frequency: 50/60 Hz Trip Technology: Thermal-Magnetic Interrupting Rating:
Operating Temperature Marking: 40°C HACR Type: Yes HID Rated: Marked HID Wire Range: #14-#6 AWG Aluminum/Copper Metric Wire Range: 2.5-16 mm2 Al/Cu Terminal Torque: 30 lb-in / 3.4 N-m Conductor Temperature: 75°C only |
