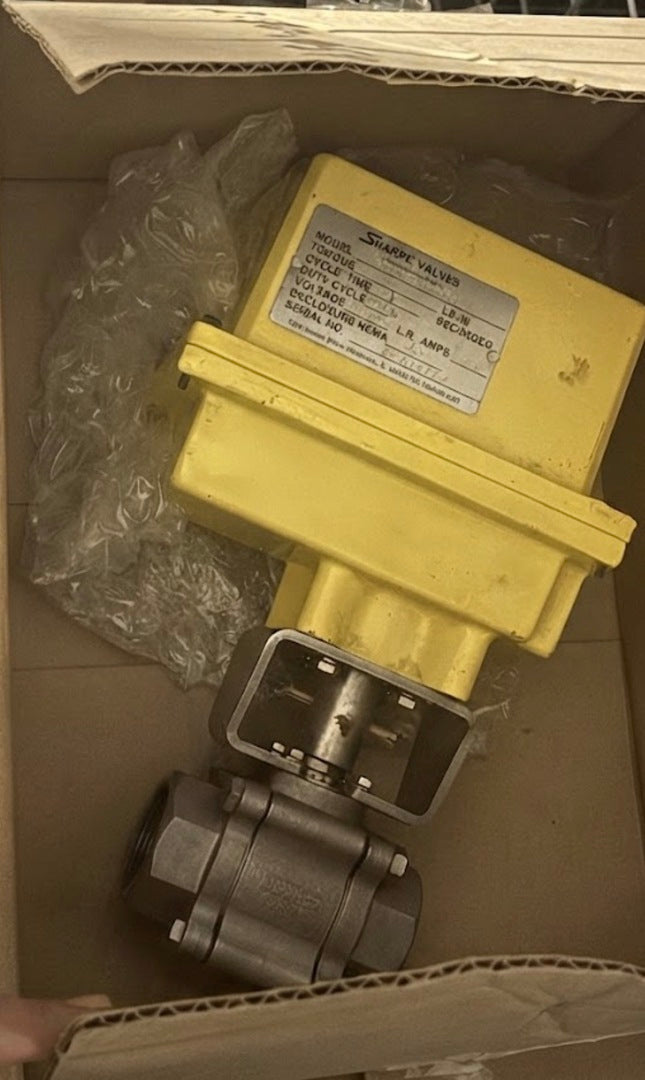

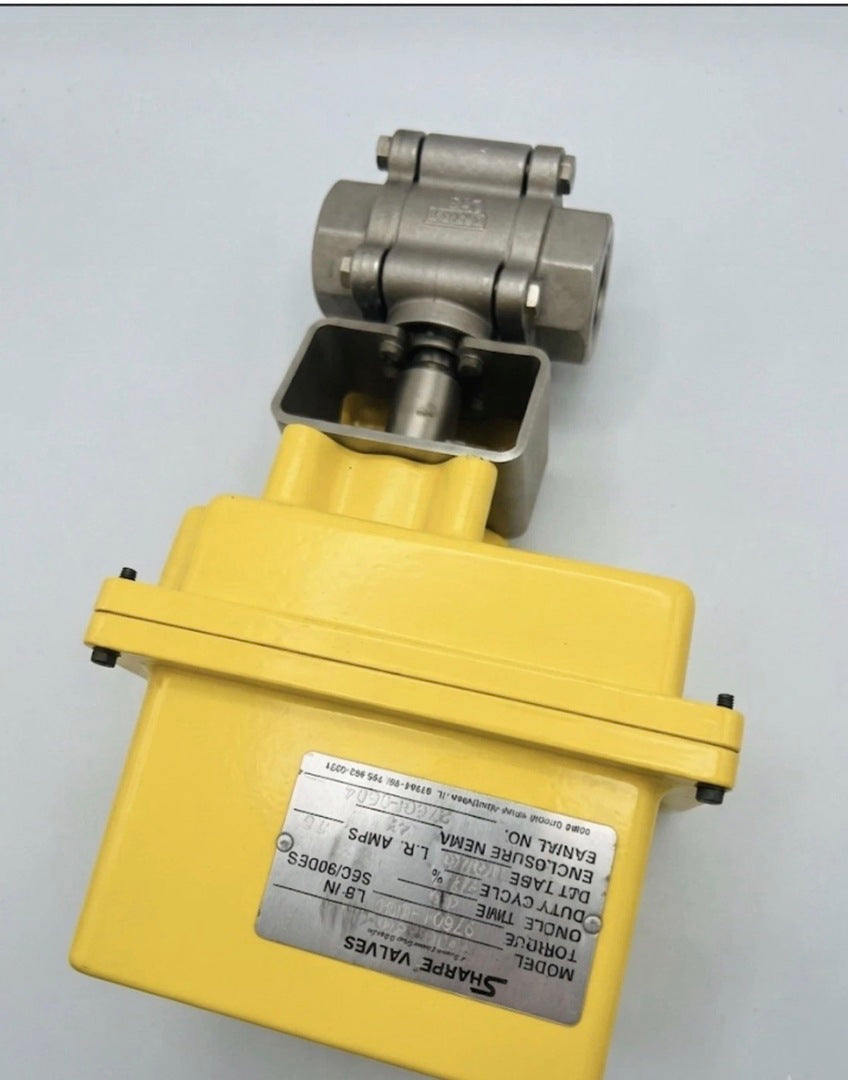

Sharpe Valves industrial electrically actuated ball valve assembly consisting of a stainless steel ball valve and a yellow quarter-turn electric actuator. The actuator is rated at 200 lb-in output torque, 115VAC, approximately 10 seconds per 90° rotation, 75% duty cycle, and a NEMA 4X enclosure. Suitable for automated industrial process-flow applications where remote open/close valve control is required.
| Specifications | |
|---|---|
| Model | SEA11SX-ED-OH |
| S/N: | 97601-0004 |
| Condition | Surplus New | General |
| Valve Style | Ball |
| Connection Ends | Threaded |
| Other Specifications |
|---|
|

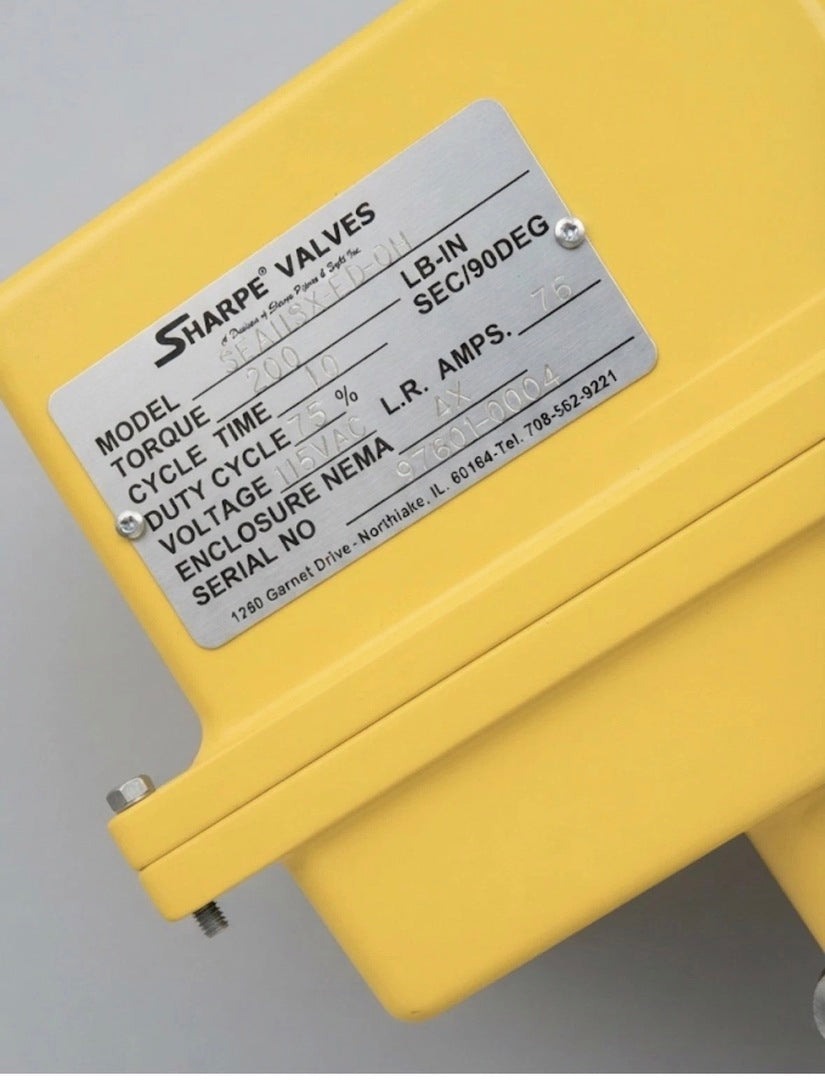

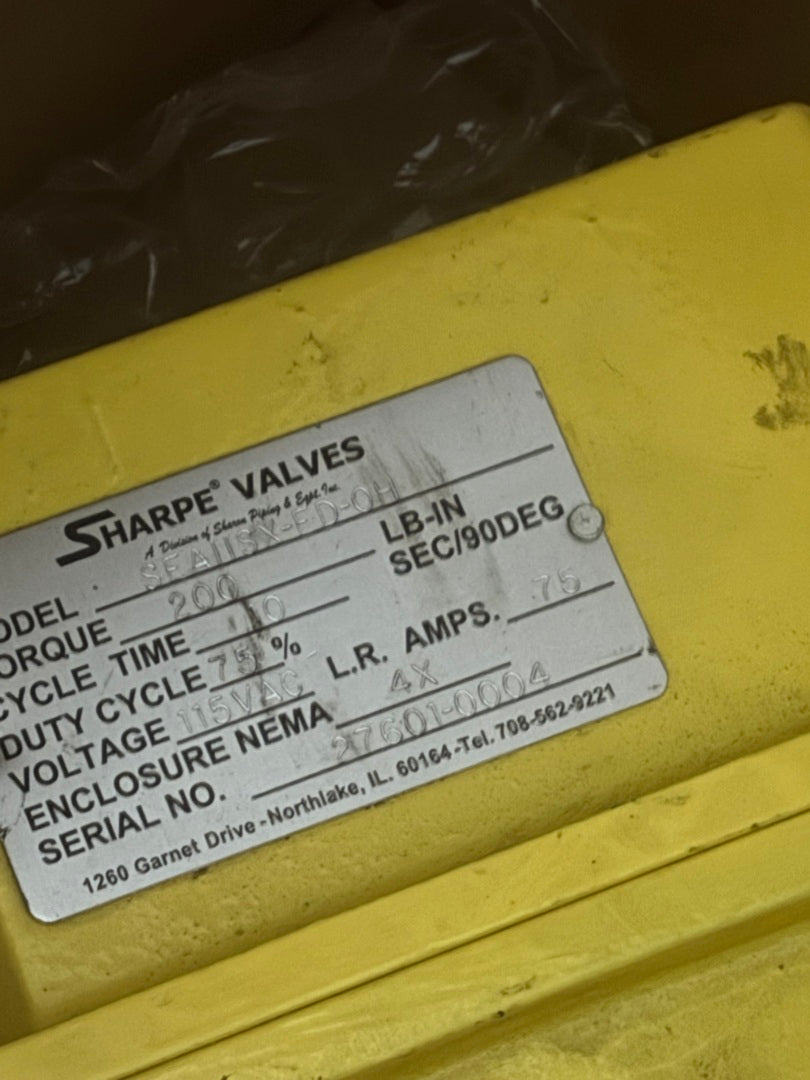

Type: Electrically Actuated Ball Valve Assembly Actuator Type: Quarter-turn electric actuator Valve Type: 2-way ball valve Actuator Torque: 200 lb-in Cycle Time: 10 sec / 90° Voltage: 115 VAC Duty Cycle: 75% Locked-Rotor Current: 0.75 A Rotation: 90° Enclosure: NEMA 4X |
| Fulfilment & Lead Time | |
| AVAILABLE AFTER | LEAD TIME |
| 0 Days | |
| NOTES | |
| Offsite consignment in Brampton, Ontario. Buyer pays freight. Item remains with consignor until sold; consignor to package for shipment. | |
