Description

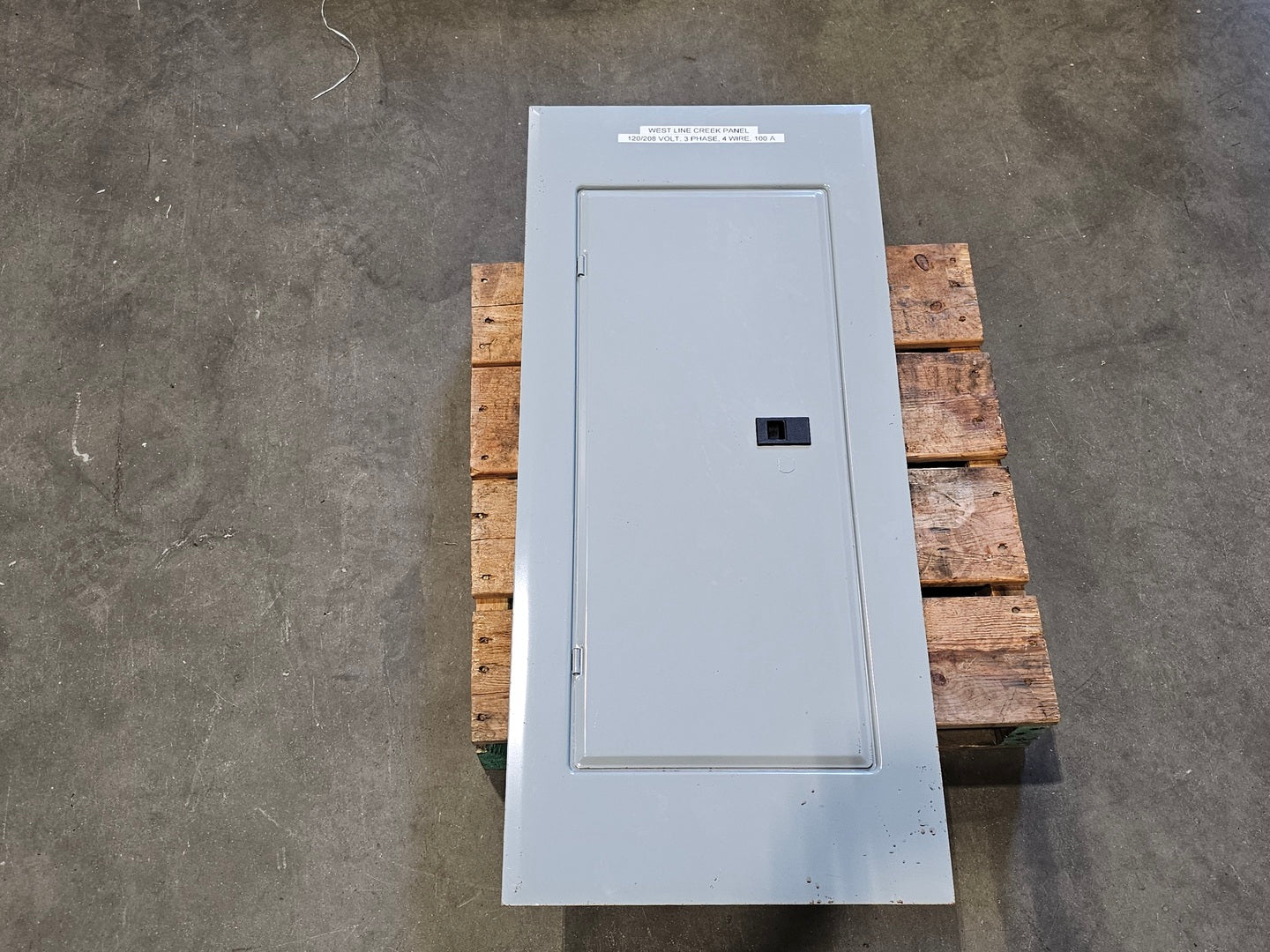

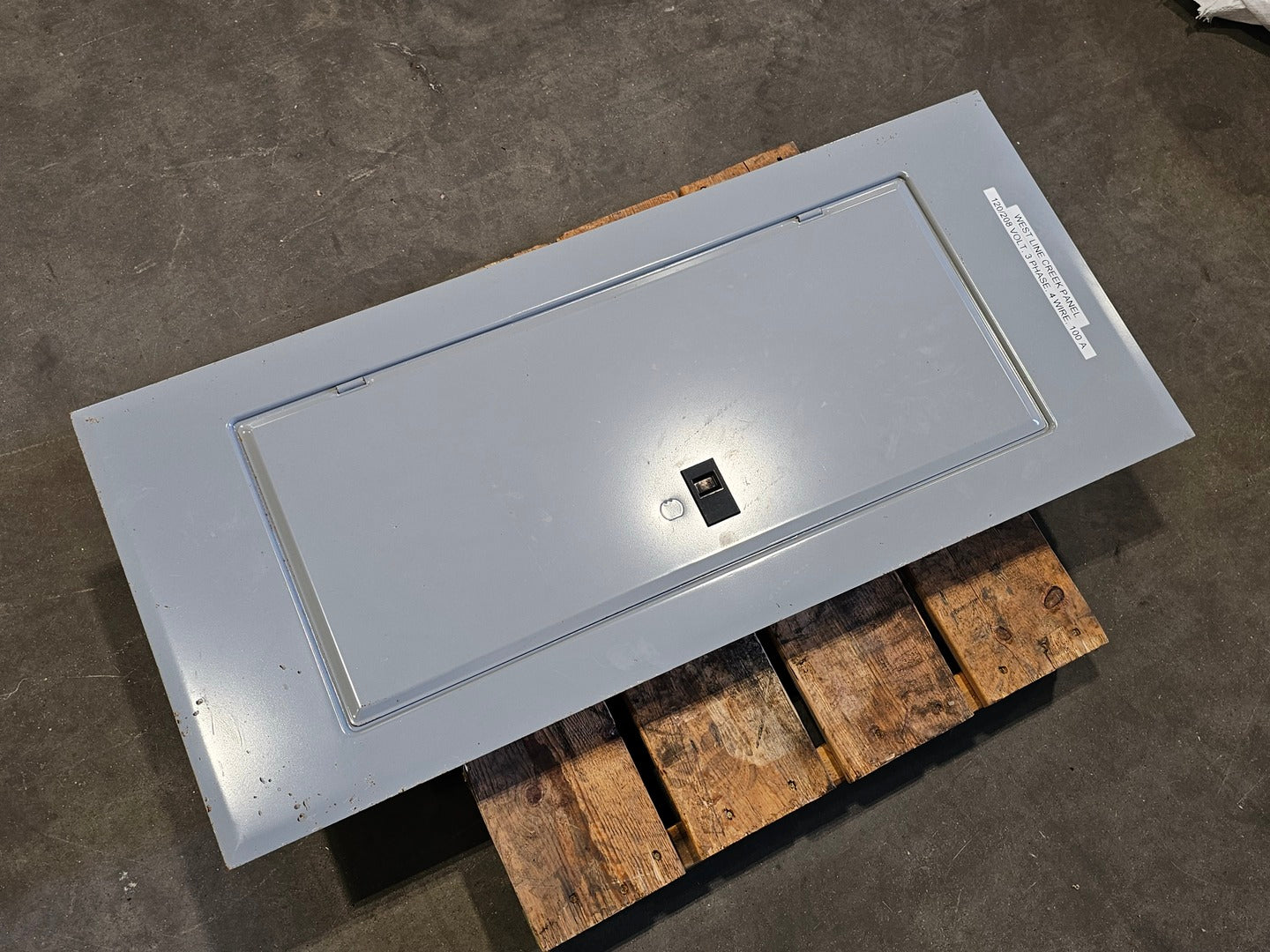

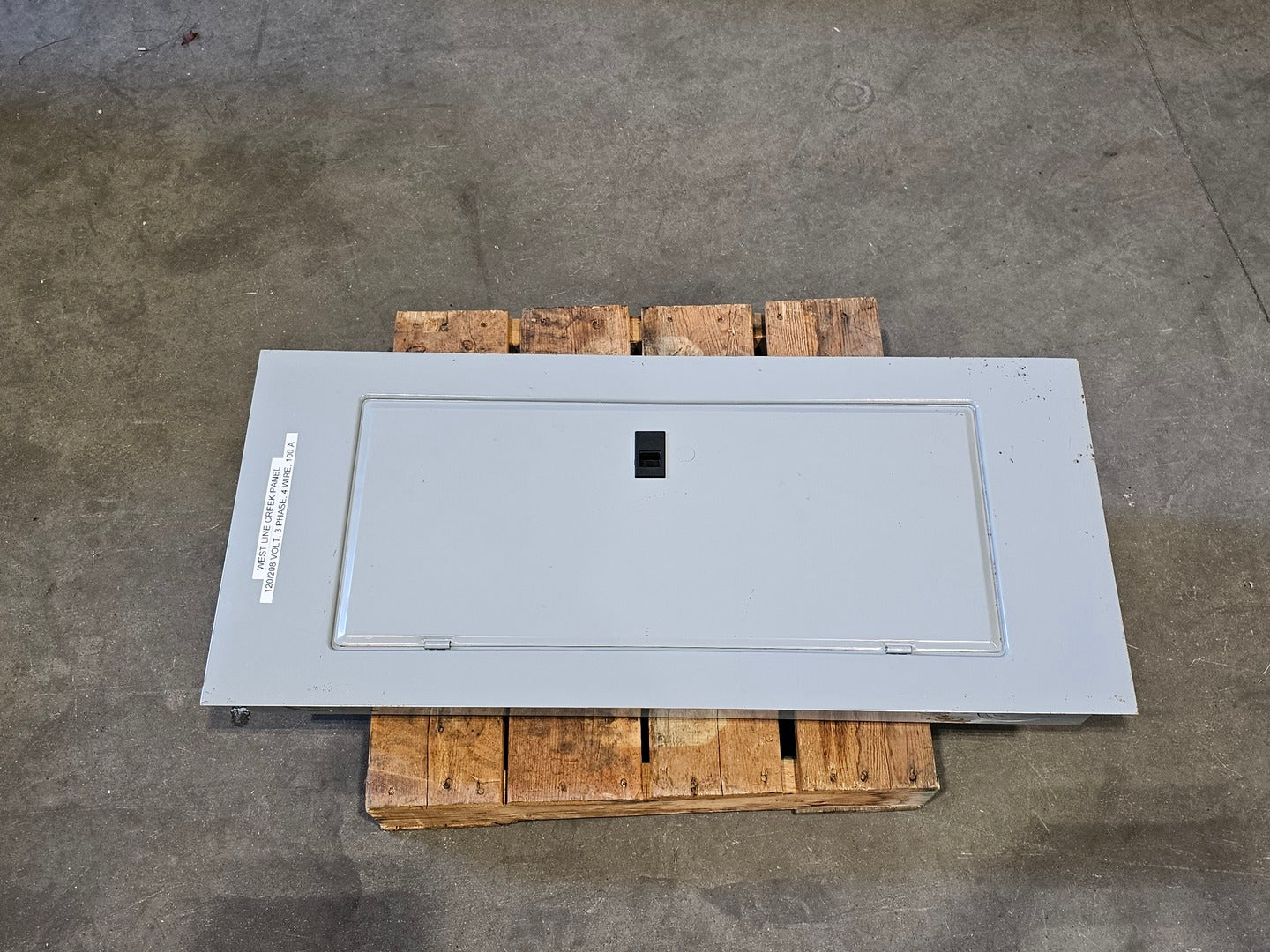

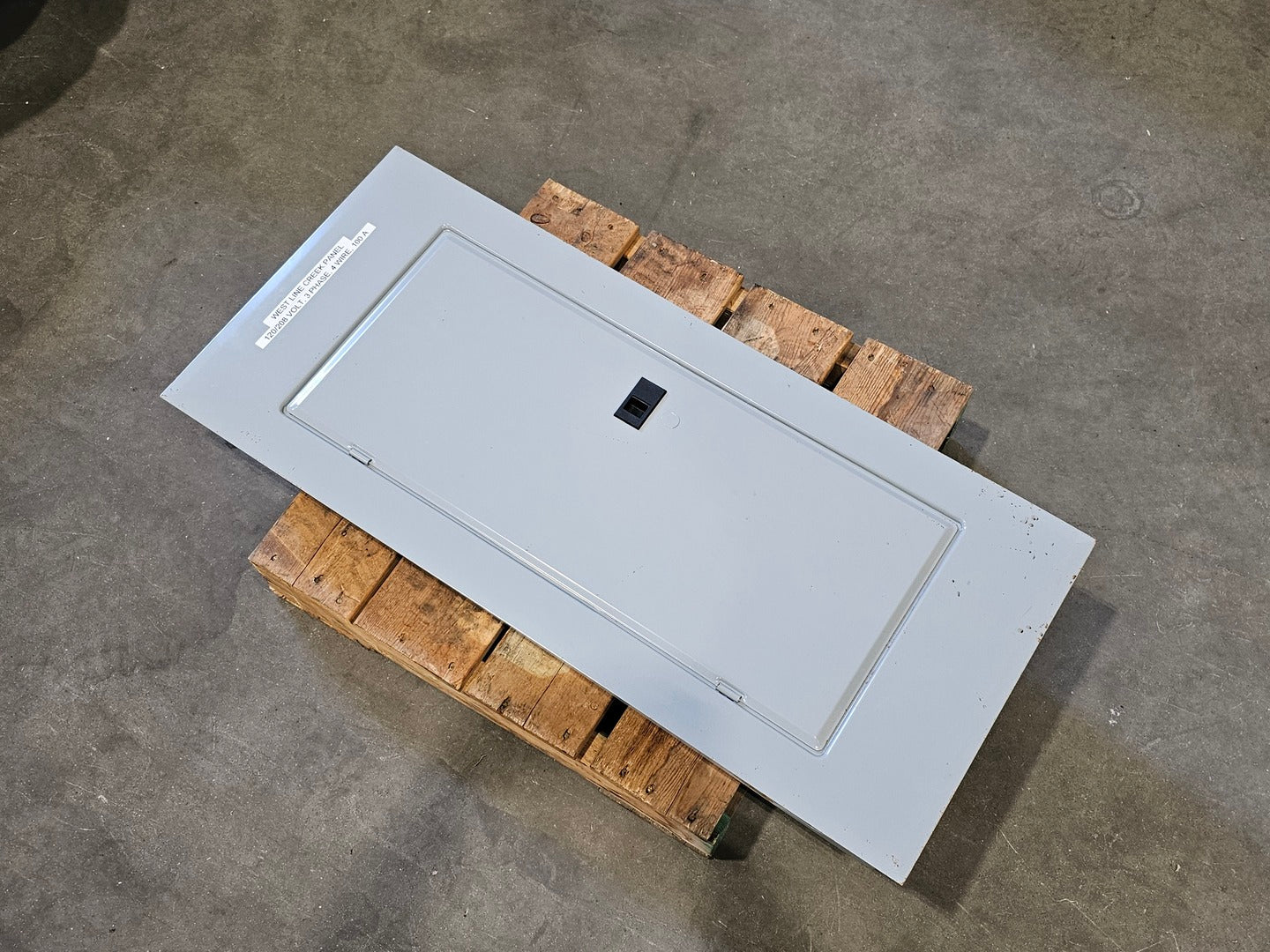

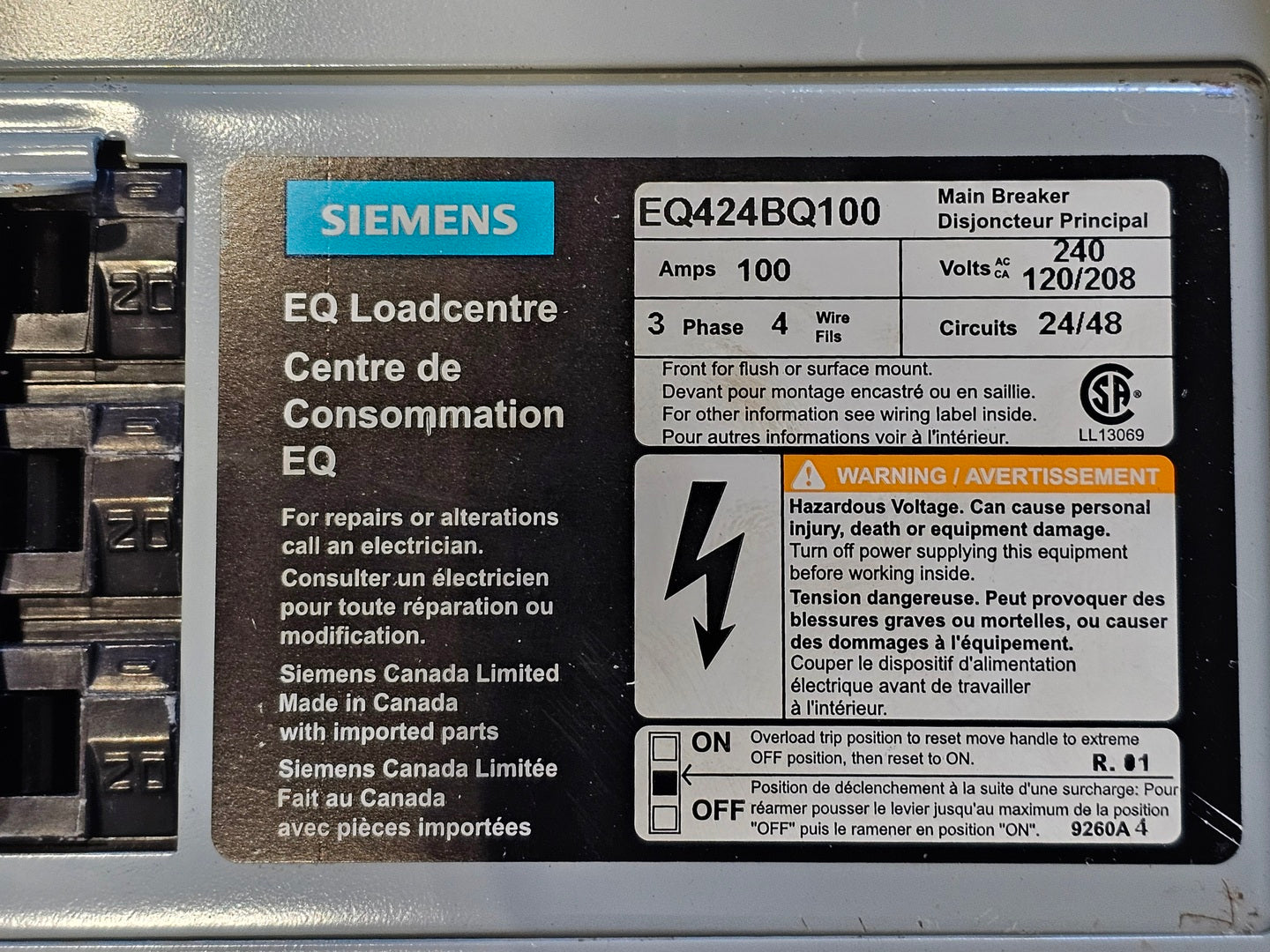

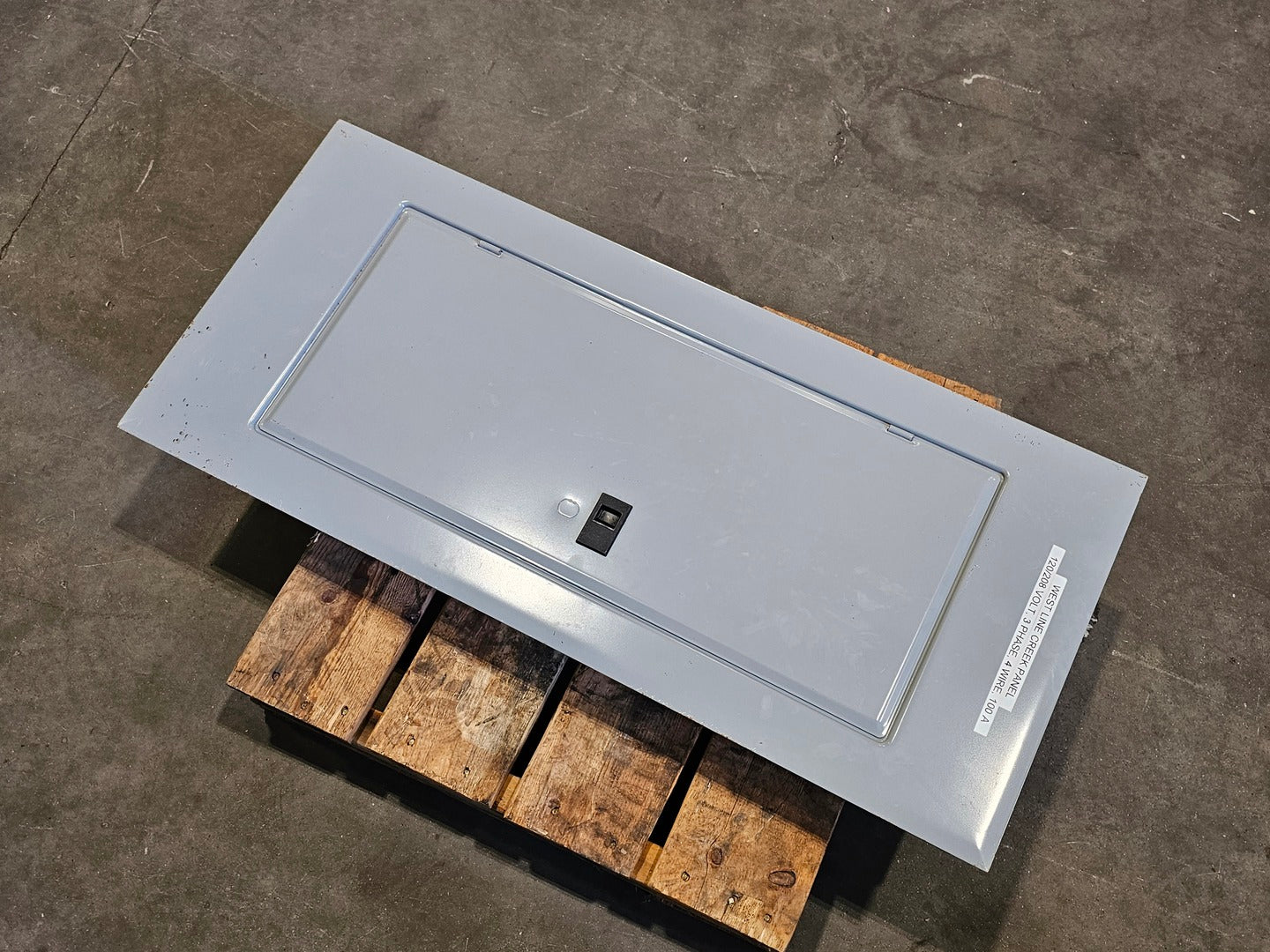

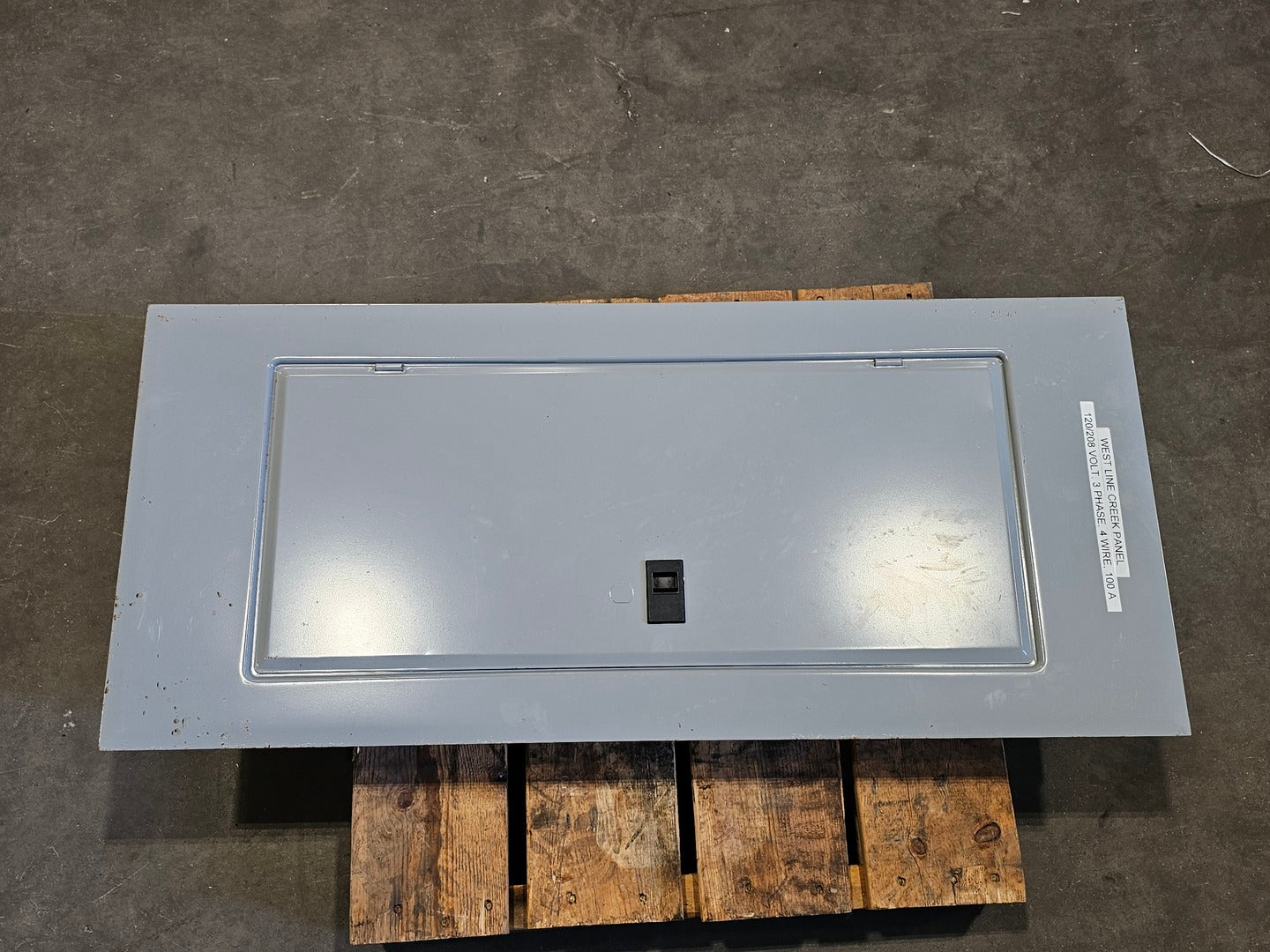

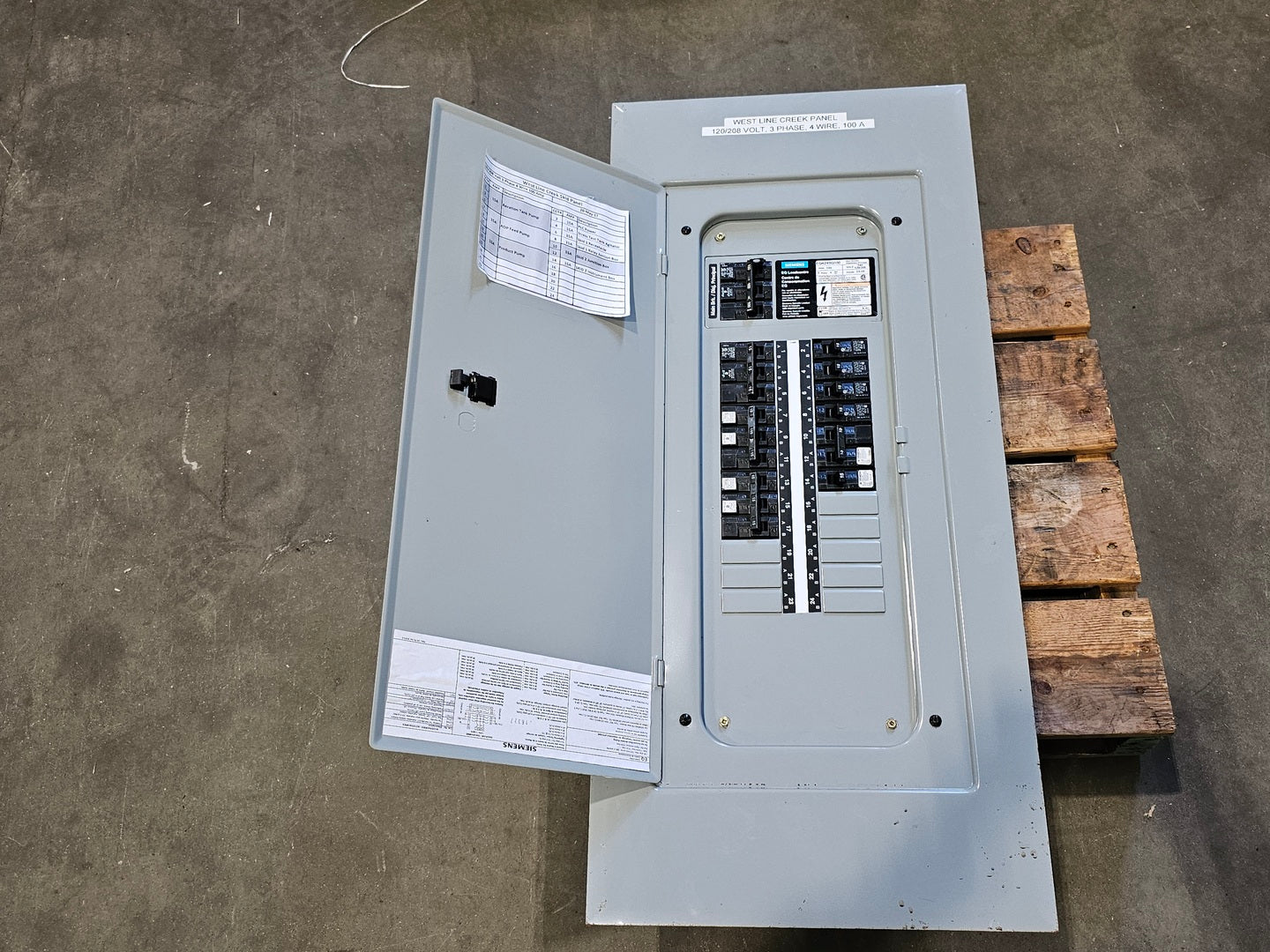

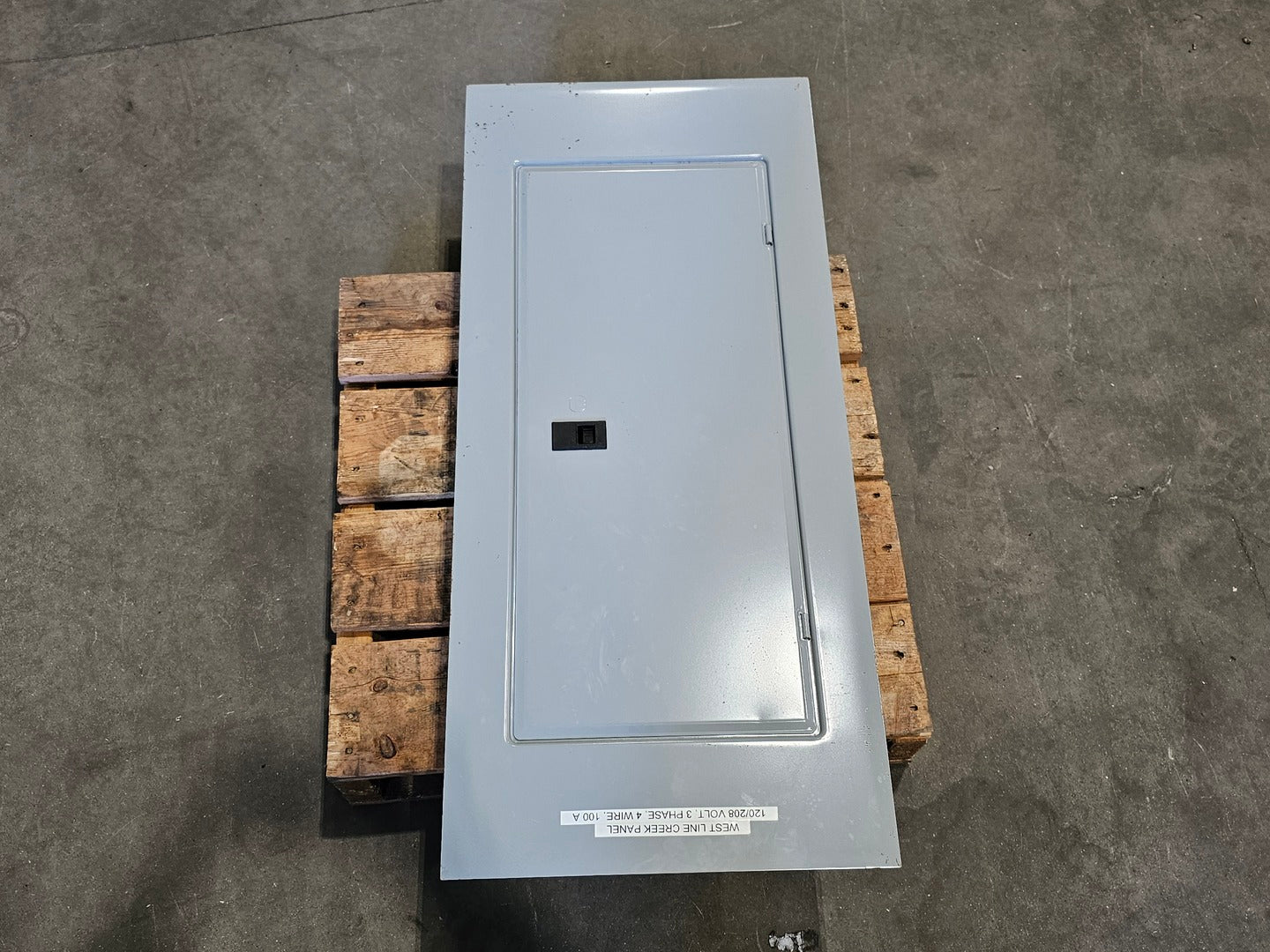

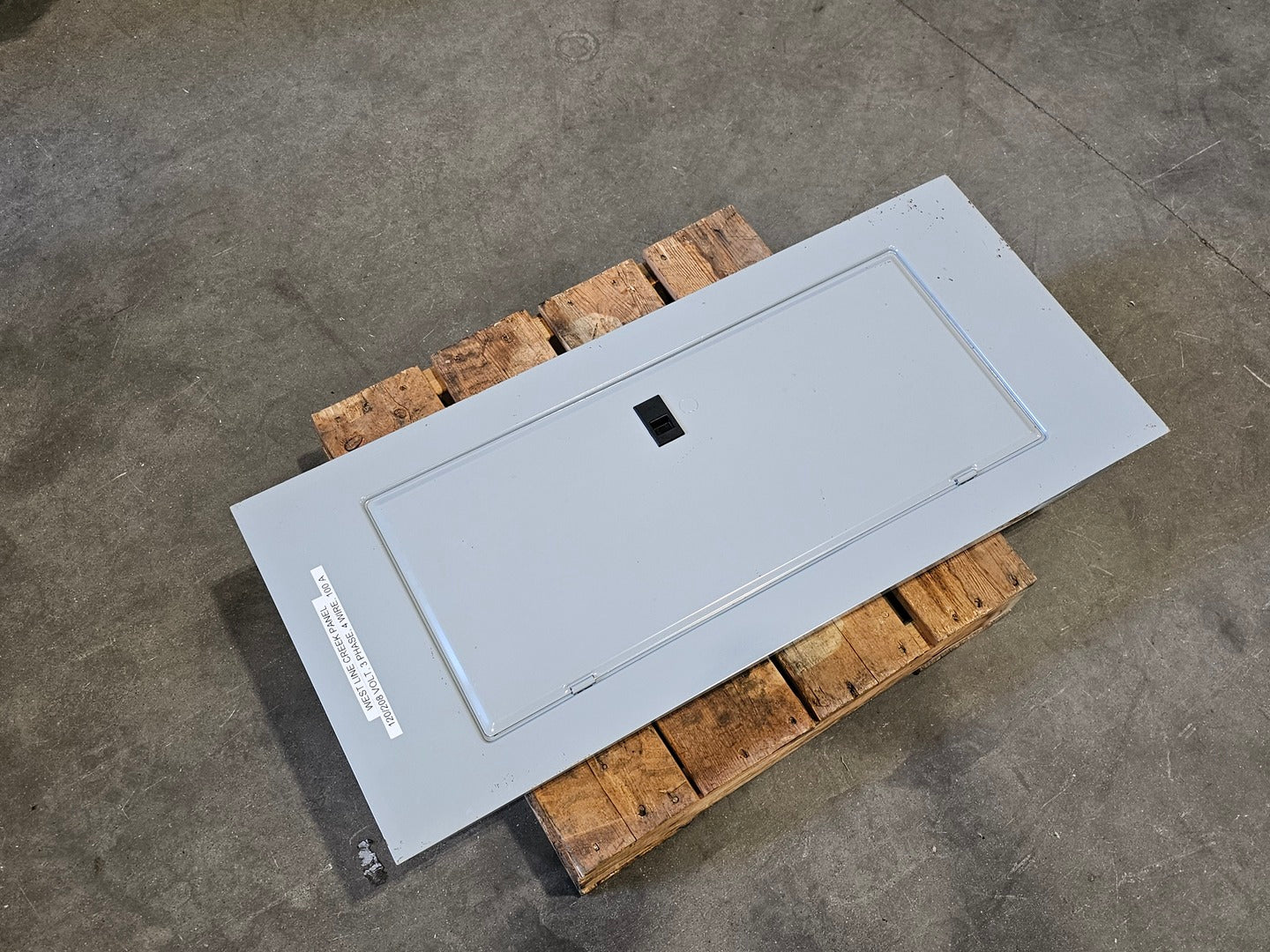

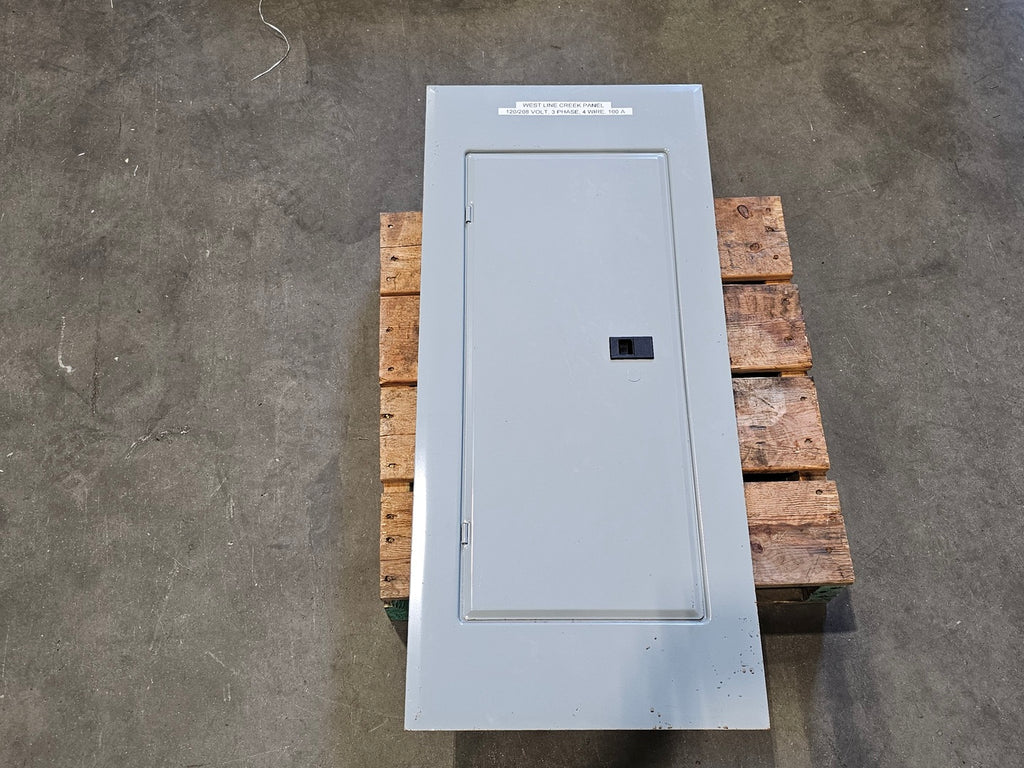

Siemens EQ424BQ100 three-phase loadcentre with 100 A main breaker and ten installed 15 A branch breakers. Panel nameplate identifies 3-phase, 4-wire construction and 24/48-circuit capacity. Existing site label specifies 120/208 V service. Includes gray enclosure, hinged door, deadfront, and circuit directory. Used with scratches, paint wear, and localized surface rust. Untested.
| Specifications | |
|---|---|
| Model | EQ424BQ100 |
| Condition | Used | General |
| Amps | 100 amps |
| Voltage | 120/208 volts |
| # of Circuits | 24/48 |
| Enclosure Type | Nema 1 |
| Phase | 3-phase |
| Other Specifications |
|---|
|

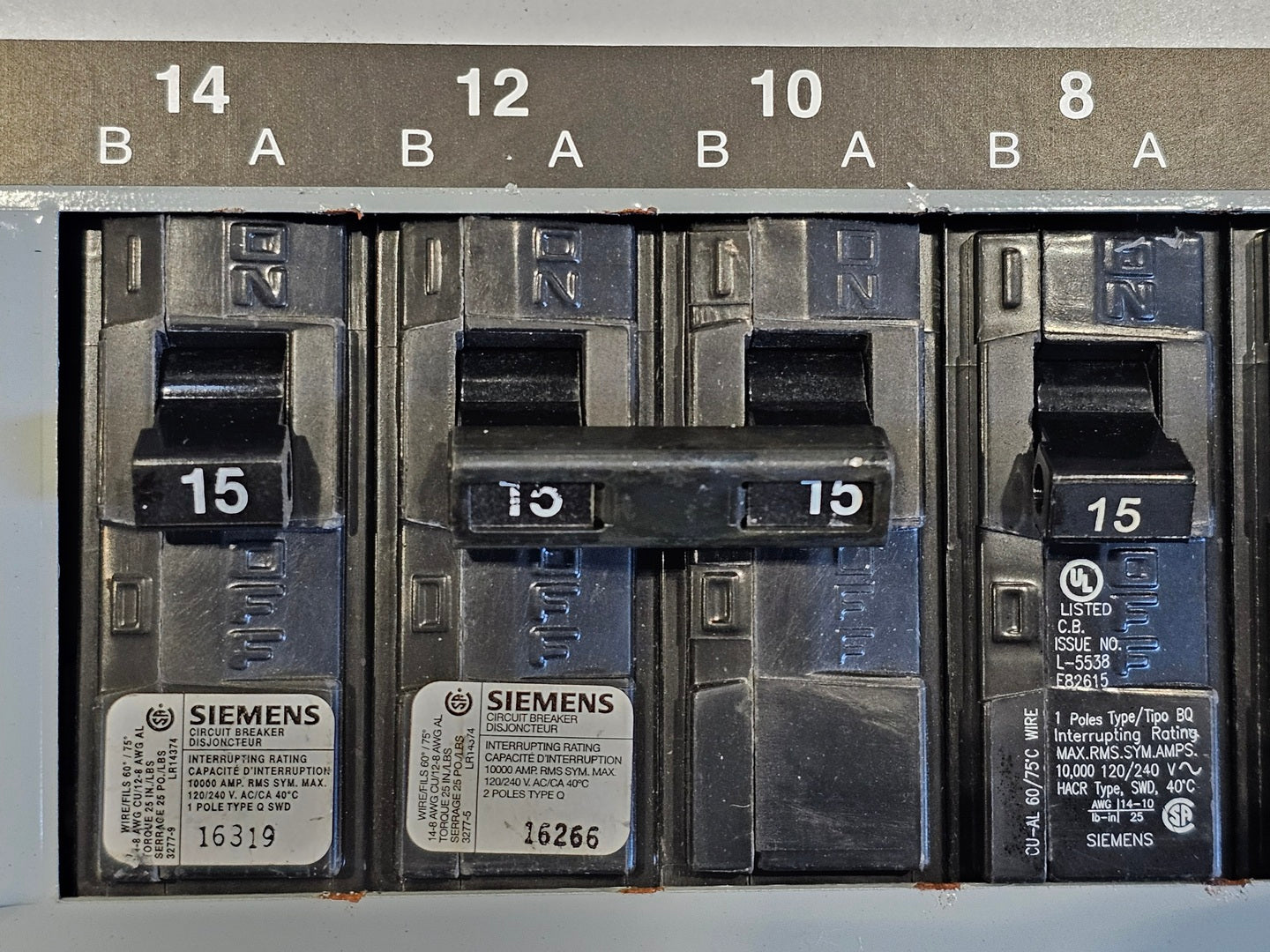

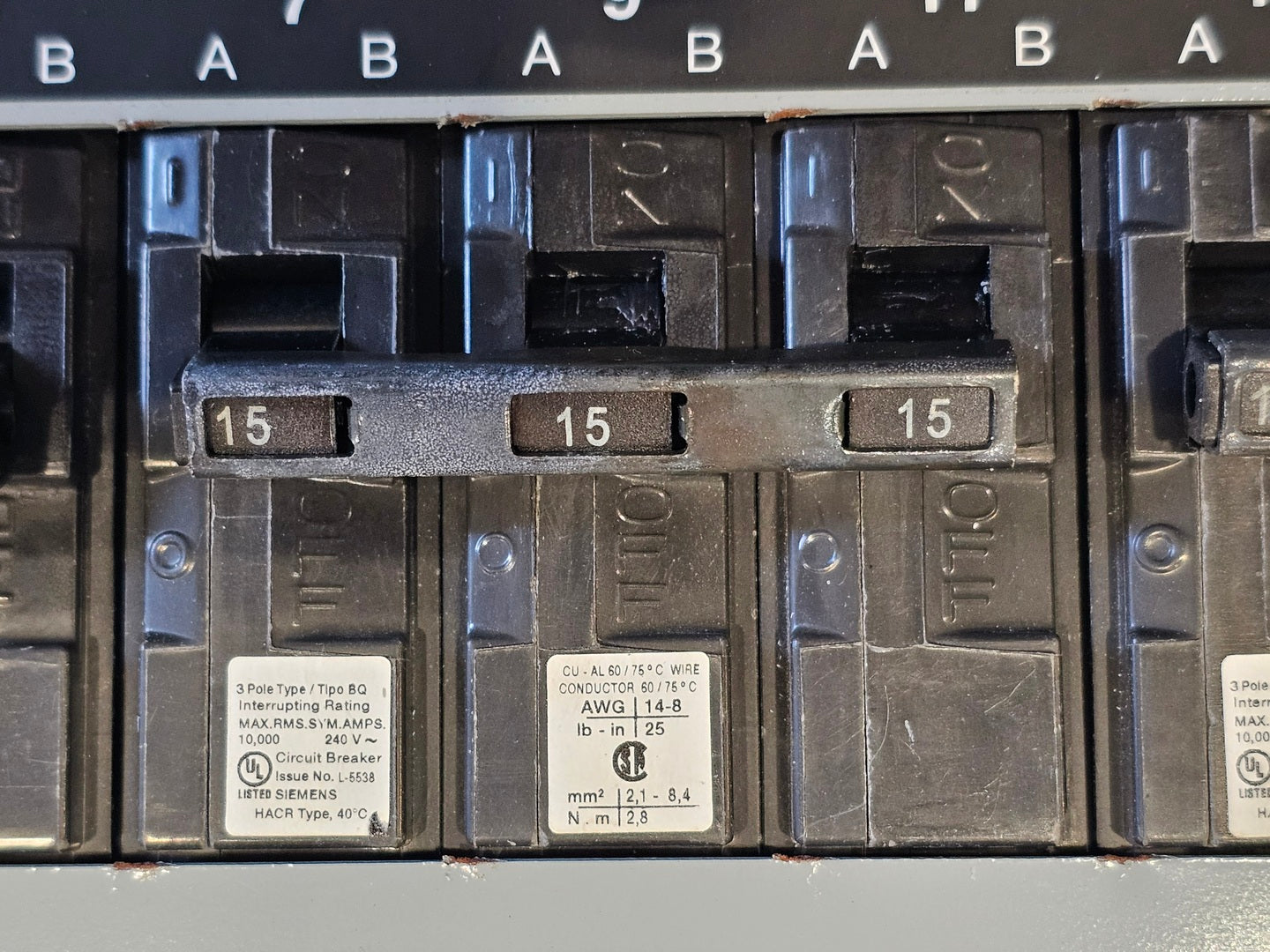

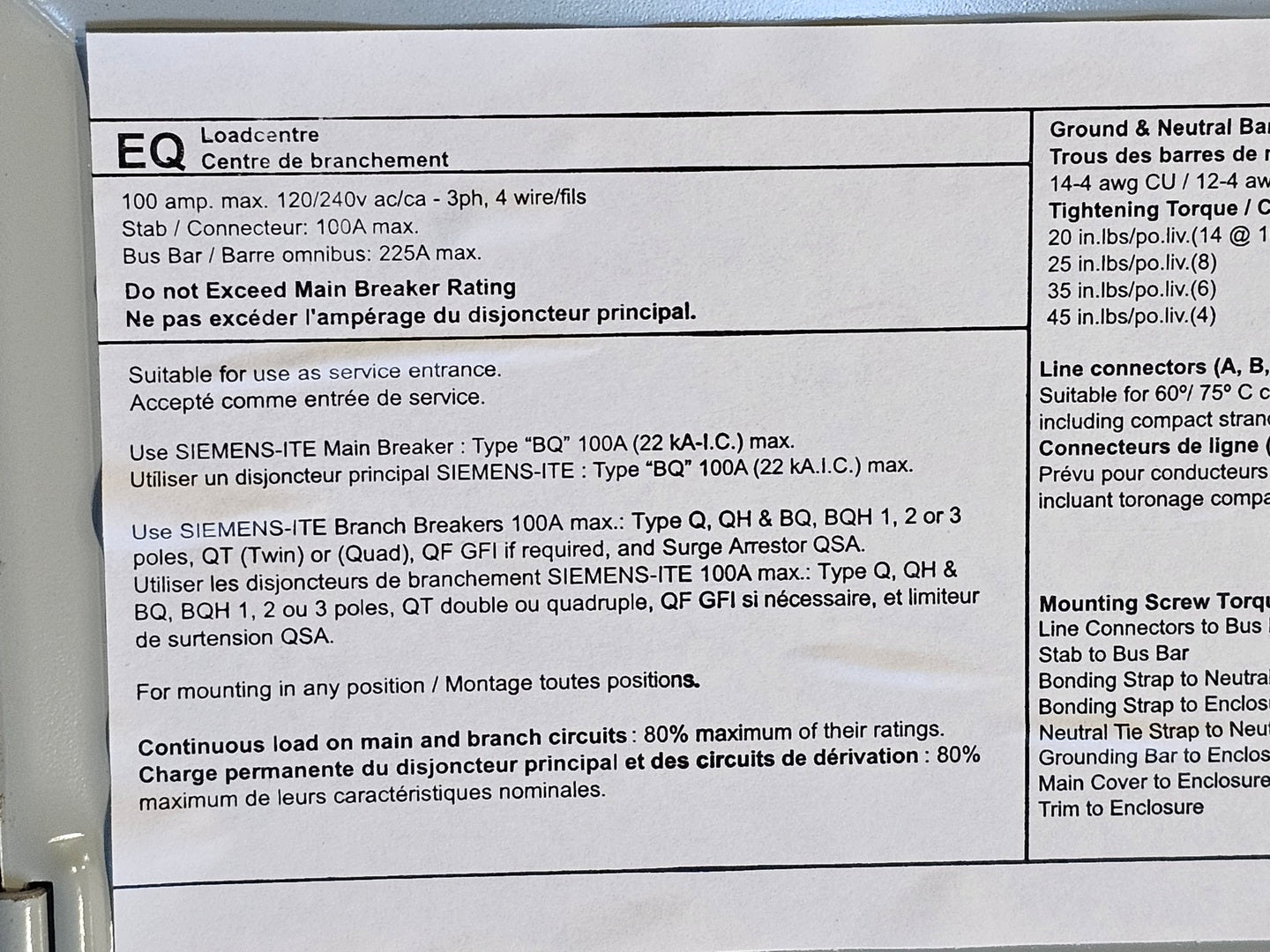

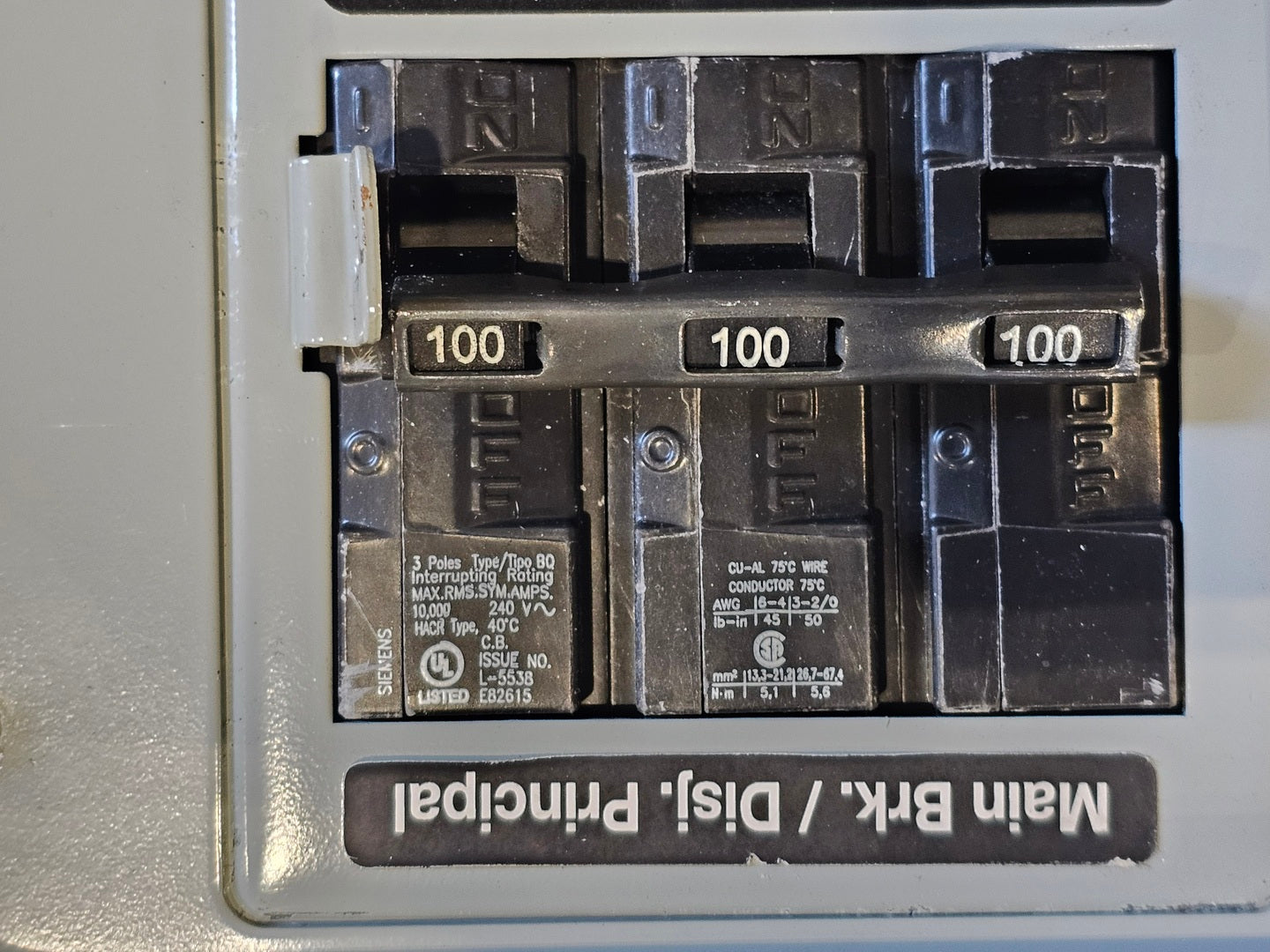

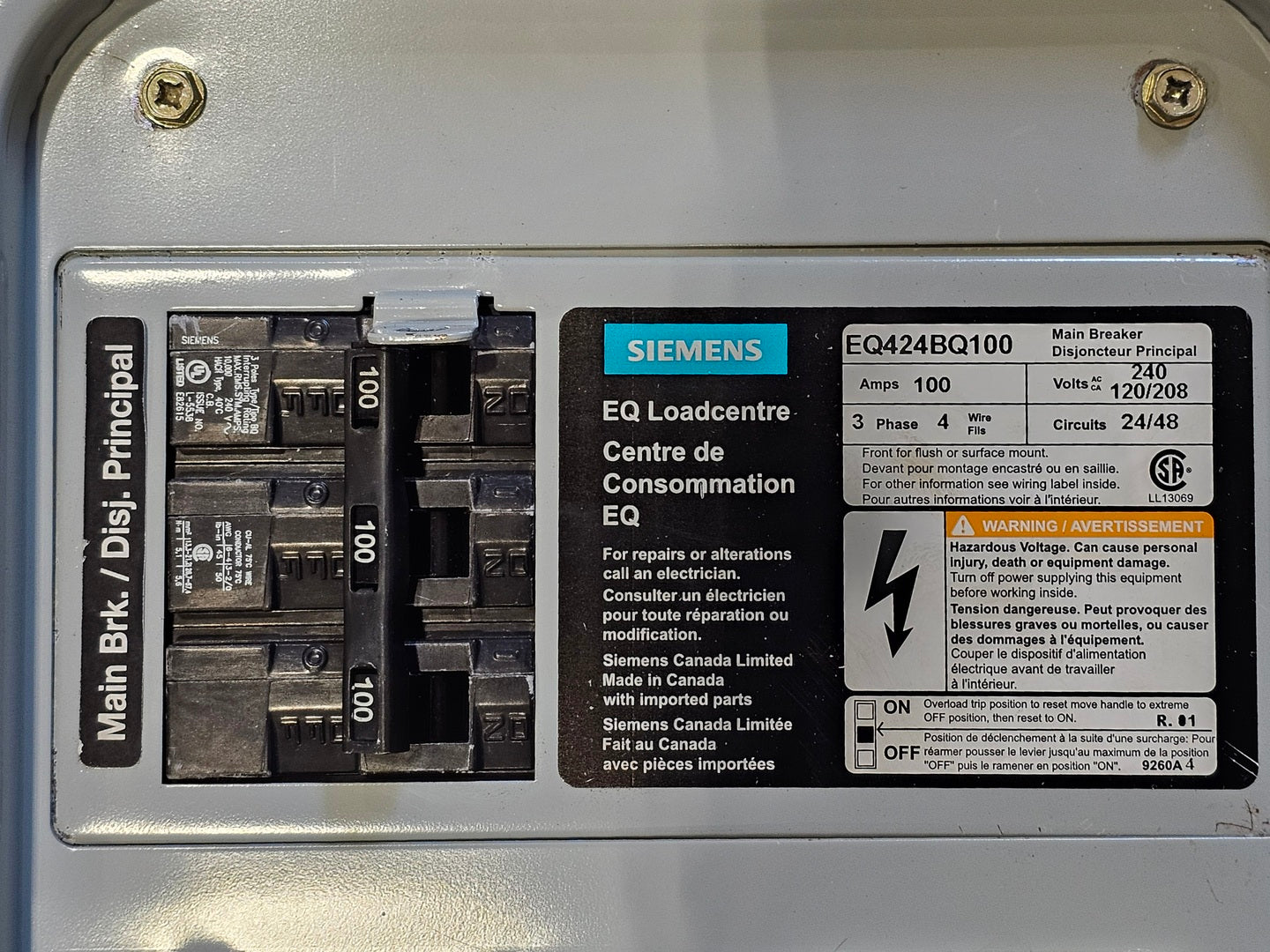

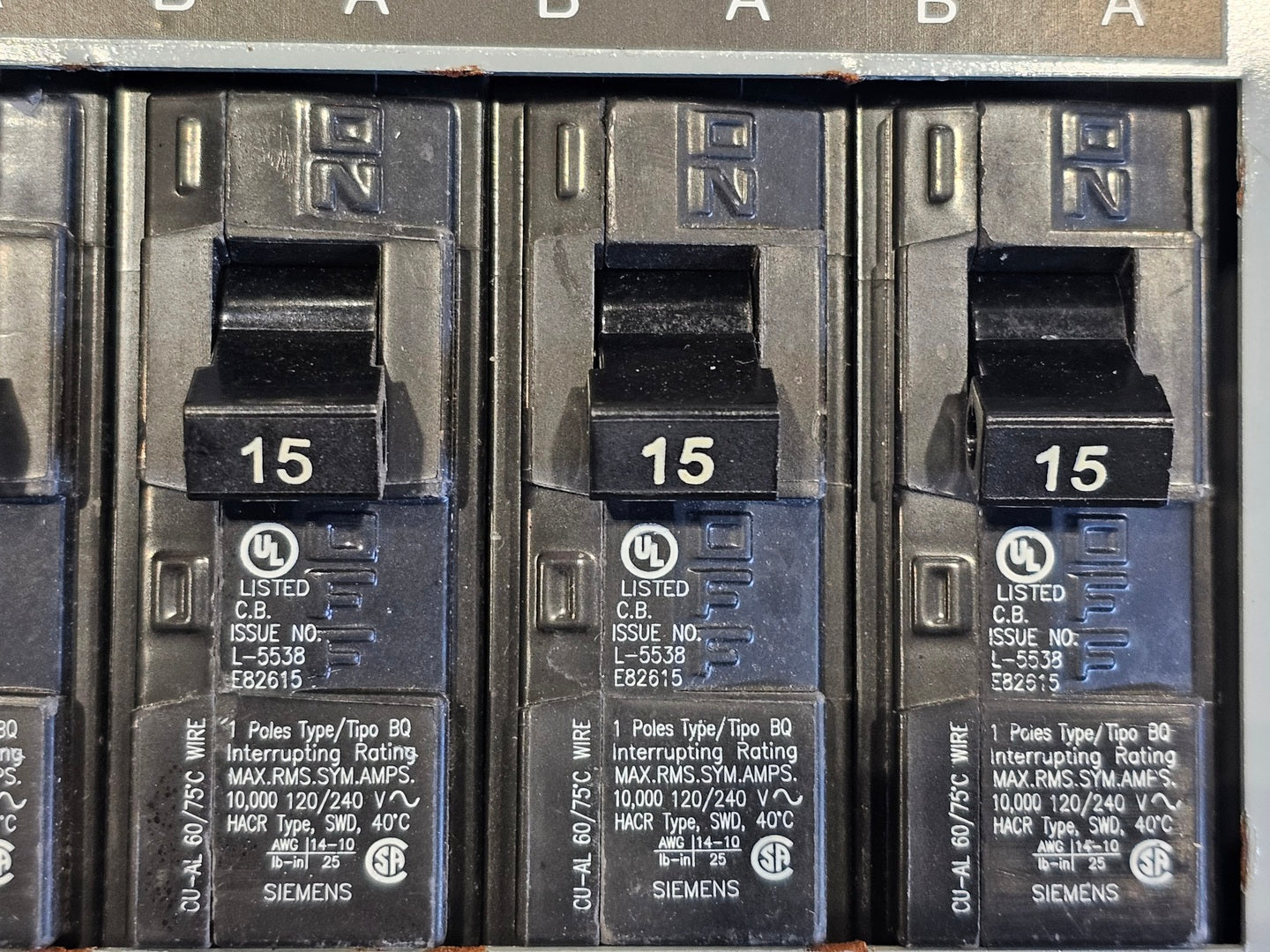

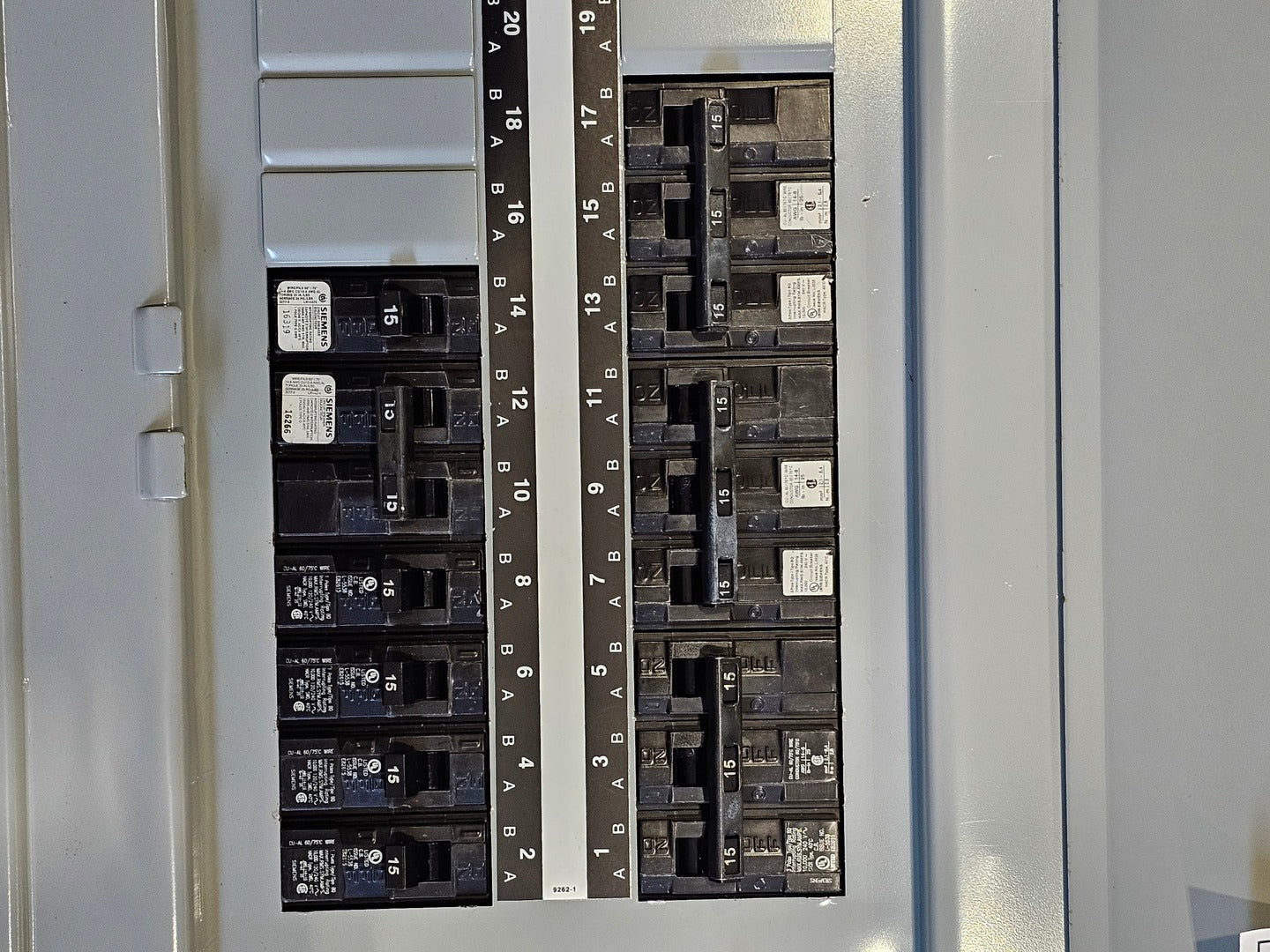

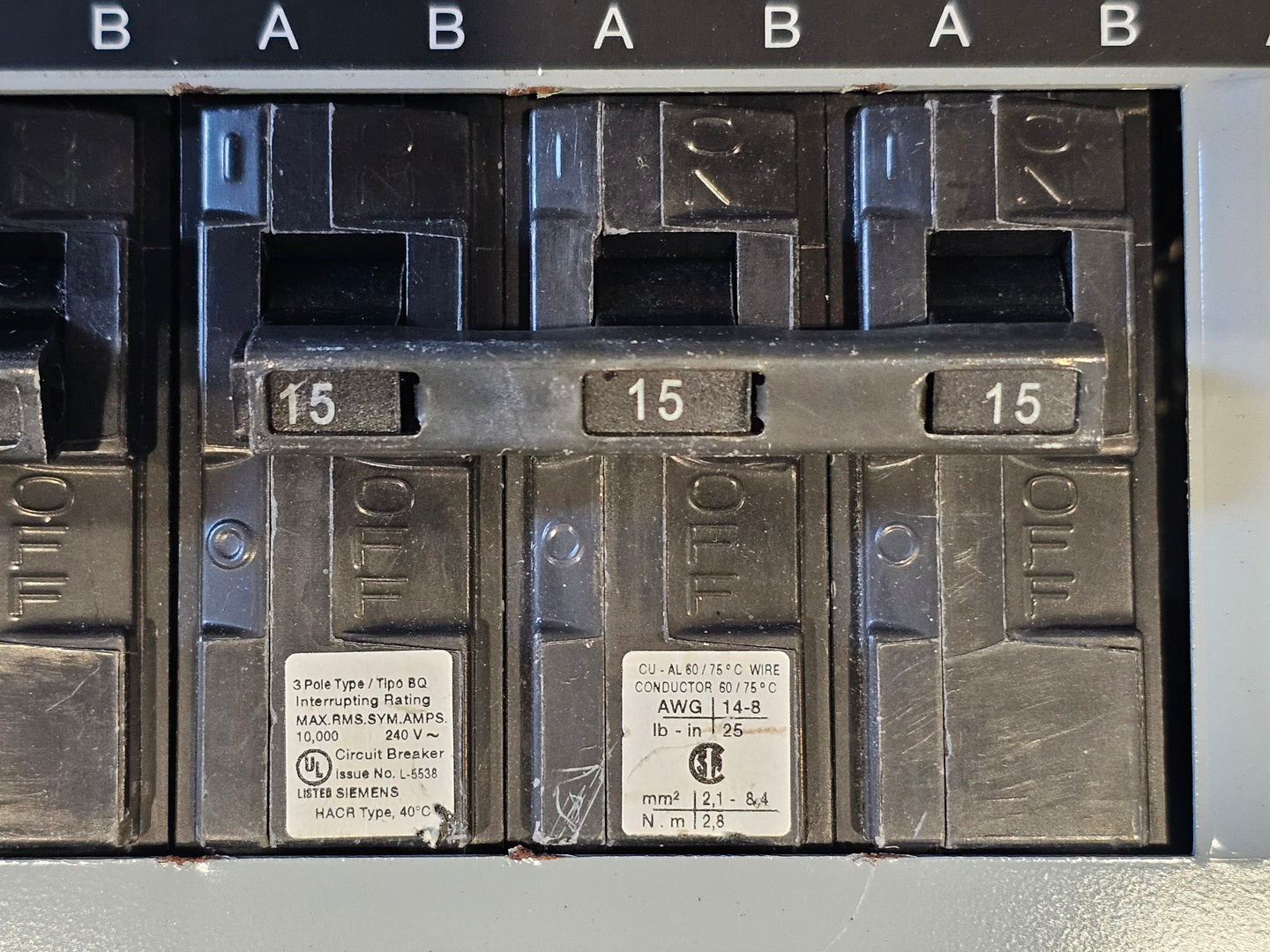

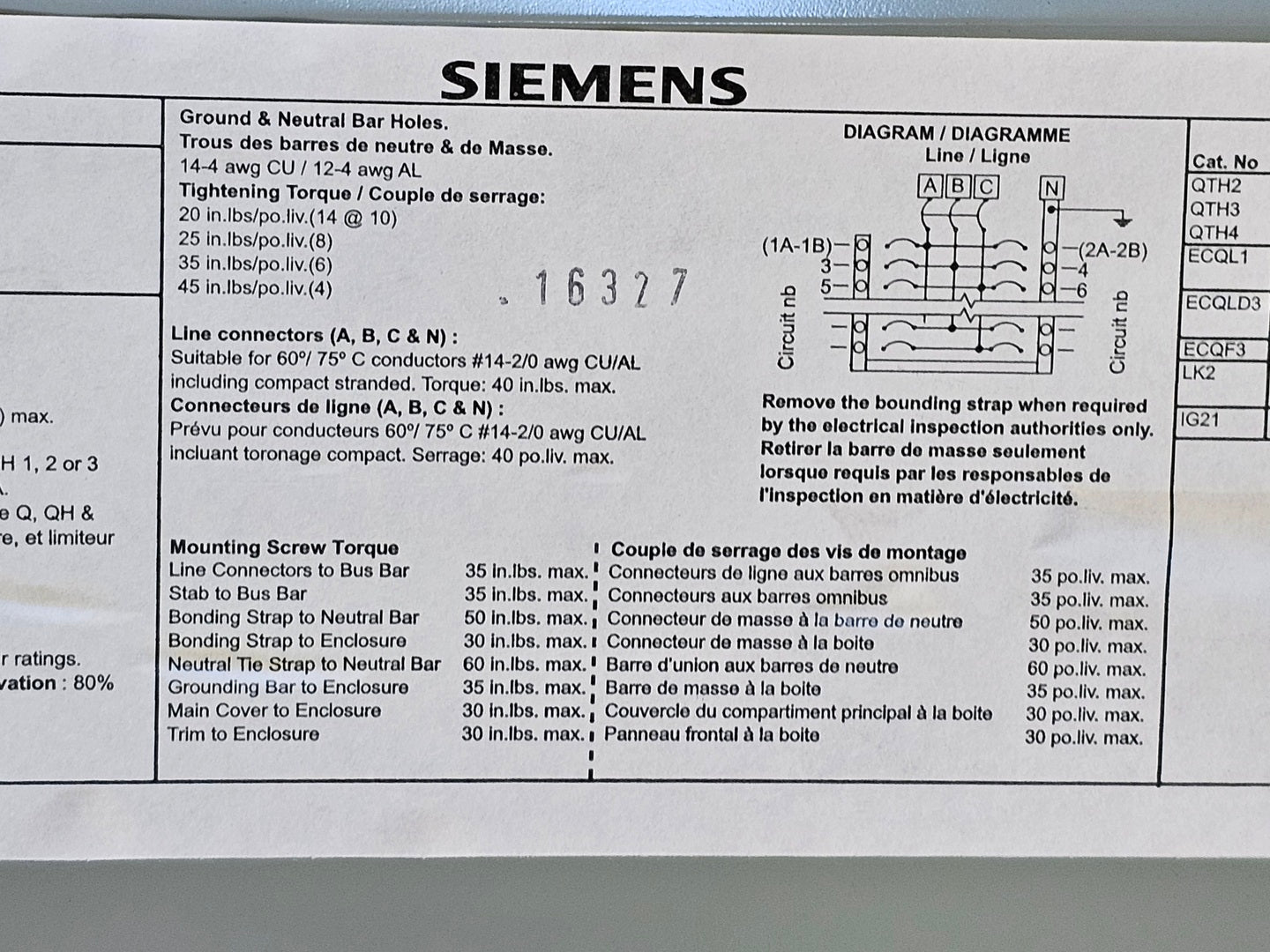

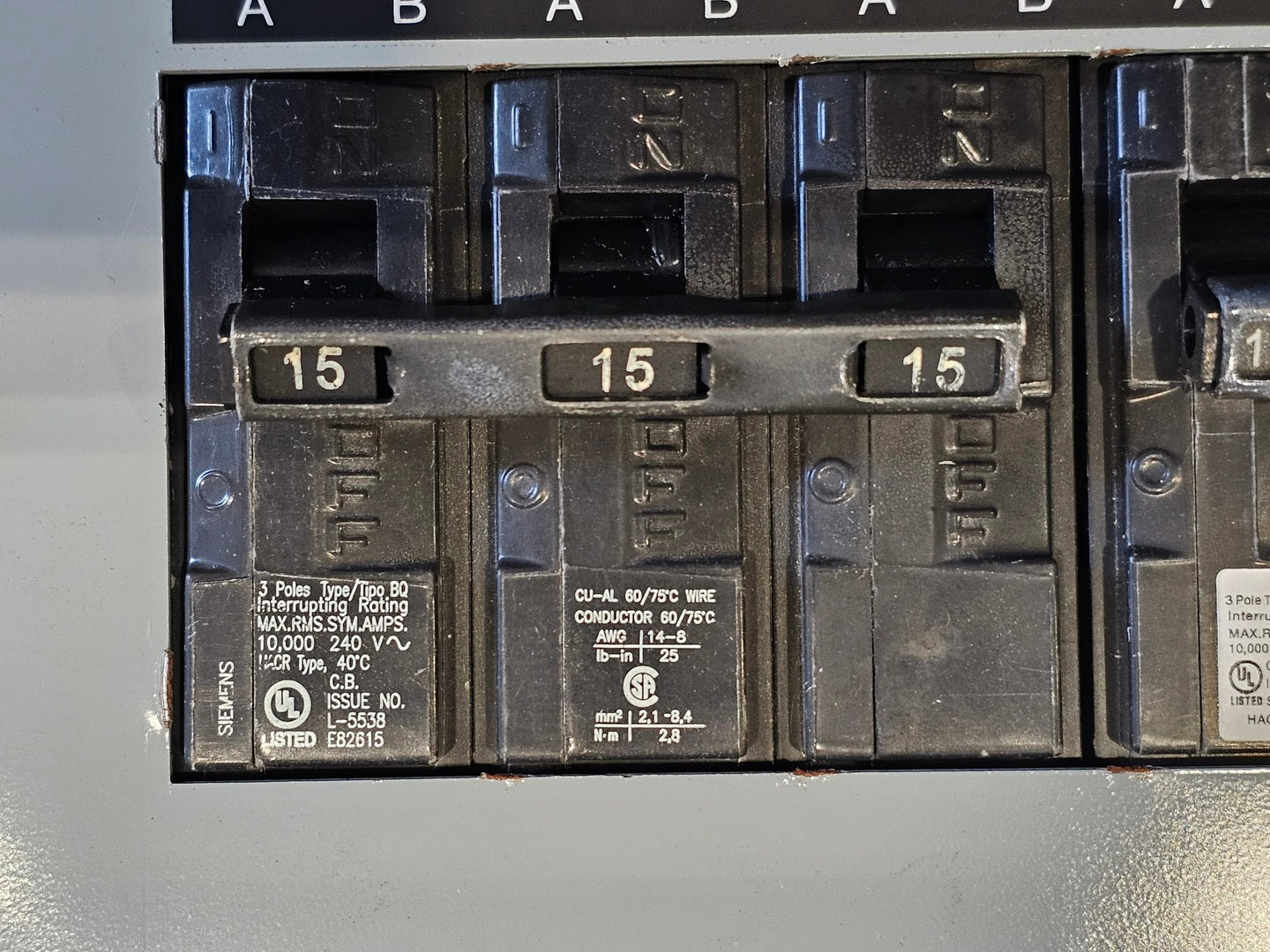

Series: EQ / EQ4 Model: EQ424BQ100 Panel Current Rating: 100 A Phase: 3 phase Wire Configuration: 4 wire Voltage Markings: 240 VAC and 120/208 VAC Previous Service Identification: 120/208 V Circuit Capacity: 24/48 Full-Size Branch Positions: 24 Installed Main Breaker: 100 A, 3 pole, Siemens Type BQ Main Breaker Interrupting Rating: 10,000 A RMS symmetrical at 240 VAC Installed Branch Breakers: 10 assemblies, all marked 15 A Branch Breaker Configuration: Three 3-pole, one 2-pole, and five 1-pole breakers |
