Description
| Specifications | |
|---|---|
| Model | 3R200SR |
| Condition | Surplus New |
| Other Specifications |
|---|
|

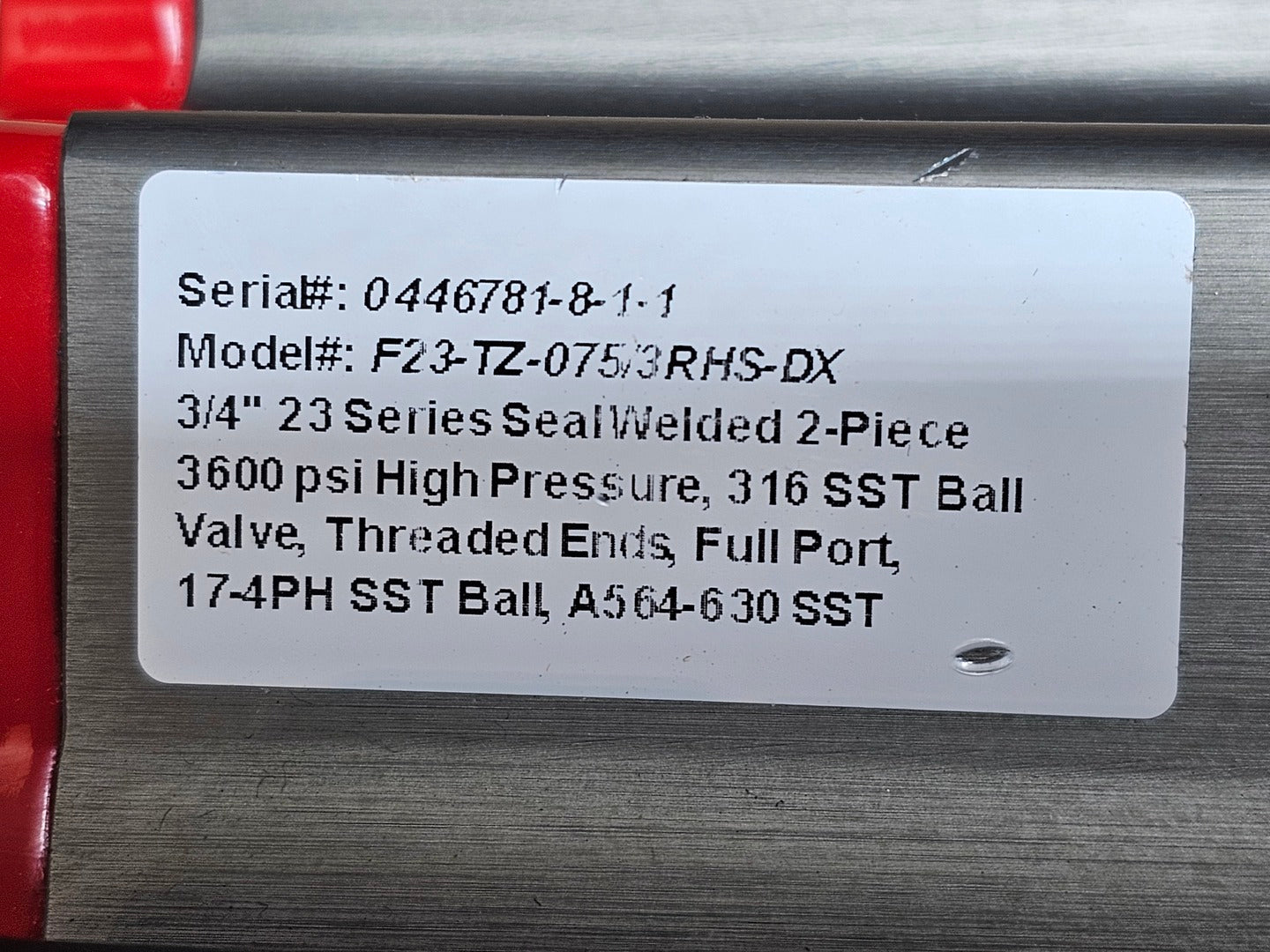

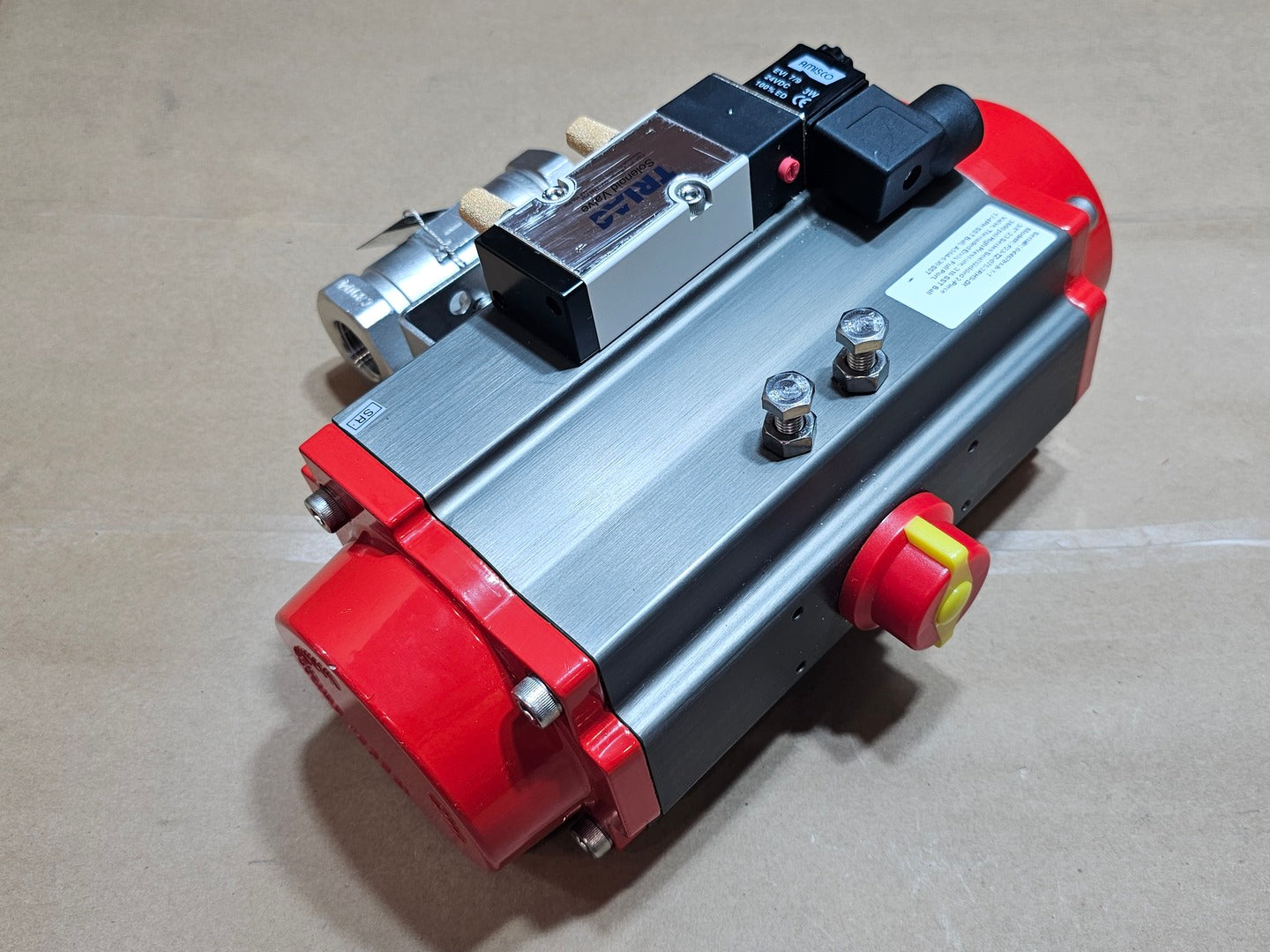

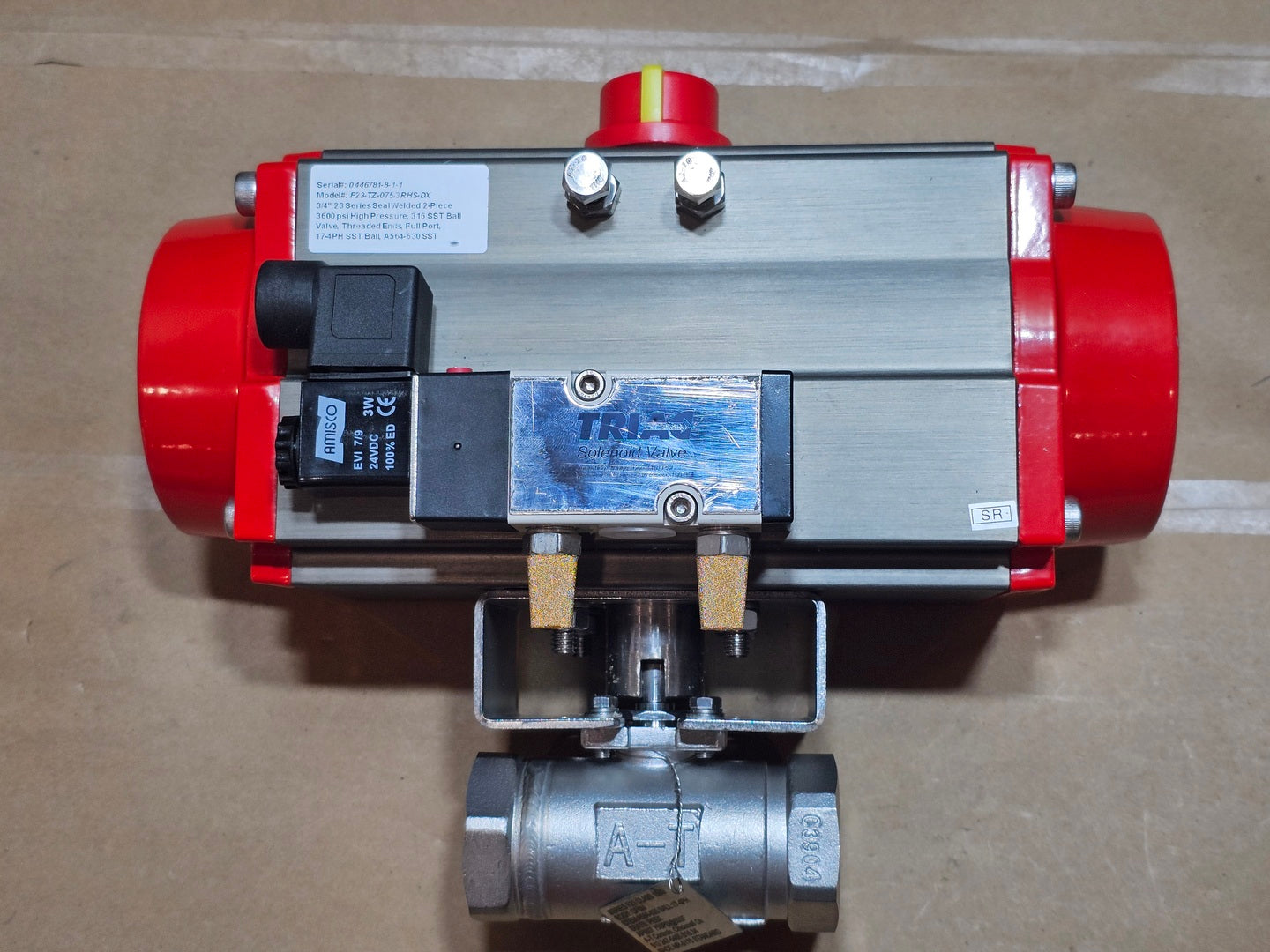

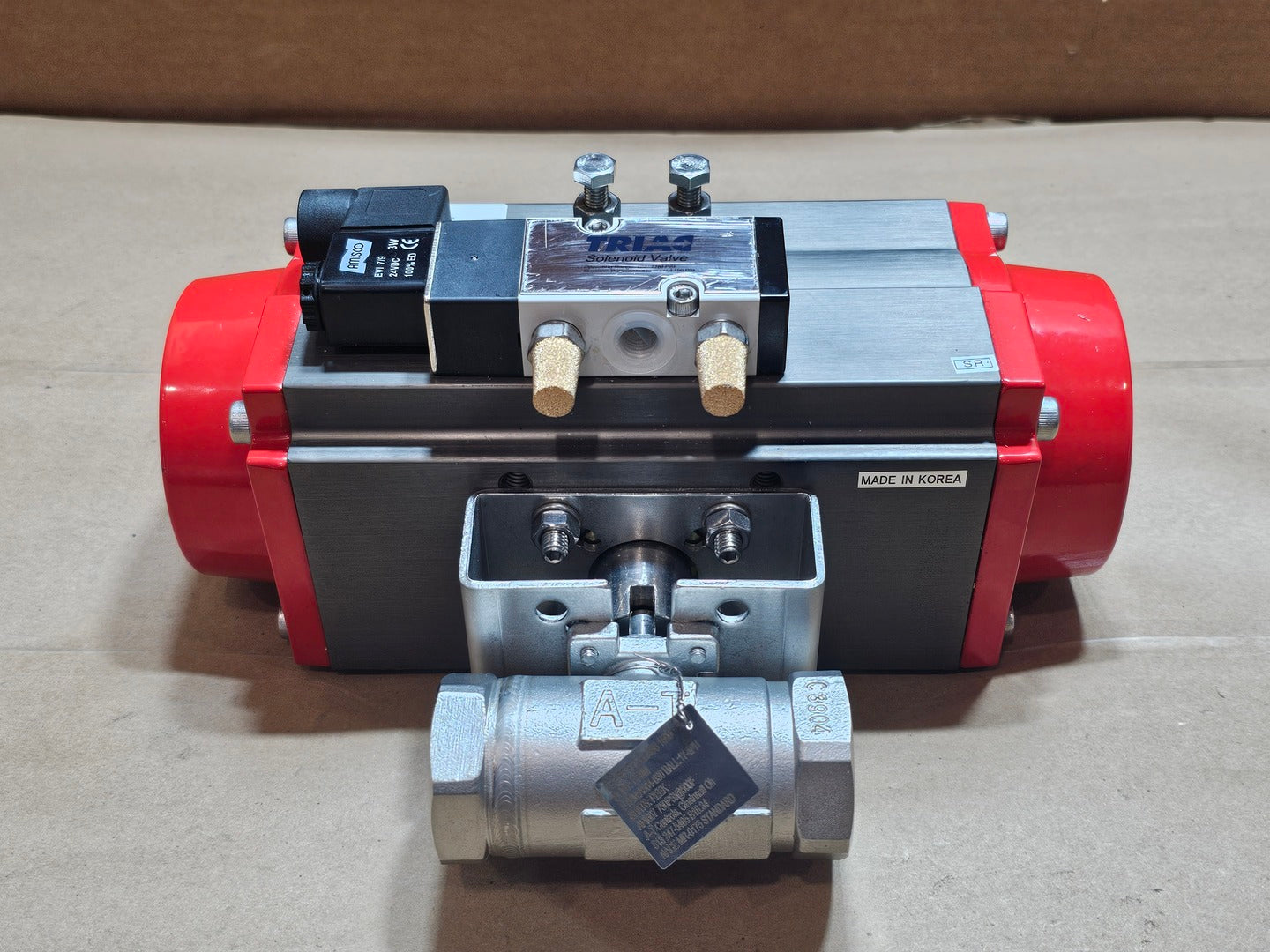

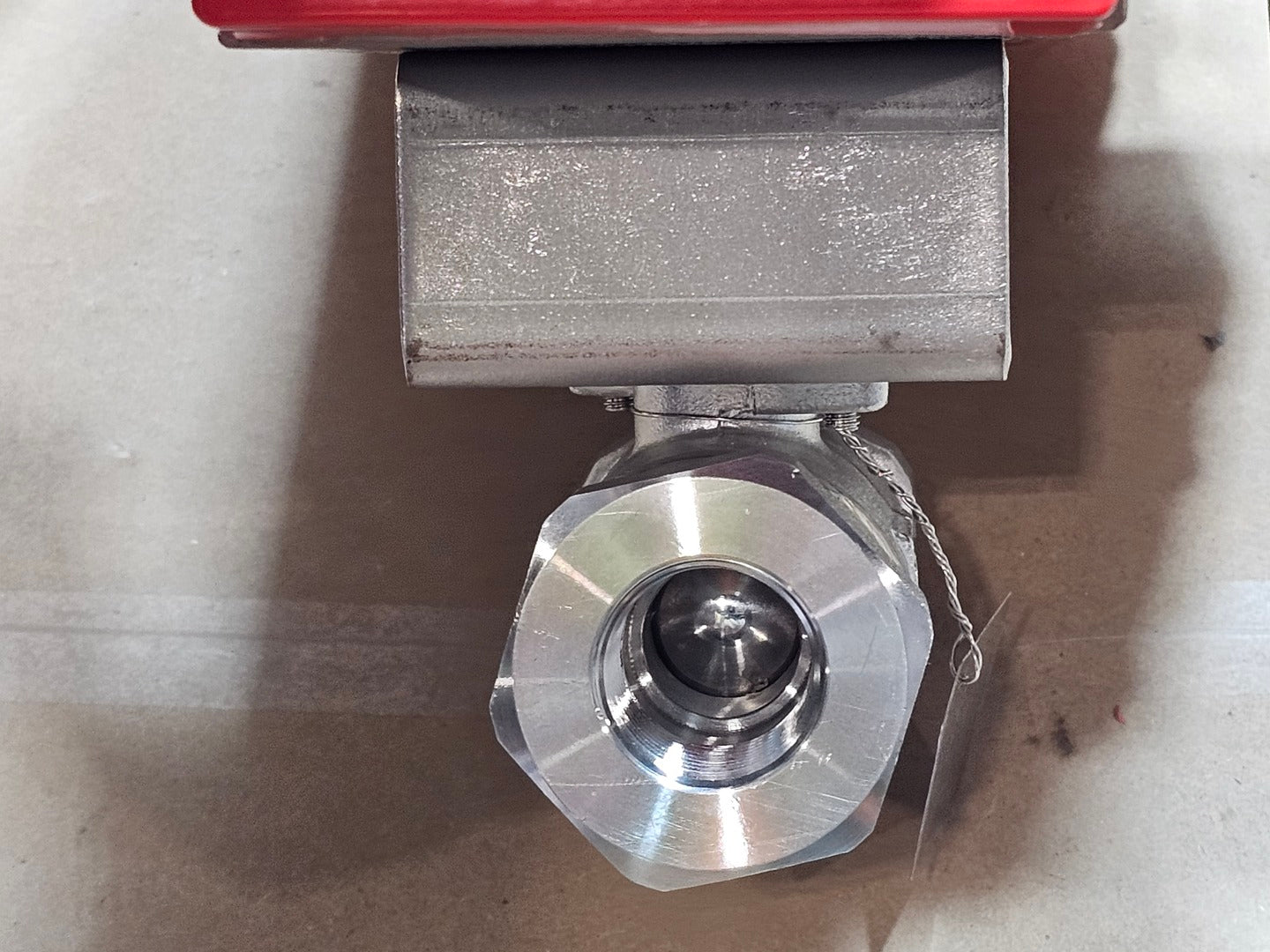

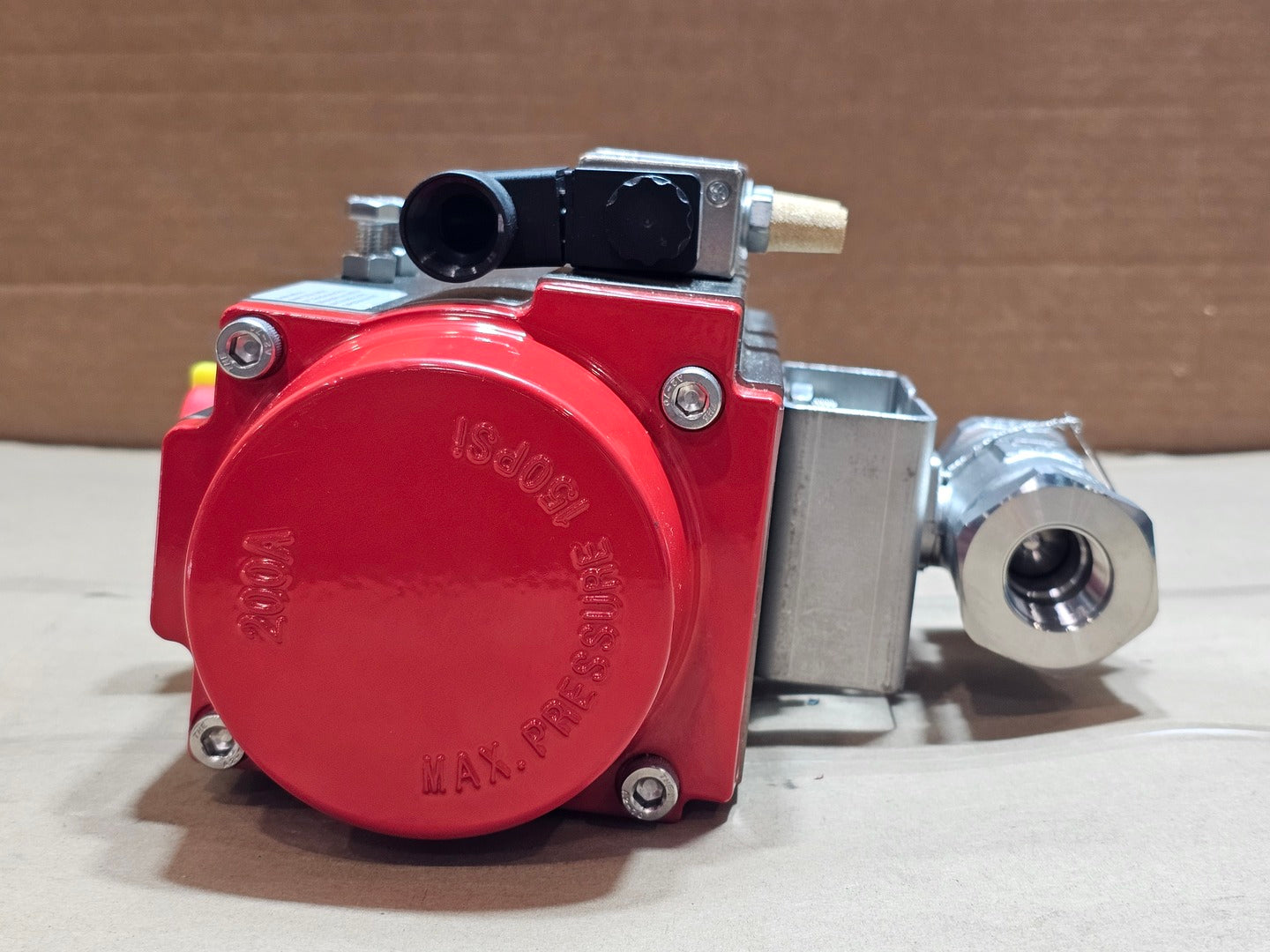

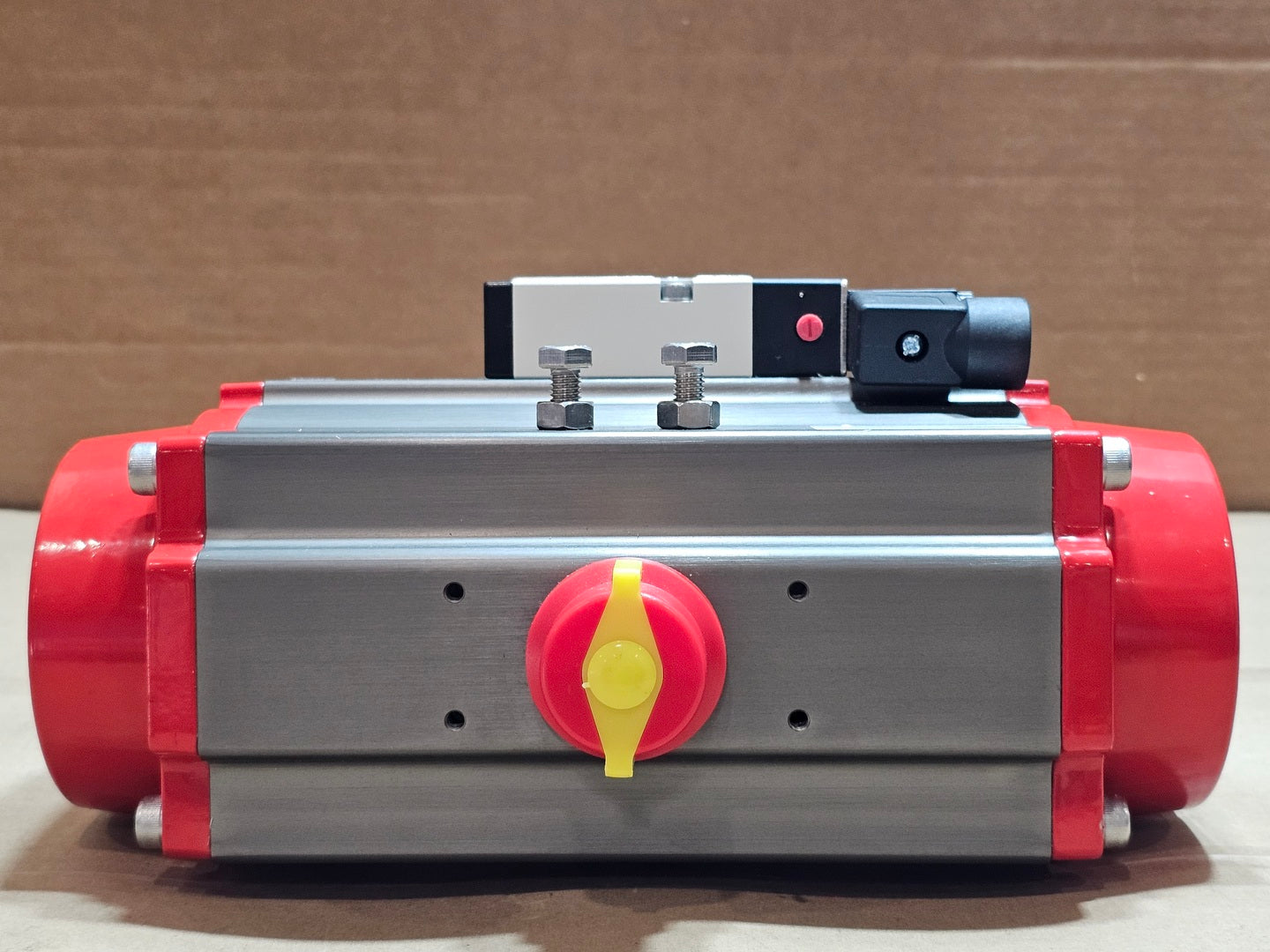

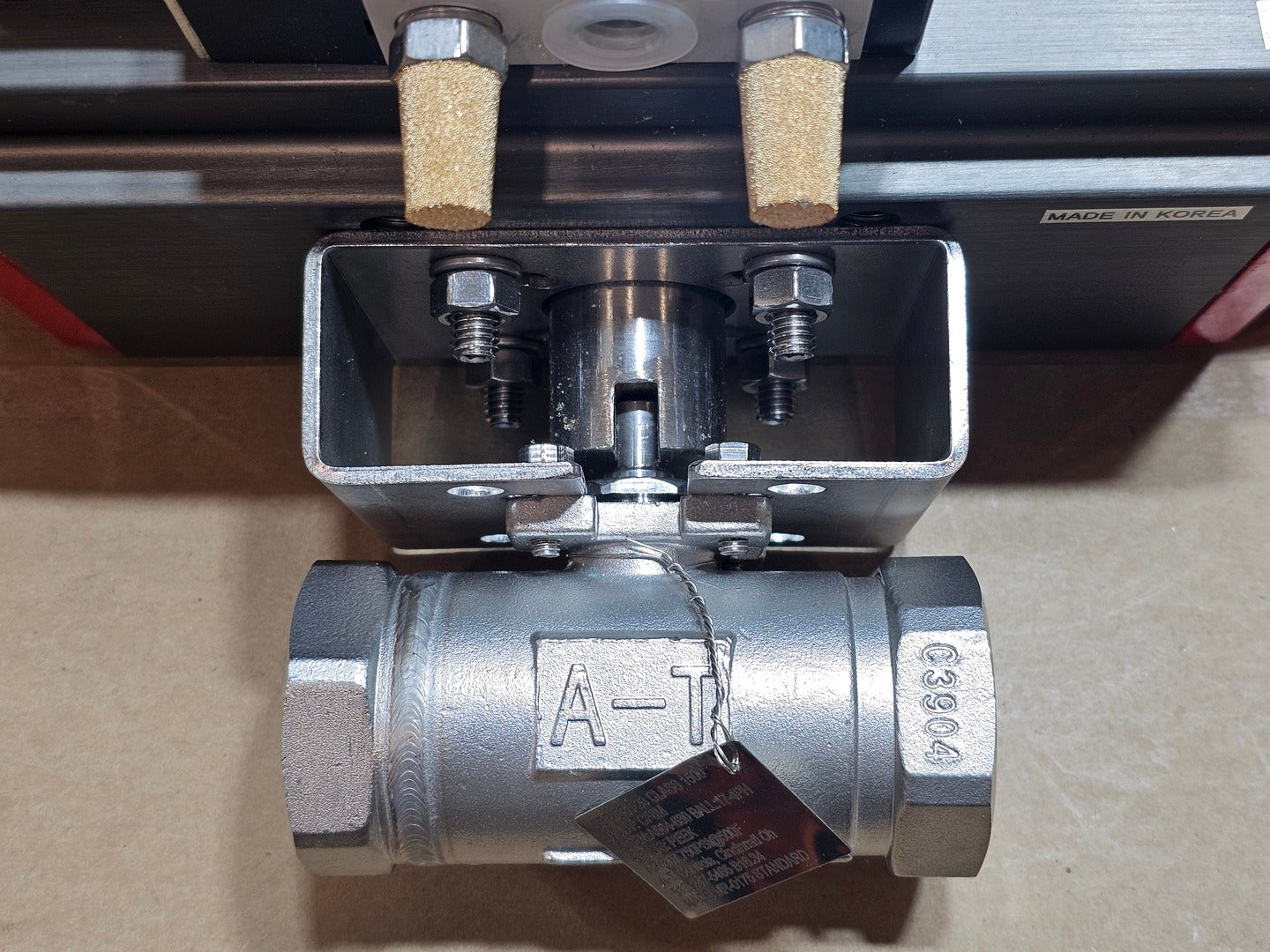

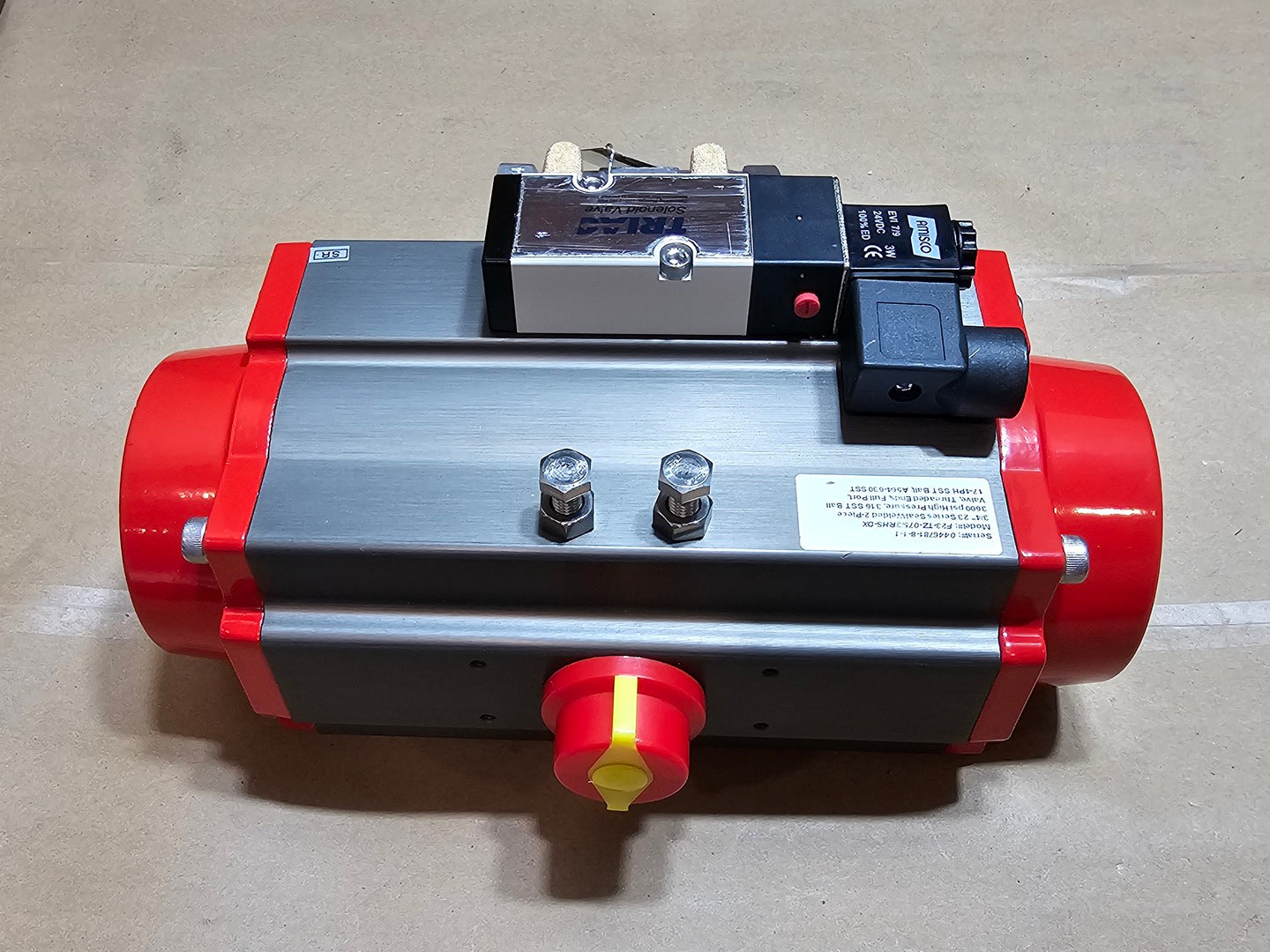

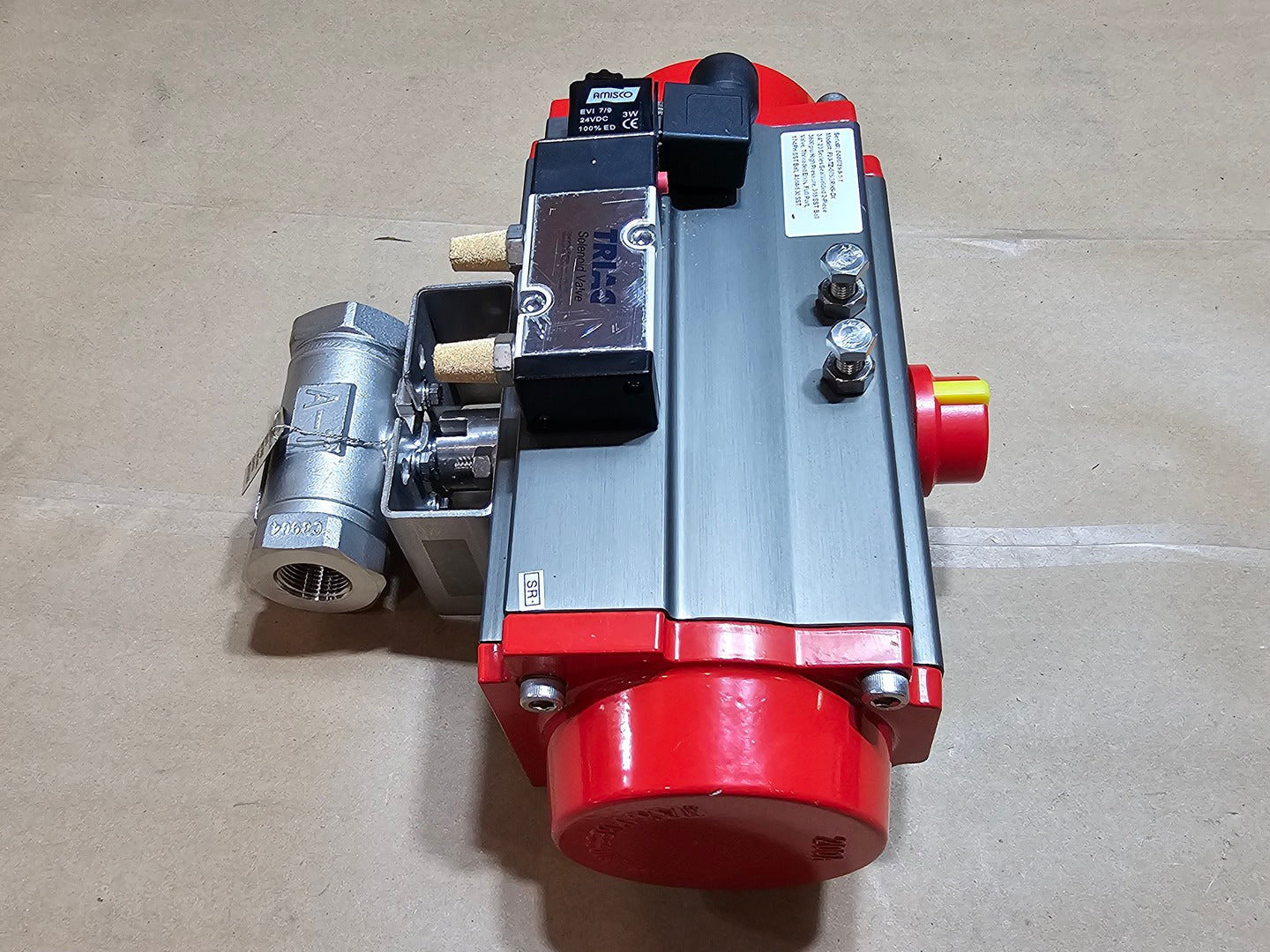

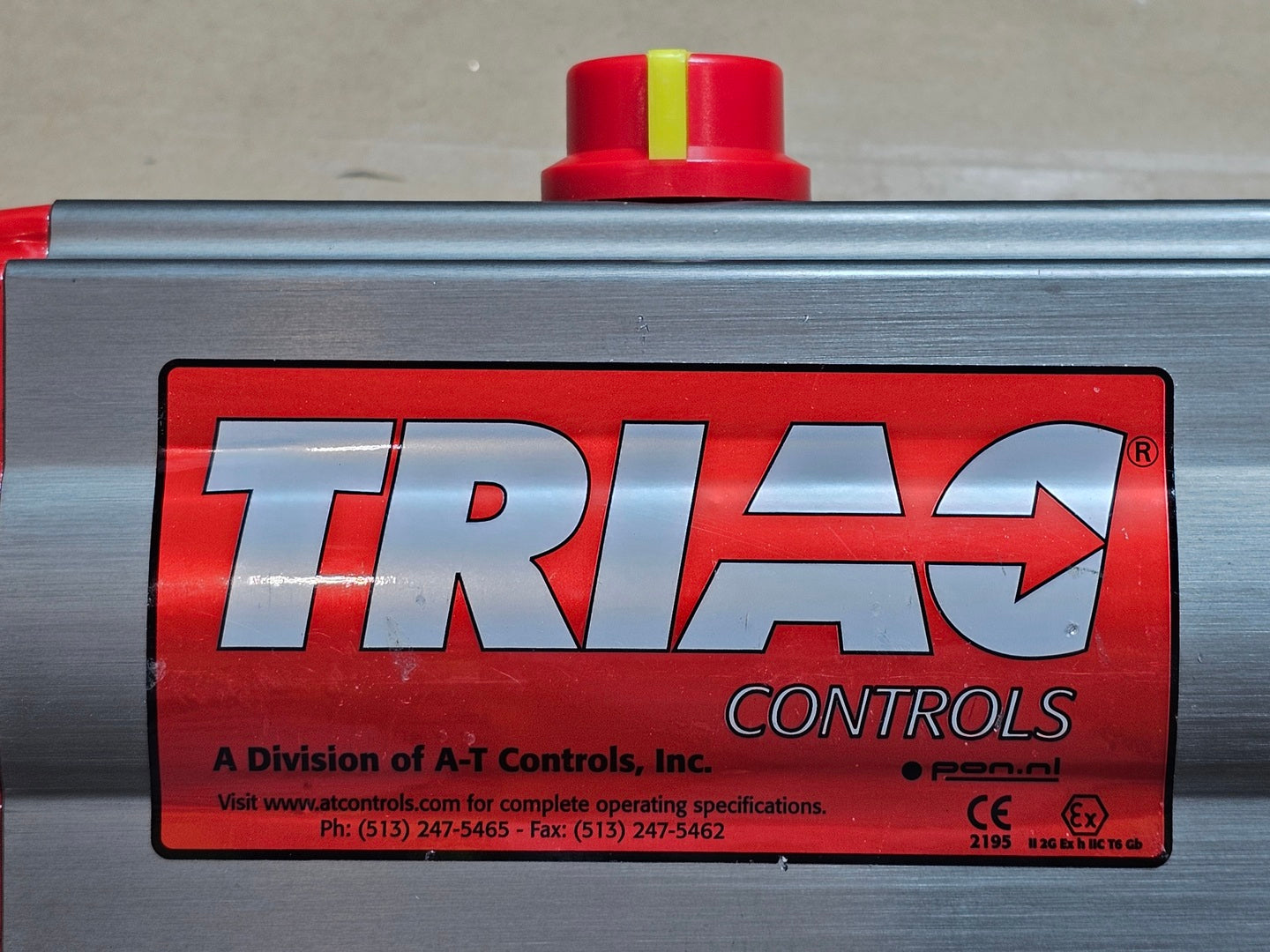

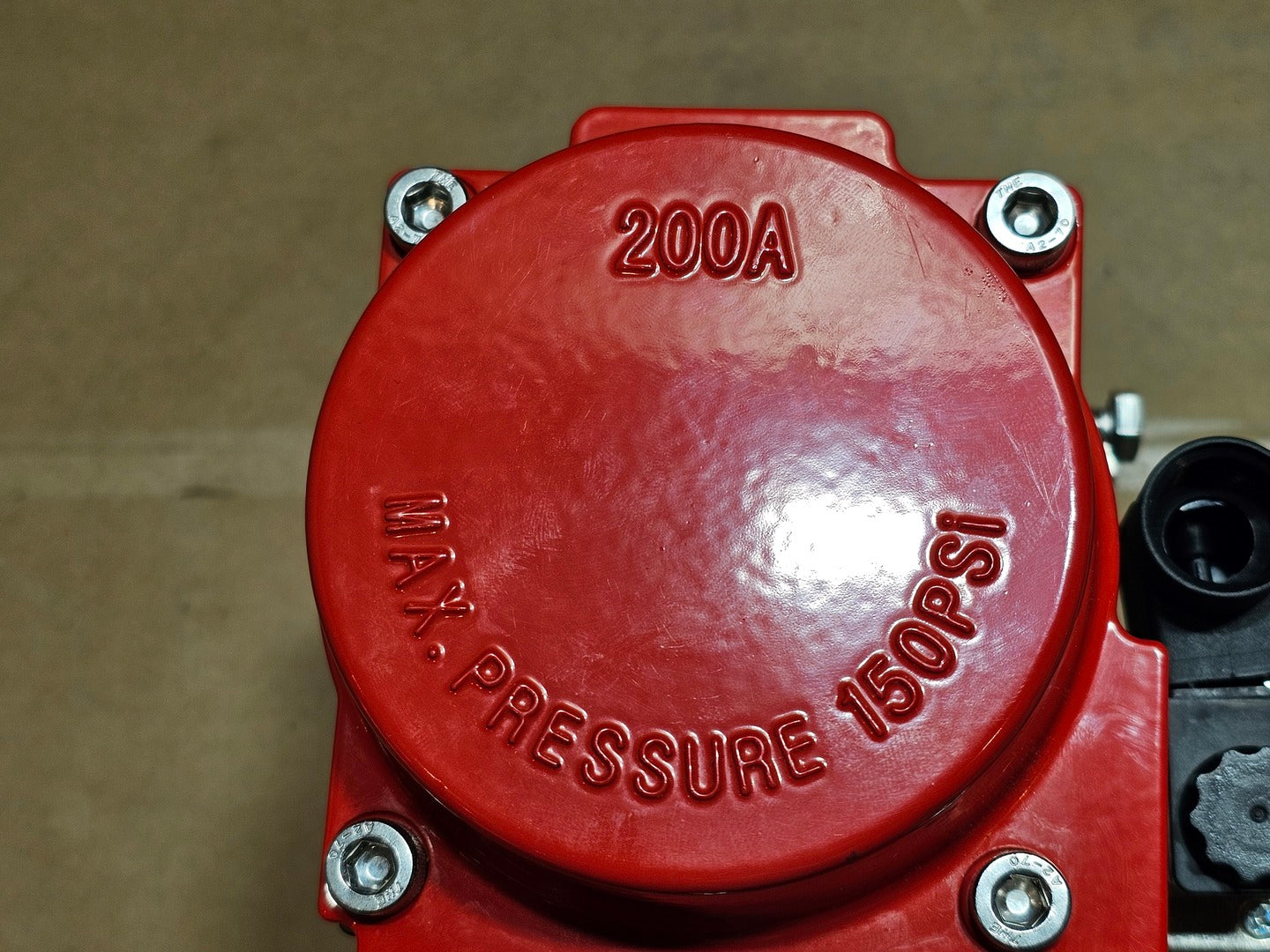

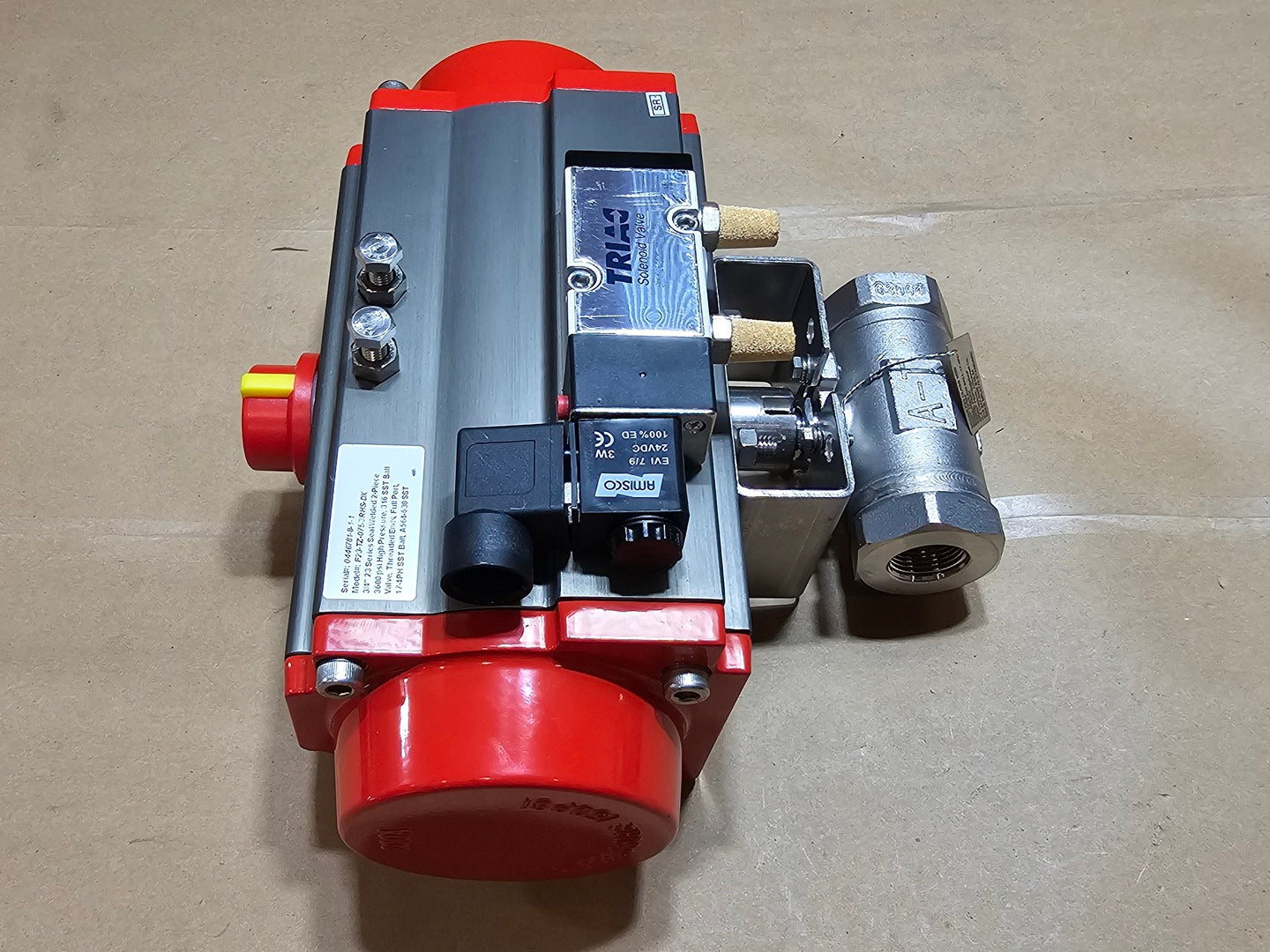

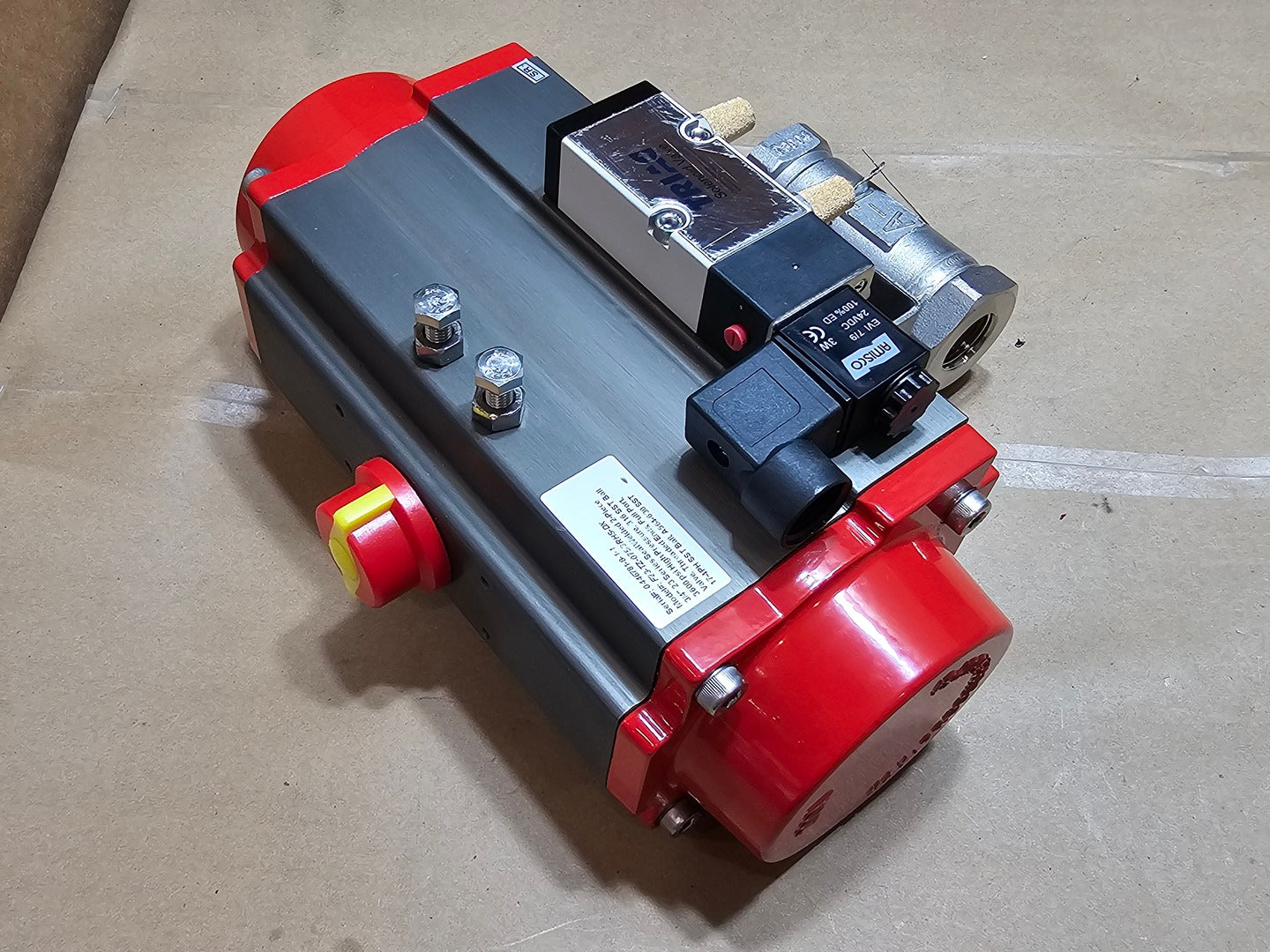

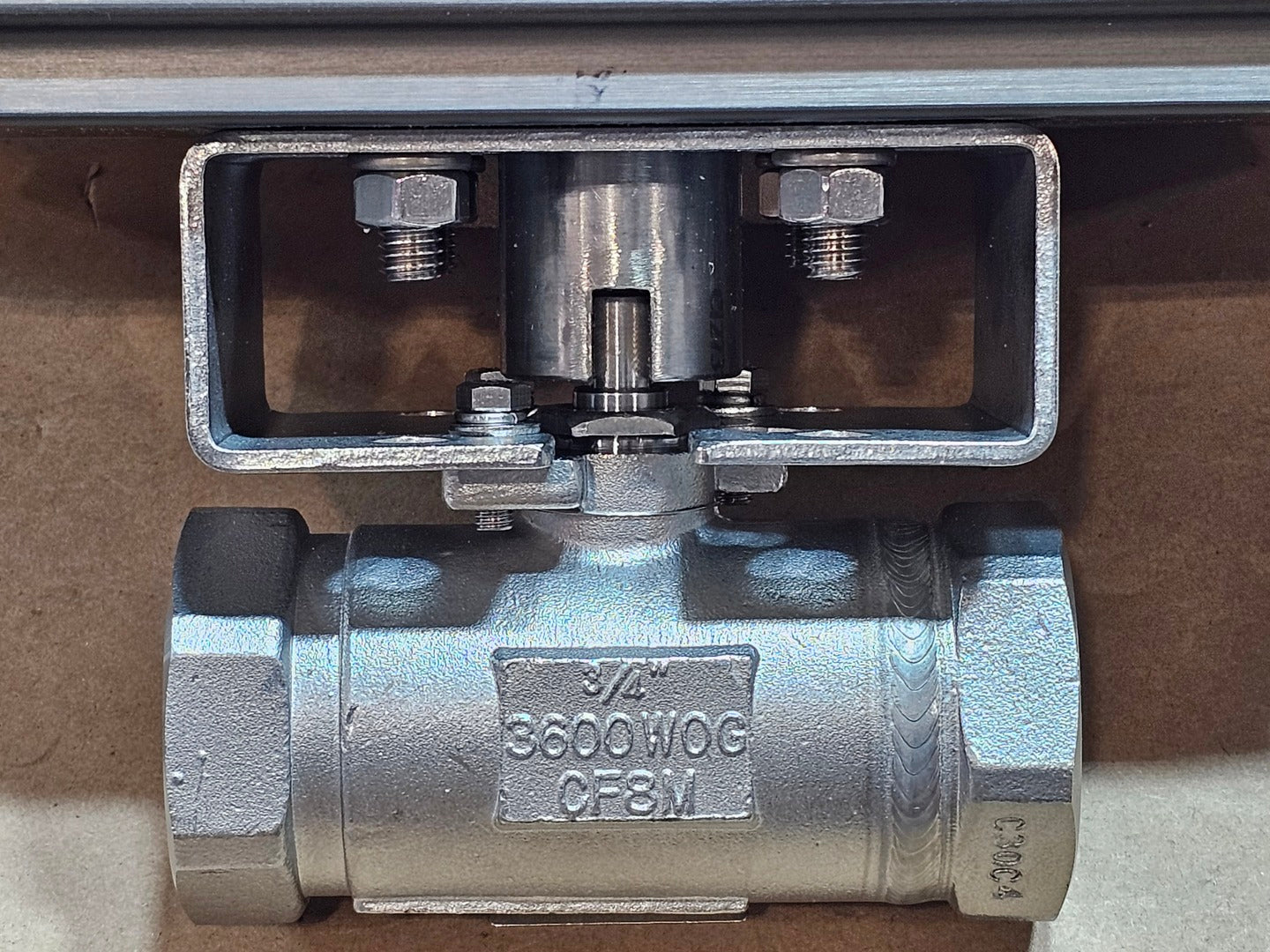

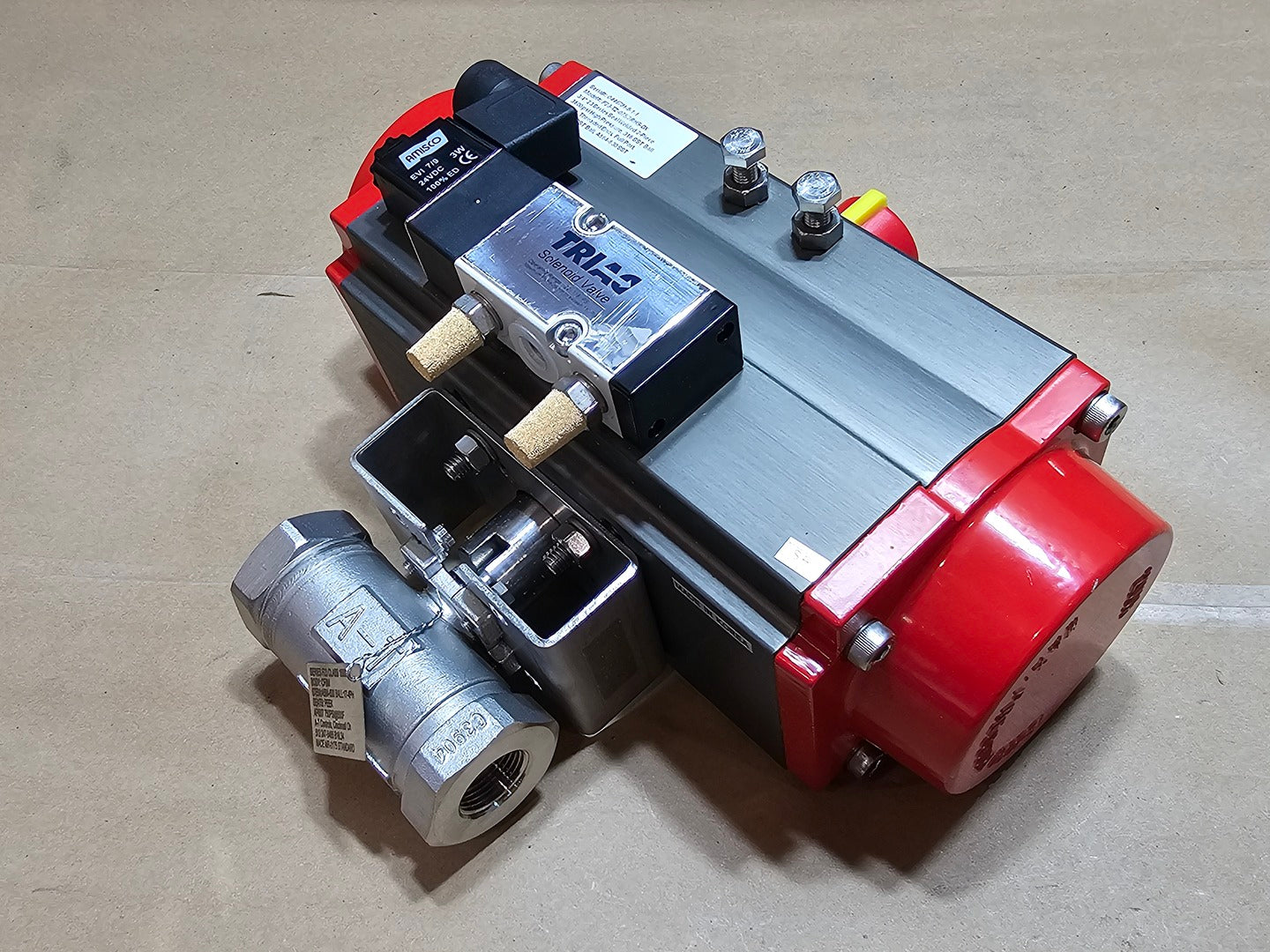

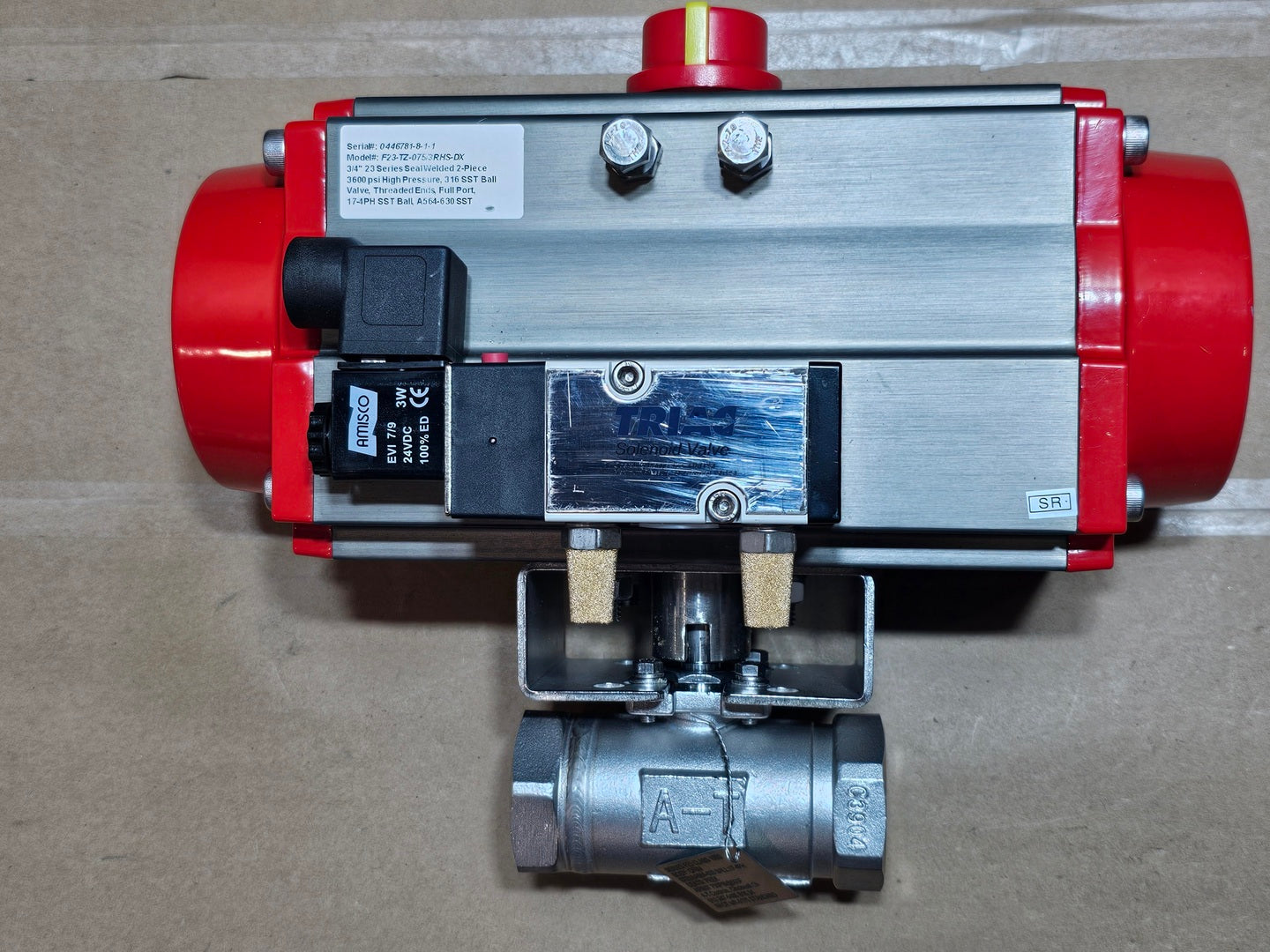

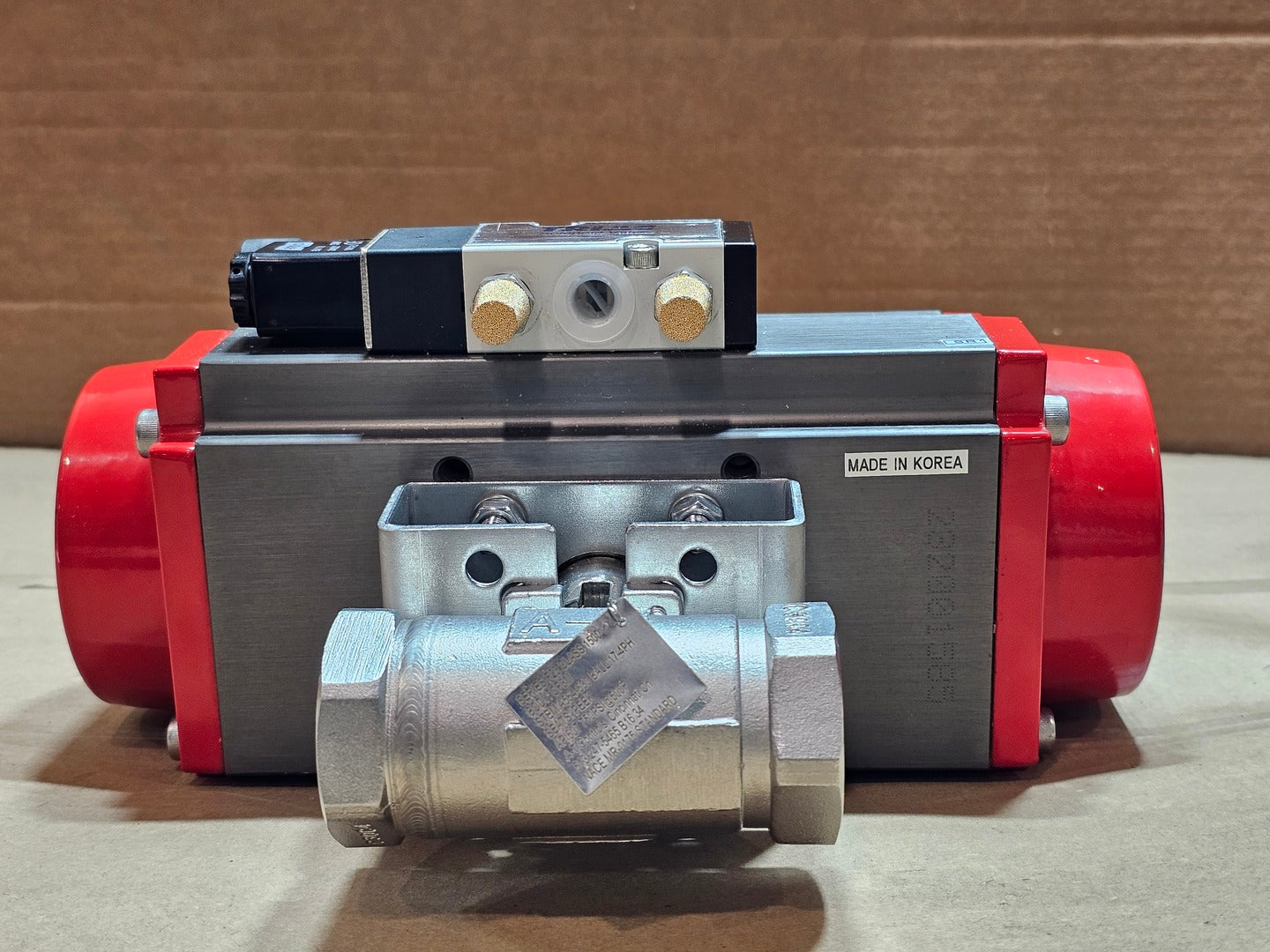

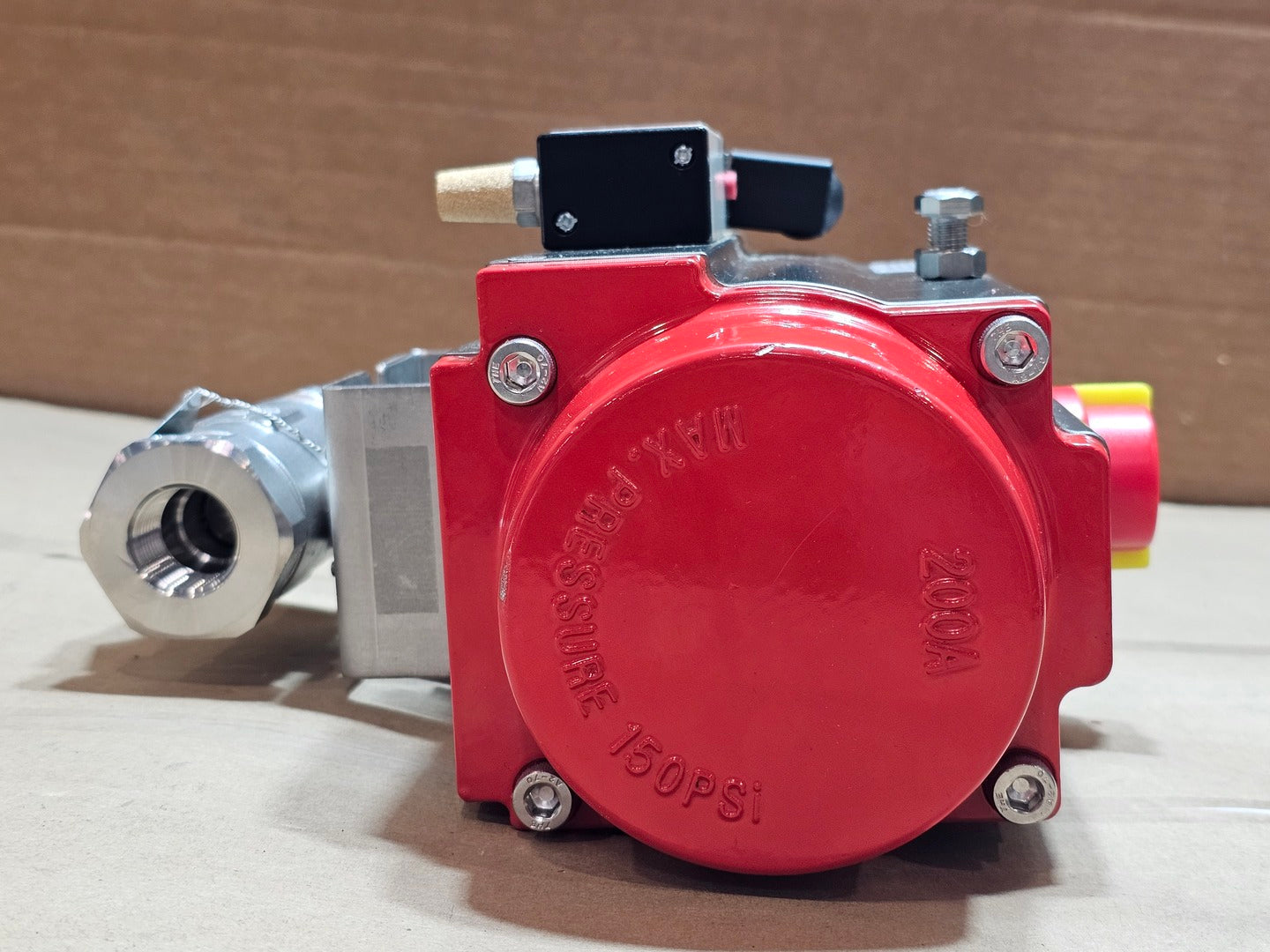

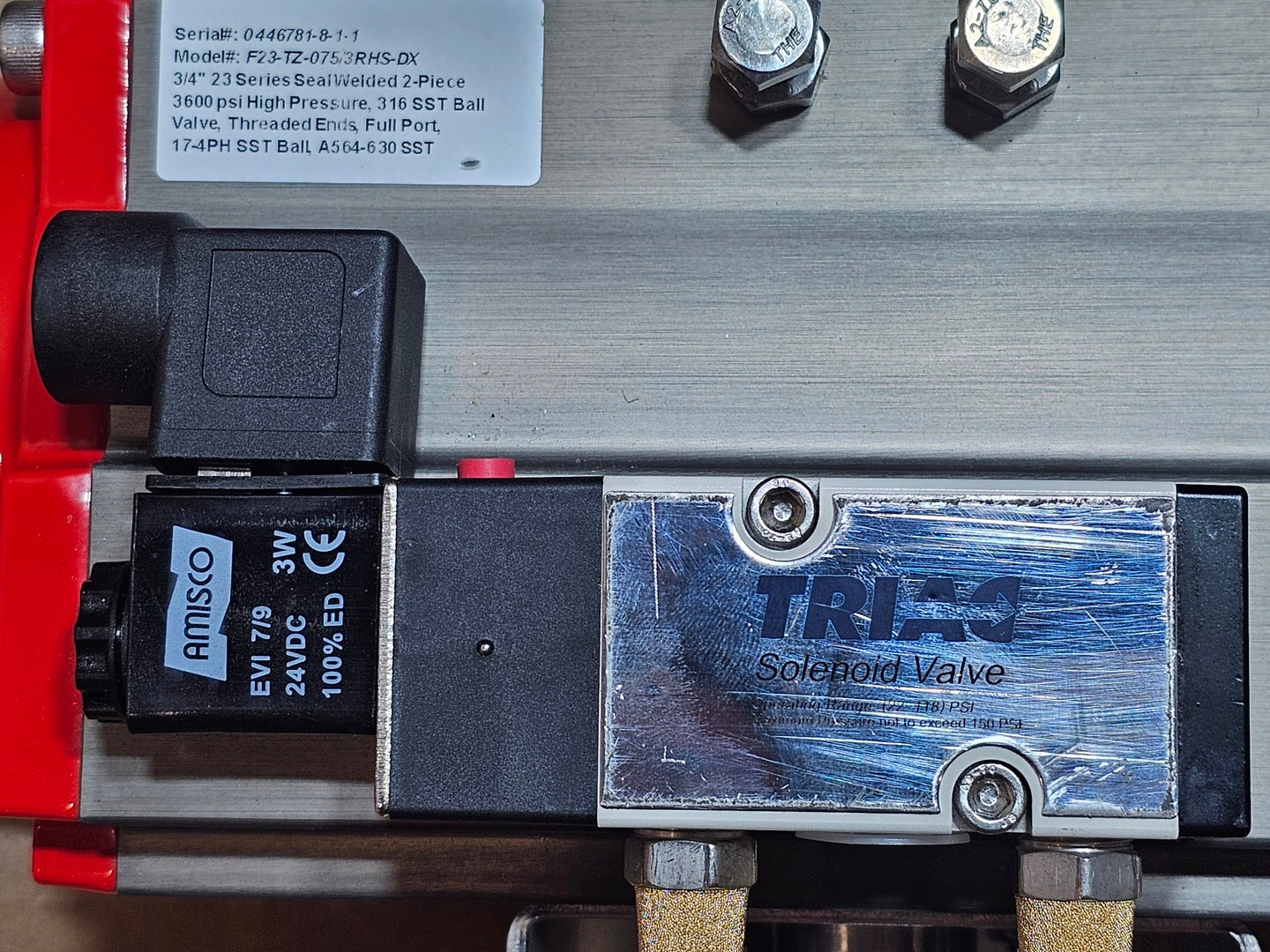

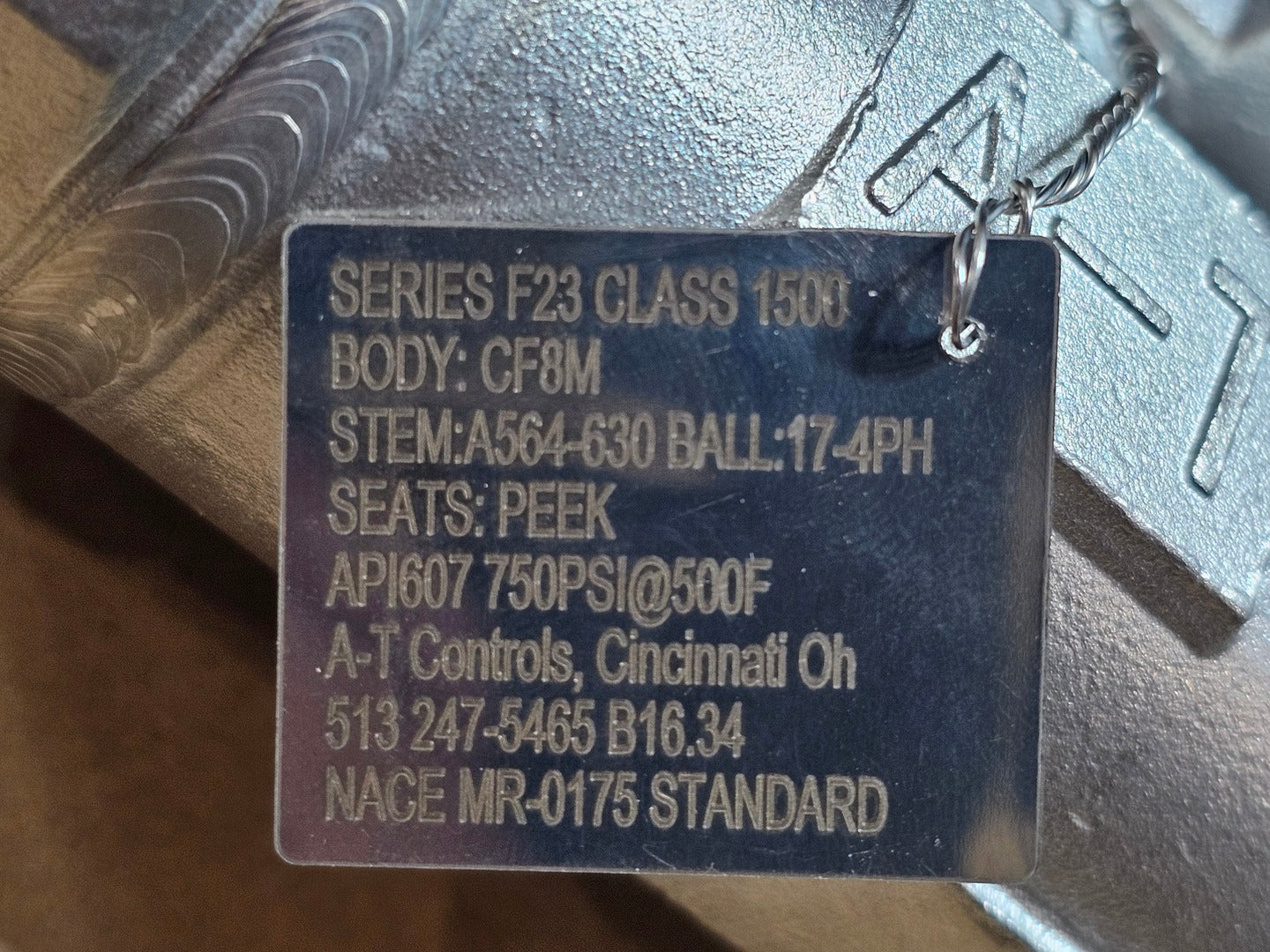

Complete model: F23-TZ-075/3RHS-DX Valve series: F23 Valve size: 3/4 in. Valve design: Two-piece, seal-welded ball valve Port design: Full port End connections: Female threaded Maximum pressure: 3600 psi Pressure class marking: Class 1500 Body material: ASTM A351 CF8M stainless steel Ball material: 17-4 PH stainless steel Stem material: ASTM A564 Grade 630 / 17-4 PH stainless steel Seat material: PEEK Fire-safe testing: API 607 Additional rating: 750 psi at 500°F shown on valve tag Compliance marking: ASME B16.34 Sour-service standard: NACE MR0175 Actuator series: TRIAC 3R Actuator size: 3R200, decoded from "3RH" Actuator type: Rack-and-pinion pneumatic Actuator action: Spring return, clockwise fail direction Actuator maximum pressure: 150 psi |
