Description

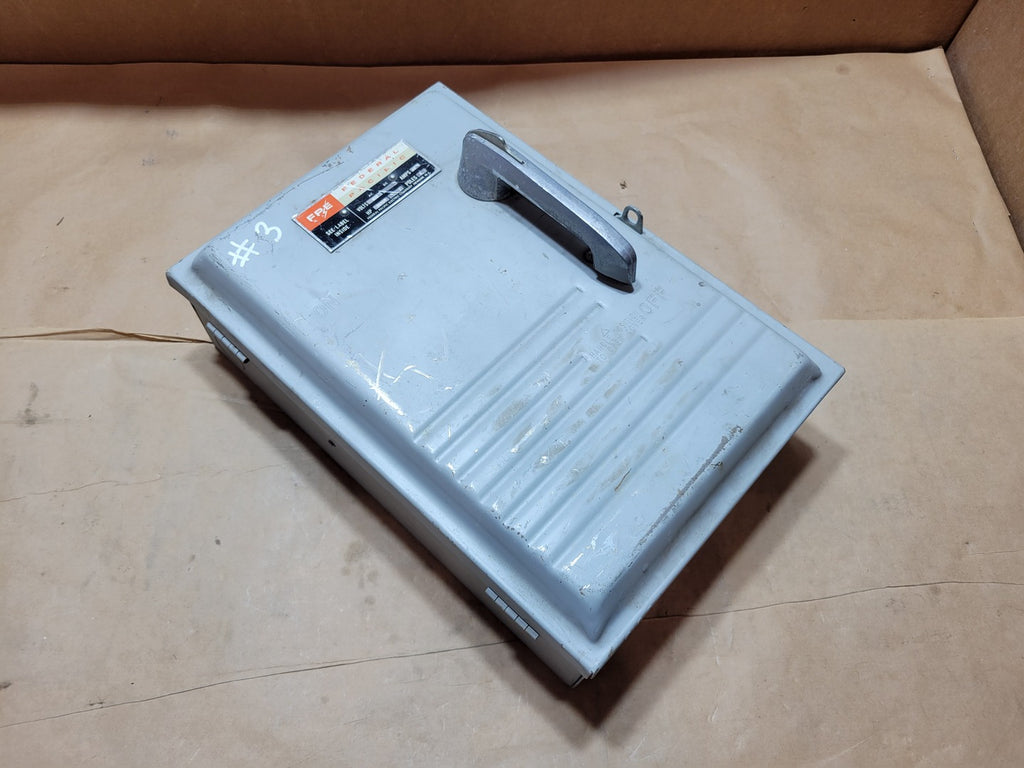

Federal Pacific Electric 1336SNR enclosed fusible safety switch rated for 30A, 600V AC, three-pole service, and a maximum motor load of 20 HP. The unit includes a painted steel enclosure, cover-operated handle, three-pole switch mechanism, fuse clips, terminals, and cover interlock. It is suitable for industrial equipment isolation and fused circuit protection; fuses are not included.
| Specifications | |
|---|---|
| Model | 1336SNR |
| Condition | Used | Electrical |
| Amps | 30 amps |
| Voltage | 600 volts |
| Phase | 3-phase |
| Fused | Fused |
| Other Specifications |
|---|
|
Configuration: Three switched poles with solid neutral, marked "4SN" Service Rating: Suitable for use as service equipment Wire Material: Copper or aluminum Main Lug Wire Range: #2-#14 AWG Cu/Al Continuous Load: Maximum 80% of switch rating Maximum Horsepower at 600V, 3-Phase: 20 HP Standard Horsepower at 600V, 3-Phase: 7.5 HP |
