Description

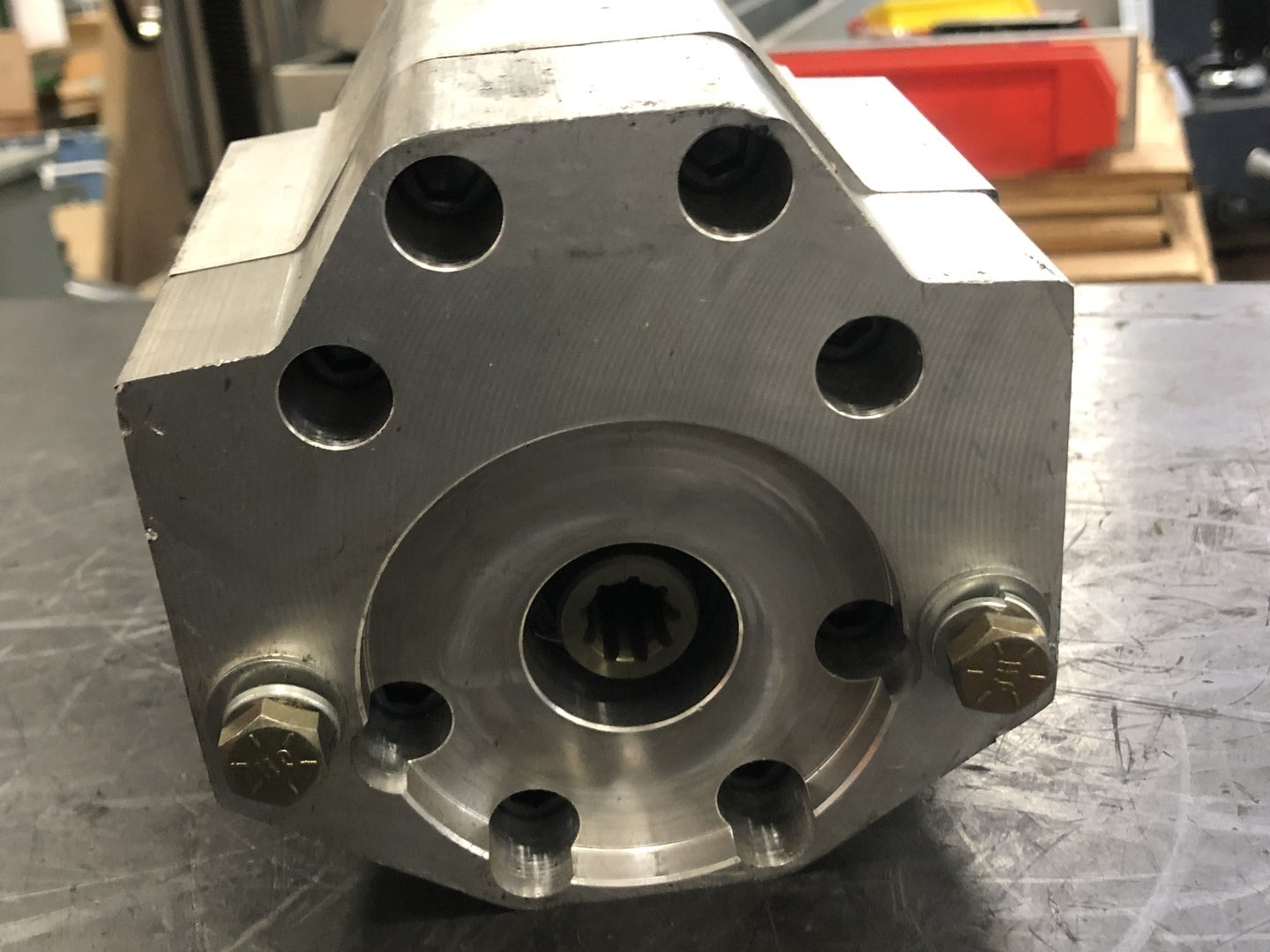

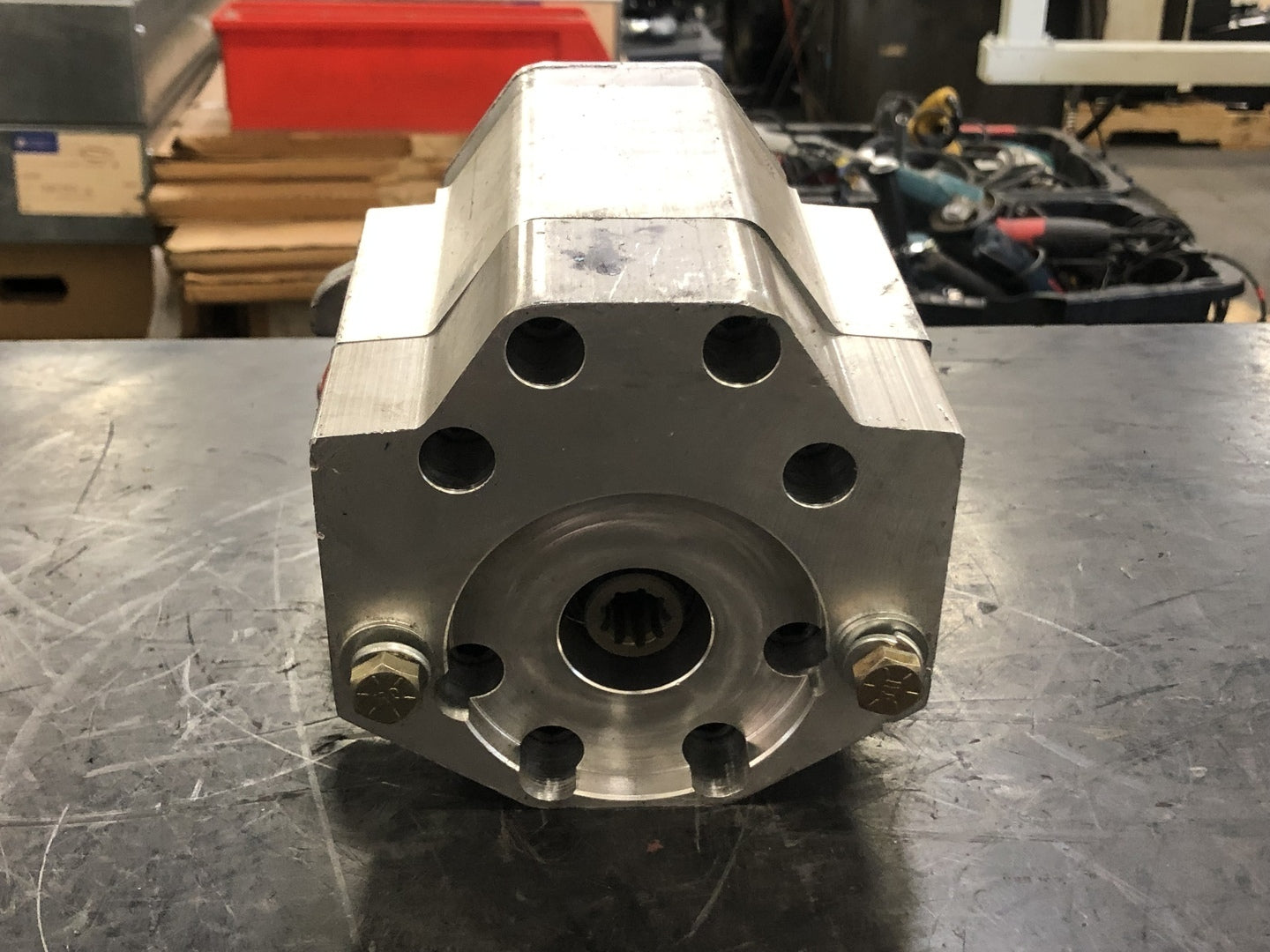

The SPD2 series of pumps are special SP-25A series pumps with through shafts. The through shafts have 9 tooth internal splines at the rear and the pump's rear cover has an integral SAE A-2 bolt mount pad. For double pump operation, a standard SAE A-2 bolt-splined shaft pump can be directly mounted on the rear on the SPD2. Typical performance of the pump is the same as indicated for the SP-25A series pump.
| Specifications | |
|---|---|

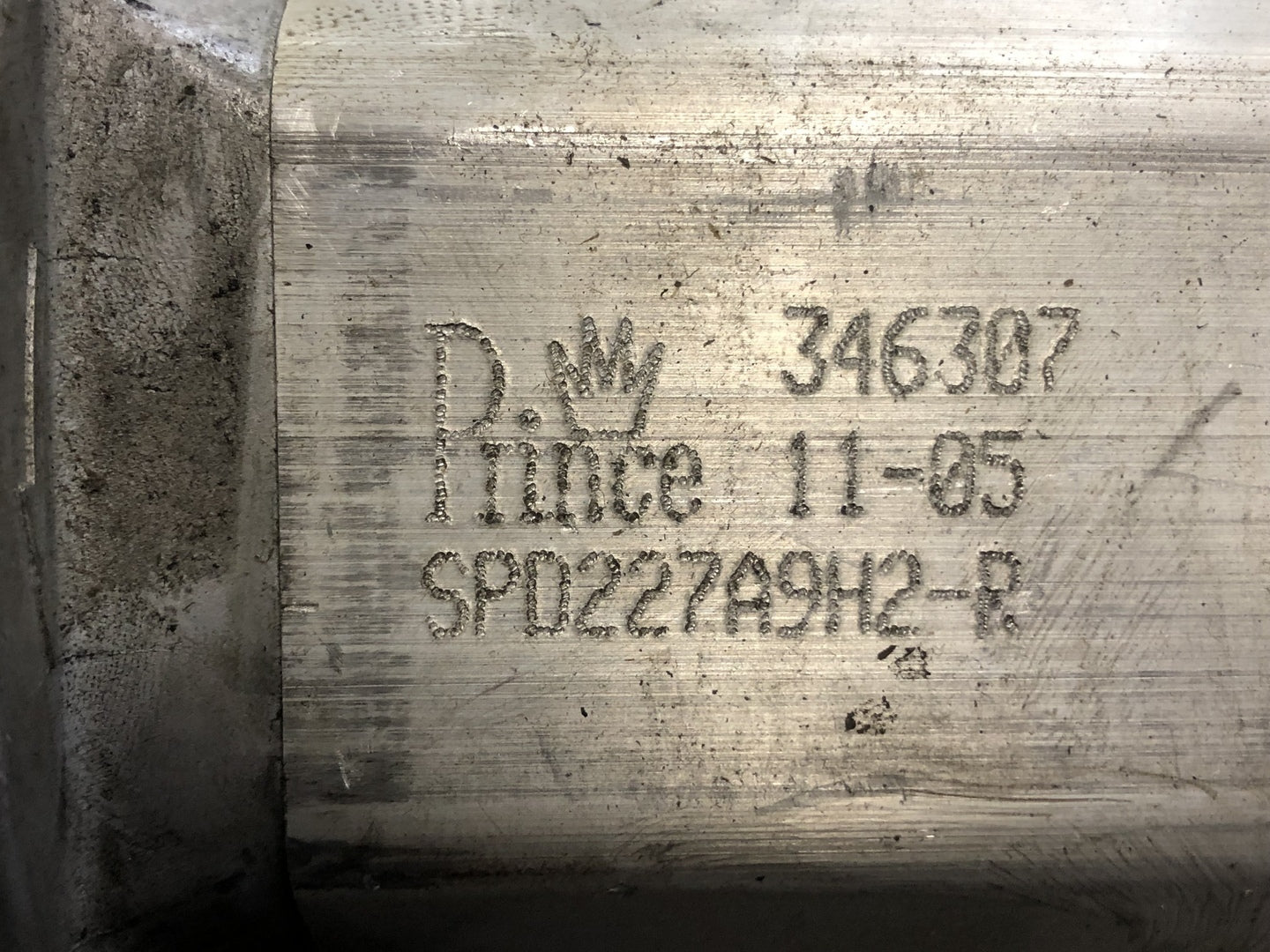

| Model | SPD227A9H2-R |
| Condition | Used | General |
| GPM | 20.74 |
| PSI | 3000 |
| RPM | 3000 rpm |
| Other Specifications |
|---|
|

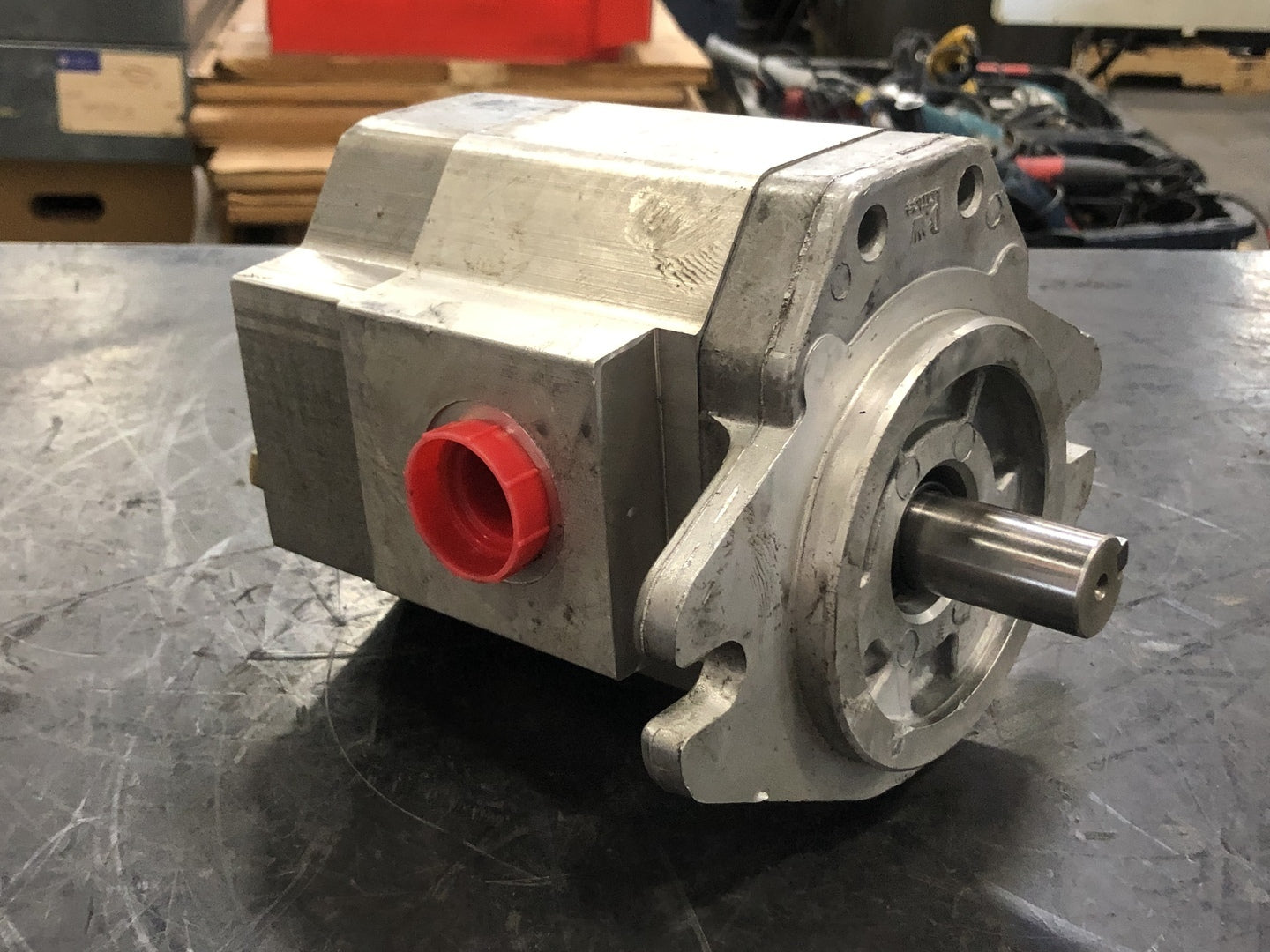

Displacement: 27 cc/rev Port Location: Side inlet and outlet Mounting: 2 bolt "B" flange Drive Shaft: SAE 7/8 straight keyed Rotation: clockwise (facing end of shaft) Inlet Port: 1 5/16-12 UN-2B Outlet Port: 1 1/16-12 UN-2B |
