Description

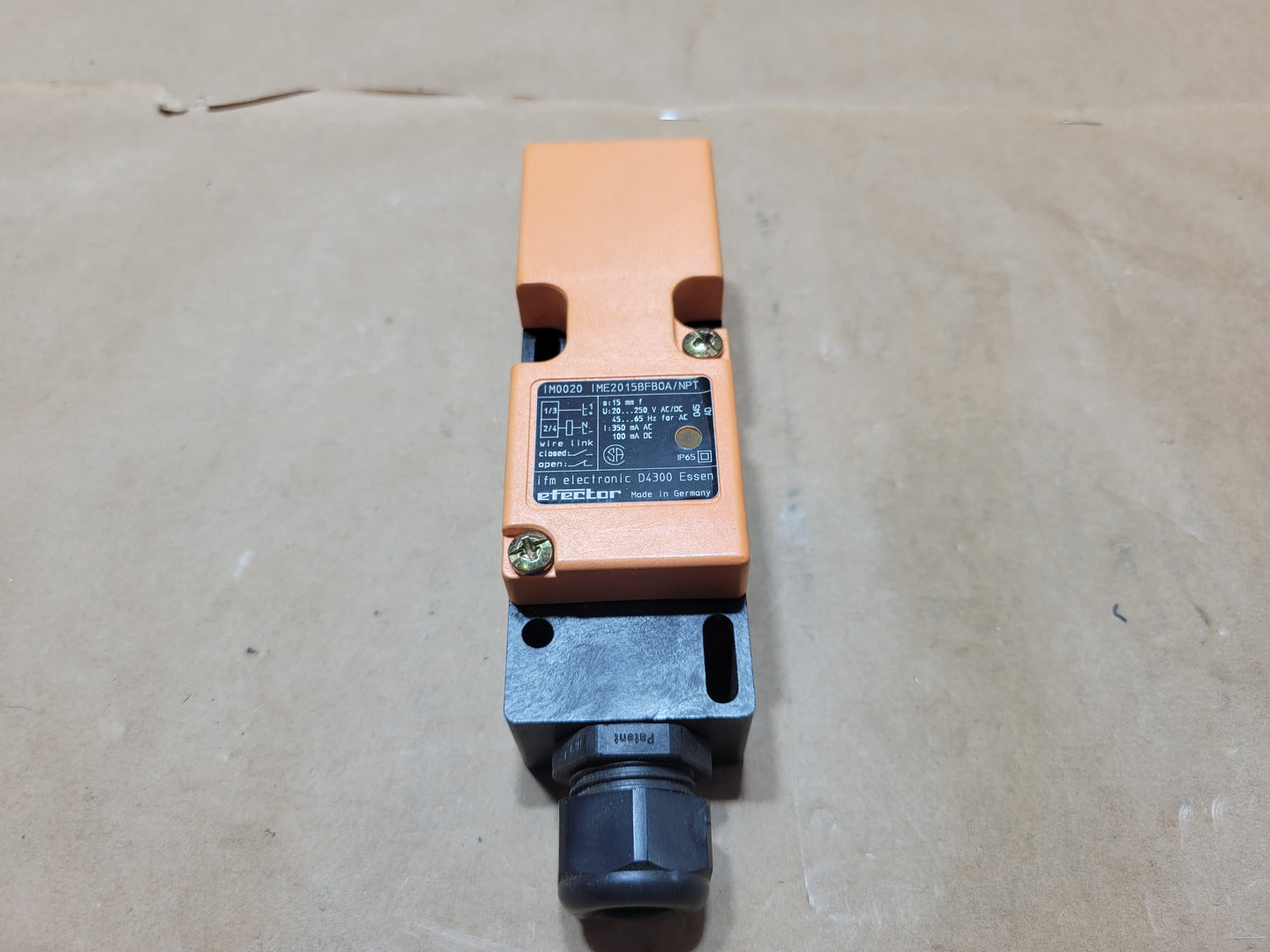

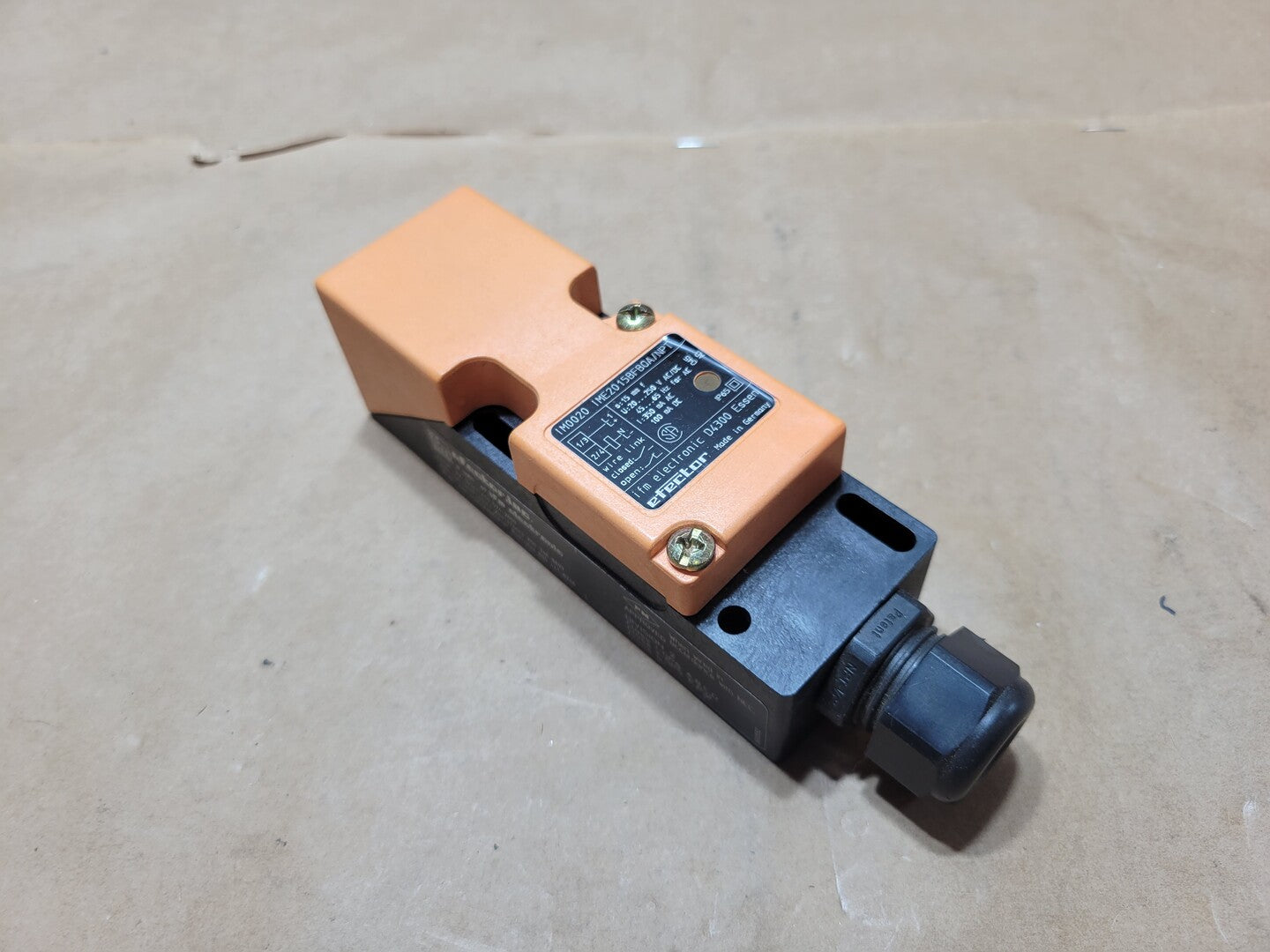

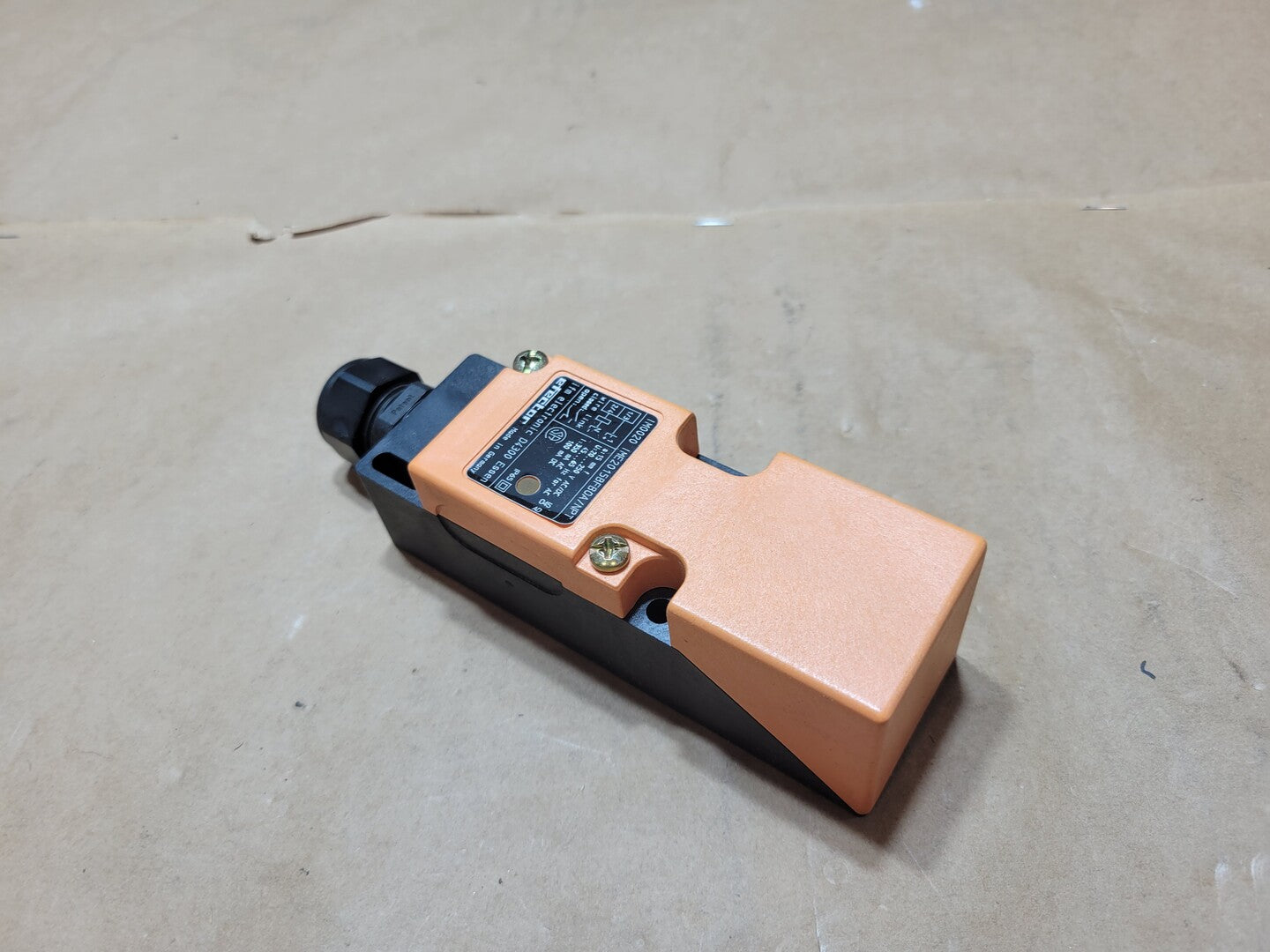

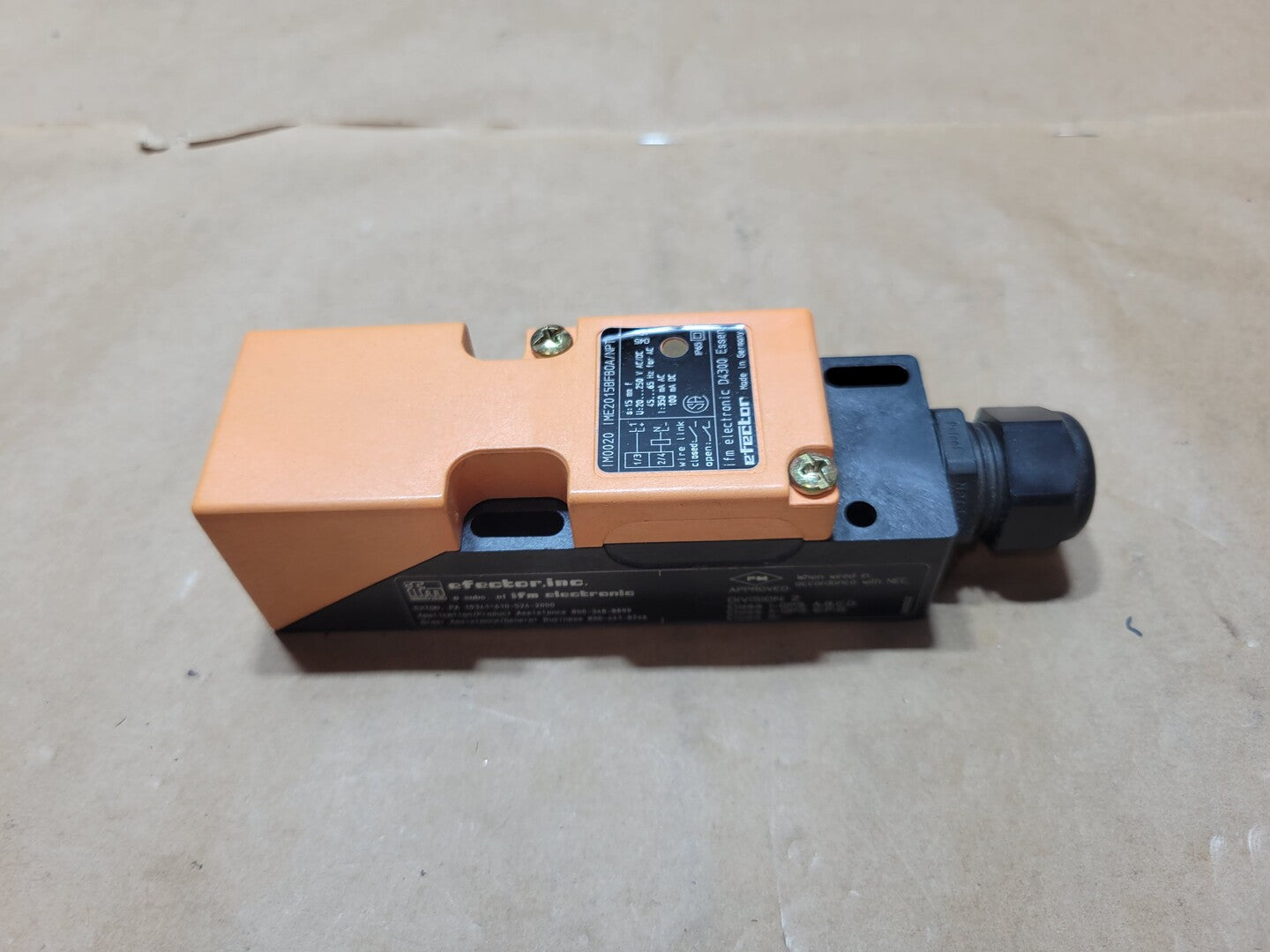

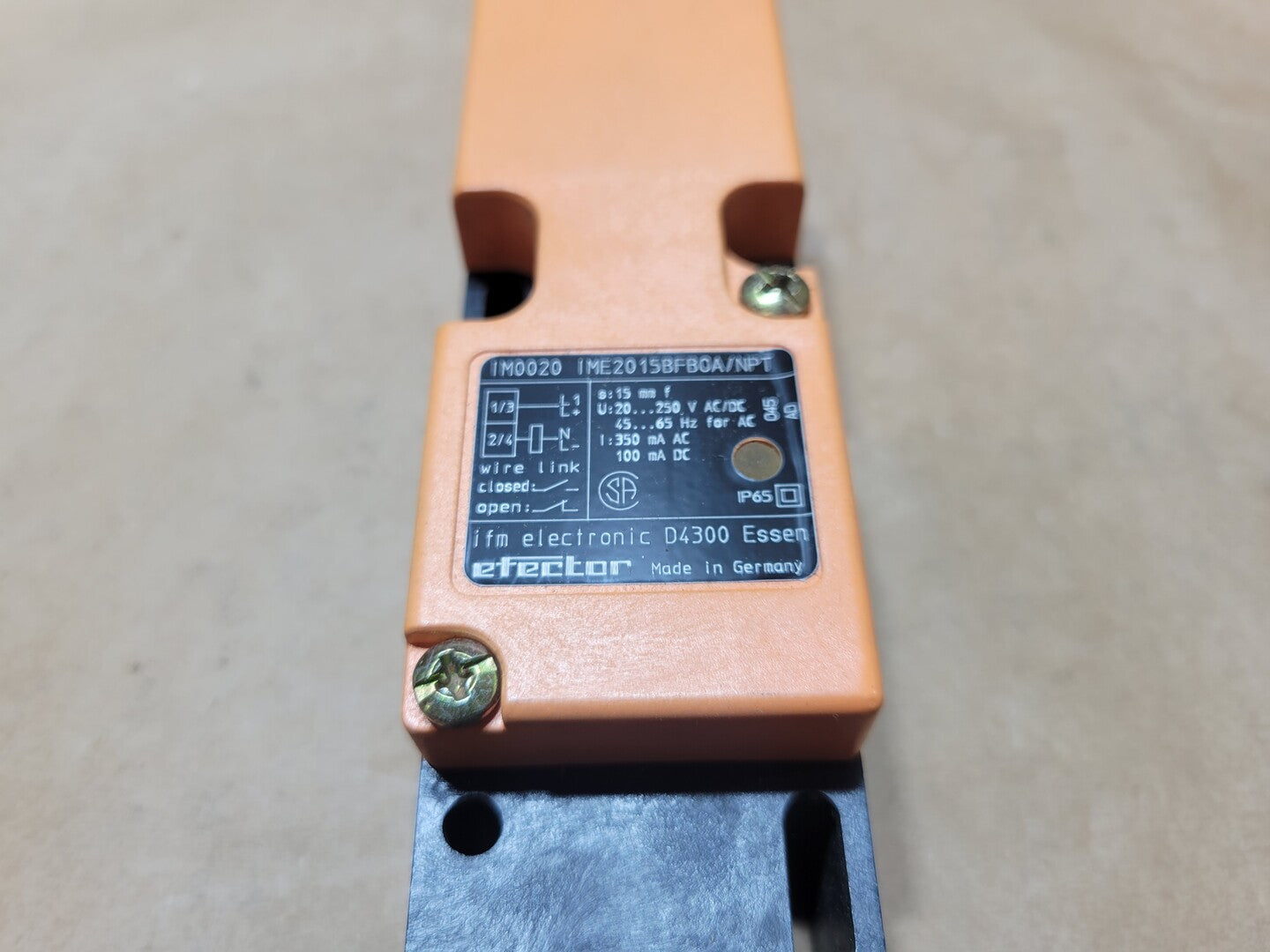

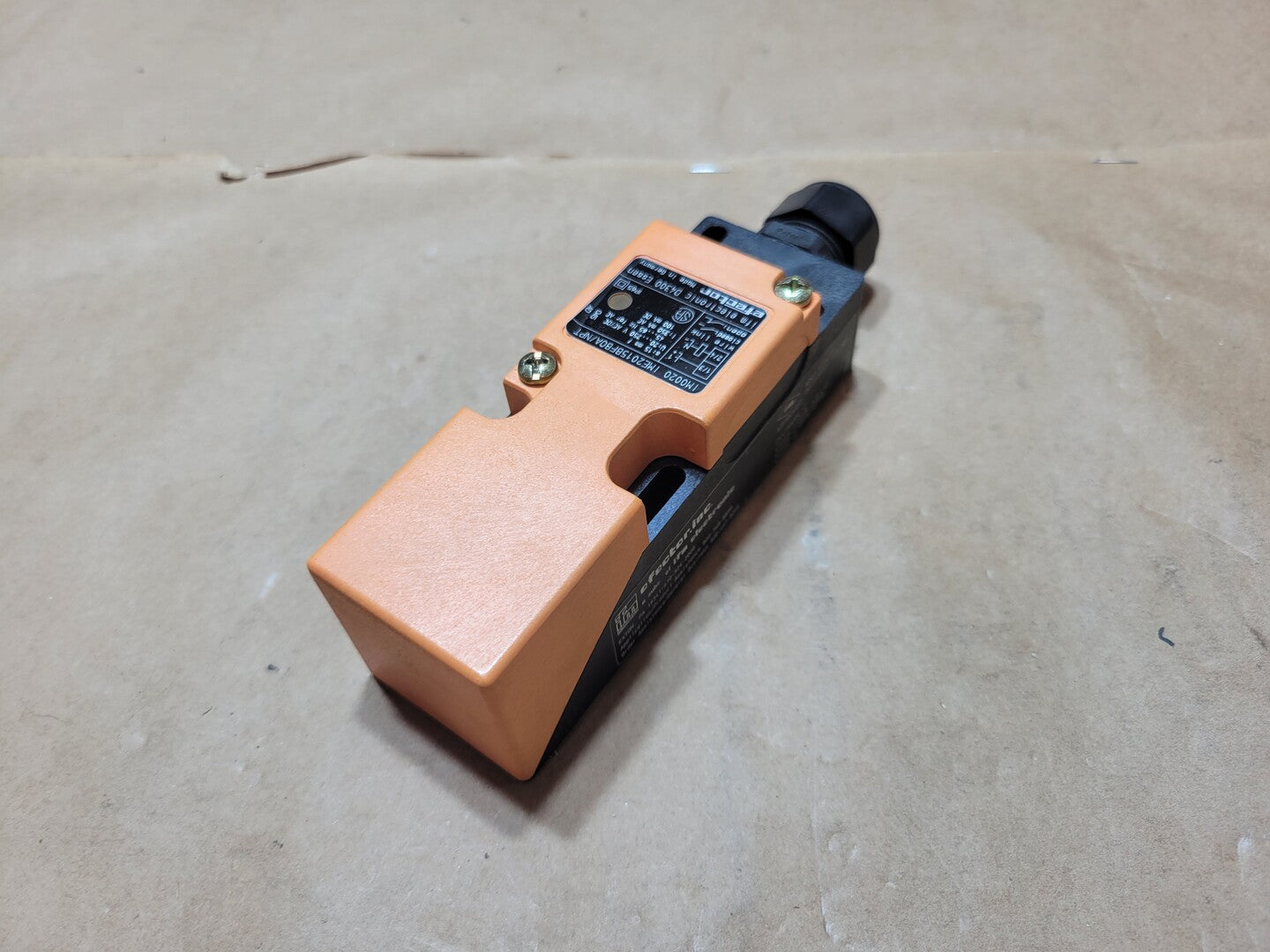

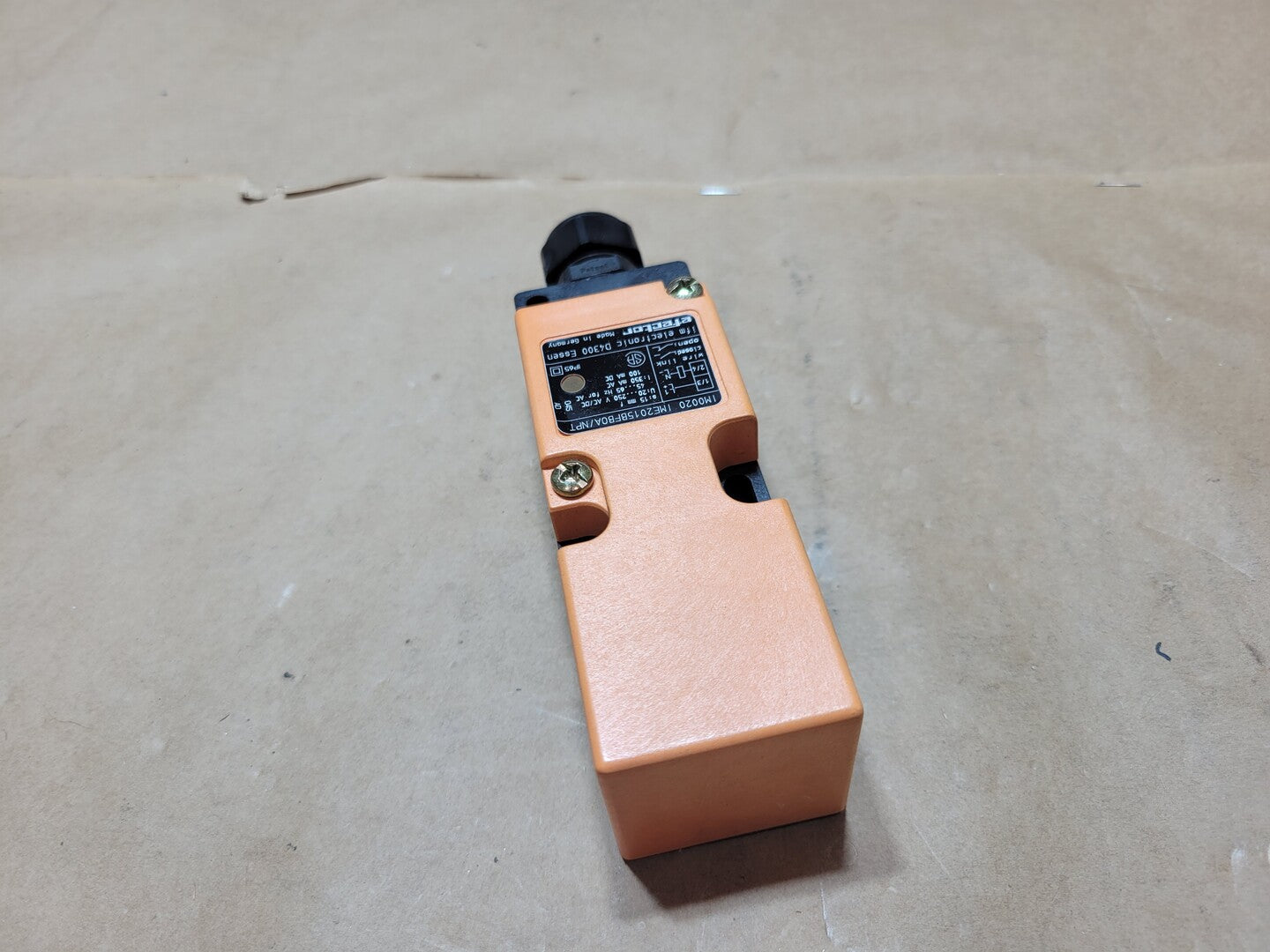

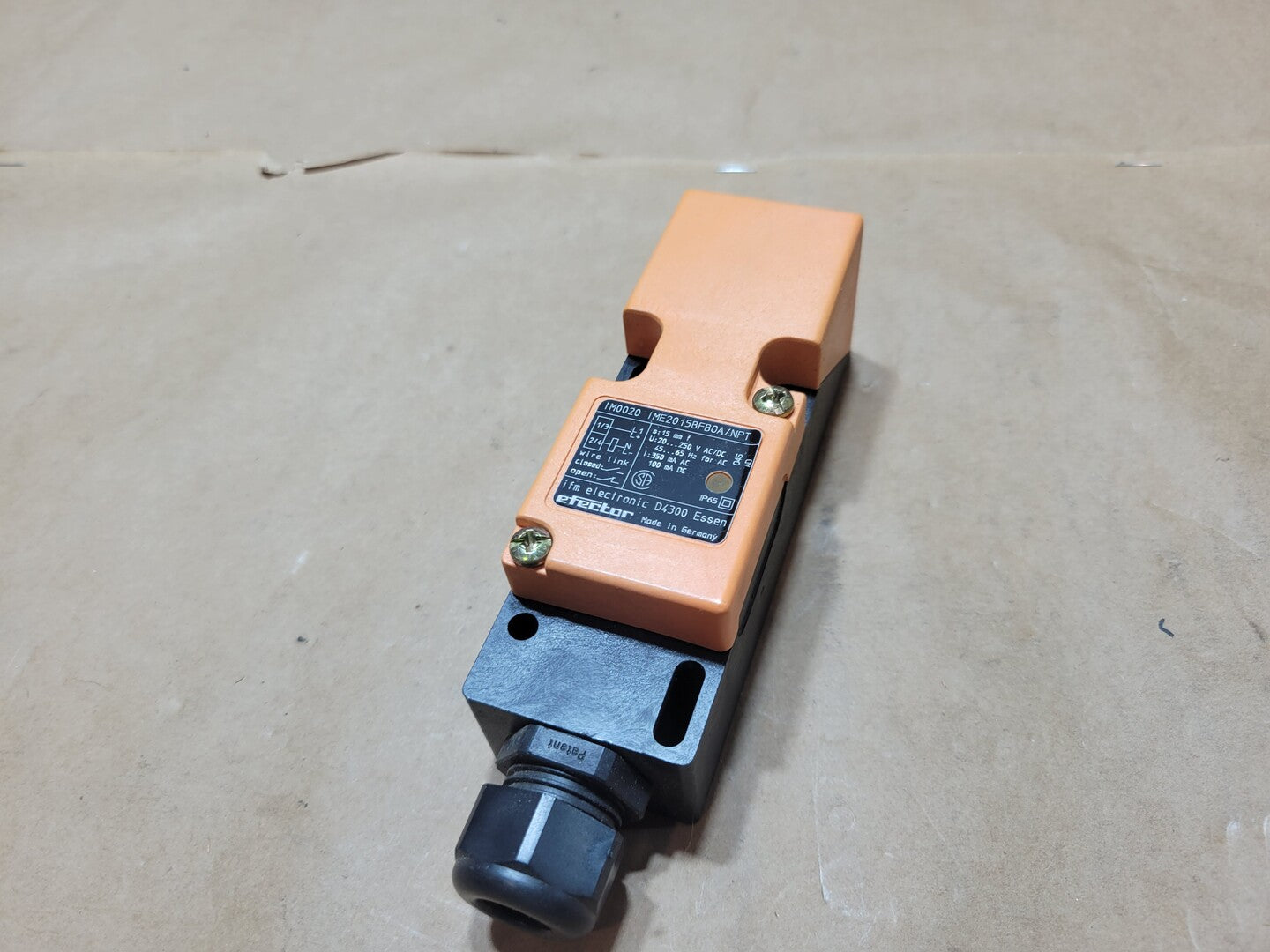

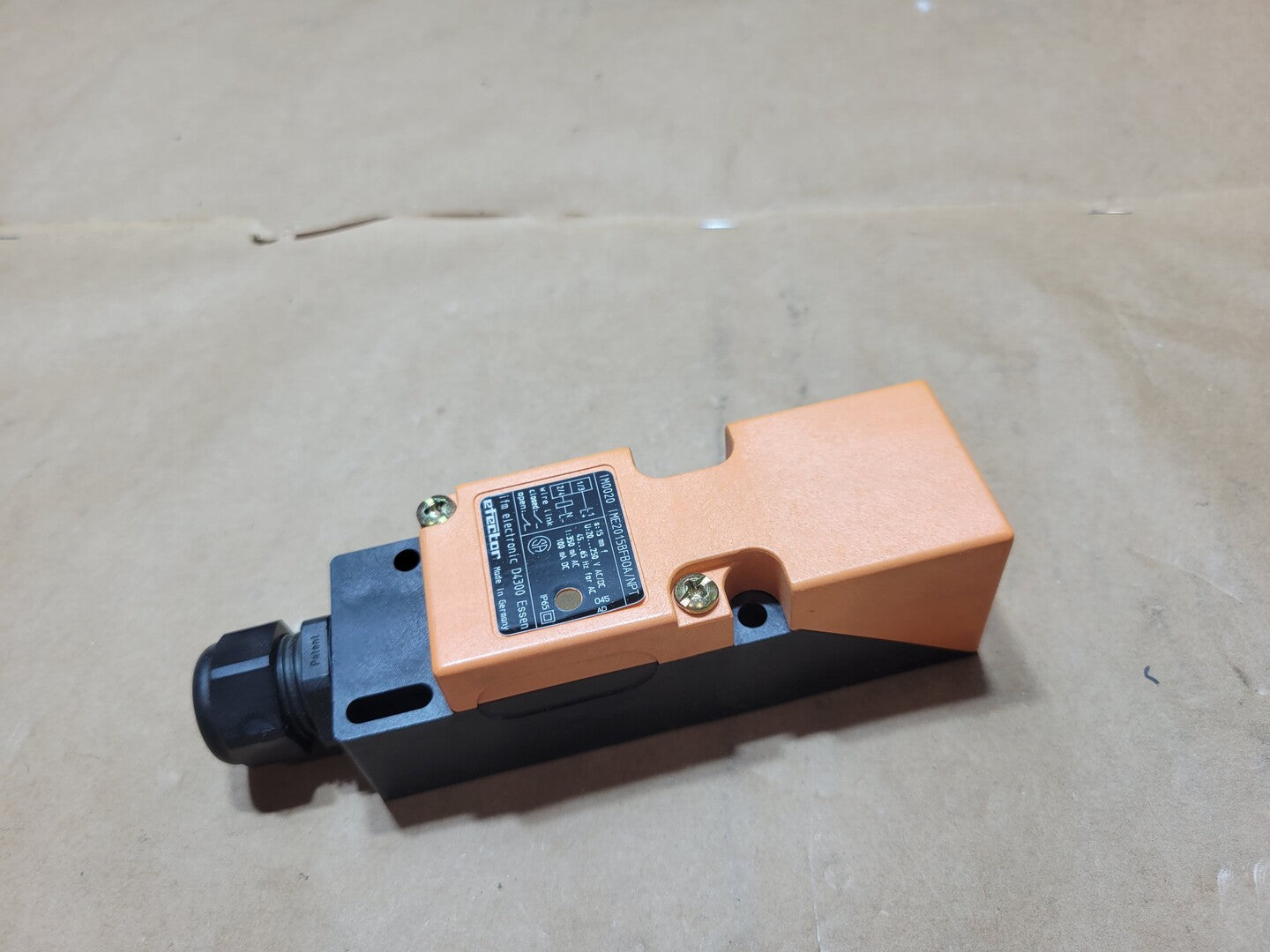

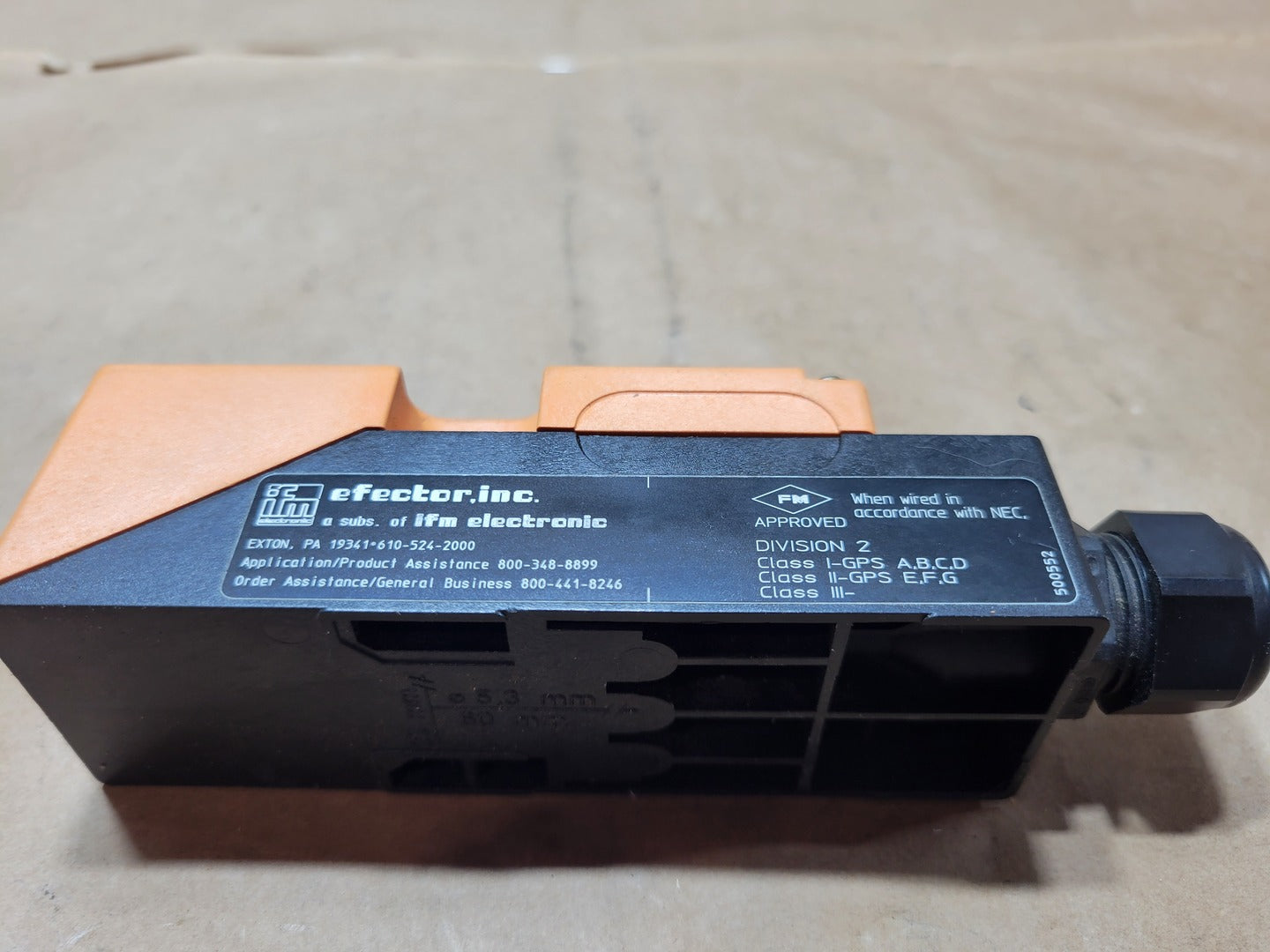

IFM Efector IM0020 rectangular inductive proximity sensor with a 15 mm sensing range, programmable normally-open or normally-closed output and broad 20-250 V AC/DC operating range. Features an adjustable sensing head, terminal connection enclosure, cable gland and IP65 protection.
| Specifications | |
|---|---|
| Model | IME2015BFBOA |
| Condition | Used |
| Other Specifications |
|---|
|
Sensor technology: Inductive proximity Housing style: Rectangular block Electrical design: Two-wire AC/DC Operating voltage: 20-250 V AC/DC Nominal sensing range: 15 mm Published operating distance: 0-12.1 mm Output function: Normally open or normally closed, programmable Programming method: Internal wire-link configuration Switching frequency: 20 Hz AC / 55 Hz DC Minimum load current: 5 mA Current rating shown: 350 mA AC / 100 mA DC Published continuous AC rating: 250 mA; 350 mA up to 50°C Peak output current: 2.2 A for 20 ms at 0.5 Hz Maximum voltage drop: Less than 6.5 V AC / 6 V DC Status indication: Red LED |
