MCG MC1D1810 18A 3-Pole Contactor with MR2D18321 12-18A Overload Relay
MCG

MC1D1810 18A 3-Pole Contactor with MR2D18321 12-18A Overload Relay

SKU: 157262
Price:
$85

Shipping calculated at checkout

Stock:
3 in Stock
Make an Offer

Need An Answer Now?

604-449-1880

Description

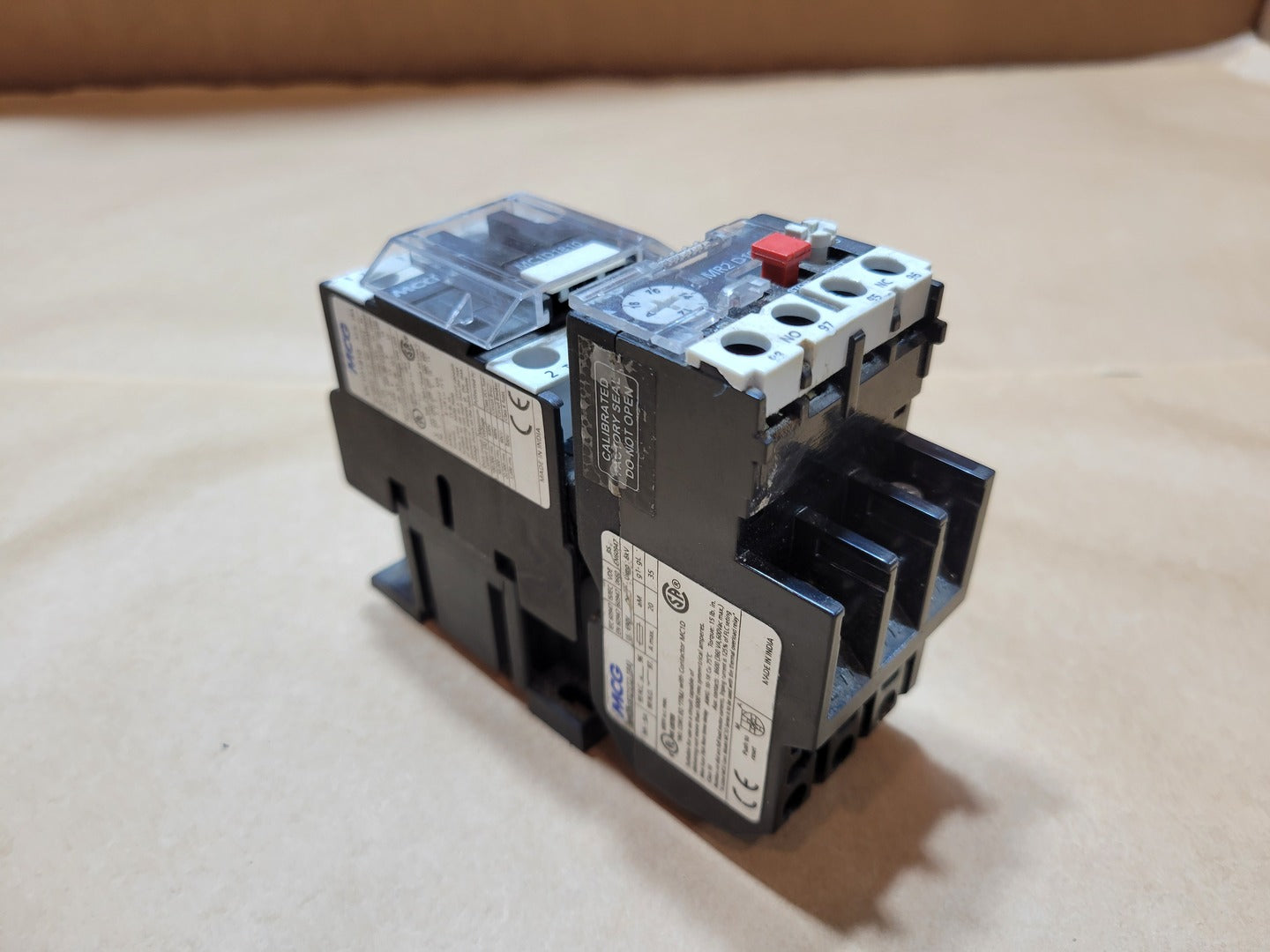

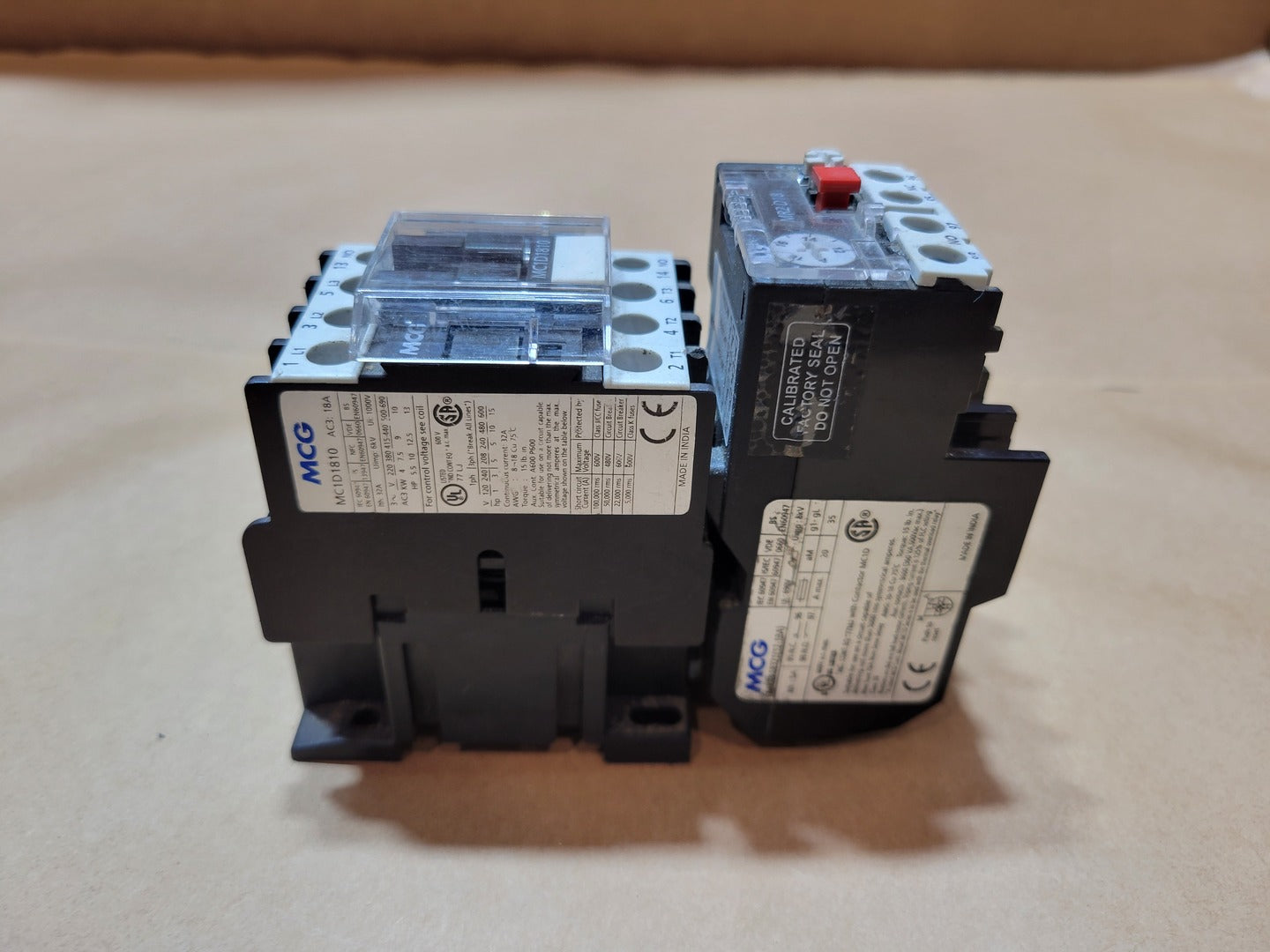

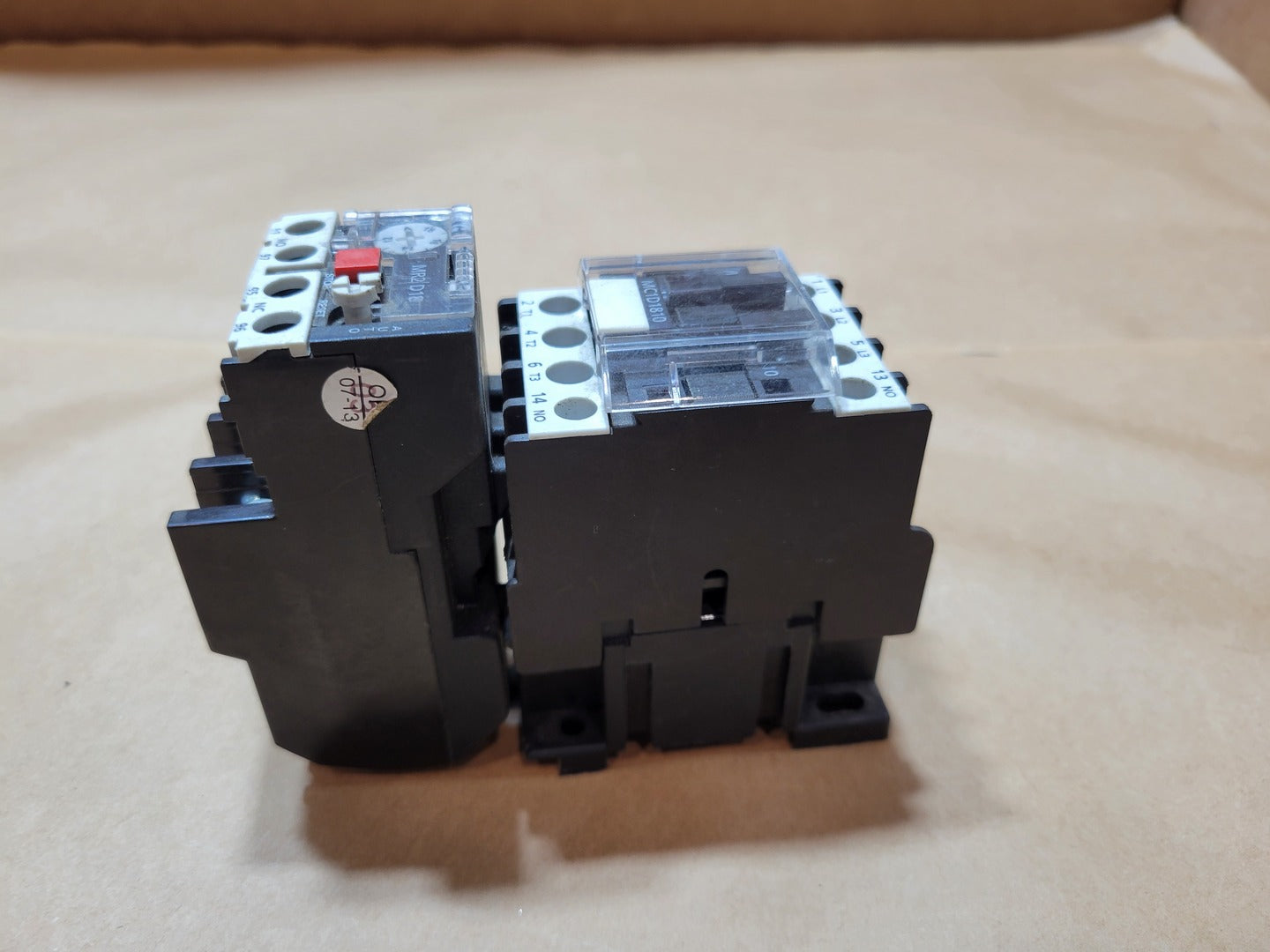

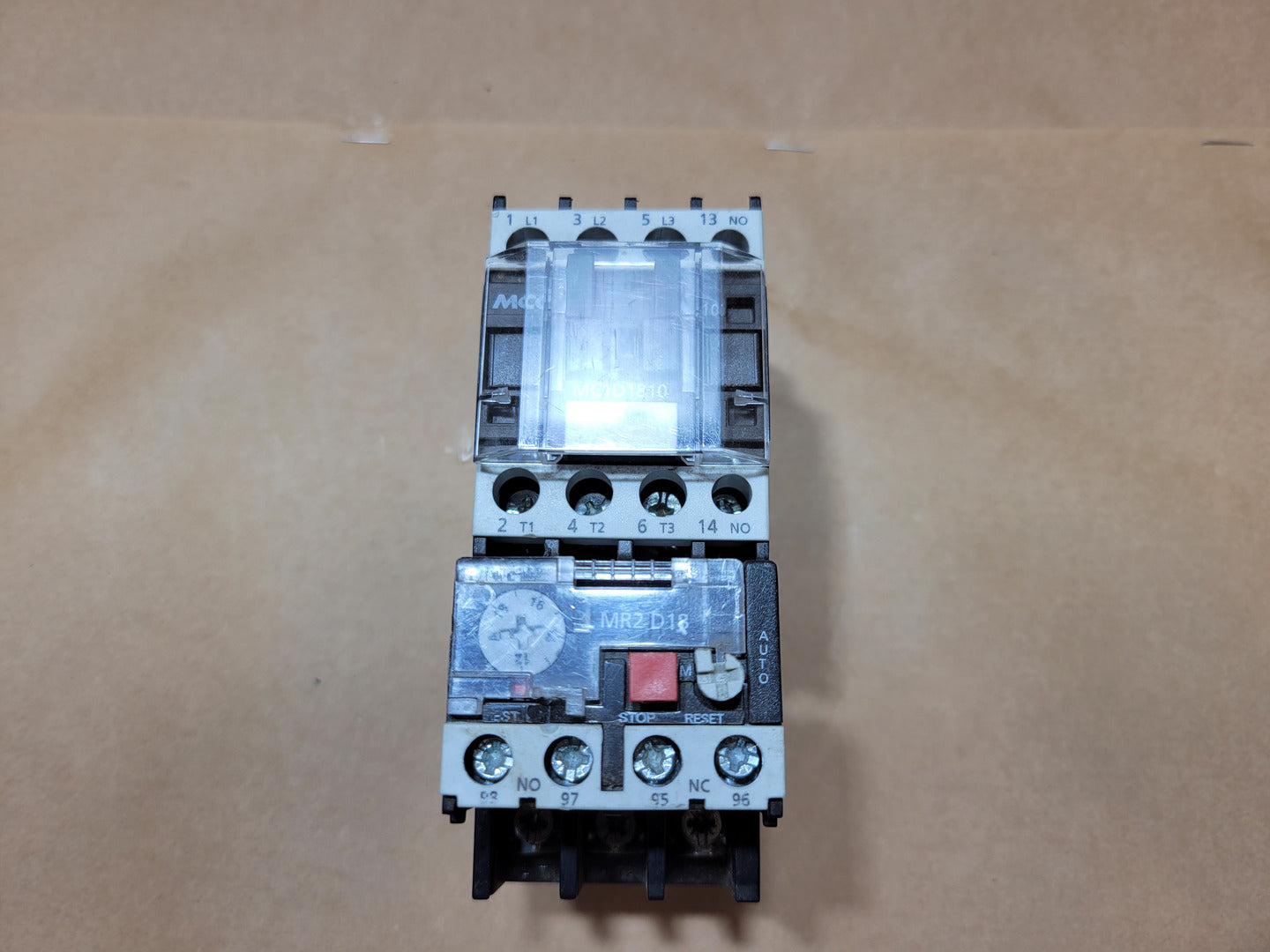

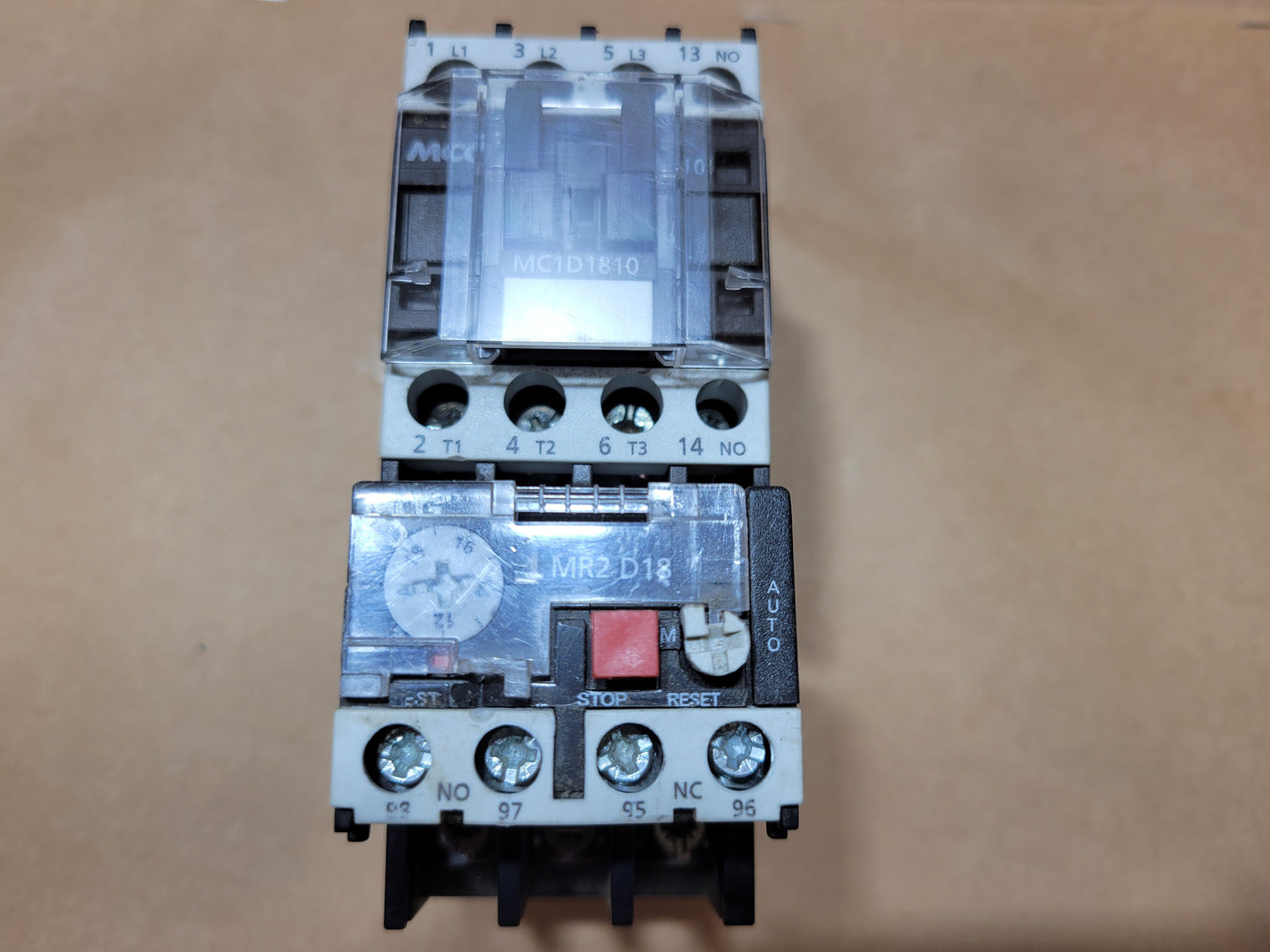

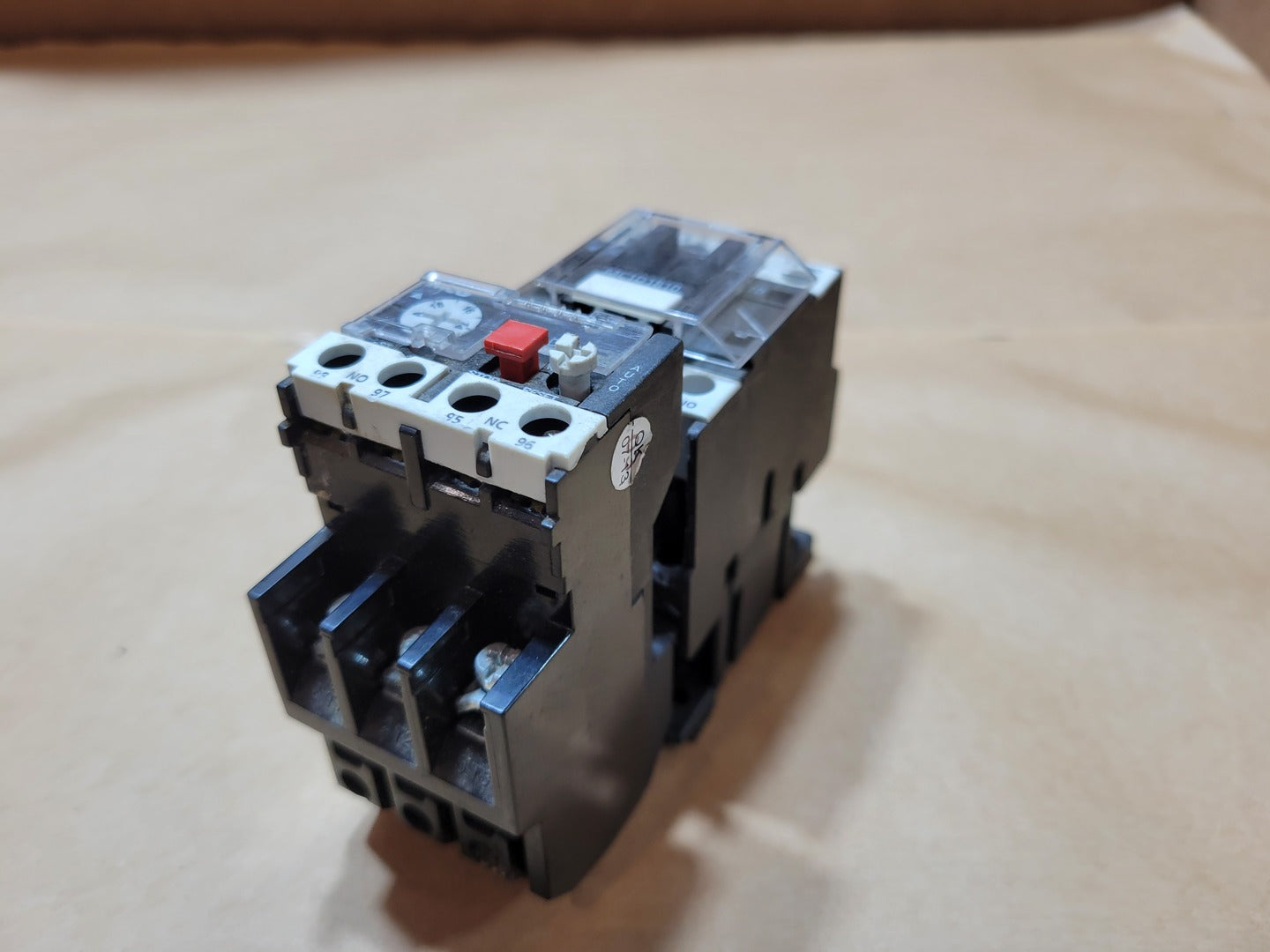

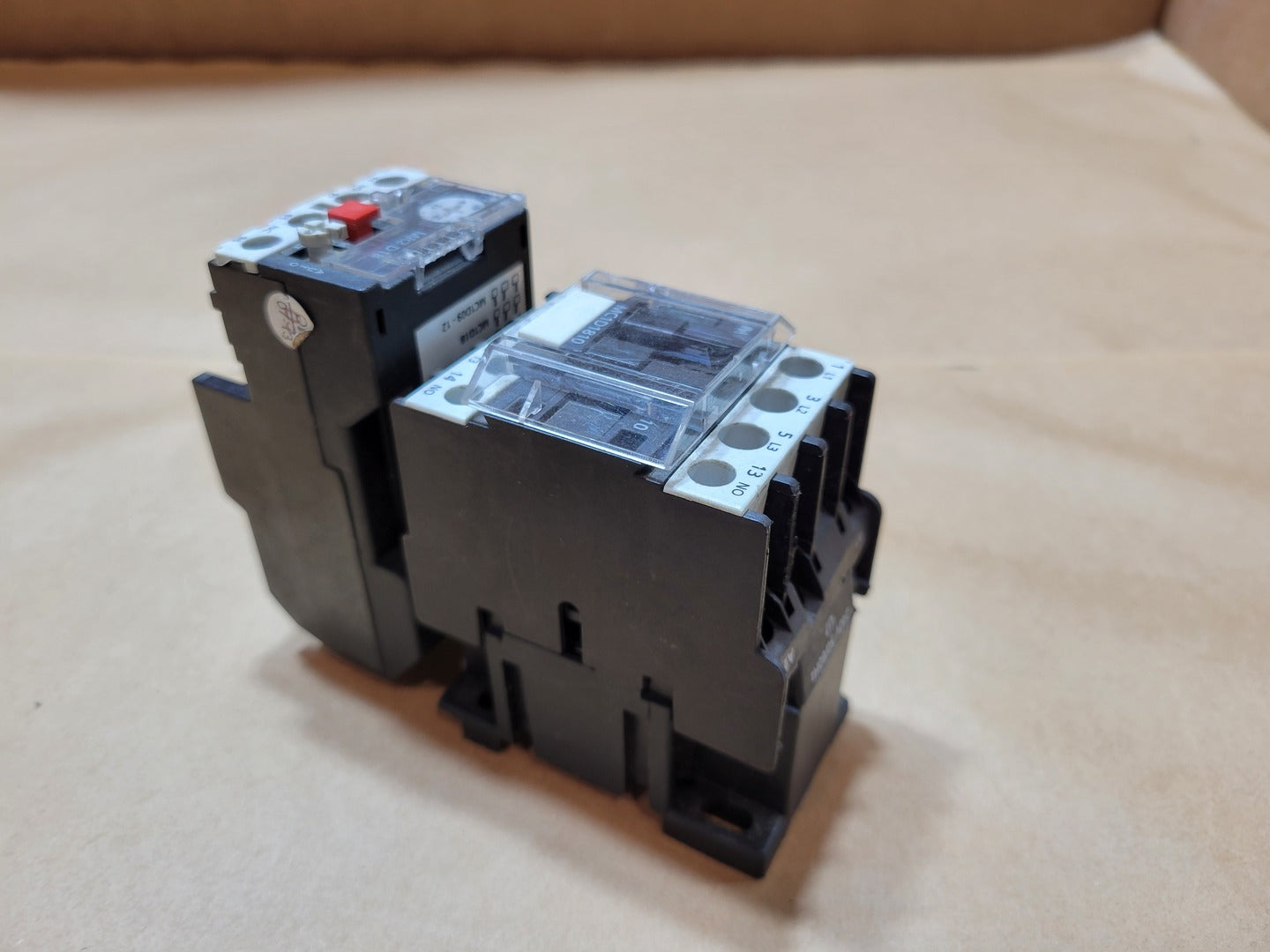

MCG IEC motor-control assembly consisting of an MC1D1810 three-pole contactor and an MR2D18321 adjustable thermal overload relay. The contactor is rated for 18A AC-3 motor duty and incorporates one normally open auxiliary contact at terminals 13-14. The Class 10 bimetallic overload relay has a 12-18A motor-current adjustment range, manual/automatic reset selection, stop button and separate trip contacts.
Specifications
Model MC1D1810
Condition Surplus New
Other Specifications

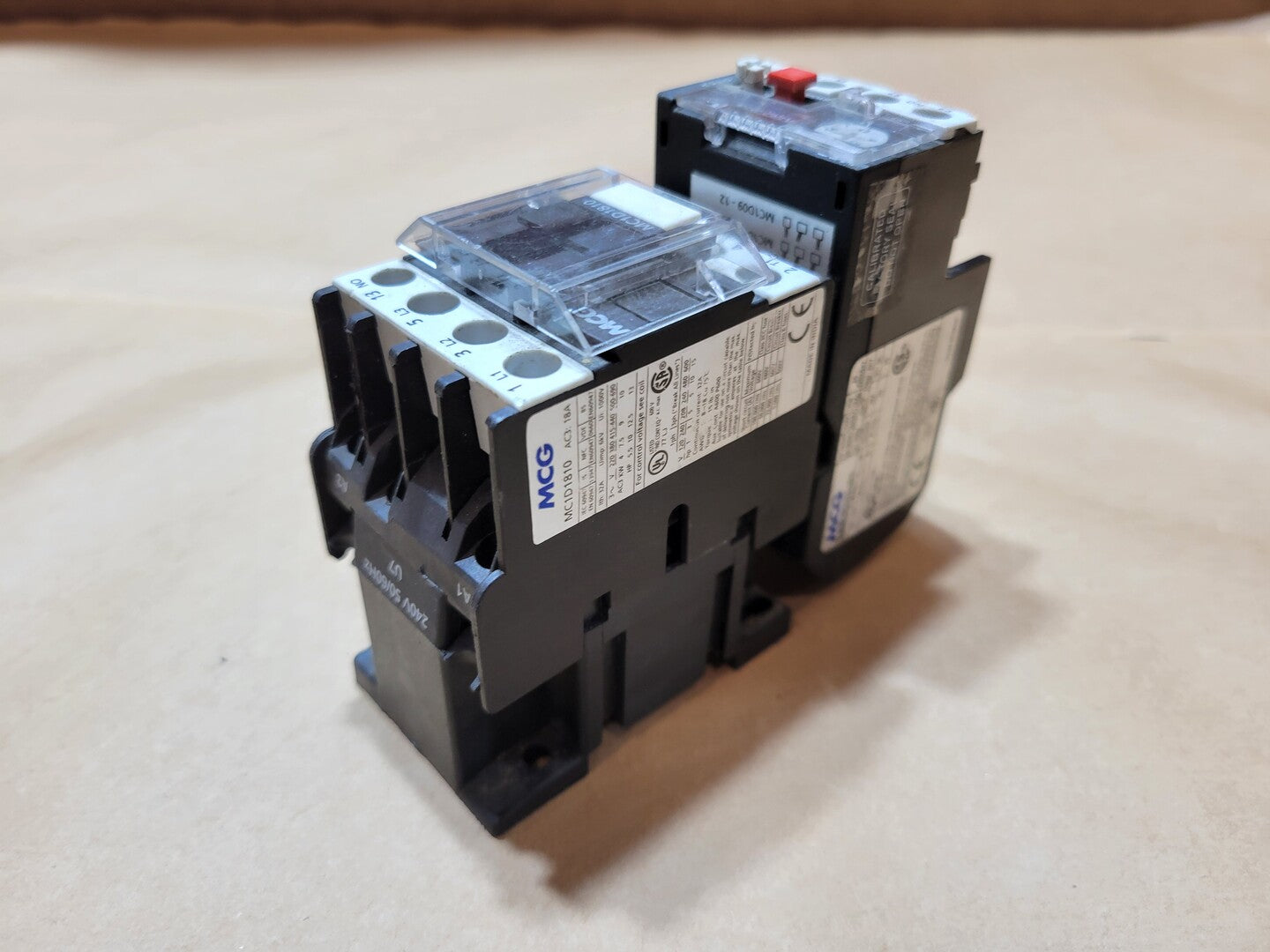

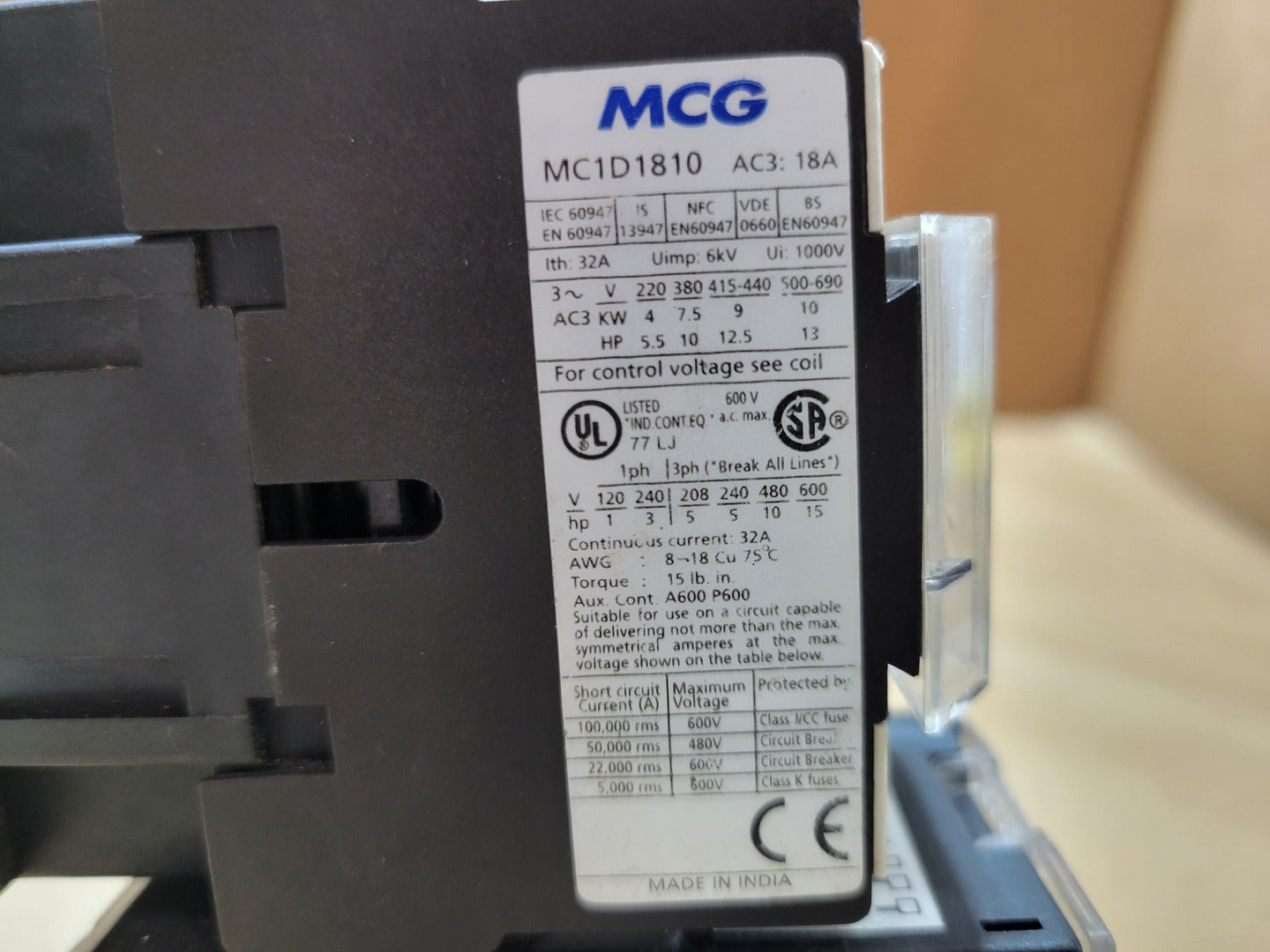

MC1D1810 contactor

Manufacturer: MCG

Model: MC1D1810

Product type: IEC magnetic contactor

Main contacts: Three normally open

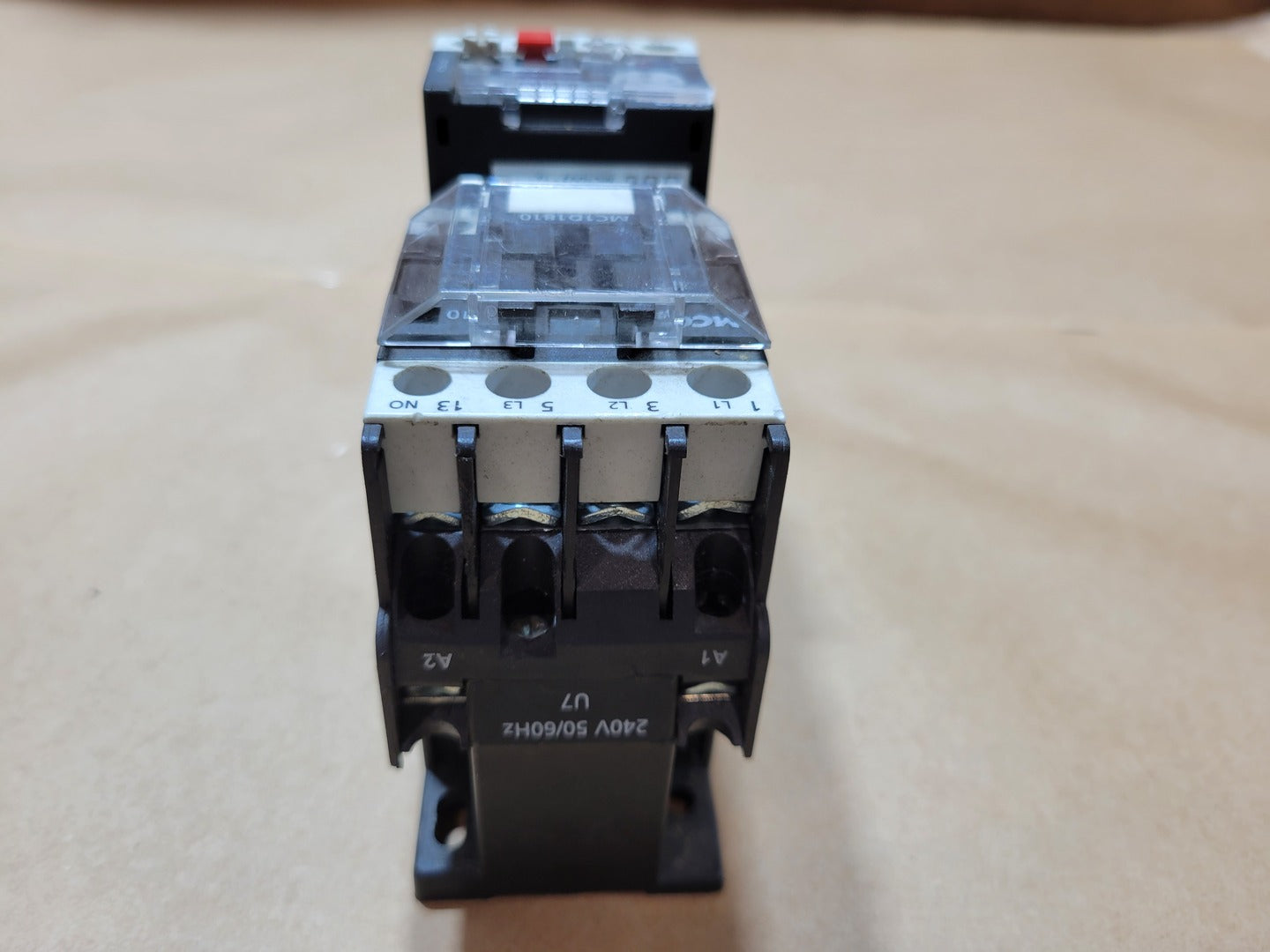

Auxiliary contacts: One normally open, 13-14

AC-3 operational current: 18A

Conventional thermal current: 32A

Rated insulation voltage: 1000V

Rated impulse withstand voltage: 6 kV

Maximum listed operational voltage: 600VAC

Auxiliary-contact rating: A600/P600

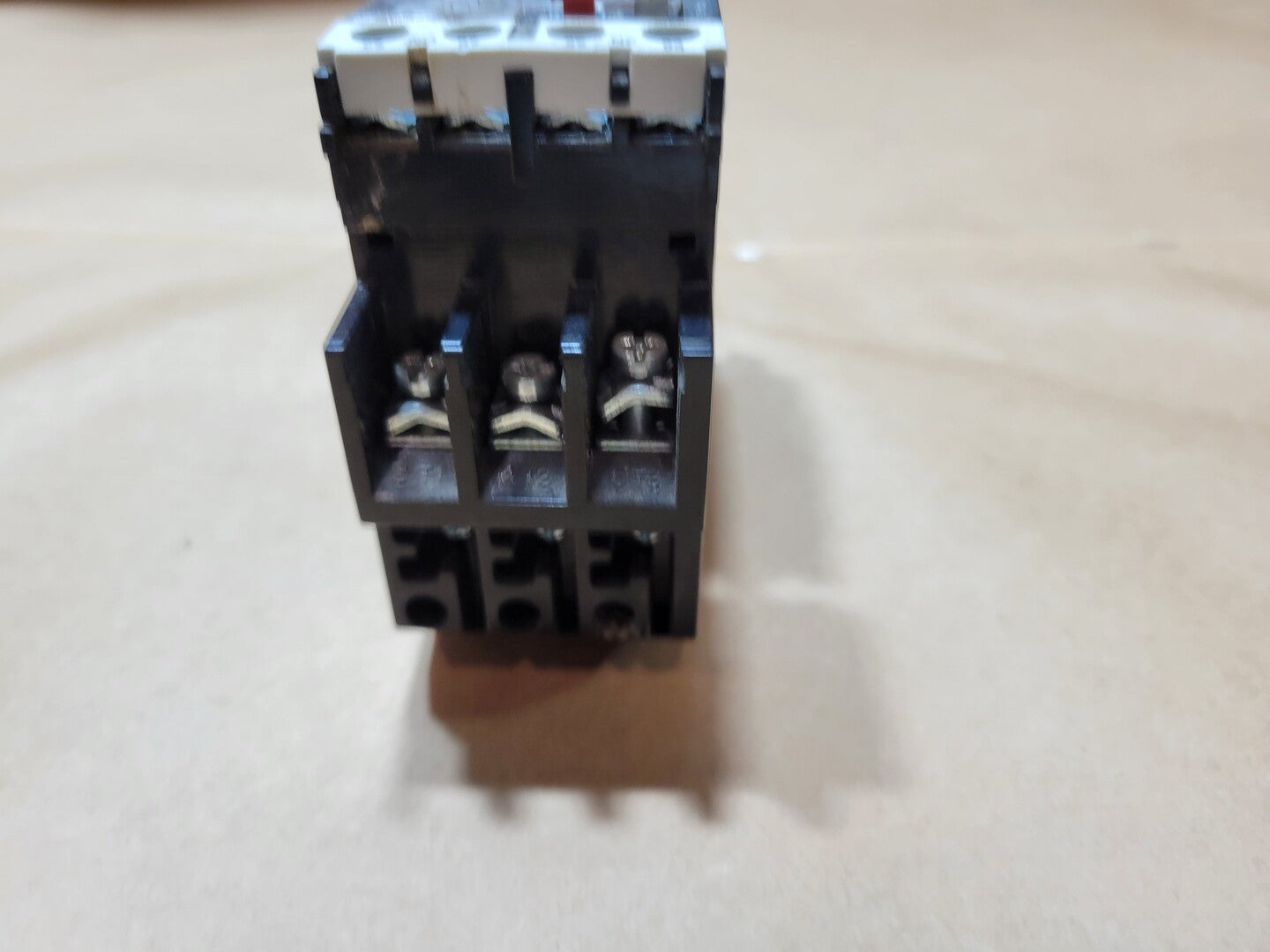

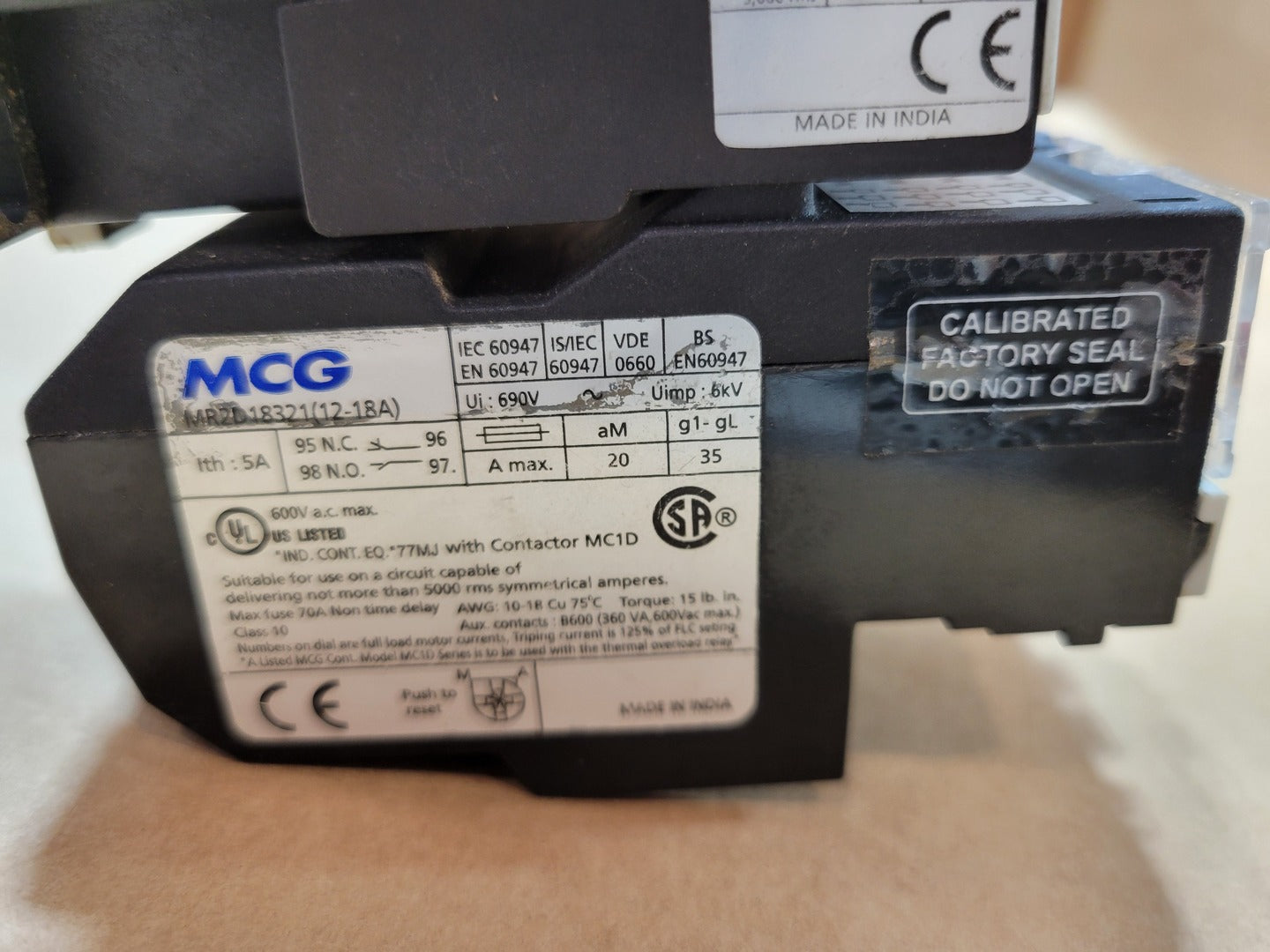

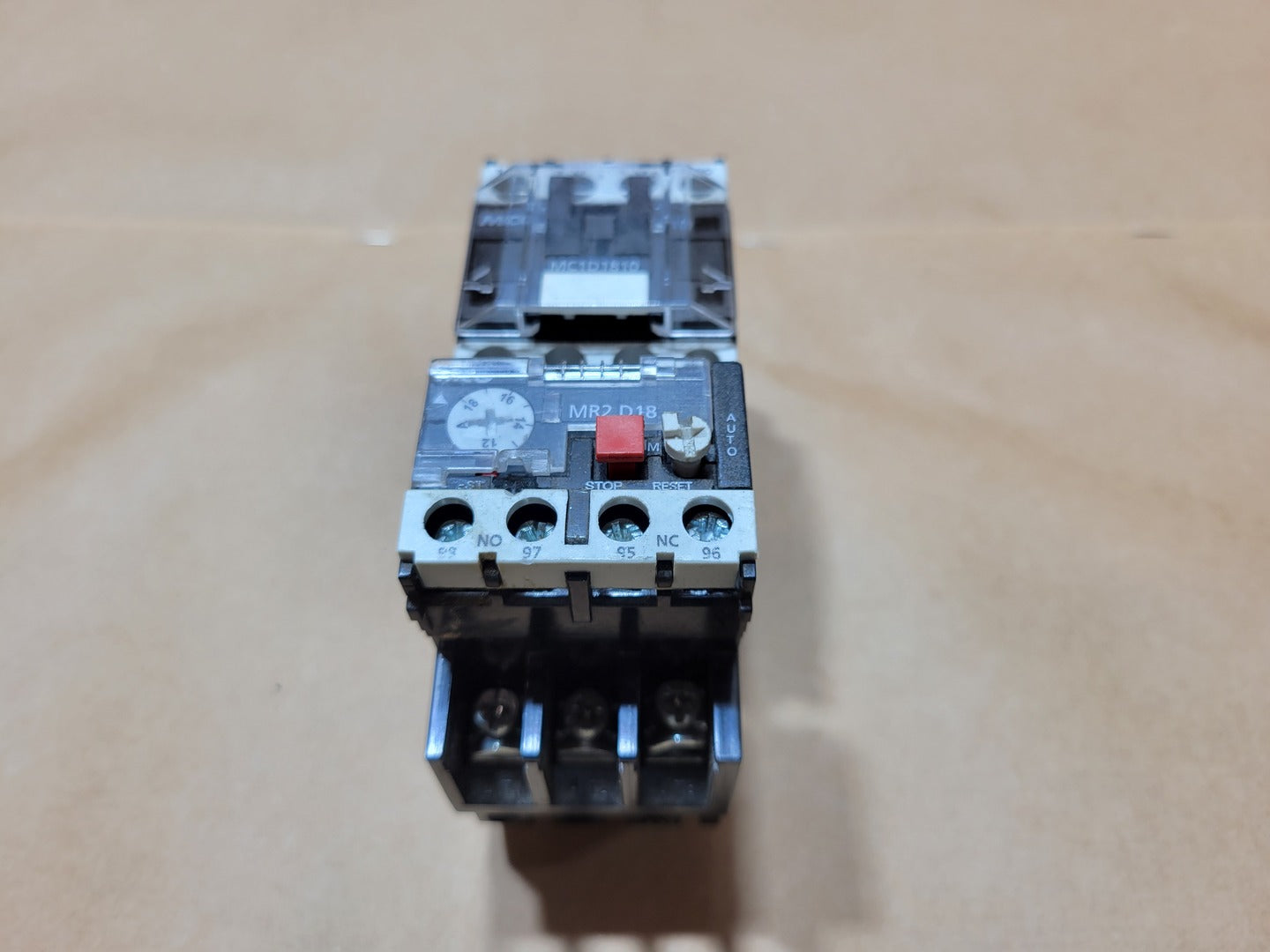

MR2D18321 overload relay

Manufacturer: MCG

Model: MR2D18321

Relay type: Bimetallic thermal overload

Trip class: Class 10

Number of protected poles: Three

Adjustment range: 12-18A

Auxiliary thermal current: 5A

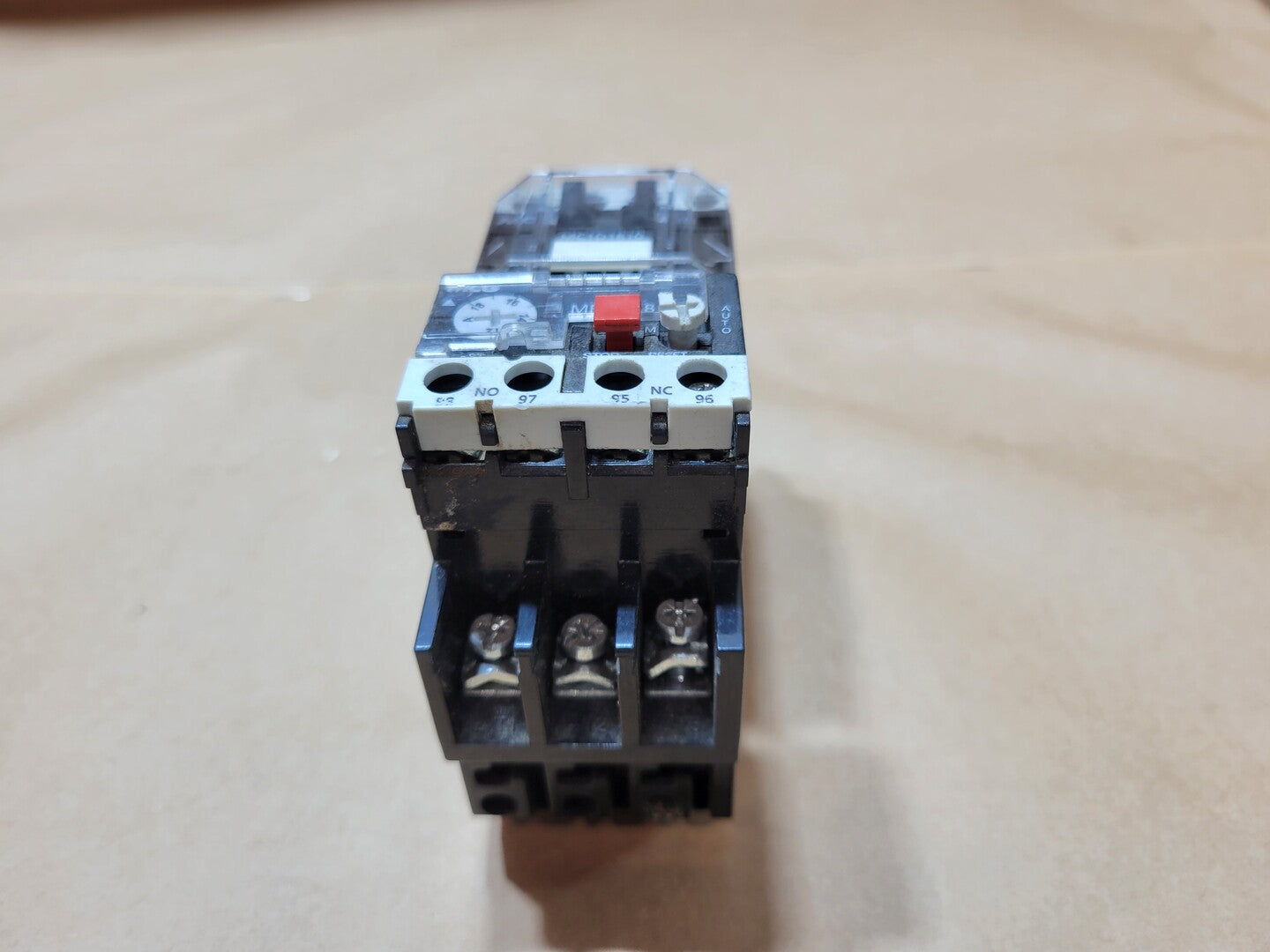

Normally closed trip contact: 95-96

Normally open trip contact: 97-98

Reset selection: Manual or automatic

Stop control: Front stop button

Reset control: Front reset selector/button

Rated insulation voltage: 690V

Rated impulse withstand voltage: 6 kV

Auxiliary-contact rating: B600
