SQUARE D Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus
SQUARE D

Model 6 Motor Control Center MCC Section, 600V, 3PH, 1200A Bus

SKU: 151753
Price:
$4,164

Shipping calculated at checkout

Stock:
Only 1 unit left
Make an Offer

Need An Answer Now?

604-449-1880

Description

Specifications
Model Model 6
Condition Used
Other Specifications

Note: Section 2 only

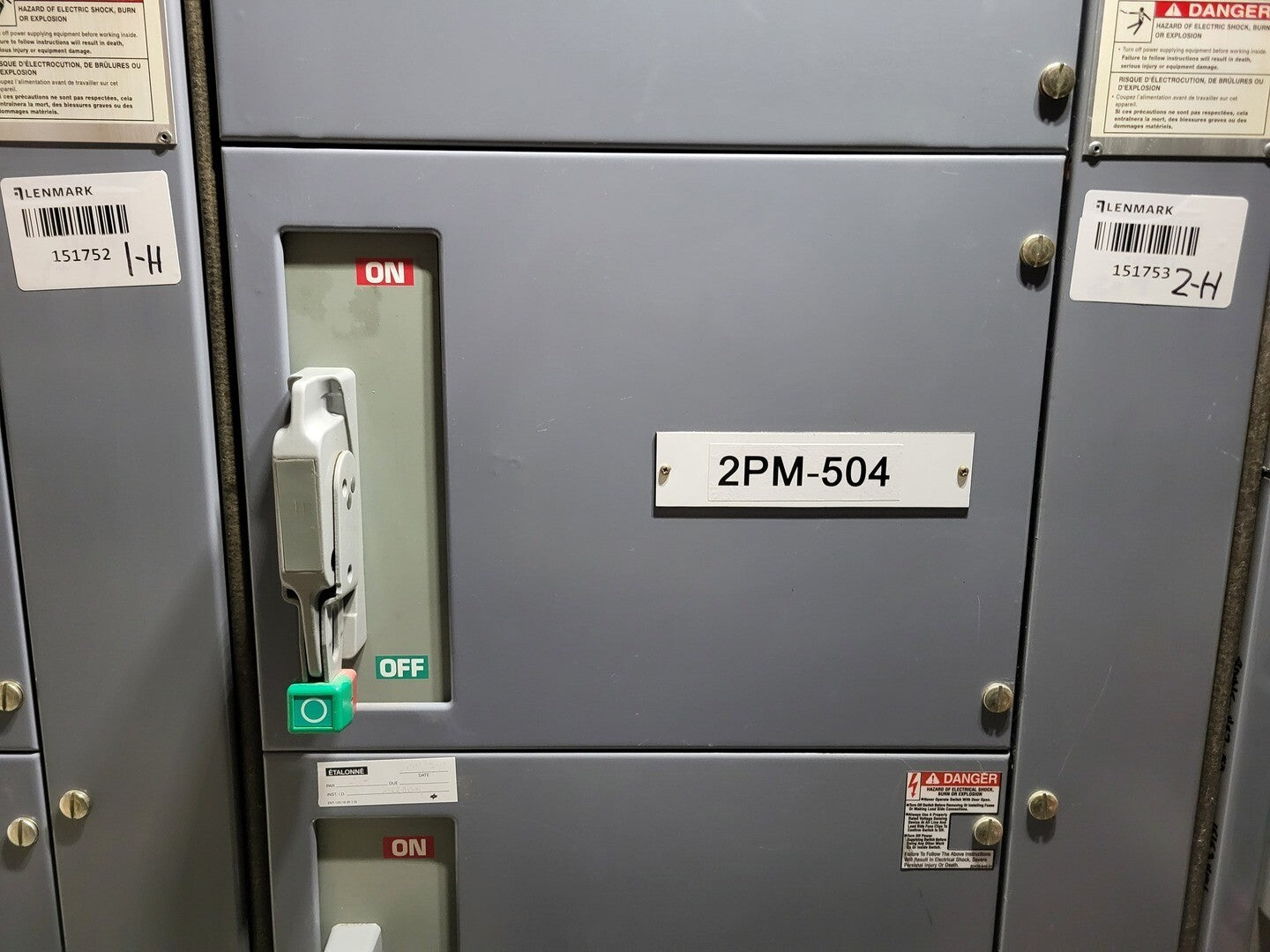

Bucket #1 PM-504

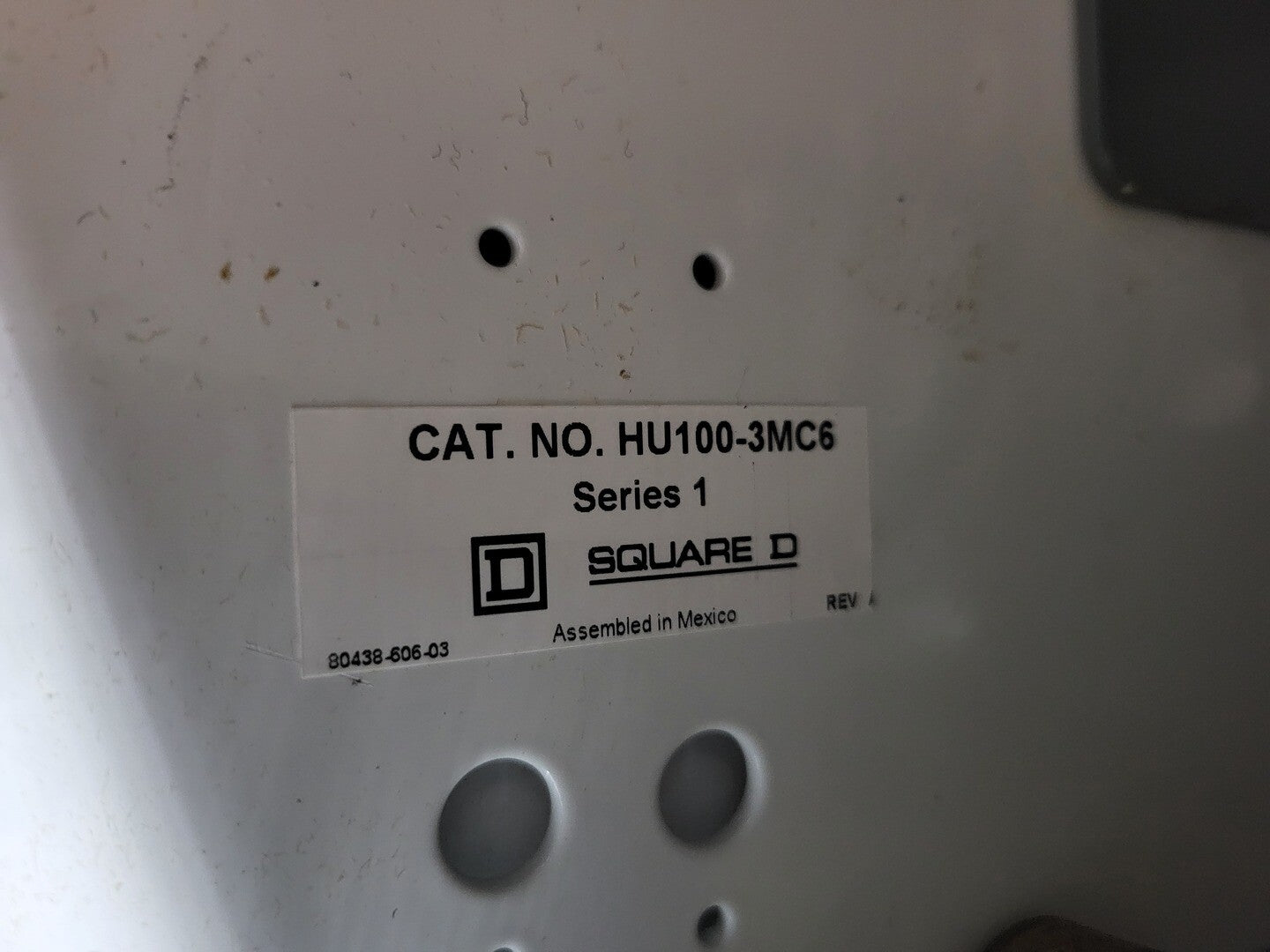

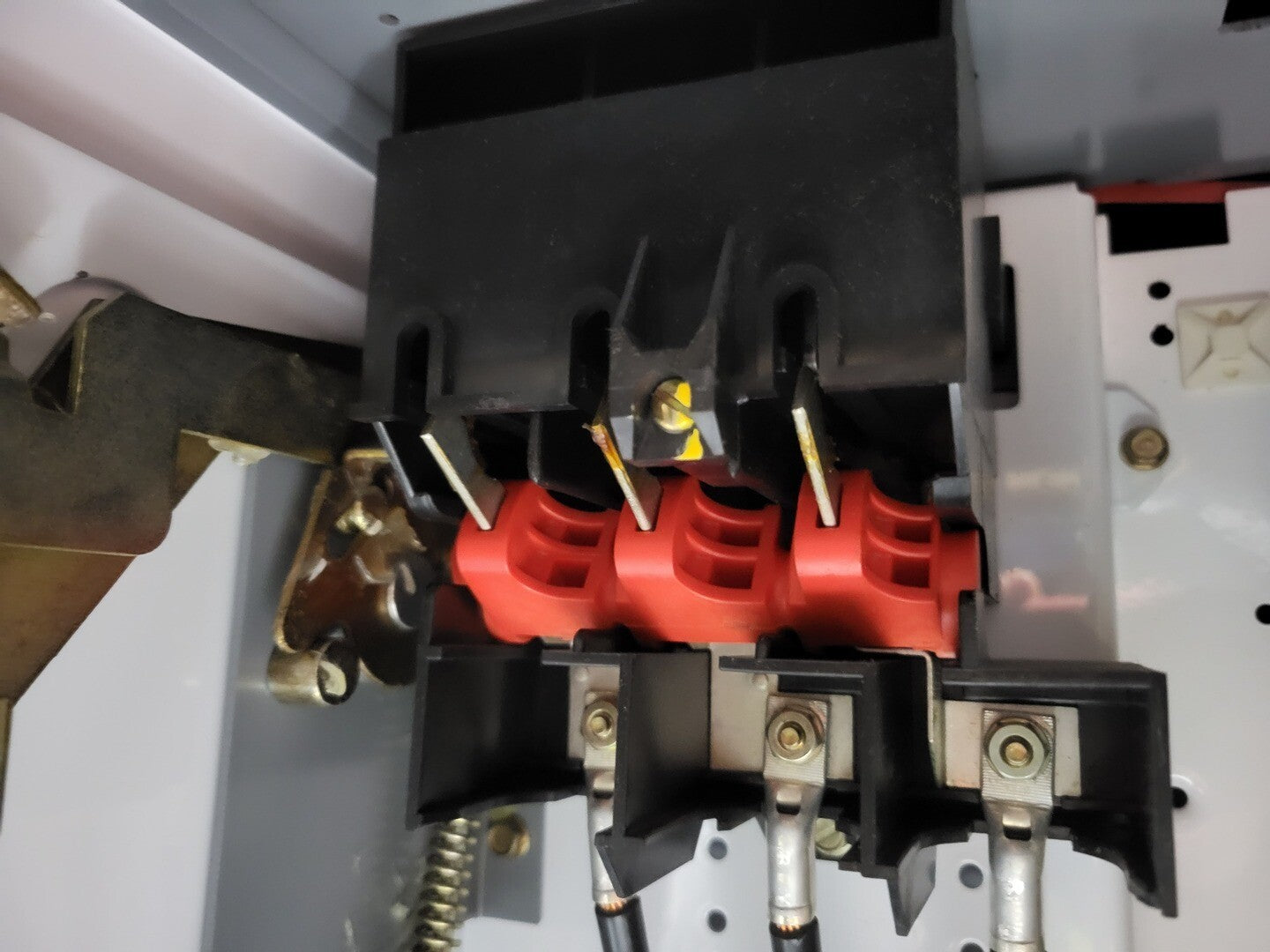

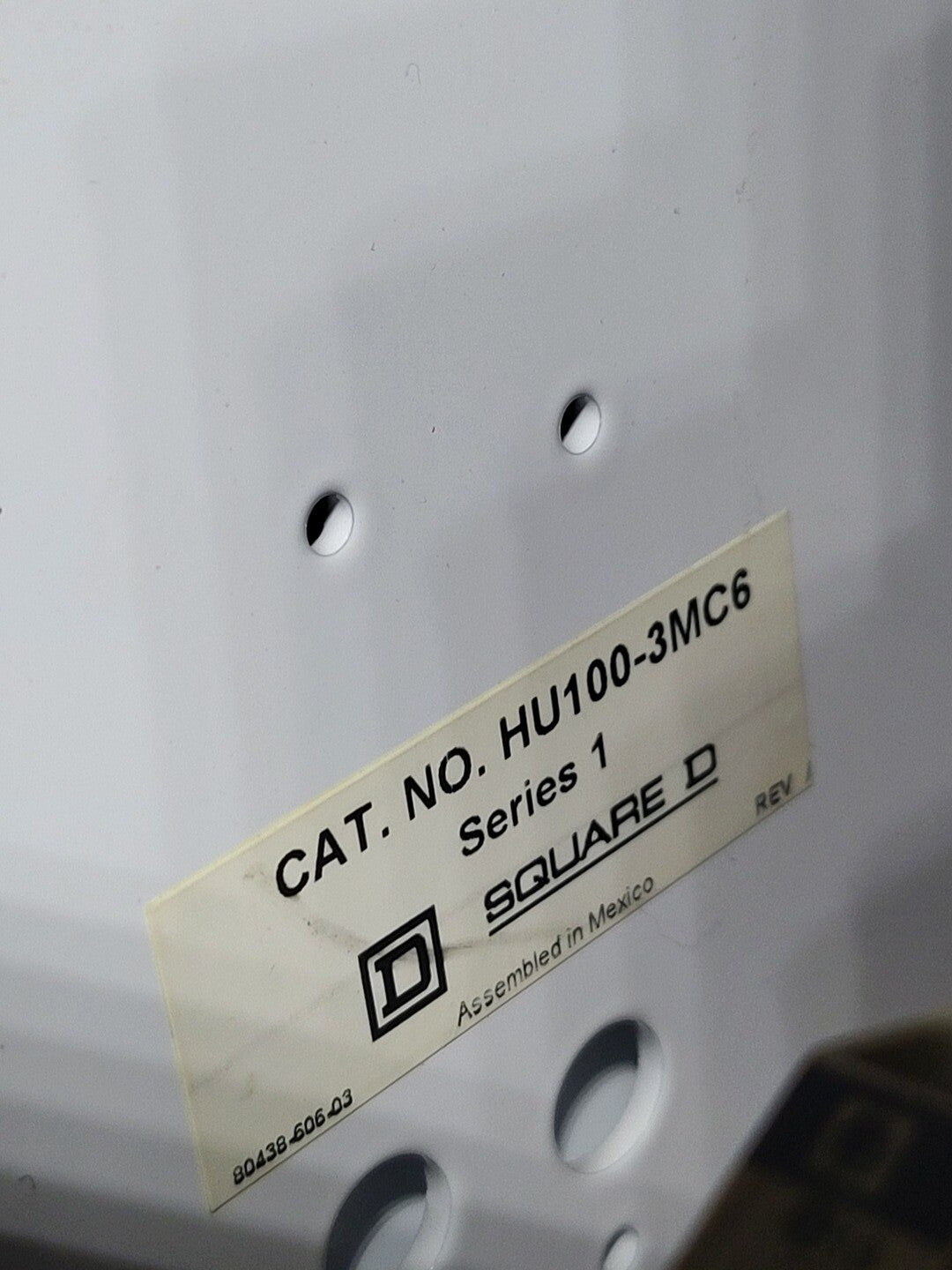

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit

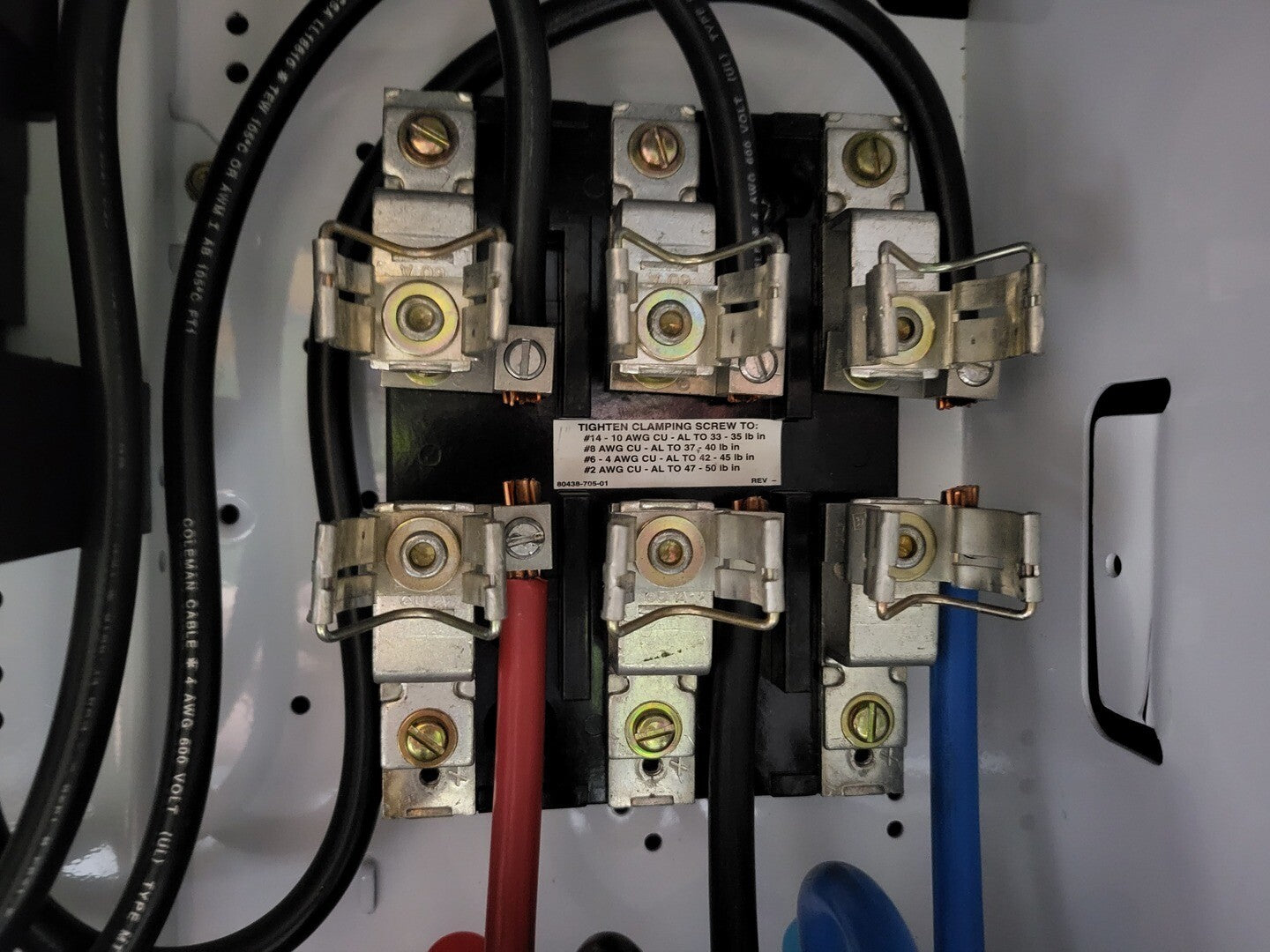

  2. 3 x Bussmann Low-Peak fuses, likely LPJ-45SP

Bucket #2 2N-HTP6-05

  1. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  2. 3 x Bussmann Low-Peak fuses LPJ-100SP

Bucket #3 2GM-4004A

  1. Square D 8536SDO1B56S, Series B, NEMA Size 2 contactor, 25 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SP26, motor protection relay, 10.0-45.0A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Cooper Bussmann CC-Tron FNQ-R fuses

Bucket #4 2GM-3101B

  1. Square D 8536SCO3B46S, NEMA Size 1 contactor, 10 HP @ 460/575V
  2. Square D Motor Logic Plus 9065 SPB6, motor protection relay, 0.5-2.3A range, 600VAC max
  3. Square D 9070EL2D5, control transformer, 0.07 kVA @ 50Hz / 0.1 kVA @ 60Hz
  4. 3 x Telemecanique ABR-2E116F slim relay modules, 120-127VAC coil
  5. Schneider Electric TSX Momentum 170DNT11000 communication adapter / PROFIBUS DP module
  6. Square D HU100-3MC6, Series 1, 100A MCC bucket disconnect unit
  7. 2 x Cooper Bussmann CC-Tron FNQ-R fuses
